H263 - Silence of the lambs
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 25.19 25.19 File size byte 1.4e+08 1.4e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 50287.00 mean frame size byte 1509.14 2703.46 var frame size - 5799499.91 7160416.42 CoV of frame size - 1.60 0.99 min frame size byte 0.00 95.00 max frame size byte 27776.00 27776.00 Peak/Mean frame - 18.41 10.27 Mean bit rate bit/sec 3e+05 Peak bit rate bit/sec 5.3e+06 Peak/Mean of bit rate - 17 CoV of bit rate - 1.1 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

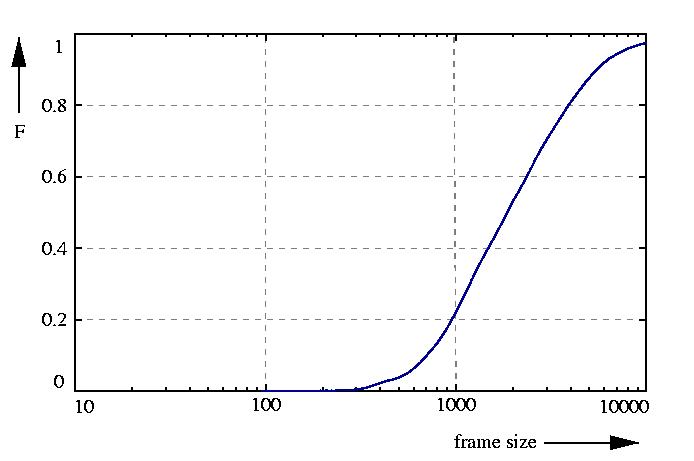

probability function F = sum p

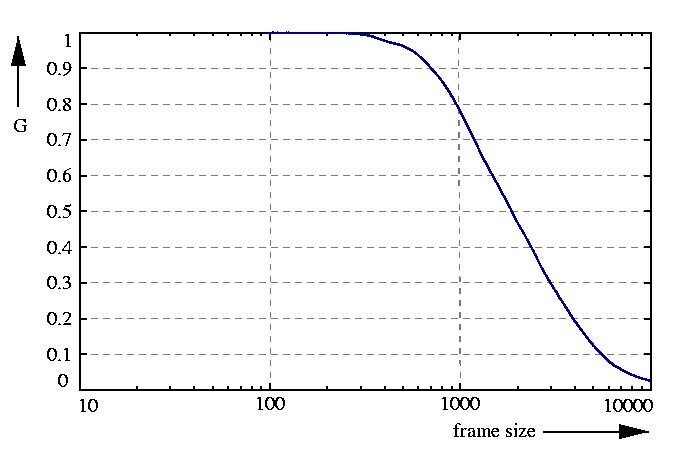

inverse probability function G = 1 - F

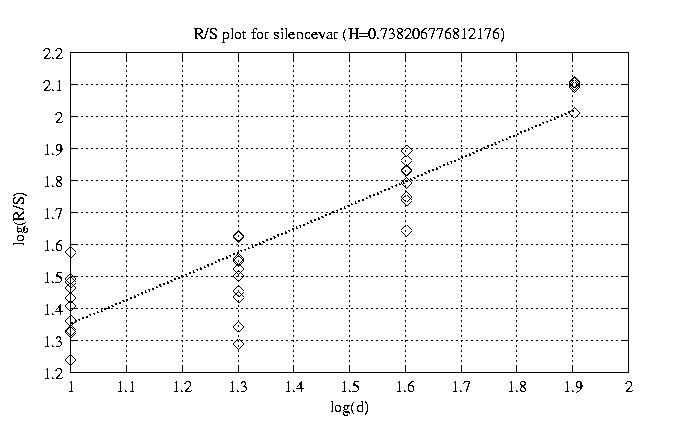

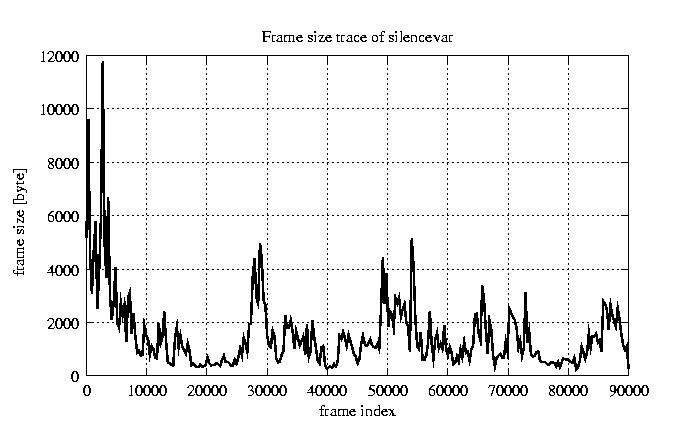

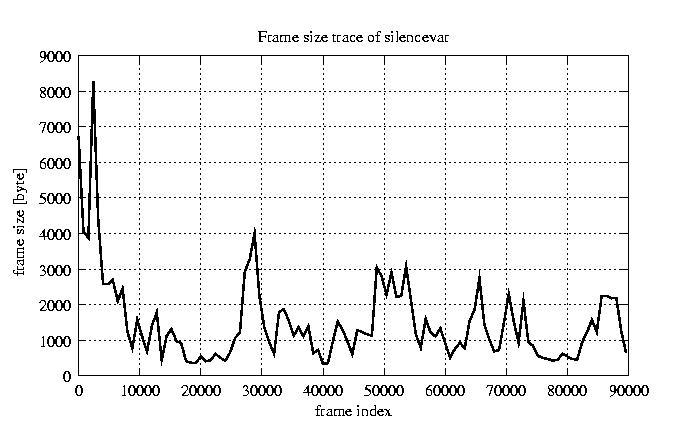

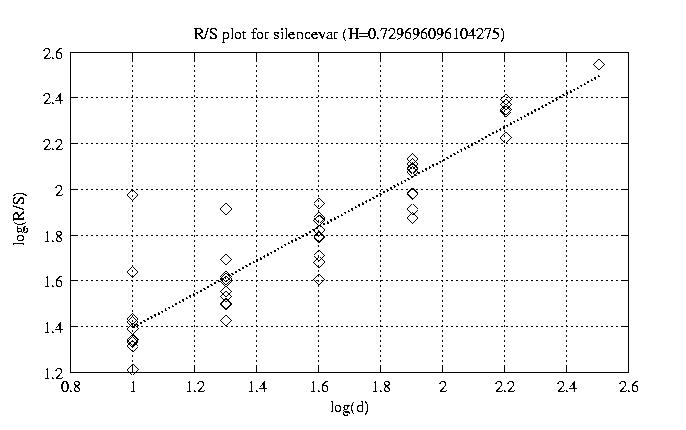

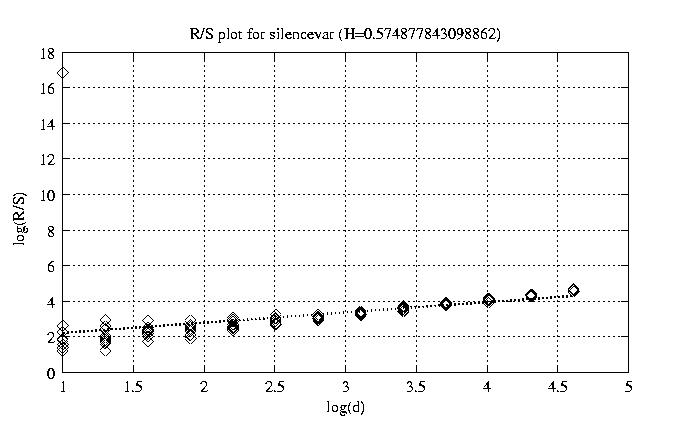

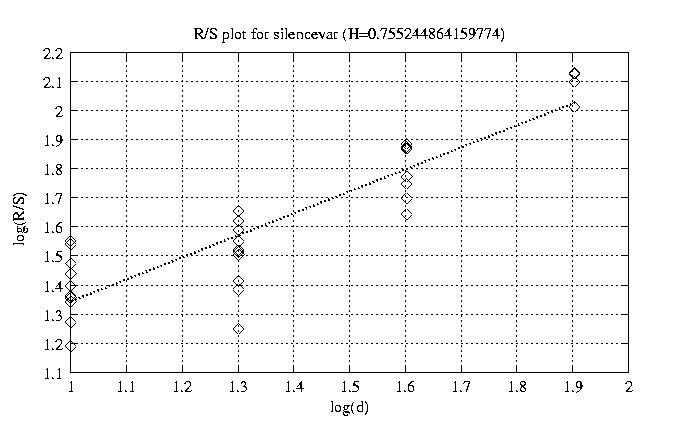

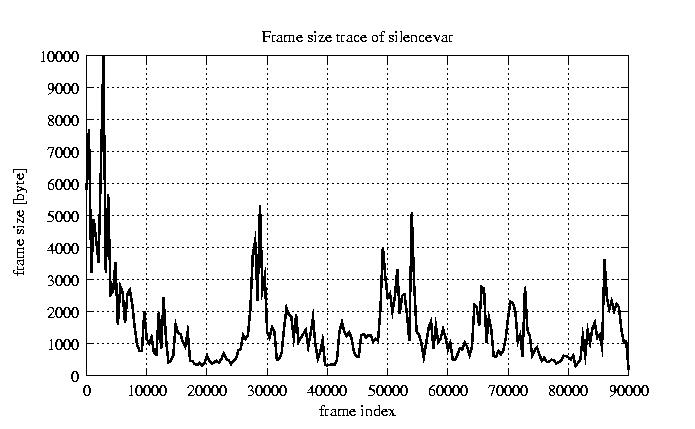

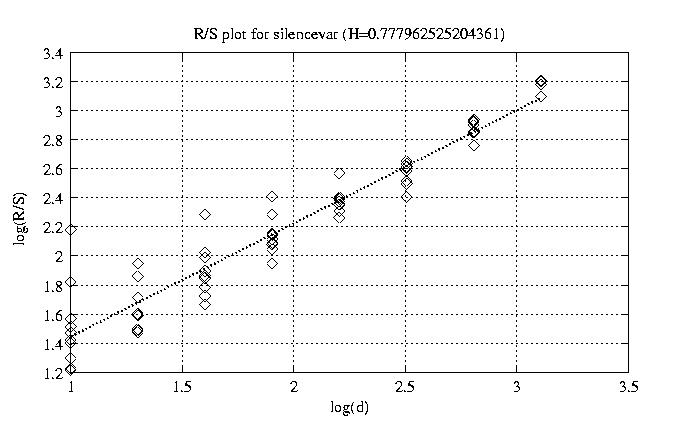

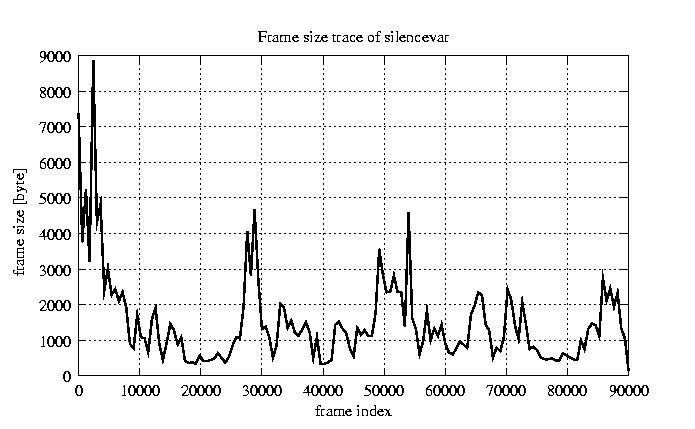

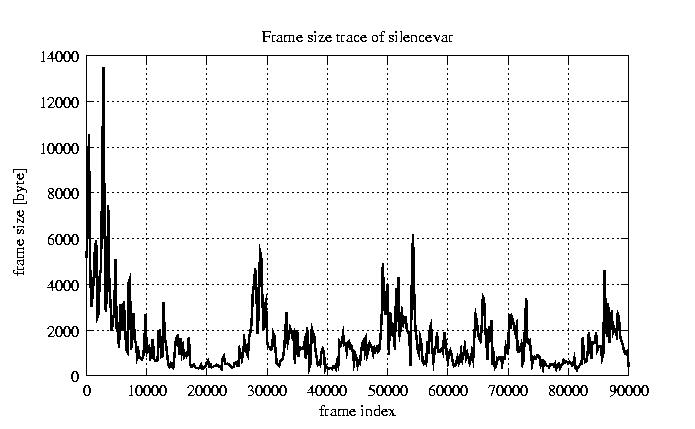

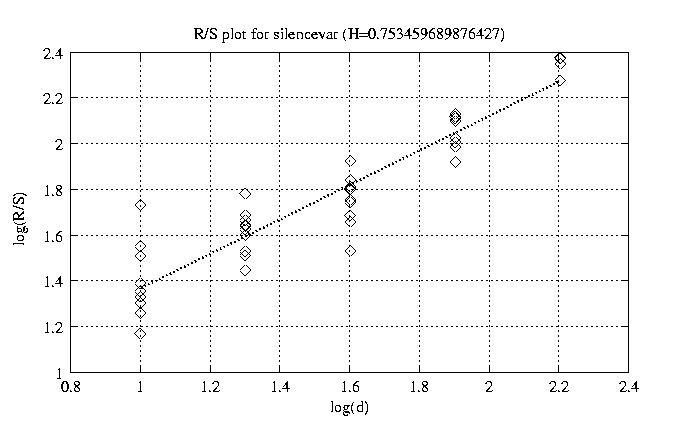

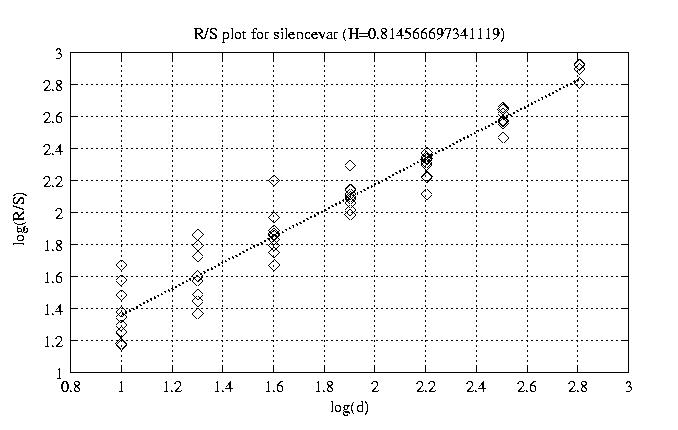

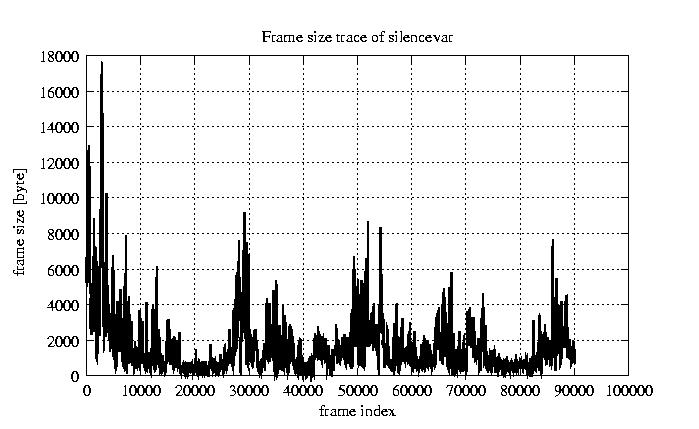

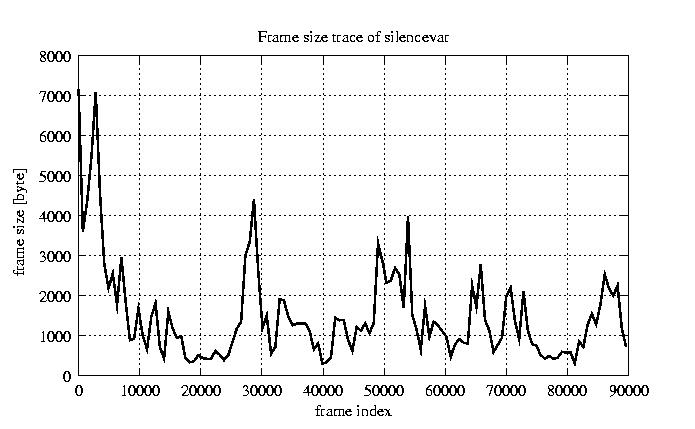

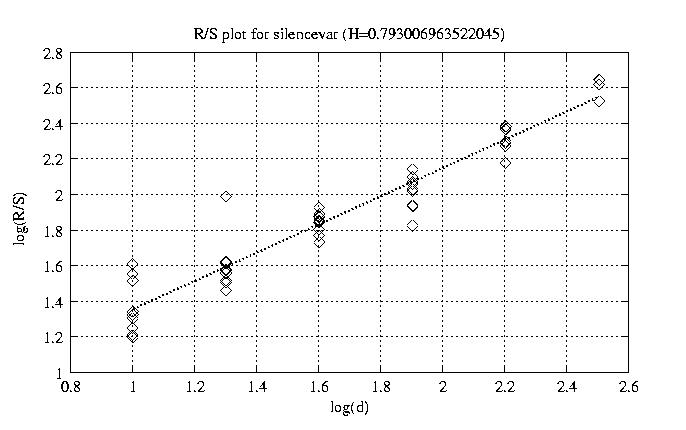

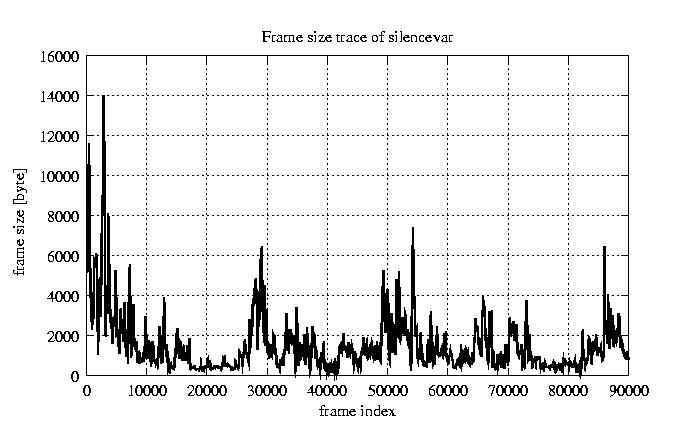

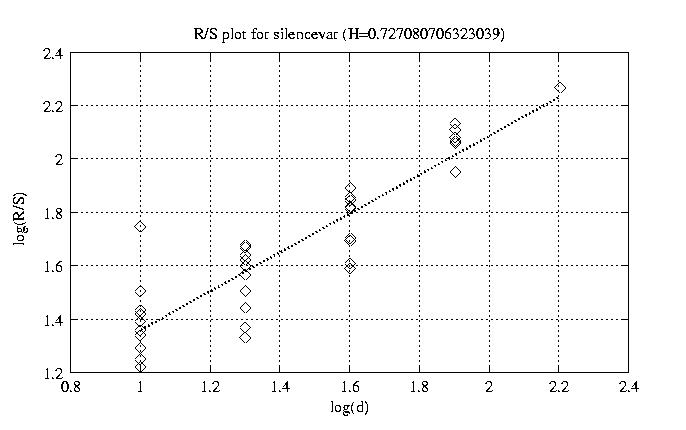

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.575 view view 12 0.758 view view 50 0.778 view view 100 0.815 view view 200 0.793 view view 300 0.730 view view 400 0.753 view view 500 0.803 view view 600 0.727 view view 700 0.738 view view 800 0.755 view view

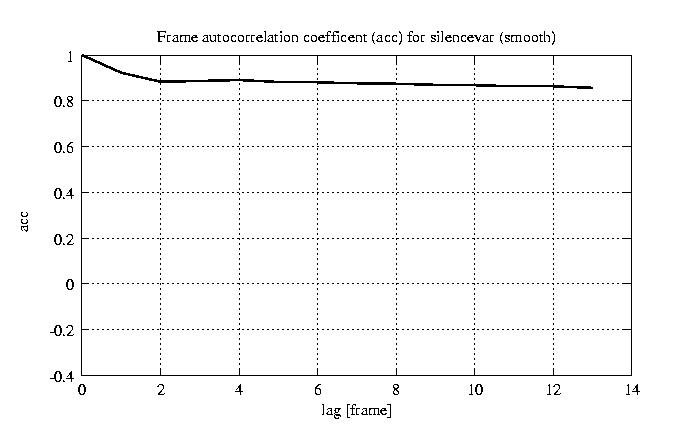

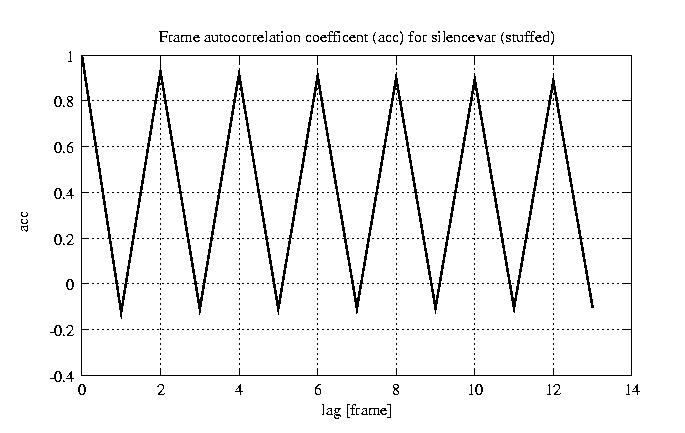

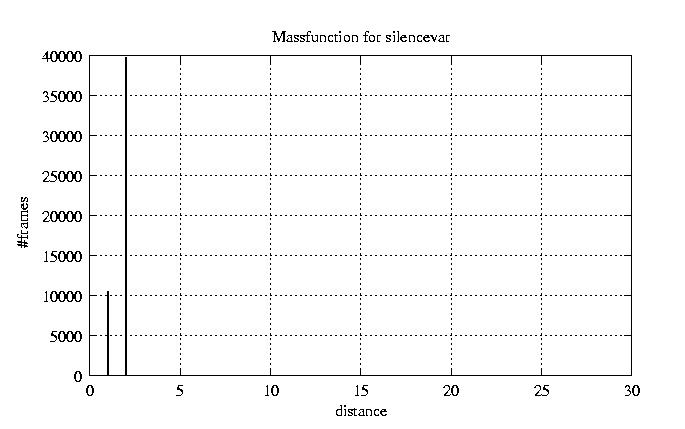

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
