MP4 - Robin Hood
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 40.42 File Size byte 8.4e+07 Video run time msec 3.6e+06 # of Frames - 89798 mean frame size byte 9.4e+02 var frame size - 1.3e+06 CoV of frame size - 1.21 min frame size byte 0 max frame size byte 9927 Mean bit rate bit/sec 1.9e+05 Peak bit rate bit/sec 2e+06 Peak/Mean of bit rate - 10.56 GoP statistics # of GoPs - 7483 mean GoP size byte 1.1e+04 var GoP size - 2.1e+07 CoV of GoP size - 0.40 min GoP size byte 781 max GoP size byte 37650 Mean bit rate bit/sec 1.9e+05 Peak bit rate bit/sec 6.3e+05 Peak/Mean of bit rate - 3.34 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p
probability function F = sum p
inverse probability function G = 1 - F

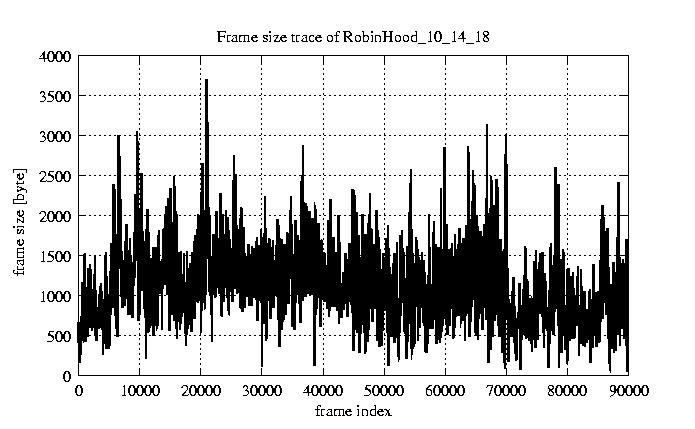

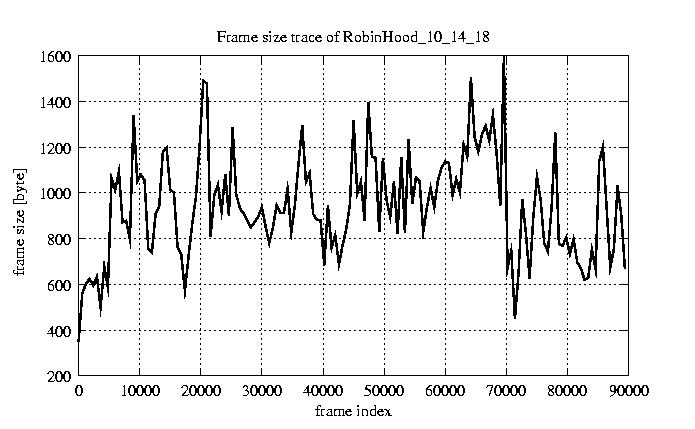

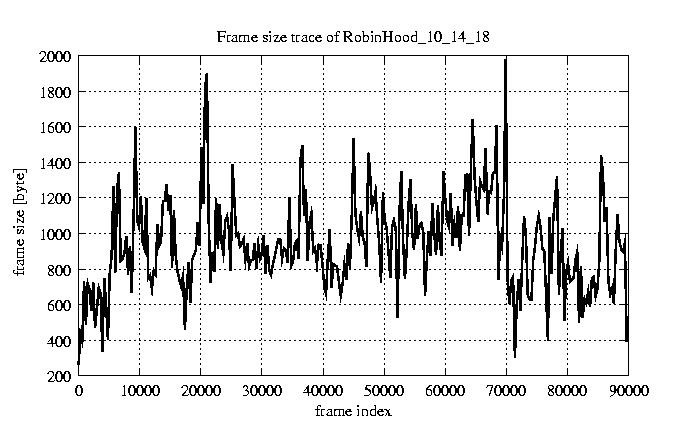

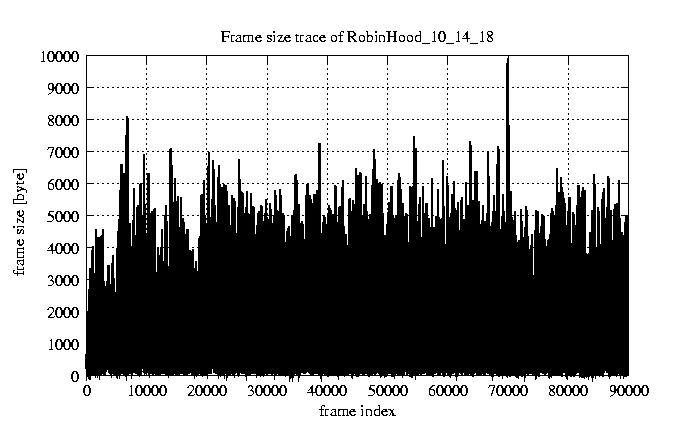

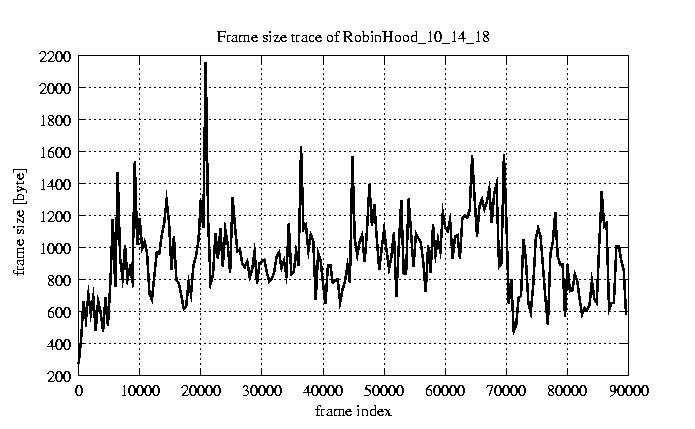

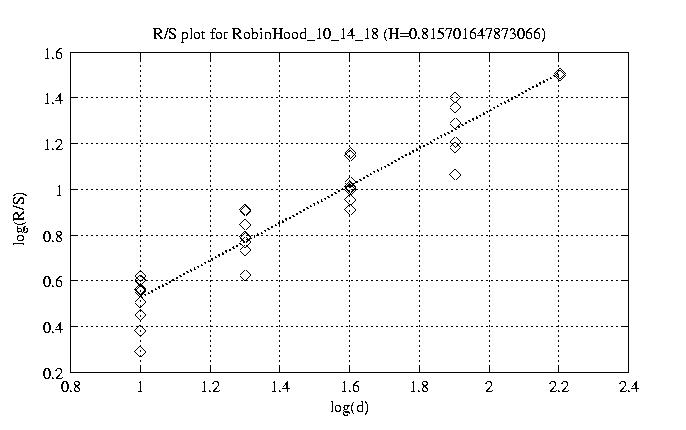

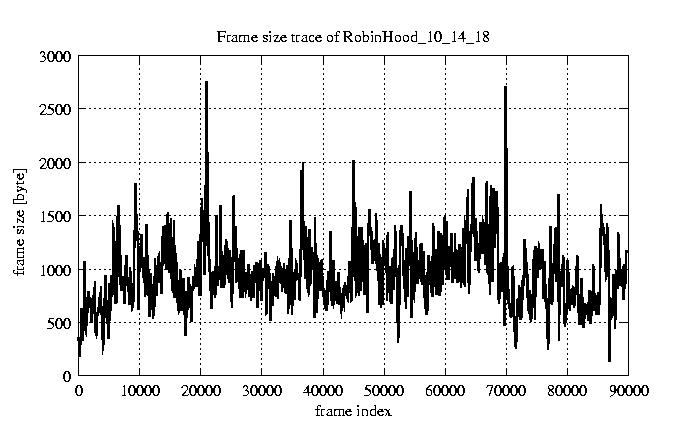

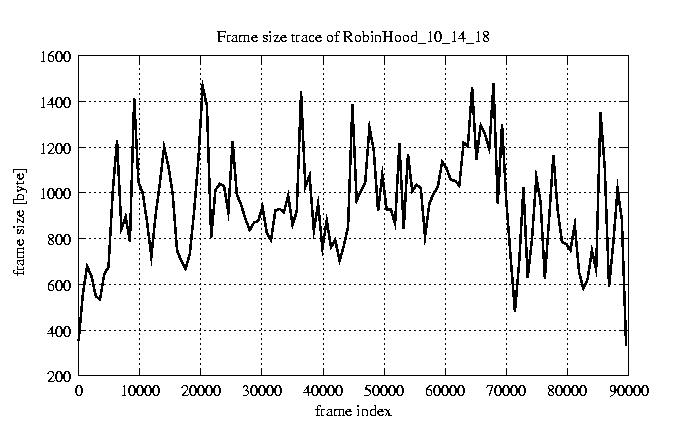

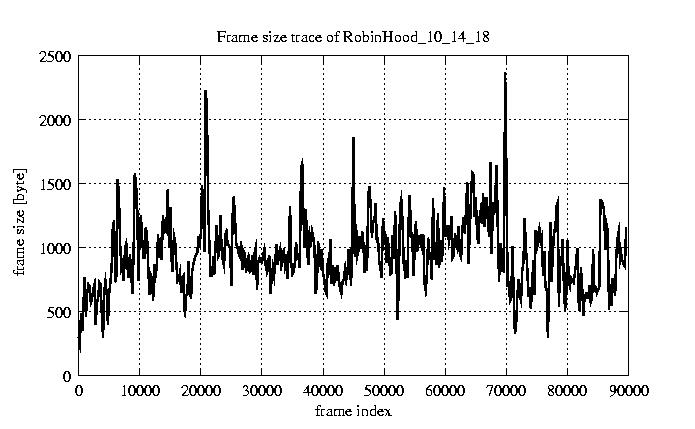

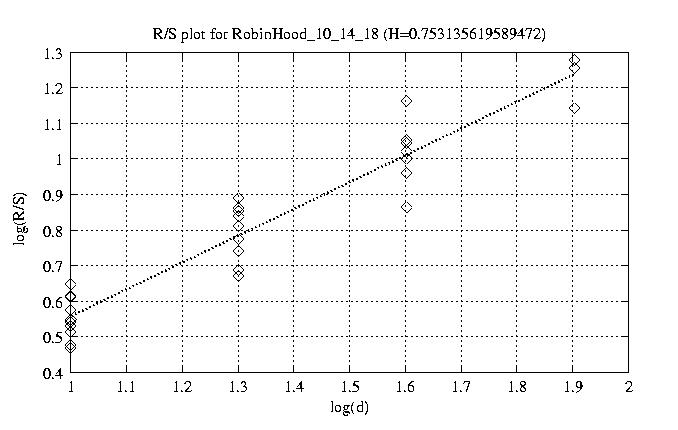

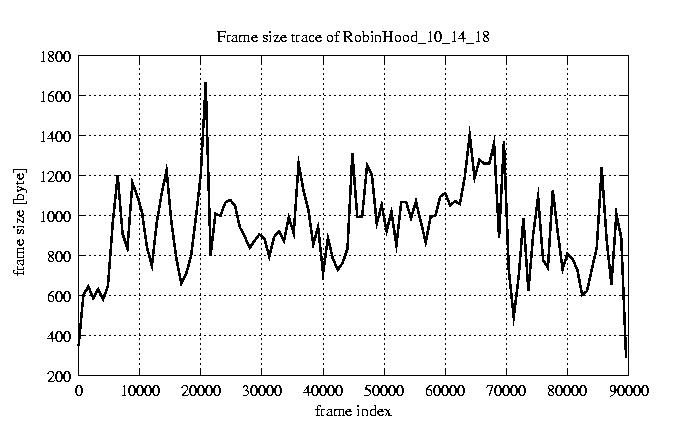

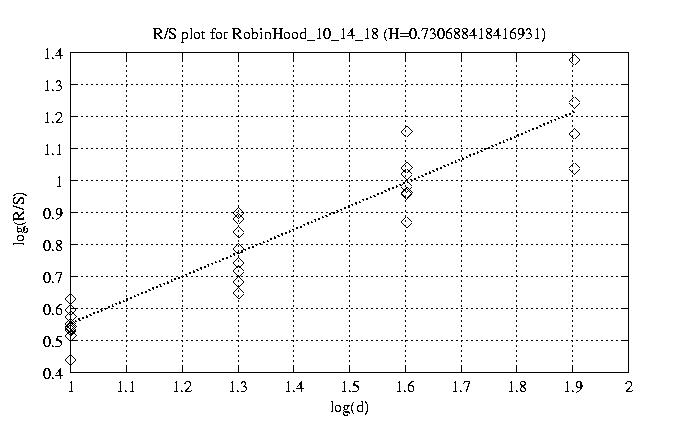

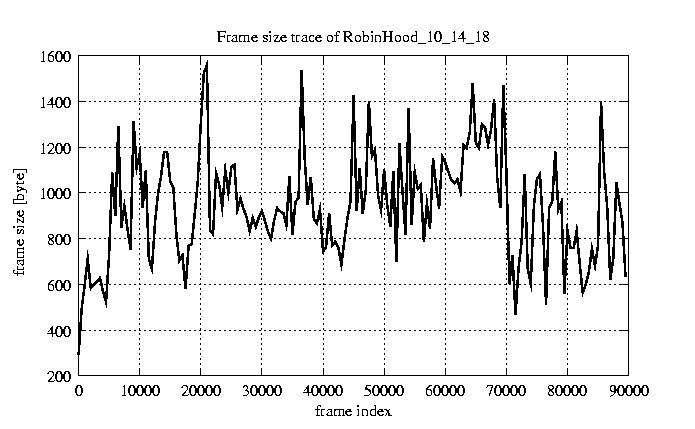

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.812 view view 12 0.842 view view 50 0.797 view view 100 0.793 view view 200 0.803 view view 300 0.790 view view 400 0.814 view view 500 0.816 view view 600 0.745 view view 700 0.731 view view 800 0.753 view view

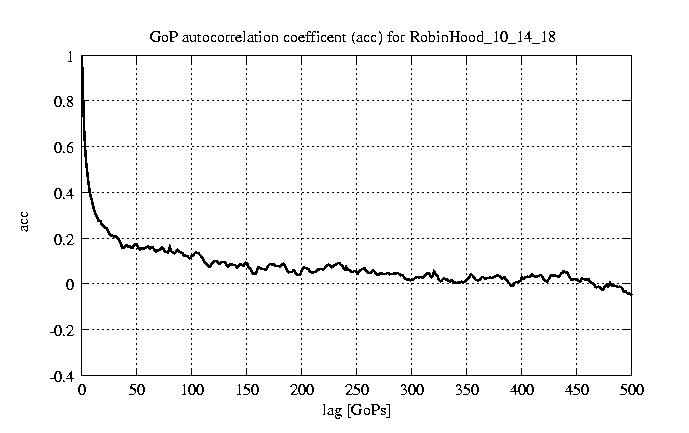

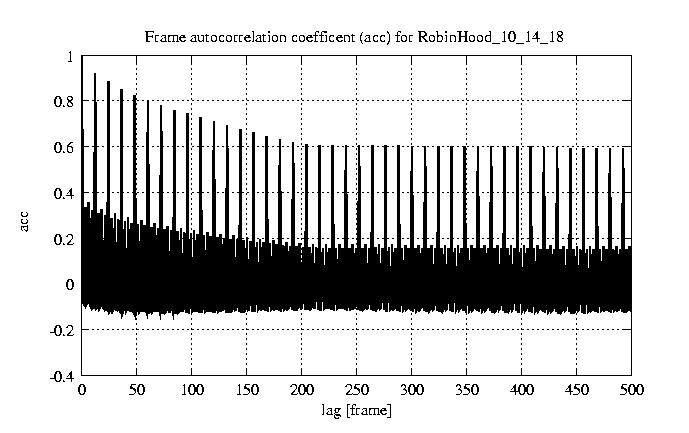

other plots	autocorrelation function of frames autocorrelation function of GoPs
