MP4 - South Park
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 73.46 File Size byte 1.6e+07 Video run time msec 1.2e+06 # of Frames - 30337 mean frame size byte 5.2e+02 var frame size - 1e+06 CoV of frame size - 1.98 min frame size byte 0 max frame size byte 18124 Mean bit rate bit/sec 1e+05 Peak bit rate bit/sec 3.6e+06 Peak/Mean of bit rate - 35.02 GoP statistics # of GoPs - 2528 mean GoP size byte 6.2e+03 var GoP size - 3.3e+07 CoV of GoP size - 0.92 min GoP size byte 1136 max GoP size byte 123885 Mean bit rate bit/sec 1e+05 Peak bit rate bit/sec 2.1e+06 Peak/Mean of bit rate - 19.95 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

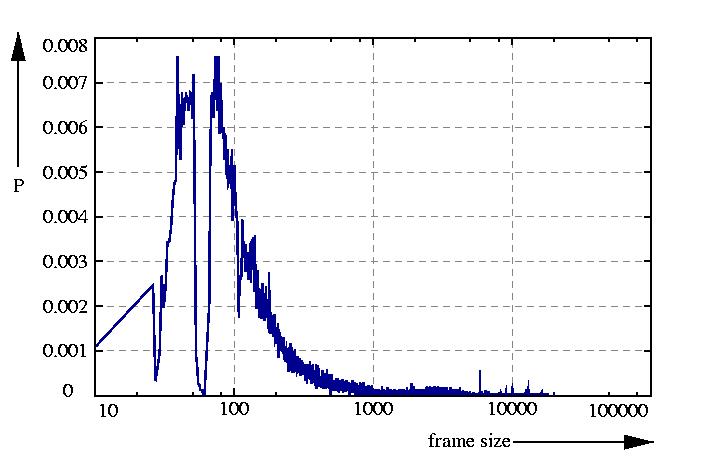

probability density function p

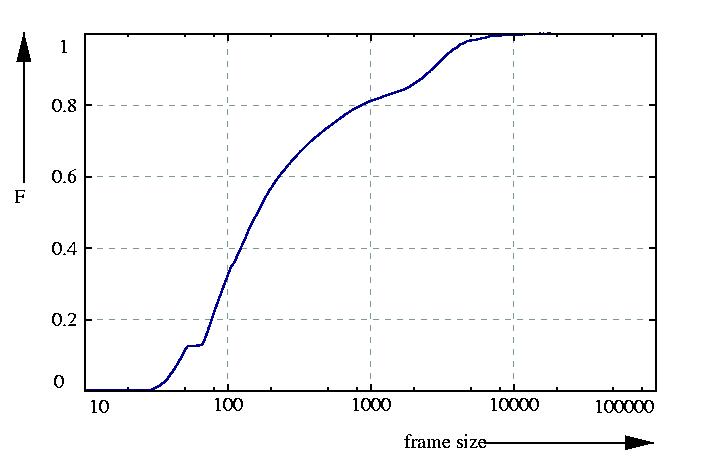

probability function F = sum p
inverse probability function G = 1 - F

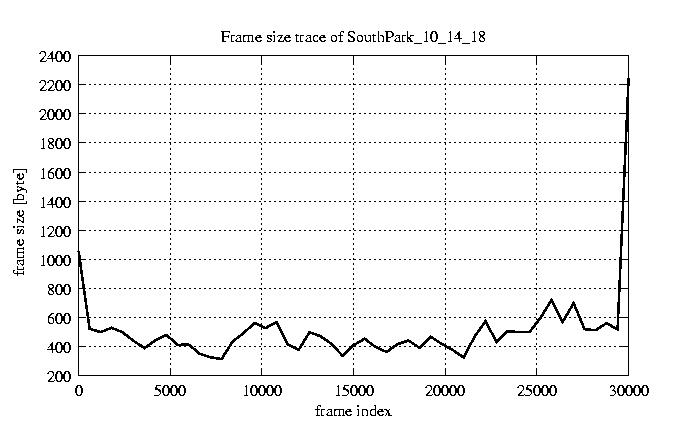

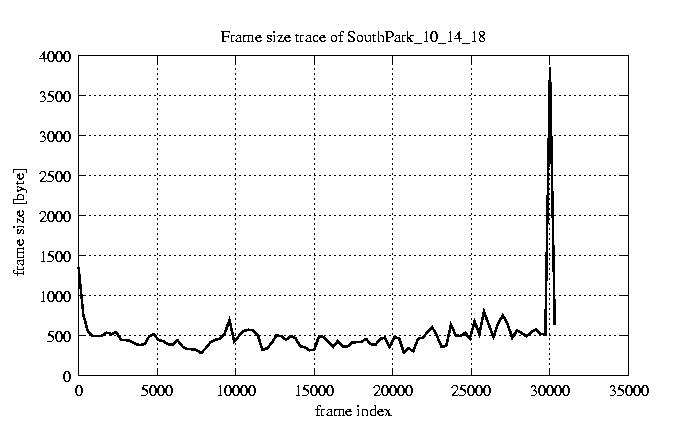

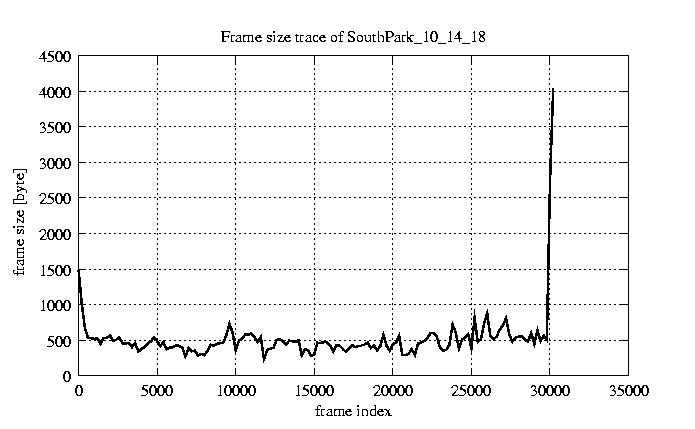

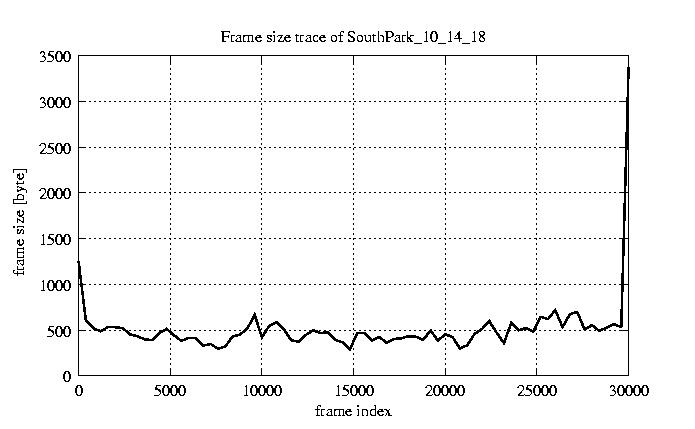

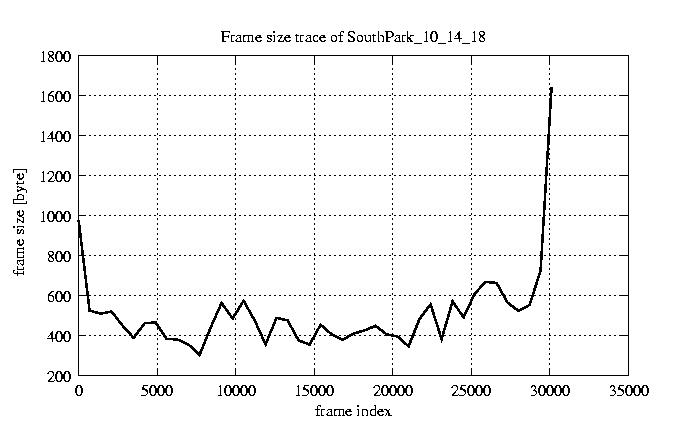

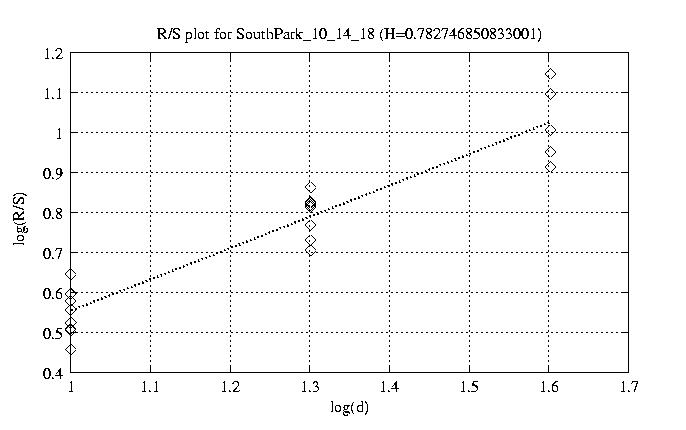

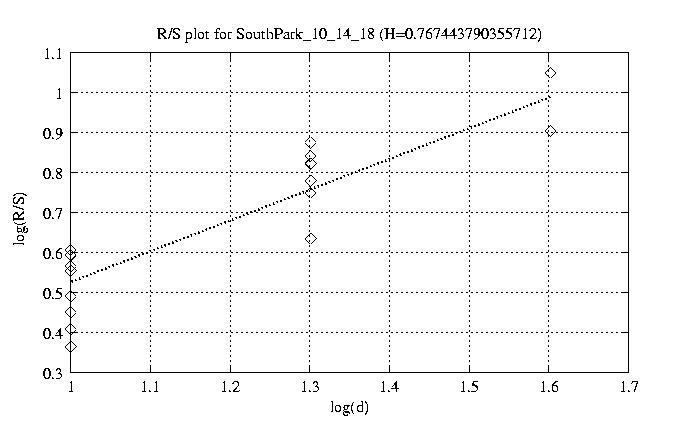

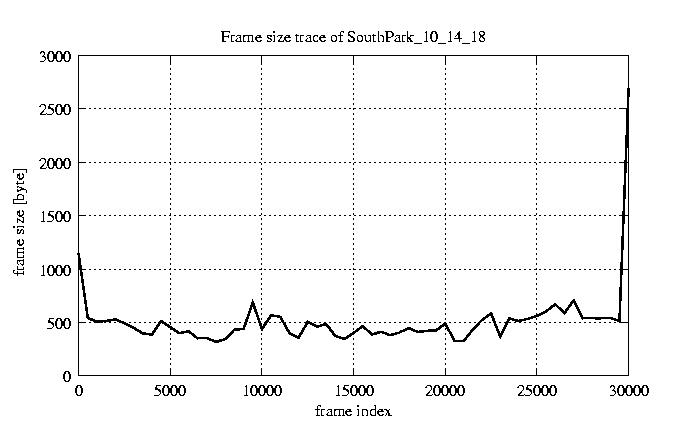

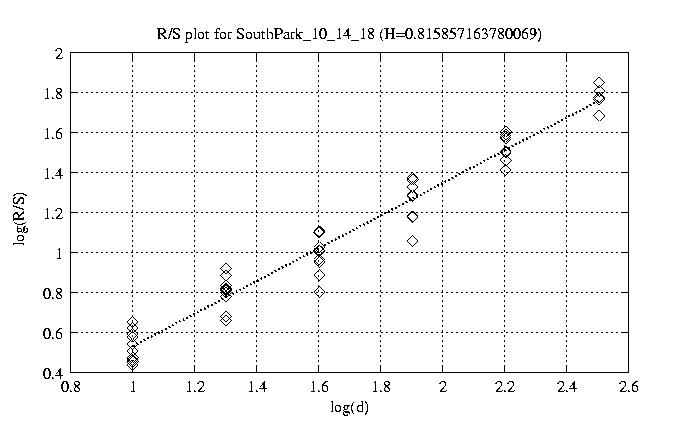

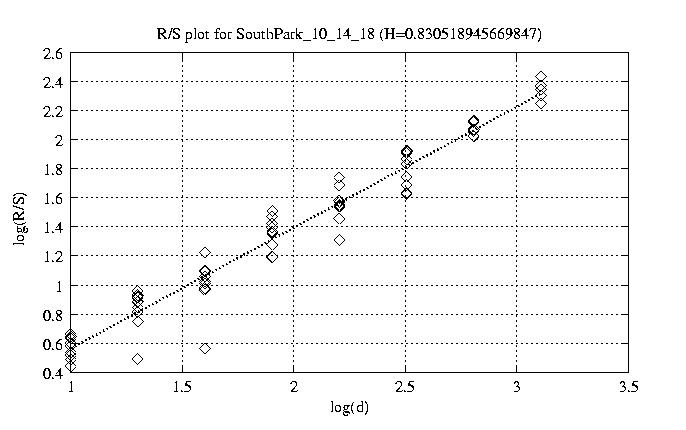

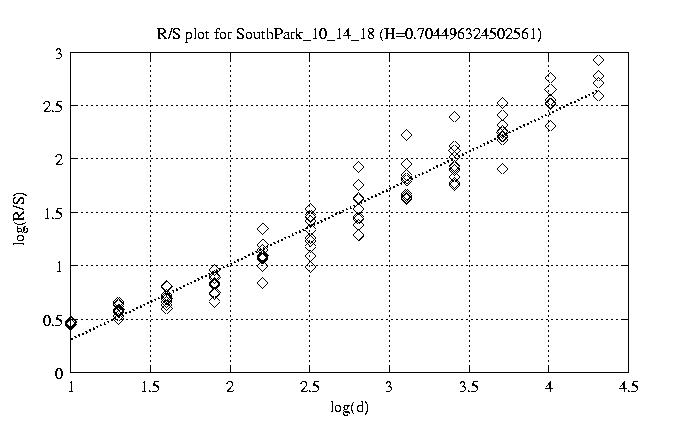

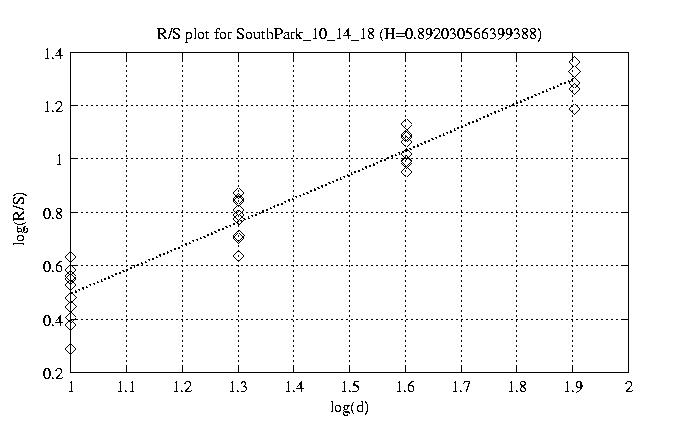

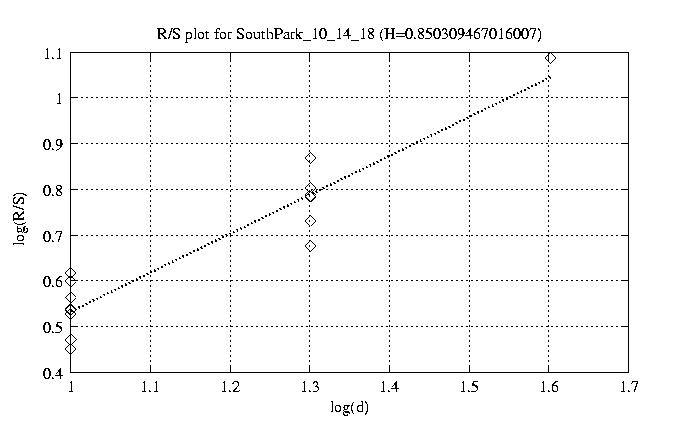

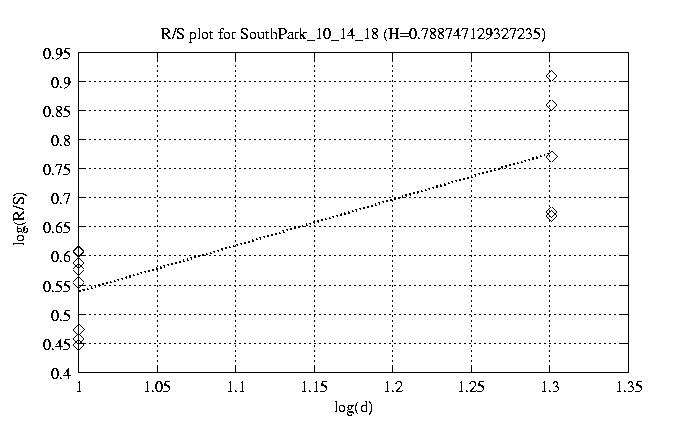

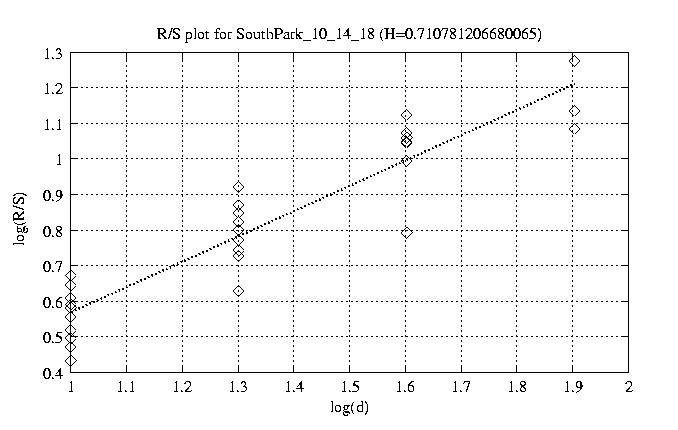

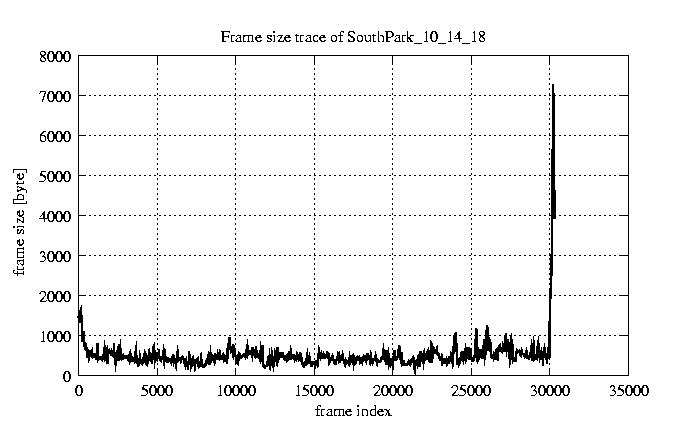

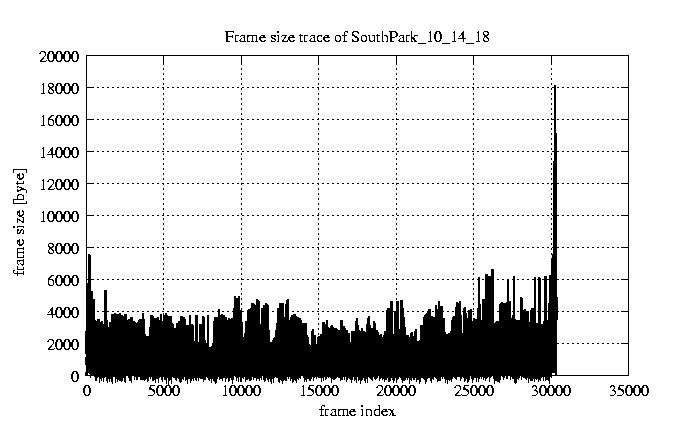

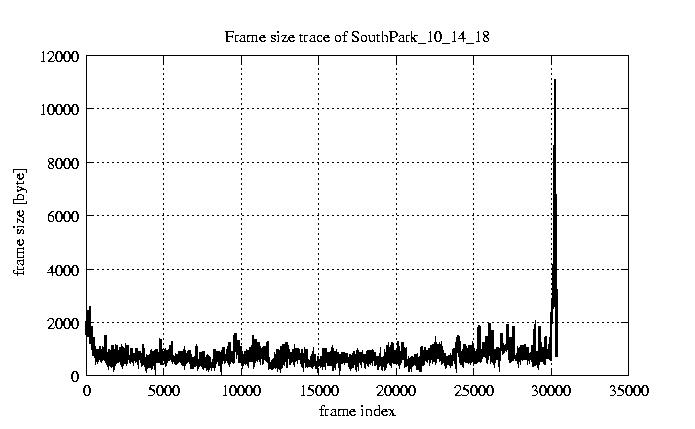

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.704 view view 12 0.831 view view 50 0.816 view view 100 0.821 view view 200 0.892 view view 300 0.711 view view 400 0.783 view view 500 0.747 view view 600 0.767 view view 700 0.850 view view 800 0.789 view view

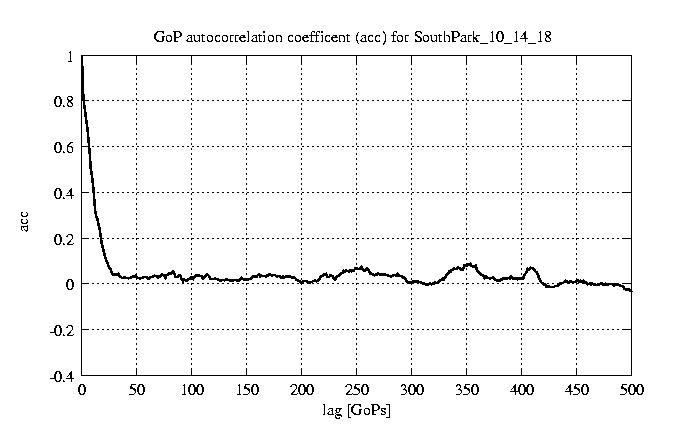

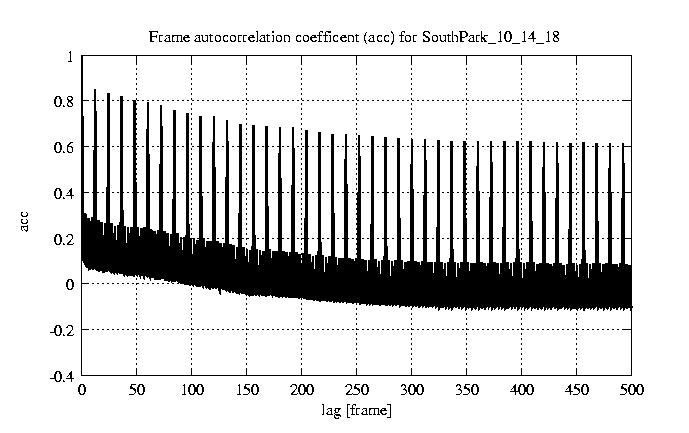

other plots	autocorrelation function of frames autocorrelation function of GoPs
