MP4 - Futurama
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 45.12 File Size byte 2.6e+07 Video run time msec 1.2e+06 # of Frames - 30334 mean frame size byte 8.4e+02 var frame size - 1.9e+06 CoV of frame size - 1.63 min frame size byte 27 max frame size byte 19224 Mean bit rate bit/sec 1.7e+05 Peak bit rate bit/sec 3.8e+06 Peak/Mean of bit rate - 22.81 GoP statistics # of GoPs - 2527 mean GoP size byte 1e+04 var GoP size - 3.3e+07 CoV of GoP size - 0.57 min GoP size byte 1691 max GoP size byte 116312 Mean bit rate bit/sec 1.7e+05 Peak bit rate bit/sec 1.9e+06 Peak/Mean of bit rate - 11.50 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

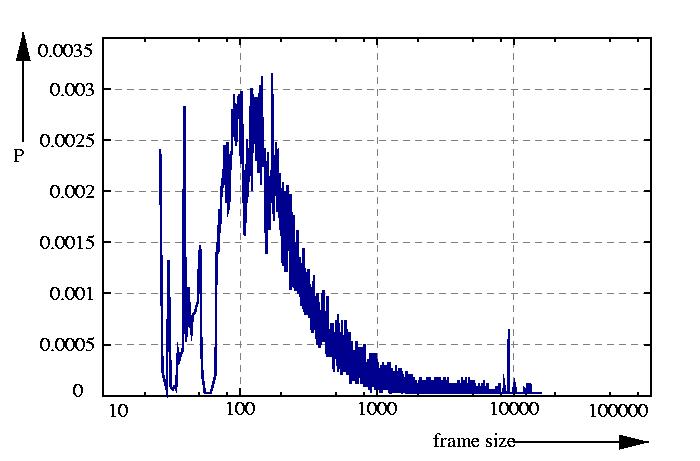

probability density function p

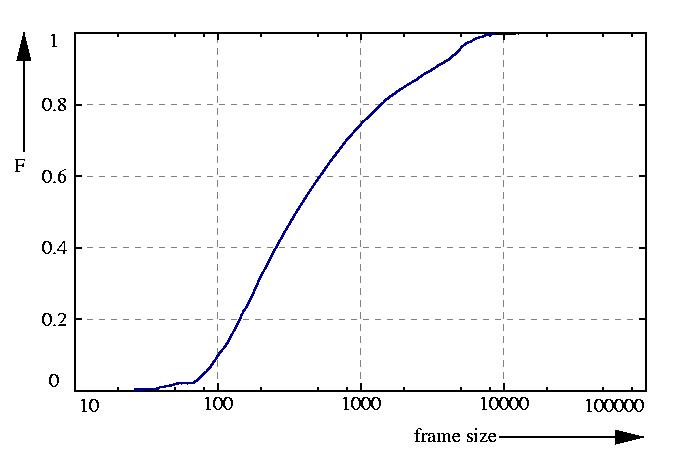

probability function F = sum p

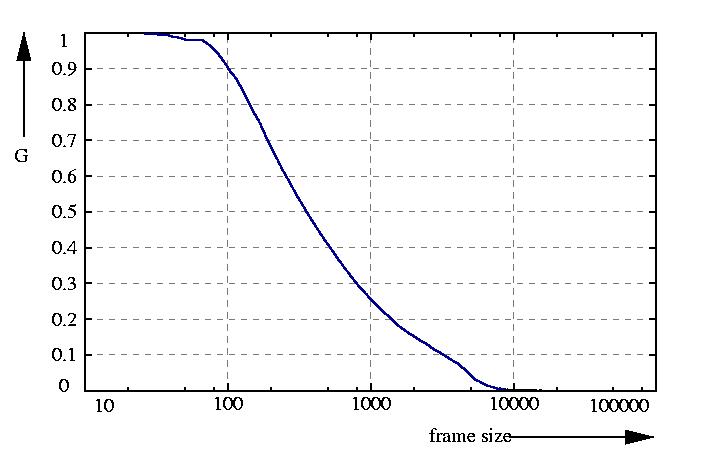

inverse probability function G = 1 - F

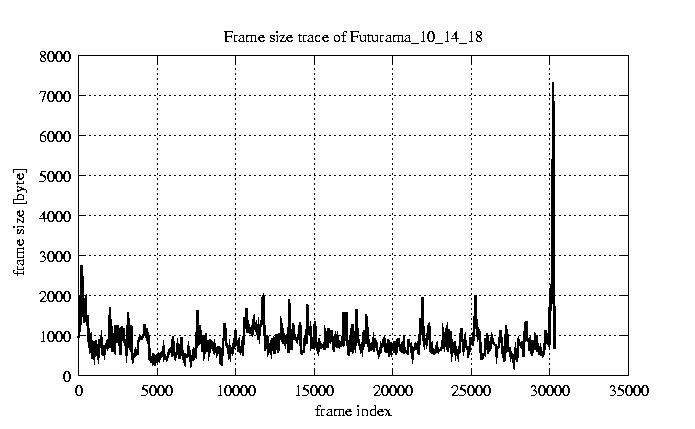

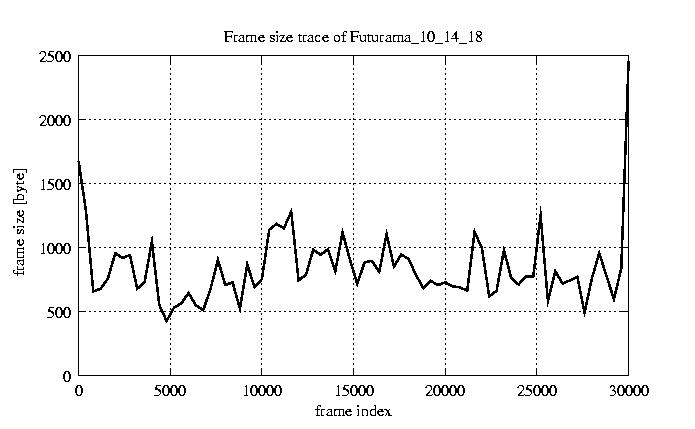

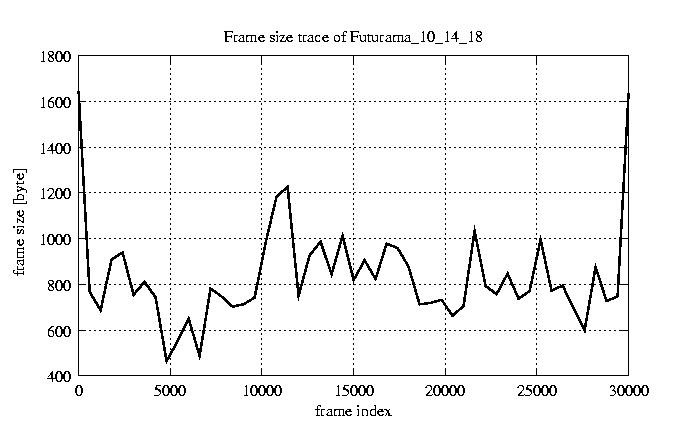

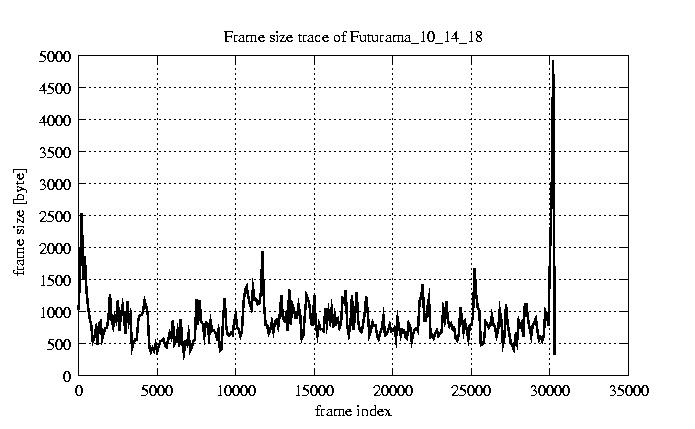

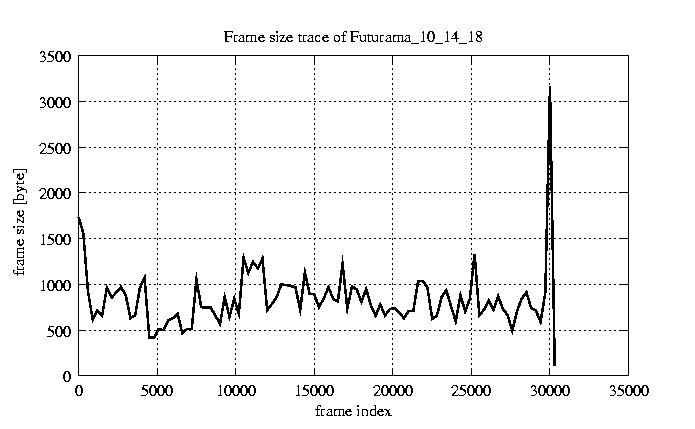

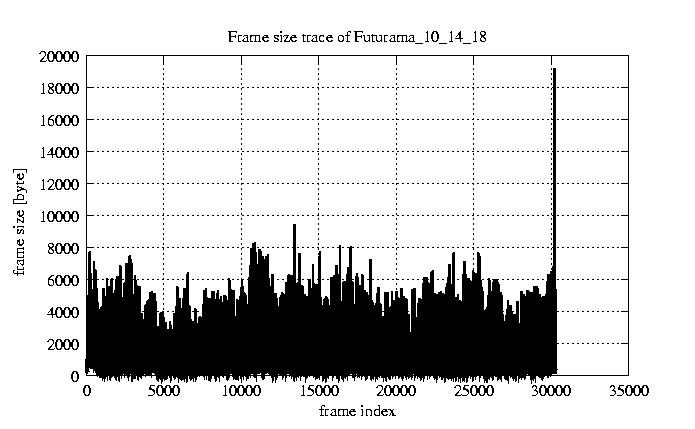

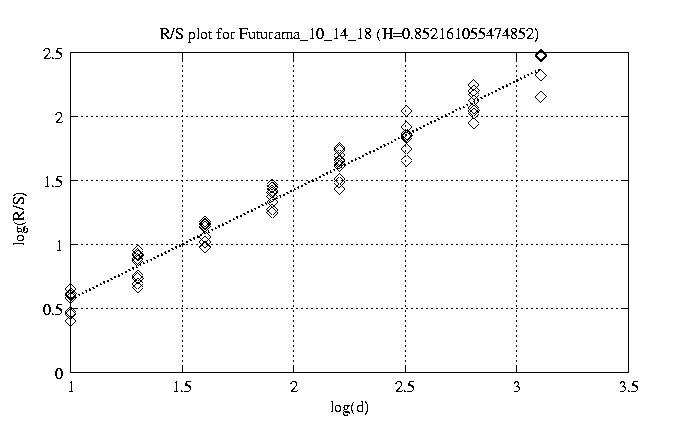

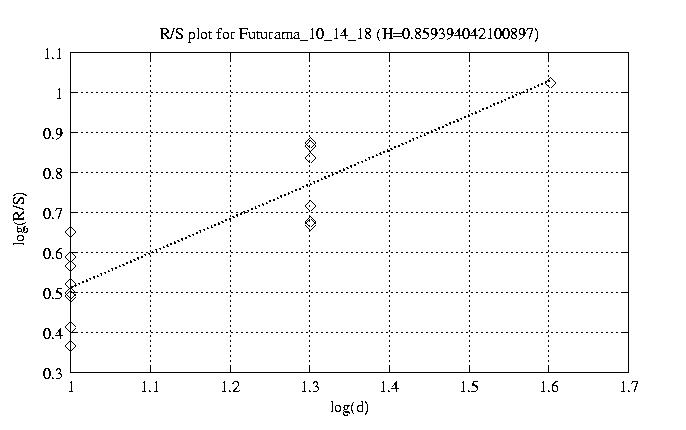

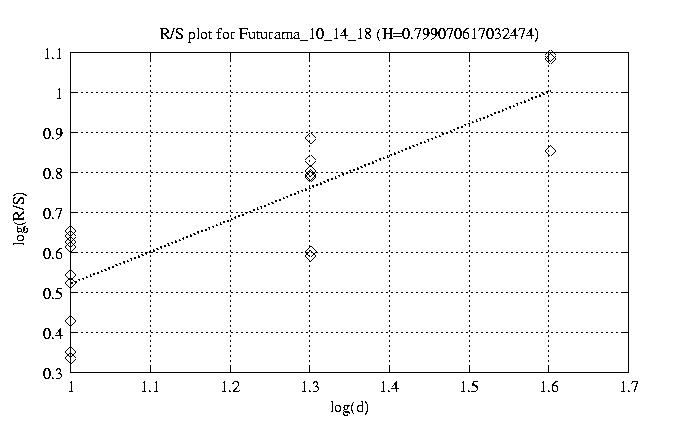

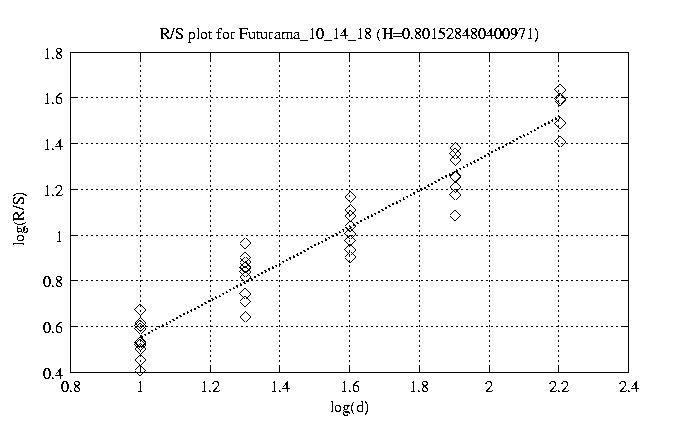

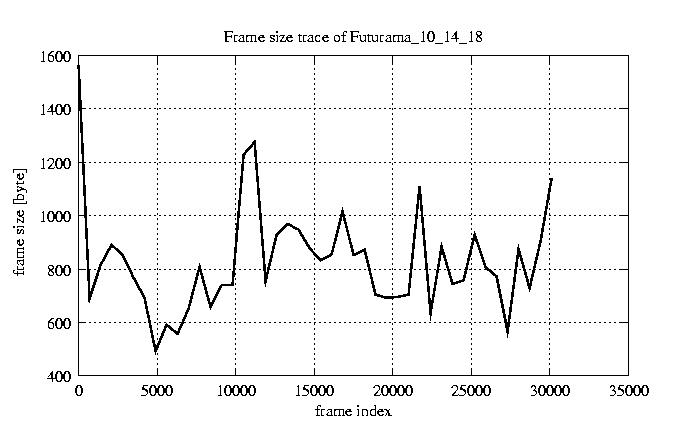

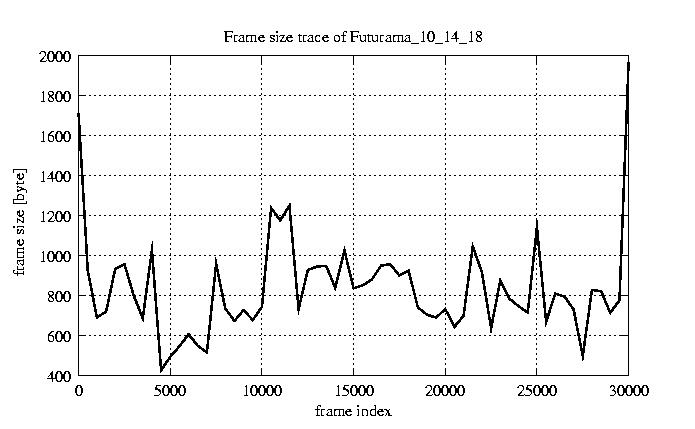

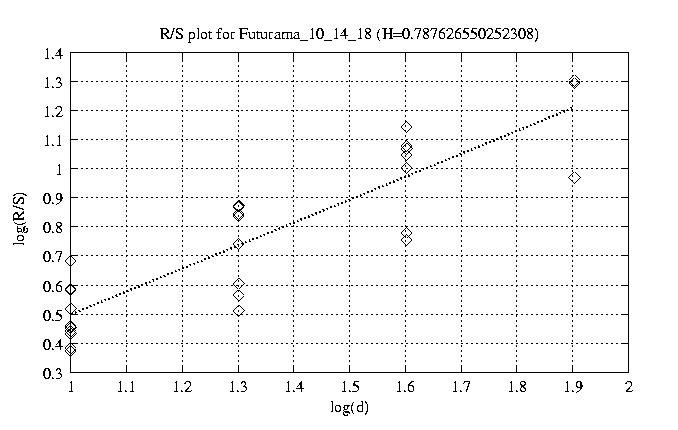

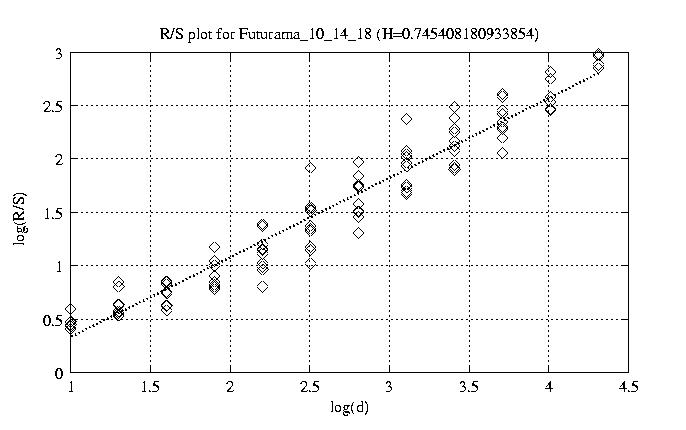

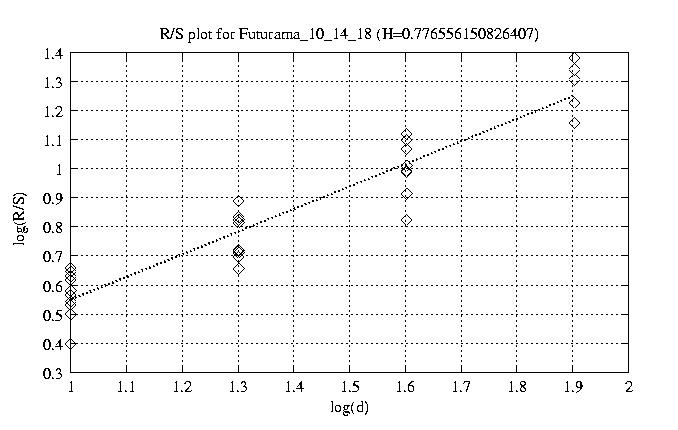

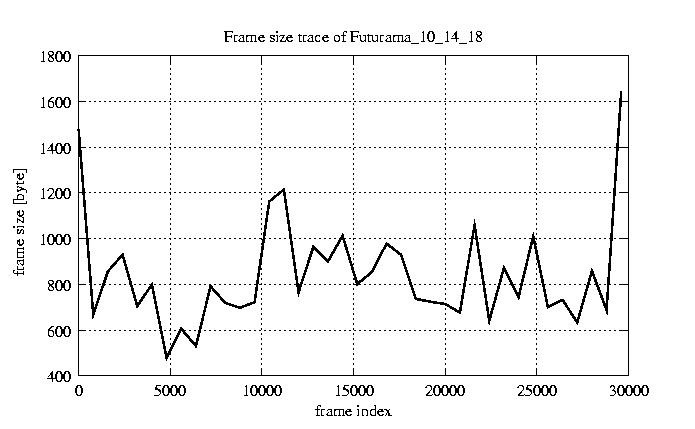

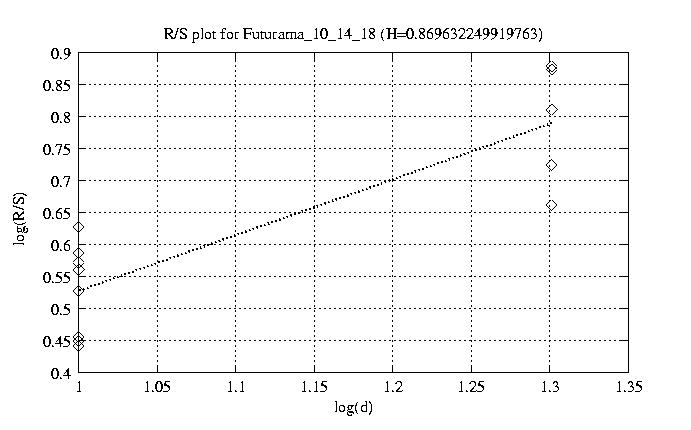

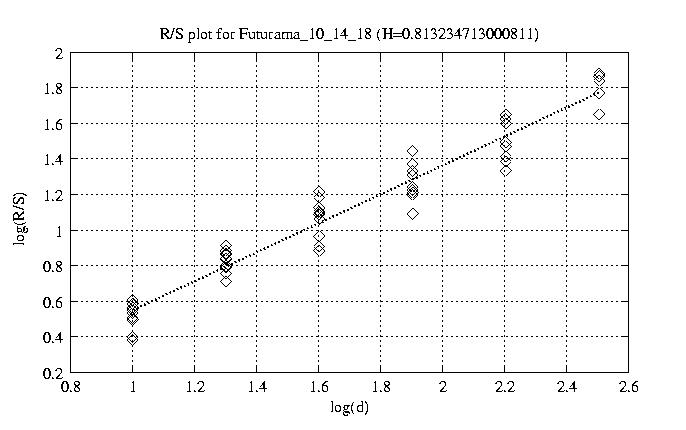

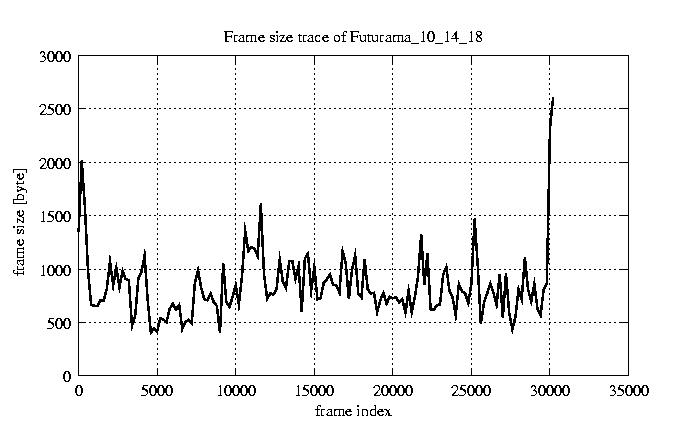

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.745 view view 12 0.852 view view 50 0.813 view view 100 0.802 view view 200 0.777 view view 300 0.788 view view 400 0.883 view view 500 0.867 view view 600 0.799 view view 700 0.859 view view 800 0.870 view view

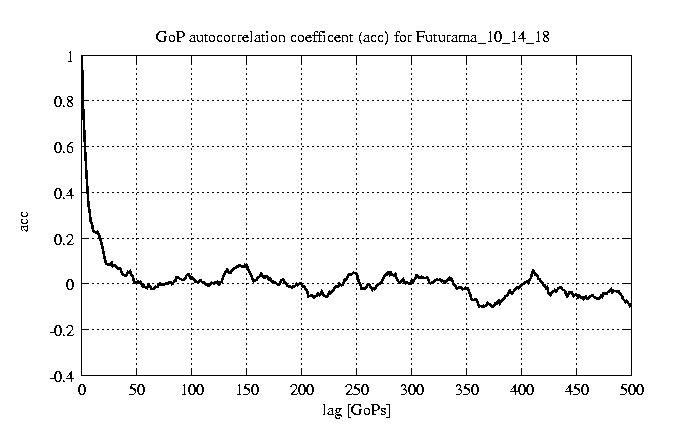

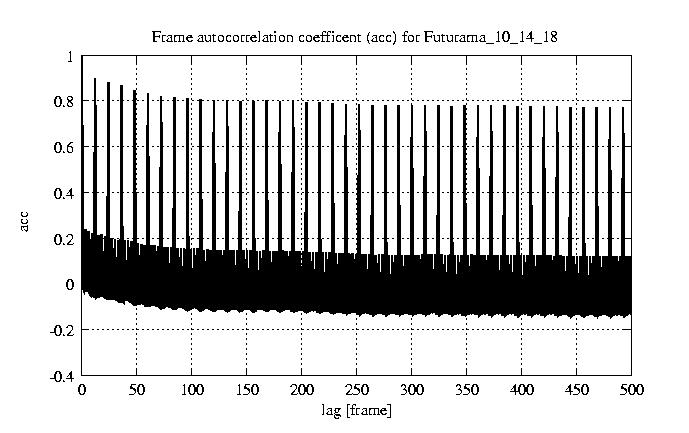

other plots	autocorrelation function of frames autocorrelation function of GoPs
