H263 - Star Wars IV
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 64.48 64.48 File size byte 5.3e+07 5.3e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 49646.00 mean frame size byte 589.63 1069.90 var frame size - 536954.04 460474.61 CoV of frame size - 1.24 0.63 min frame size byte 0.00 20.00 max frame size byte 8989.00 8989.00 Peak/Mean frame - 15.25 8.40 Mean bit rate bit/sec 1.2e+05 Peak bit rate bit/sec 1.3e+06 Peak/Mean of bit rate - 11 CoV of bit rate - 0.76 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

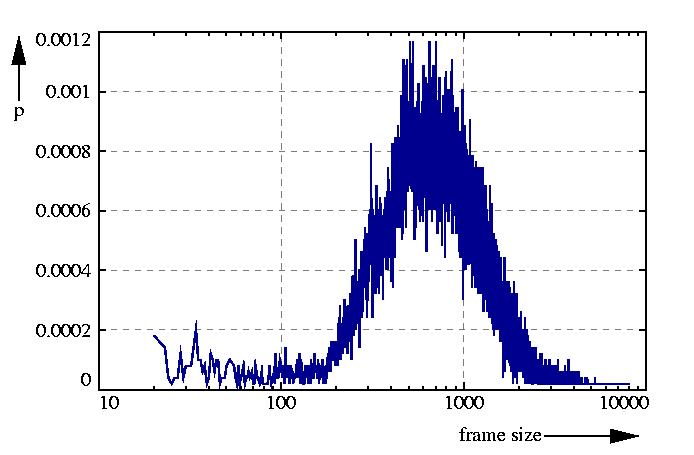

probability density function p

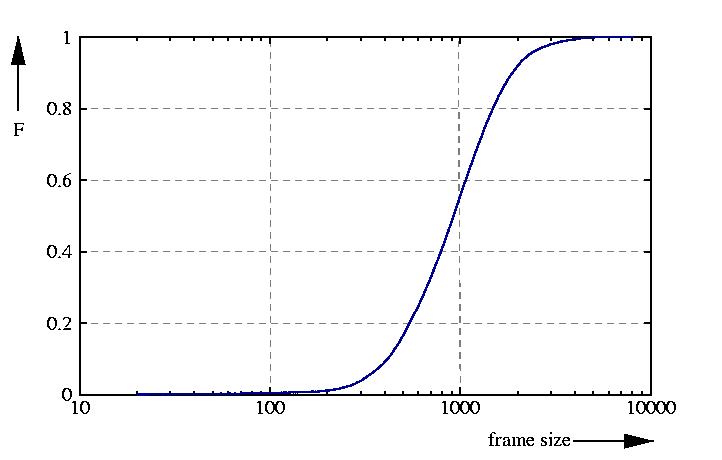

probability function F = sum p

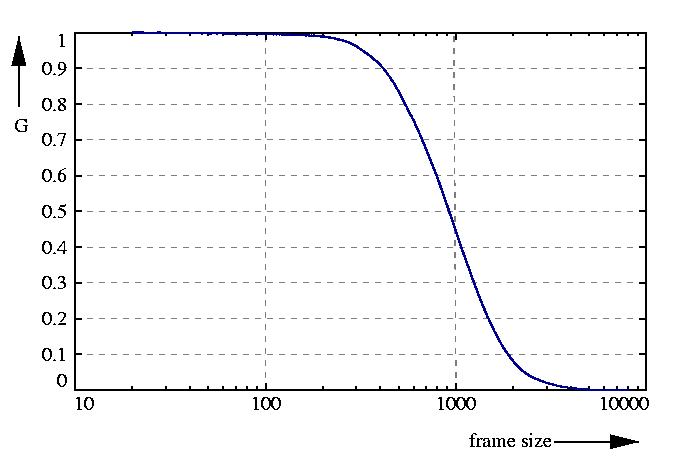

inverse probability function G = 1 - F

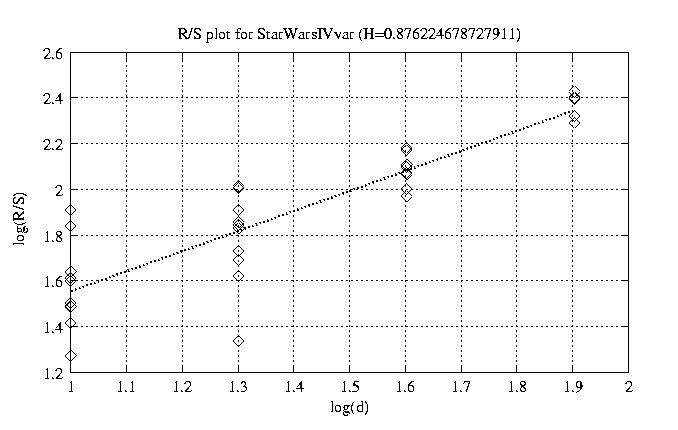

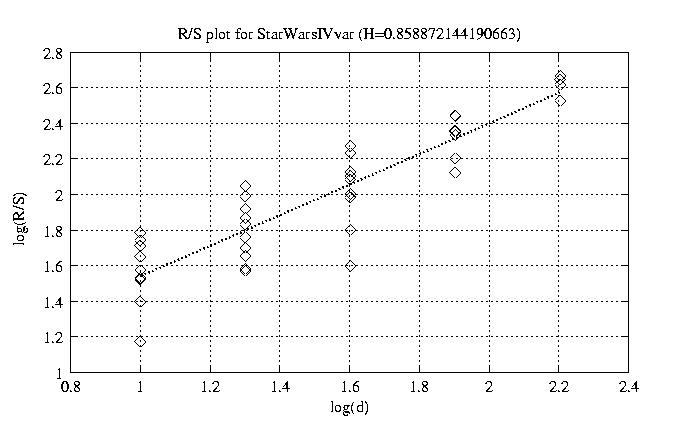

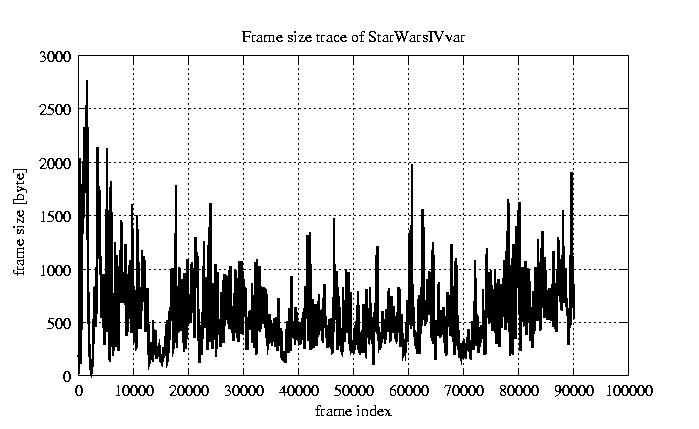

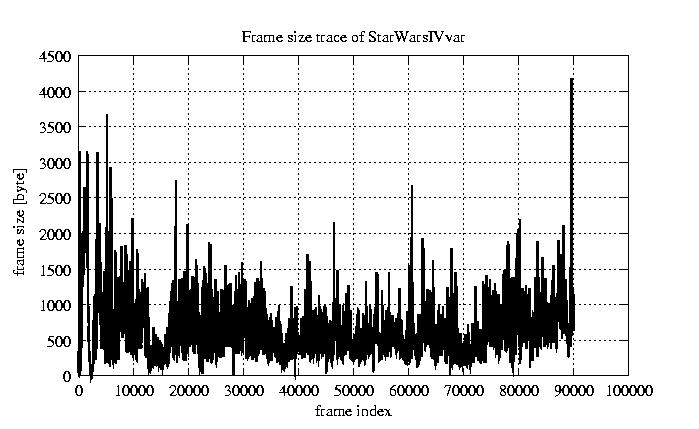

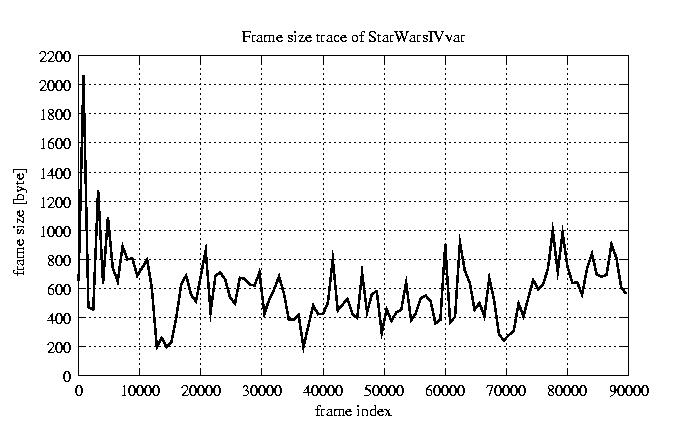

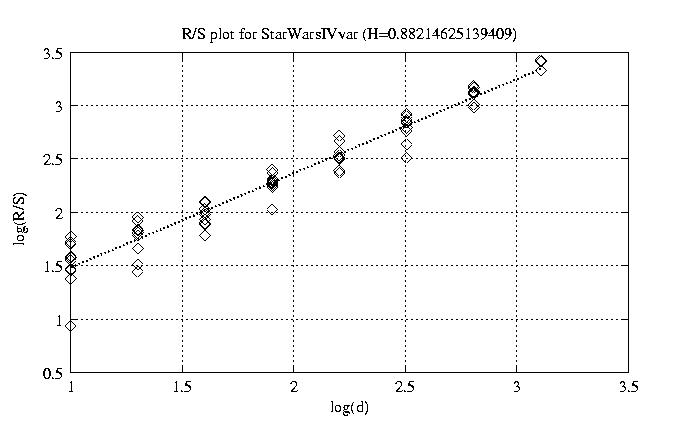

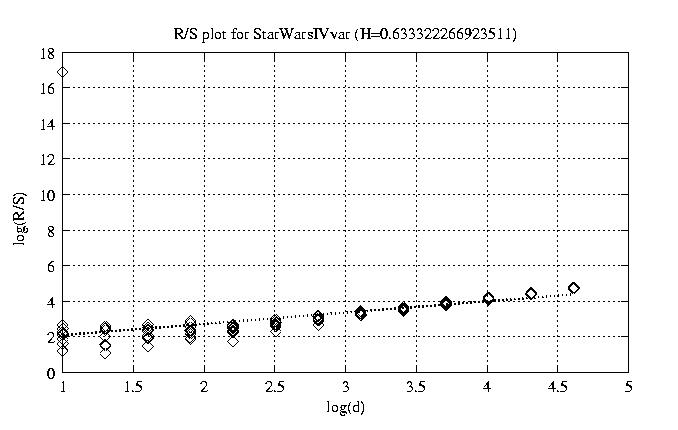

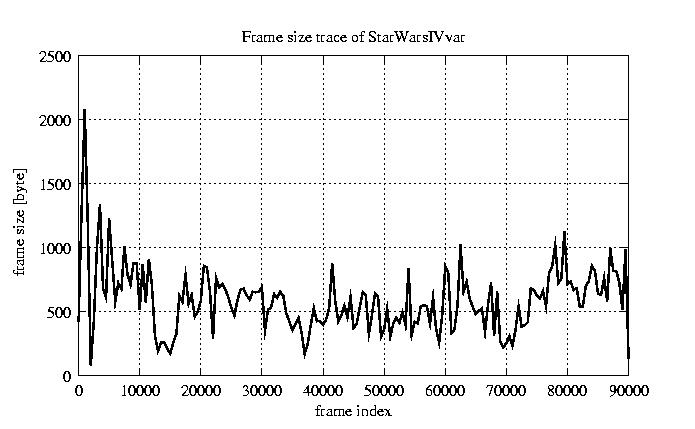

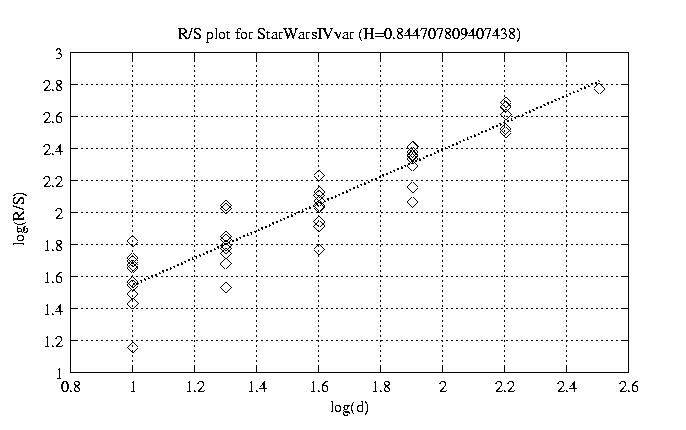

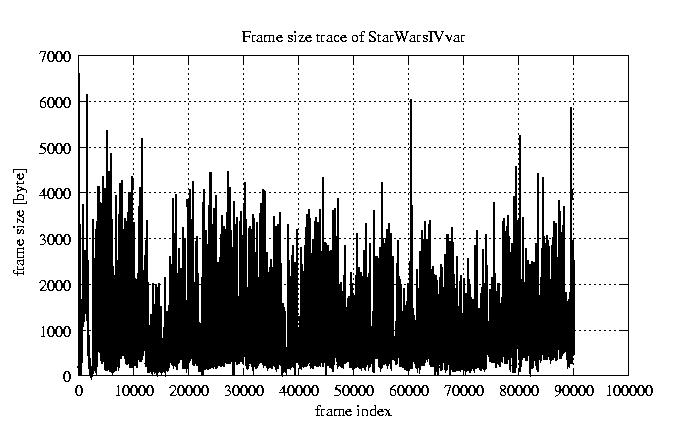

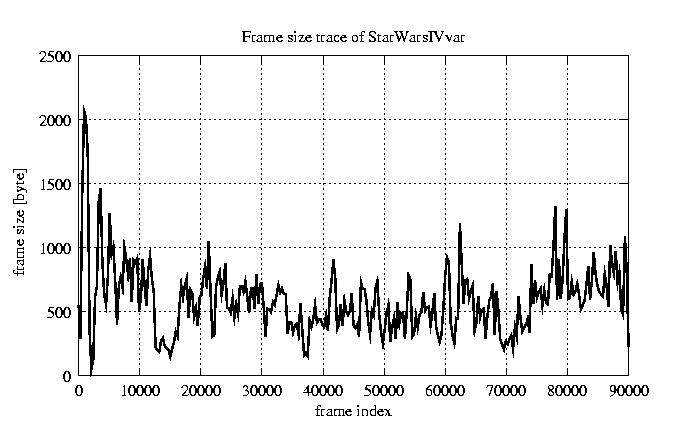

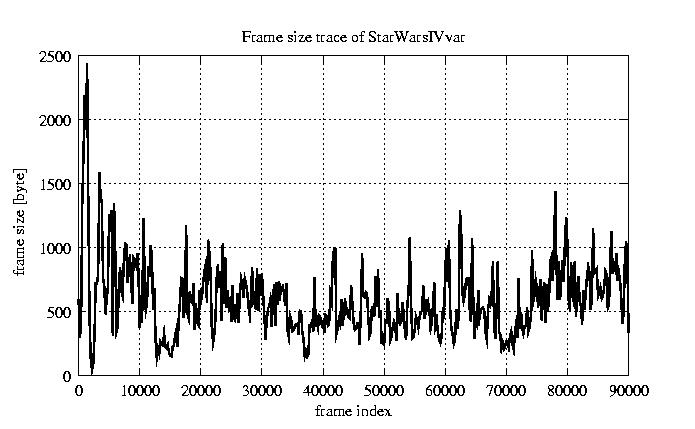

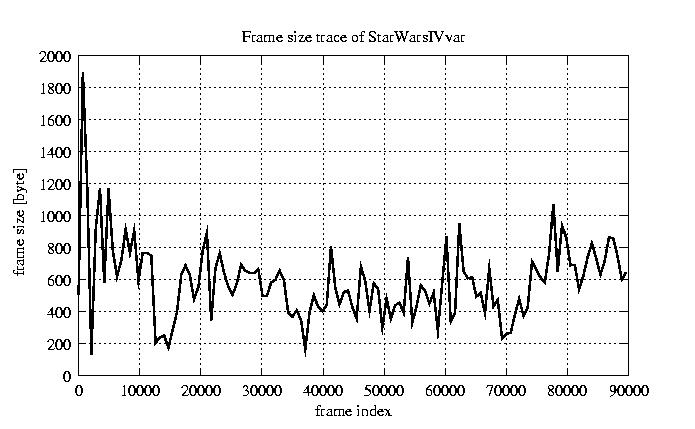

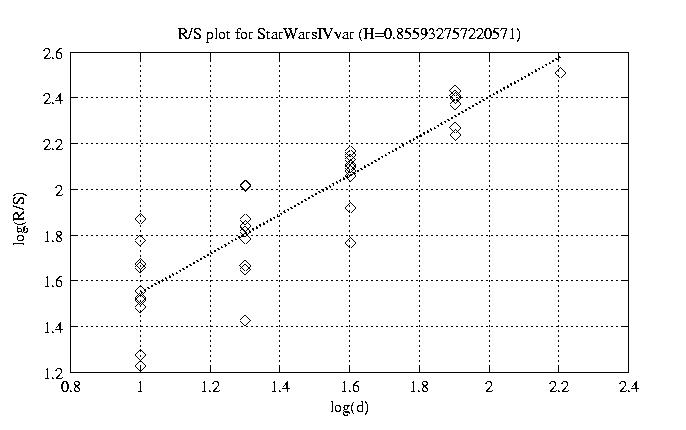

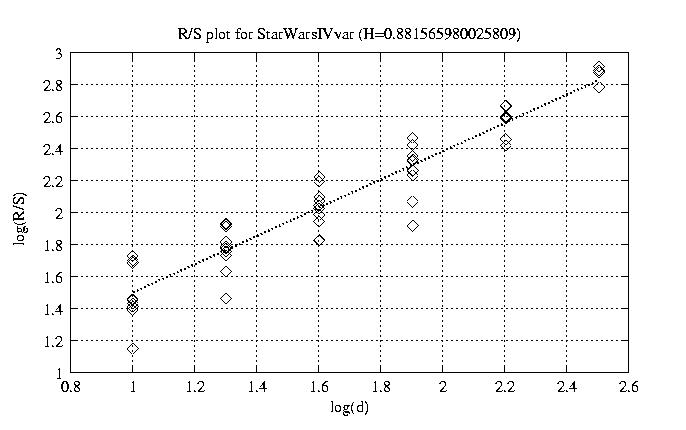

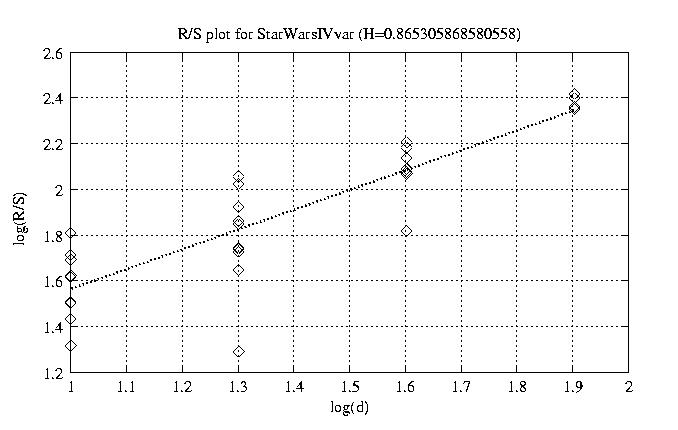

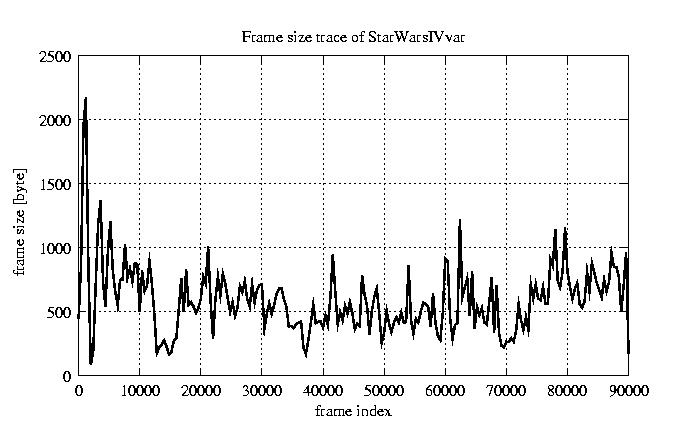

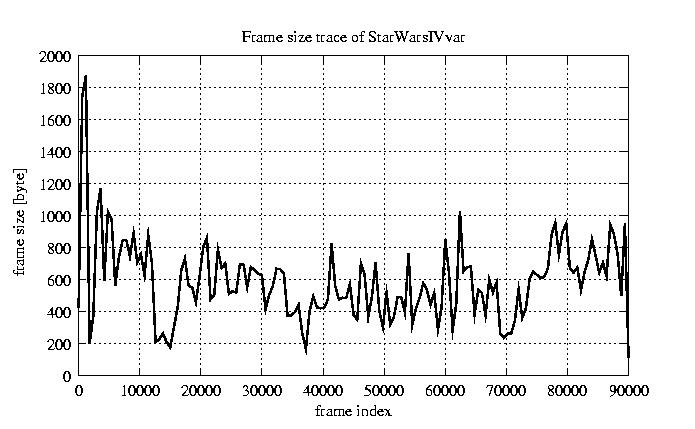

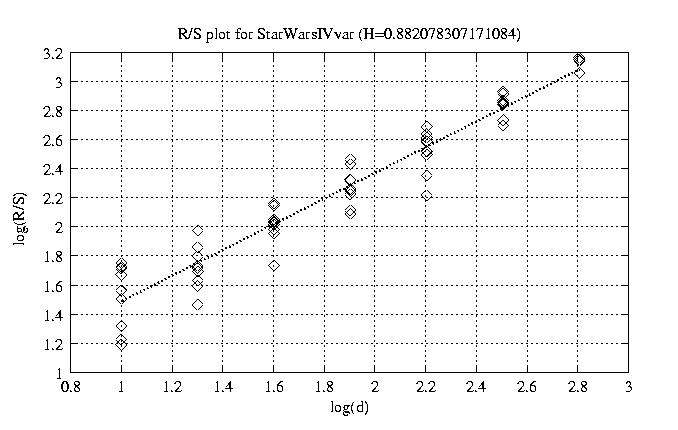

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.633 view view 12 0.893 view view 50 0.882 view view 100 0.882 view view 200 0.882 view view 300 0.845 view view 400 0.859 view view 500 0.864 view view 600 0.856 view view 700 0.876 view view 800 0.865 view view

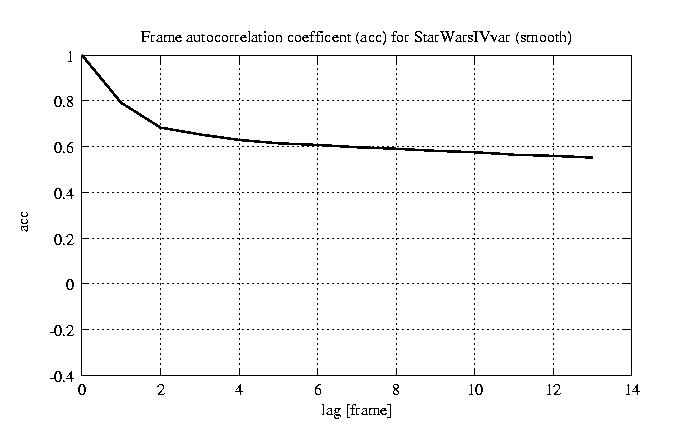

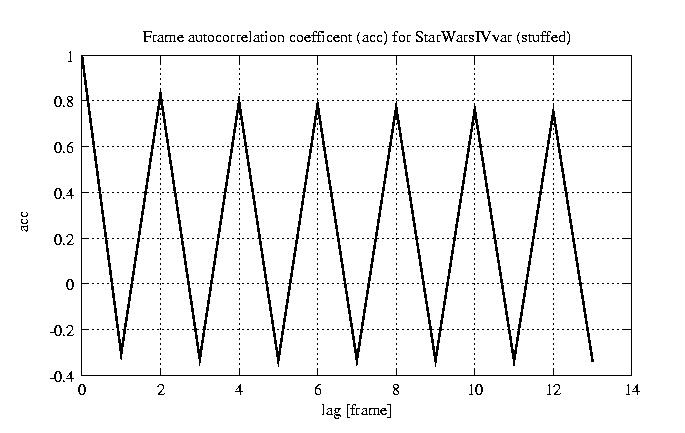

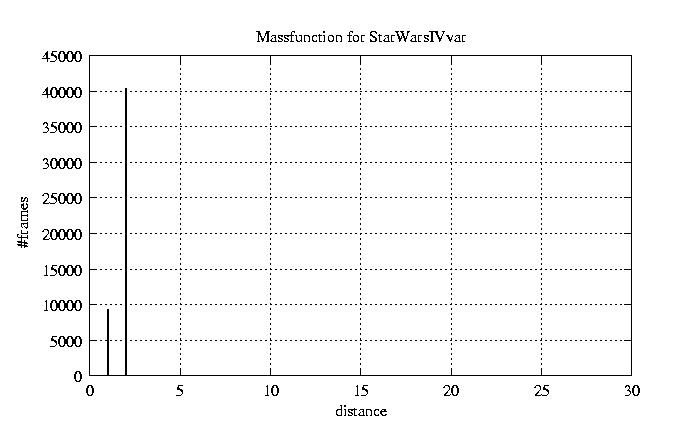

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
