H261 - Die Hard III
256 kbit/s target bit rate

frame statistics parameter list	Frames Rates compression ratio YUV:H261 29.71 File size byte 1.2e+08 Video run time msec 3.6e+06 3.6e+06 # of Frames - 90000.00 mean frame size byte 1279.45 var frame size - 46816.23 CoV of frame size - 0.17 min frame size byte 187.00 max frame size byte 6171.00 Peak/Mean frame - 4.82 Mean bit rate bit/sec 2.6e+05 Peak bit rate bit/sec 1.2e+06 Peak/Mean of bit rate - 4.8 CoV of bit rate - 0.17 max inter frame space frames 1.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

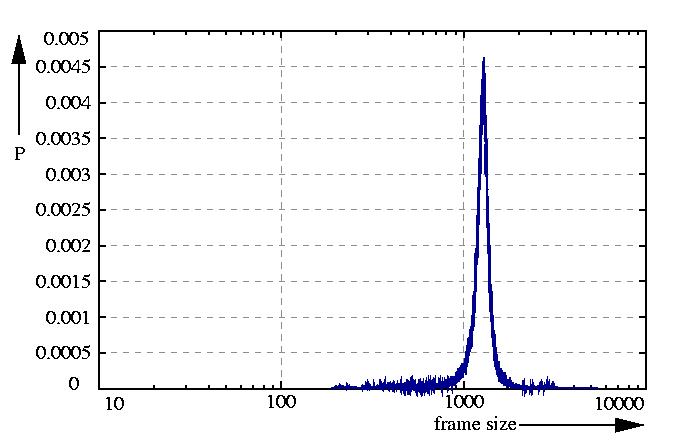

probability density function p

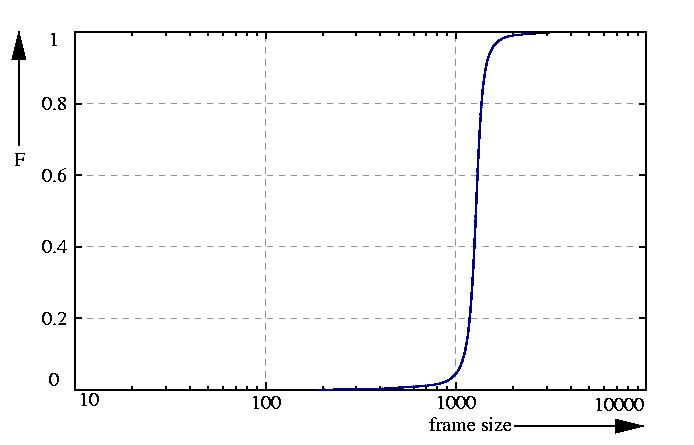

probability function F = sum p

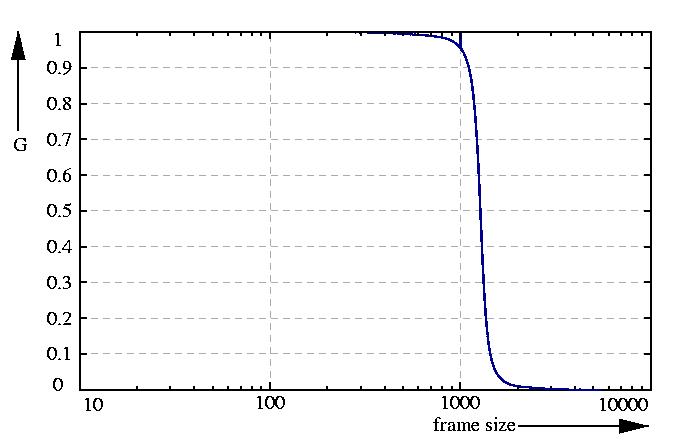

inverse probability function G = 1 - F

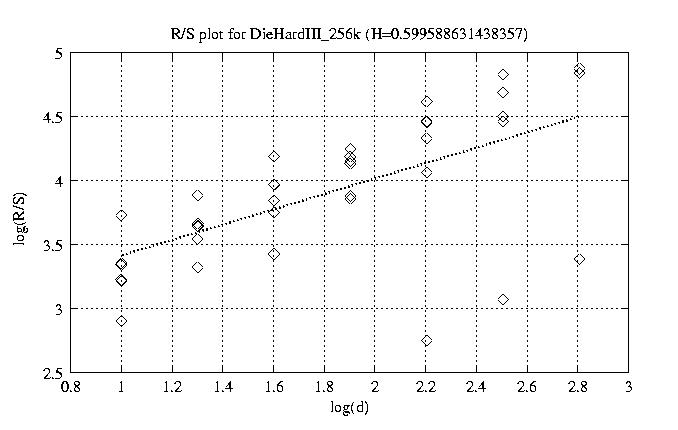

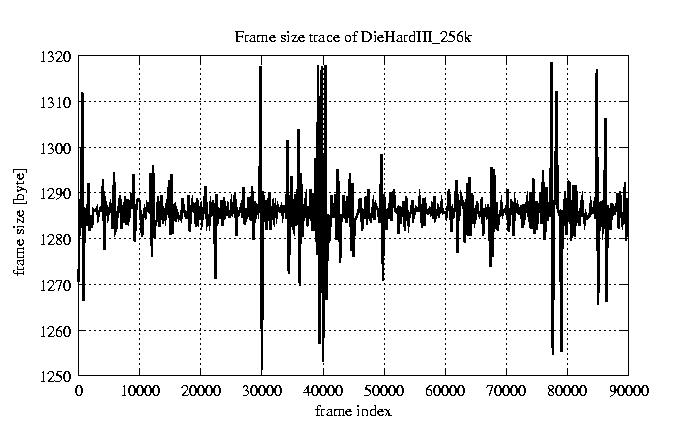

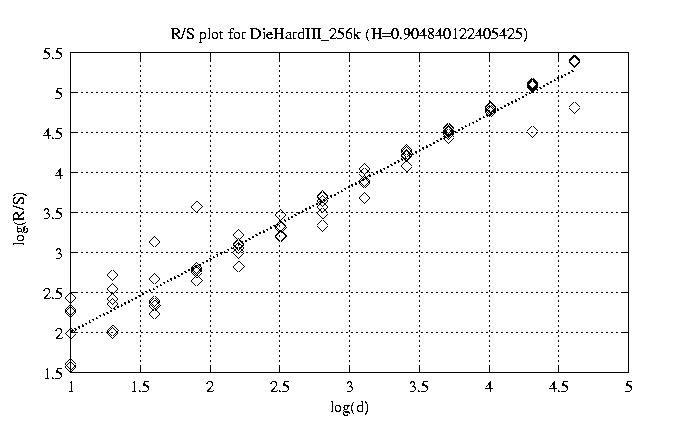

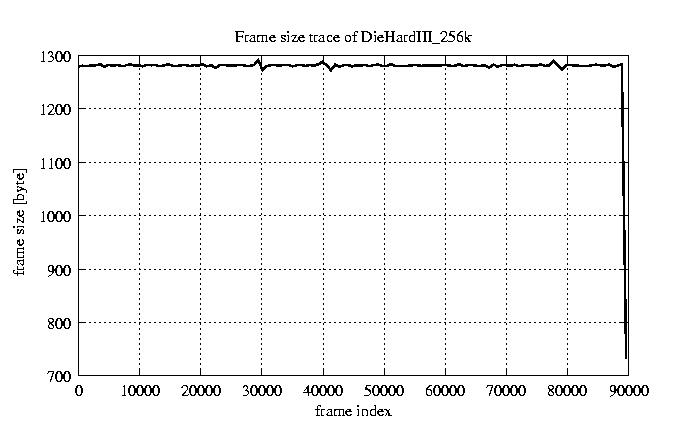

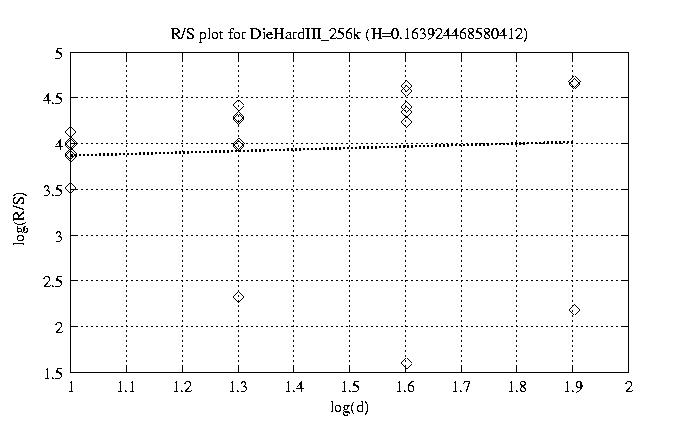

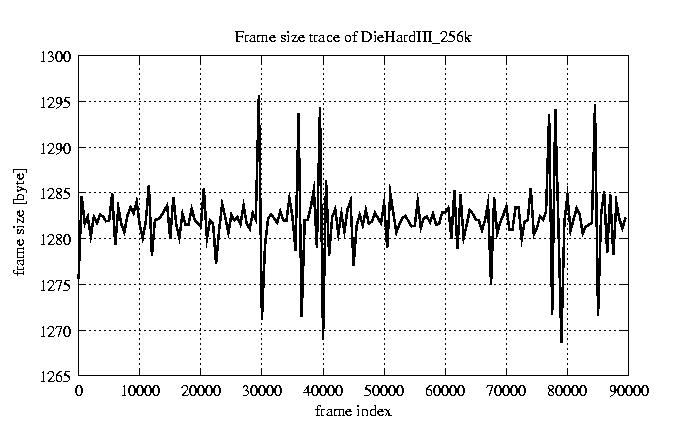

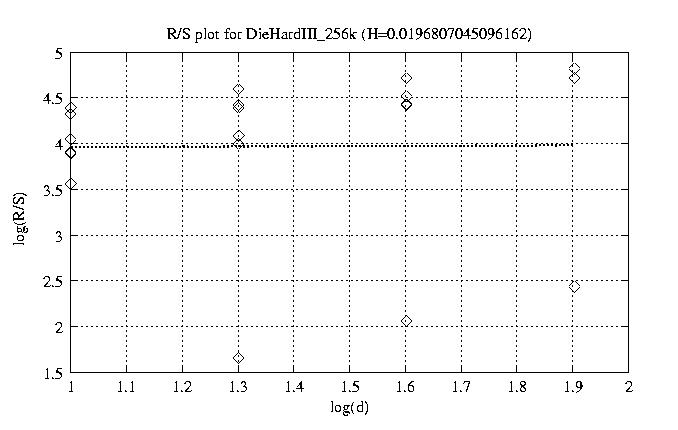

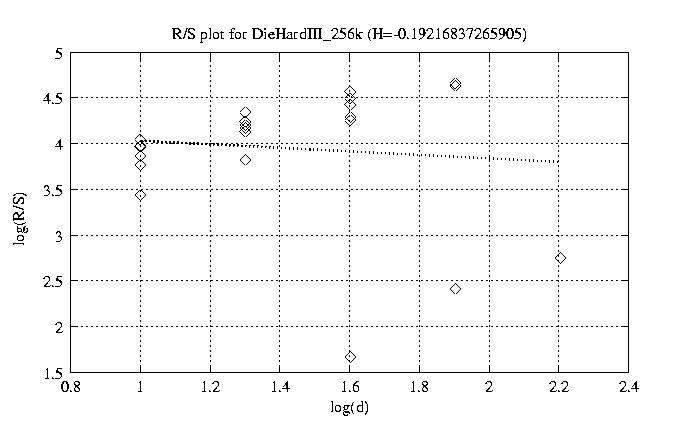

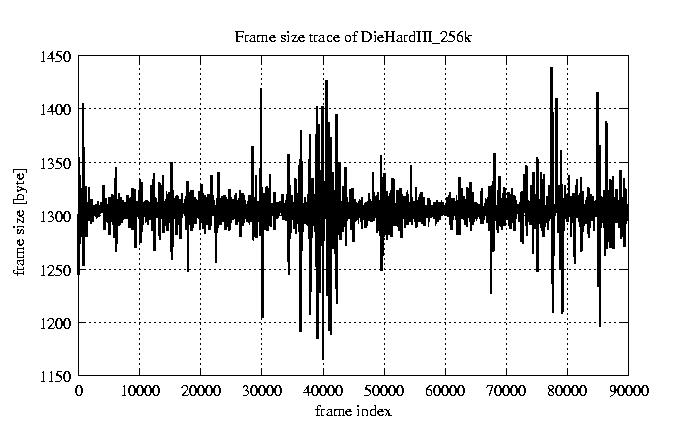

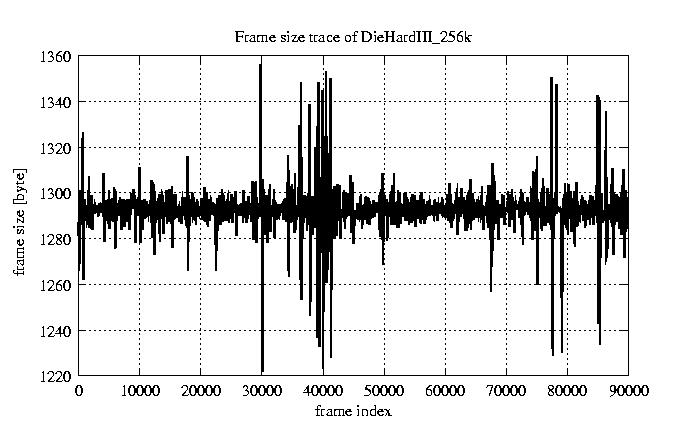

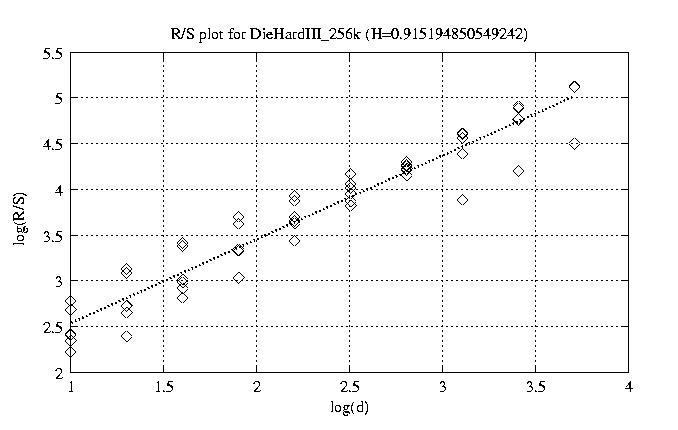

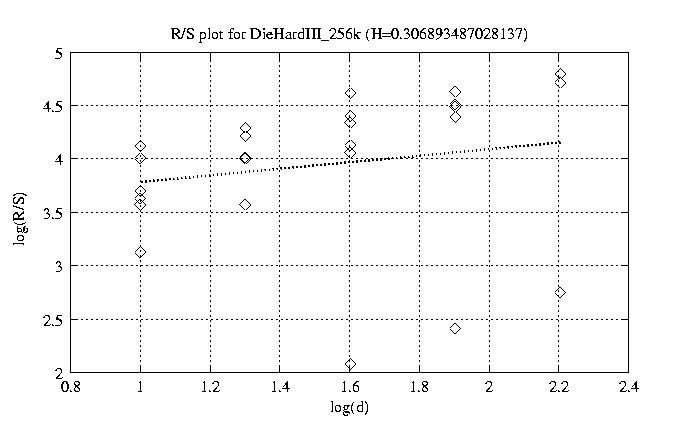

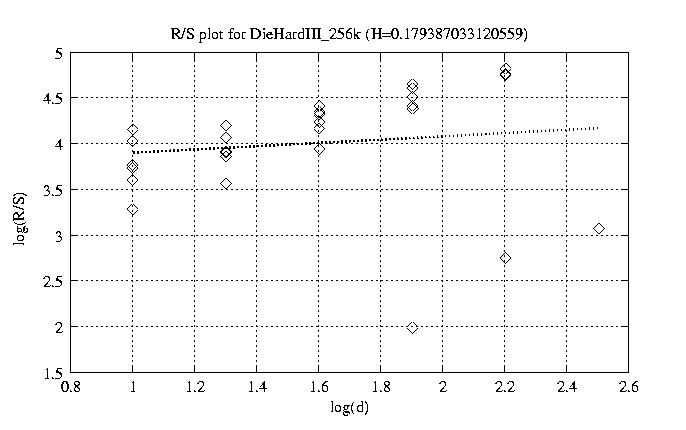

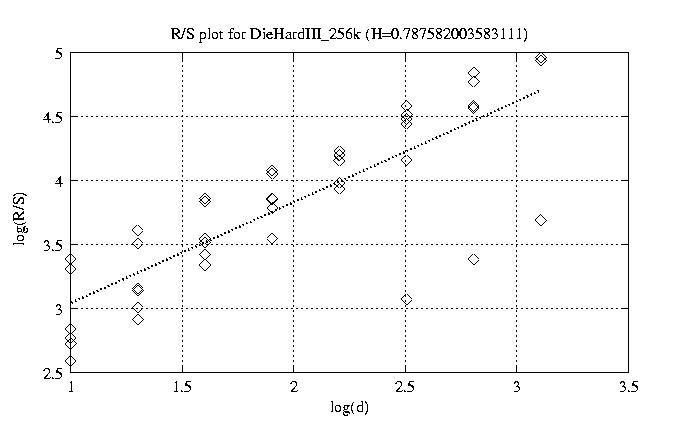

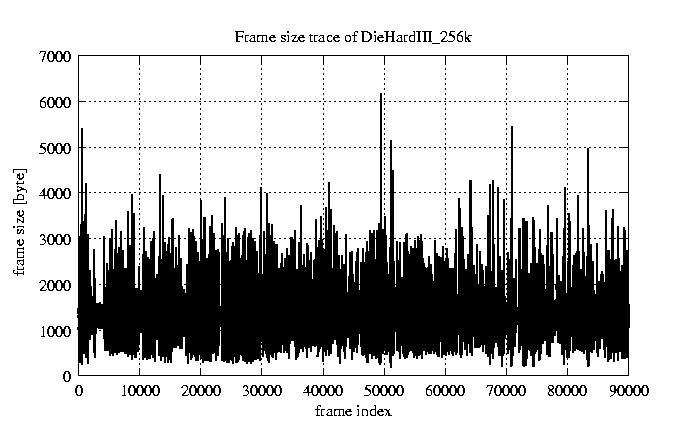

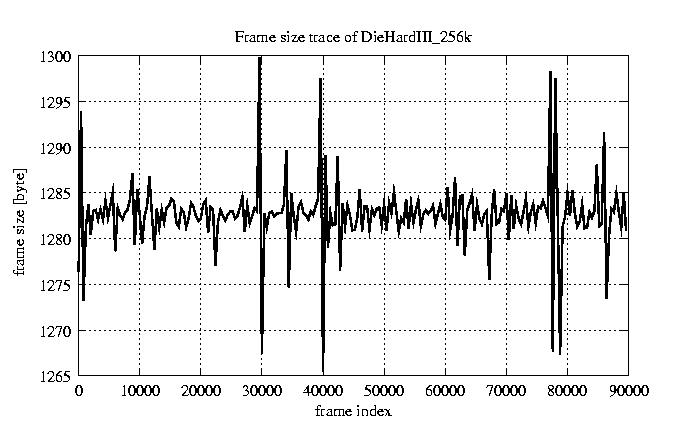

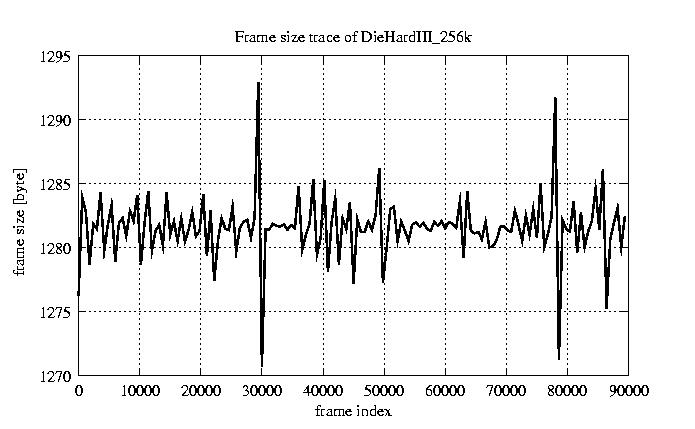

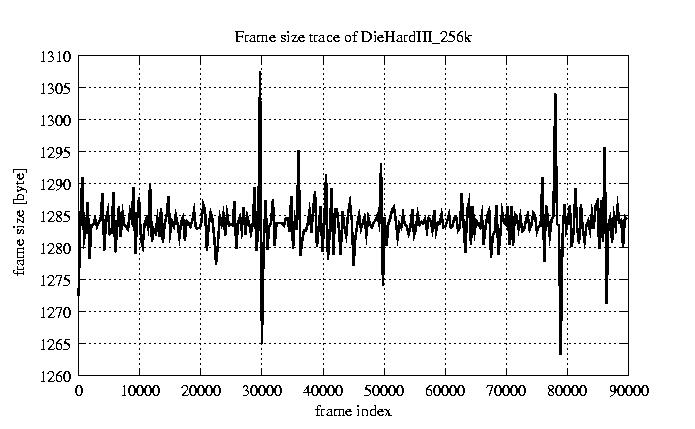

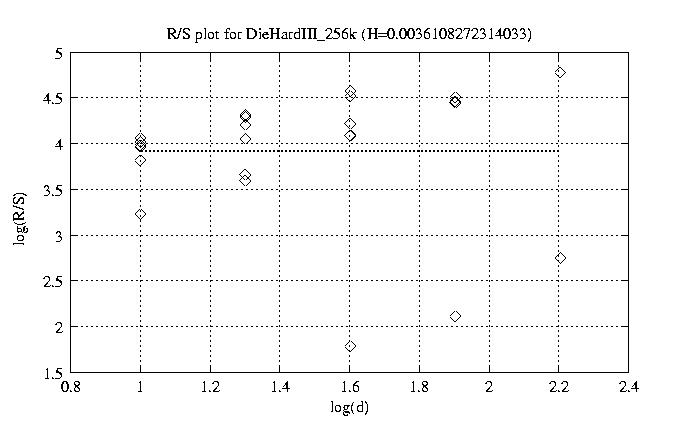

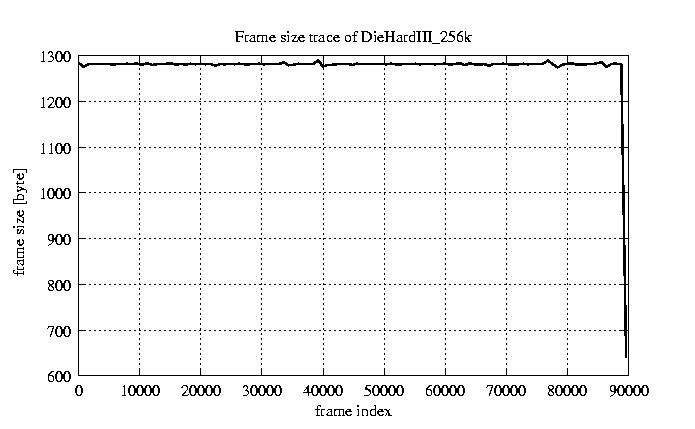

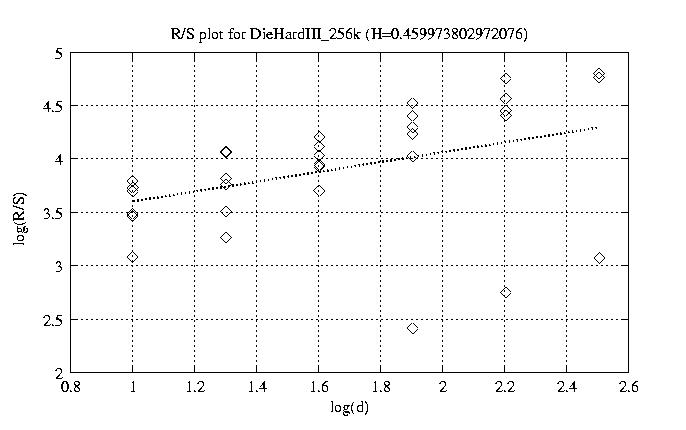

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.905 view view 12 0.915 view view 50 0.788 view view 100 0.600 view view 200 0.460 view view 300 0.179 view view 400 0.307 view view 500 0.004 view view 600 -0.192 view view 700 0.164 view view 800 0.020 view view

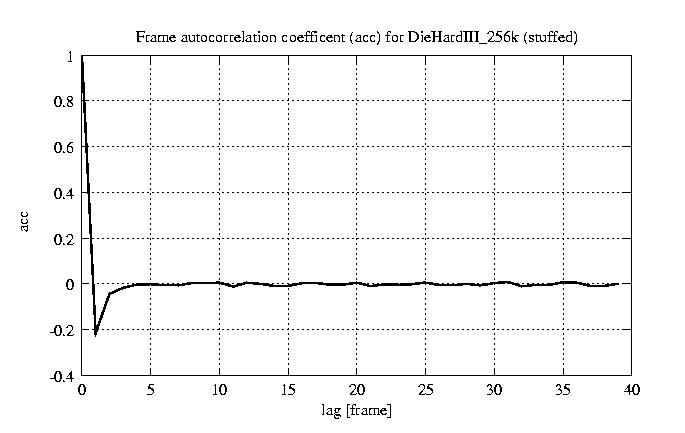

other plots	autocorrelation function of frames
