H263 - Simpsons
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.96 118.96 File size byte 9.6e+06 9.6e+06 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30029.00 8799.00 mean frame size byte 319.57 1090.63 var frame size - 304931.17 199710.74 CoV of frame size - 1.73 0.41 min frame size byte 0.00 126.00 max frame size byte 6806.00 6806.00 Peak/Mean frame - 21.30 6.24 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.7e+05 Peak/Mean of bit rate - 5.8 CoV of bit rate - 0.45 max inter frame space frames 1.00 33.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

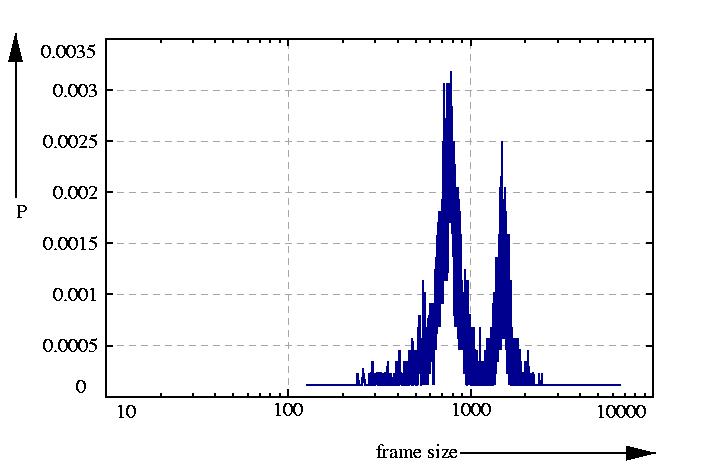

probability density function p

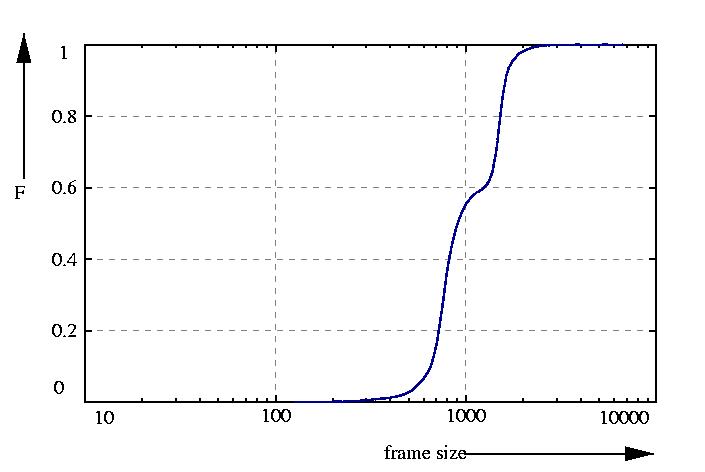

probability function F = sum p

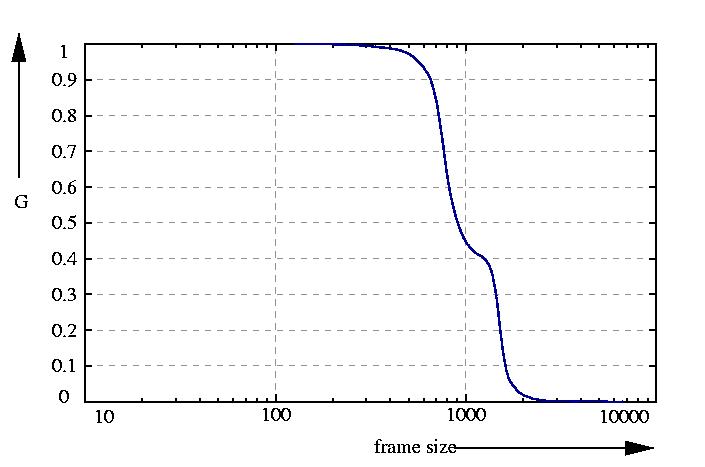

inverse probability function G = 1 - F

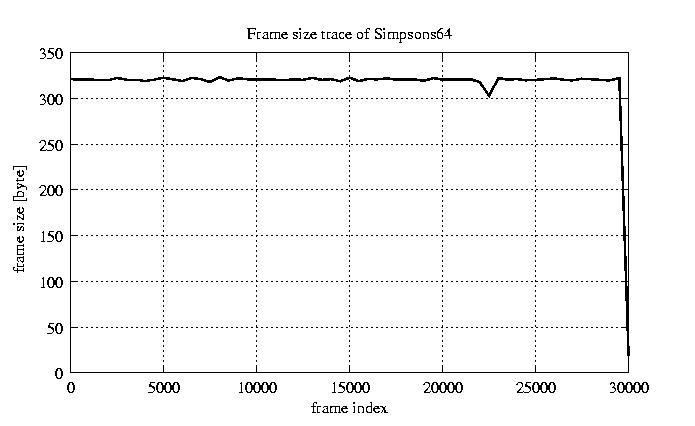

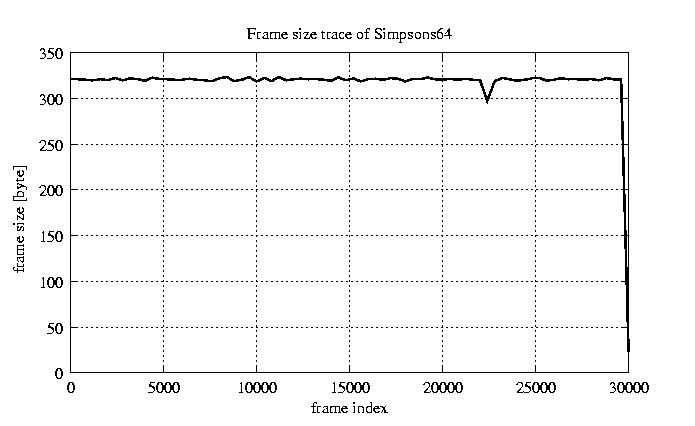

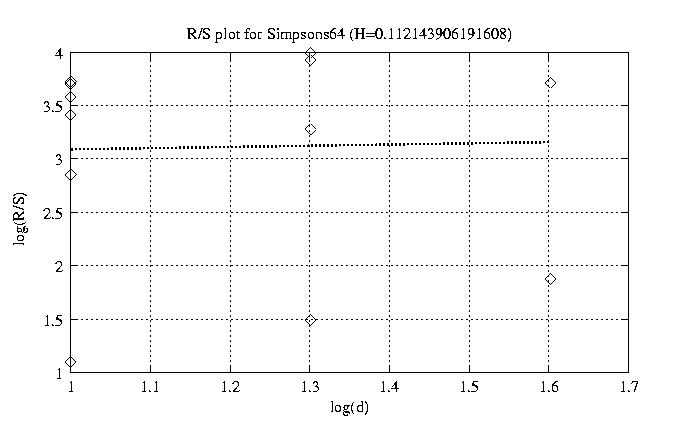

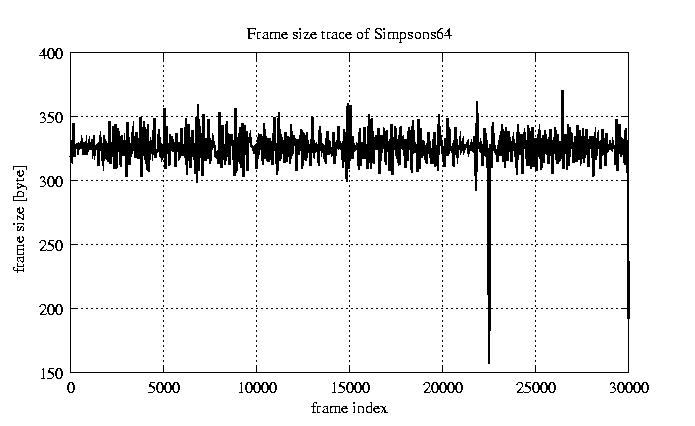

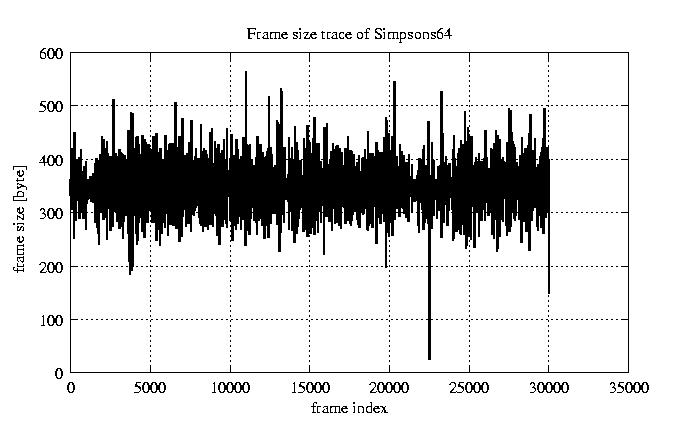

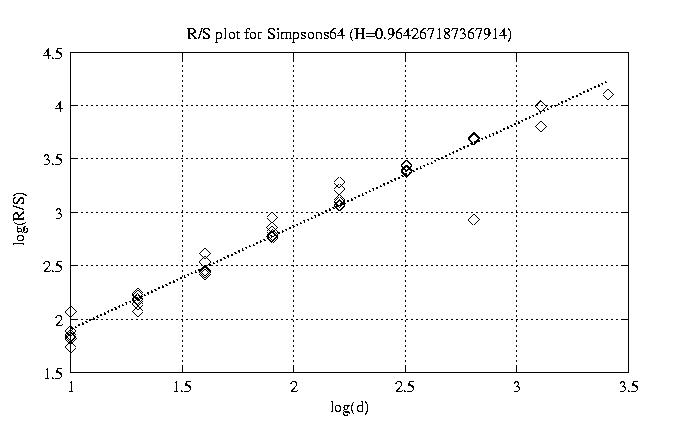

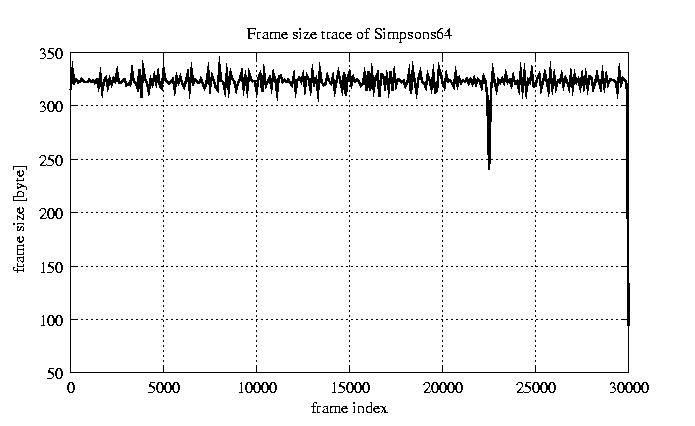

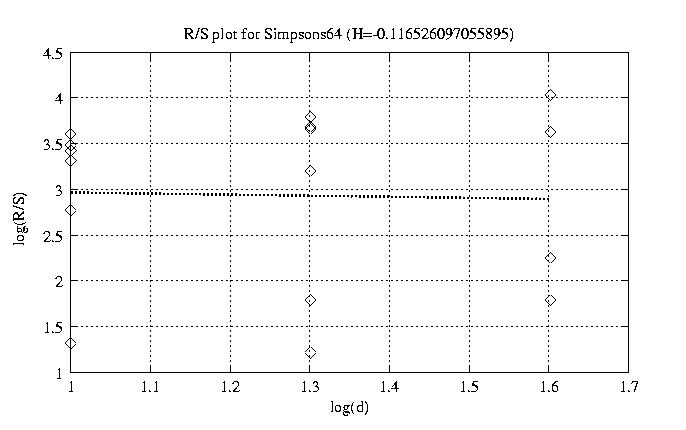

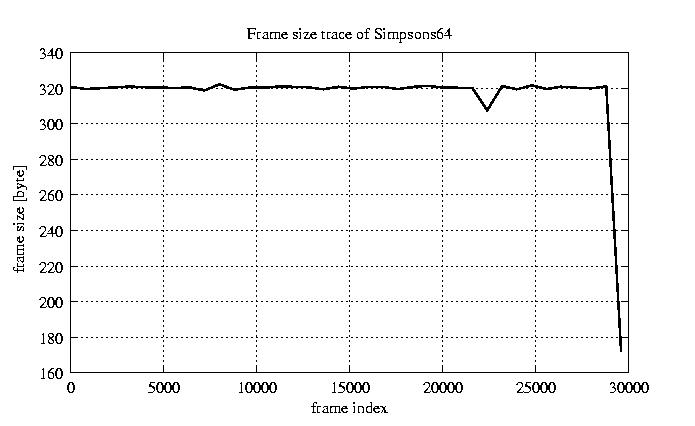

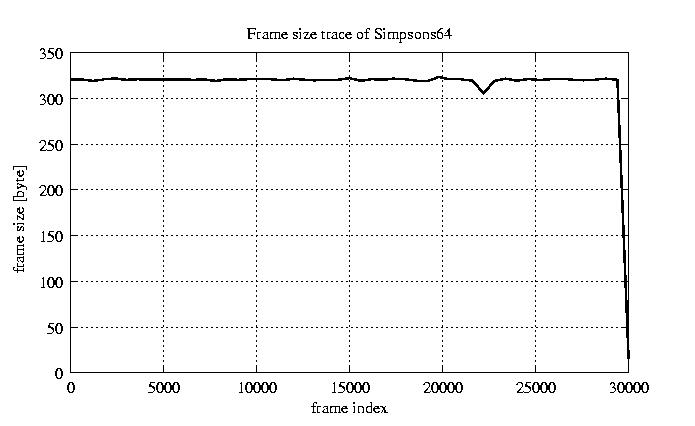

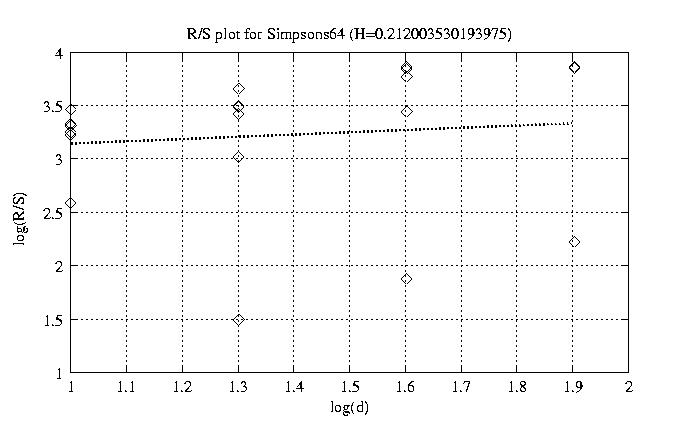

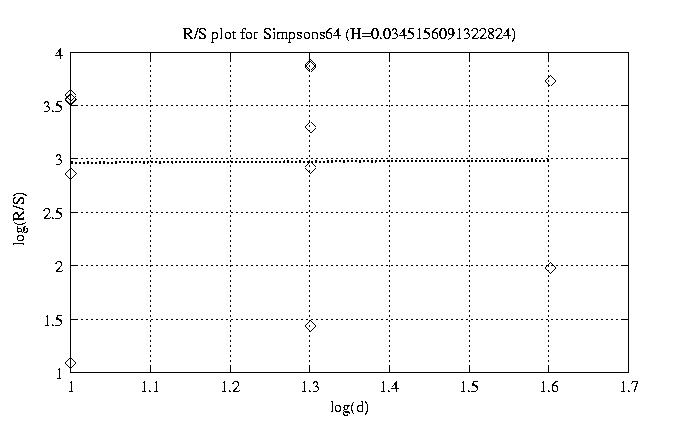

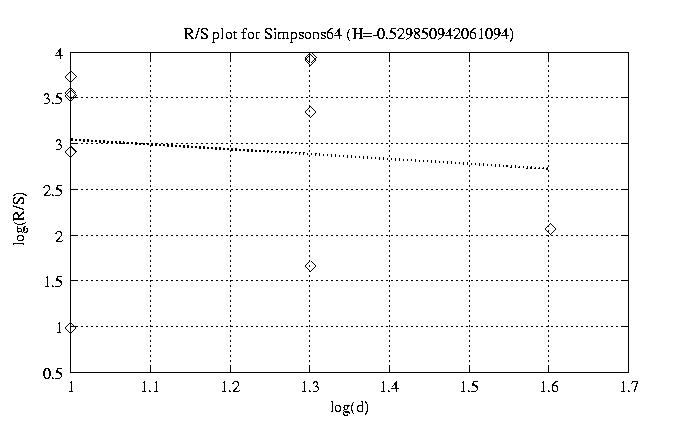

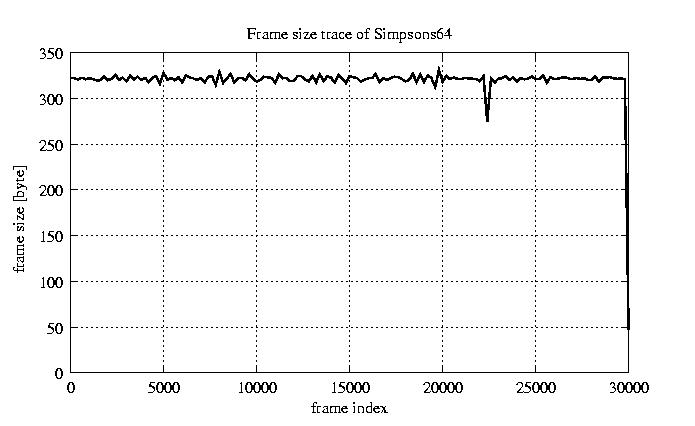

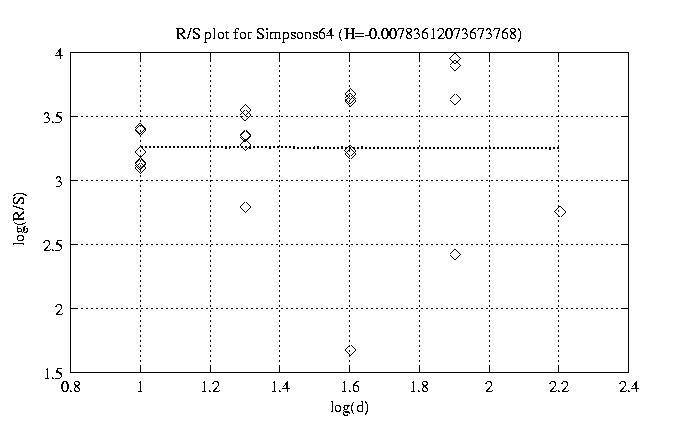

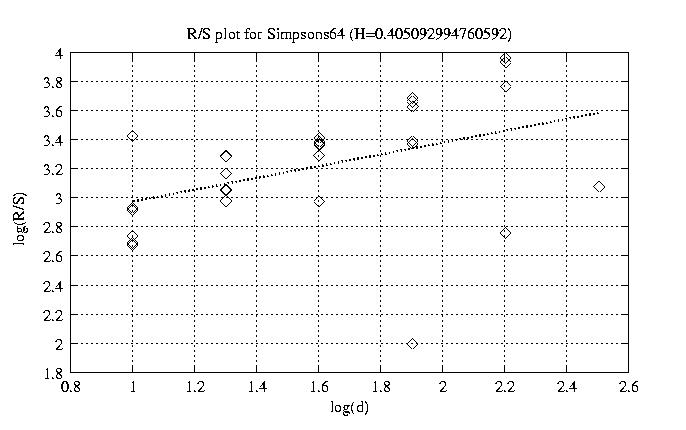

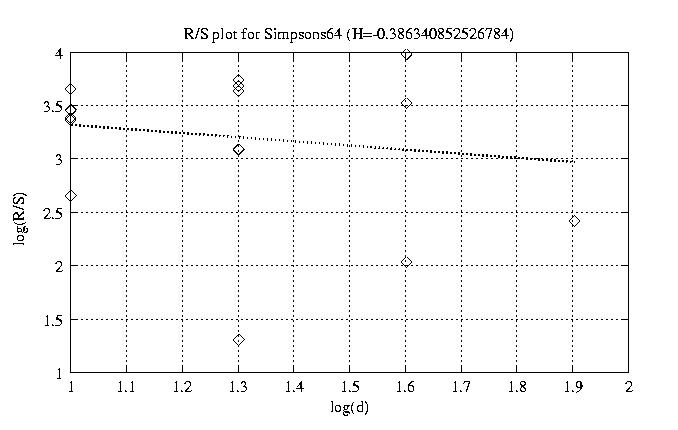

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.605 view view 12 0.964 view view 50 0.644 view view 100 0.405 view view 200 -0.008 view view 300 0.212 view view 400 -0.386 view view 500 -0.117 view view 600 0.112 view view 700 0.035 view view 800 -0.530 view view

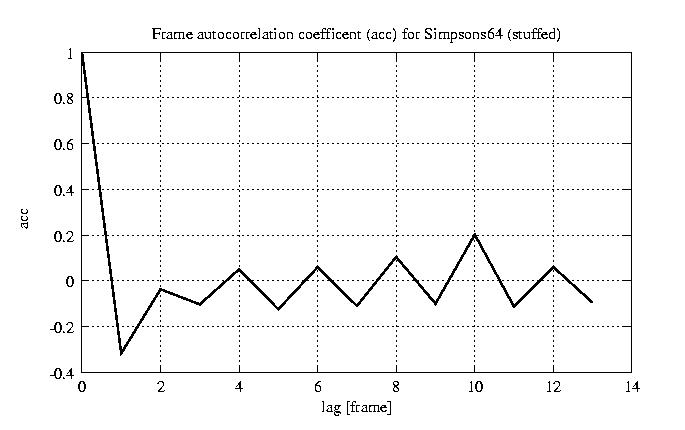

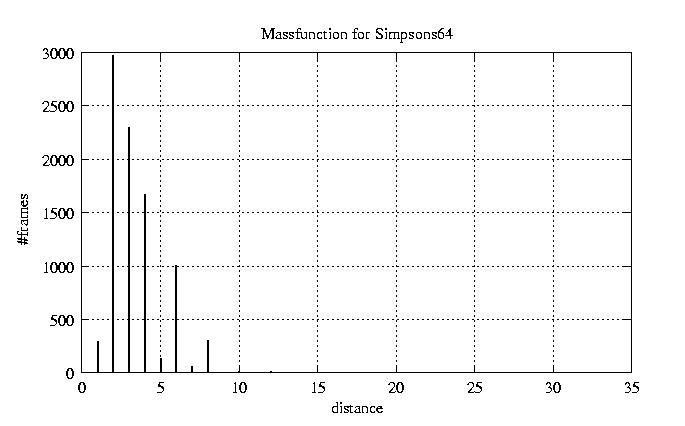

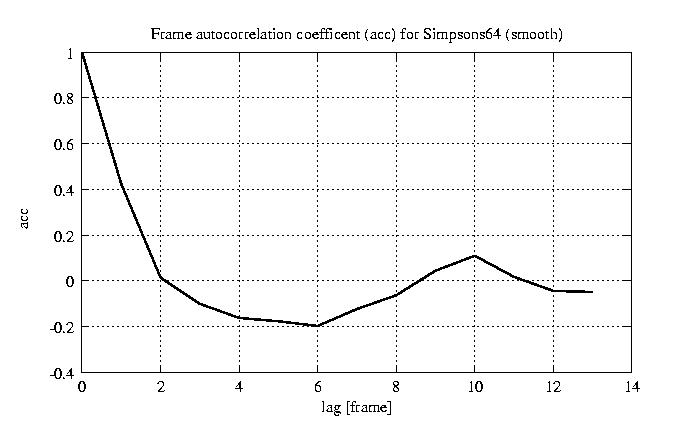

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
