MP4 - Aladdin
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 49.07 File Size byte 7e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 7.7e+02 var frame size - 5.8e+05 CoV of frame size - 0.98 min frame size byte 26 max frame size byte 6735 Mean bit rate bit/sec 1.5e+05 Peak bit rate bit/sec 1.3e+06 Peak/Mean of bit rate - 8.69 GoP statistics # of GoPs - 7499 mean GoP size byte 9.3e+03 var GoP size - 3.4e+07 CoV of GoP size - 0.63 min GoP size byte 740 max GoP size byte 48072 Mean bit rate bit/sec 1.5e+05 Peak bit rate bit/sec 8e+05 Peak/Mean of bit rate - 5.17 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

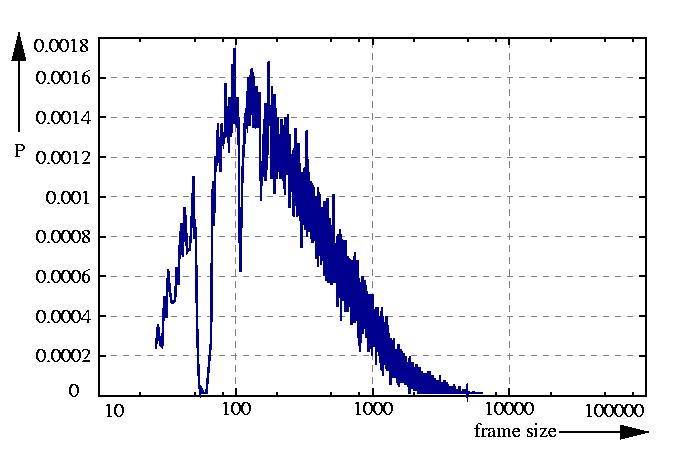

probability density function p

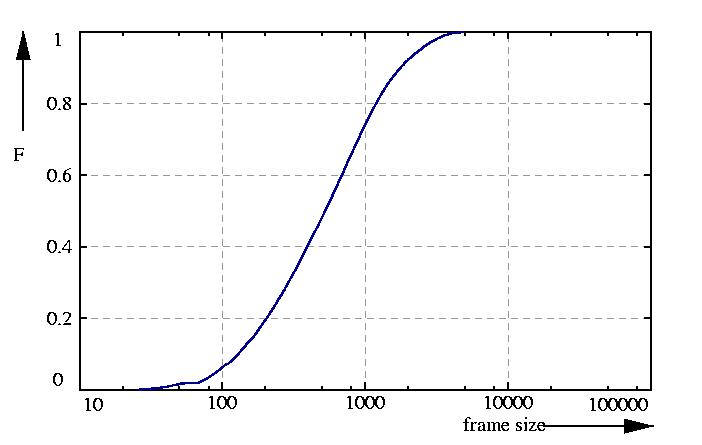

probability function F = sum p

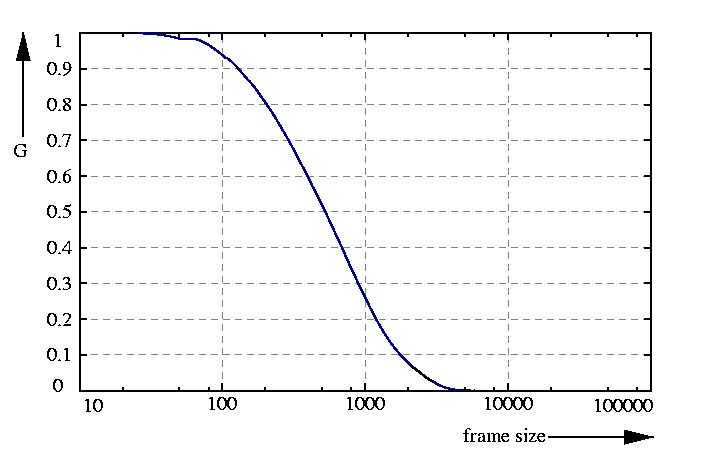

inverse probability function G = 1 - F

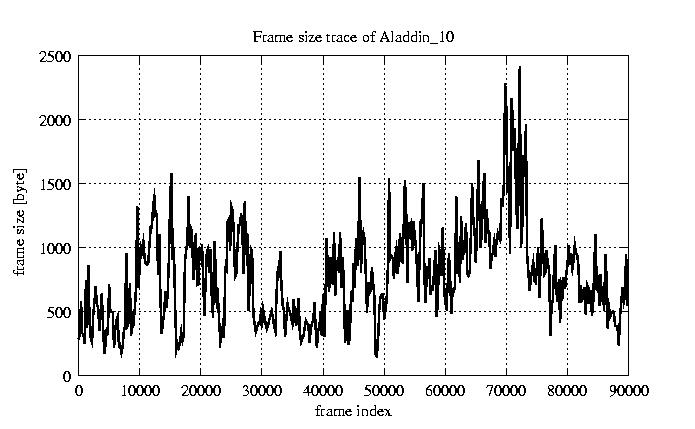

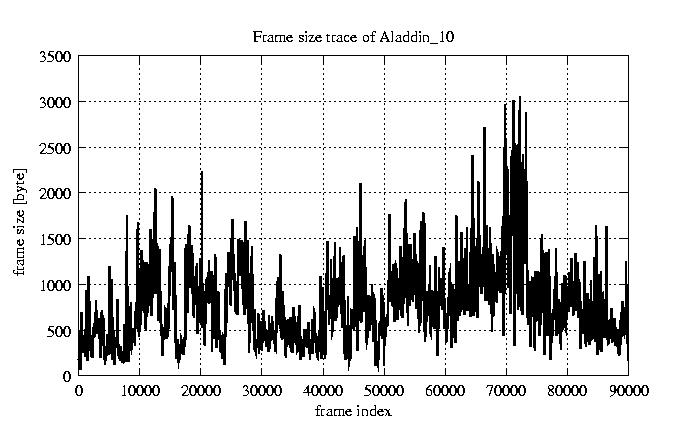

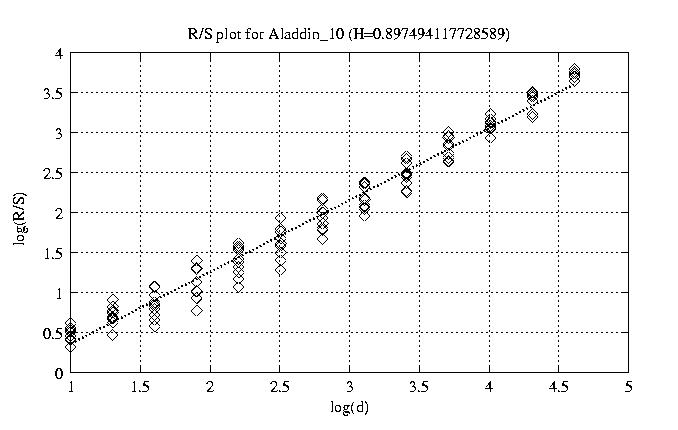

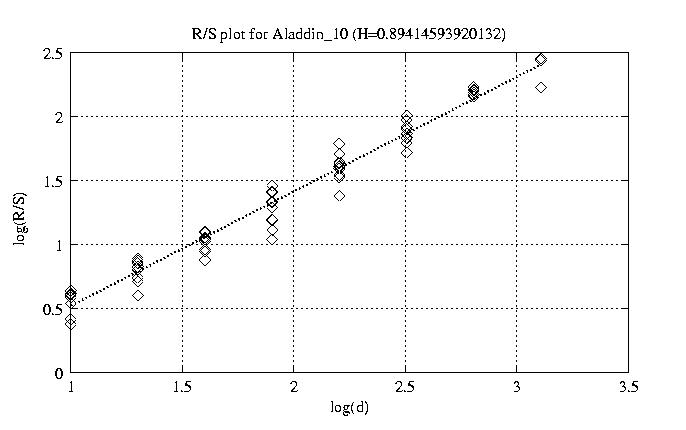

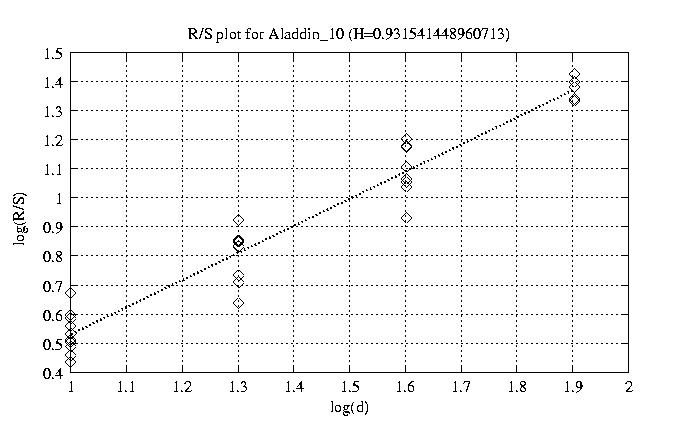

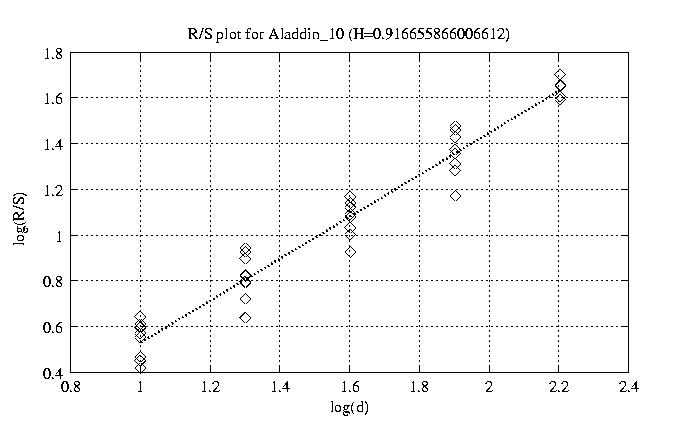

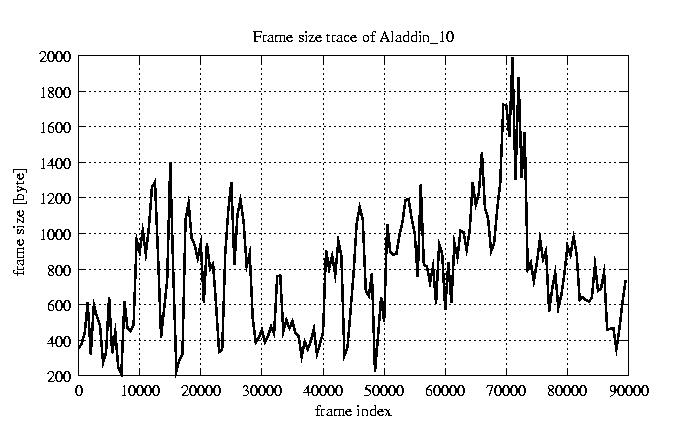

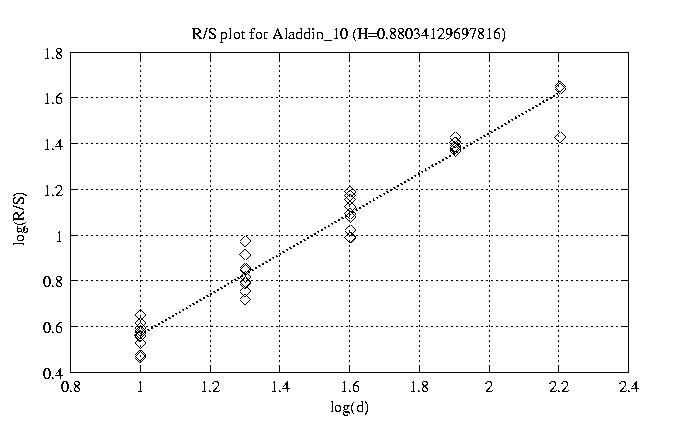

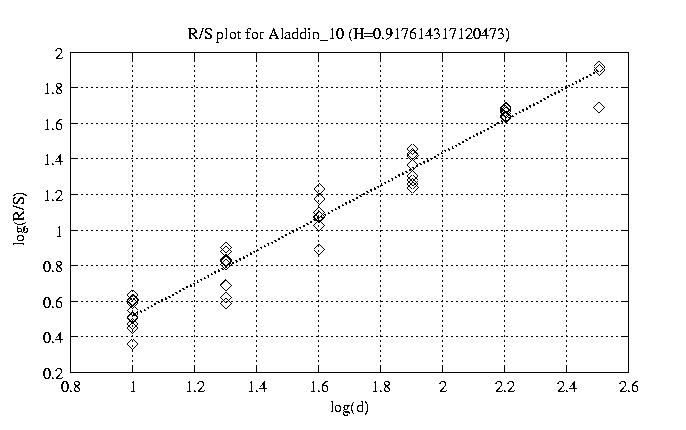

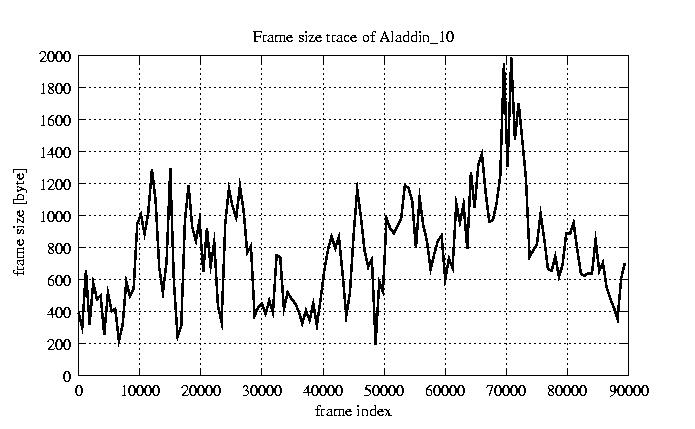

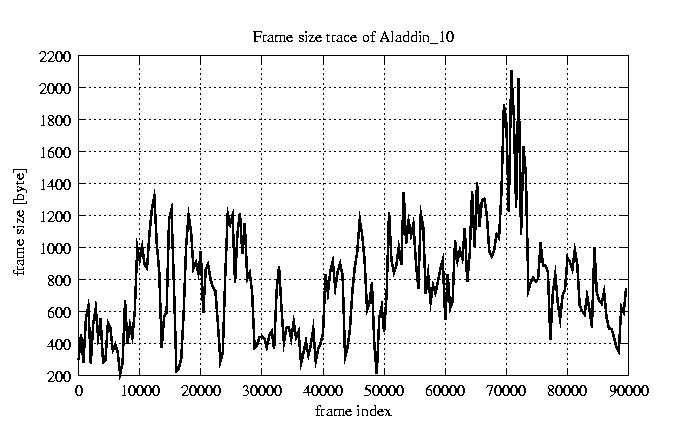

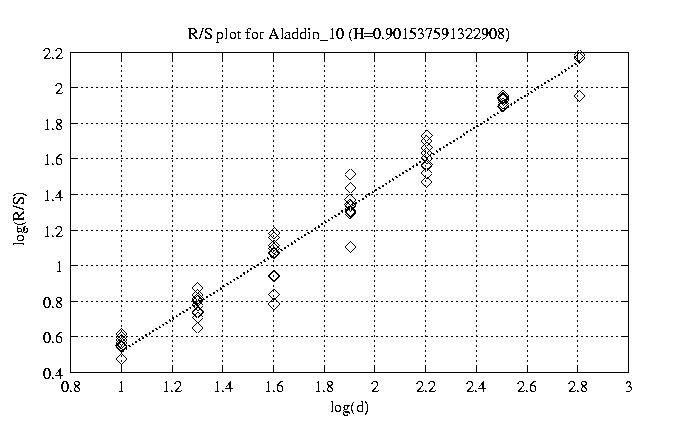

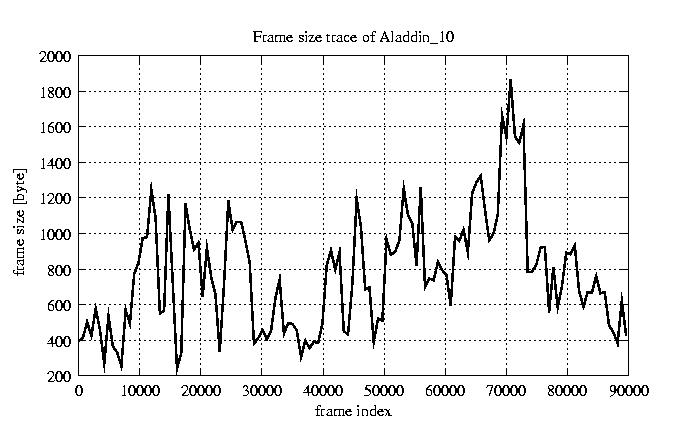

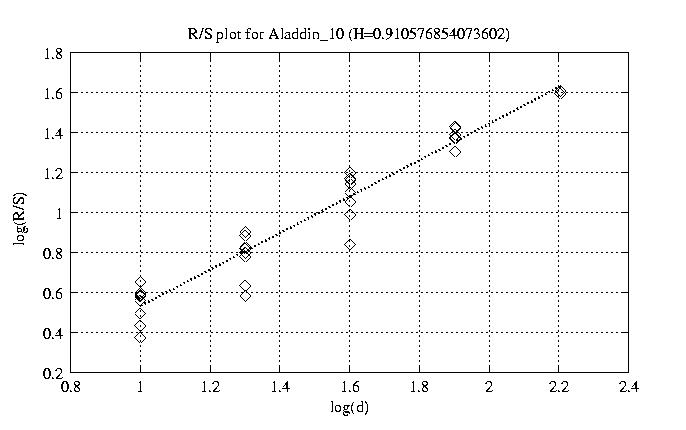

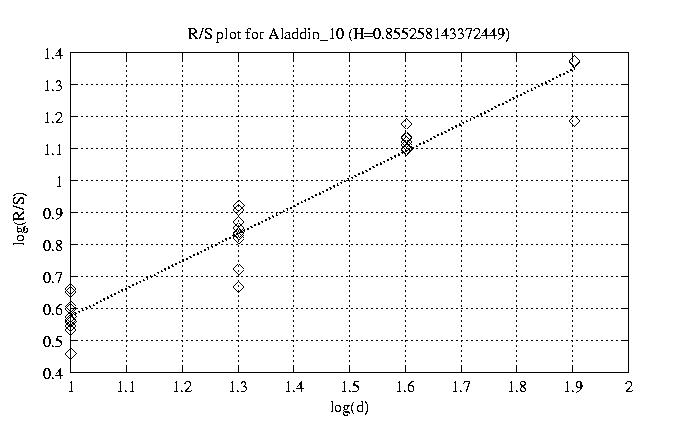

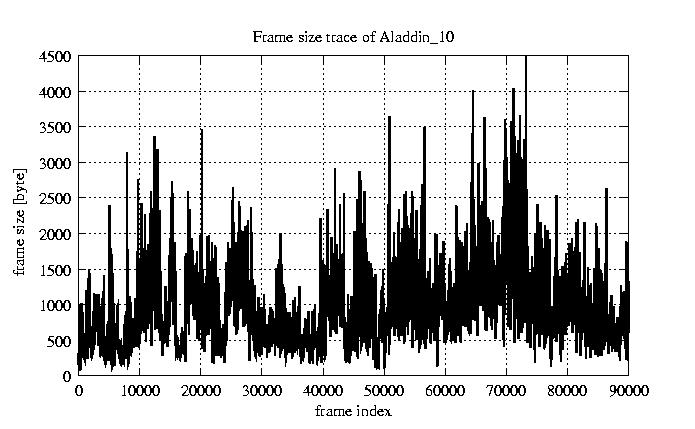

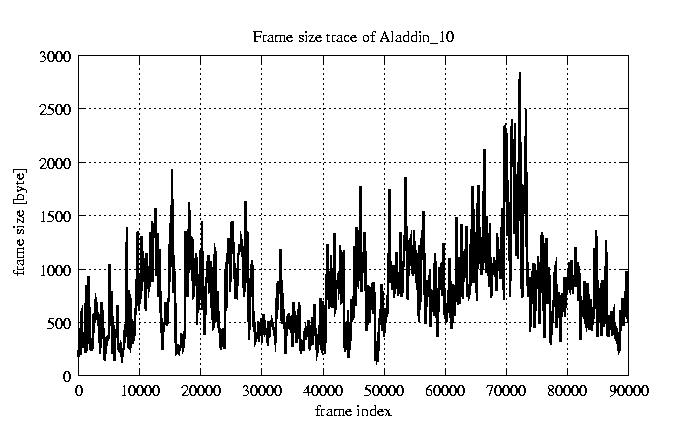

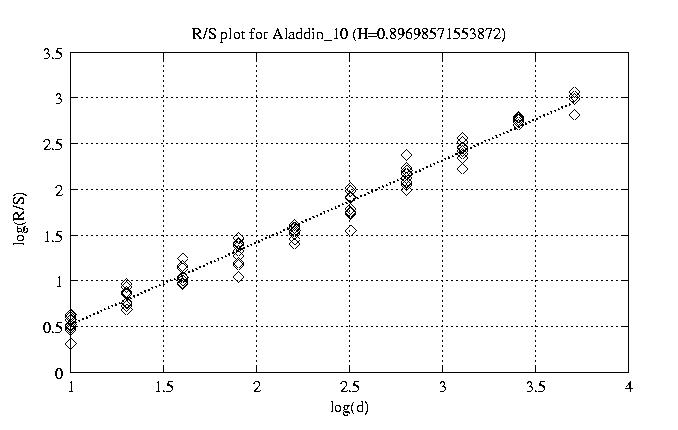

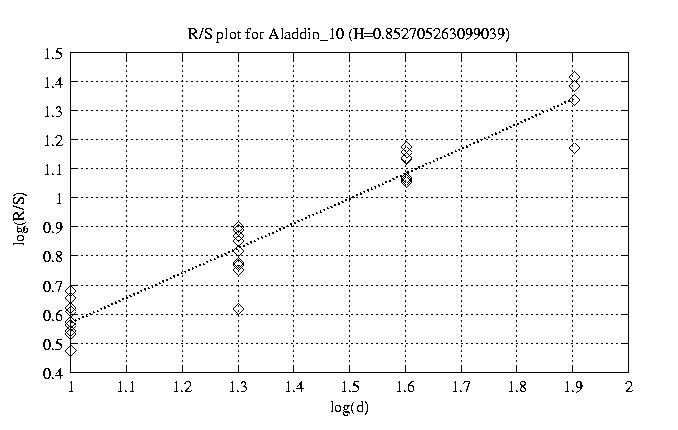

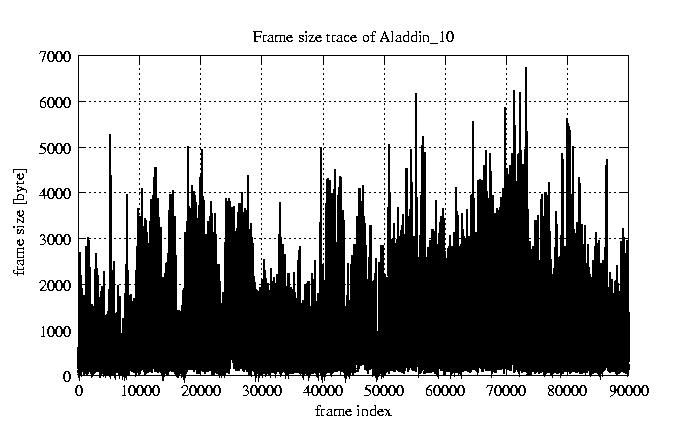

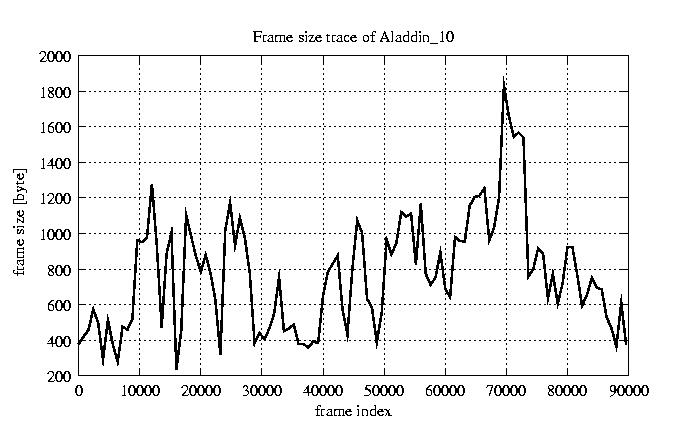

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.897 view view 12 0.897 view view 50 0.894 view view 100 0.902 view view 200 0.918 view view 300 0.917 view view 400 0.880 view view 500 0.911 view view 600 0.932 view view 700 0.853 view view 800 0.855 view view

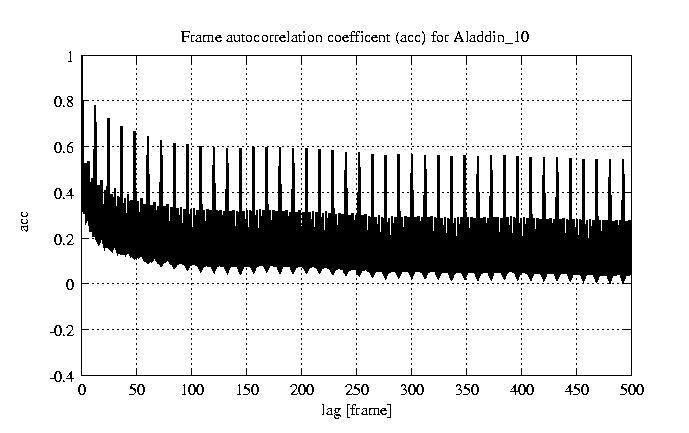

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
