H263 - Boulevard Bio
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 24.55 24.55 File size byte 1.4e+08 1.4e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 46487.00 mean frame size byte 1548.55 3000.82 var frame size - 3596394.34 2611163.33 CoV of frame size - 1.22 0.54 min frame size byte 0.00 19.00 max frame size byte 11643.00 11643.00 Peak/Mean frame - 7.52 3.88 Mean bit rate bit/sec 3.1e+05 Peak bit rate bit/sec 2.3e+06 Peak/Mean of bit rate - 7.5 CoV of bit rate - 0.59 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

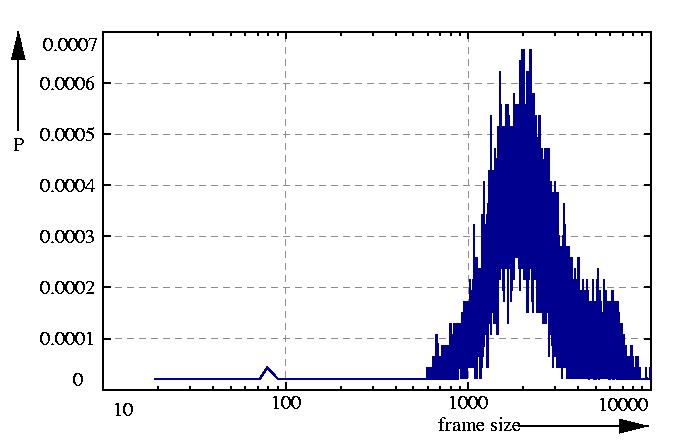

probability density function p

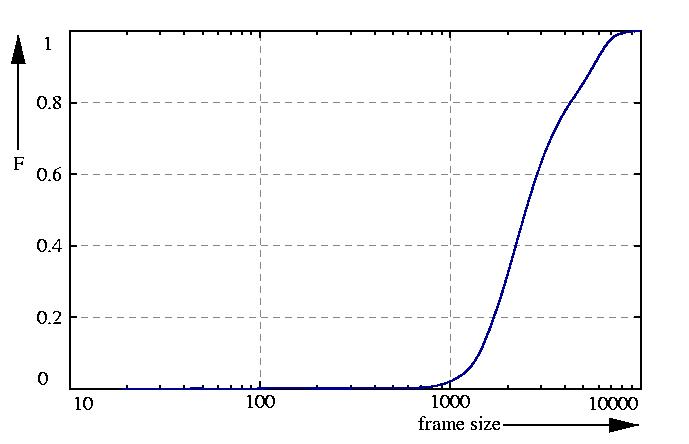

probability function F = sum p
inverse probability function G = 1 - F

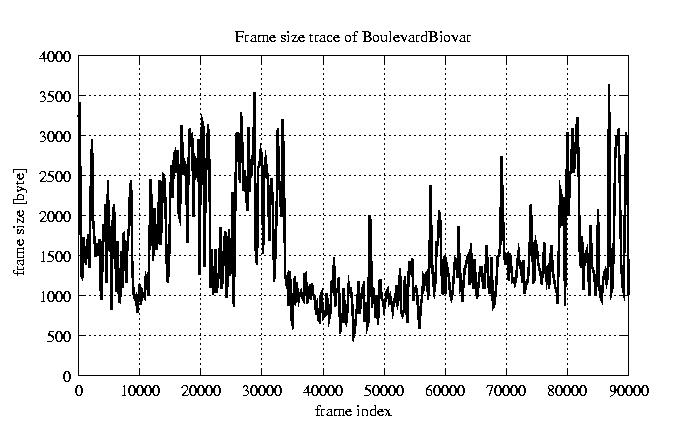

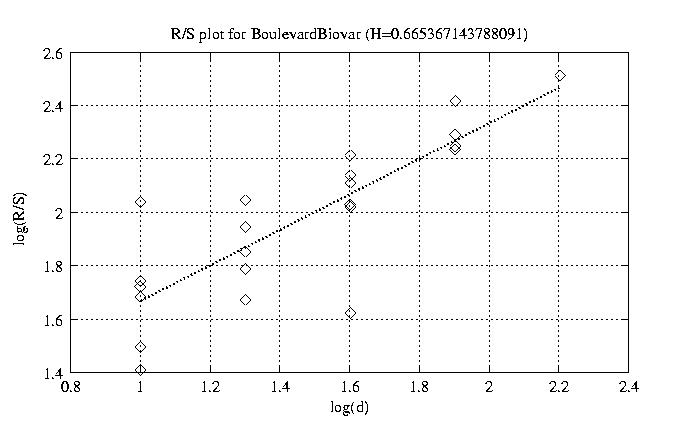

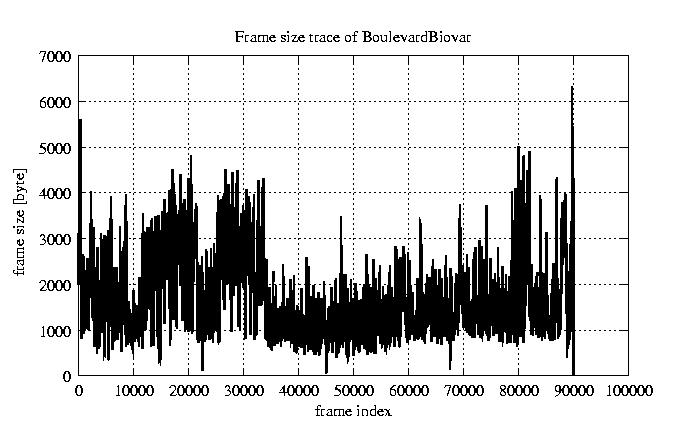

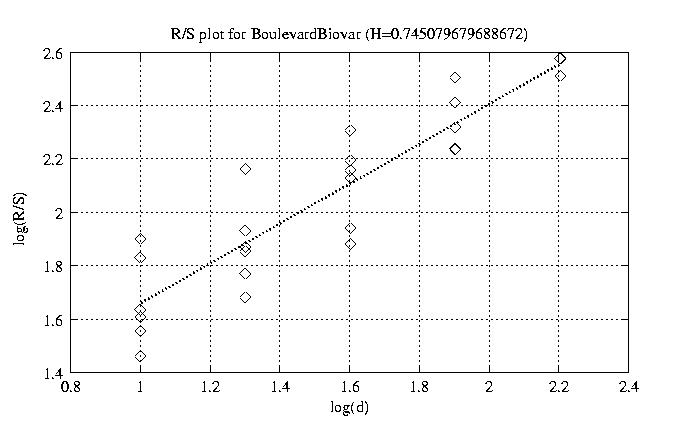

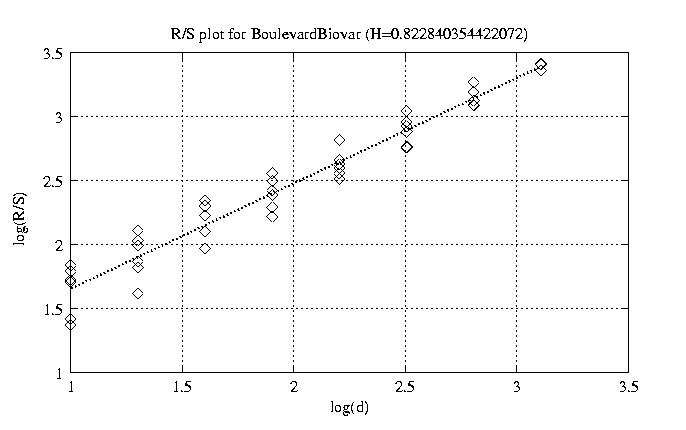

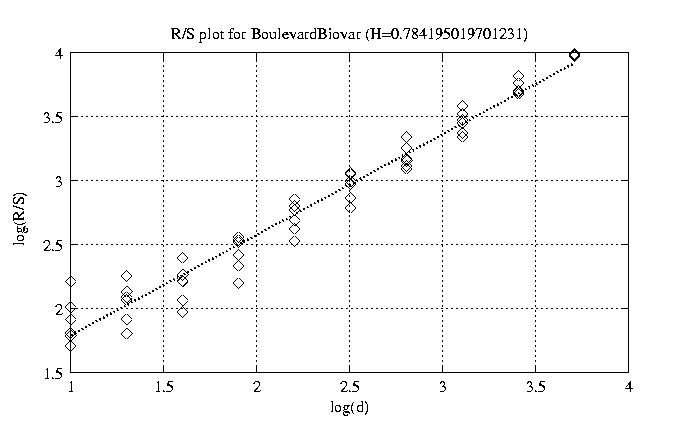

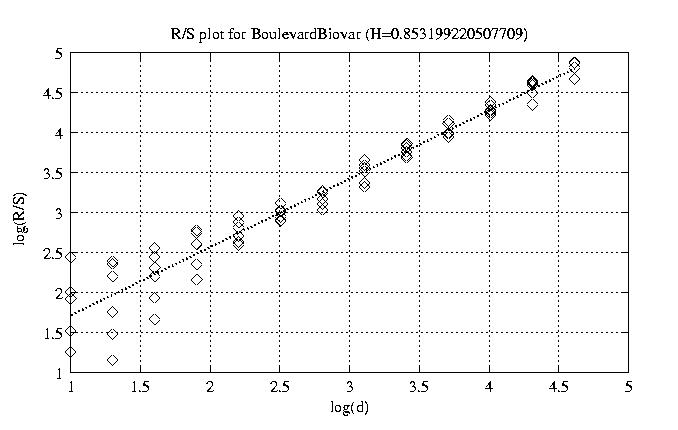

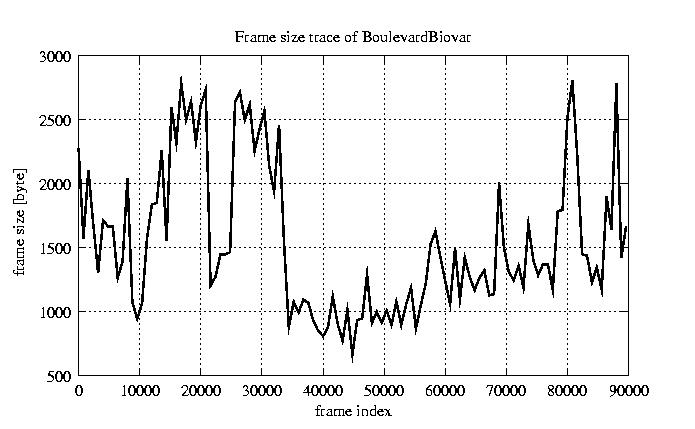

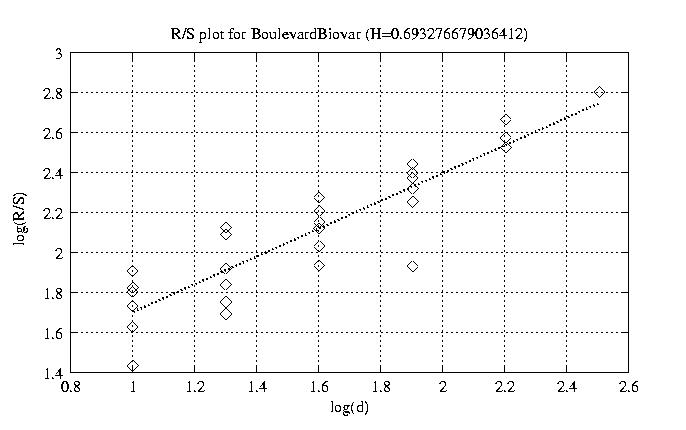

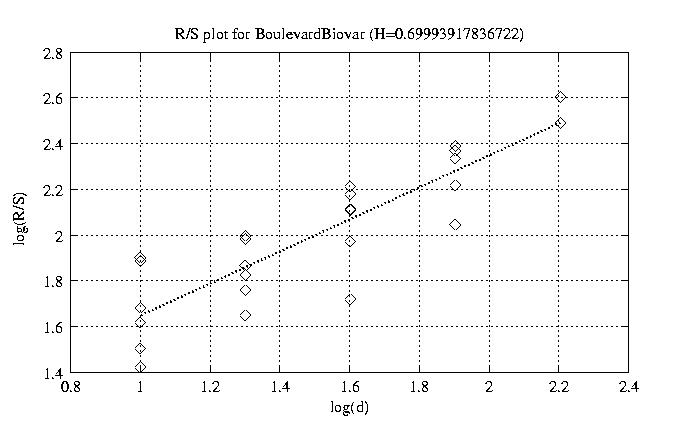

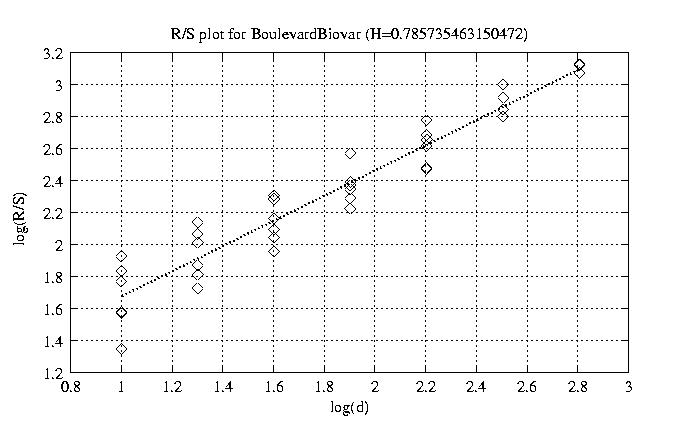

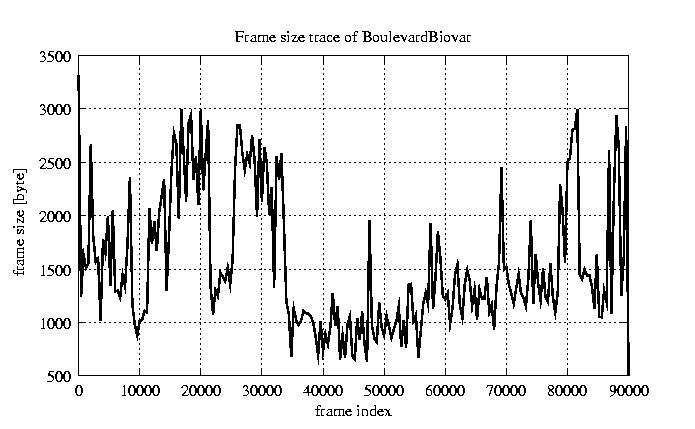

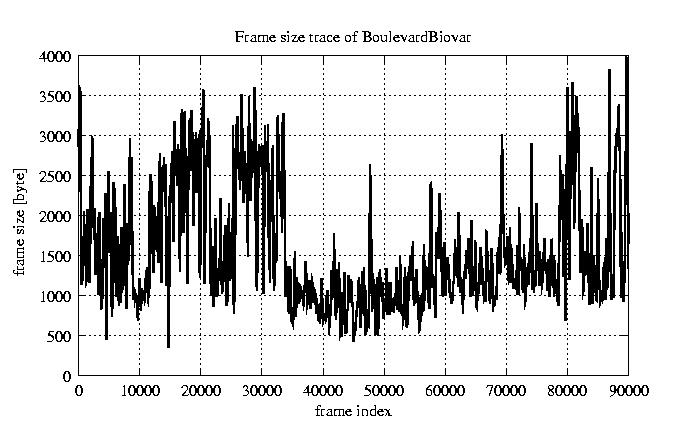

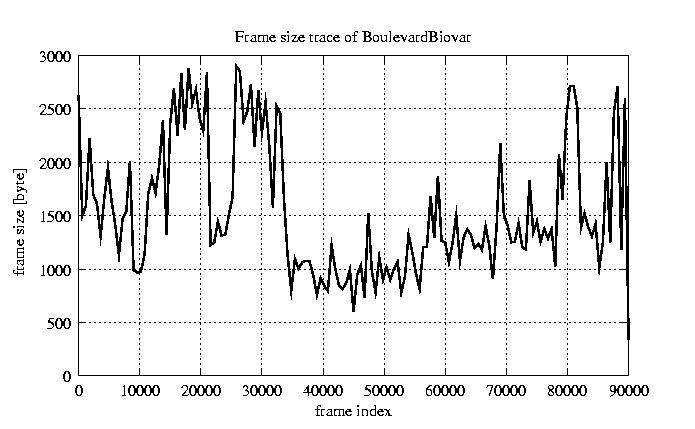

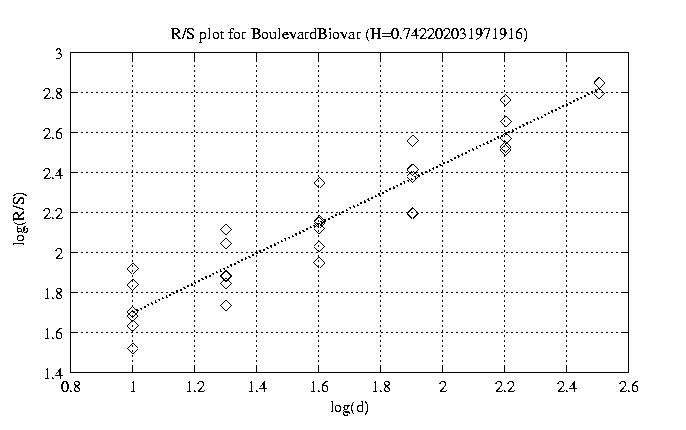

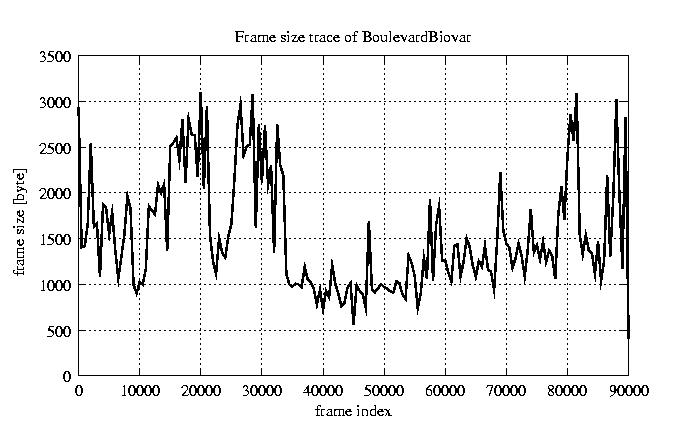

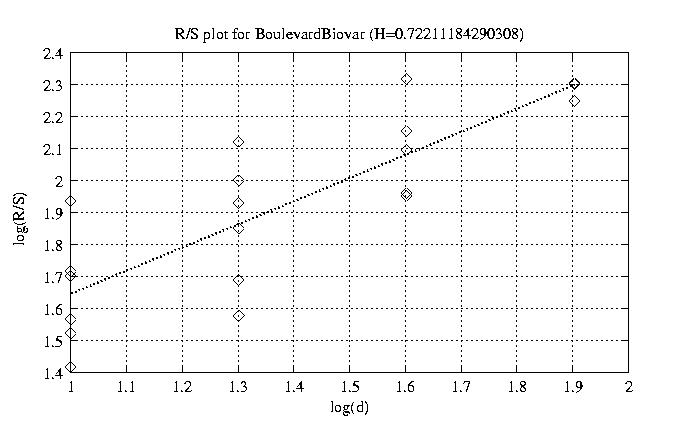

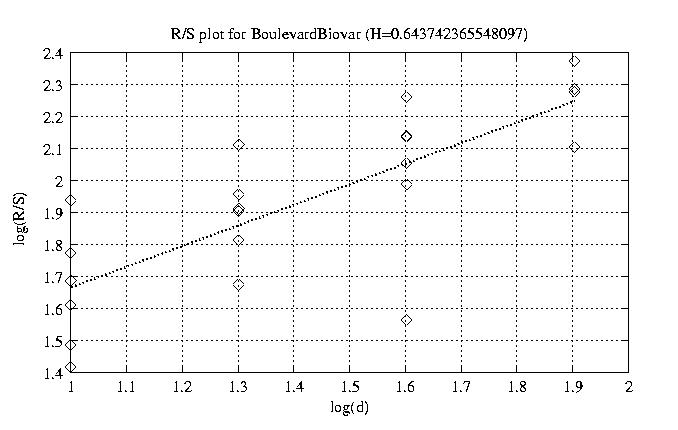

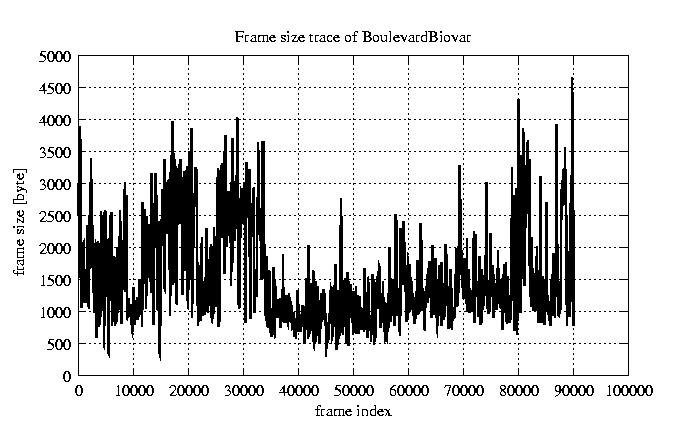

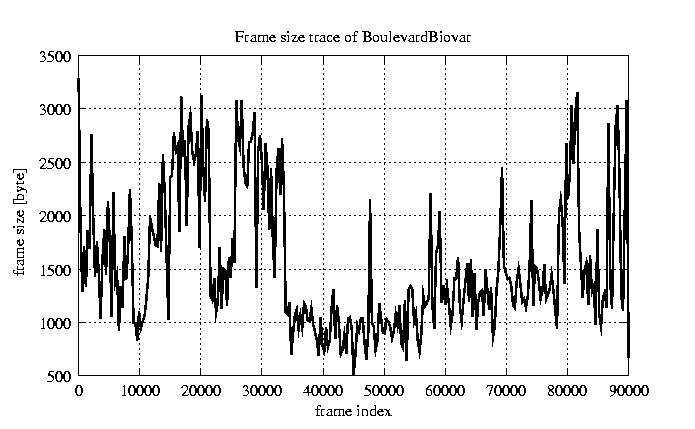

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.853 view view 12 0.784 view view 50 0.823 view view 100 0.786 view view 200 0.742 view view 300 0.693 view view 400 0.745 view view 500 0.700 view view 600 0.665 view view 700 0.644 view view 800 0.722 view view

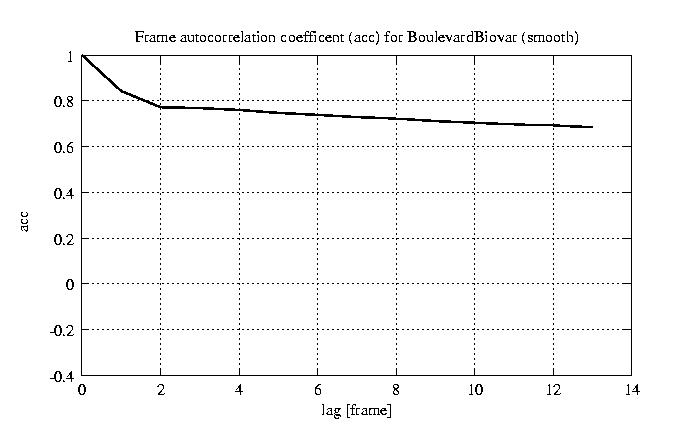

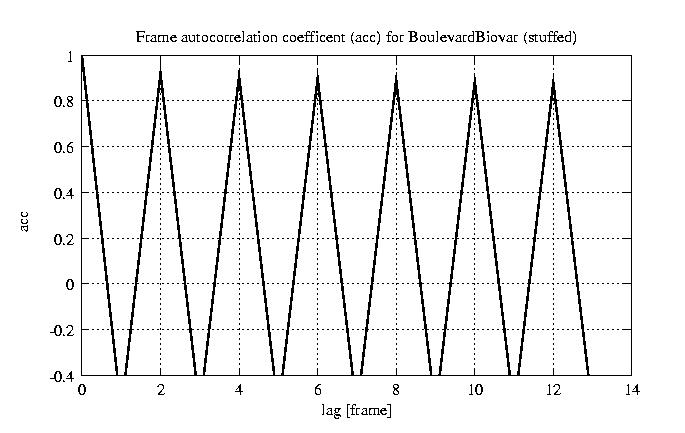

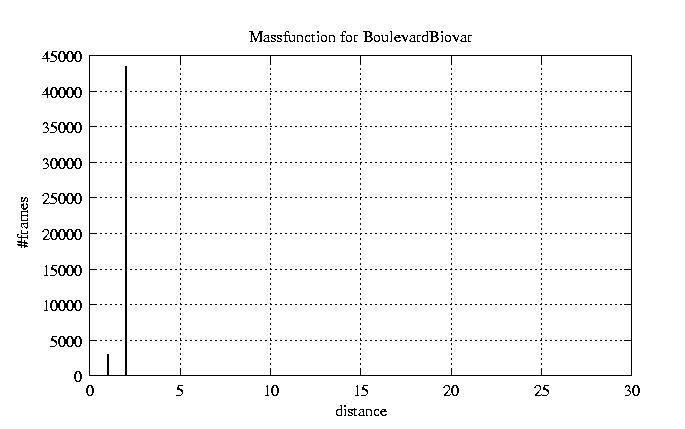

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
