MP4 - Aladdin
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 75.53 File Size byte 4.5e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 5e+02 var frame size - 4.6e+05 CoV of frame size - 1.35 min frame size byte 26 max frame size byte 6241 Mean bit rate bit/sec 1e+05 Peak bit rate bit/sec 1.2e+06 Peak/Mean of bit rate - 12.40 GoP statistics # of GoPs - 7499 mean GoP size byte 6e+03 var GoP size - 1.1e+07 CoV of GoP size - 0.55 min GoP size byte 740 max GoP size byte 29506 Mean bit rate bit/sec 1e+05 Peak bit rate bit/sec 4.9e+05 Peak/Mean of bit rate - 4.88 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

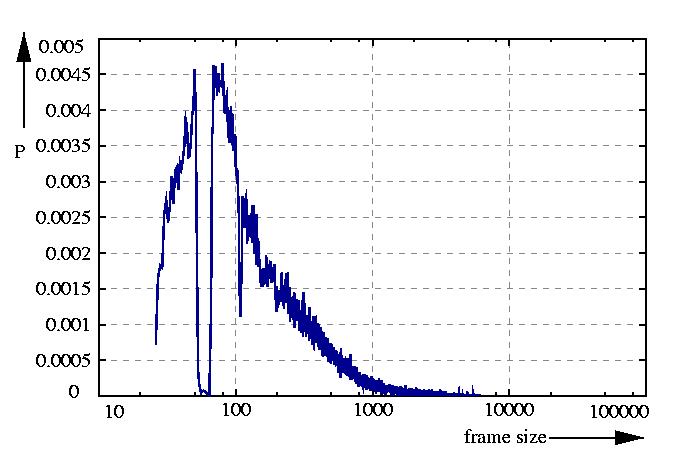

probability density function p

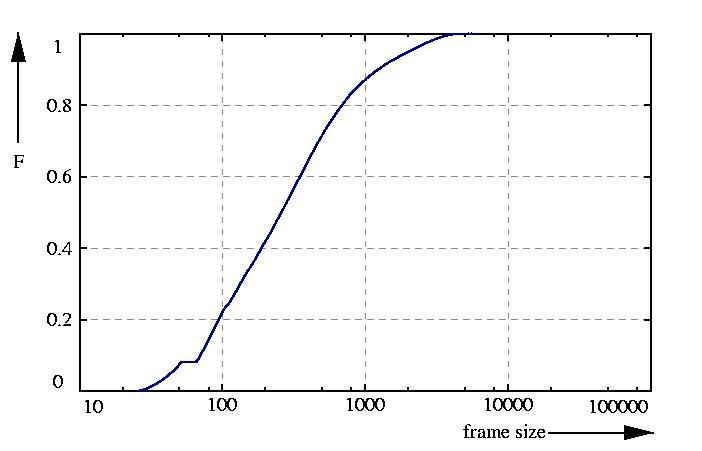

probability function F = sum p

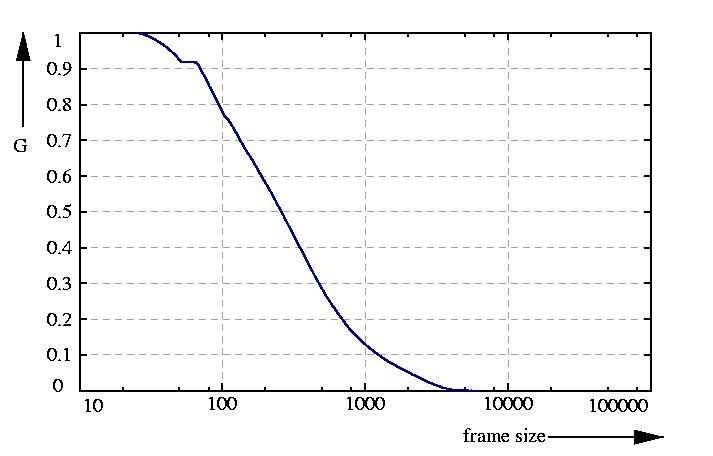

inverse probability function G = 1 - F

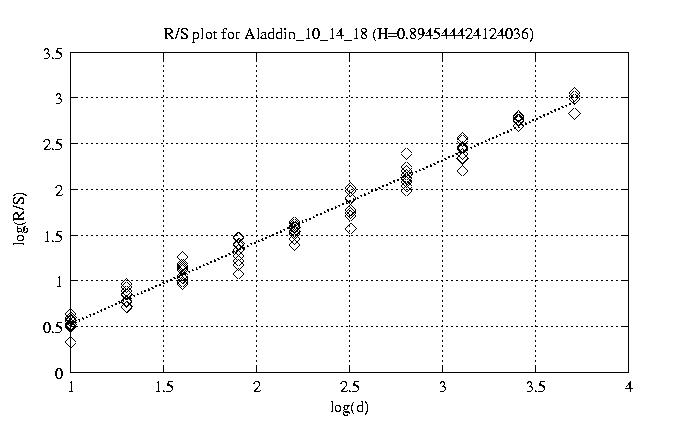

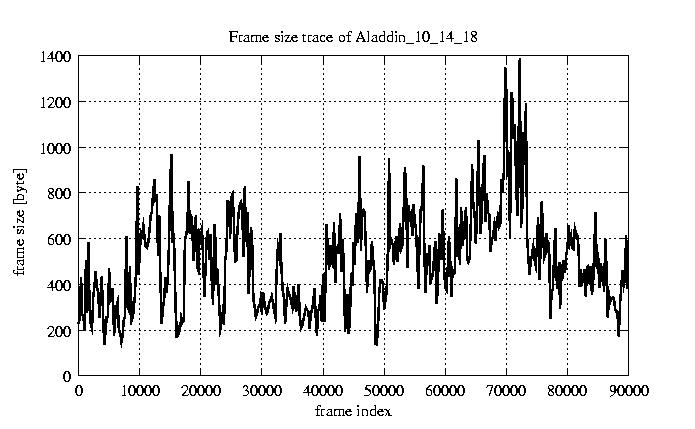

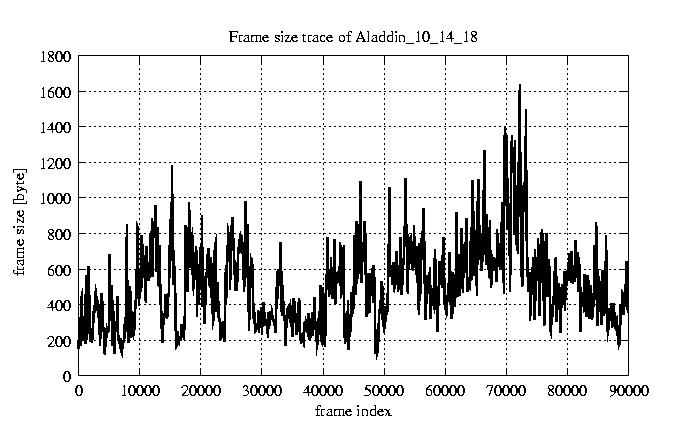

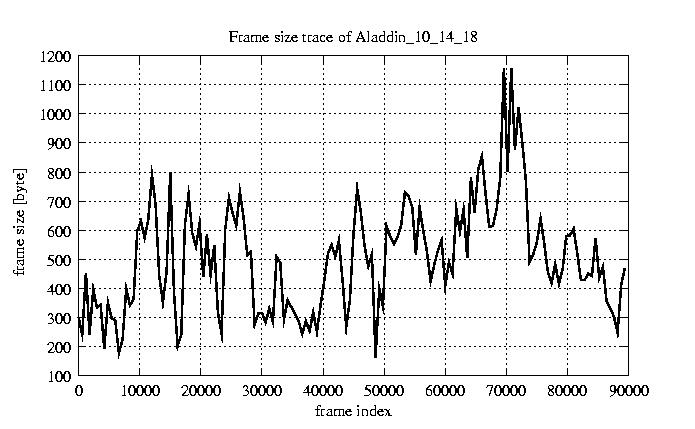

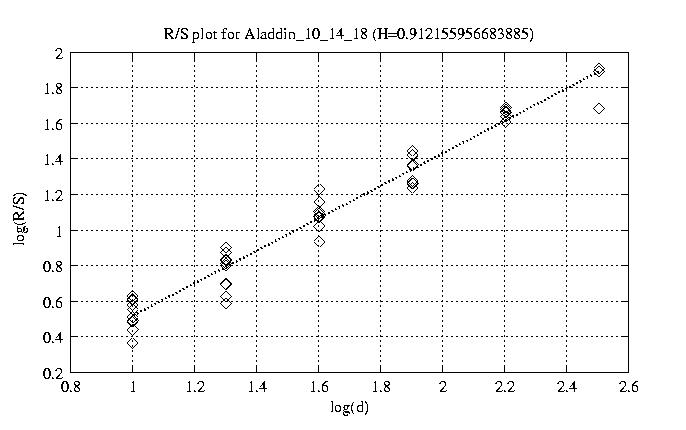

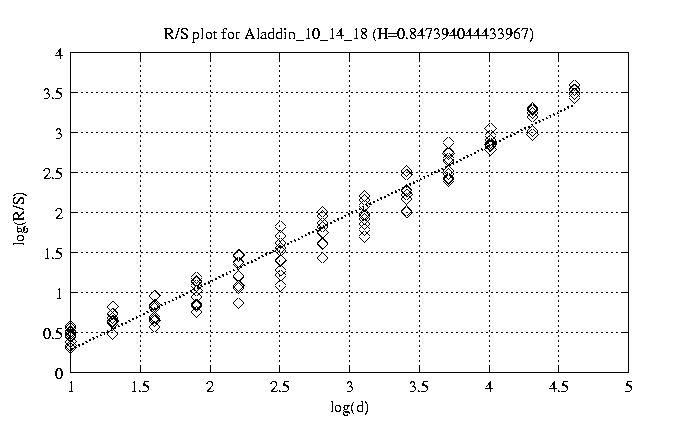

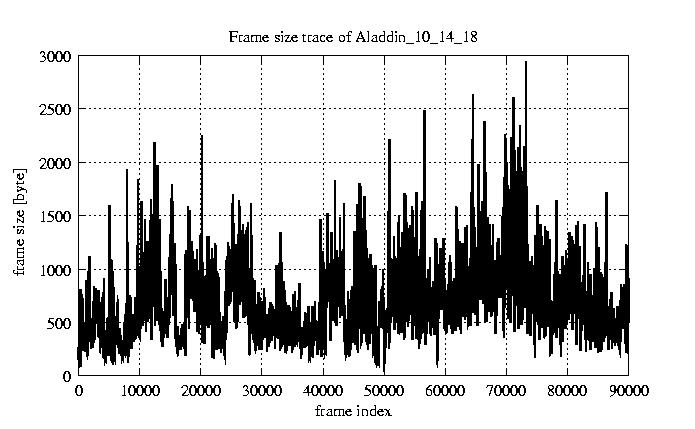

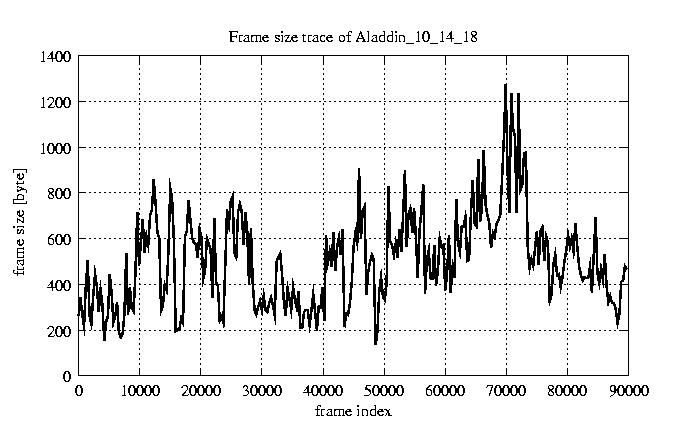

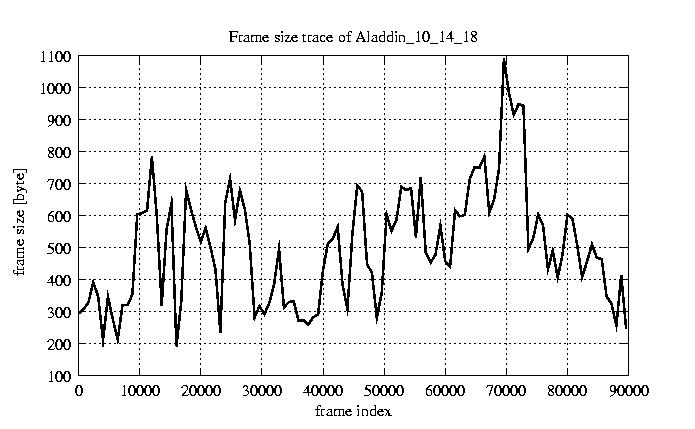

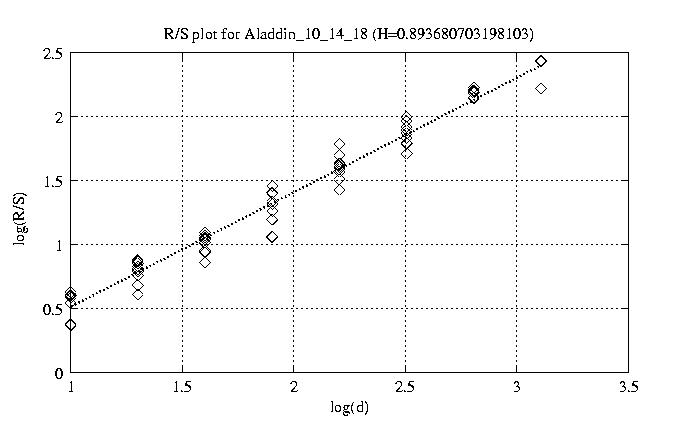

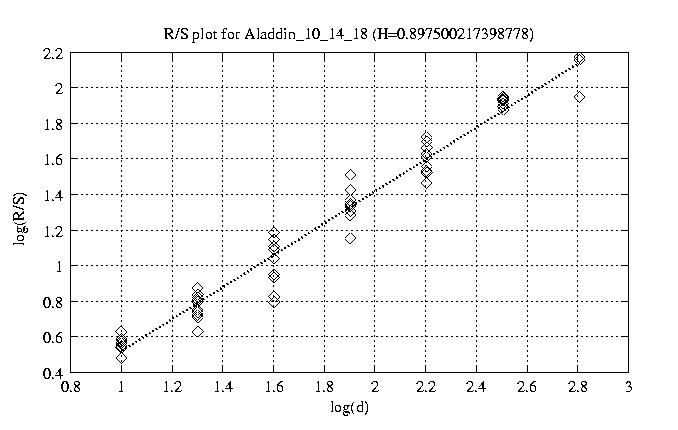

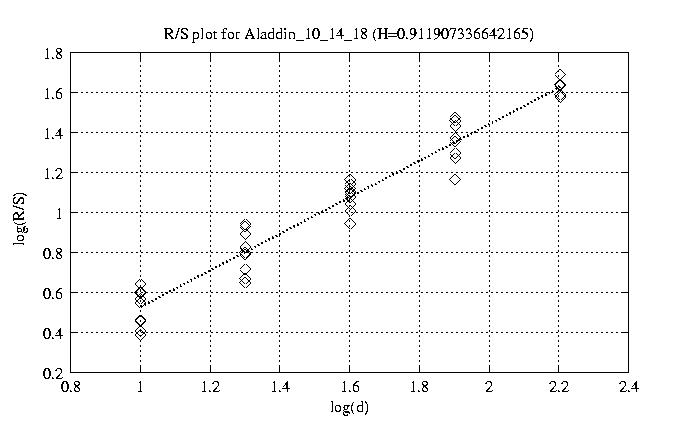

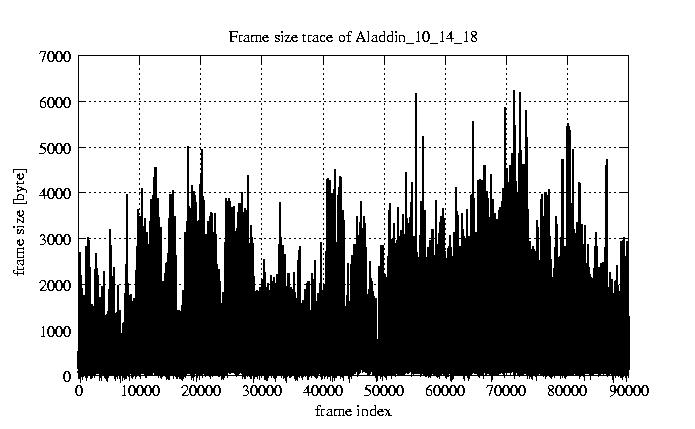

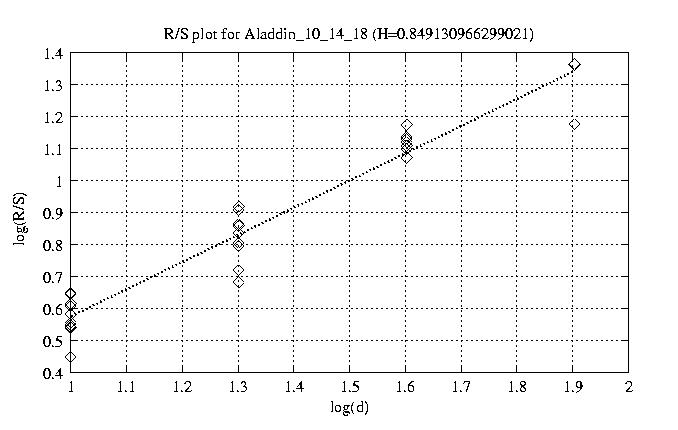

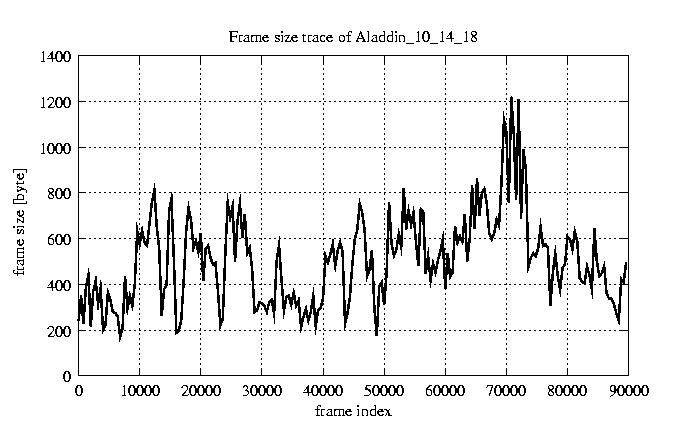

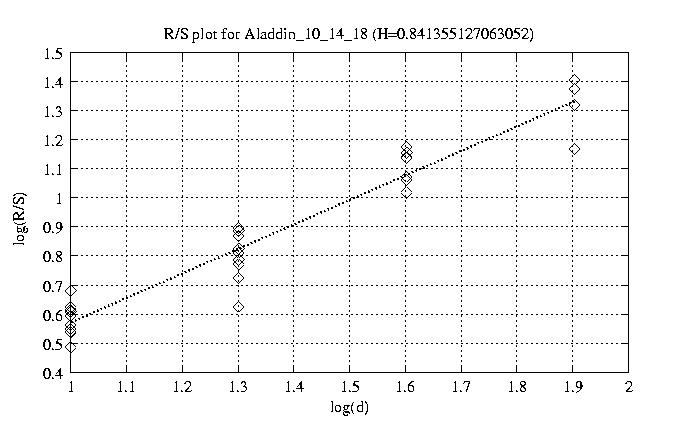

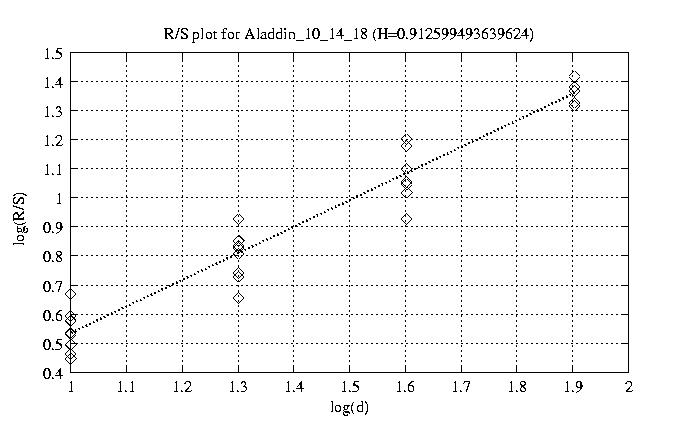

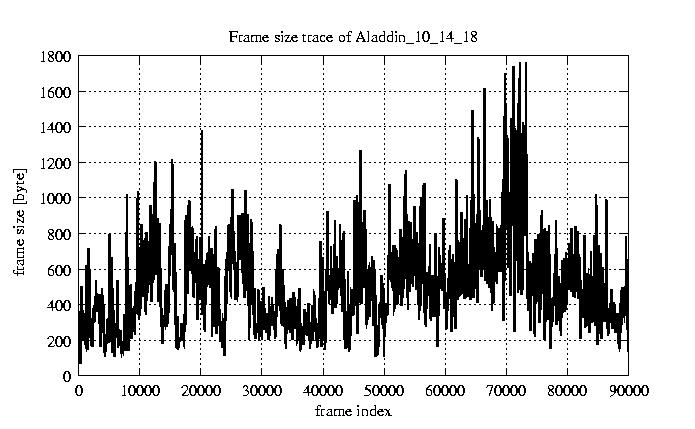

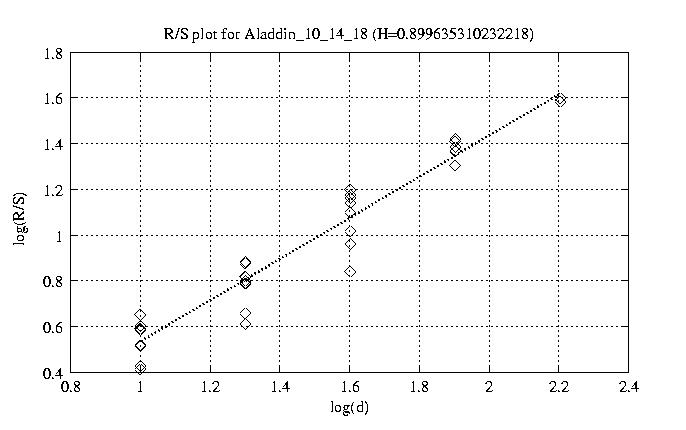

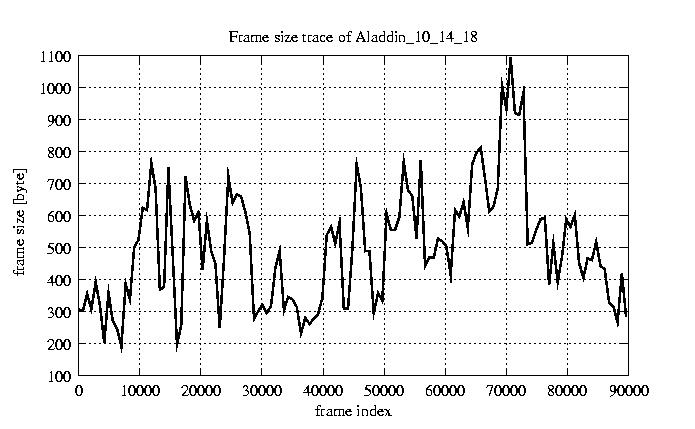

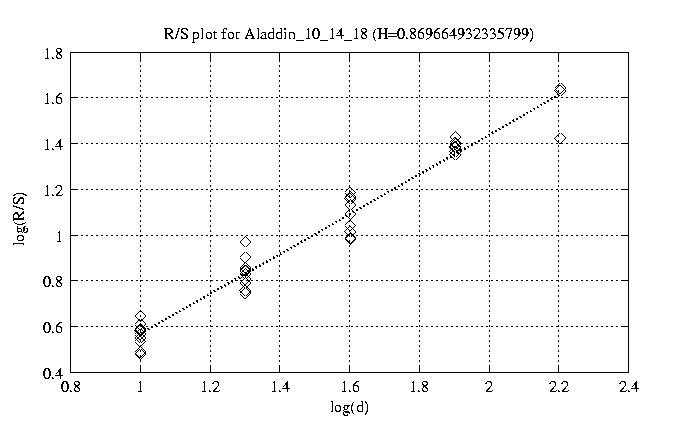

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.847 view view 12 0.895 view view 50 0.894 view view 100 0.898 view view 200 0.912 view view 300 0.912 view view 400 0.870 view view 500 0.900 view view 600 0.913 view view 700 0.841 view view 800 0.849 view view

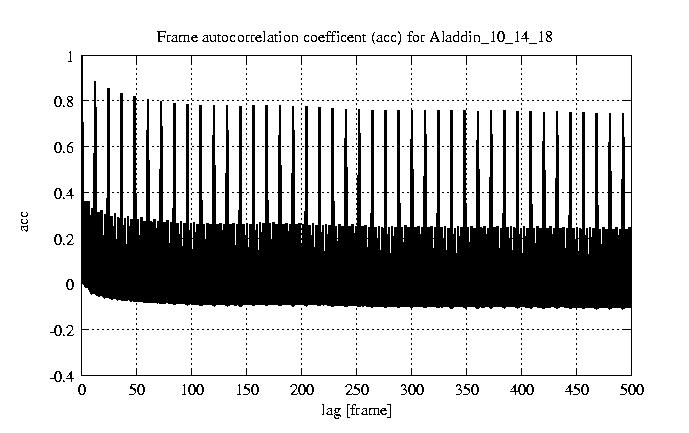

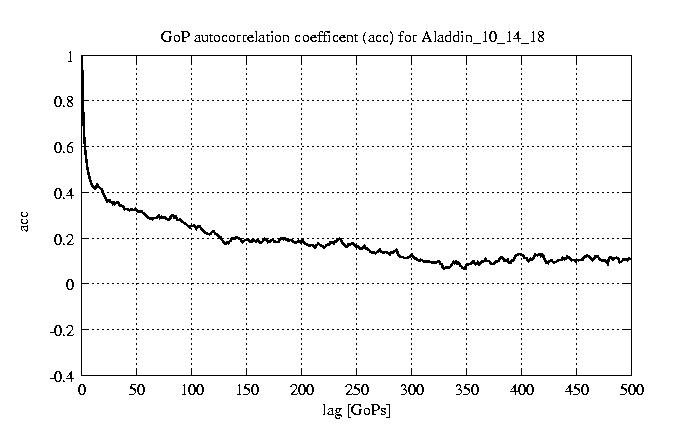

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
