H263 - From Dusk Till Dawn
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 19.30 19.30 File size byte 1.8e+08 1.8e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 52520.00 mean frame size byte 1969.69 3378.48 var frame size - 4983683.79 3788581.70 CoV of frame size - 1.13 0.58 min frame size byte 0.00 40.00 max frame size byte 16242.00 16242.00 Peak/Mean frame - 8.25 4.81 Mean bit rate bit/sec 3.9e+05 Peak bit rate bit/sec 3.2e+06 Peak/Mean of bit rate - 8.2 CoV of bit rate - 0.68 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

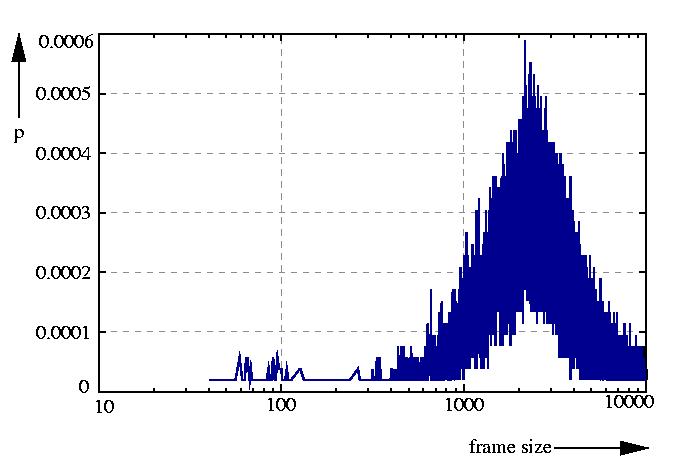

probability density function p

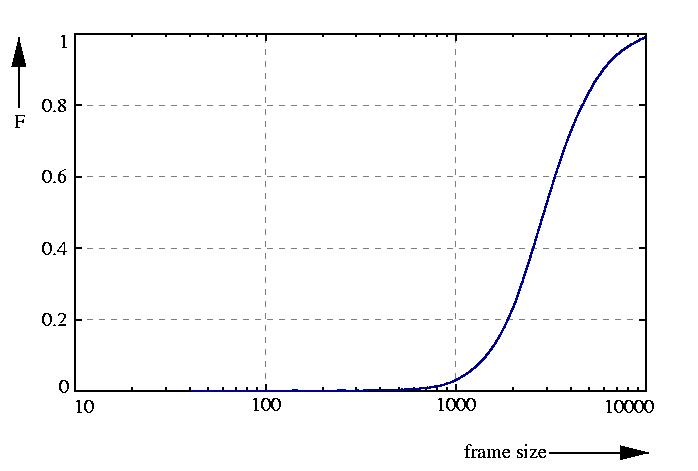

probability function F = sum p
inverse probability function G = 1 - F

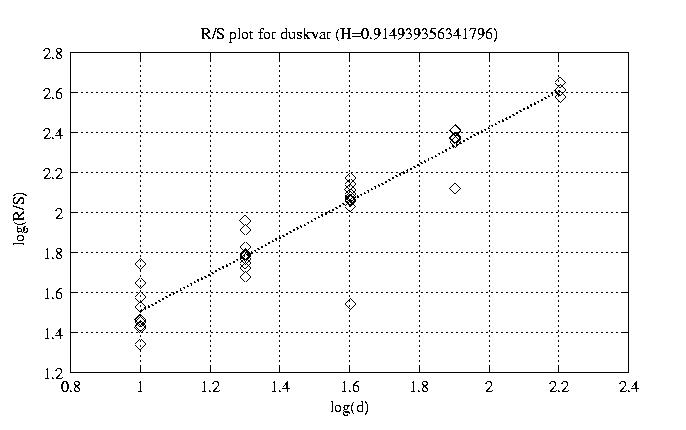

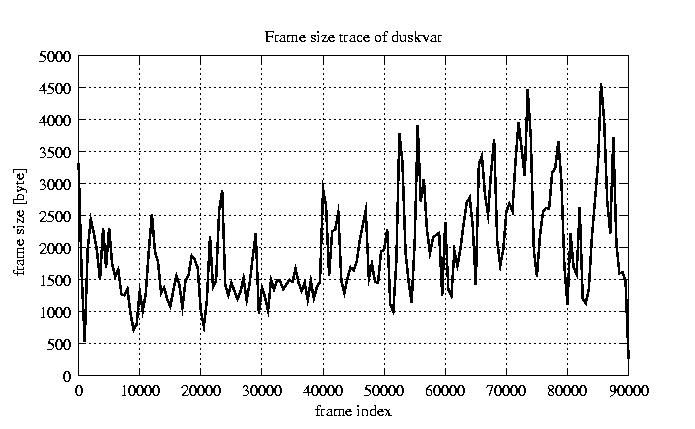

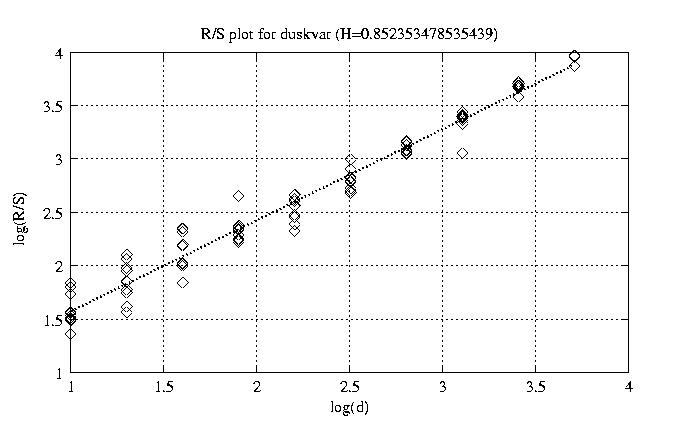

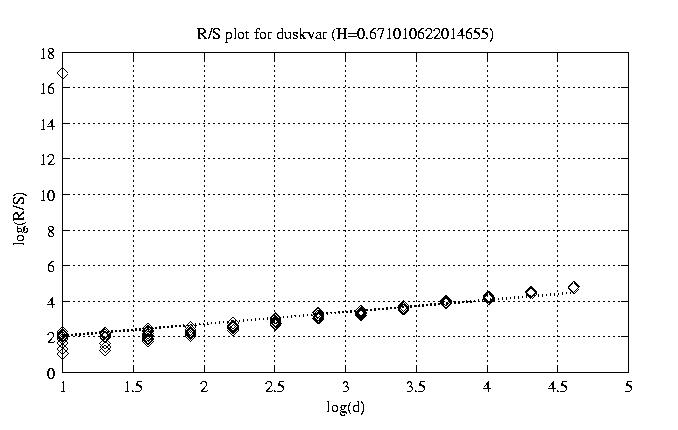

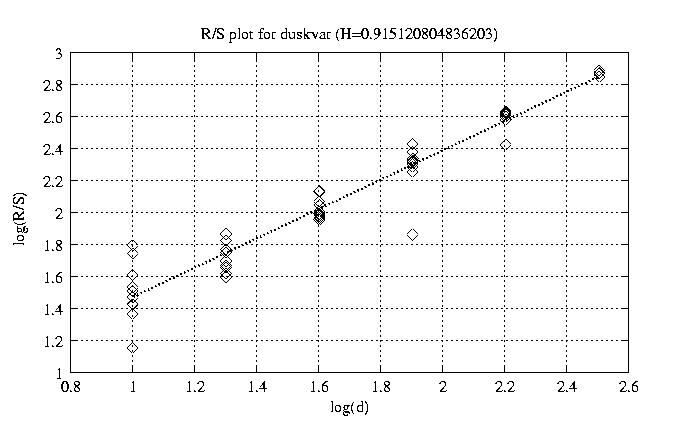

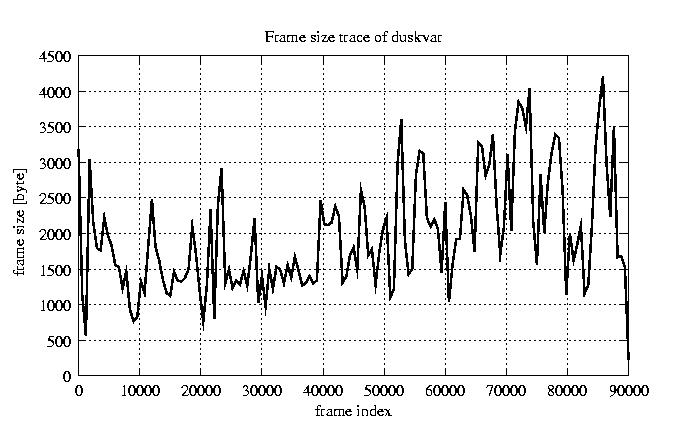

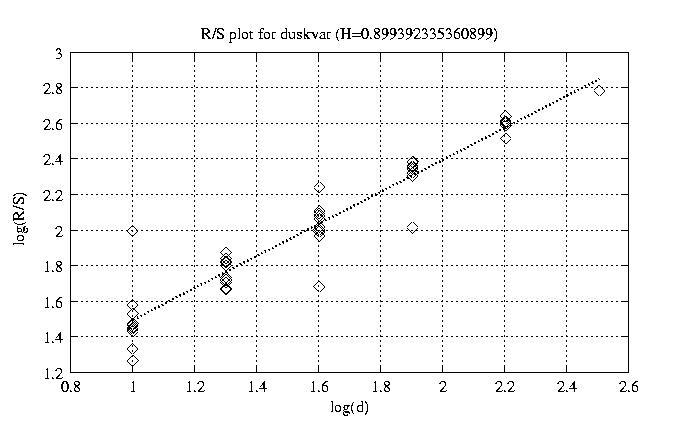

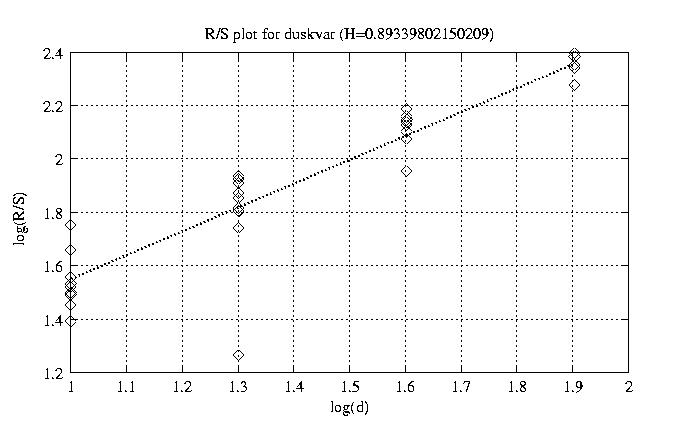

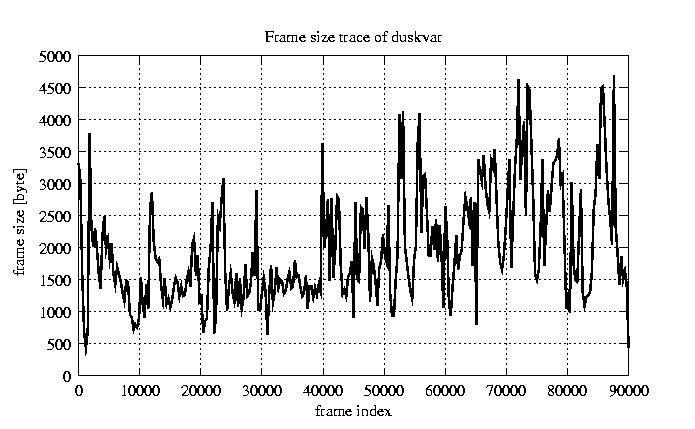

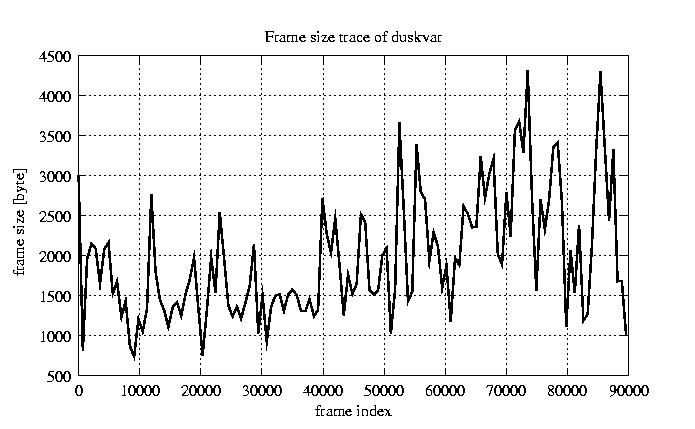

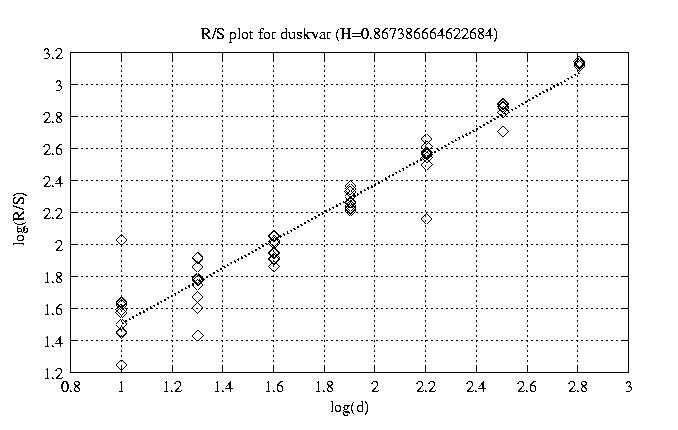

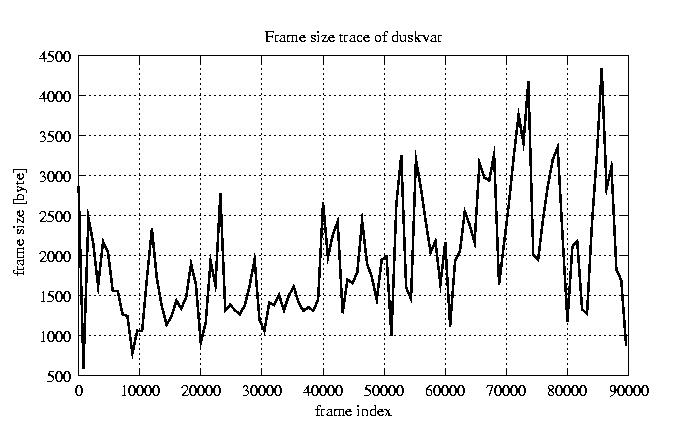

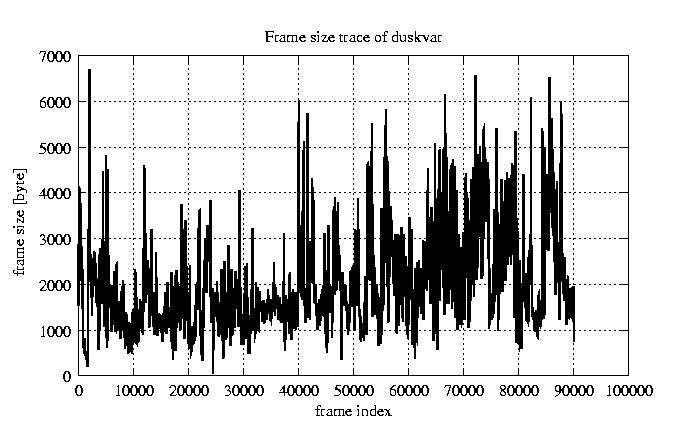

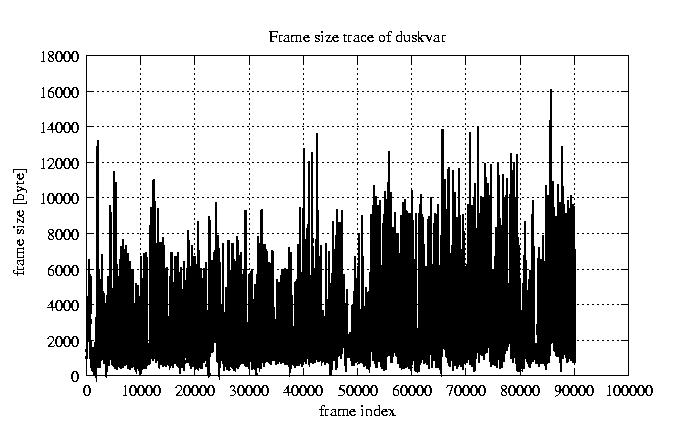

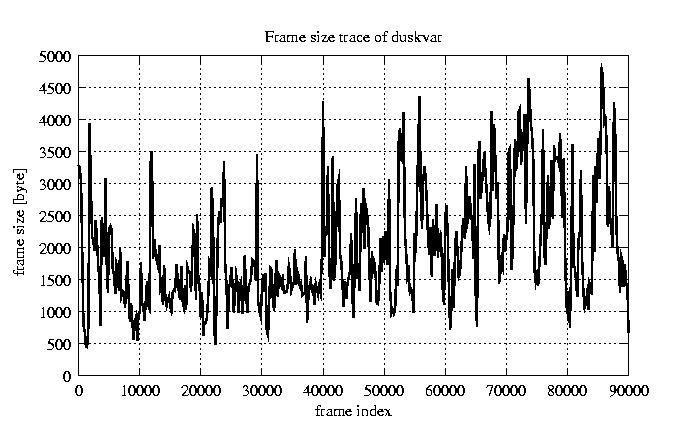

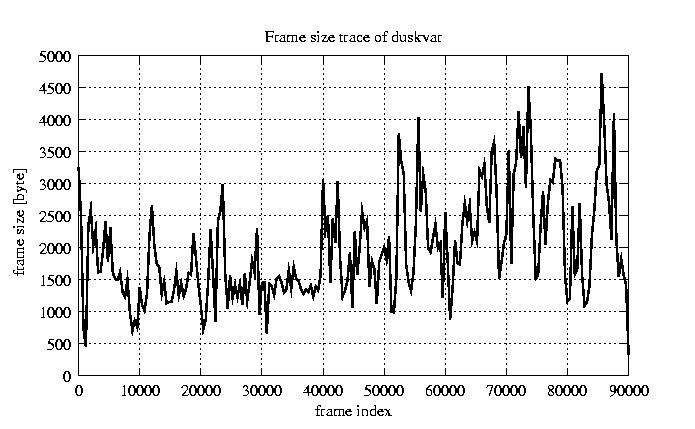

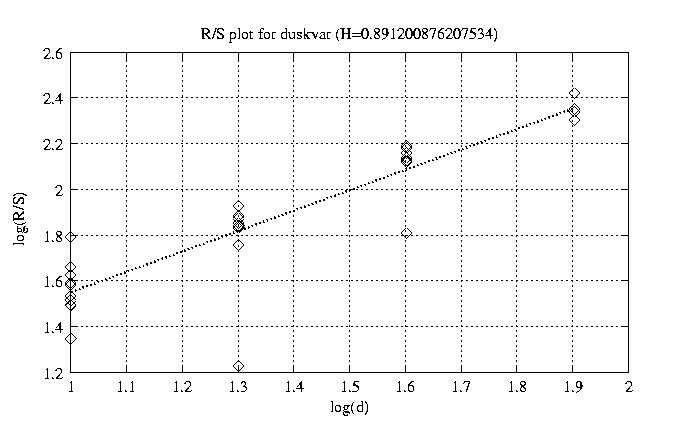

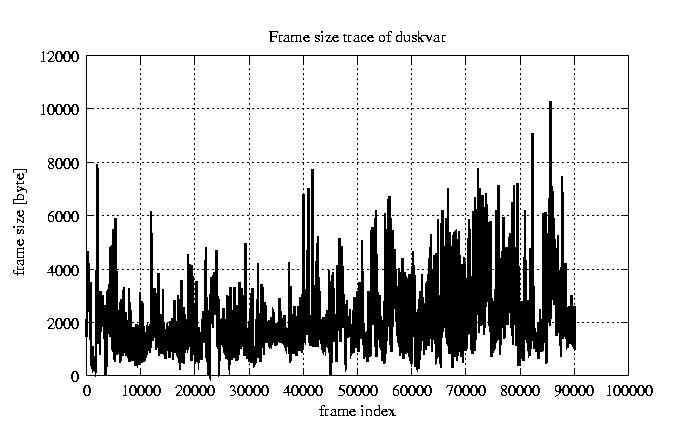

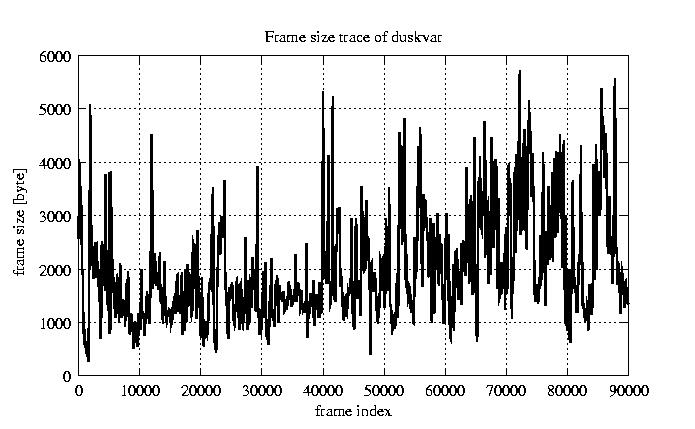

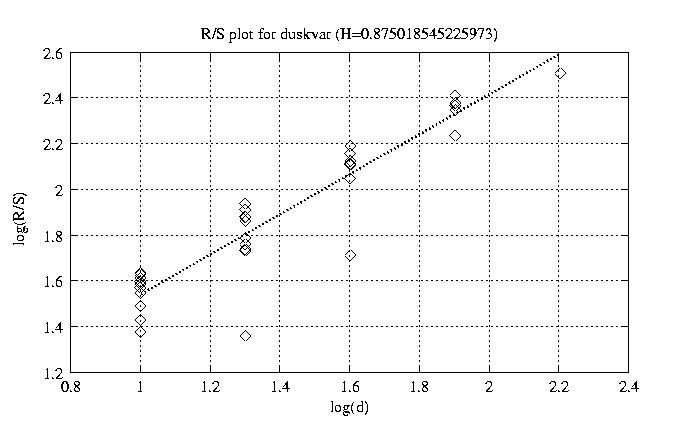

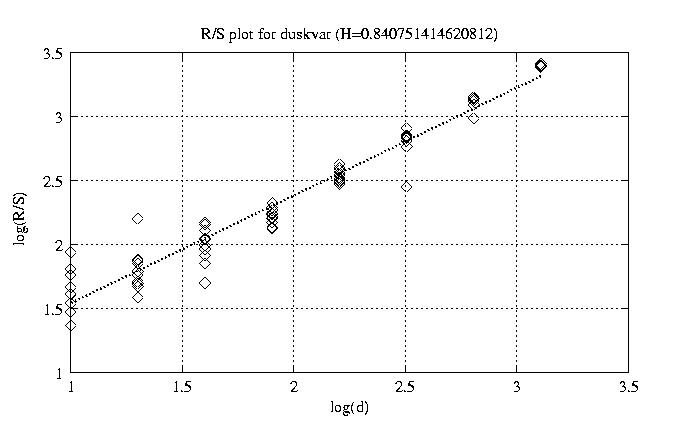

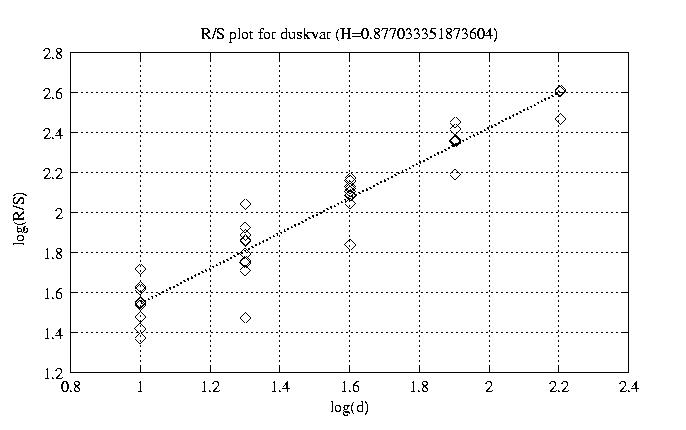

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.671 view view 12 0.852 view view 50 0.841 view view 100 0.867 view view 200 0.915 view view 300 0.899 view view 400 0.915 view view 500 0.877 view view 600 0.875 view view 700 0.893 view view 800 0.891 view view

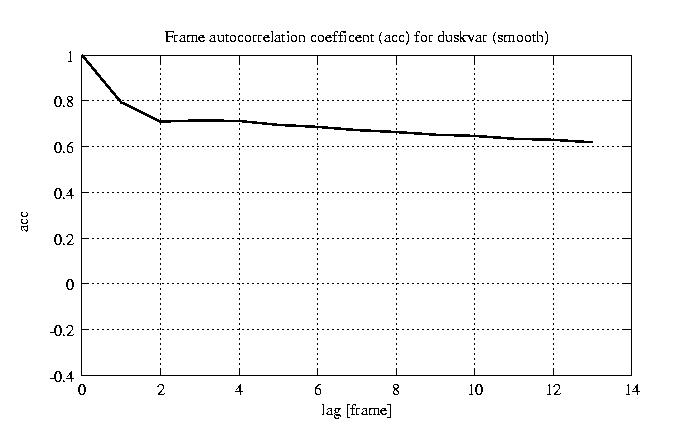

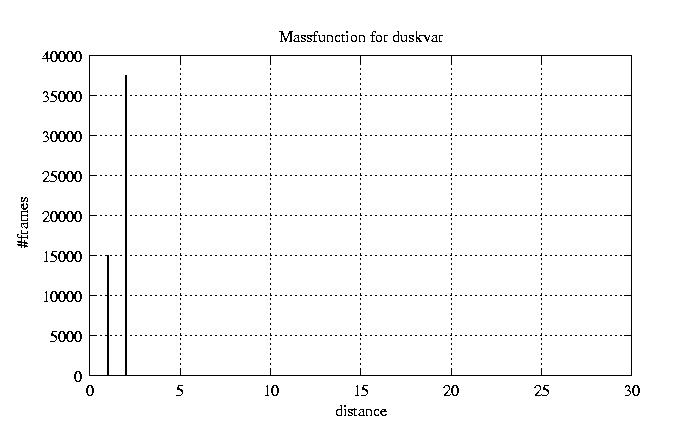

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
