H263 - Susi und Strolch
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.95 118.95 File size byte 2.9e+07 2.9e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90083.00 29046.00 mean frame size byte 319.60 991.21 var frame size - 266811.38 161778.23 CoV of frame size - 1.62 0.41 min frame size byte 0.00 33.00 max frame size byte 4070.00 4070.00 Peak/Mean frame - 12.73 4.11 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.7e+05 Peak/Mean of bit rate - 5.8 CoV of bit rate - 0.39 max inter frame space frames 1.00 30.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

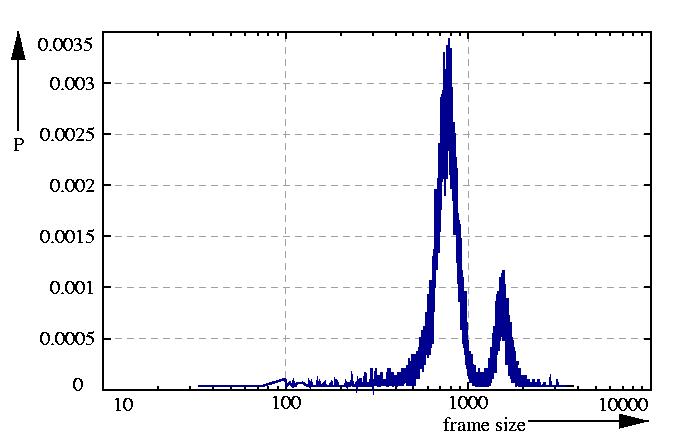

probability density function p
probability function F = sum p

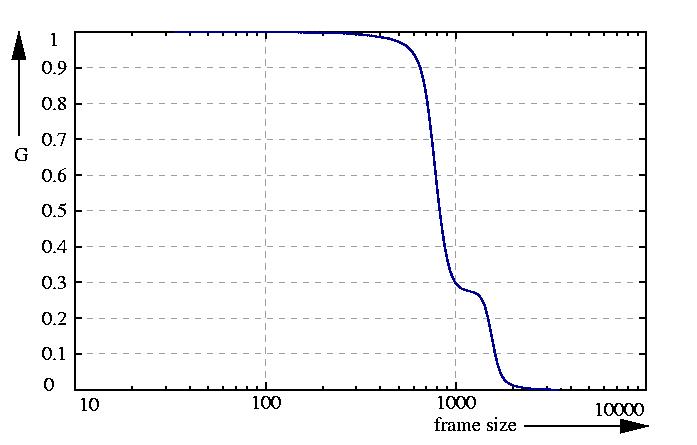

inverse probability function G = 1 - F

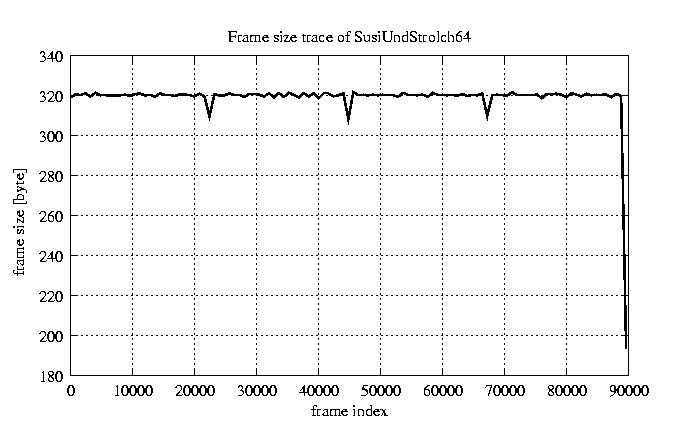

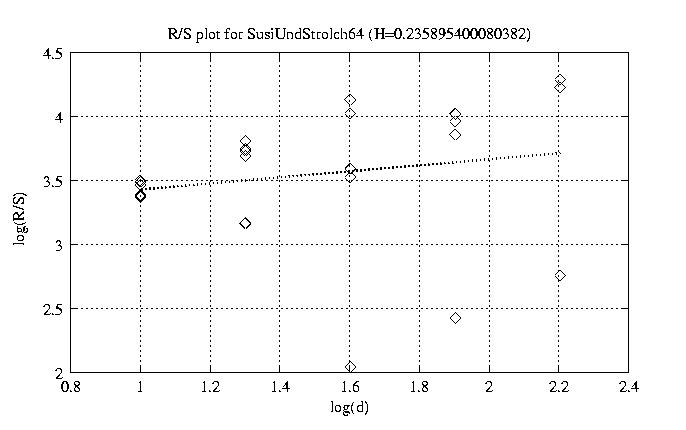

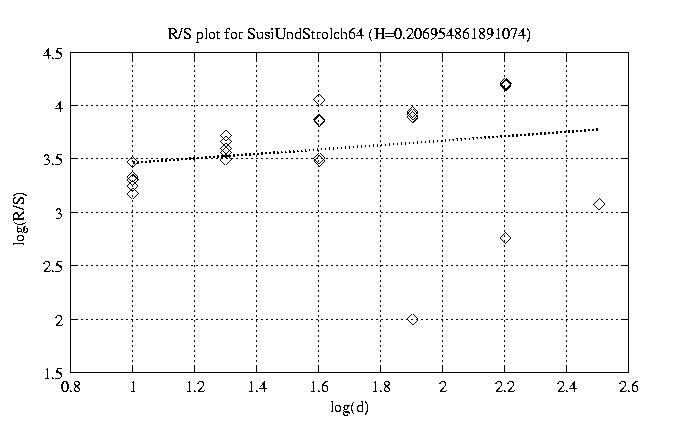

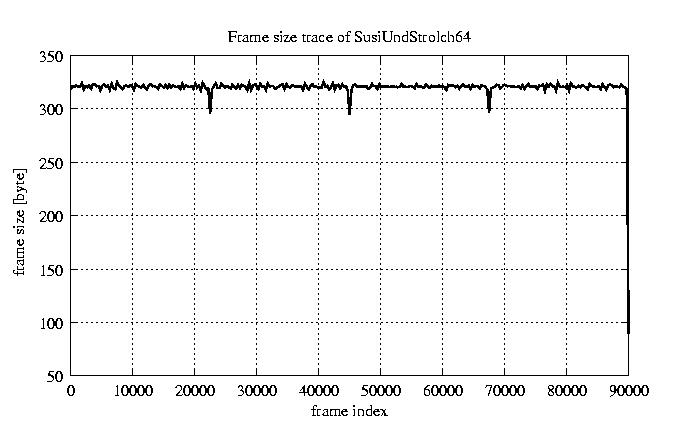

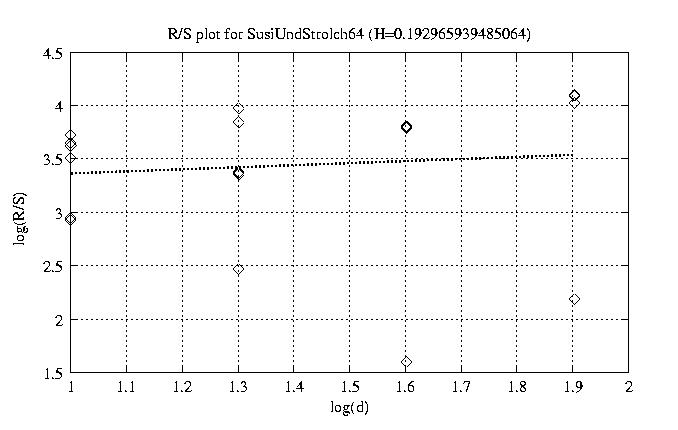

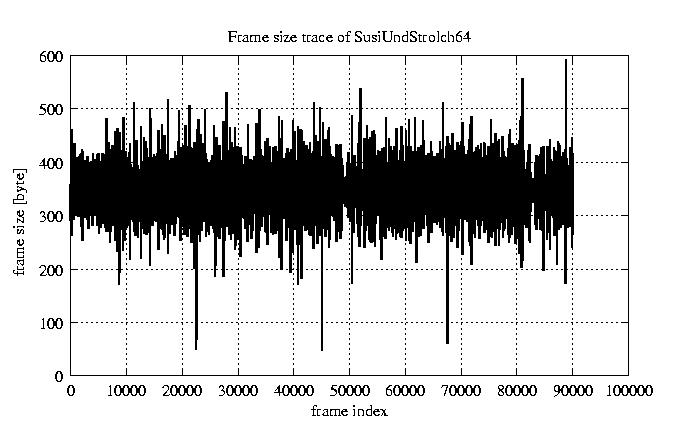

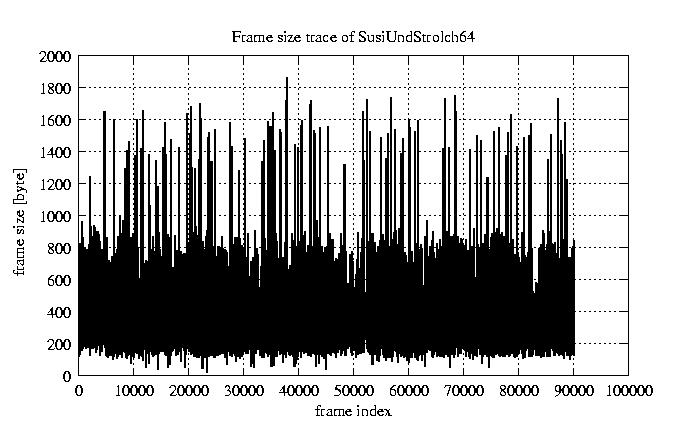

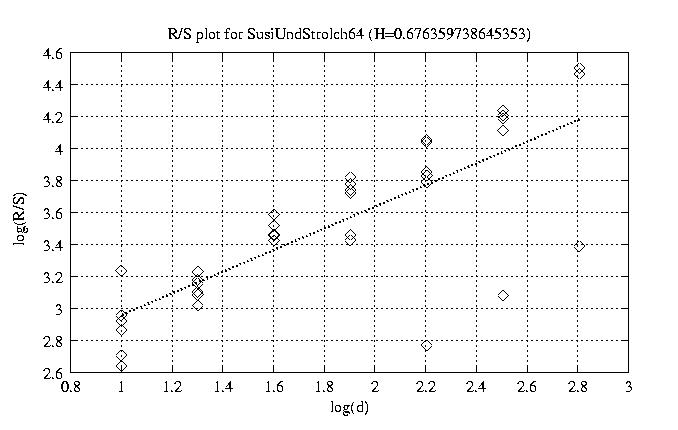

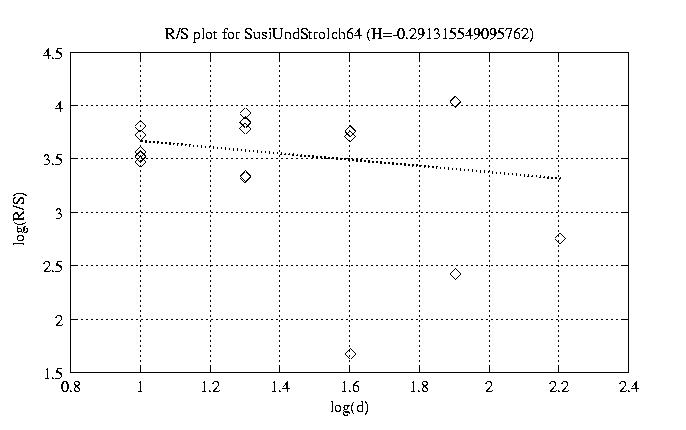

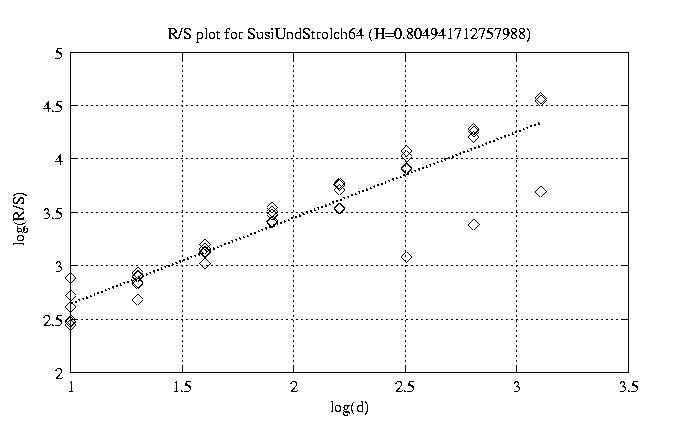

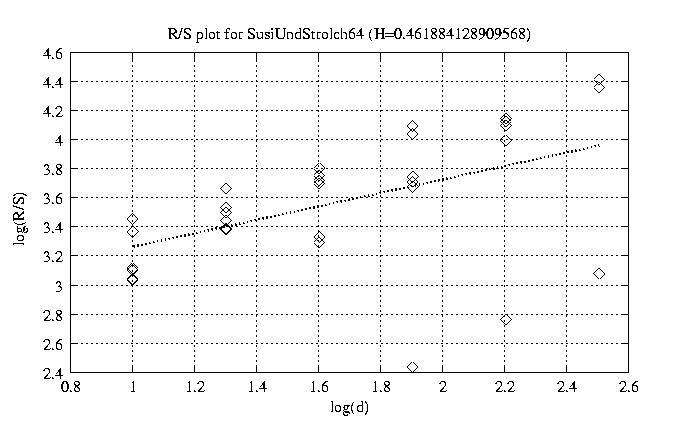

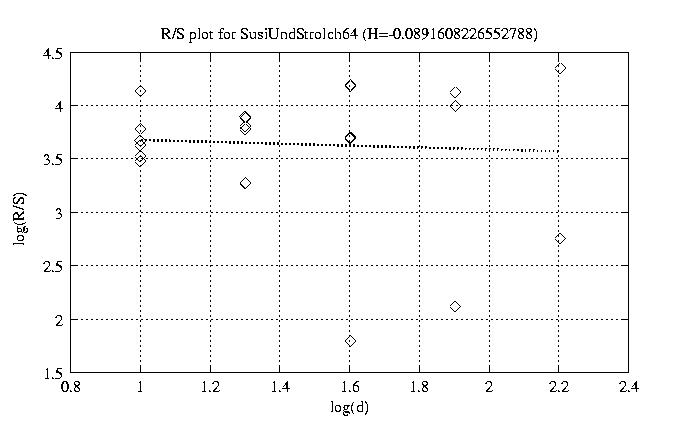

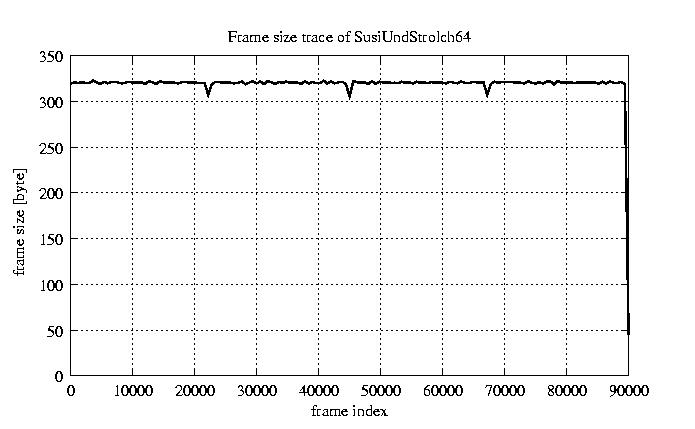

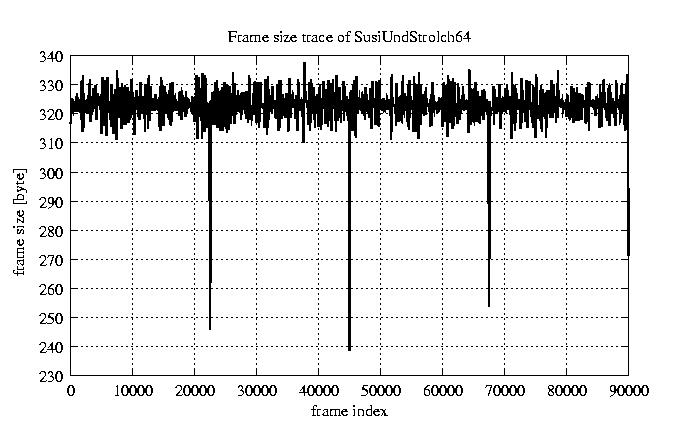

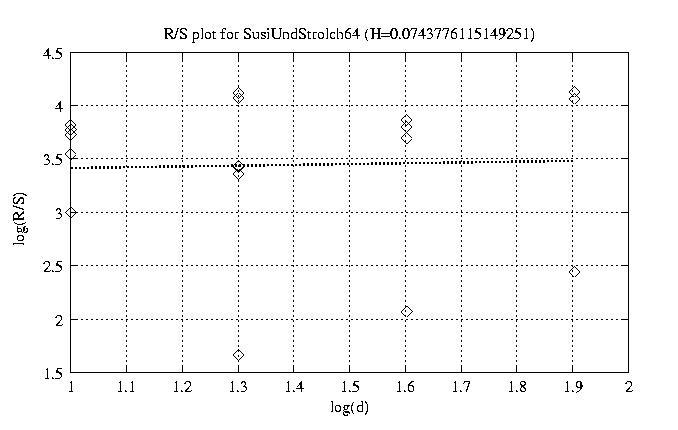

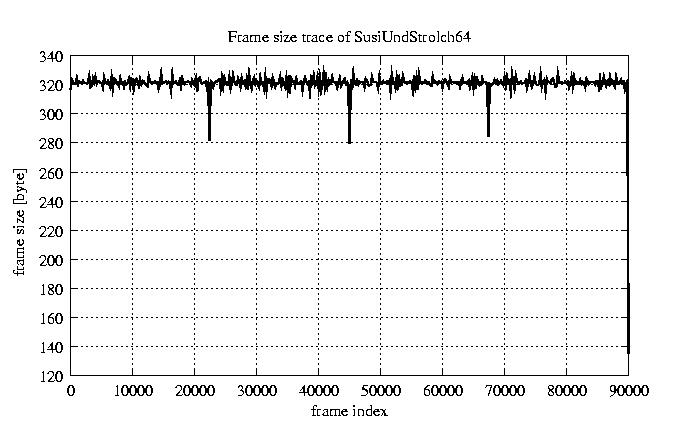

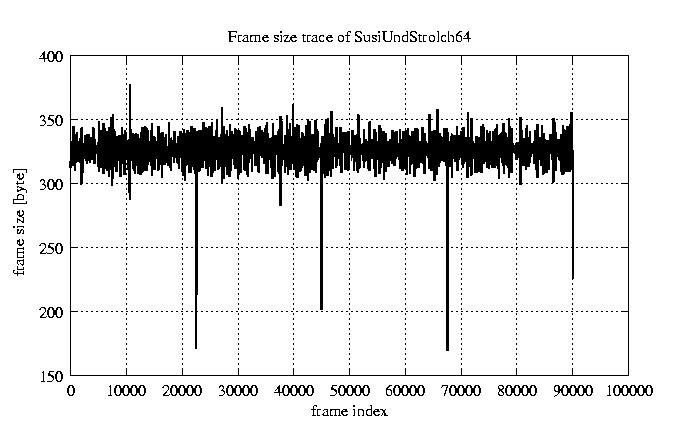

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 1.003 view view 12 0.964 view view 50 0.805 view view 100 0.676 view view 200 0.462 view view 300 0.207 view view 400 0.236 view view 500 -0.089 view view 600 -0.291 view view 700 0.193 view view 800 0.074 view view

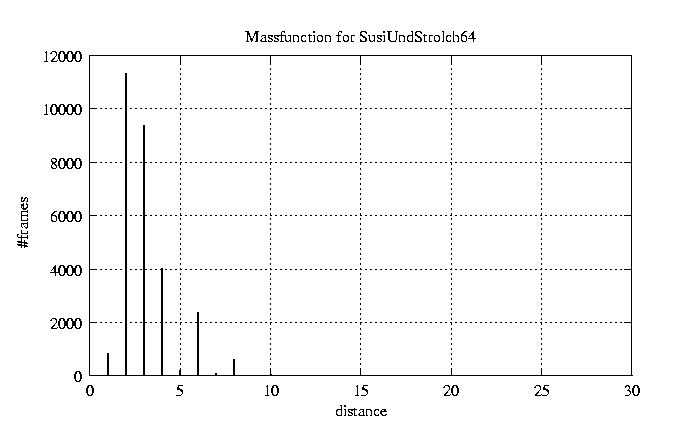

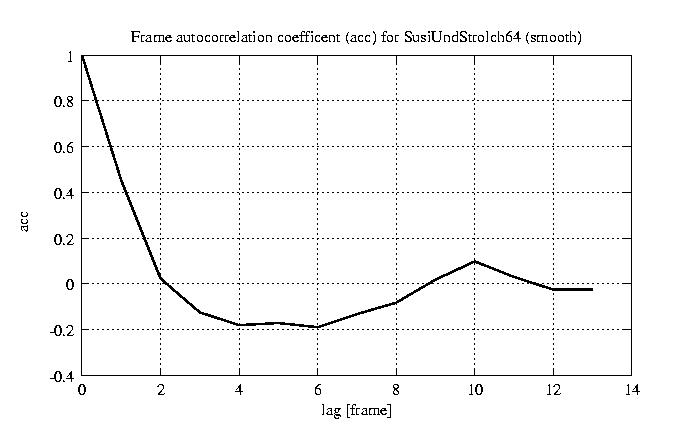

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
