MP4 - Mr Bean
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 66.60 File Size byte 5.1e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 5.7e+02 var frame size - 7.8e+05 CoV of frame size - 1.55 min frame size byte 26 max frame size byte 7565 Mean bit rate bit/sec 1.1e+05 Peak bit rate bit/sec 1.5e+06 Peak/Mean of bit rate - 13.25 GoP statistics # of GoPs - 7499 mean GoP size byte 6.9e+03 var GoP size - 9.8e+06 CoV of GoP size - 0.46 min GoP size byte 927 max GoP size byte 34830 Mean bit rate bit/sec 1.1e+05 Peak bit rate bit/sec 5.8e+05 Peak/Mean of bit rate - 5.08 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

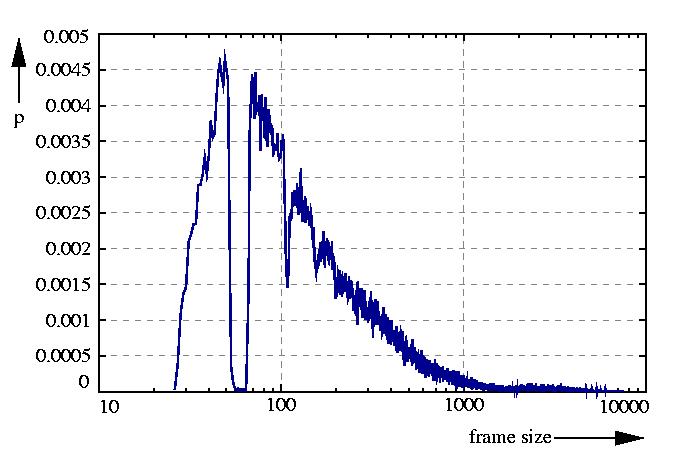

probability density function p

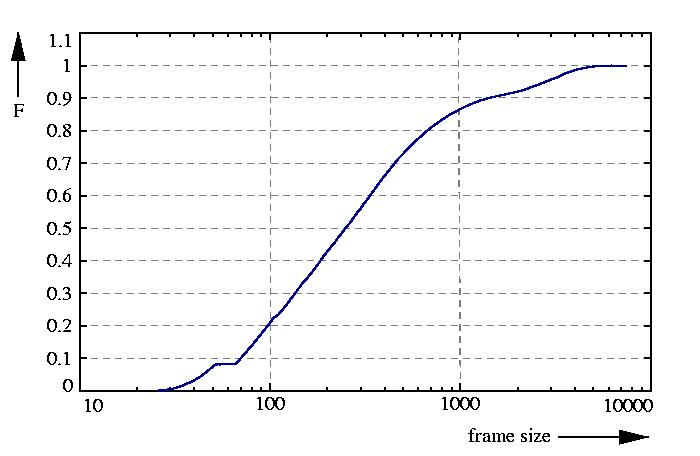

probability function F = sum p

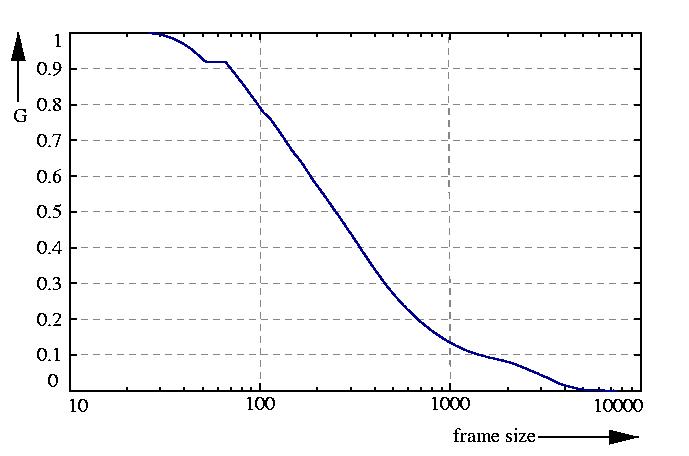

inverse probability function G = 1 - F

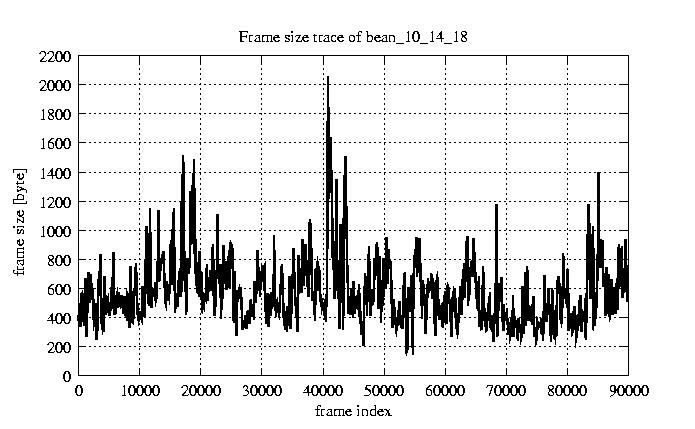

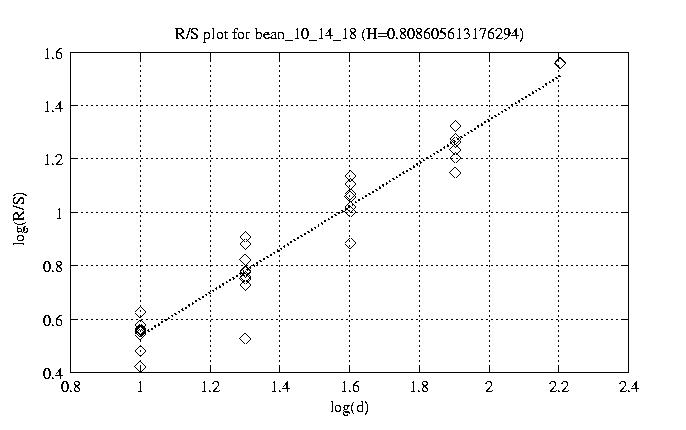

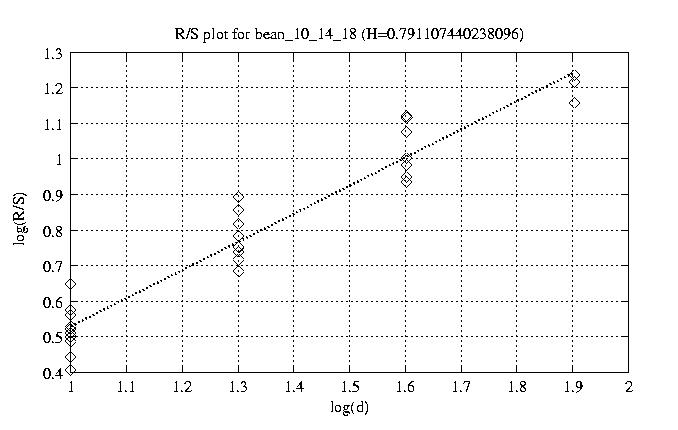

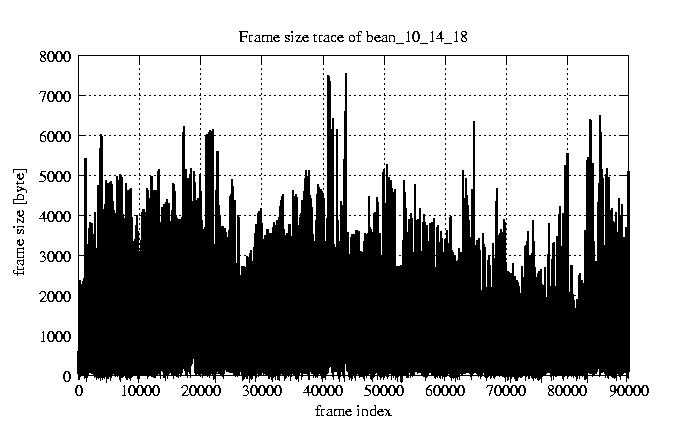

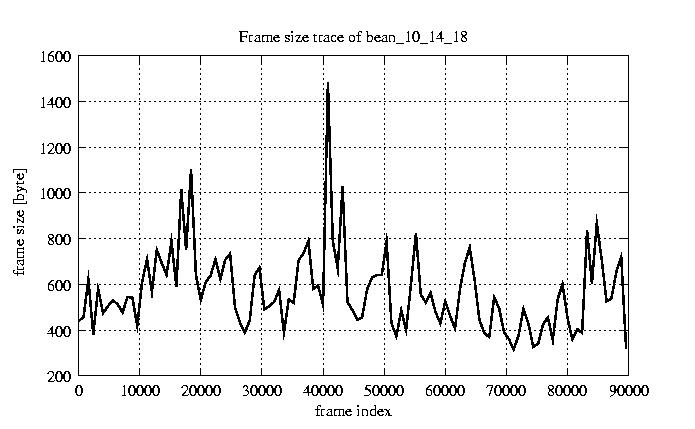

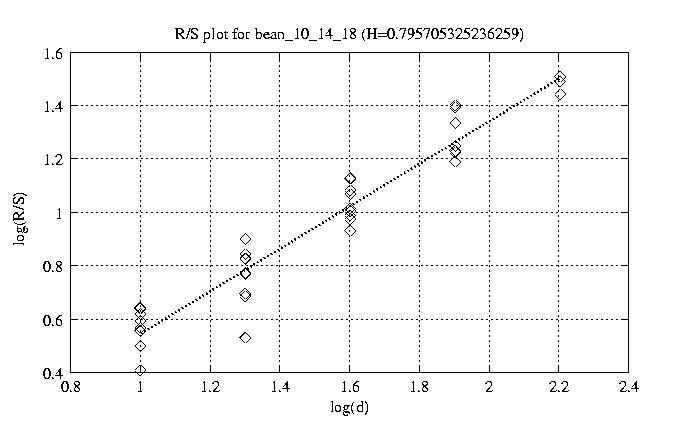

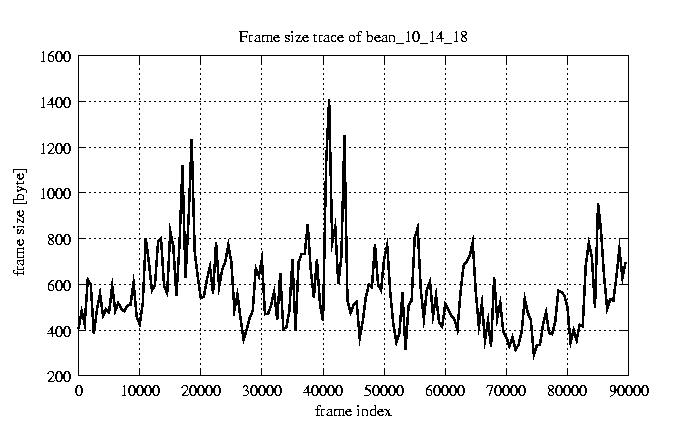

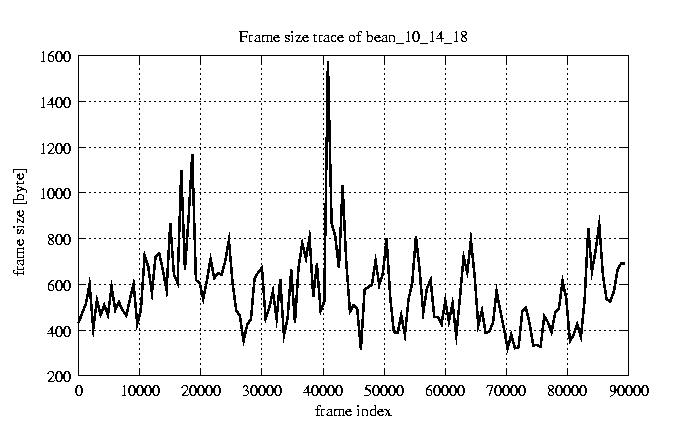

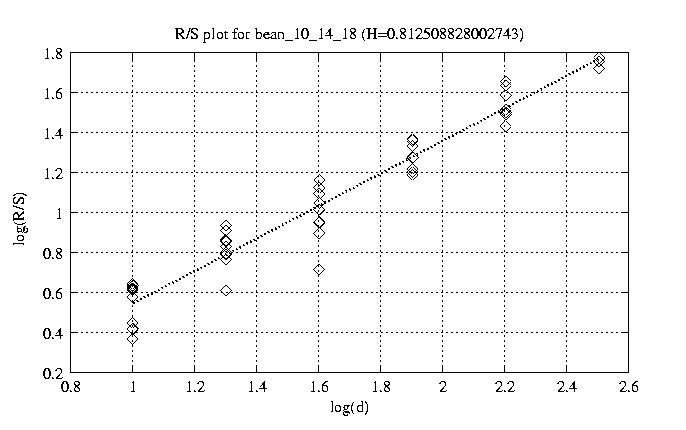

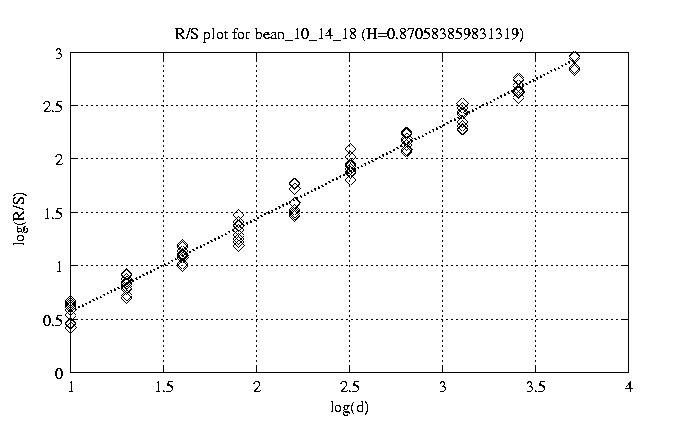

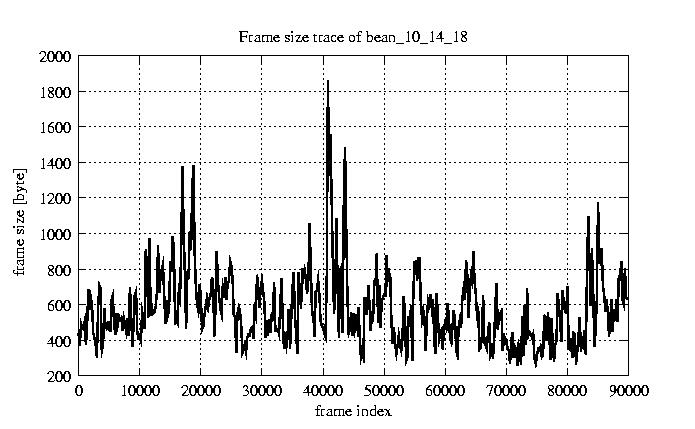

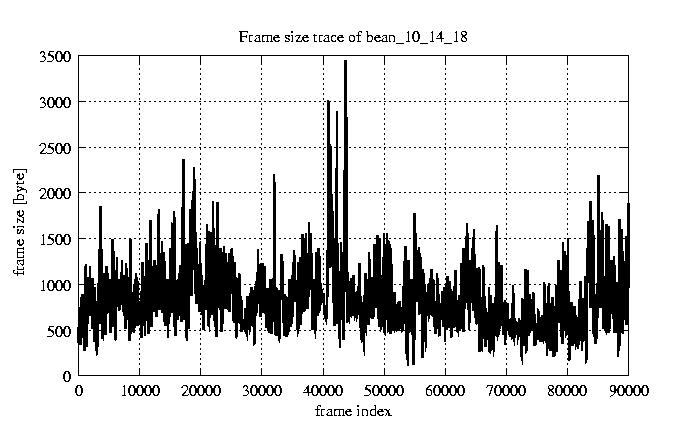

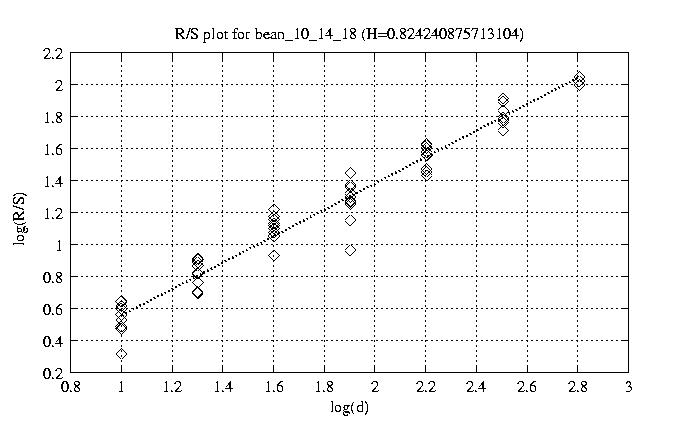

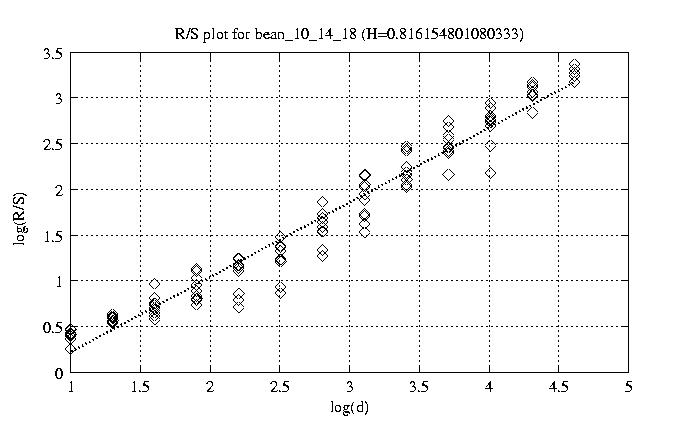

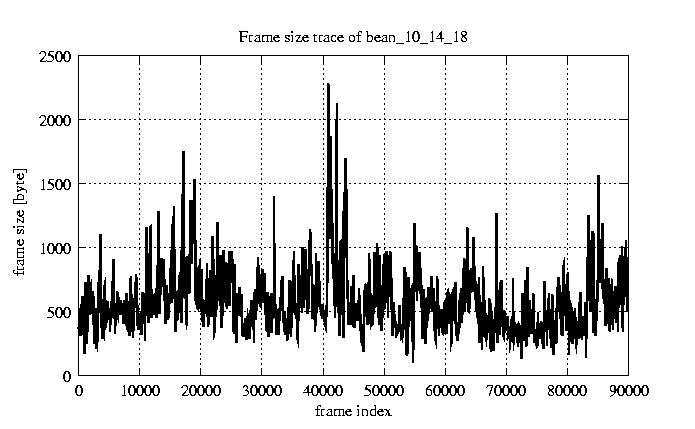

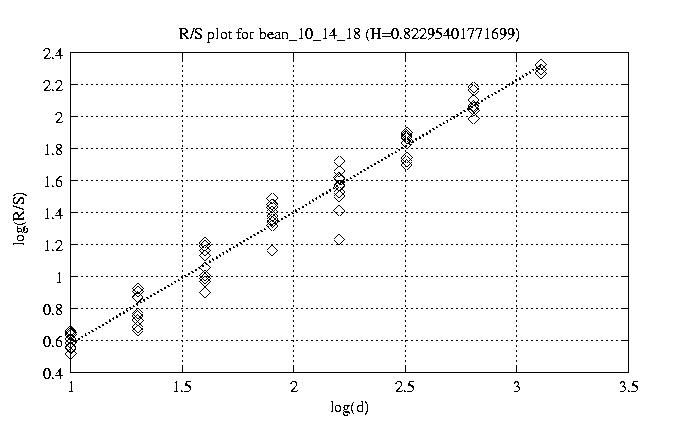

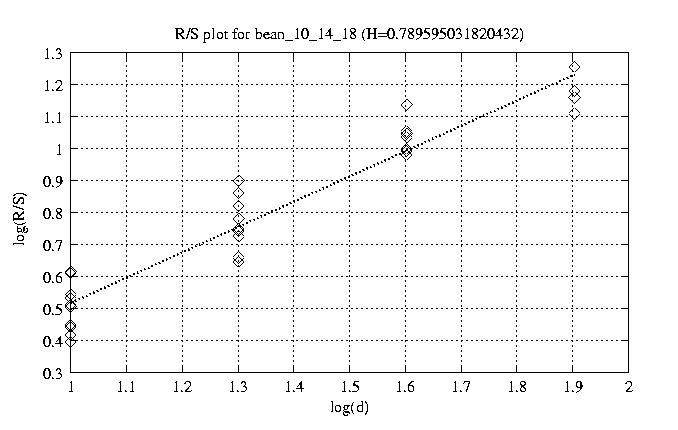

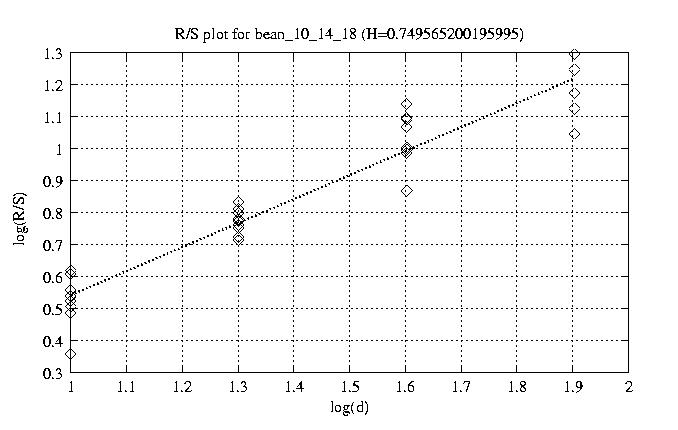

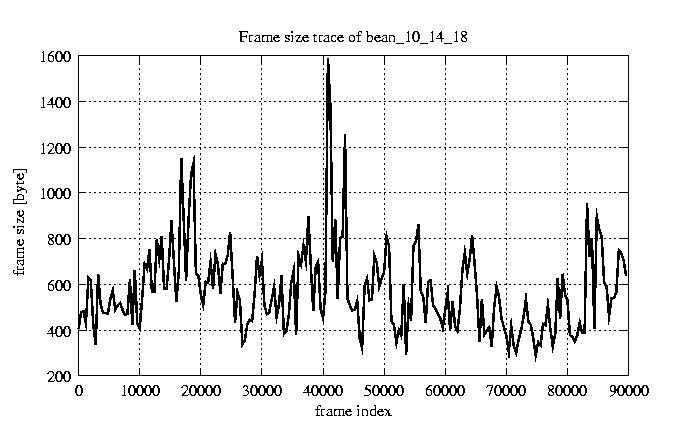

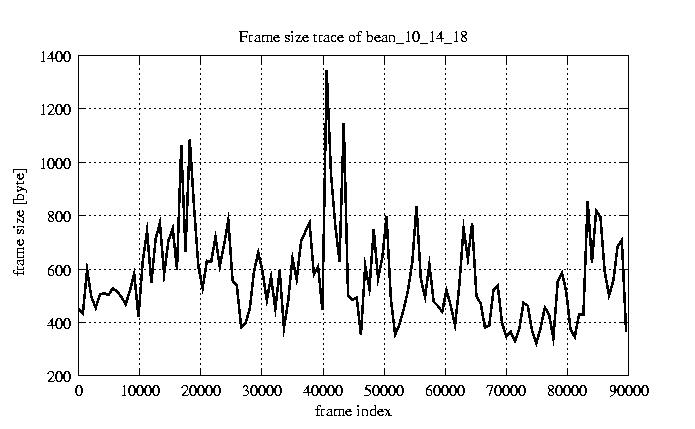

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.816 view view 12 0.871 view view 50 0.823 view view 100 0.824 view view 200 0.813 view view 300 0.735 view view 400 0.796 view view 500 0.809 view view 600 0.750 view view 700 0.790 view view 800 0.791 view view

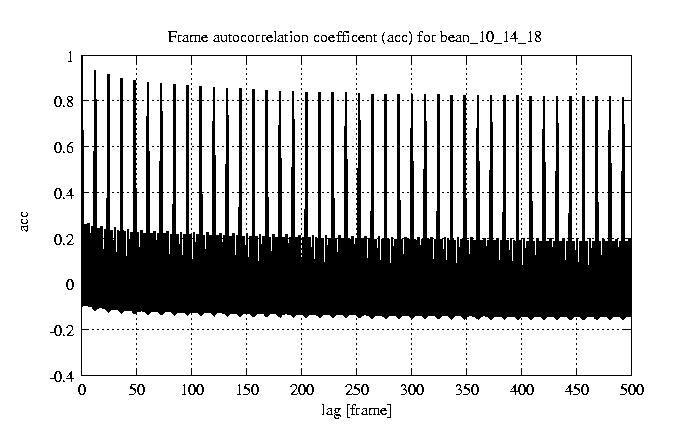

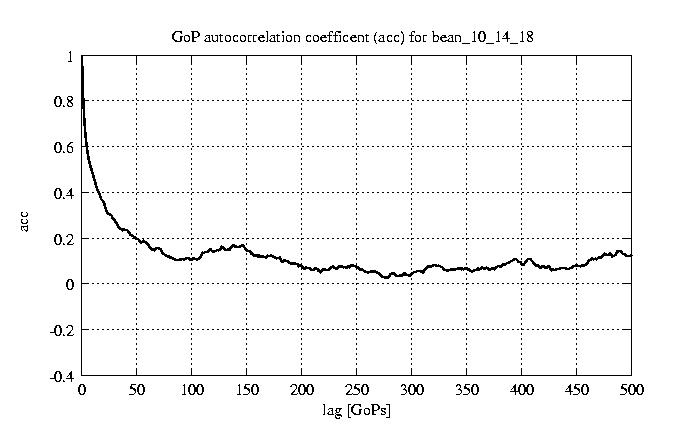

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
