H263 - Die Hard III
256 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 29.73 29.73 File size byte 1.2e+08 1.2e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90085.00 30475.00 mean frame size byte 1278.77 3780.09 var frame size - 3818054.29 1831023.31 CoV of frame size - 1.53 0.36 min frame size byte 0.00 1093.00 max frame size byte 12041.00 12041.00 Peak/Mean frame - 9.42 3.19 Mean bit rate bit/sec 2.6e+05 Peak bit rate bit/sec 1.4e+06 Peak/Mean of bit rate - 5.6 CoV of bit rate - 0.33 max inter frame space frames 1.00 32.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

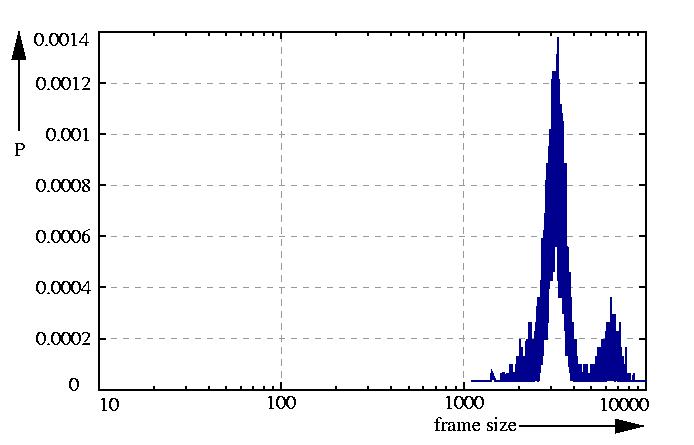

probability density function p
probability function F = sum p

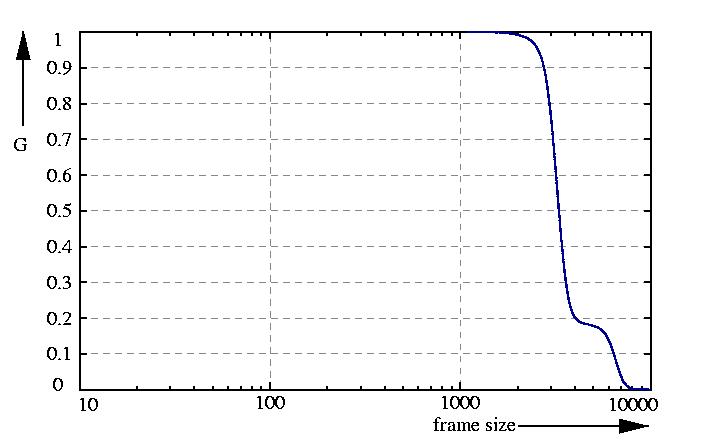

inverse probability function G = 1 - F

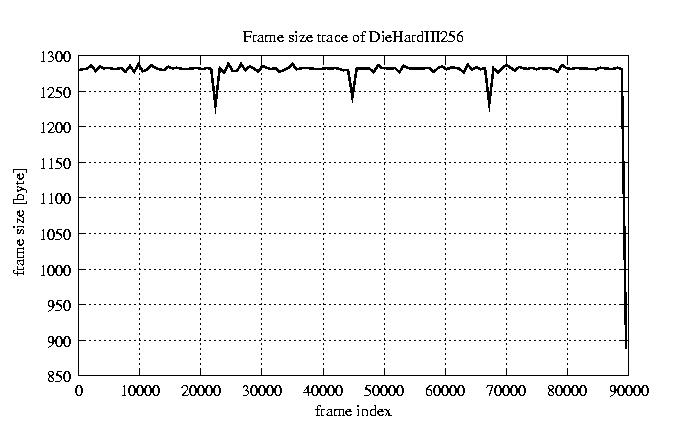

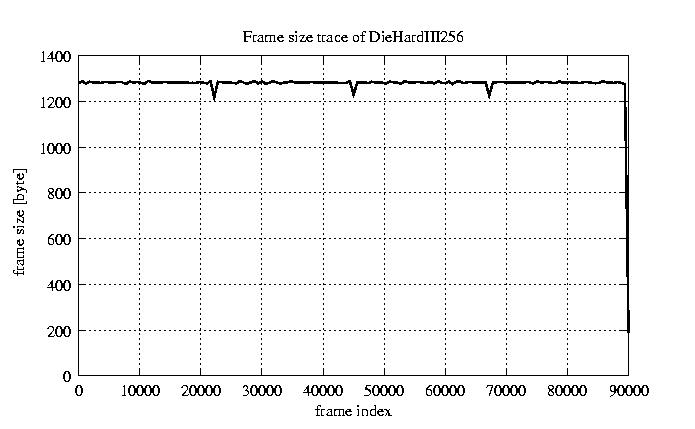

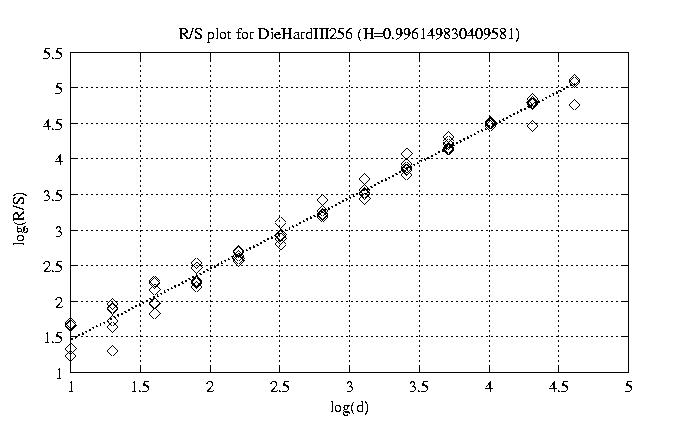

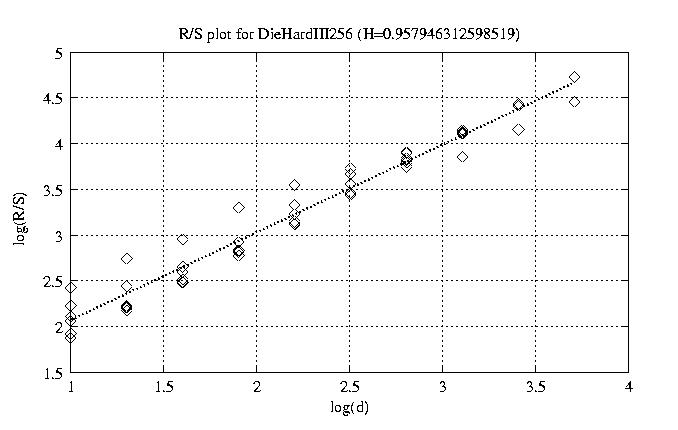

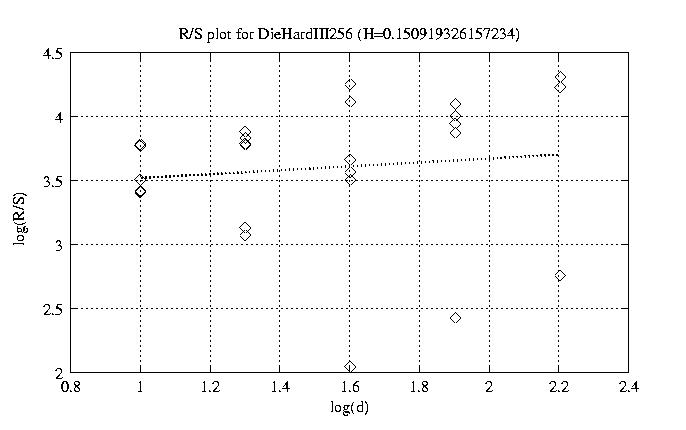

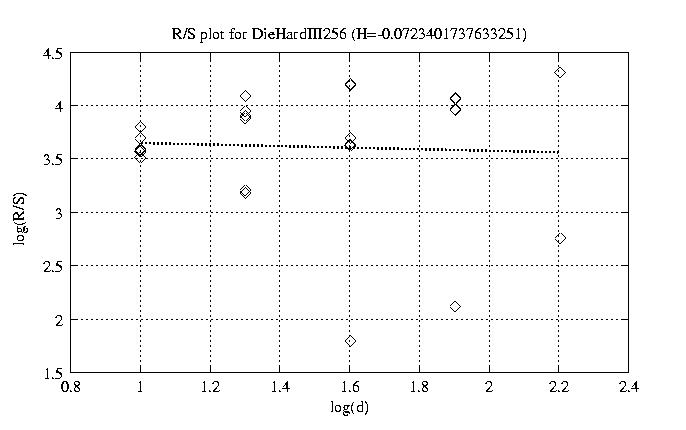

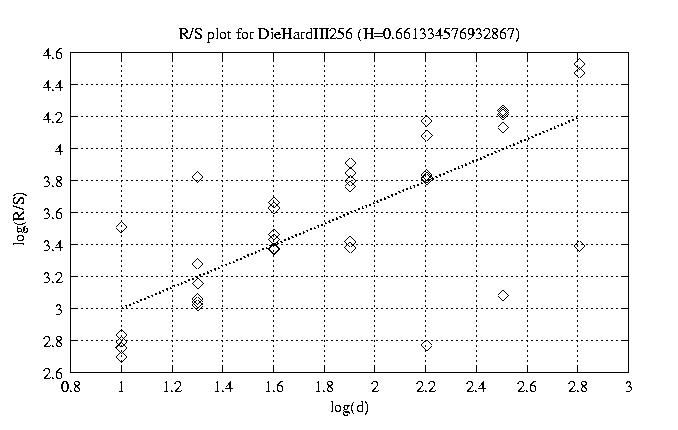

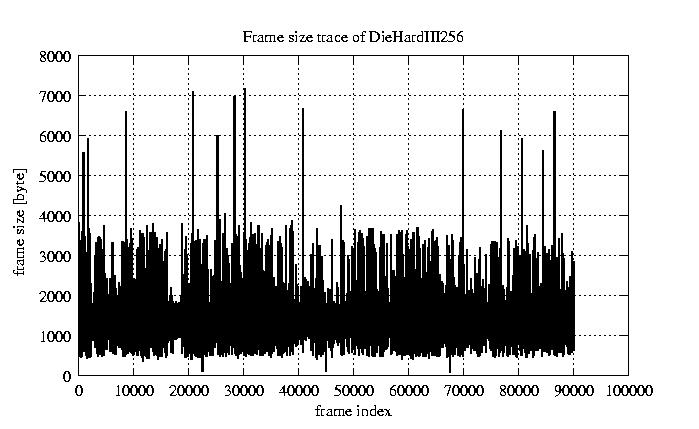

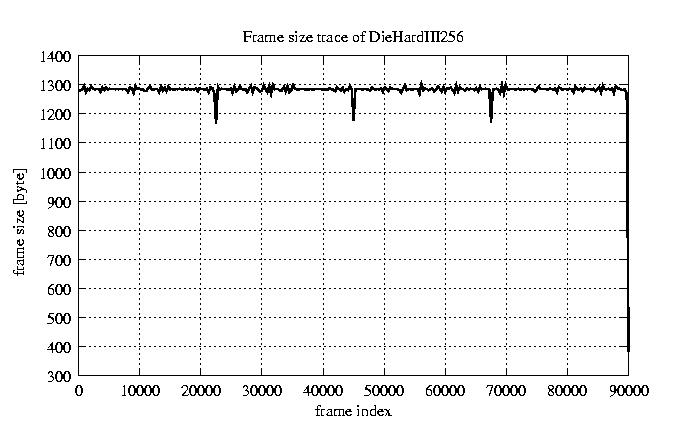

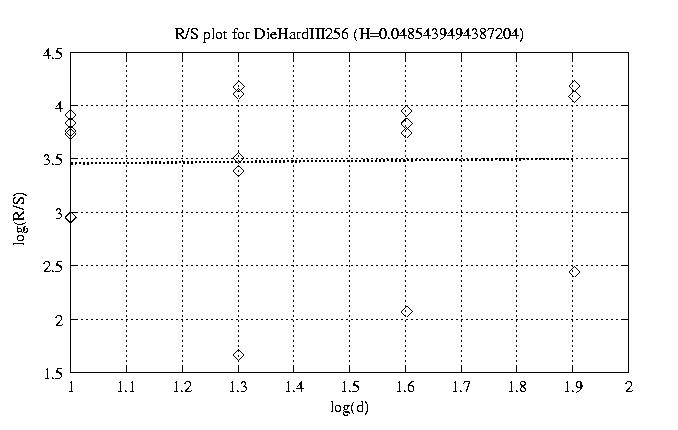

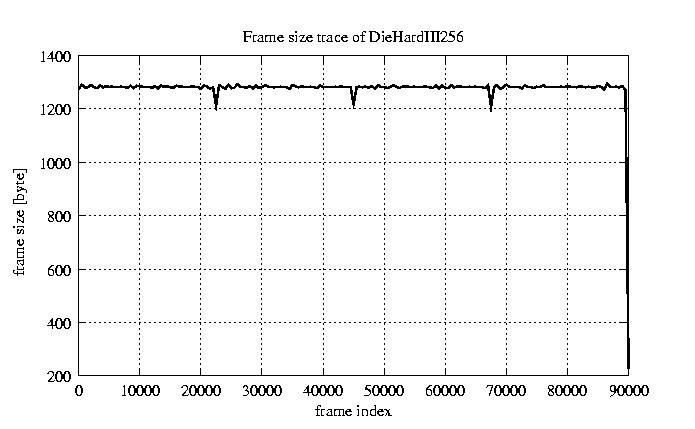

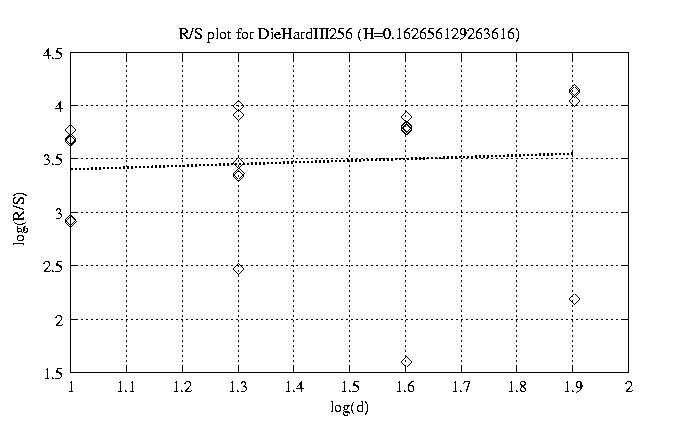

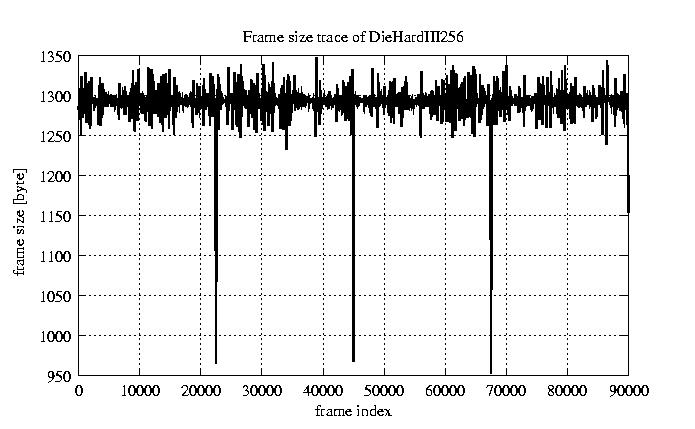

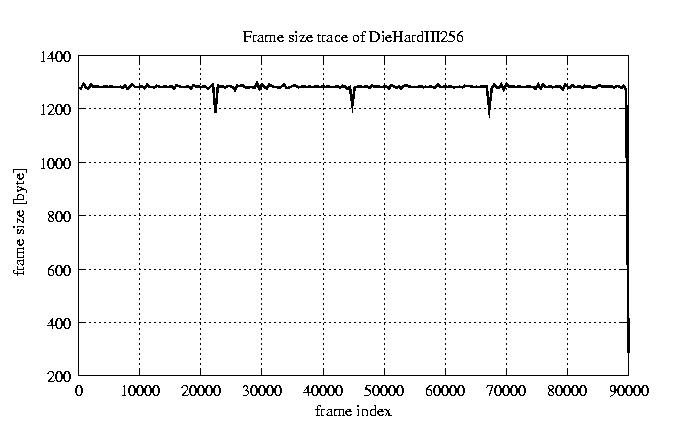

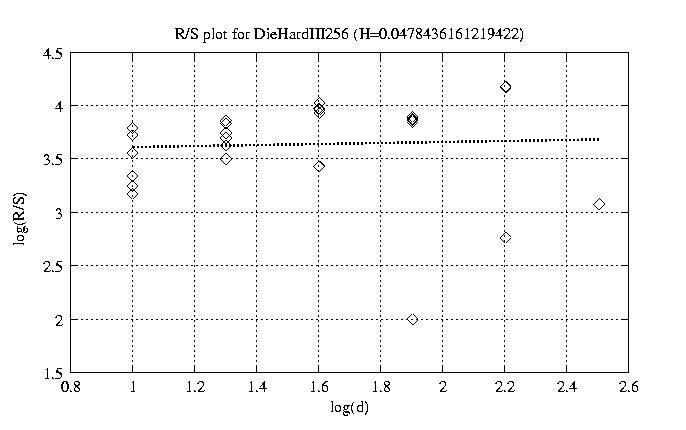

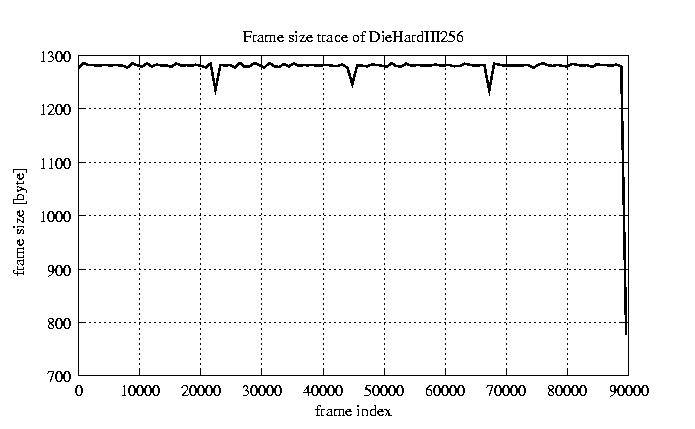

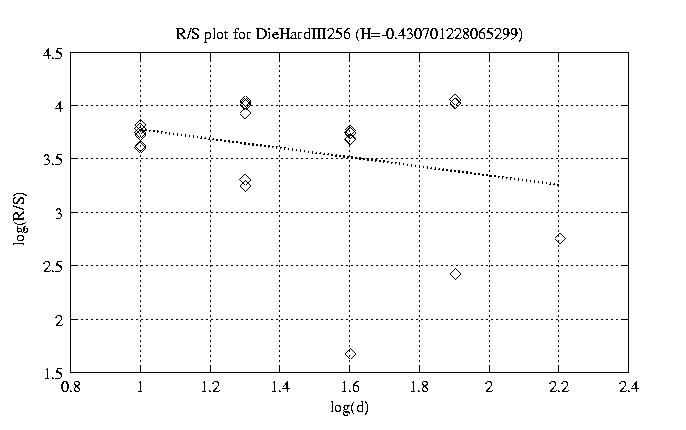

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.996 view view 12 0.958 view view 50 0.804 view view 100 0.661 view view 200 0.407 view view 300 0.048 view view 400 0.151 view view 500 -0.072 view view 600 -0.431 view view 700 0.163 view view 800 0.049 view view

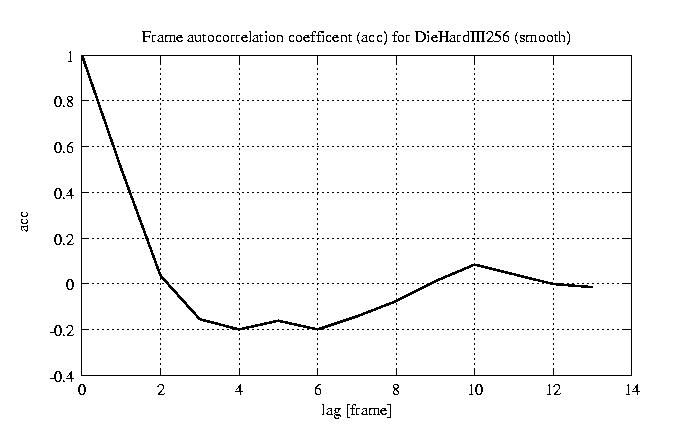

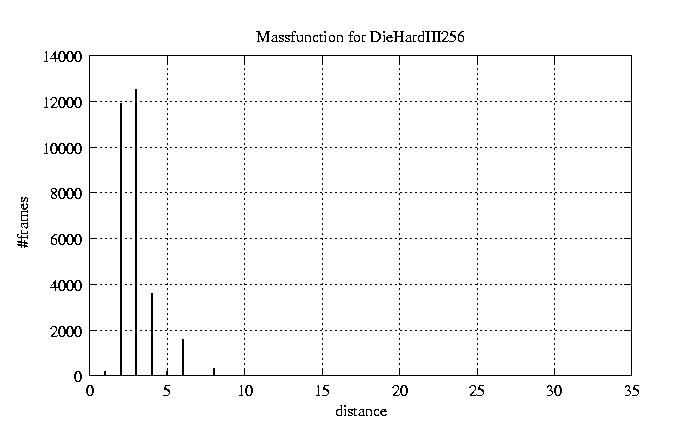

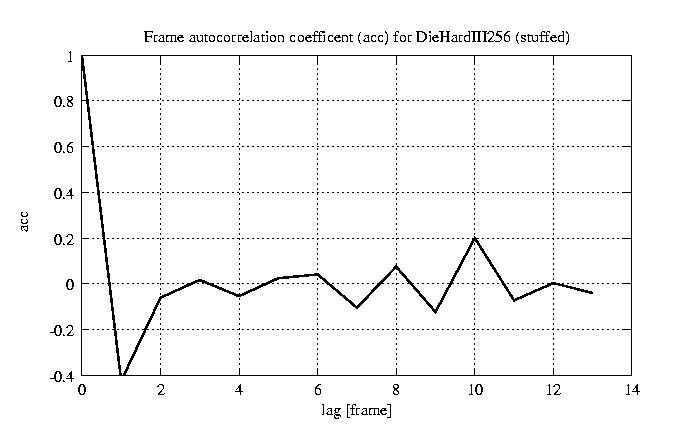

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
