H263 - Alpin Ski
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.96 118.96 File size byte 2.9e+07 2.9e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90082.00 33121.00 mean frame size byte 319.58 869.19 var frame size - 214501.39 105675.74 CoV of frame size - 1.45 0.37 min frame size byte 0.00 51.00 max frame size byte 5474.00 5474.00 Peak/Mean frame - 17.13 6.30 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.6e+05 Peak/Mean of bit rate - 5.7 CoV of bit rate - 0.3 max inter frame space frames 1.00 33.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

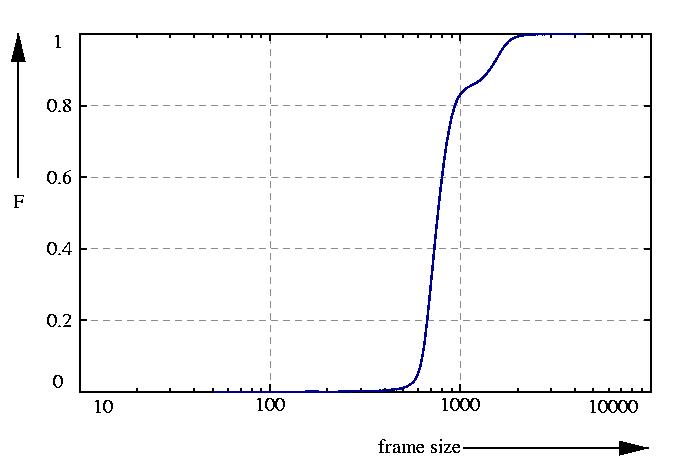

probability function F = sum p

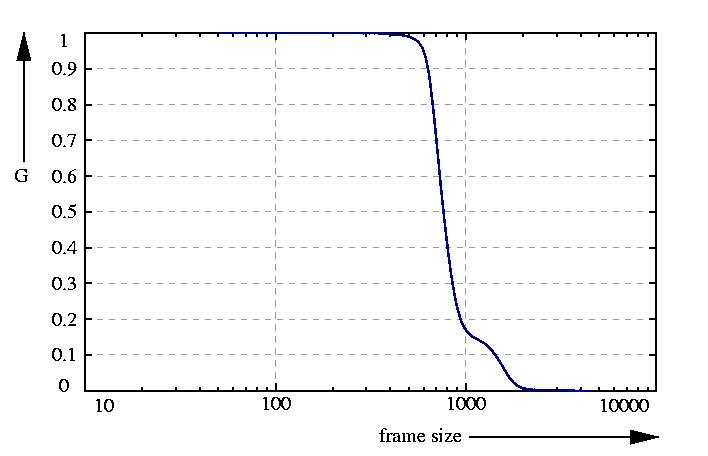

inverse probability function G = 1 - F

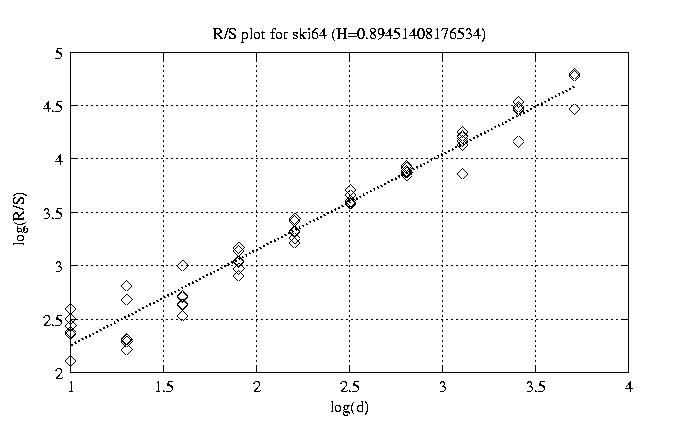

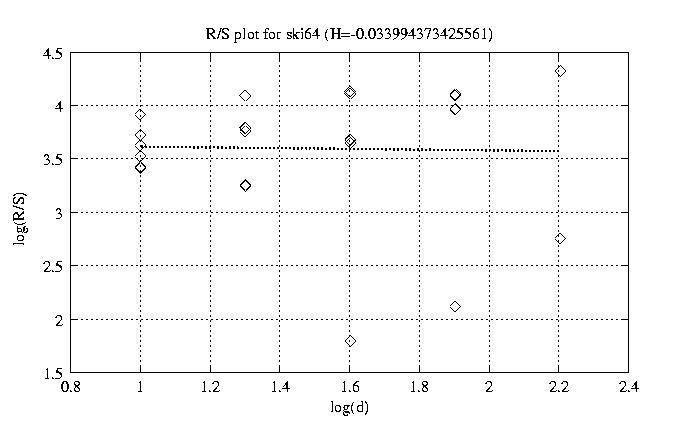

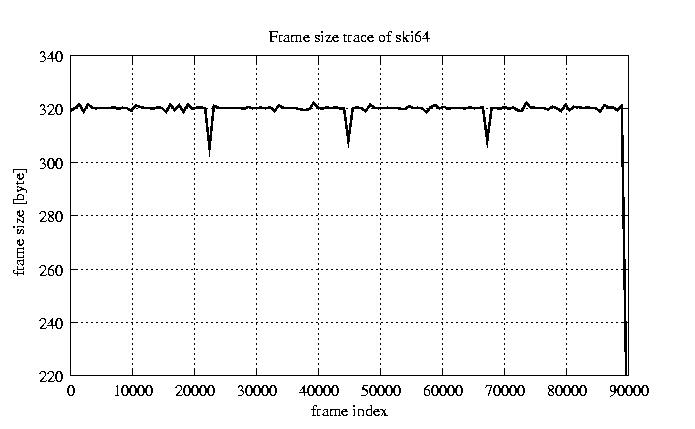

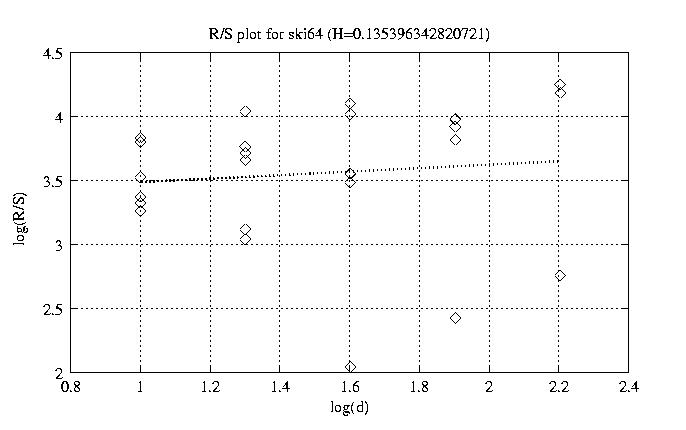

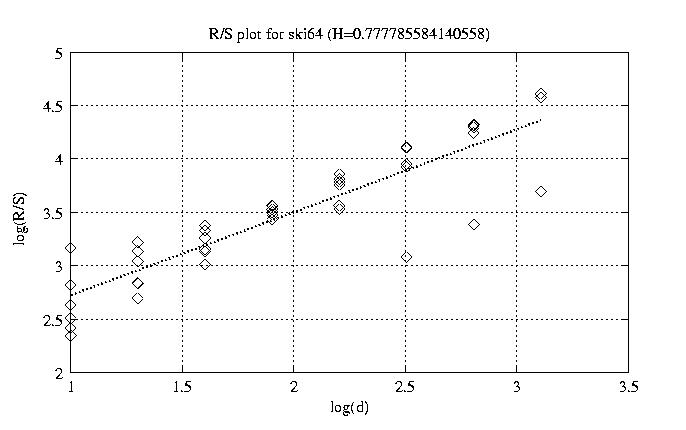

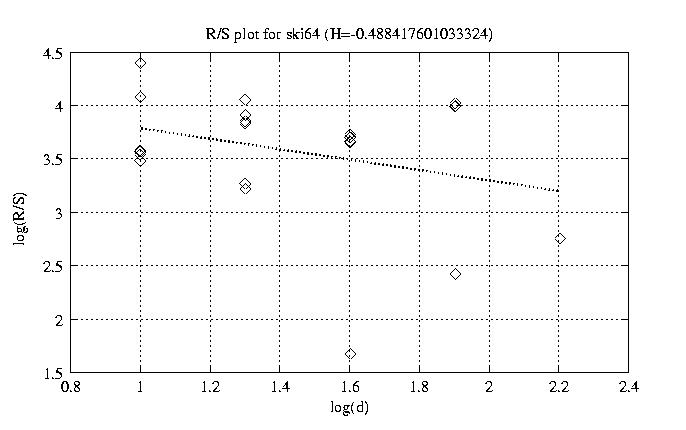

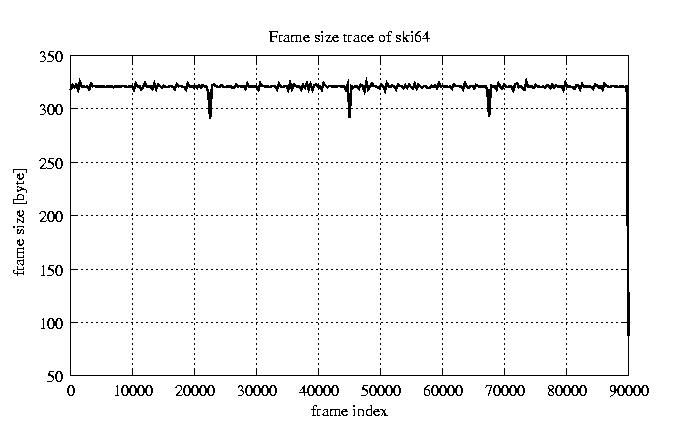

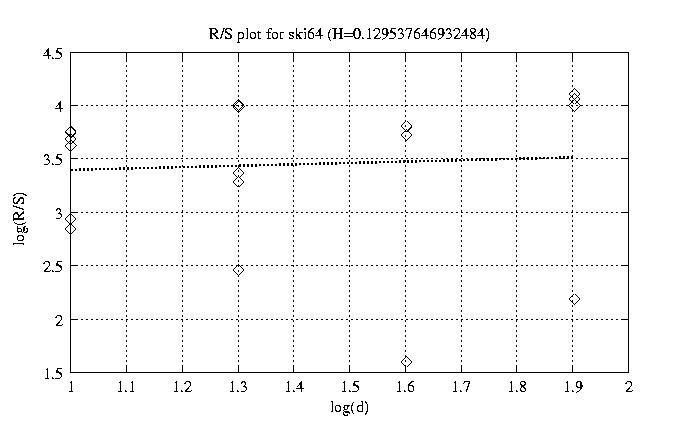

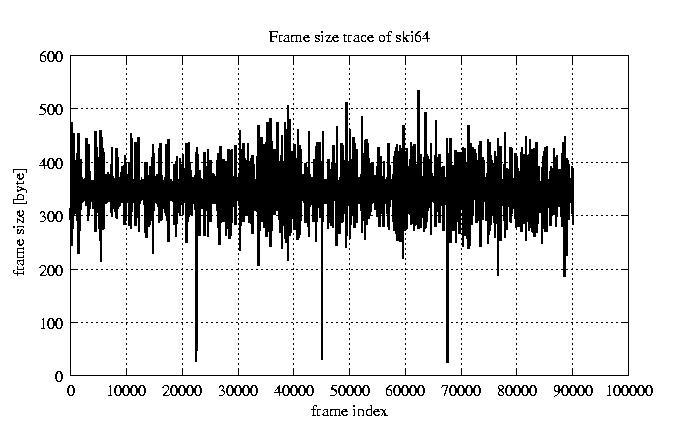

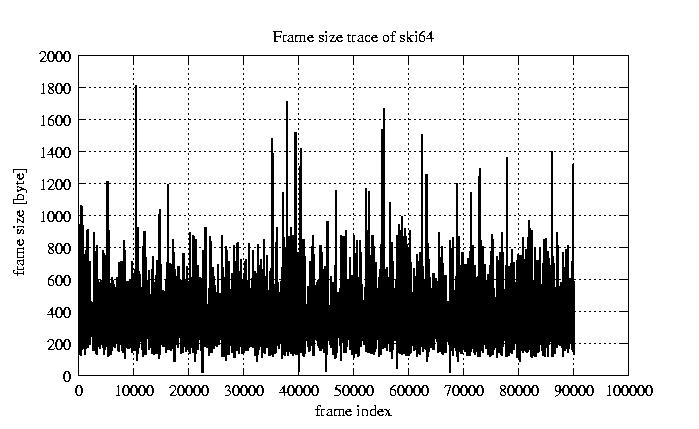

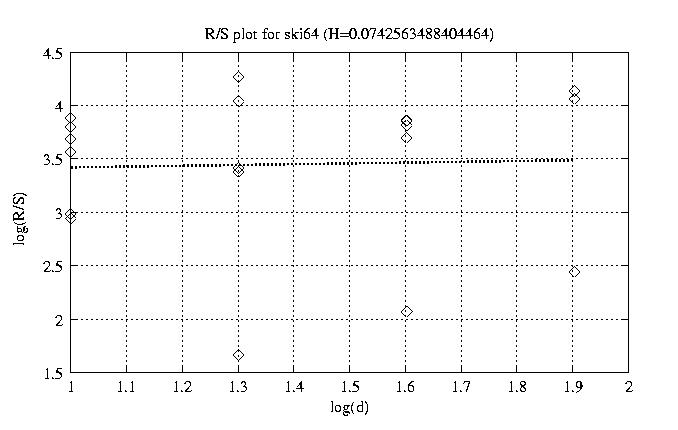

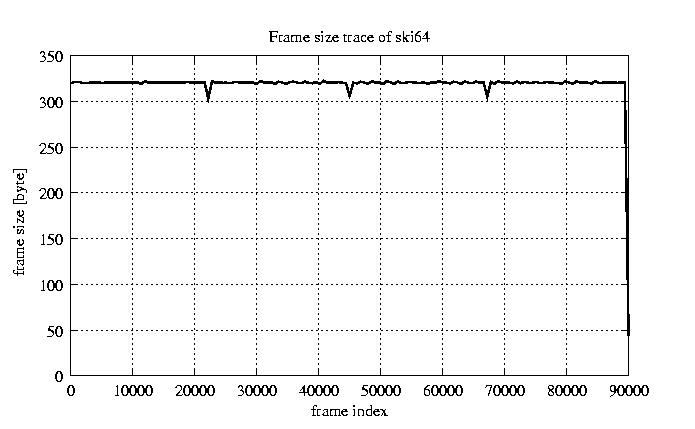

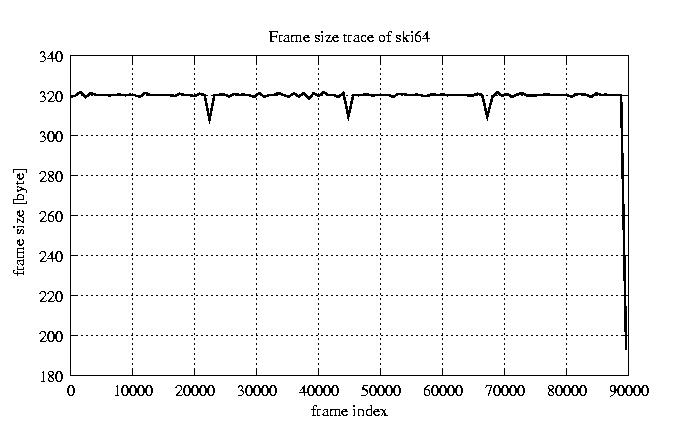

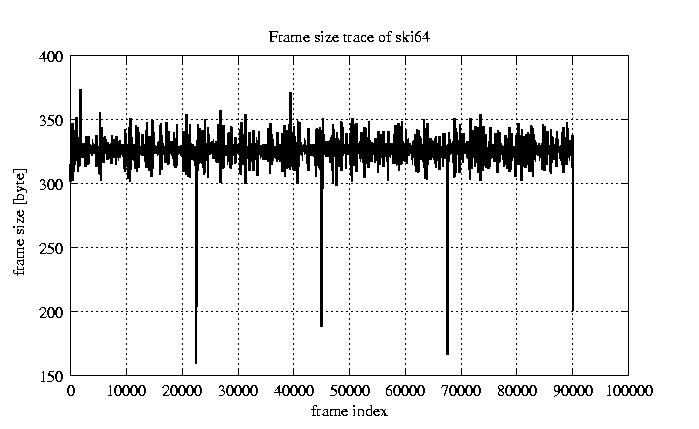

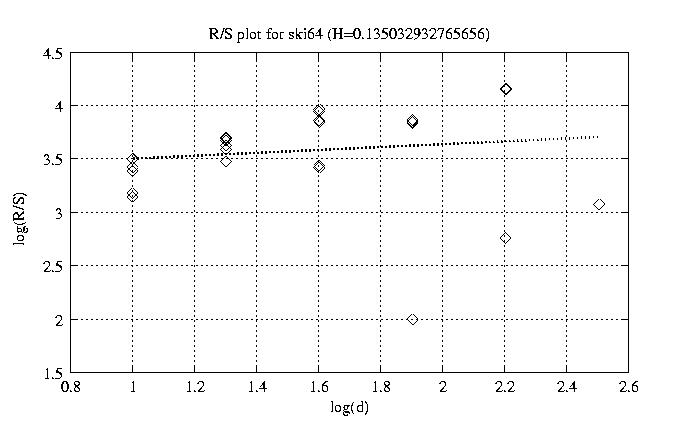

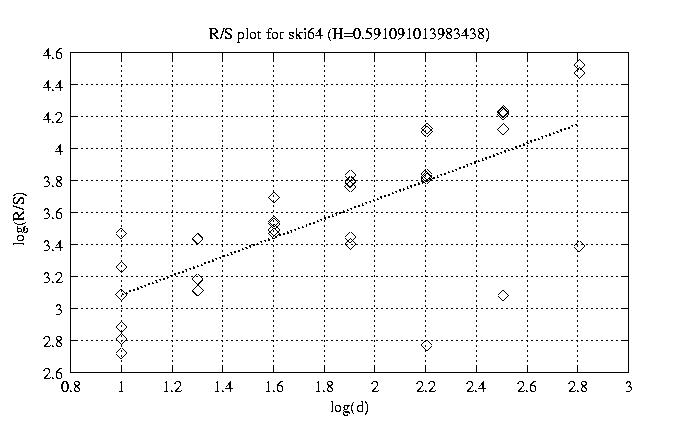

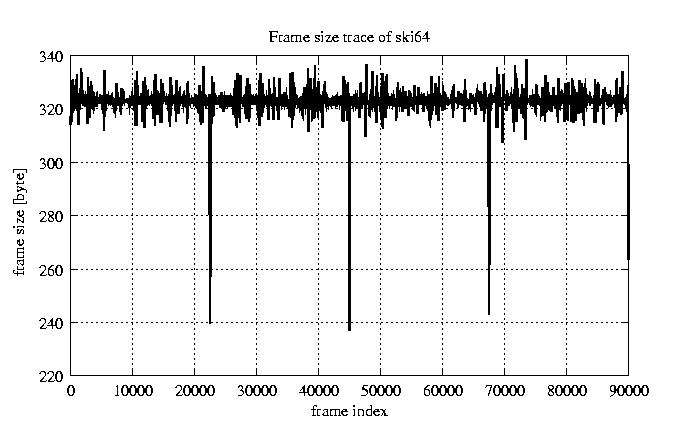

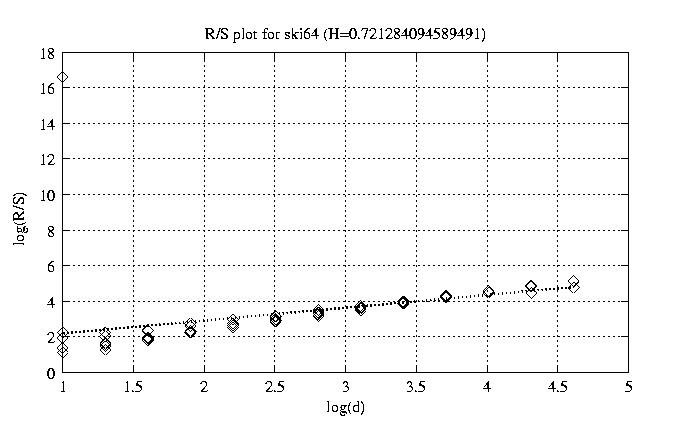

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.721 view view 12 0.895 view view 50 0.778 view view 100 0.591 view view 200 0.348 view view 300 0.135 view view 400 0.135 view view 500 -0.034 view view 600 -0.488 view view 700 0.130 view view 800 0.074 view view

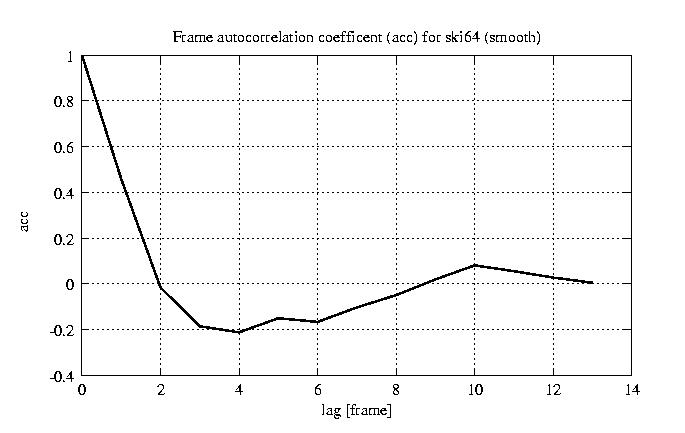

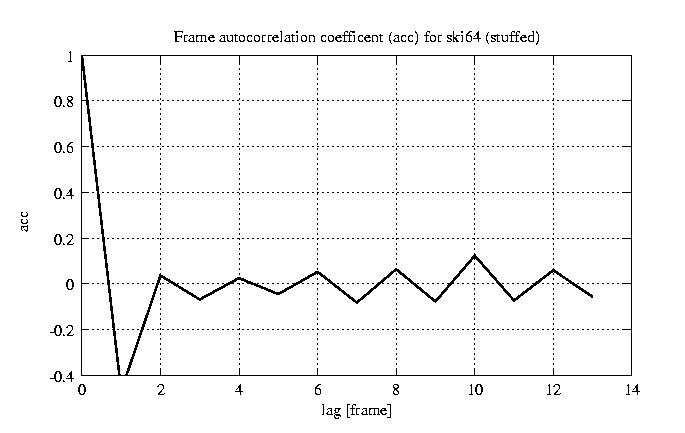

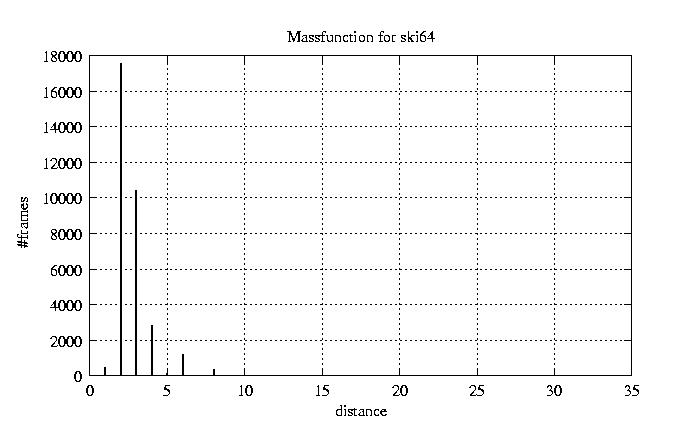

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
	HOME BACK

Frank Fitzek
