MP4 - Alpin Ski
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 9.14 File Size byte 3.7e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 4.2e+03 var frame size - 5.4e+06 CoV of frame size - 0.56 min frame size byte 307 max frame size byte 15813 Mean bit rate bit/sec 8.3e+05 Peak bit rate bit/sec 3.2e+06 Peak/Mean of bit rate - 3.80 GoP statistics # of GoPs - 7499 mean GoP size byte 5e+04 var GoP size - 5.5e+08 CoV of GoP size - 0.47 min GoP size byte 8704 max GoP size byte 140444 Mean bit rate bit/sec 8.3e+05 Peak bit rate bit/sec 2.3e+06 Peak/Mean of bit rate - 2.82 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

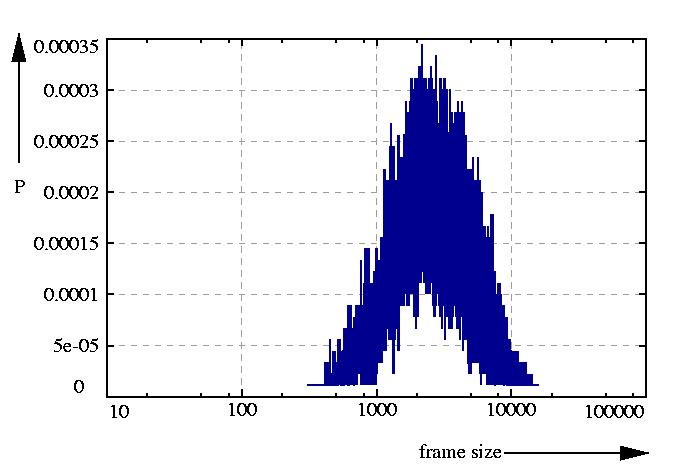

probability density function p
probability function F = sum p

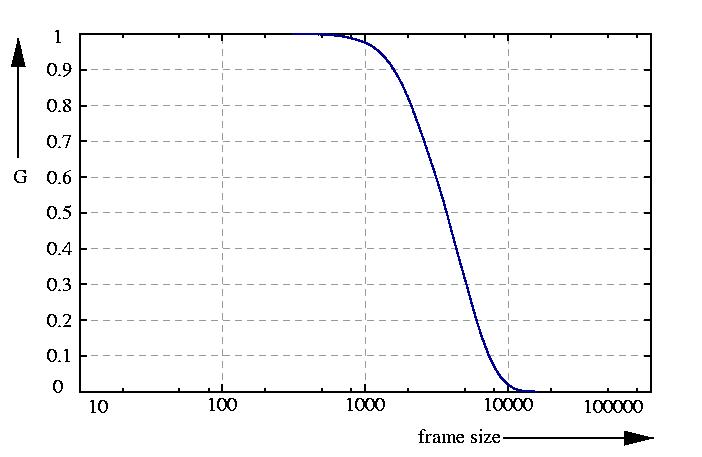

inverse probability function G = 1 - F

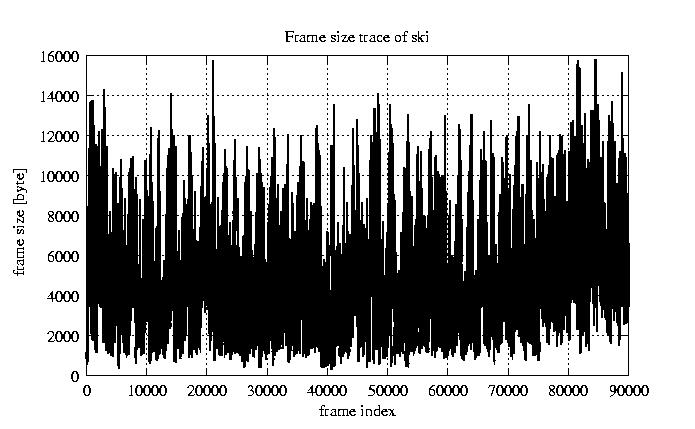

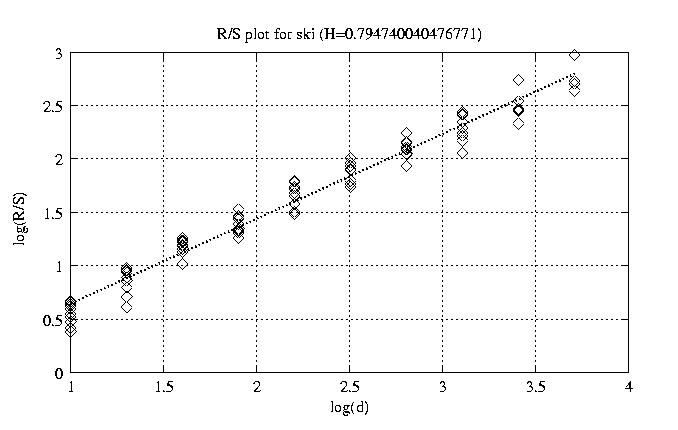

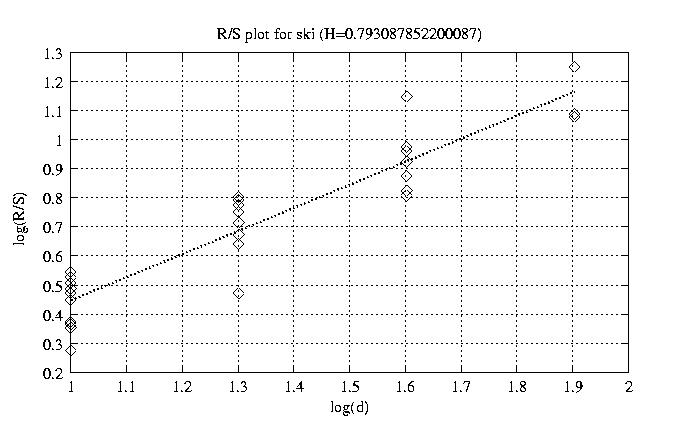

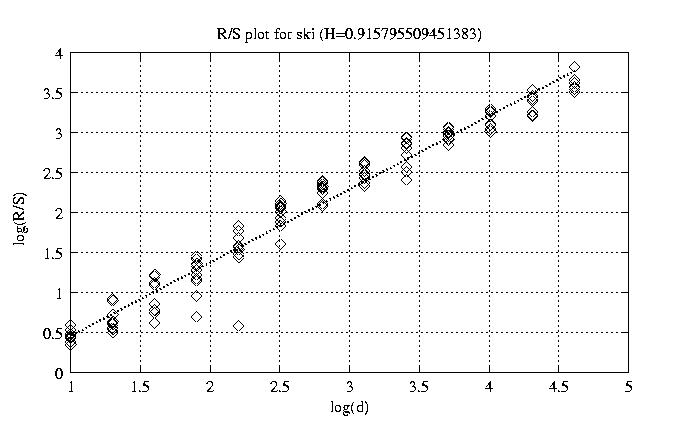

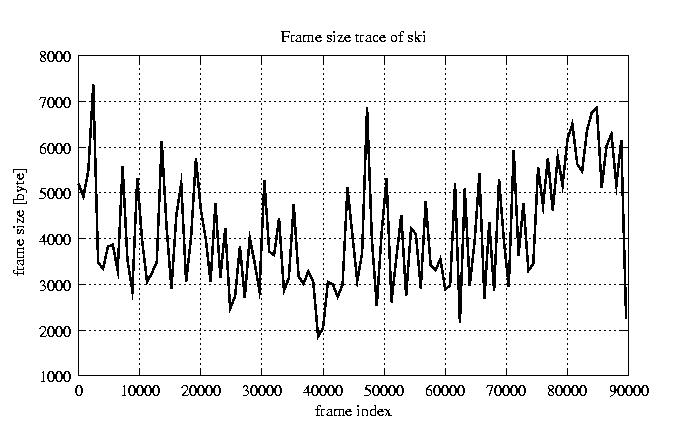

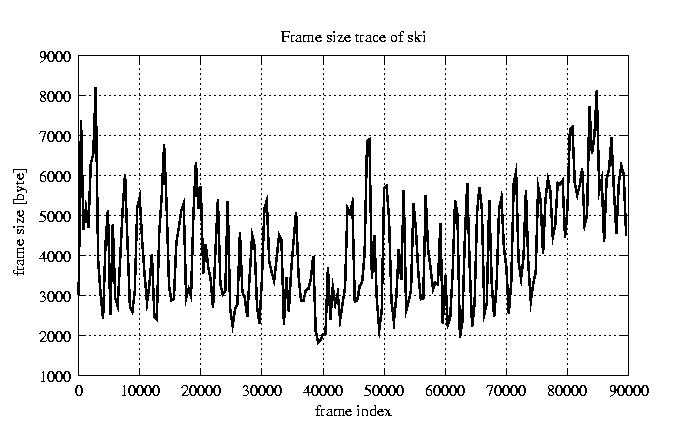

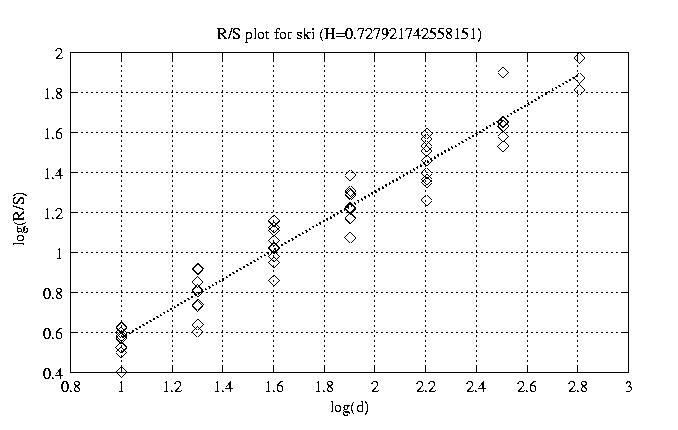

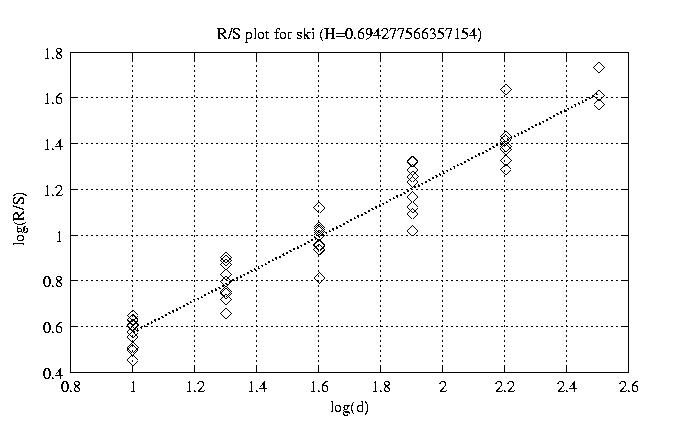

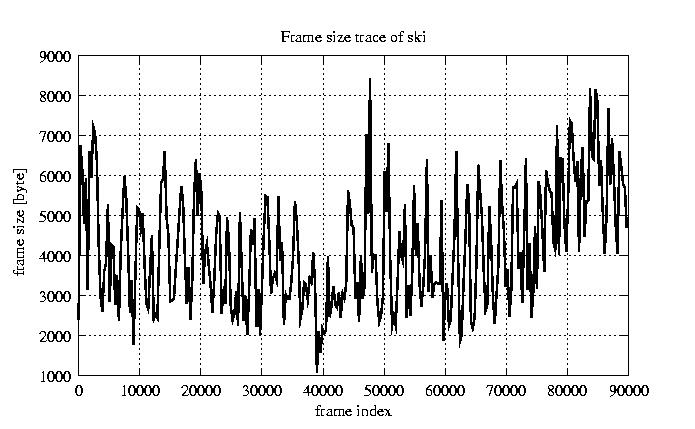

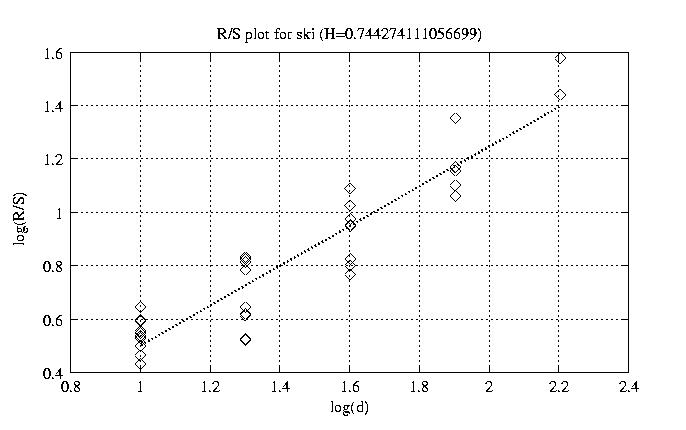

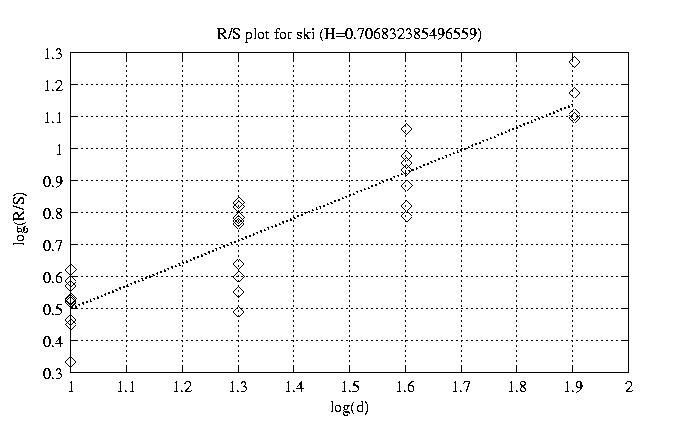

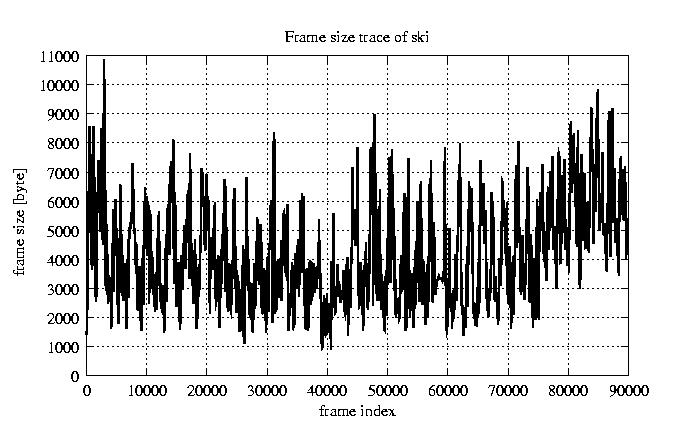

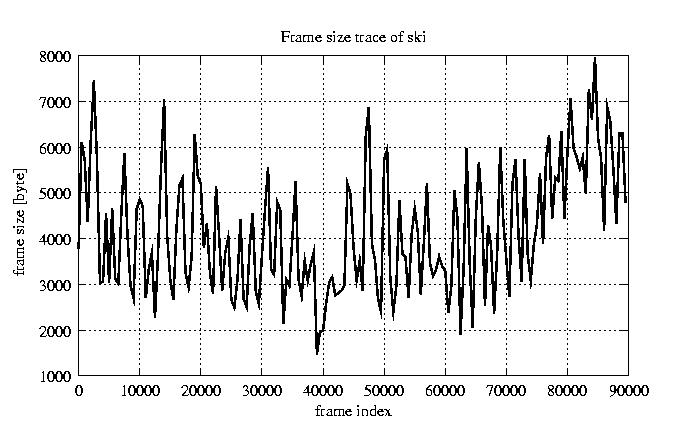

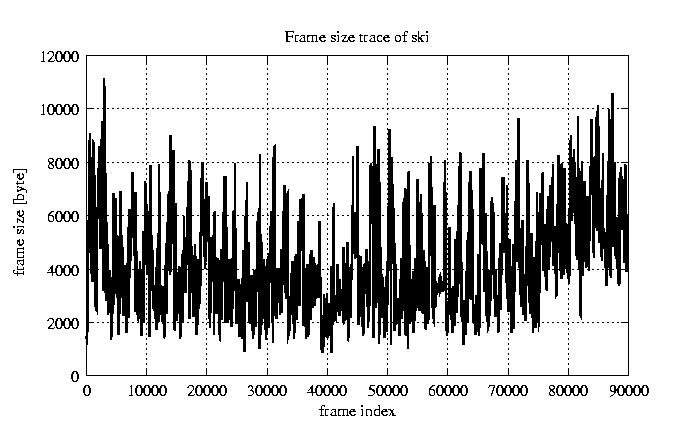

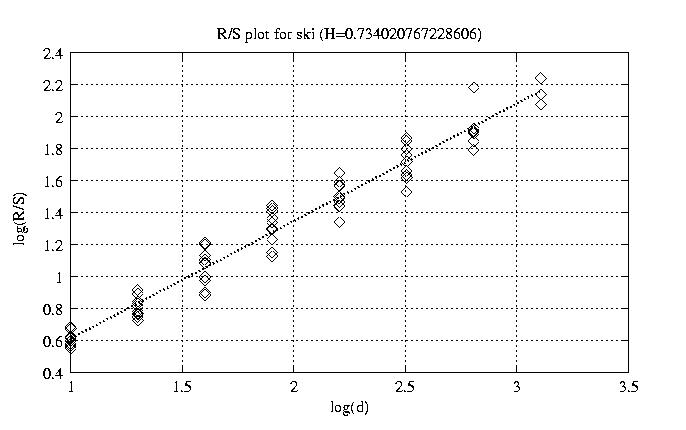

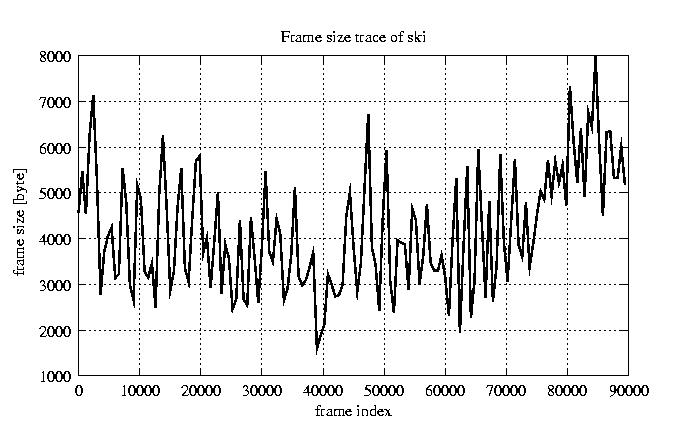

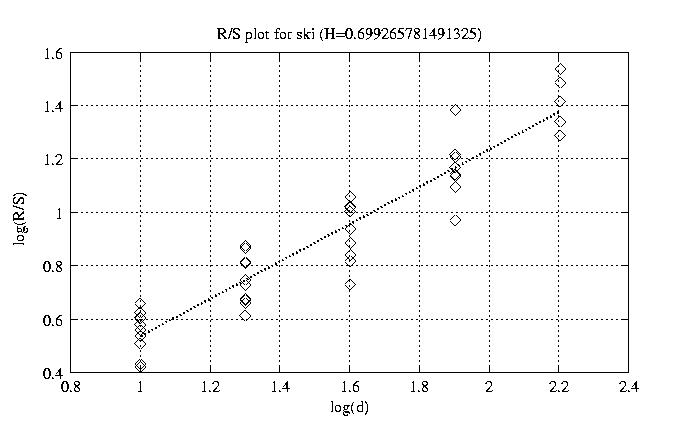

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.916 view view 12 0.795 view view 50 0.734 view view 100 0.728 view view 200 0.694 view view 300 0.699 view view 400 0.692 view view 500 0.744 view view 600 0.760 view view 700 0.707 view view 800 0.793 view view

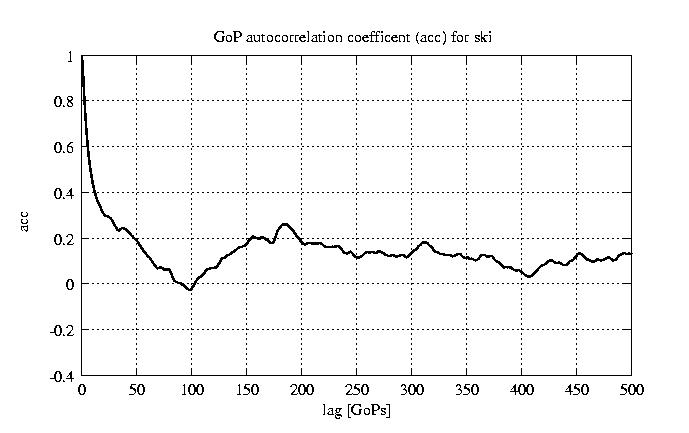

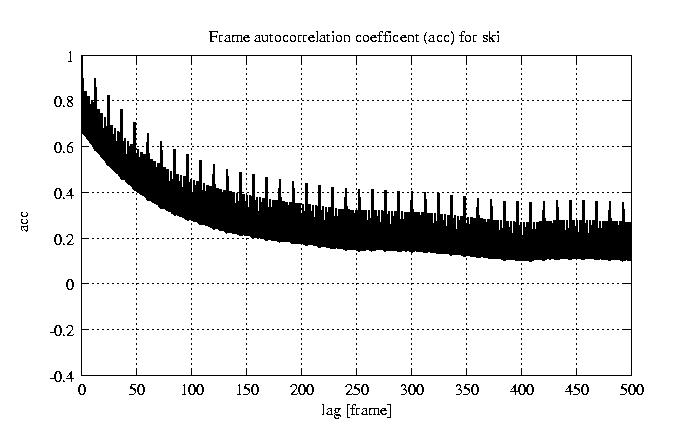

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
