MP4 - Formula 1
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 9.10 File Size byte 1.9e+08 Video run time msec 1.8e+06 # of Frames - 44998 mean frame size byte 4.2e+03 var frame size - 3.1e+06 CoV of frame size - 0.42 min frame size byte 130 max frame size byte 14431 Mean bit rate bit/sec 8.4e+05 Peak bit rate bit/sec 2.9e+06 Peak/Mean of bit rate - 3.45 GoP statistics # of GoPs - 3749 mean GoP size byte 5e+04 var GoP size - 2.2e+08 CoV of GoP size - 0.30 min GoP size byte 14525 max GoP size byte 120105 Mean bit rate bit/sec 8.4e+05 Peak bit rate bit/sec 2e+06 Peak/Mean of bit rate - 2.40 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

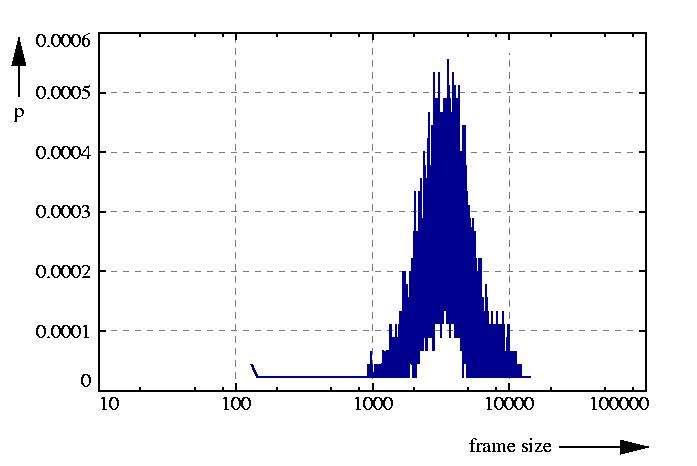

probability density function p

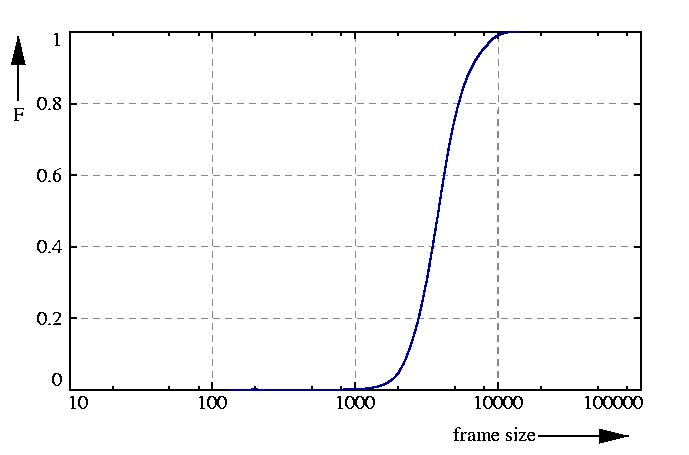

probability function F = sum p

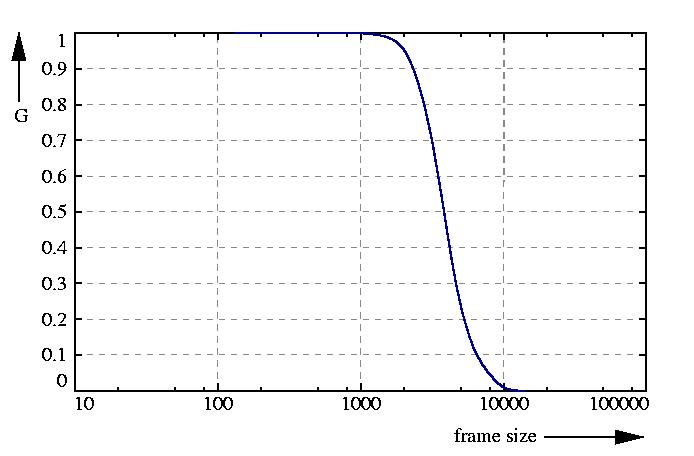

inverse probability function G = 1 - F

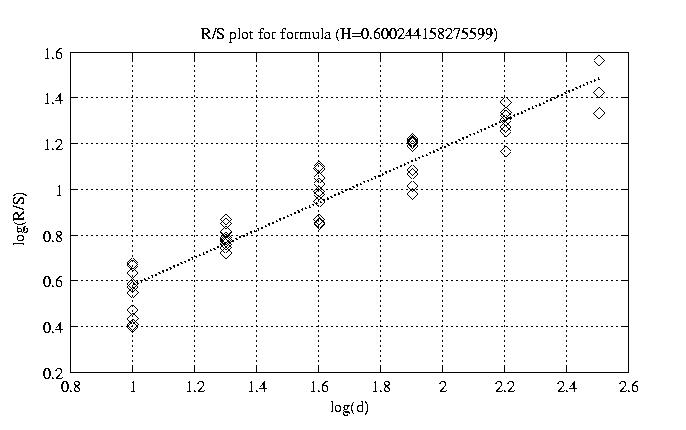

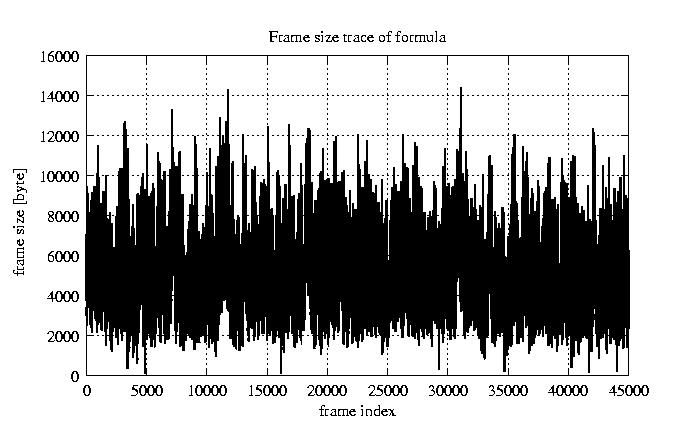

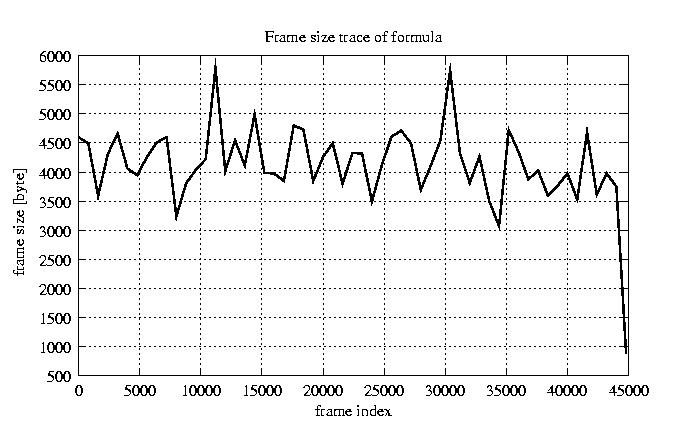

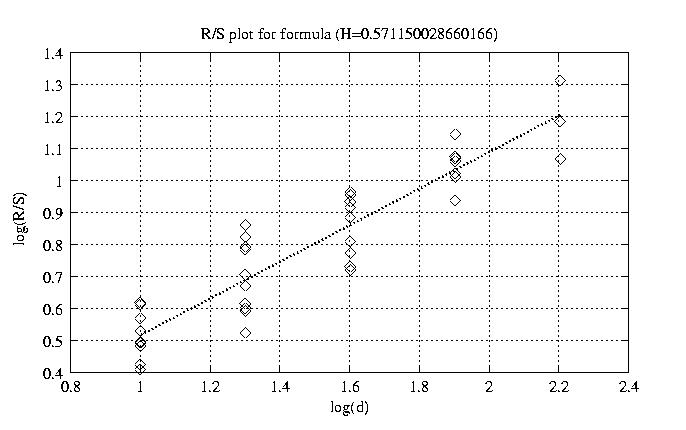

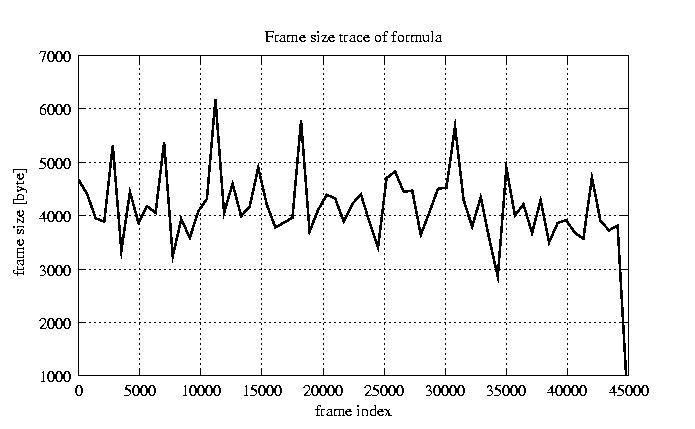

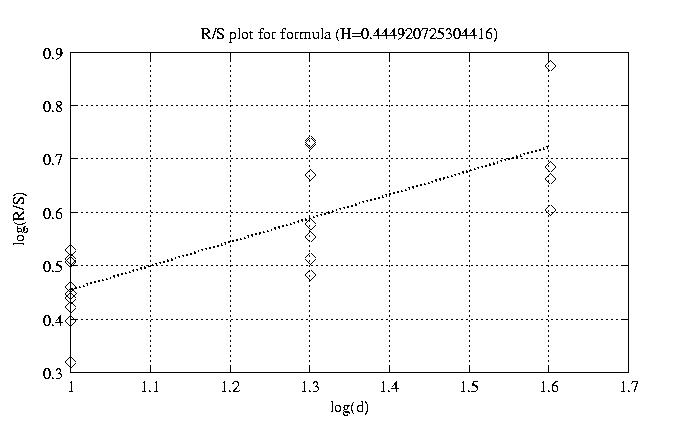

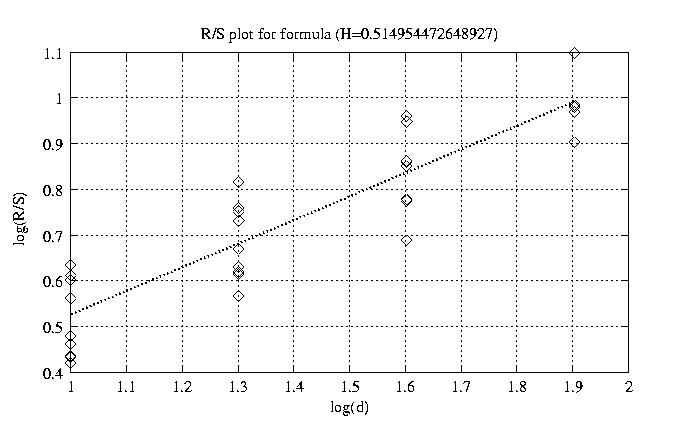

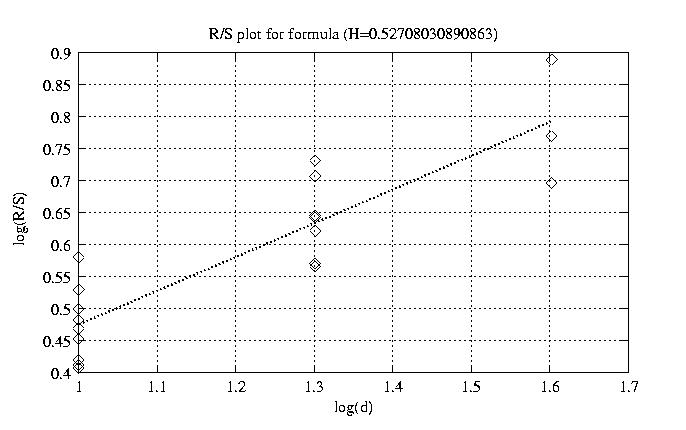

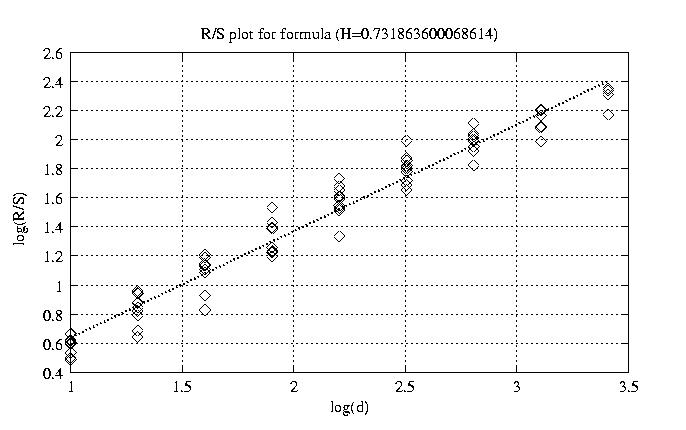

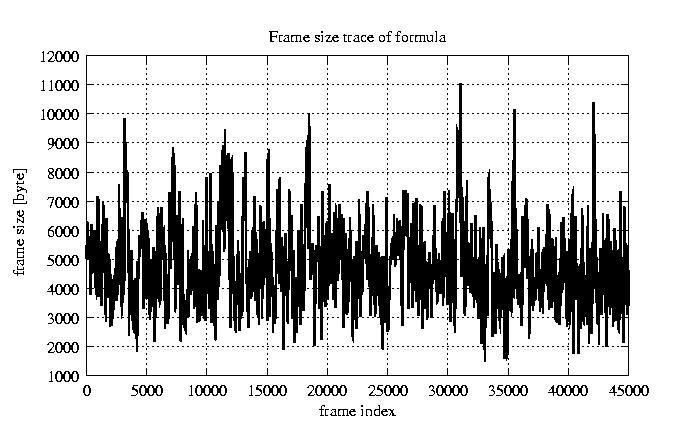

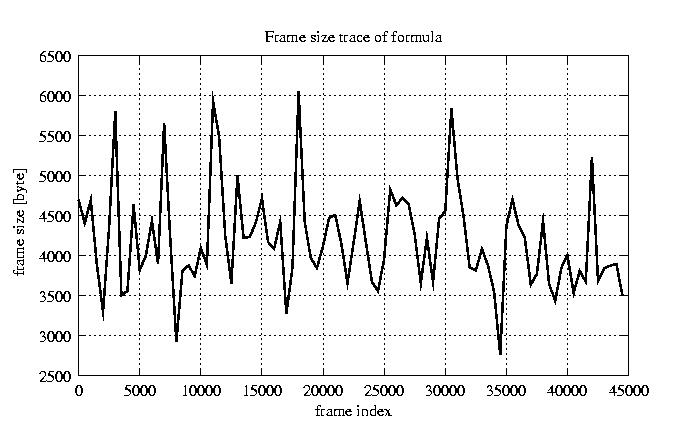

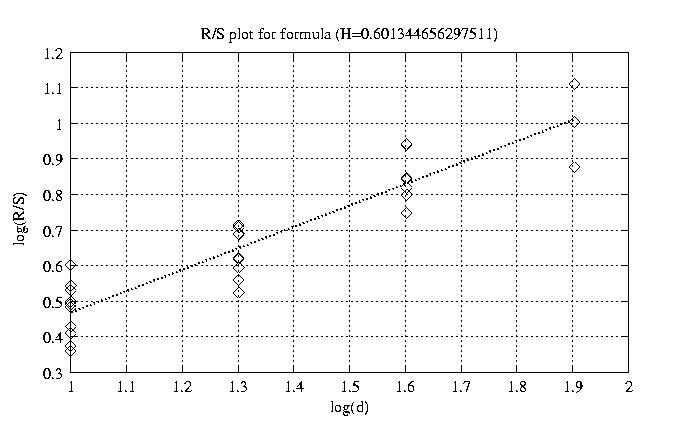

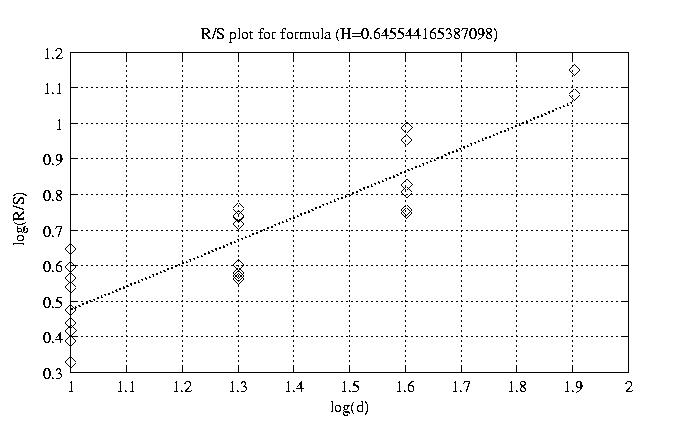

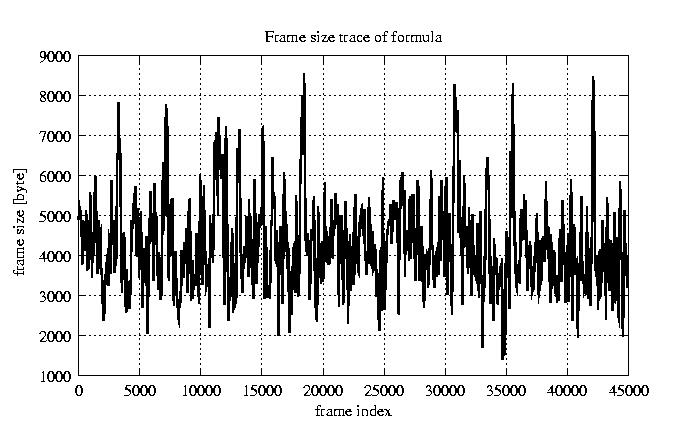

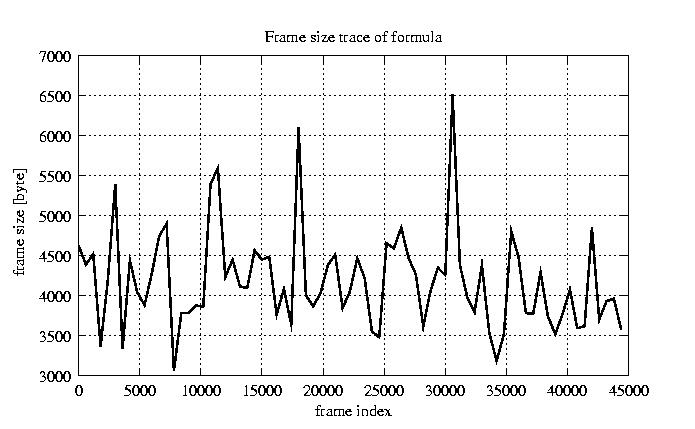

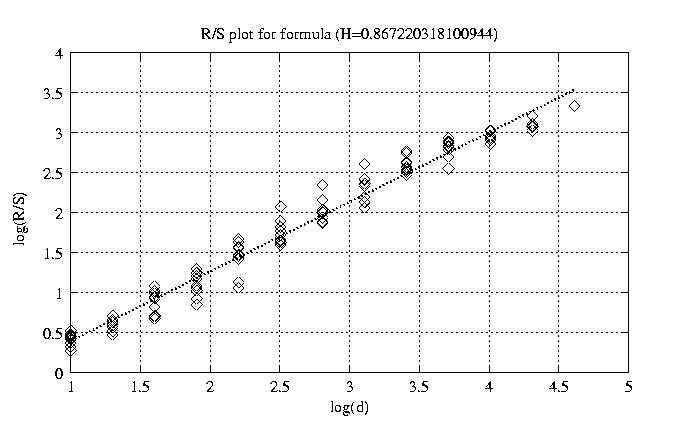

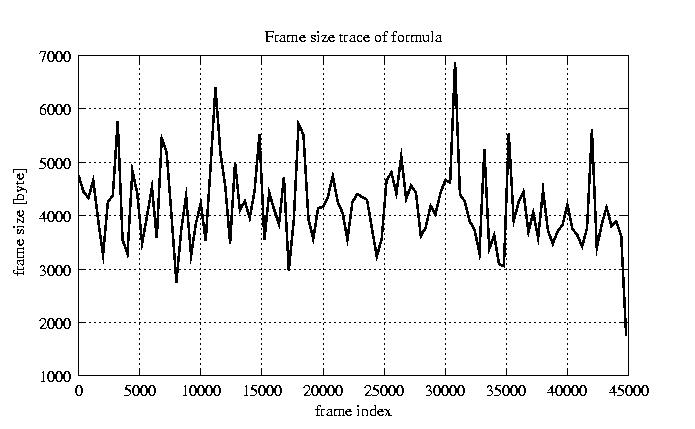

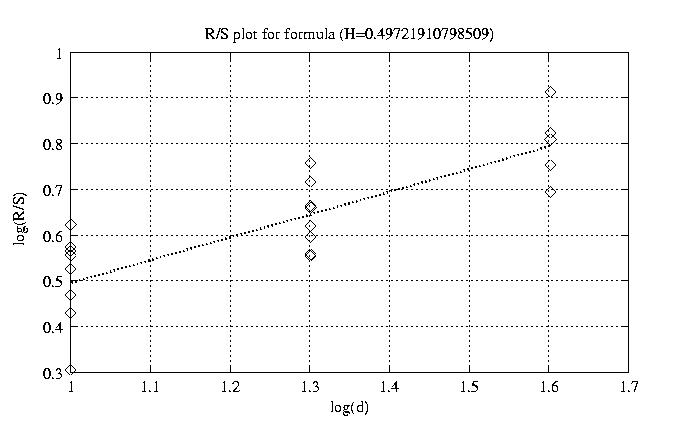

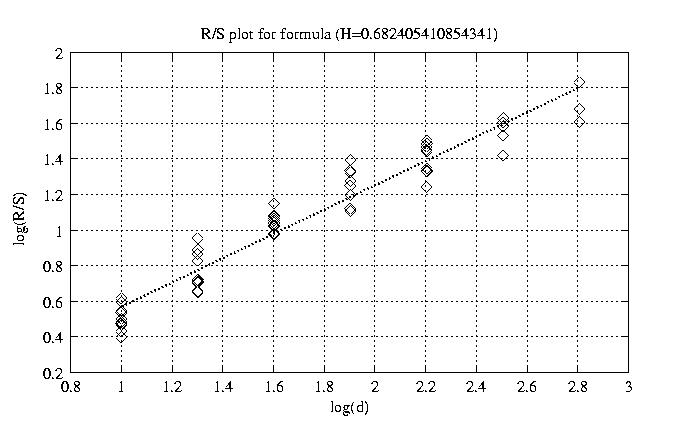

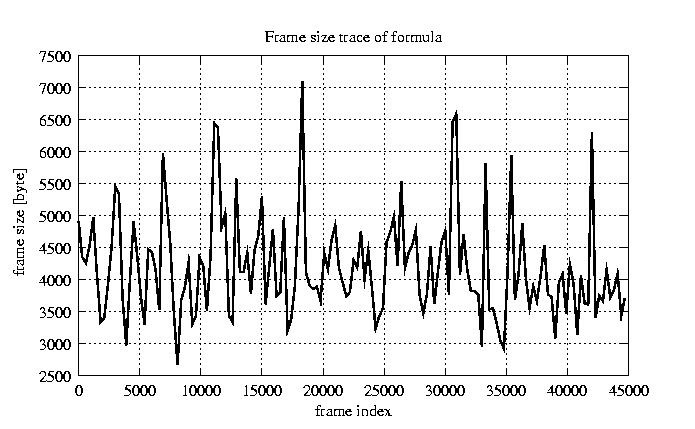

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.867 view view 12 0.732 view view 50 0.682 view view 100 0.600 view view 200 0.571 view view 300 0.515 view view 400 0.601 view view 500 0.646 view view 600 0.497 view view 700 0.445 view view 800 0.527 view view

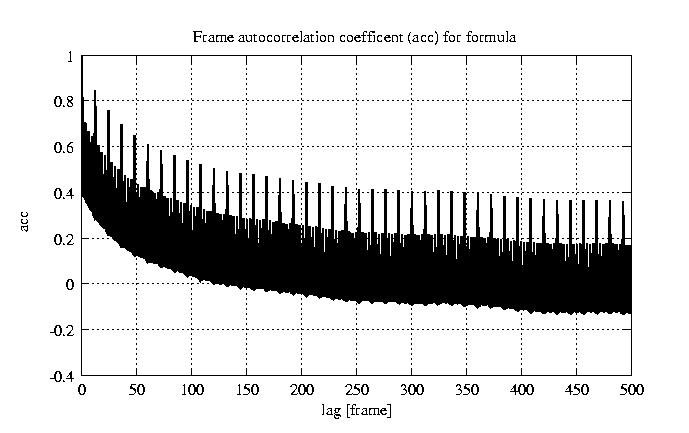

other plots	autocorrelation function of frames autocorrelation function of GoPs
