H261 - The Firm
unspecified target bitrate, VBRFrank Fitzek
frame statistics
parameter list
Frames Rates compression ratio YUV:H261 22.82 File size byte 1.5e+08 Video run time msec 3.6e+06 3.6e+06 # of Frames - 90000.00 mean frame size byte 1666.02 var frame size - 521601.53 CoV of frame size - 0.43 min frame size byte 189.00 max frame size byte 7350.00 Peak/Mean frame - 4.41 Mean bit rate bit/sec 3.3e+05 Peak bit rate bit/sec 1.5e+06 Peak/Mean of bit rate - 4.4 CoV of bit rate - 0.43 max inter frame space frames 1.00

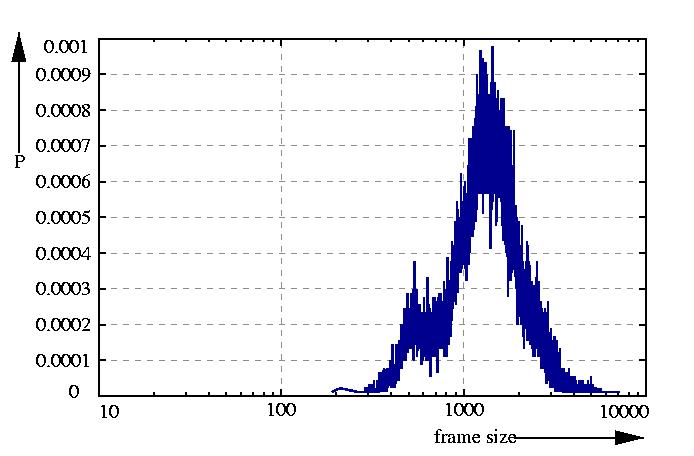

The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.probability density

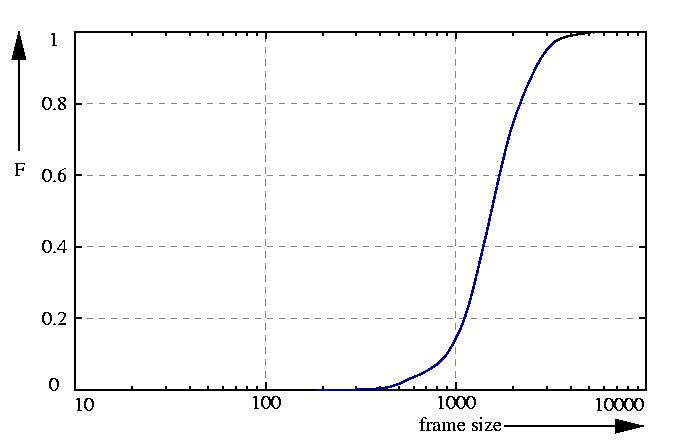

function pprobability function F = sum p

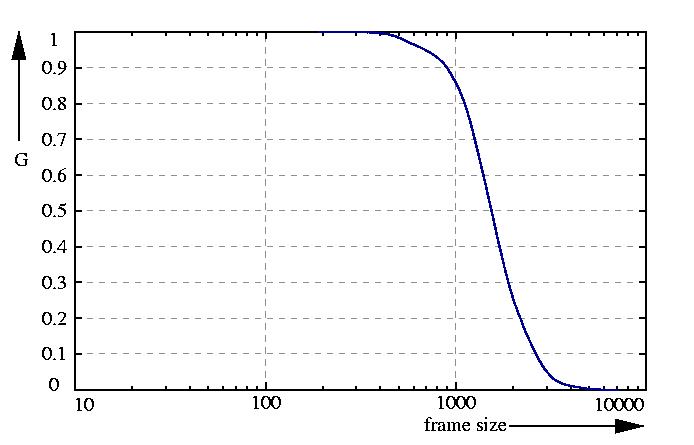

inverse probability
functionG = 1 - F

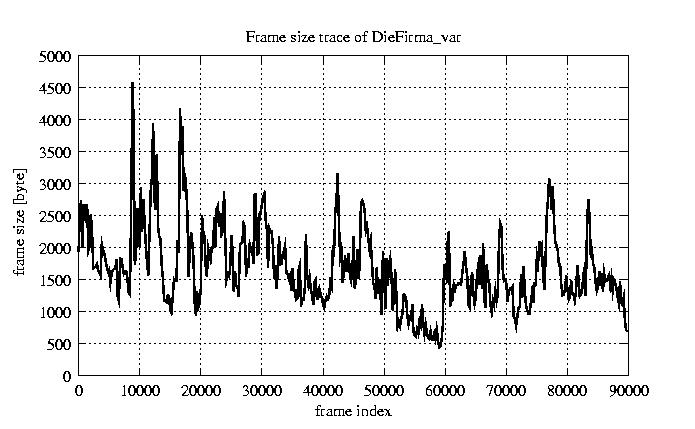

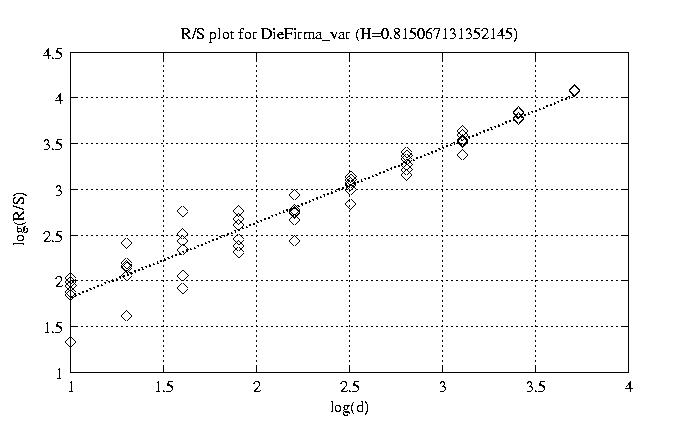

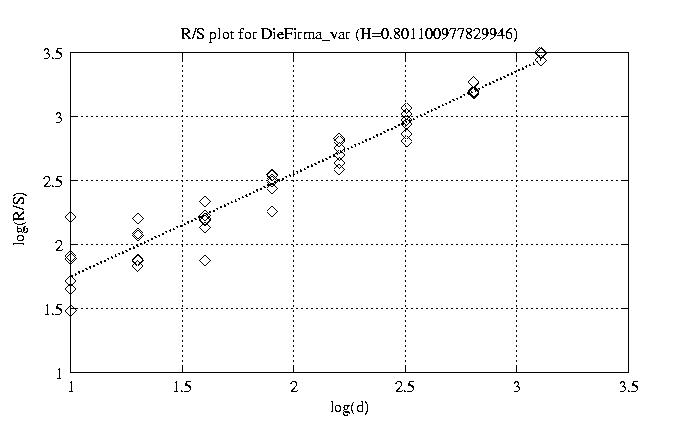

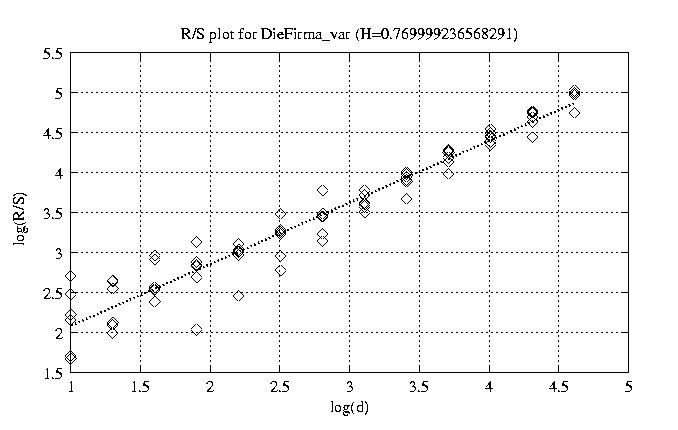

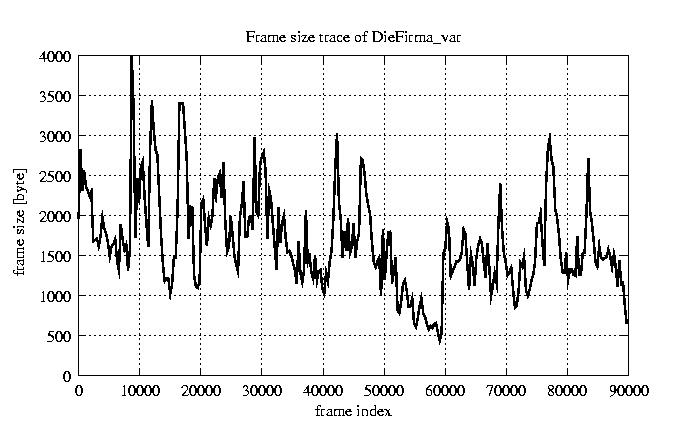

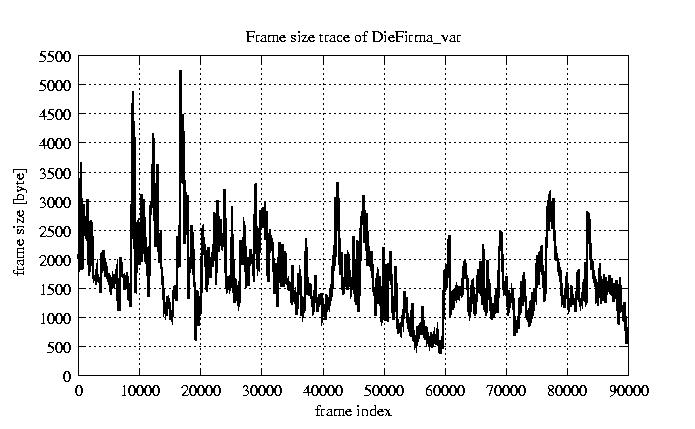

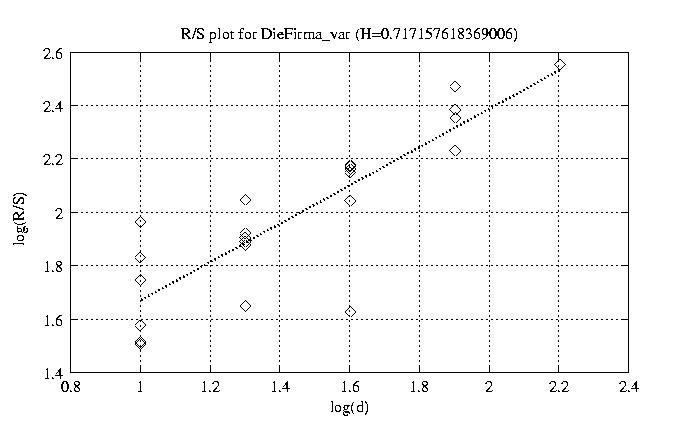

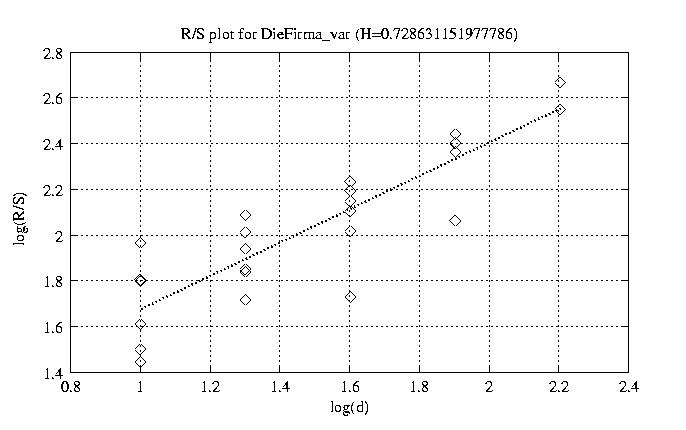

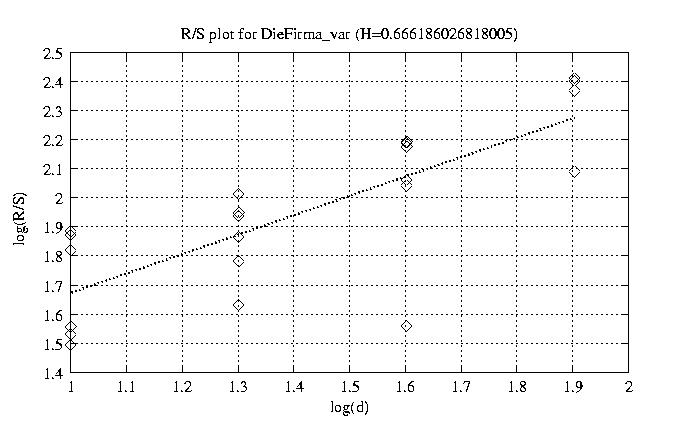

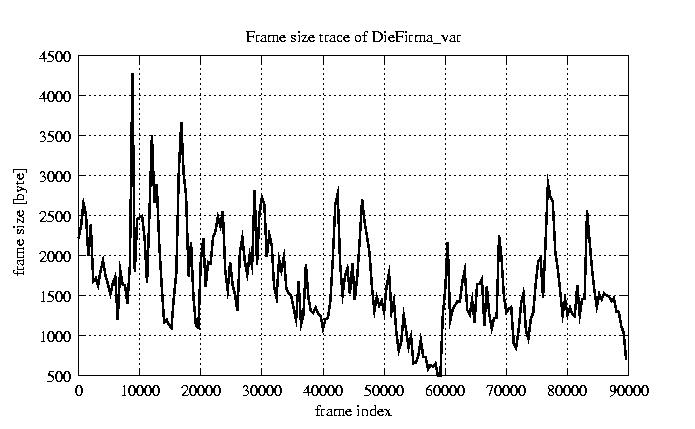

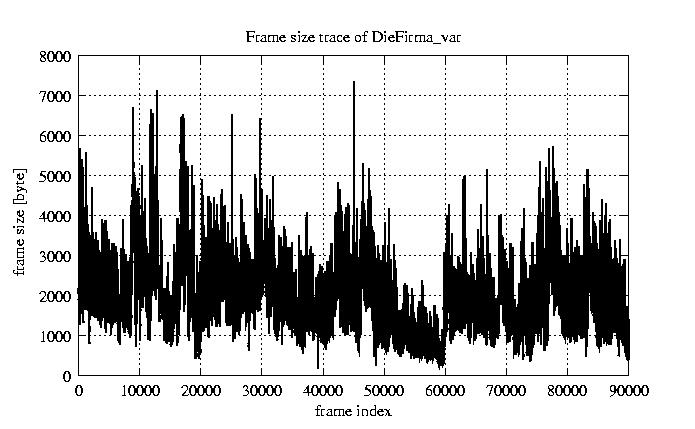

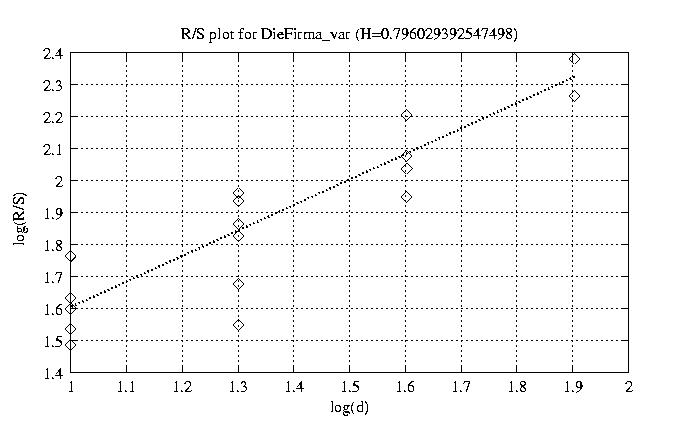

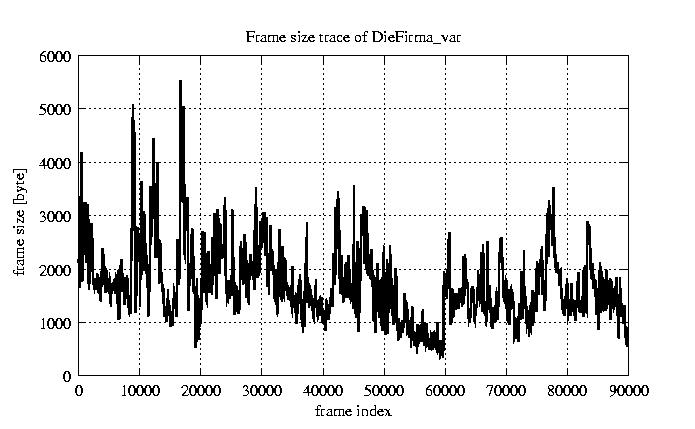

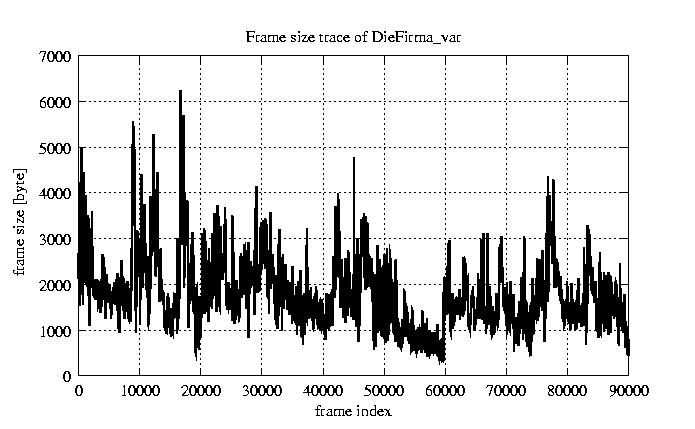

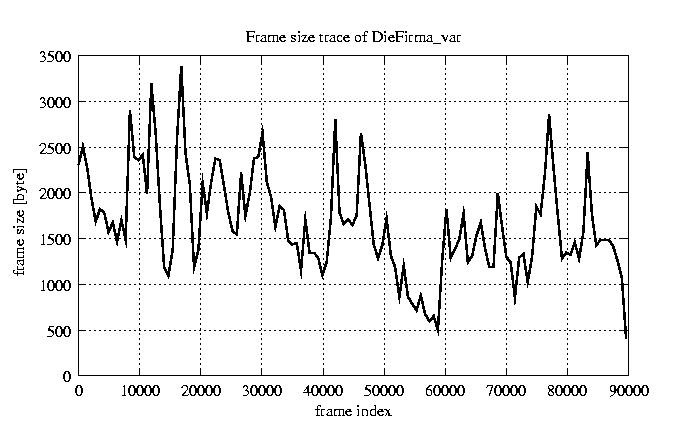

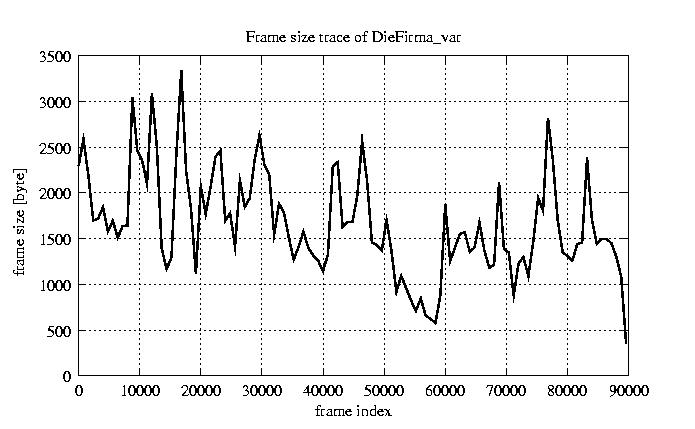

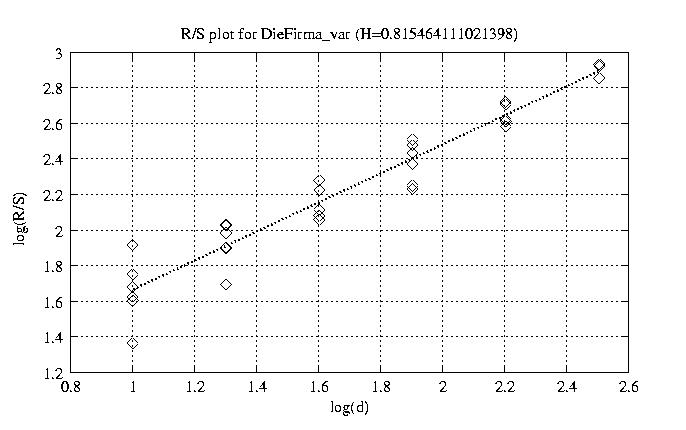

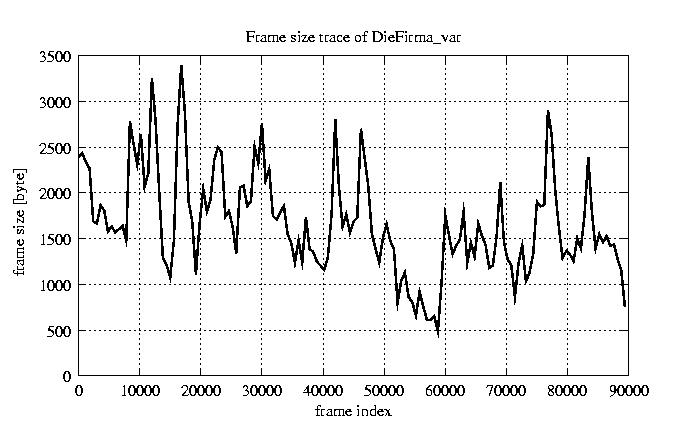

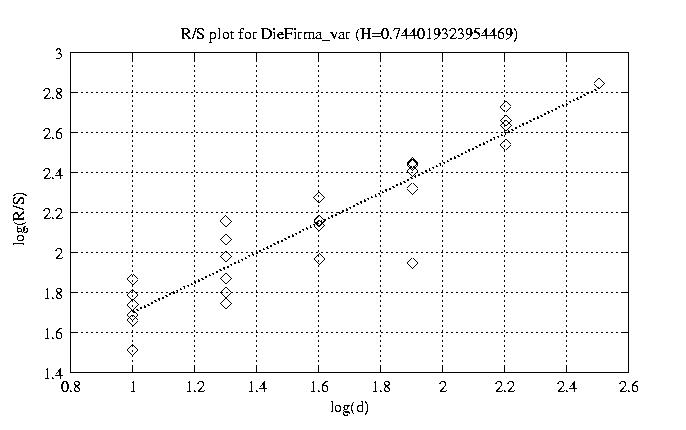

Hurst paramter with R/S plots and smoothed frame size trace
Aggregation level Hurst paramter RS plot bitrate plot 1 0.770 view view 12 0.815 view view 50 0.801 view view 100 0.835 view view 200 0.815 view view 300 0.744 view view 400 0.750 view view 500 0.729 view view 600 0.717 view view 700 0.666 view view 800 0.796 view view other plots

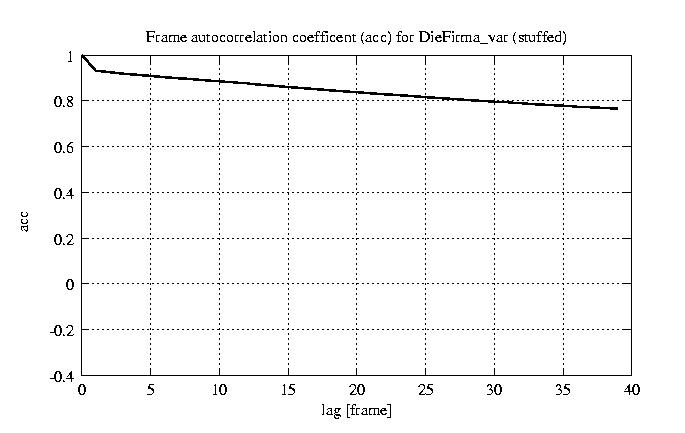

autocorrelation function of framesHOME BACK
