MP4 - Die Hard III
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 10.90 File Size byte 3.1e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 3.5e+03 var frame size - 4.9e+06 CoV of frame size - 0.63 min frame size byte 71 max frame size byte 16960 Mean bit rate bit/sec 7e+05 Peak bit rate bit/sec 3.4e+06 Peak/Mean of bit rate - 4.86 GoP statistics # of GoPs - 7499 mean GoP size byte 4.2e+04 var GoP size - 4.9e+08 CoV of GoP size - 0.53 min GoP size byte 2034 max GoP size byte 164975 Mean bit rate bit/sec 7e+05 Peak bit rate bit/sec 2.7e+06 Peak/Mean of bit rate - 3.94 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

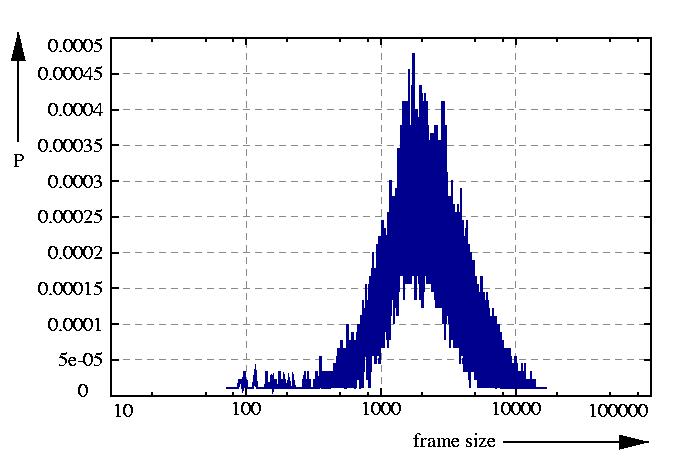

probability density function p
probability function F = sum p

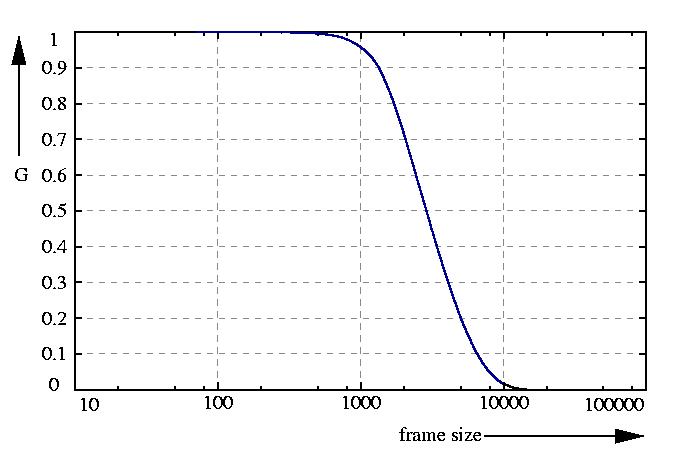

inverse probability function G = 1 - F

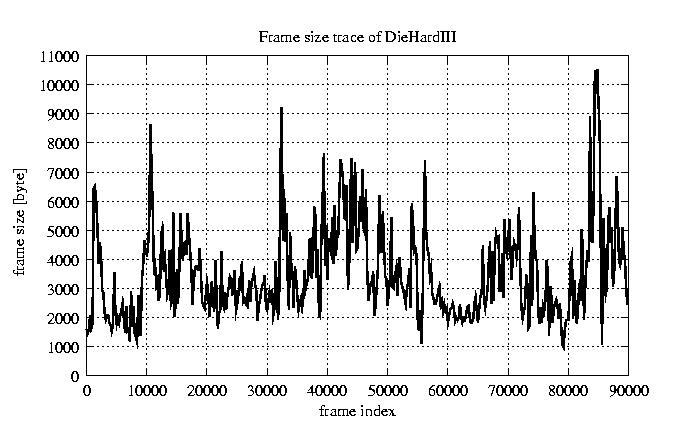

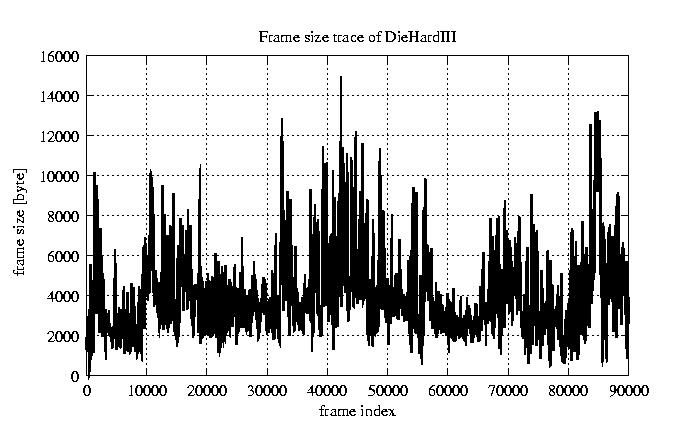

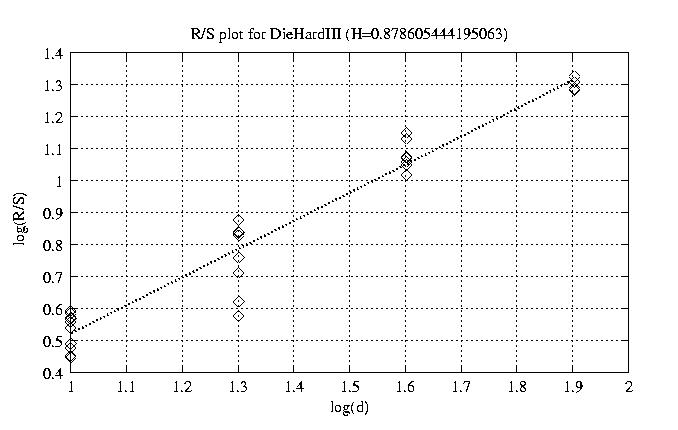

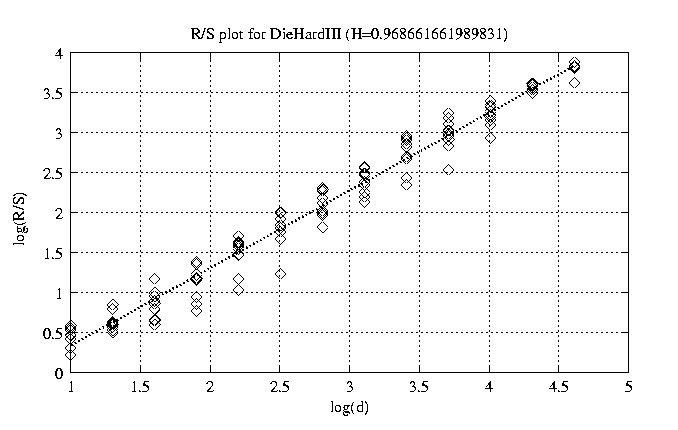

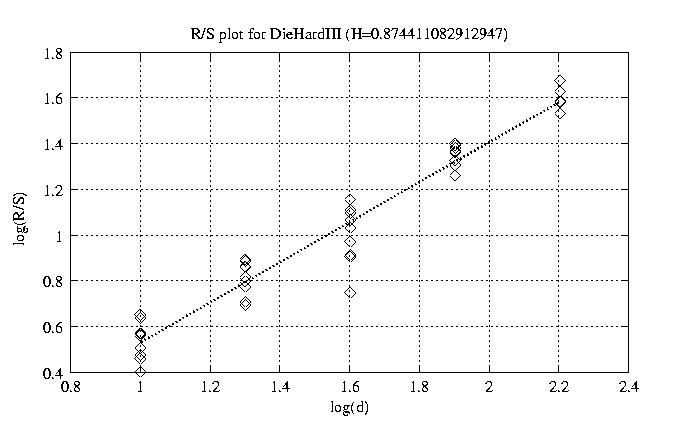

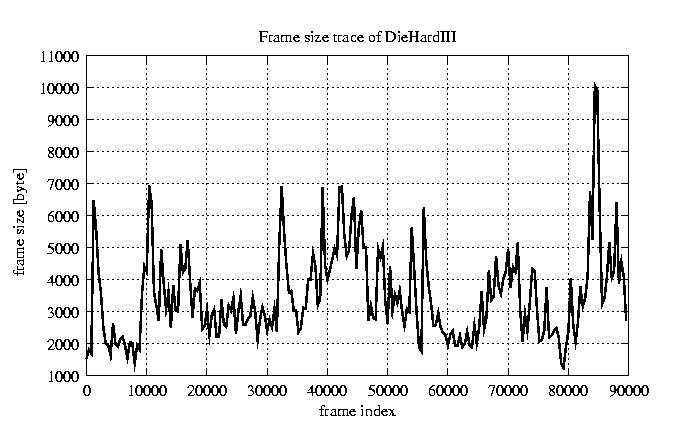

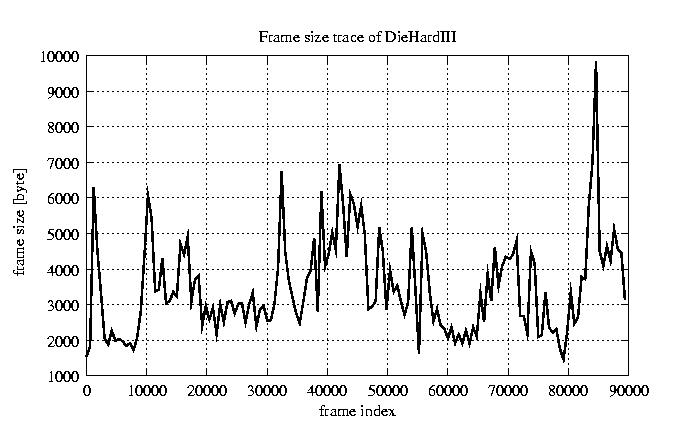

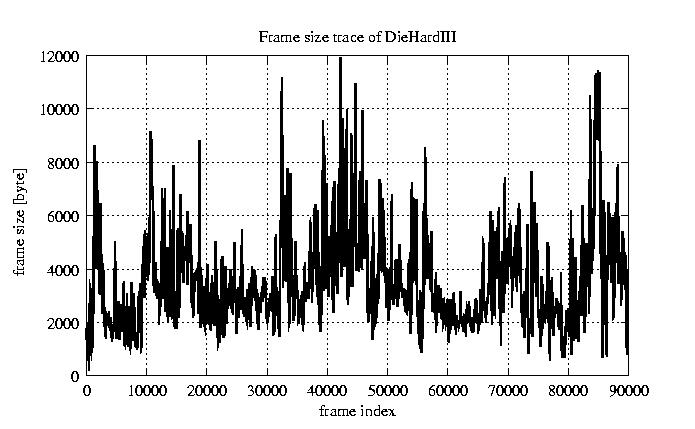

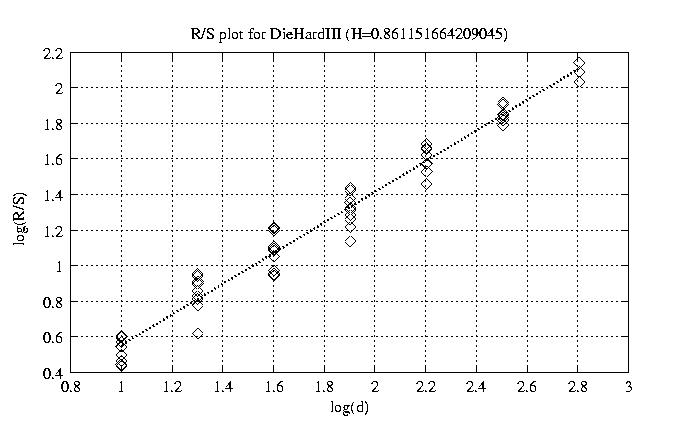

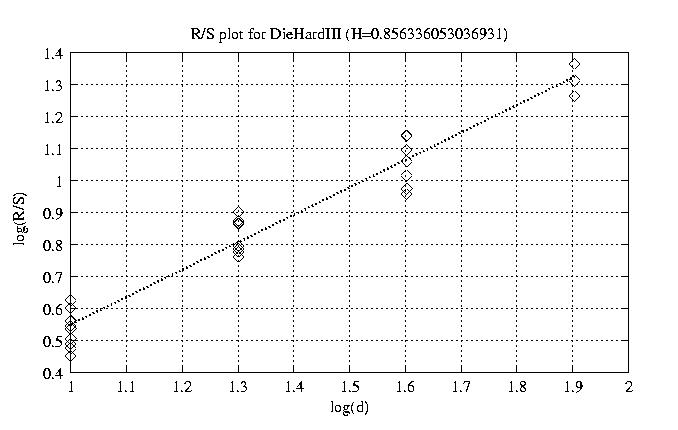

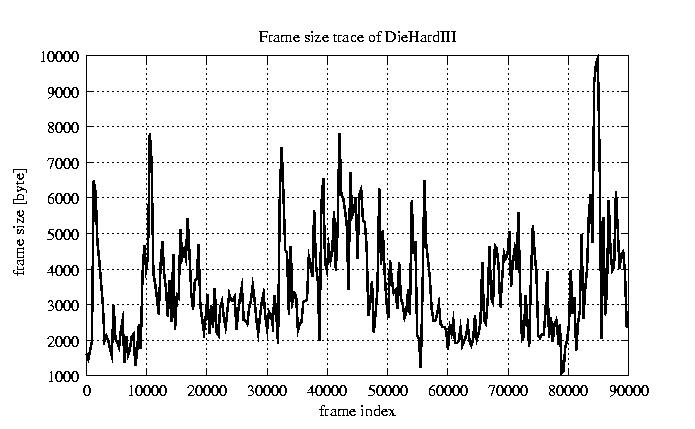

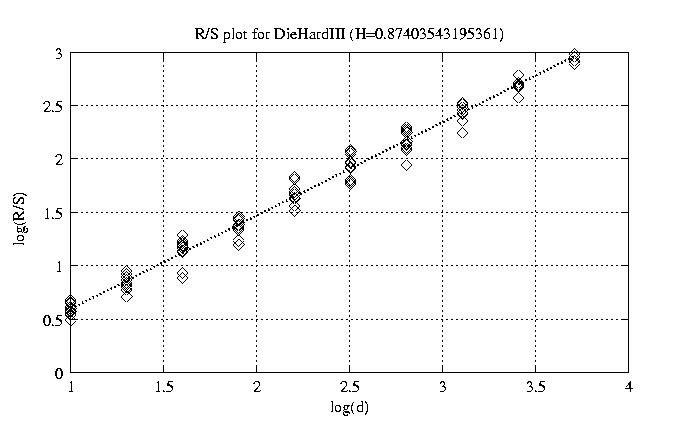

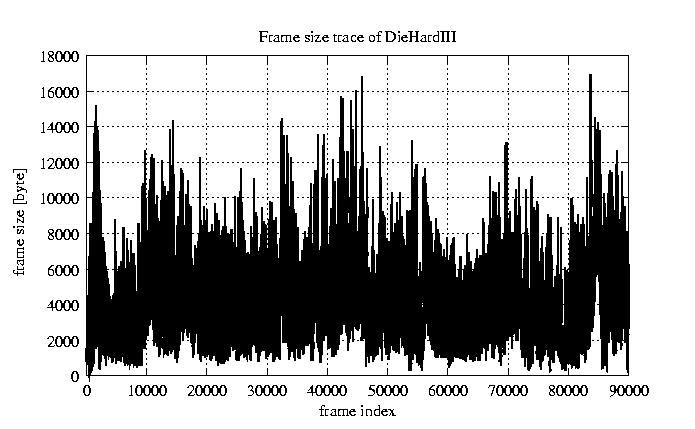

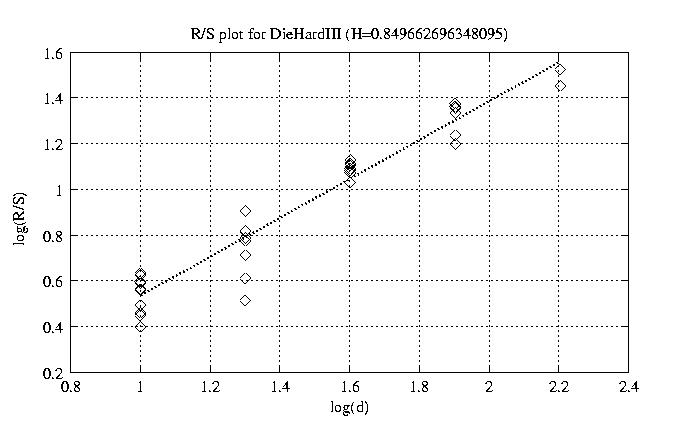

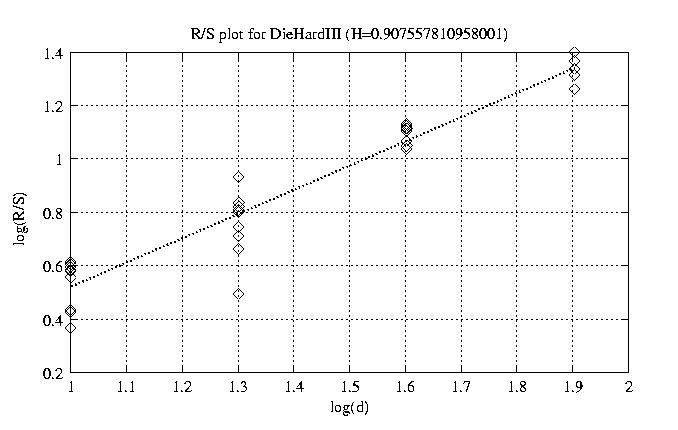

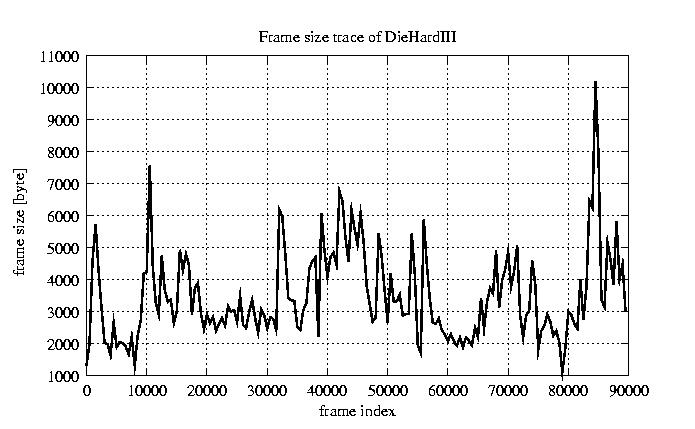

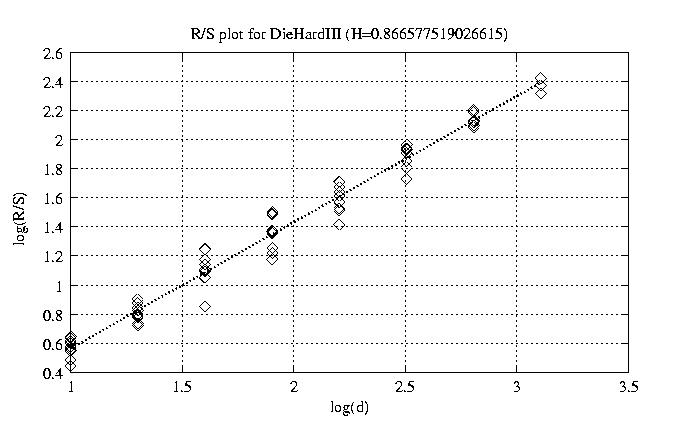

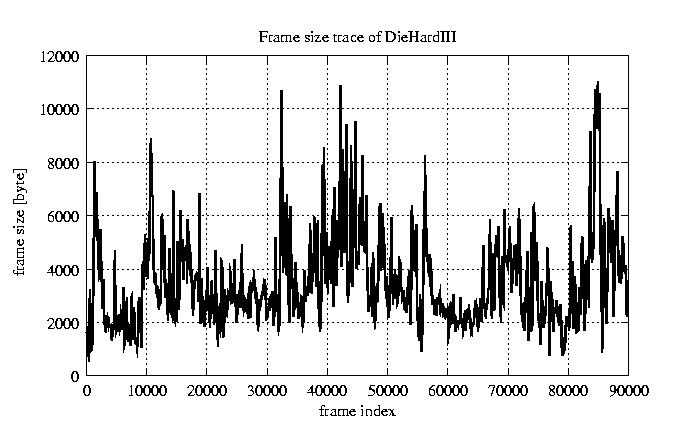

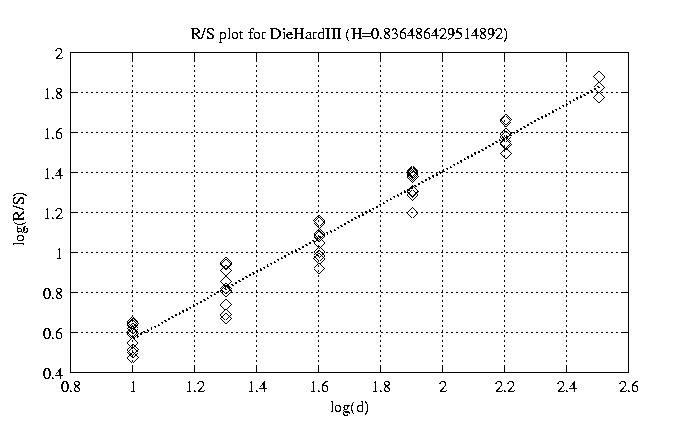

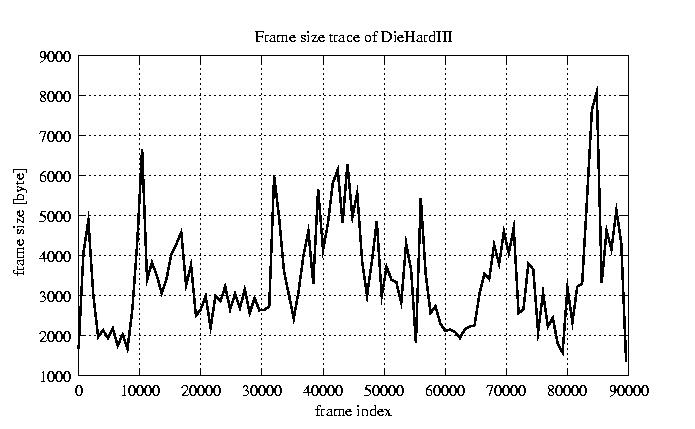

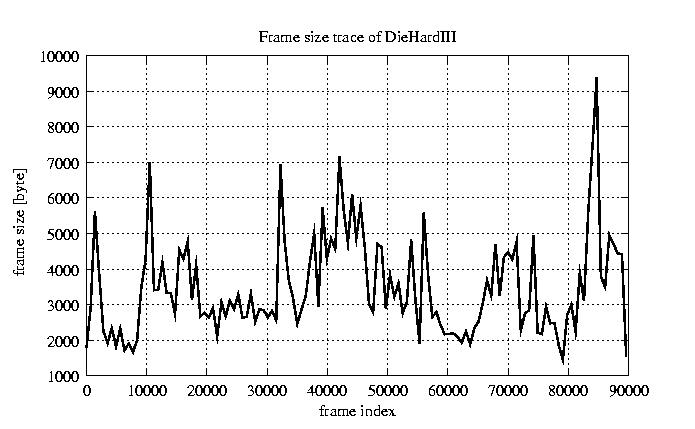

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.969 view view 12 0.874 view view 50 0.867 view view 100 0.861 view view 200 0.836 view view 300 0.874 view view 400 0.850 view view 500 0.850 view view 600 0.908 view view 700 0.879 view view 800 0.856 view view

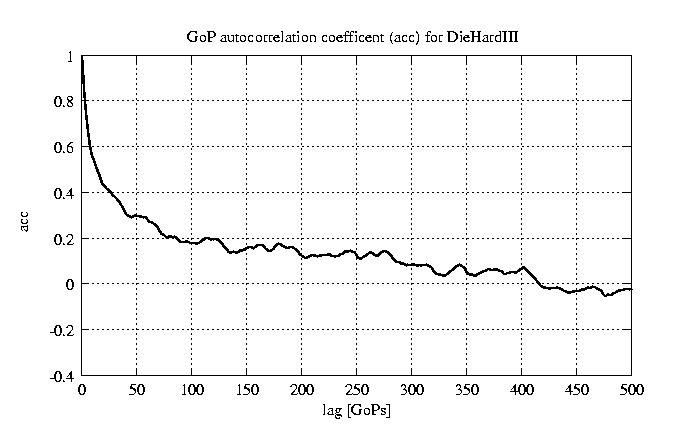

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
