H263 - Die Hard III
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.95 118.95 File size byte 2.9e+07 2.9e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90083.00 29647.00 mean frame size byte 319.61 971.13 var frame size - 255431.78 143417.88 CoV of frame size - 1.58 0.39 min frame size byte 0.00 51.00 max frame size byte 6604.00 6604.00 Peak/Mean frame - 20.66 6.80 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.6e+05 Peak/Mean of bit rate - 5.6 CoV of bit rate - 0.32 max inter frame space frames 1.00 30.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

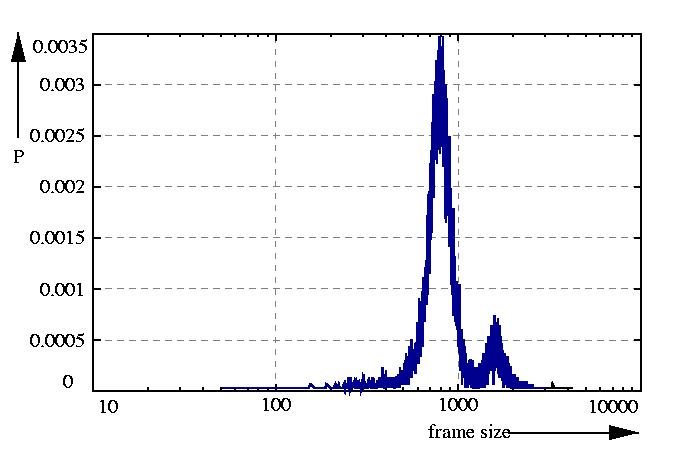

probability density function p

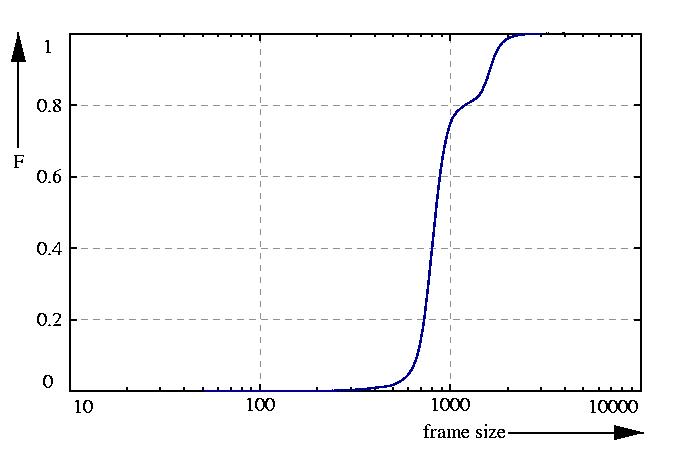

probability function F = sum p

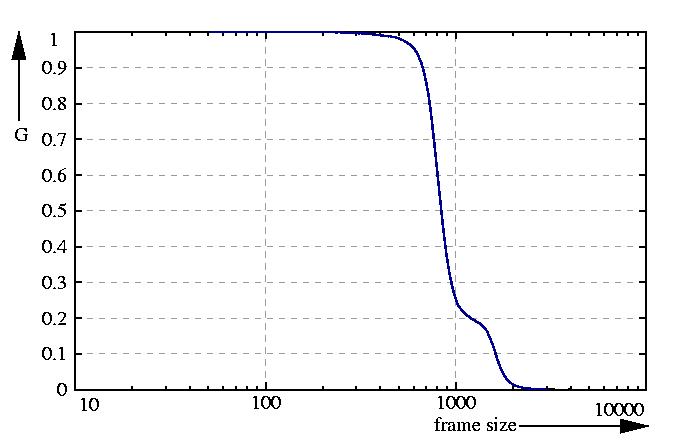

inverse probability function G = 1 - F

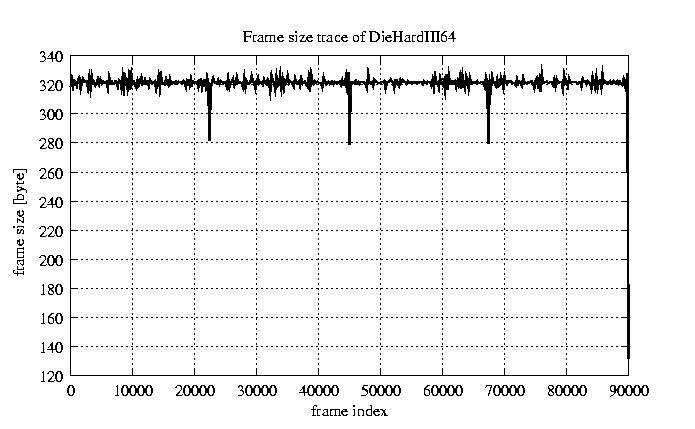

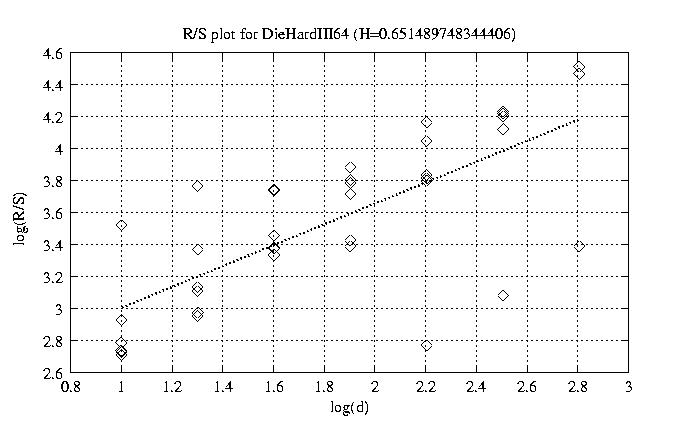

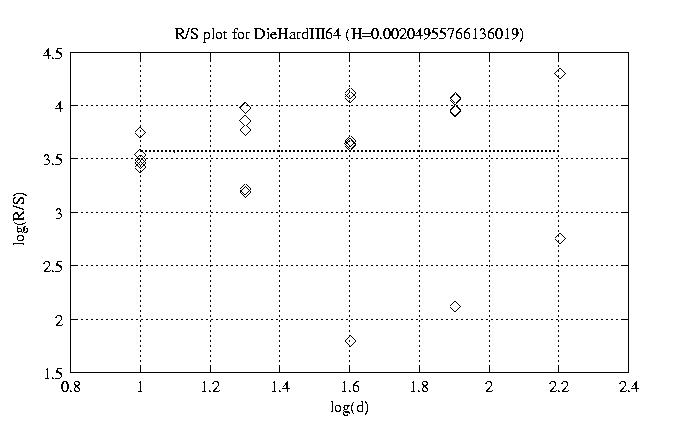

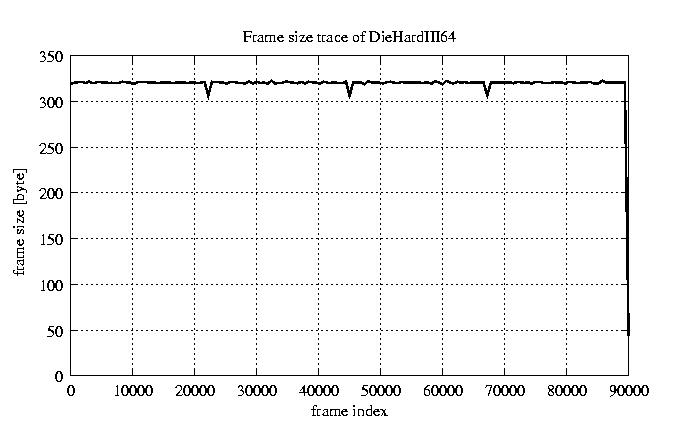

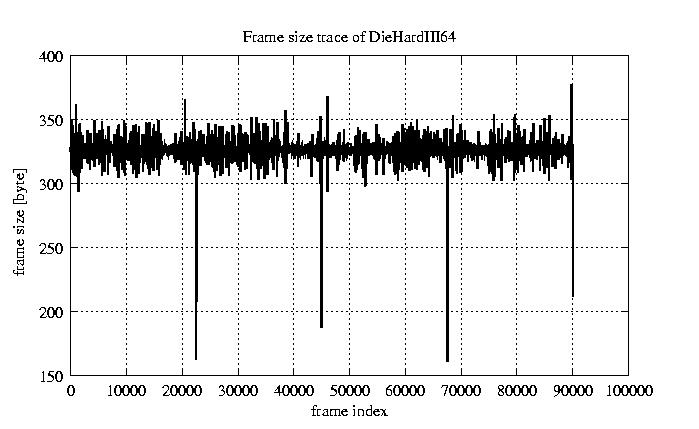

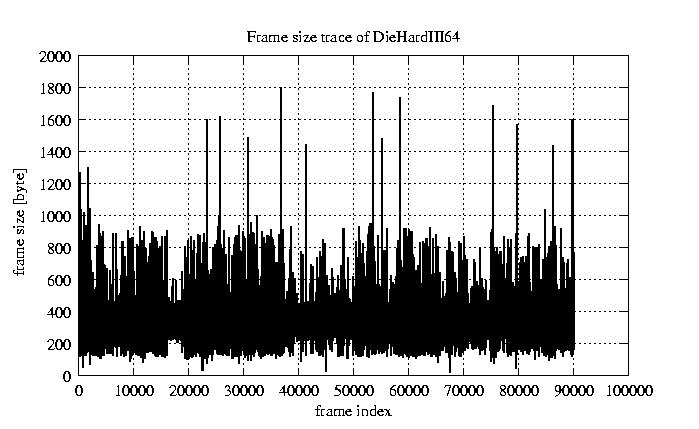

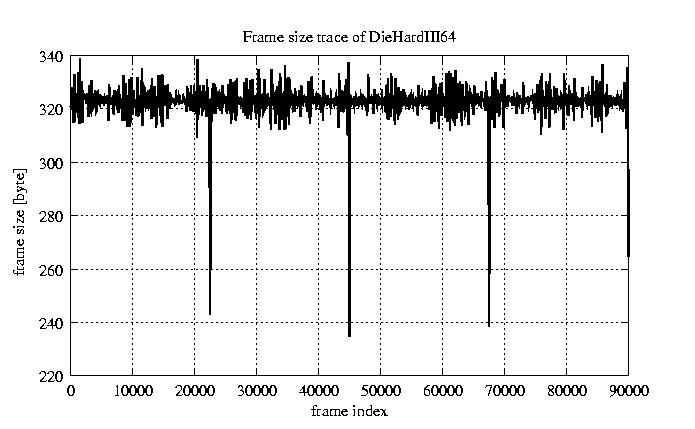

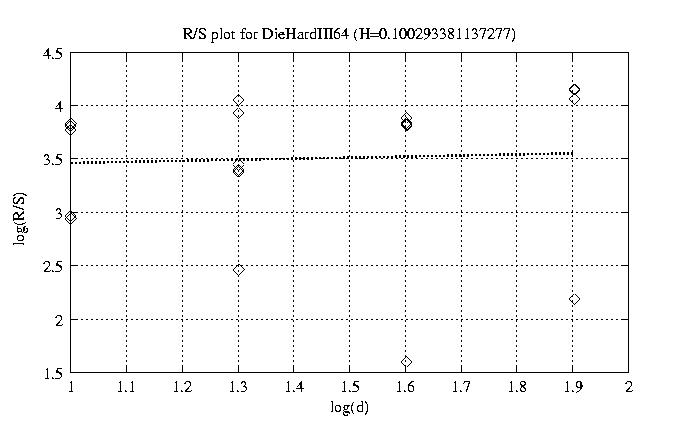

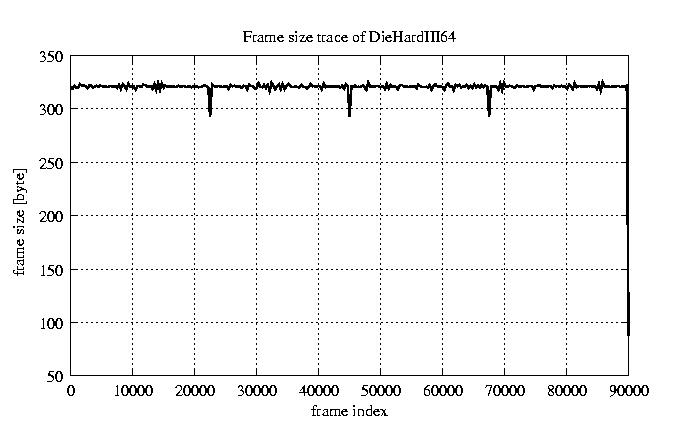

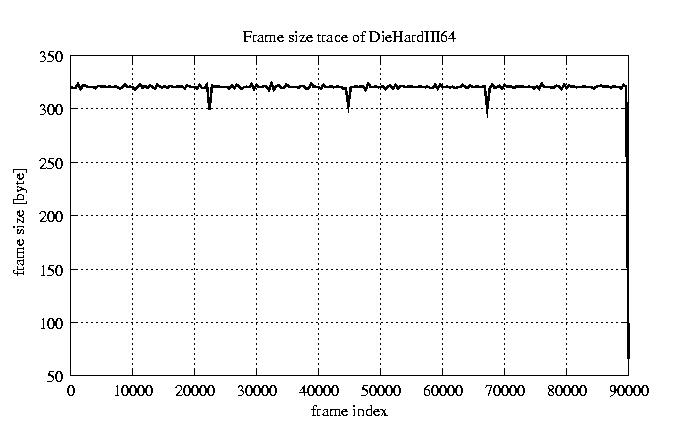

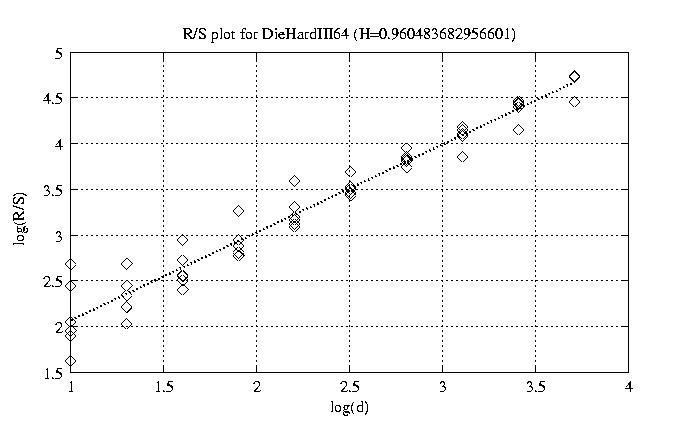

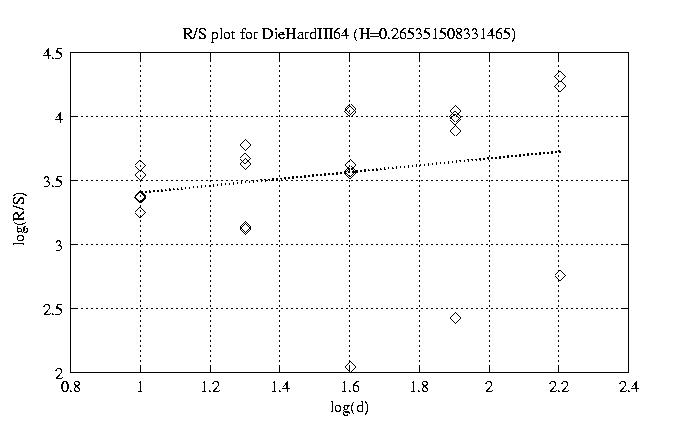

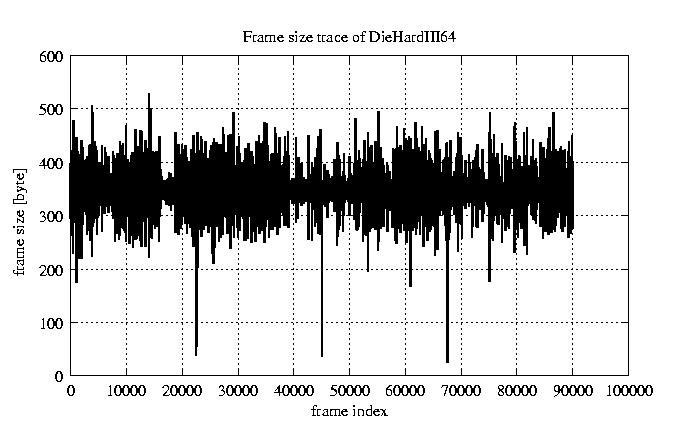

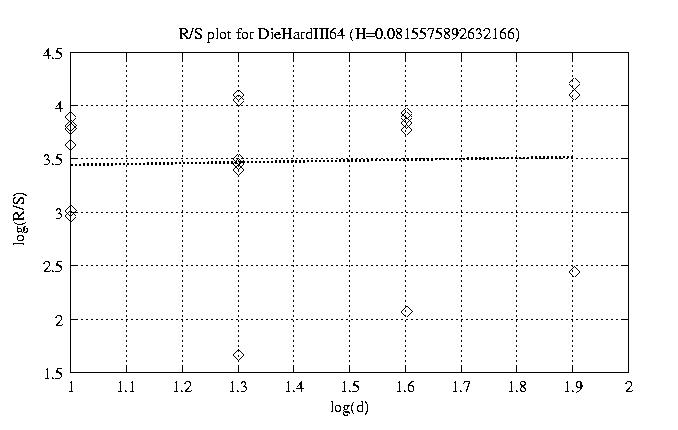

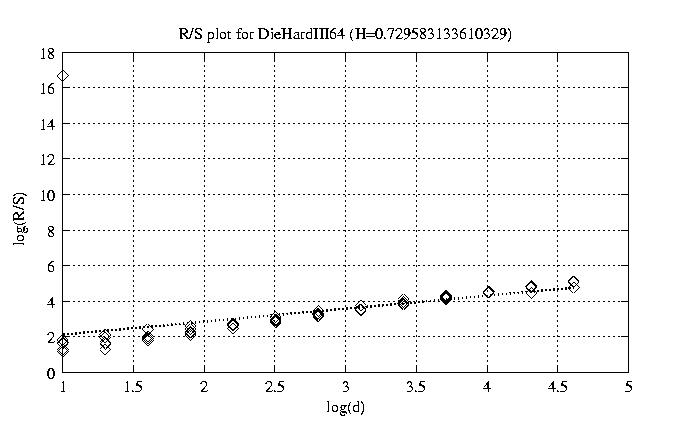

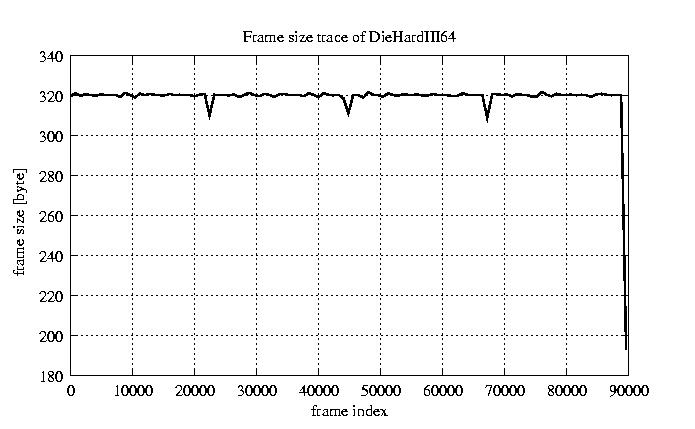

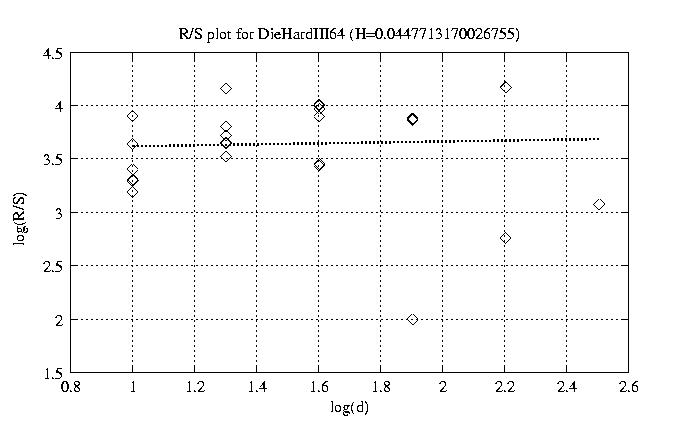

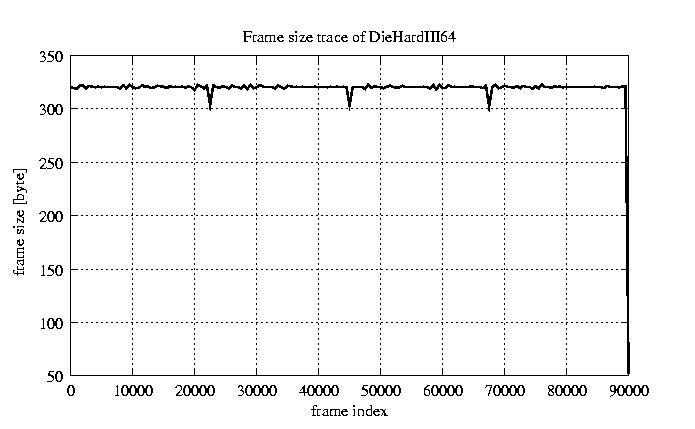

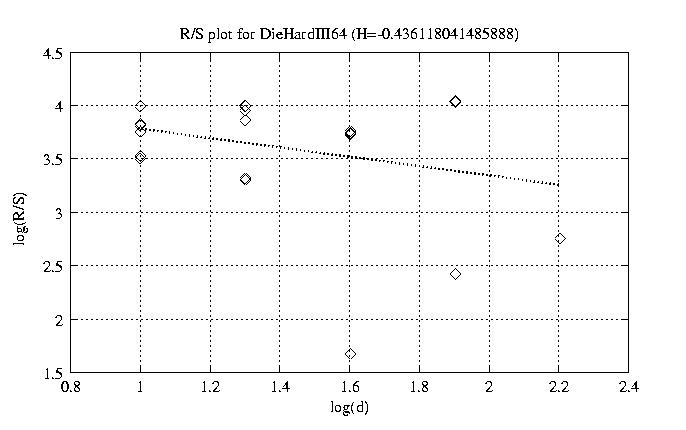

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.730 view view 12 0.960 view view 50 0.851 view view 100 0.651 view view 200 0.441 view view 300 0.045 view view 400 0.265 view view 500 0.002 view view 600 -0.436 view view 700 0.100 view view 800 0.082 view view

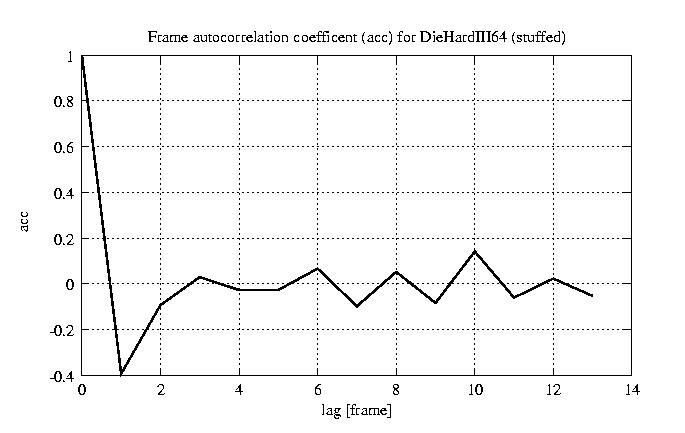

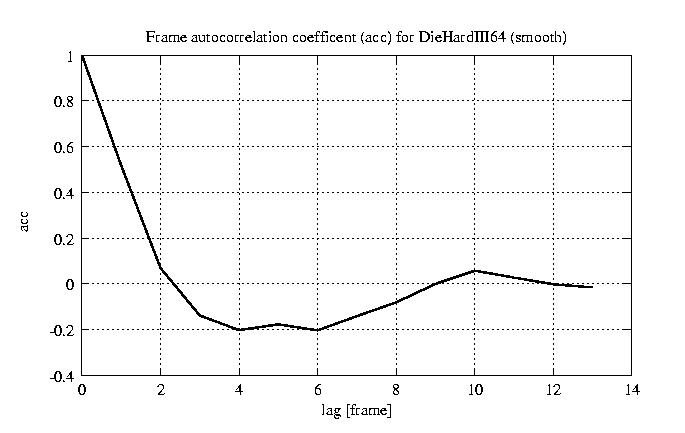

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
