H263 - Die Hard III
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 17.87 17.87 File size byte 1.9e+08 1.9e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 59049.00 mean frame size byte 2127.56 3245.76 var frame size - 5800720.98 5220043.22 CoV of frame size - 1.13 0.70 min frame size byte 0.00 29.00 max frame size byte 22785.00 22785.00 Peak/Mean frame - 10.71 7.02 Mean bit rate bit/sec 4.3e+05 Peak bit rate bit/sec 4.6e+06 Peak/Mean of bit rate - 11 CoV of bit rate - 0.76 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

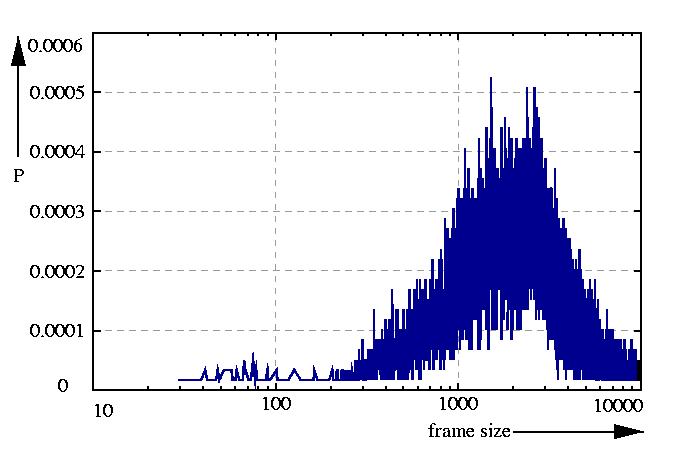

probability density function p

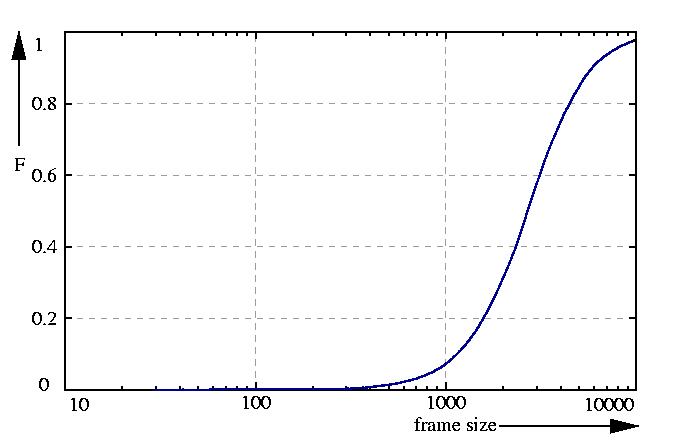

probability function F = sum p

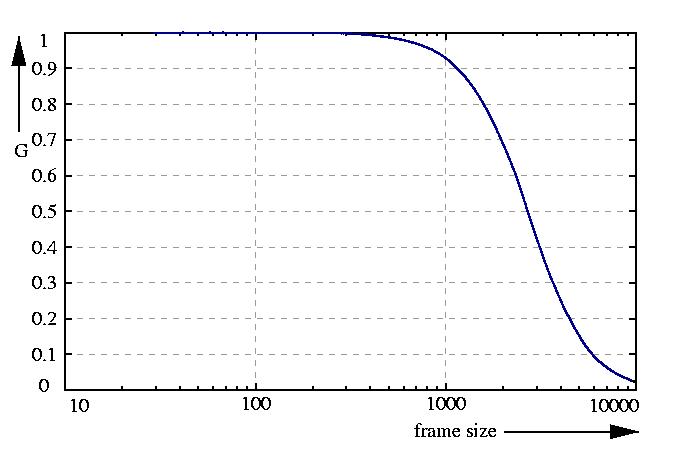

inverse probability function G = 1 - F

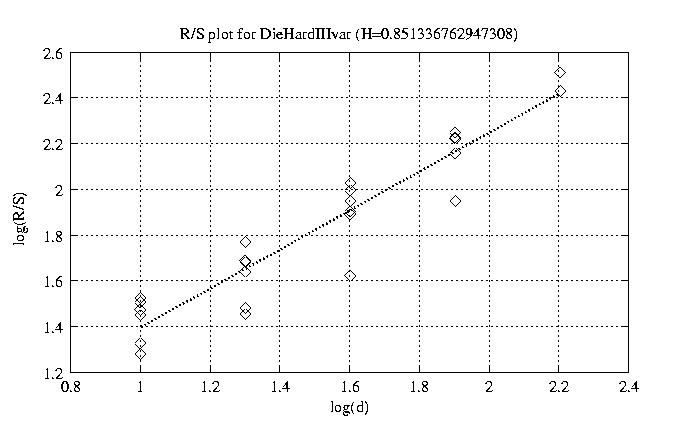

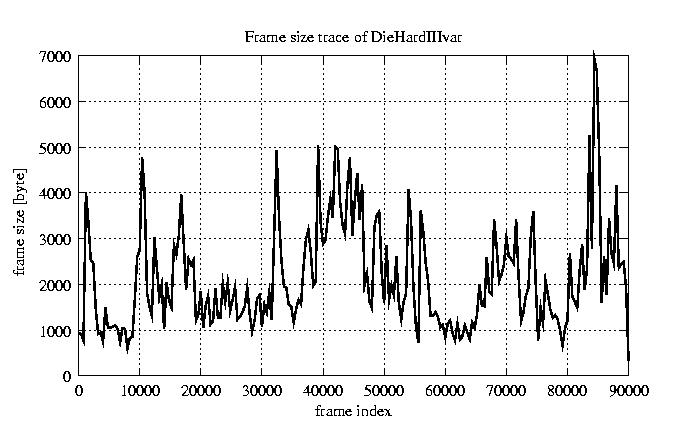

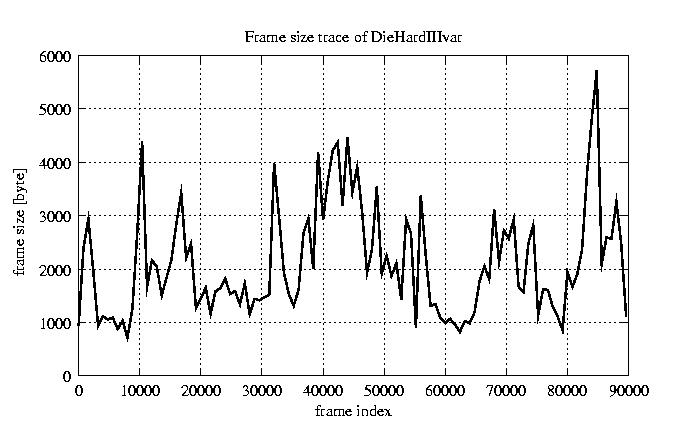

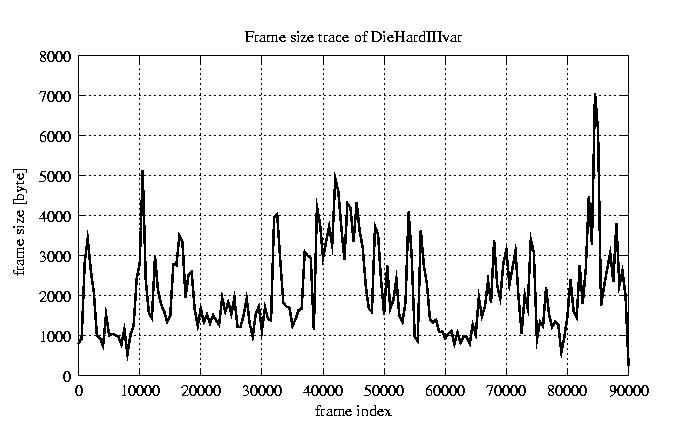

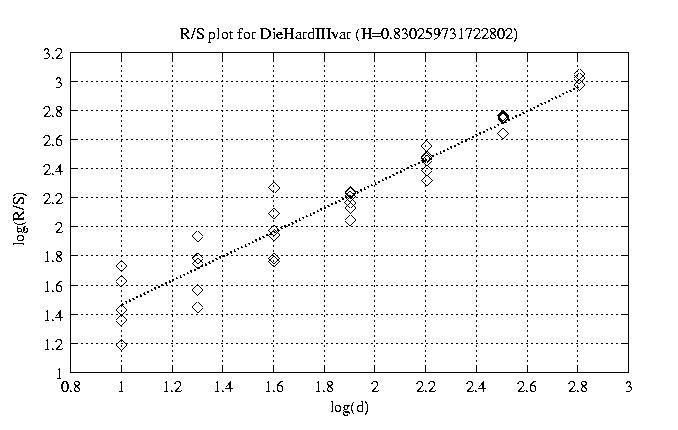

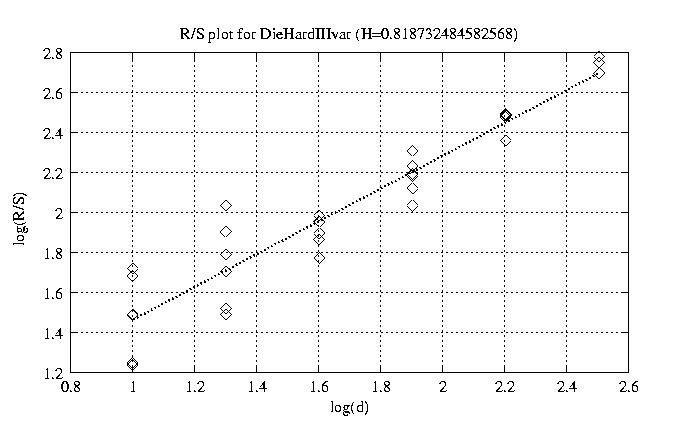

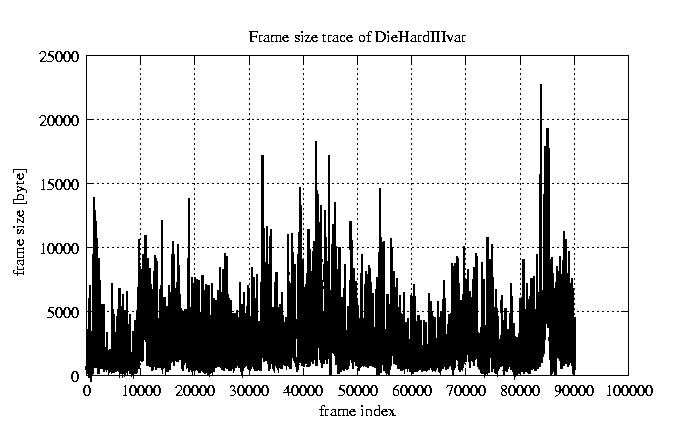

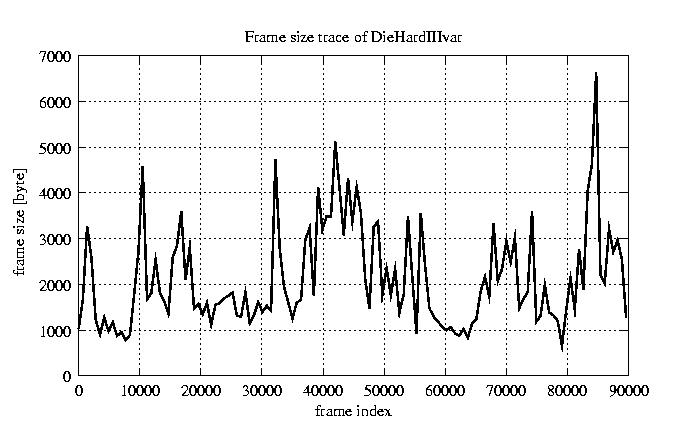

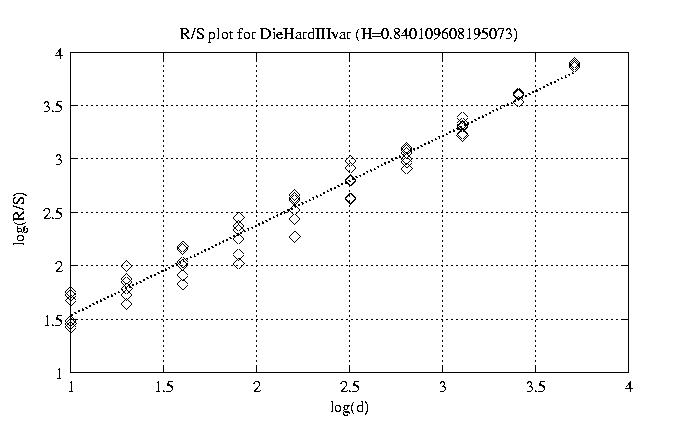

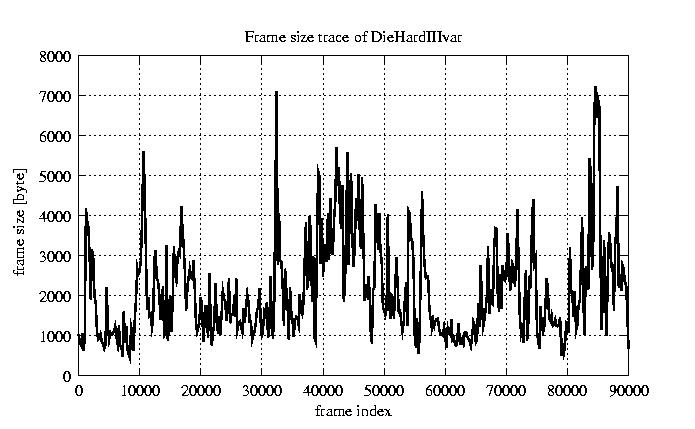

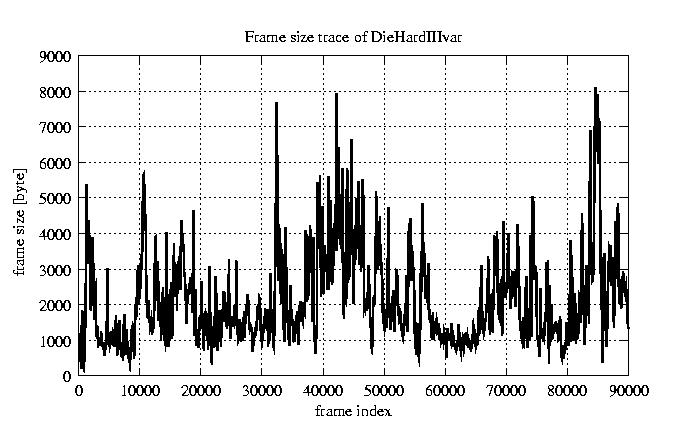

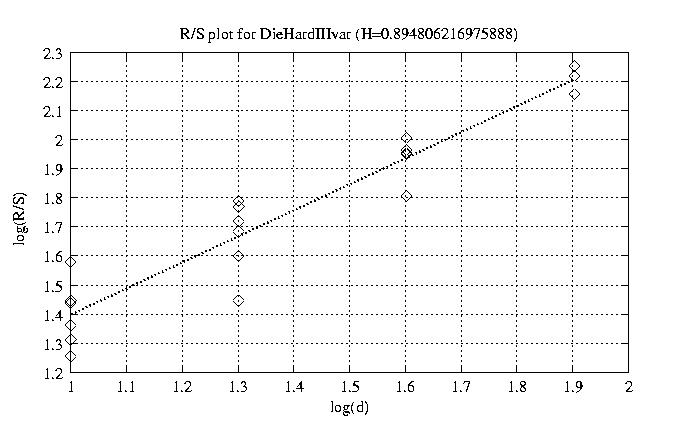

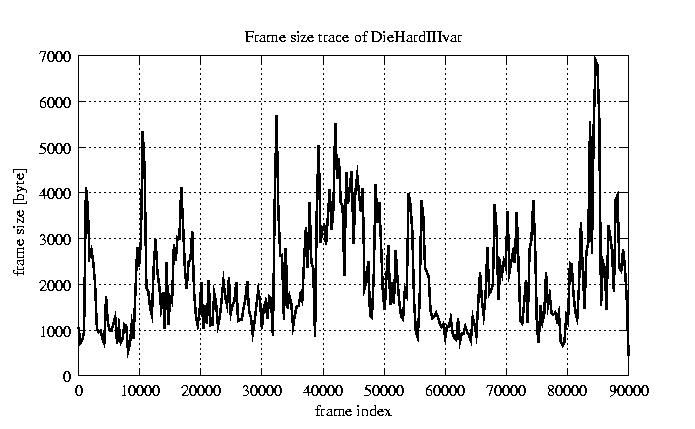

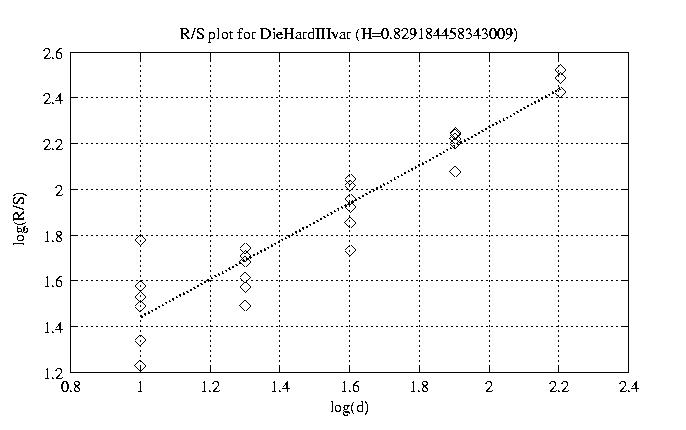

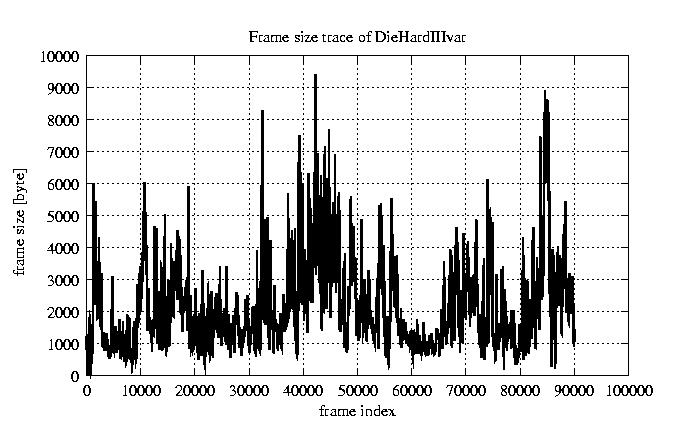

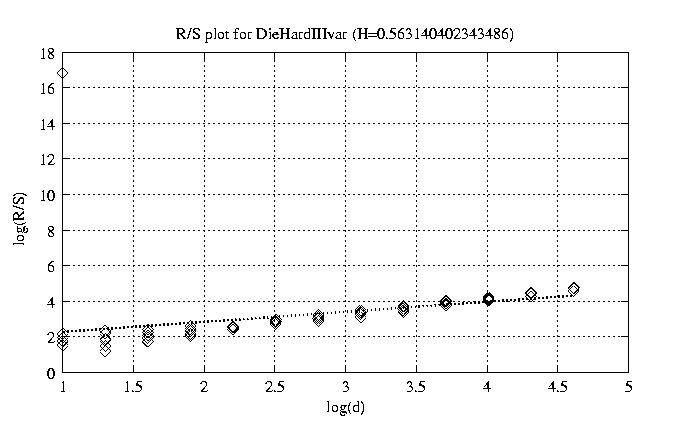

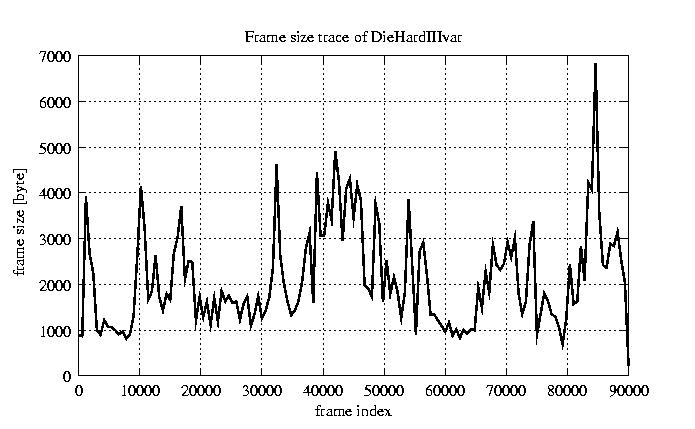

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.563 view view 12 0.840 view view 50 0.854 view view 100 0.830 view view 200 0.819 view view 300 0.792 view view 400 0.829 view view 500 0.851 view view 600 0.860 view view 700 0.851 view view 800 0.895 view view

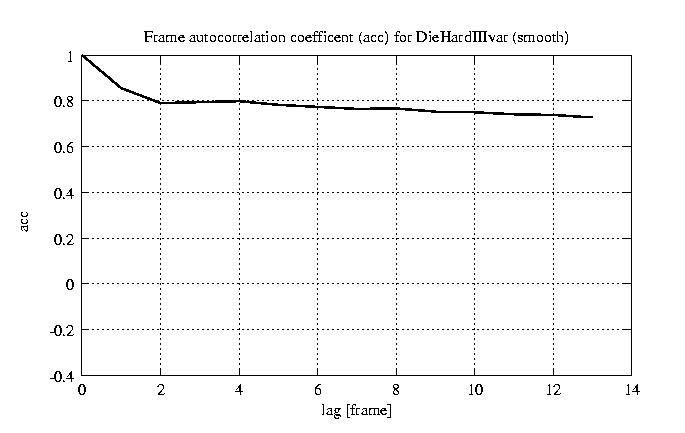

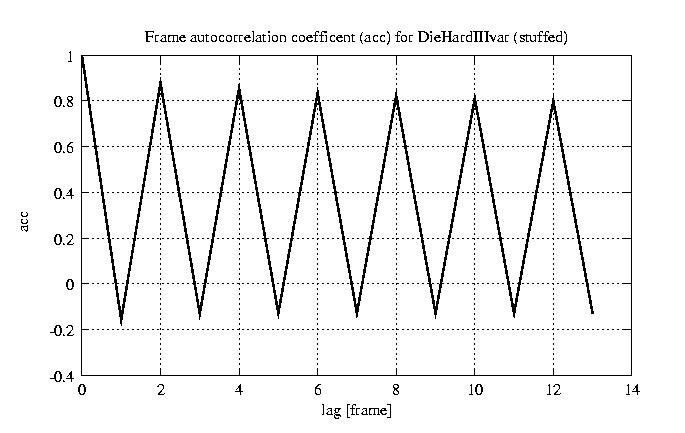

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
