H263 - Aladdin
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.96 118.96 File size byte 2.9e+07 2.9e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90083.00 30921.00 mean frame size byte 319.59 931.06 var frame size - 241619.64 134589.08 CoV of frame size - 1.54 0.39 min frame size byte 0.00 19.00 max frame size byte 4448.00 4448.00 Peak/Mean frame - 13.92 4.78 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 4.2e+05 Peak/Mean of bit rate - 6.5 CoV of bit rate - 0.35 max inter frame space frames 1.00 31.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

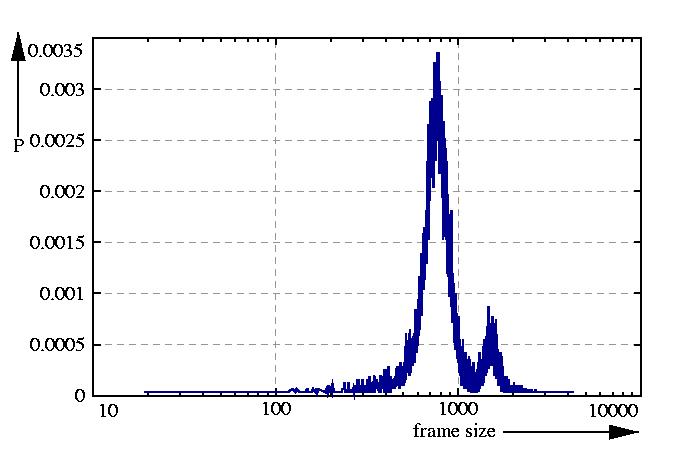

probability density function p

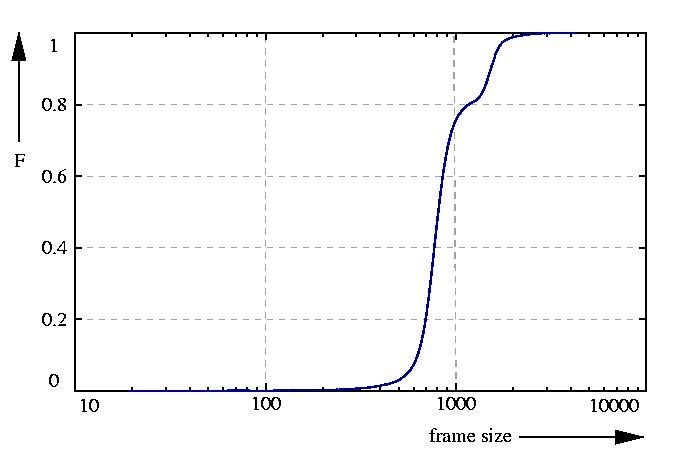

probability function F = sum p

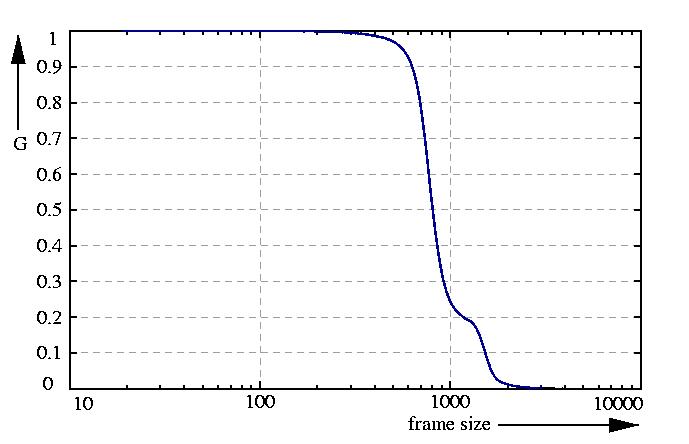

inverse probability function G = 1 - F

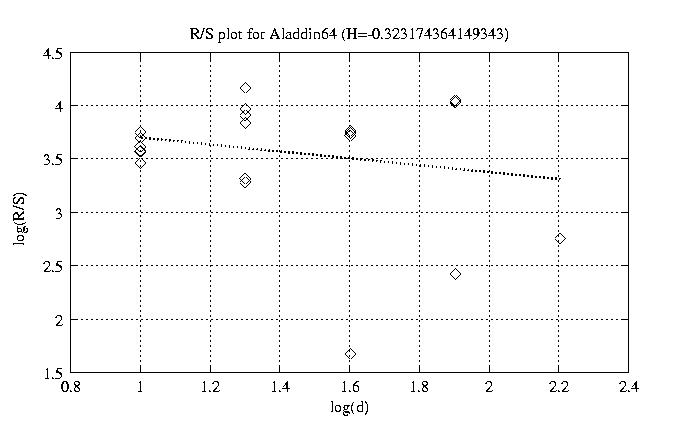

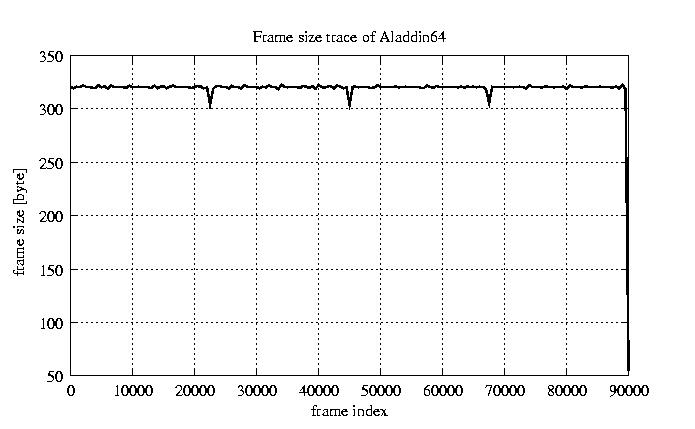

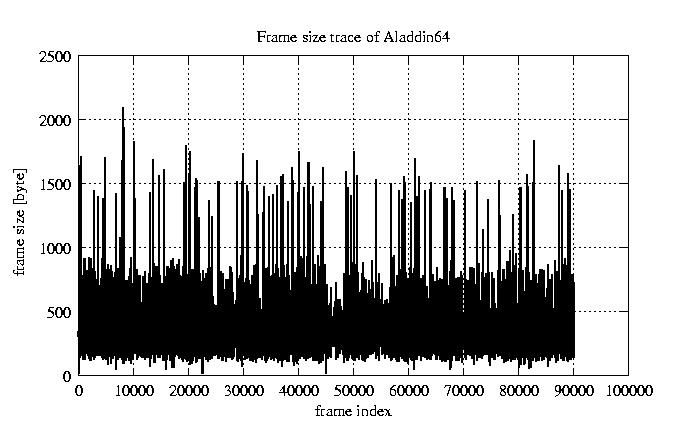

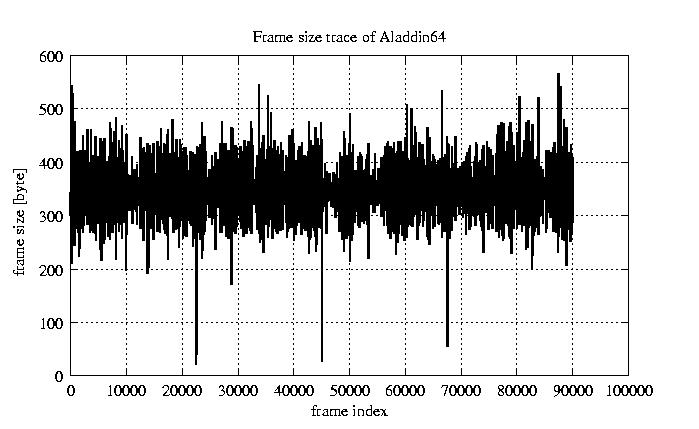

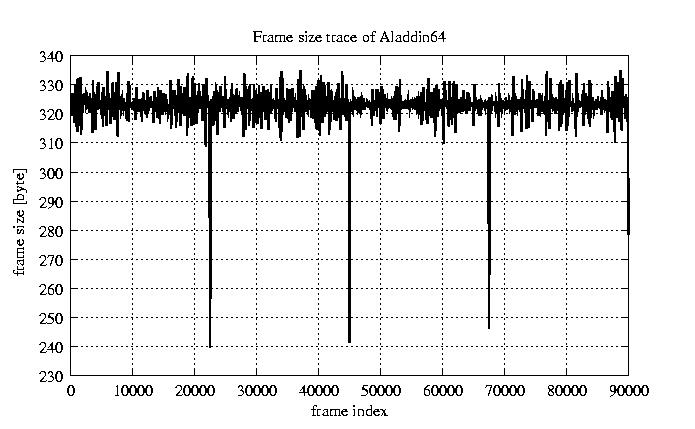

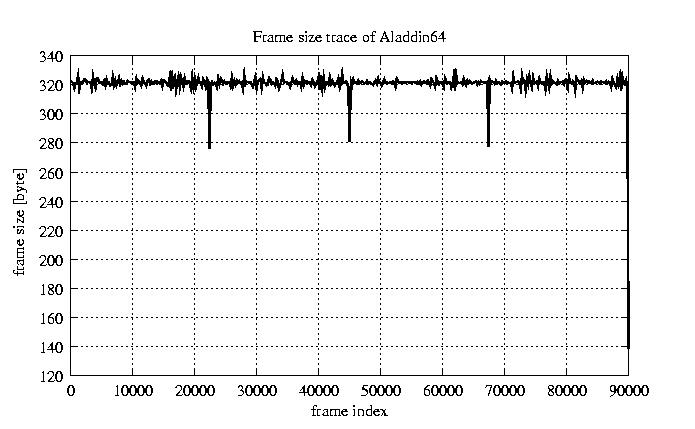

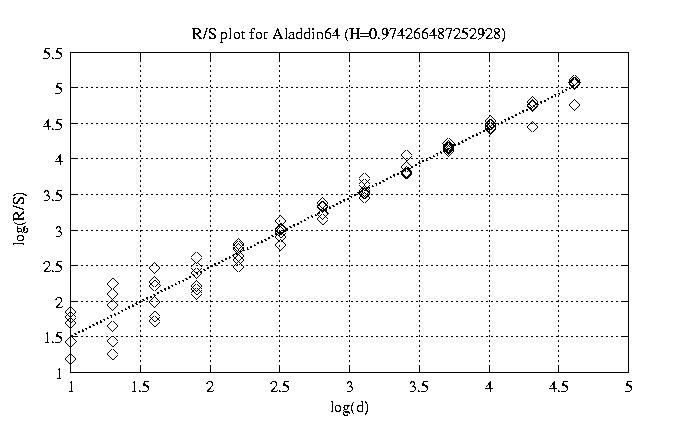

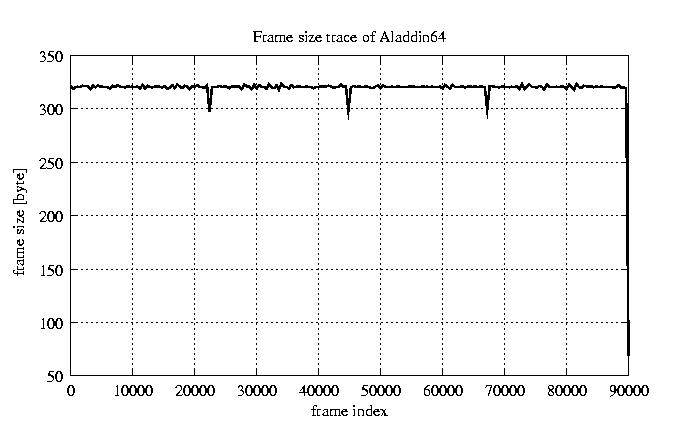

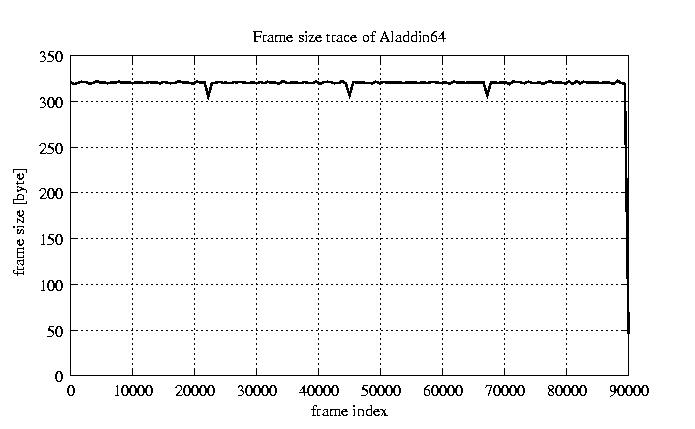

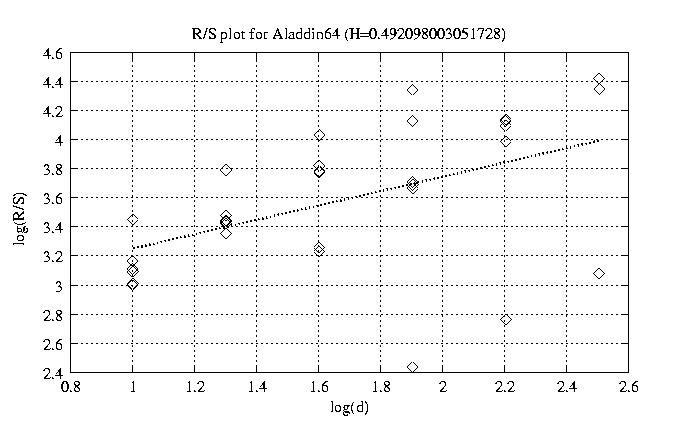

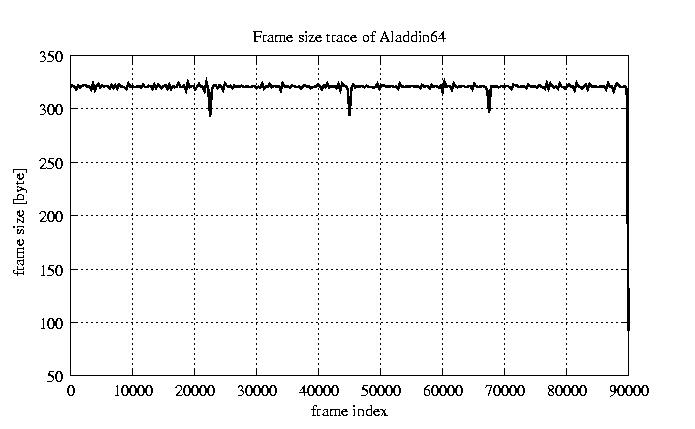

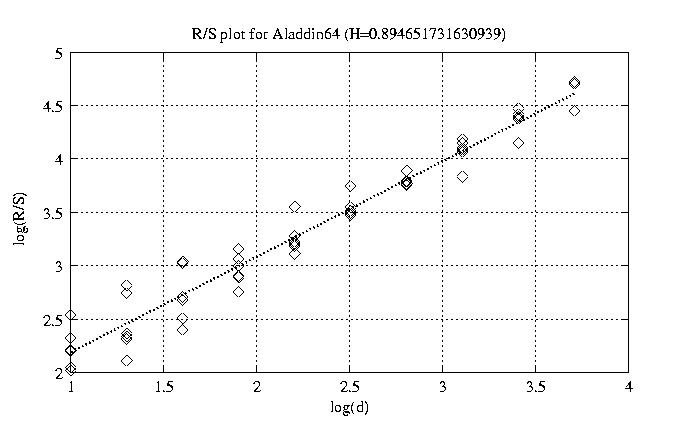

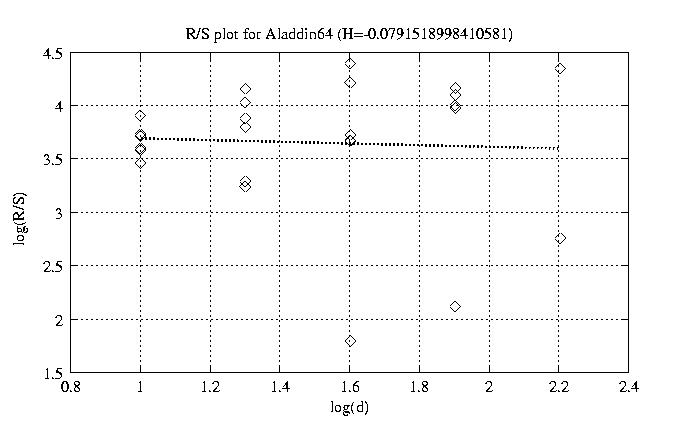

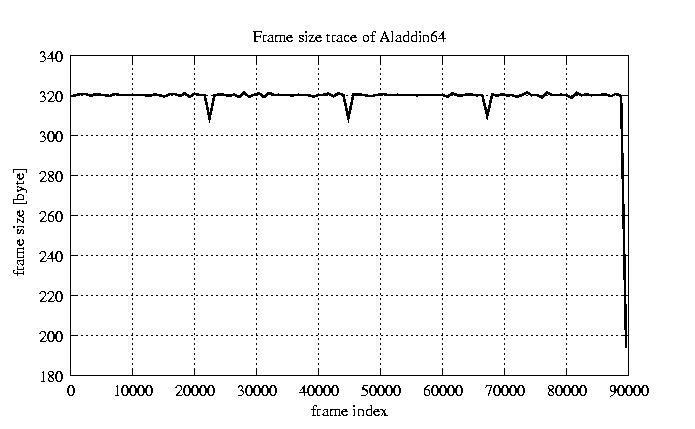

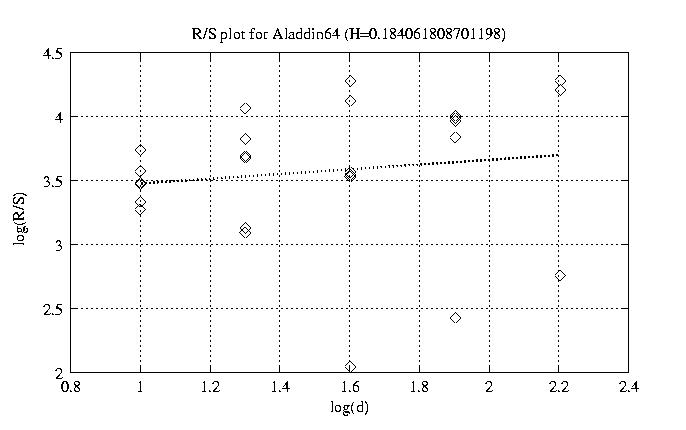

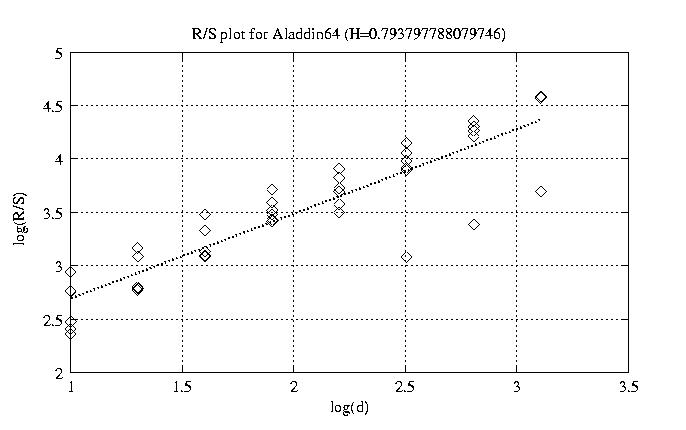

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.974 view view 12 0.895 view view 50 0.794 view view 100 0.633 view view 200 0.492 view view 300 0.134 view view 400 0.184 view view 500 -0.079 view view 600 -0.323 view view 700 0.181 view view 800 -0.045 view view

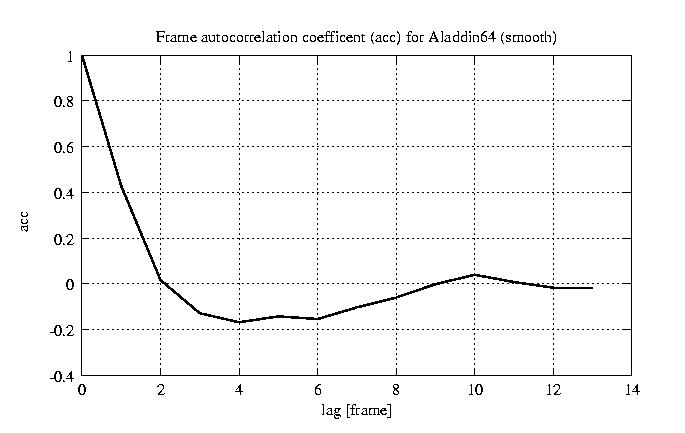

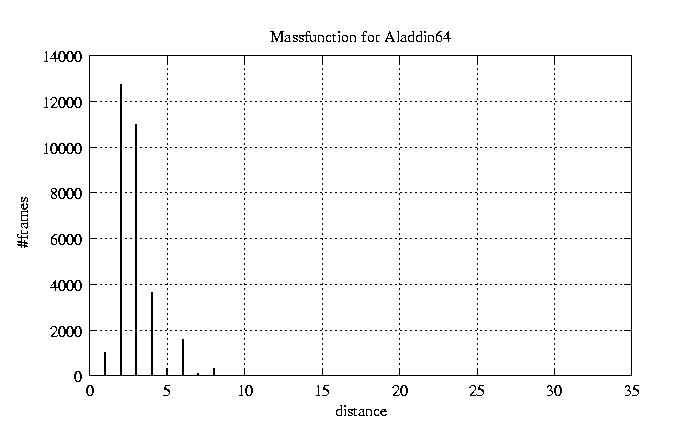

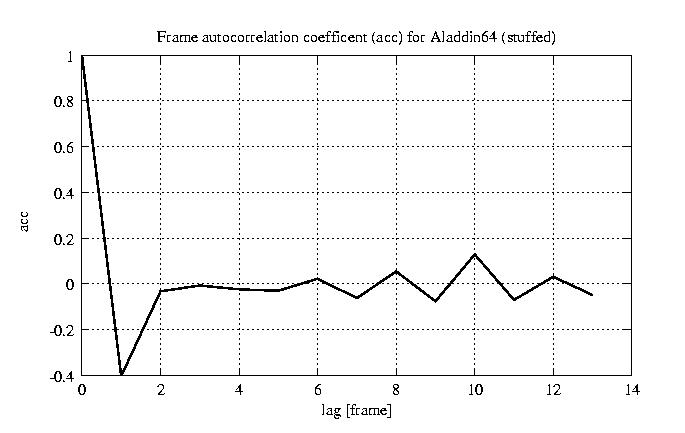

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
