H261 - Starship Troopers
64 kbit/s target bit rate

frame statistics parameter list	Frames Rates compression ratio YUV:H261 118.94 File size byte 2.9e+07 Video run time msec 3.6e+06 3.6e+06 # of Frames - 90000.00 mean frame size byte 319.64 var frame size - 5213.71 CoV of frame size - 0.23 min frame size byte 163.00 max frame size byte 1955.00 Peak/Mean frame - 6.12 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.9e+05 Peak/Mean of bit rate - 6.1 CoV of bit rate - 0.23 max inter frame space frames 1.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

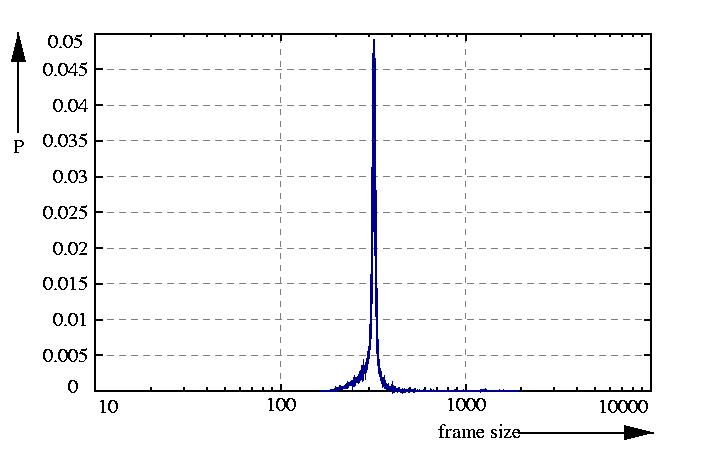

probability density function p

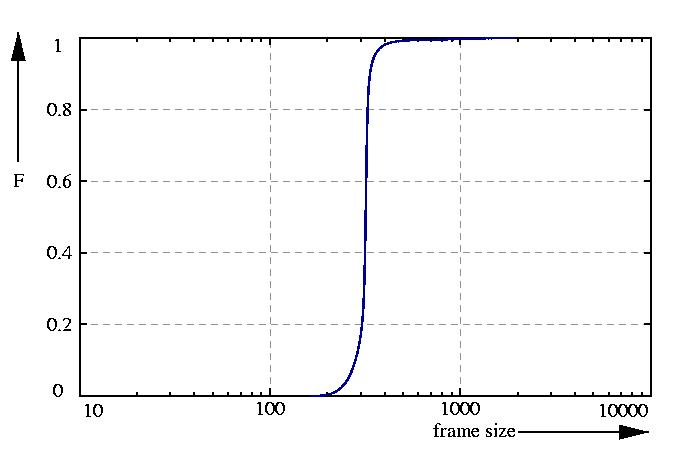

probability function F = sum p

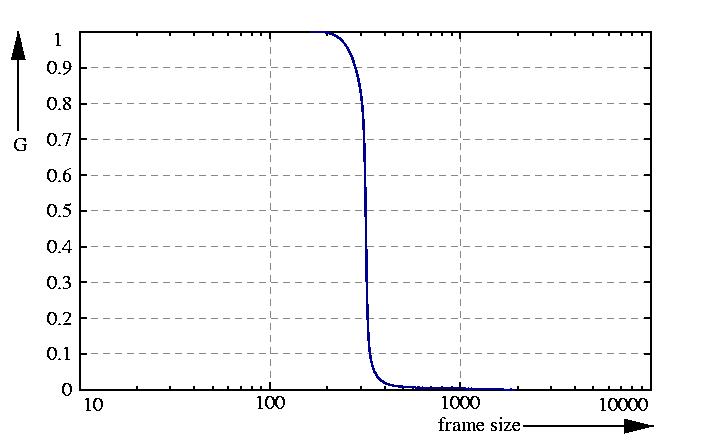

inverse probability function G = 1 - F

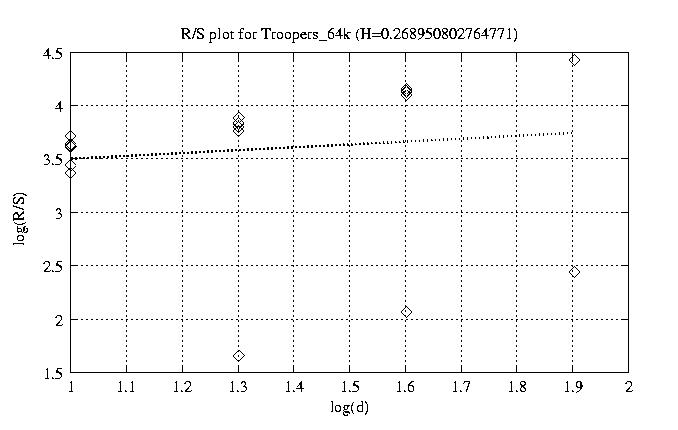

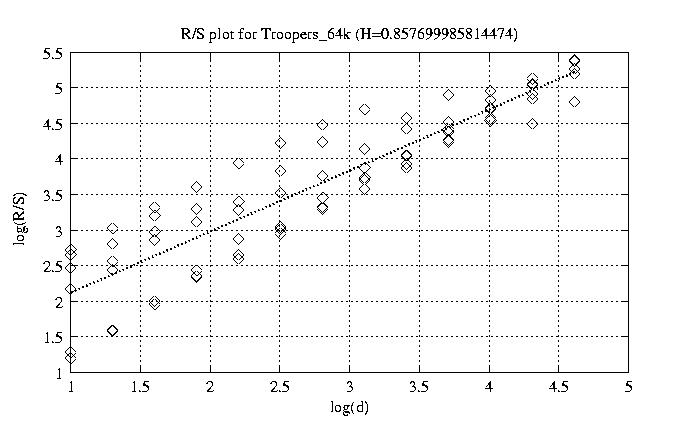

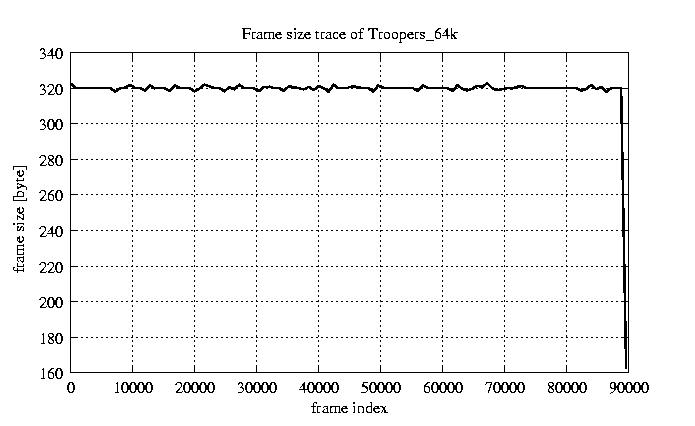

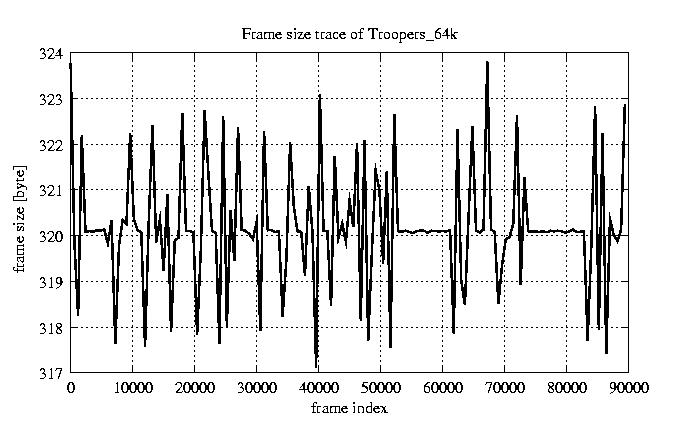

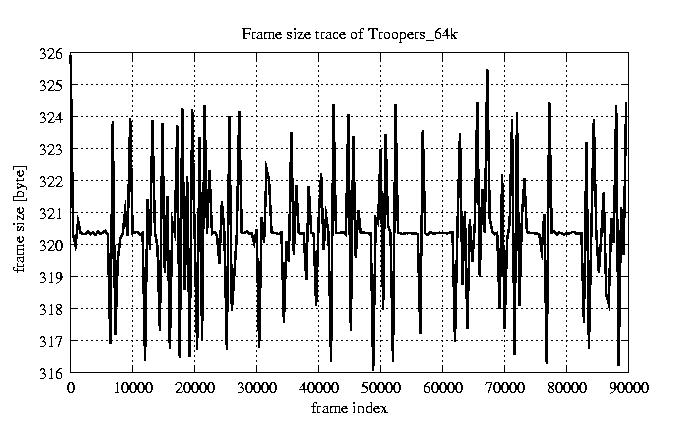

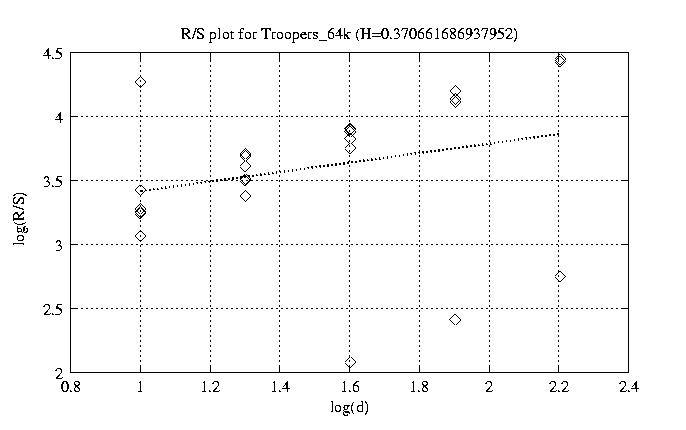

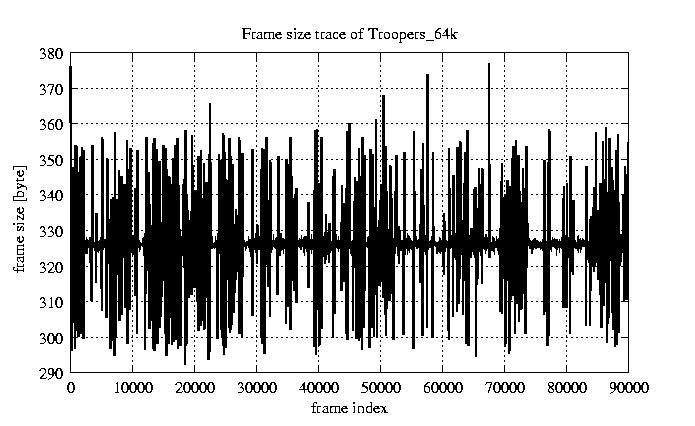

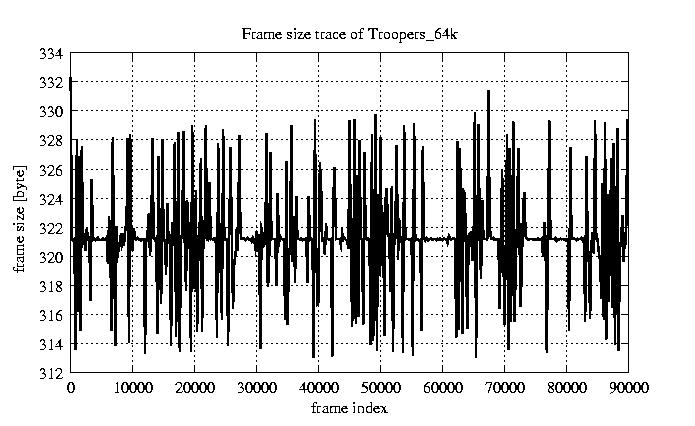

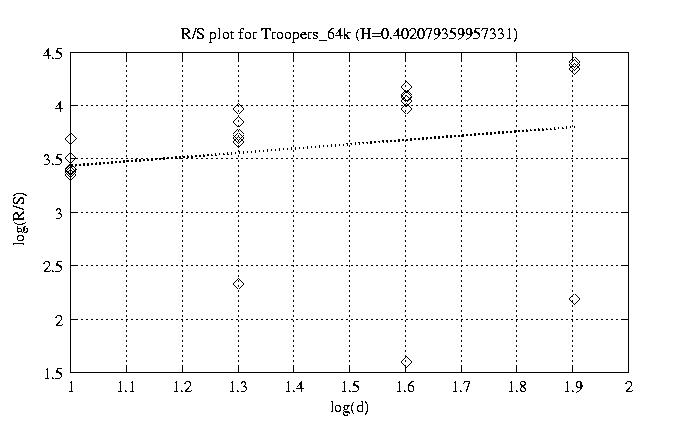

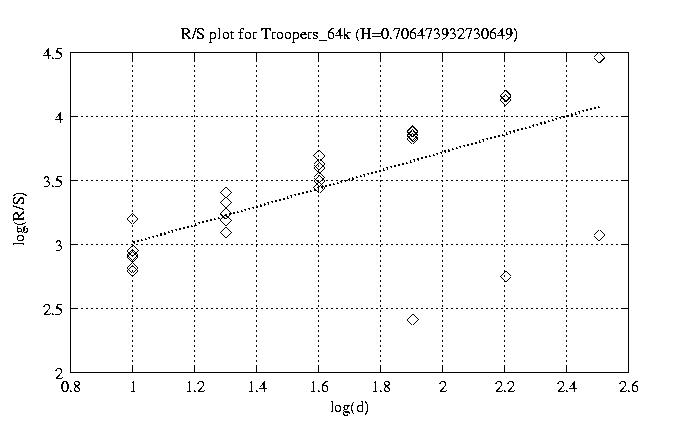

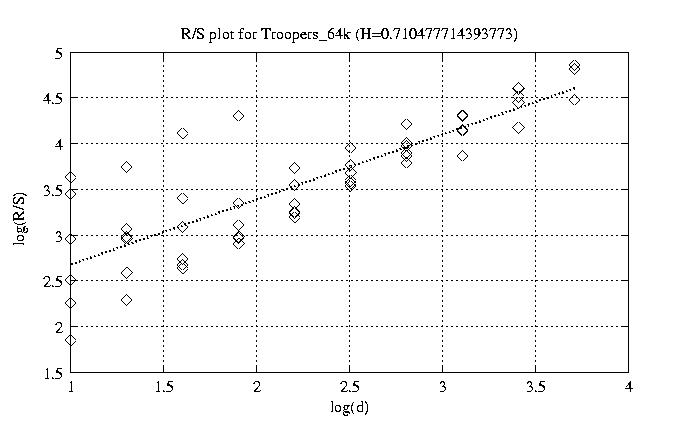

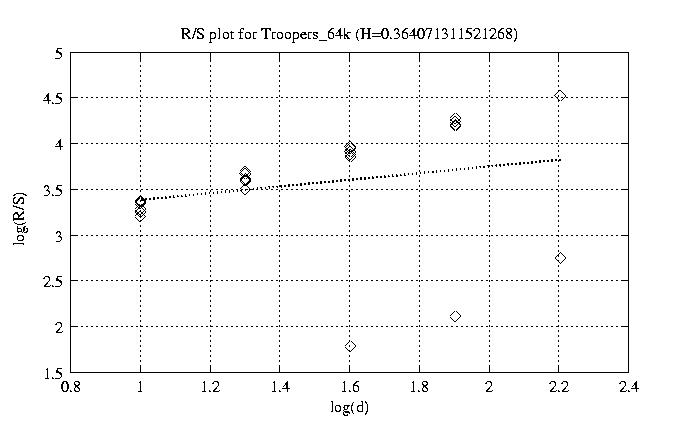

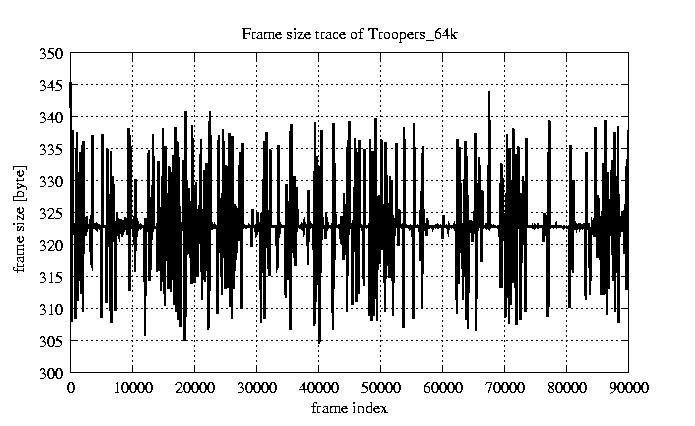

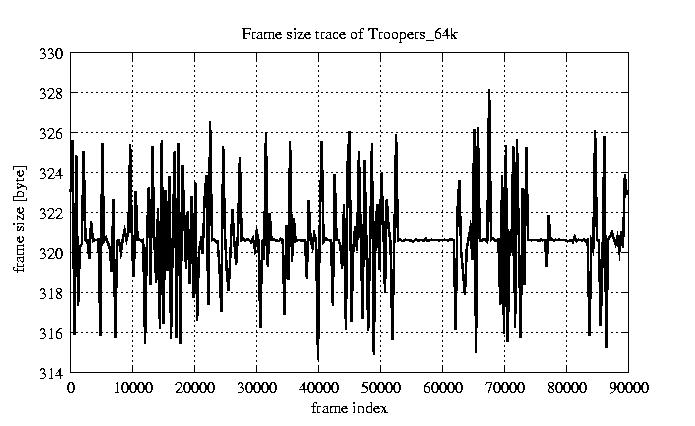

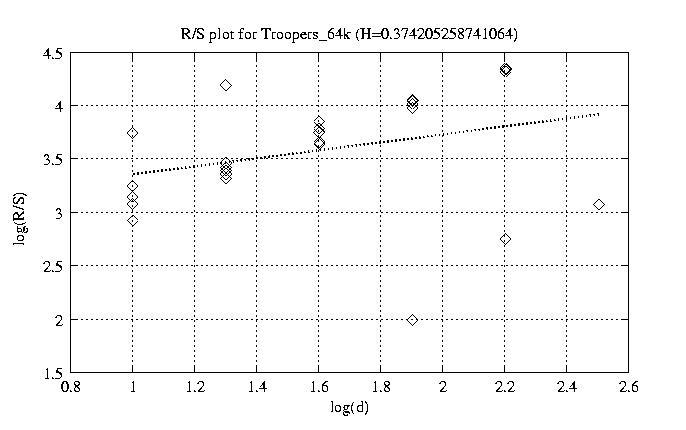

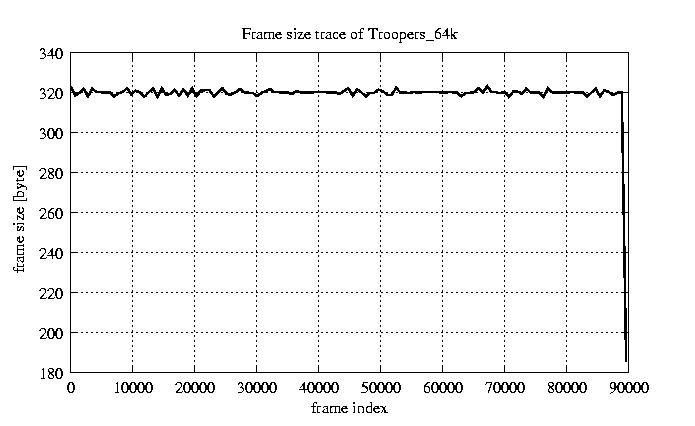

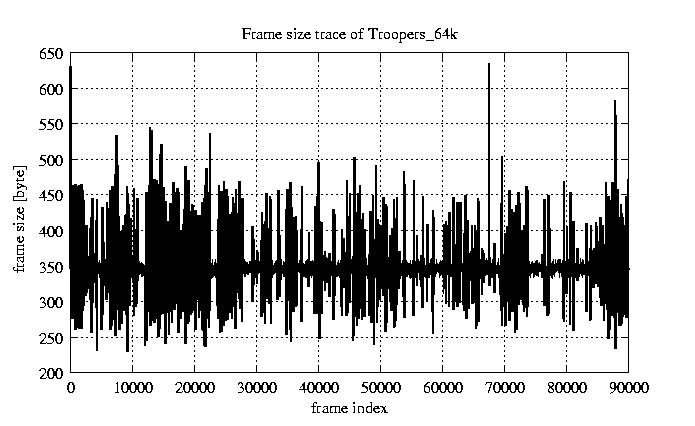

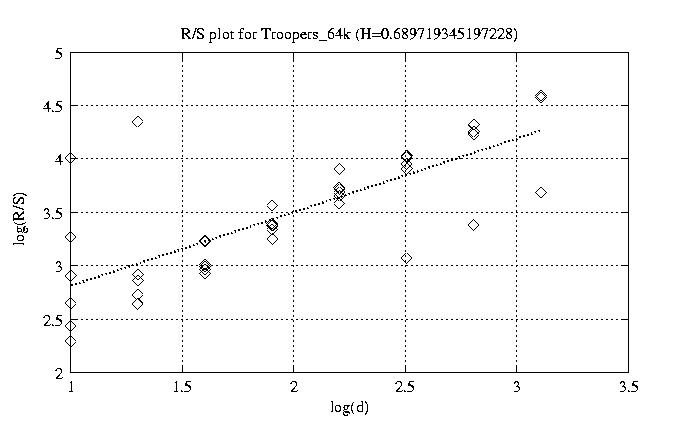

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.858 view view 12 0.710 view view 50 0.690 view view 100 0.530 view view 200 0.706 view view 300 0.374 view view 400 0.371 view view 500 0.364 view view 600 -0.197 view view 700 0.402 view view 800 0.269 view view
other plots	autocorrelation function of frames
	HOME BACK

Frank Fitzek
