H263 - Simpsons
256 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 29.73 29.73 File size byte 3.8e+07 3.8e+07 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30027.00 9046.00 mean frame size byte 1278.69 4244.44 var frame size - 4534666.88 2464062.21 CoV of frame size - 1.67 0.37 min frame size byte 0.00 953.00 max frame size byte 17753.00 17753.00 Peak/Mean frame - 13.88 4.18 Mean bit rate bit/sec 2.6e+05 Peak bit rate bit/sec 1.5e+06 Peak/Mean of bit rate - 6 CoV of bit rate - 0.44 max inter frame space frames 1.00 33.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

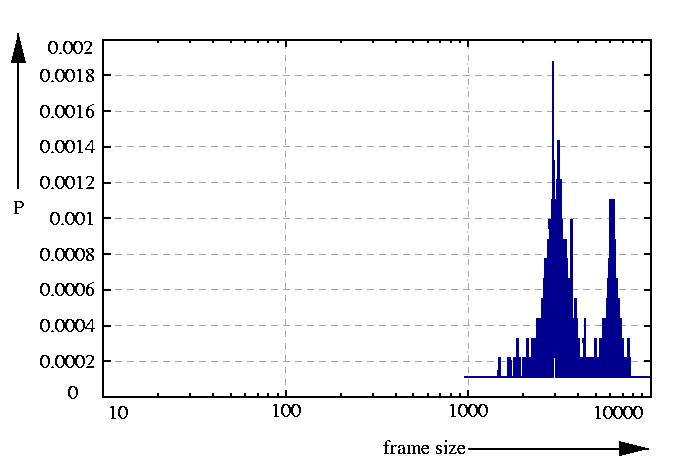

probability density function p

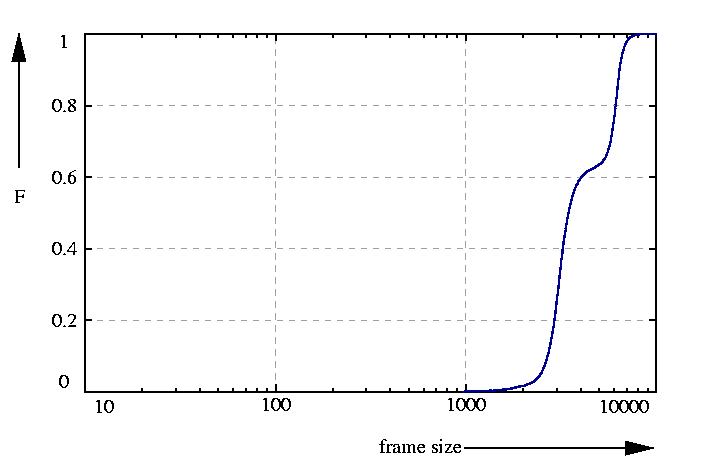

probability function F = sum p

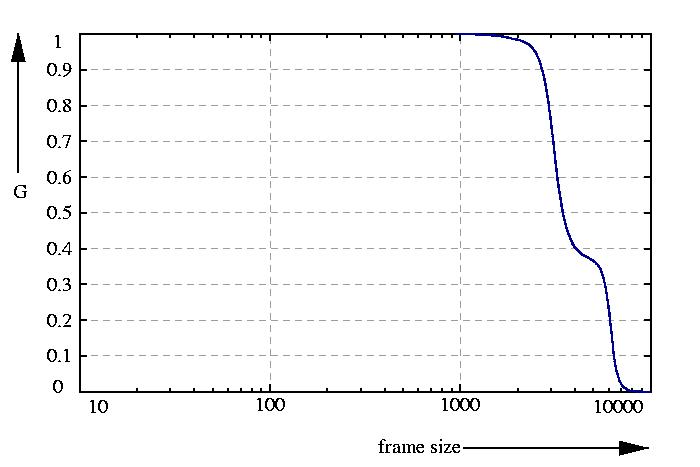

inverse probability function G = 1 - F

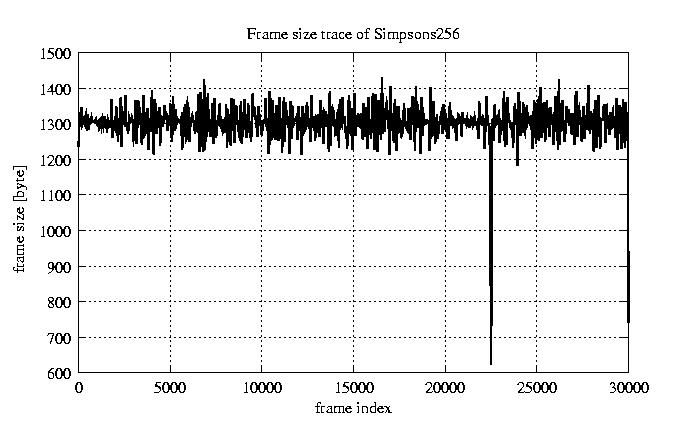

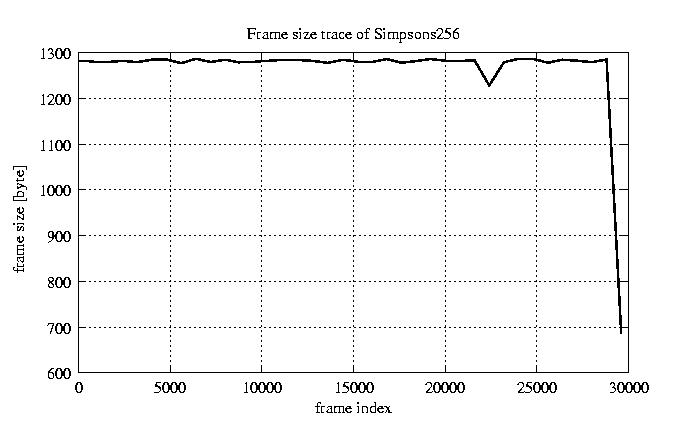

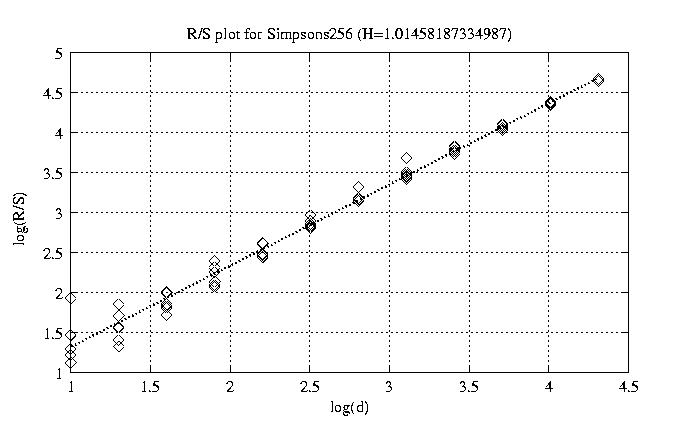

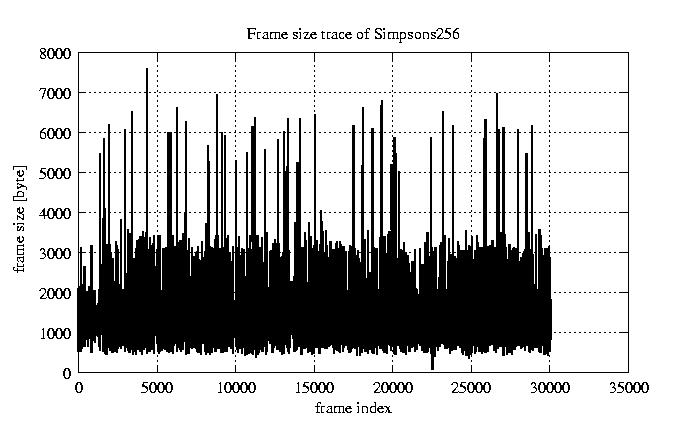

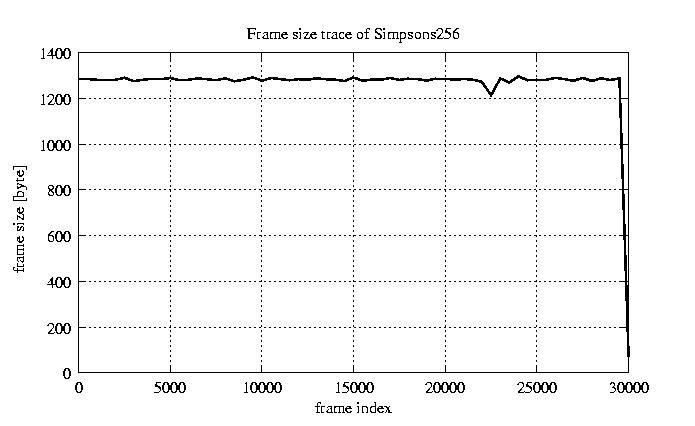

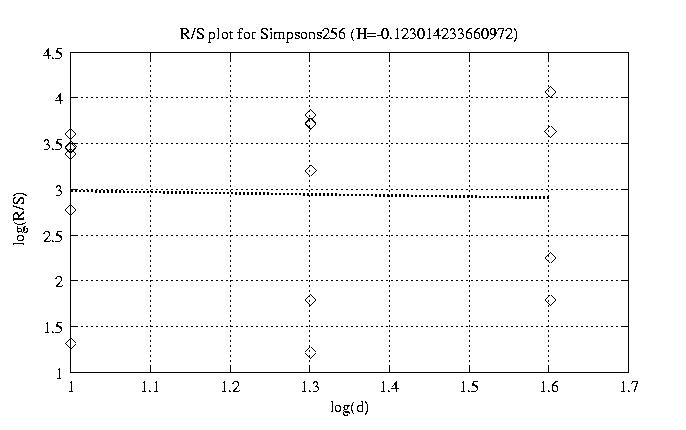

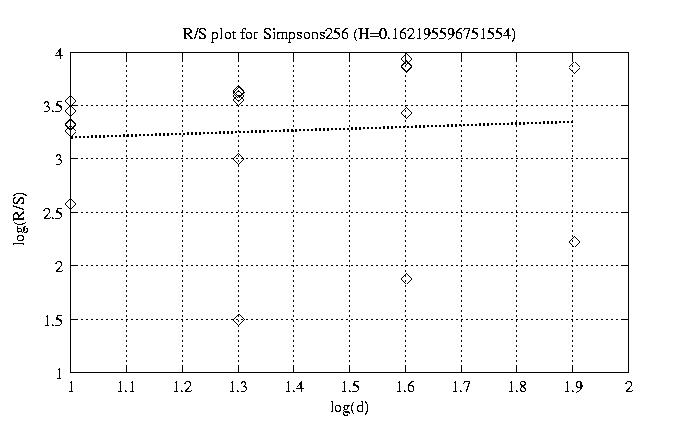

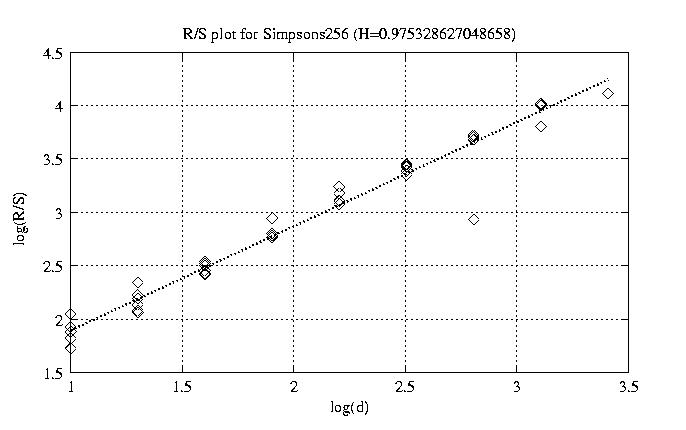

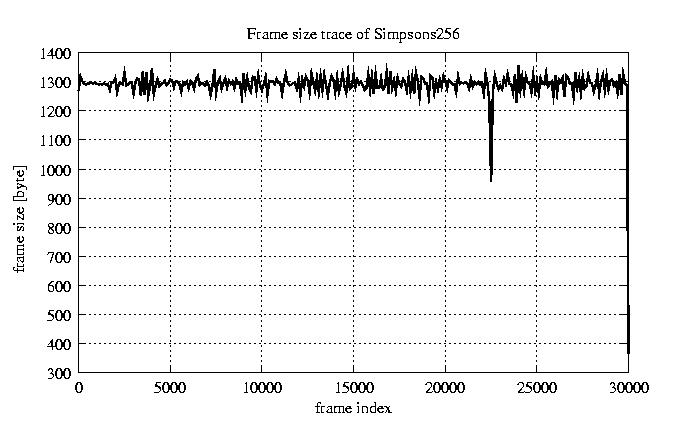

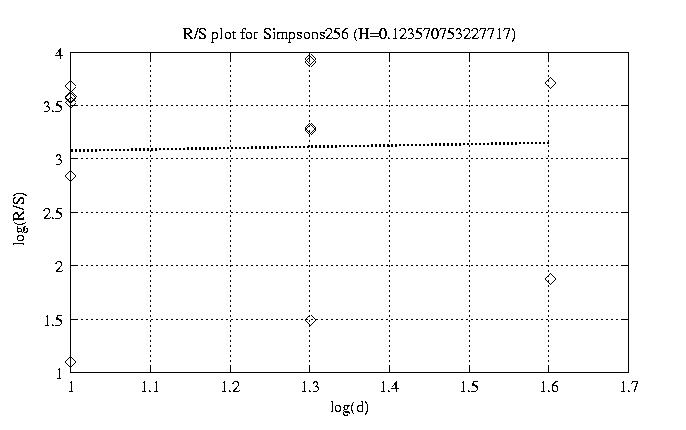

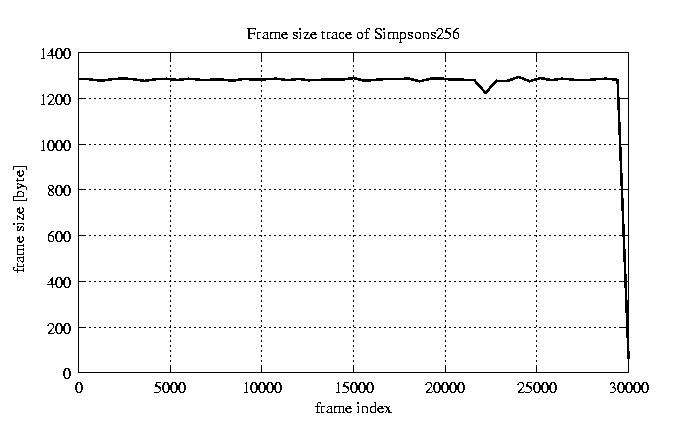

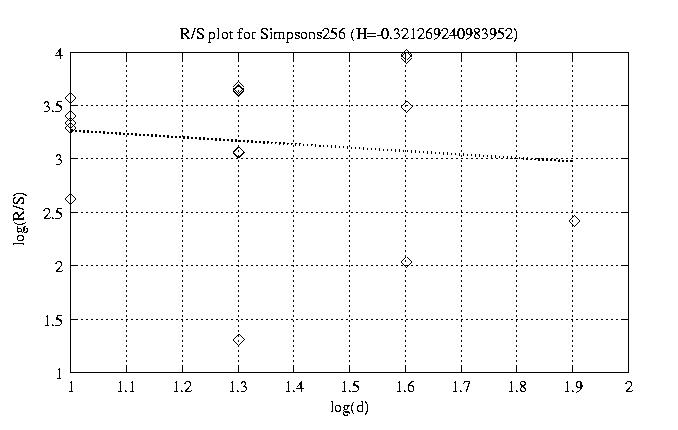

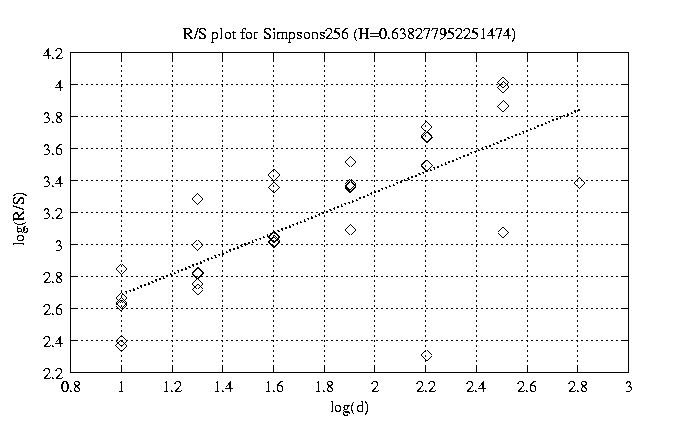

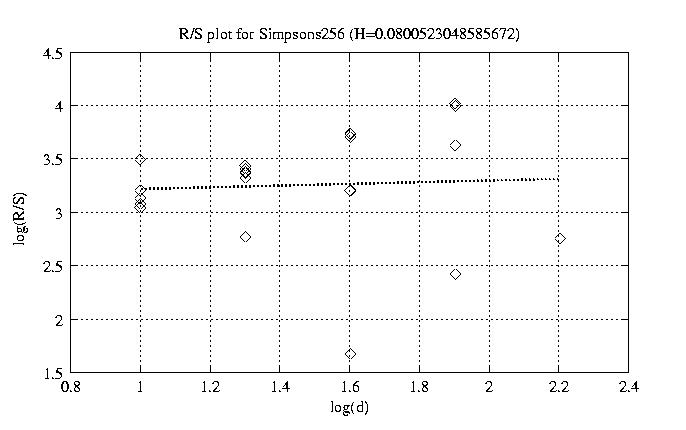

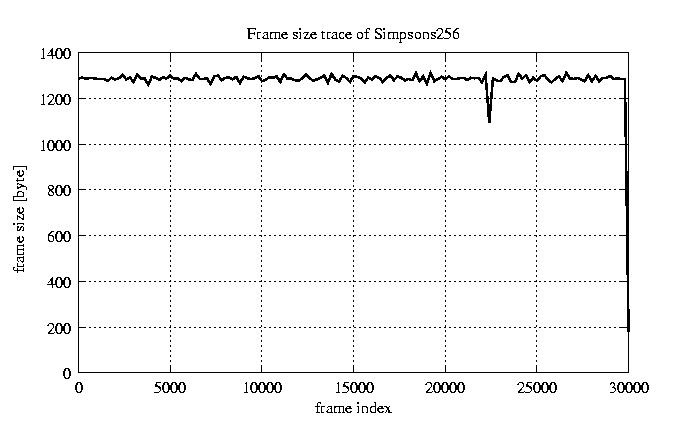

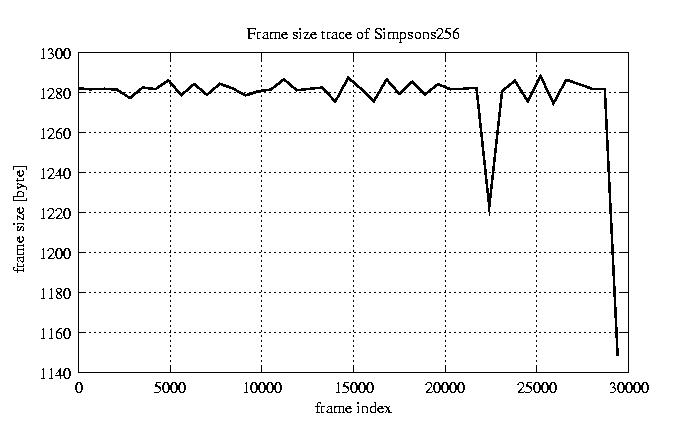

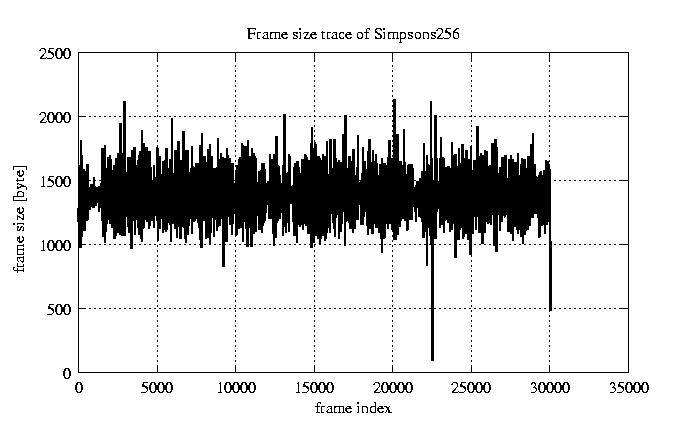

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 1.015 view view 12 0.975 view view 50 0.638 view view 100 0.340 view view 200 0.080 view view 300 0.162 view view 400 -0.321 view view 500 -0.123 view view 600 0.124 view view 700 -0.024 view view 800 -0.548 view view

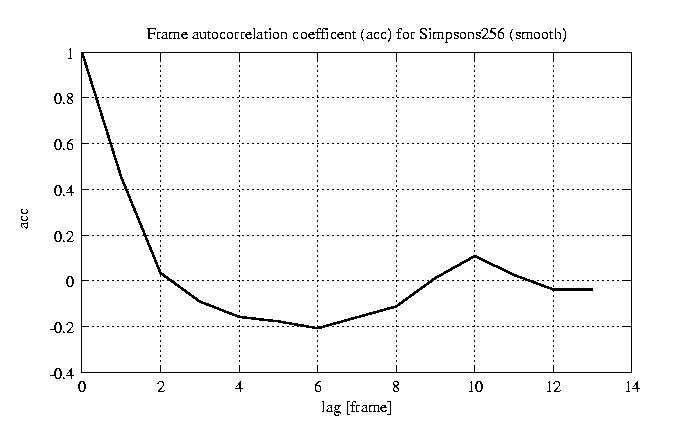

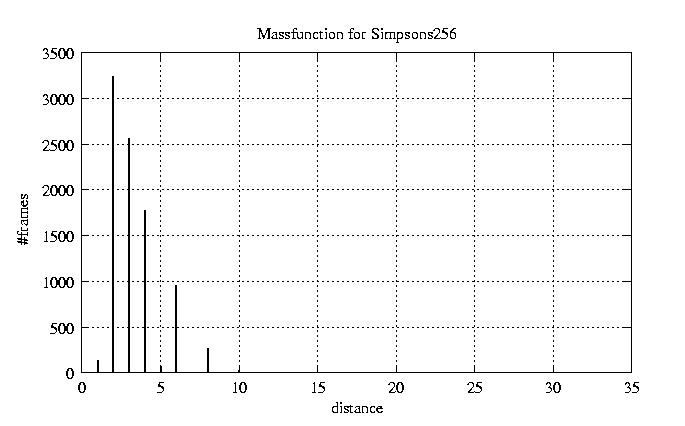

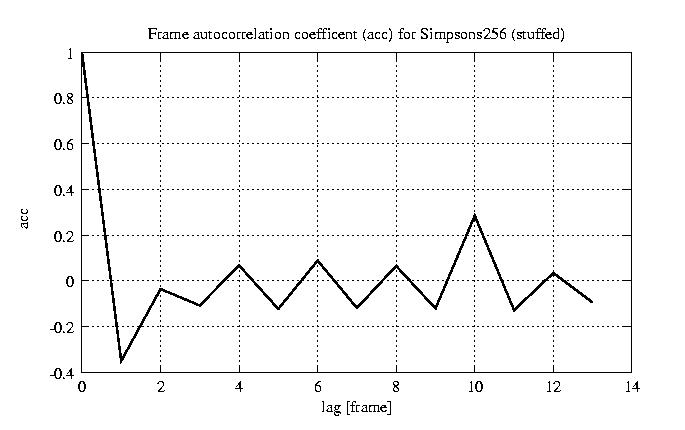

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
