H263 - Futurama
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 13.57 13.57 File size byte 8.4e+07 8.4e+07 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30028.00 19419.00 mean frame size byte 2800.84 4330.99 var frame size - 6414047.20 3290925.53 CoV of frame size - 0.90 0.42 min frame size byte 0.00 40.00 max frame size byte 20175.00 20175.00 Peak/Mean frame - 7.20 4.66 Mean bit rate bit/sec 5.6e+05 Peak bit rate bit/sec 4e+06 Peak/Mean of bit rate - 7.2 CoV of bit rate - 0.58 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

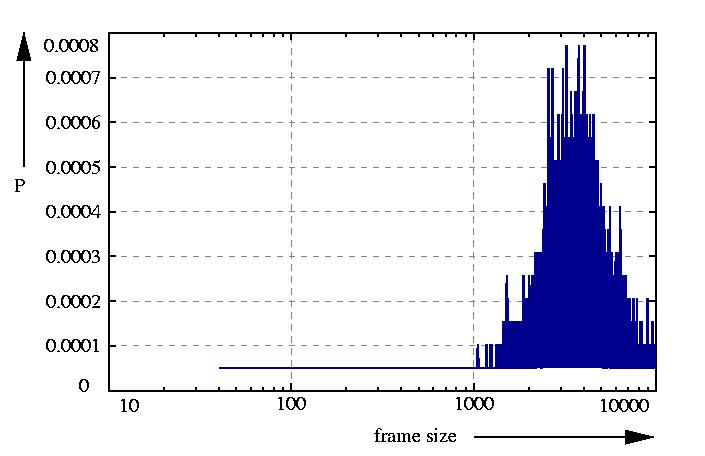

probability density function p
probability function F = sum p

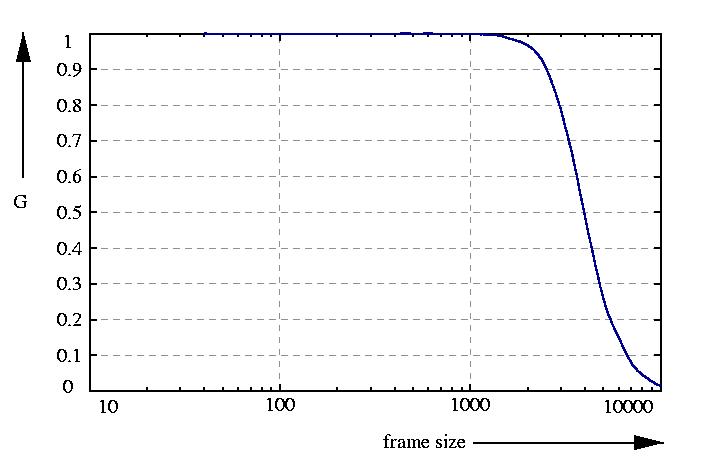

inverse probability function G = 1 - F

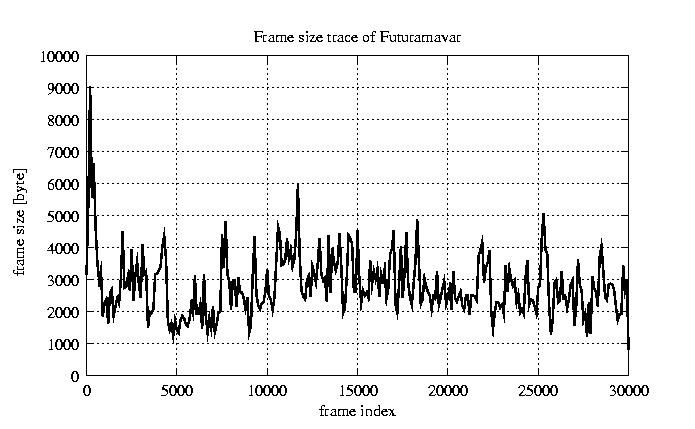

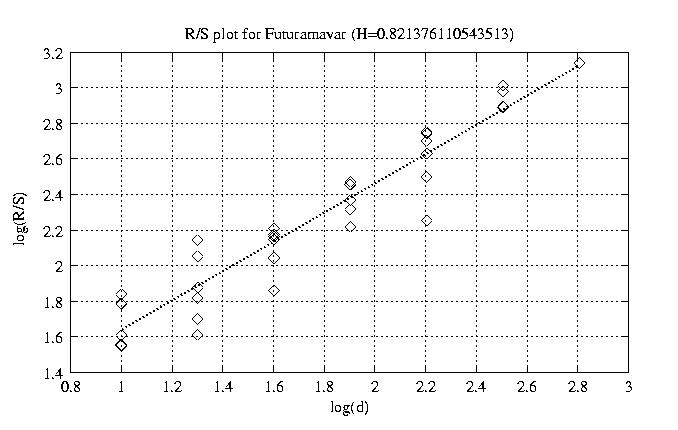

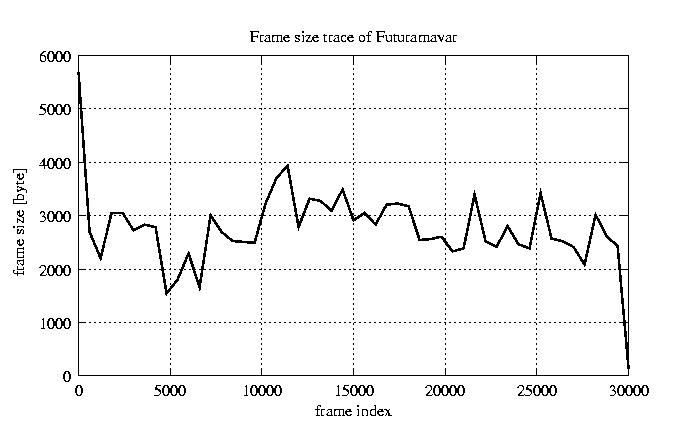

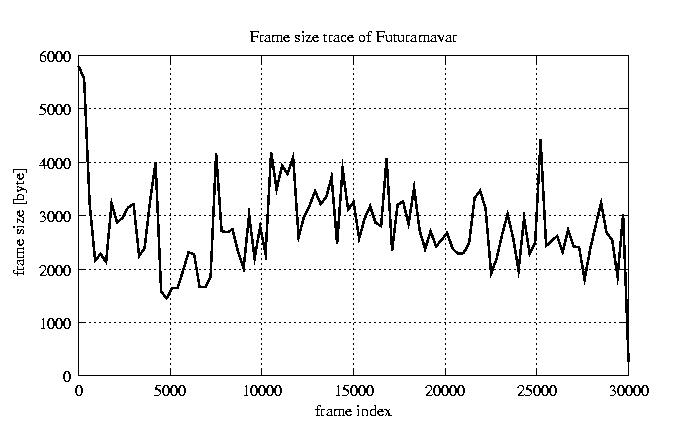

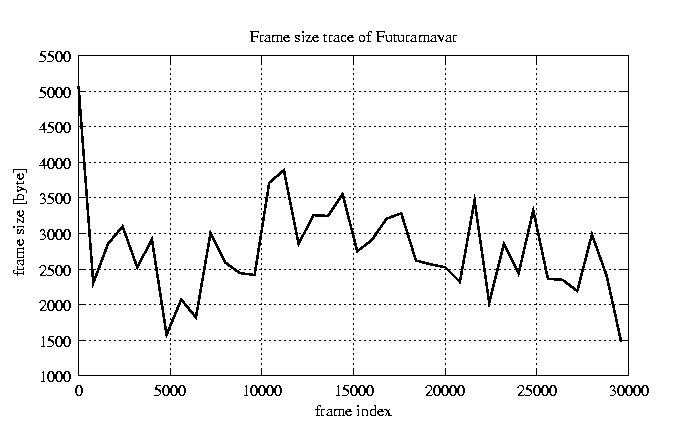

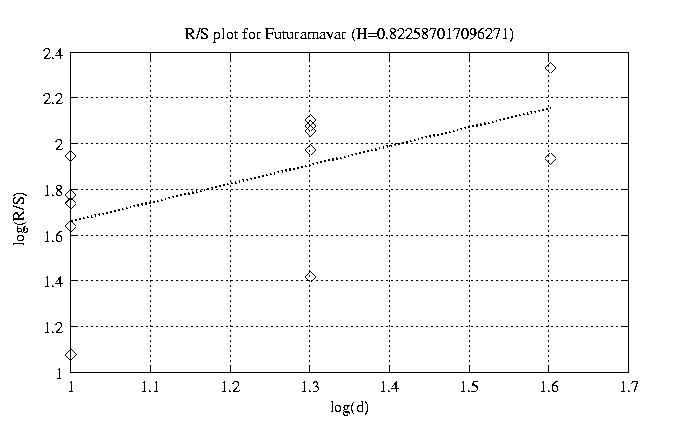

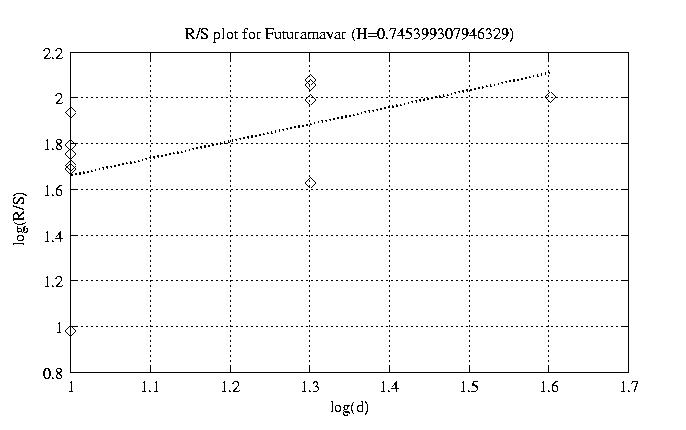

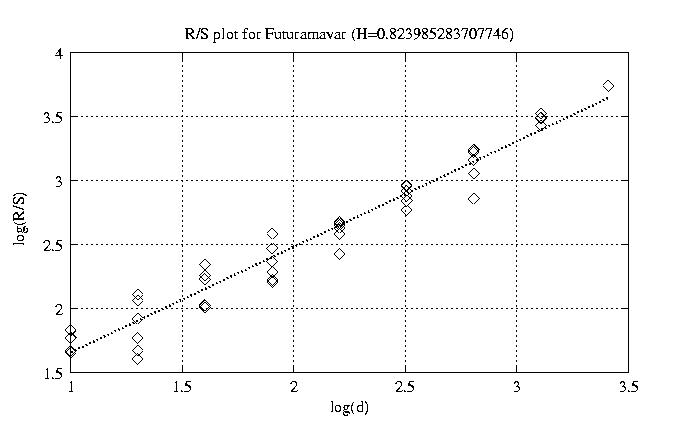

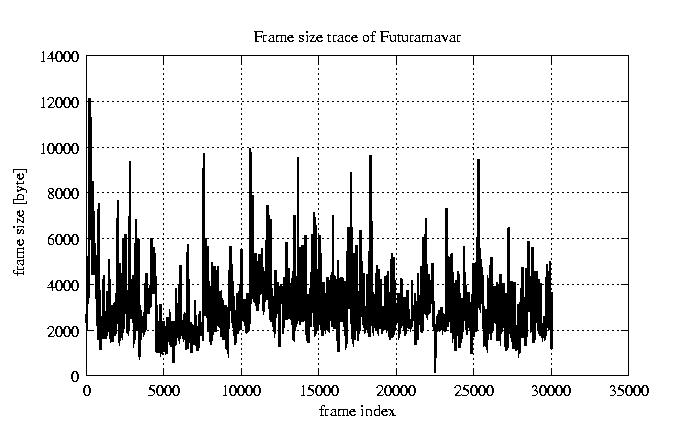

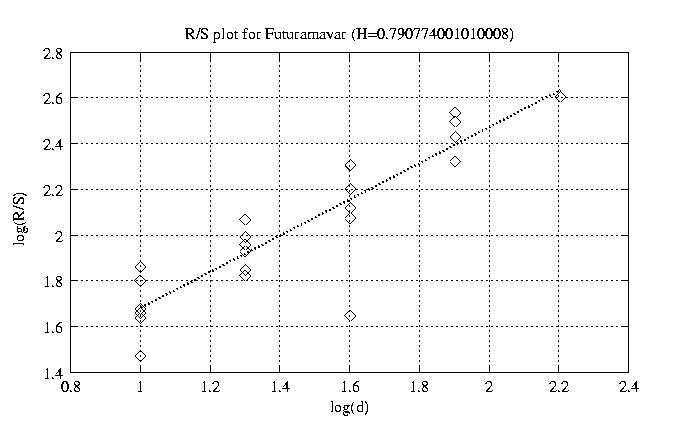

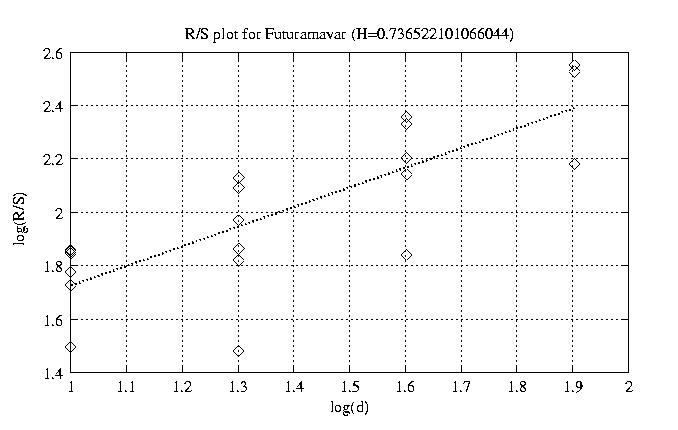

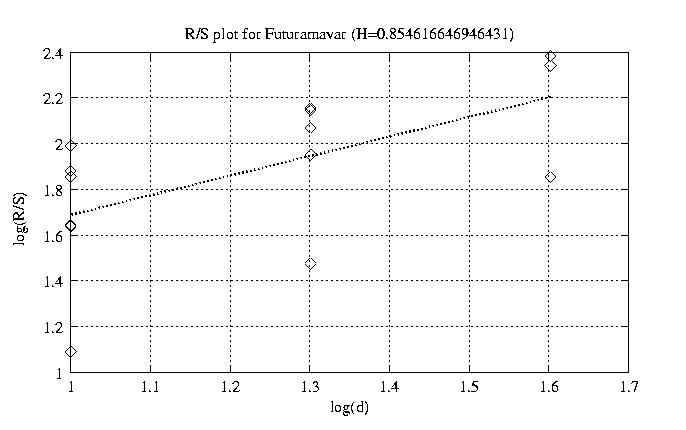

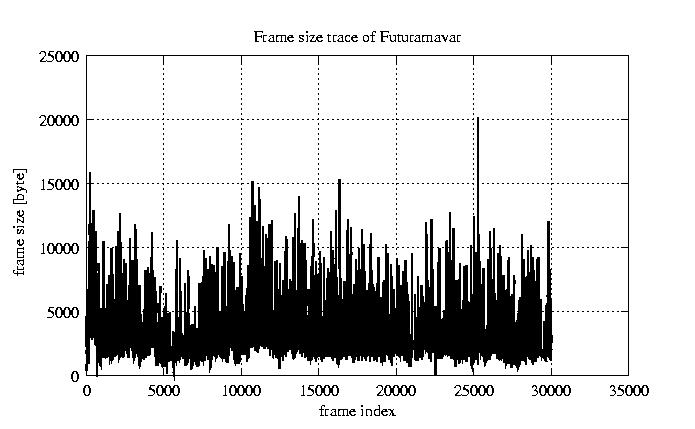

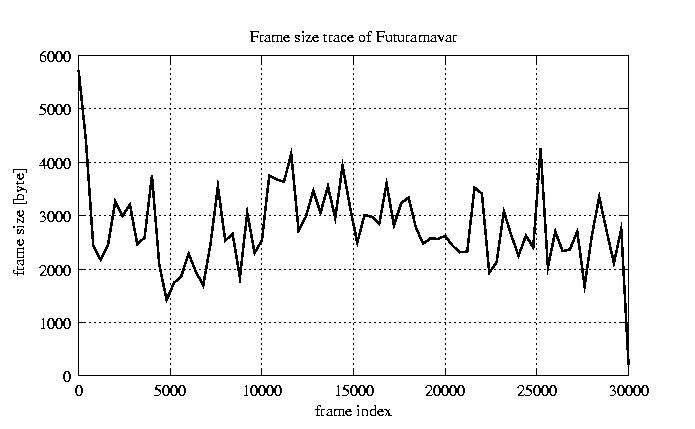

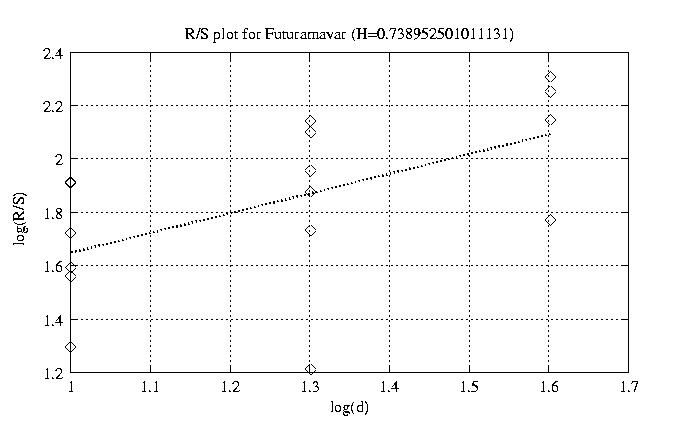

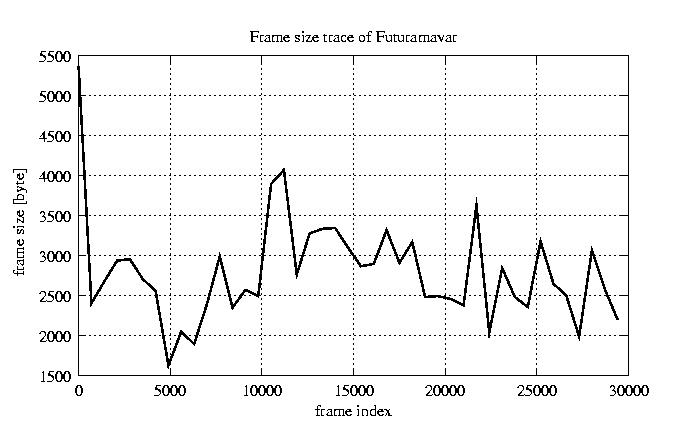

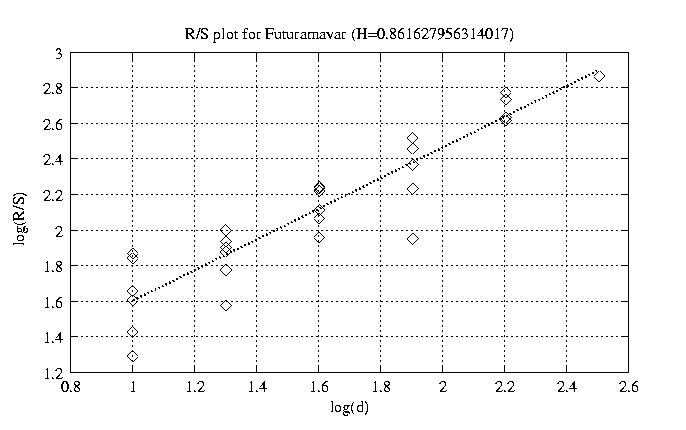

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.871 view view 12 0.824 view view 50 0.821 view view 100 0.862 view view 200 0.791 view view 300 0.737 view view 400 0.660 view view 500 0.739 view view 600 0.855 view view 700 0.823 view view 800 0.745 view view

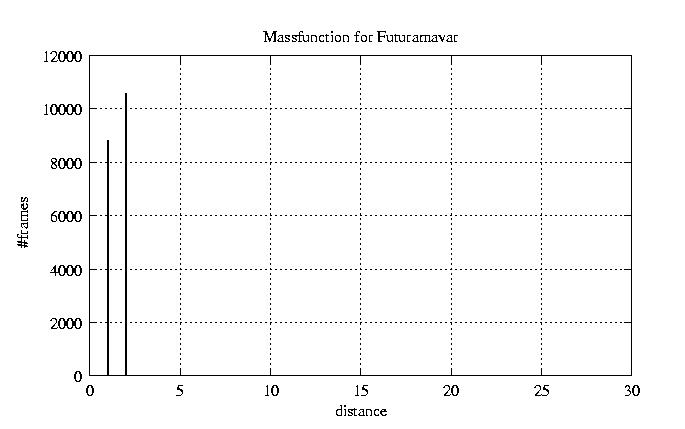

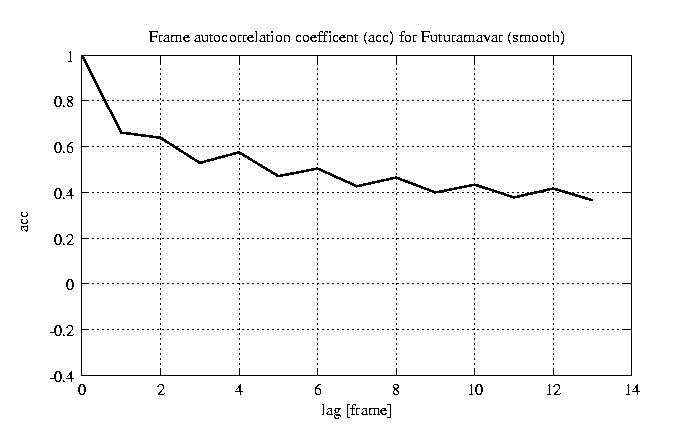

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
