MP4 - Boulevard Bio
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 65.95 File Size byte 5.2e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 5.8e+02 var frame size - 1e+06 CoV of frame size - 1.74 min frame size byte 0 max frame size byte 6432 Mean bit rate bit/sec 1.2e+05 Peak bit rate bit/sec 1.3e+06 Peak/Mean of bit rate - 11.16 GoP statistics # of GoPs - 7499 mean GoP size byte 6.9e+03 var GoP size - 9e+06 CoV of GoP size - 0.43 min GoP size byte 988 max GoP size byte 22560 Mean bit rate bit/sec 1.2e+05 Peak bit rate bit/sec 3.8e+05 Peak/Mean of bit rate - 3.26 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

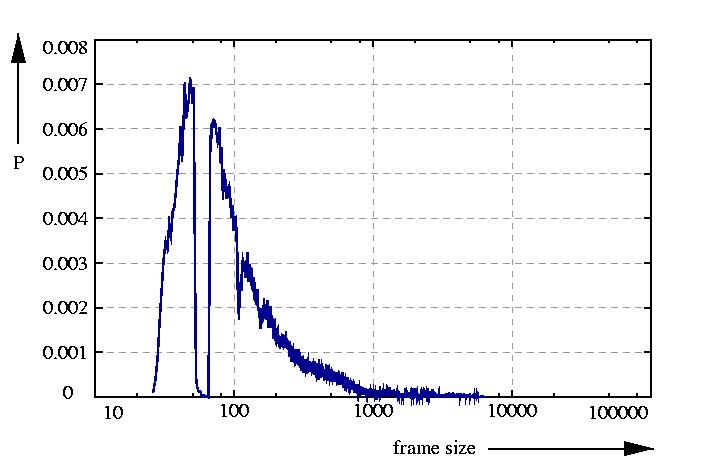

probability density function p

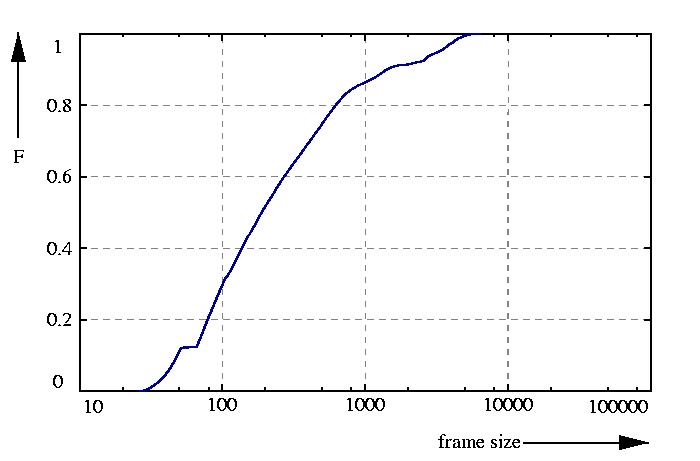

probability function F = sum p

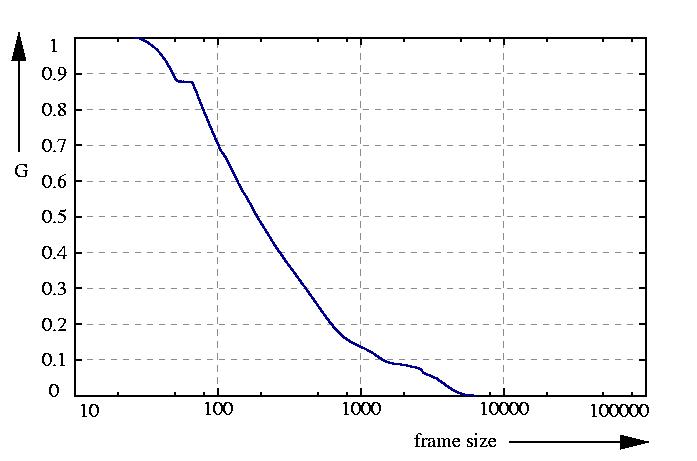

inverse probability function G = 1 - F

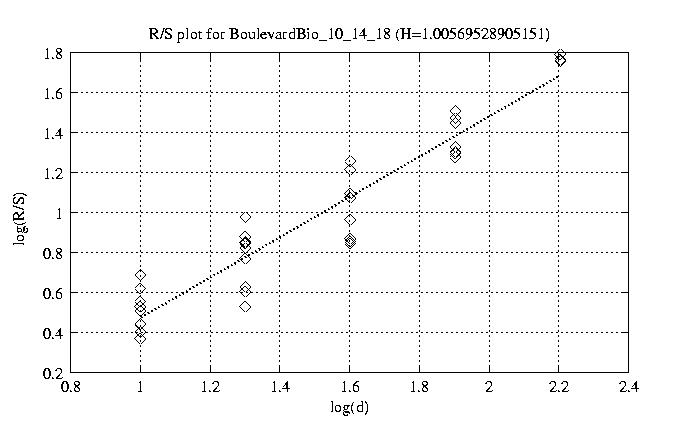

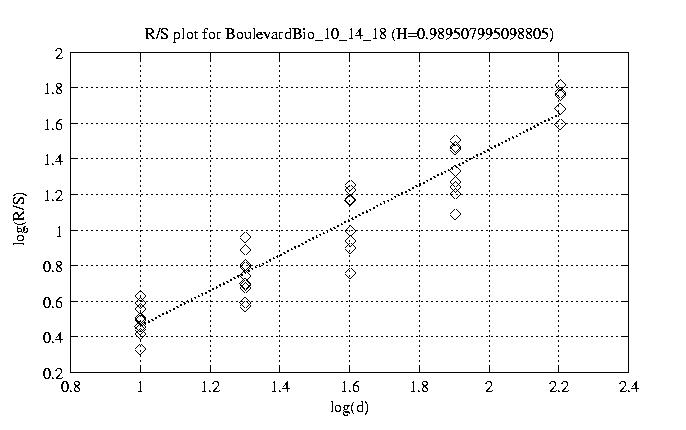

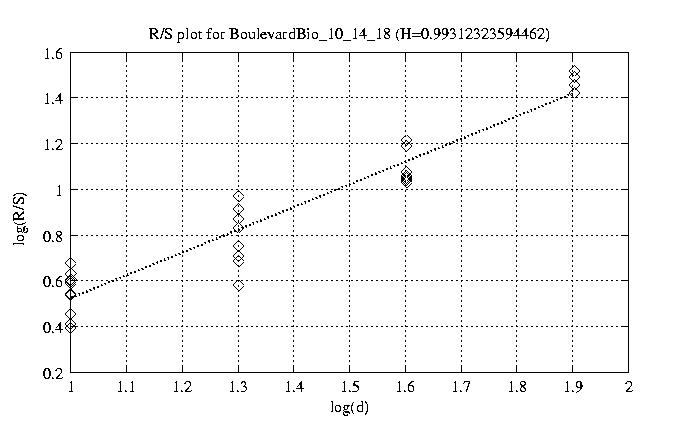

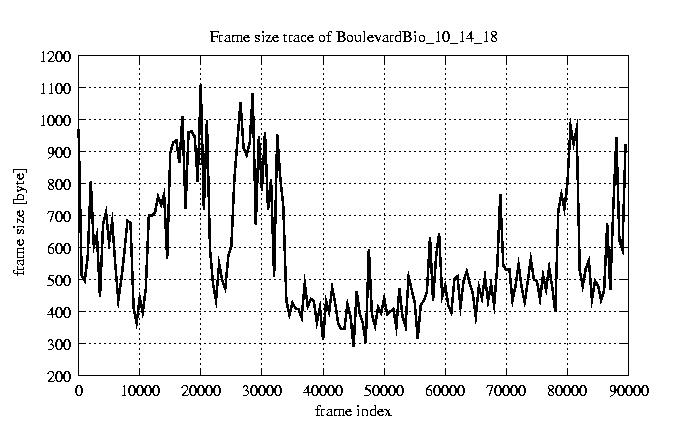

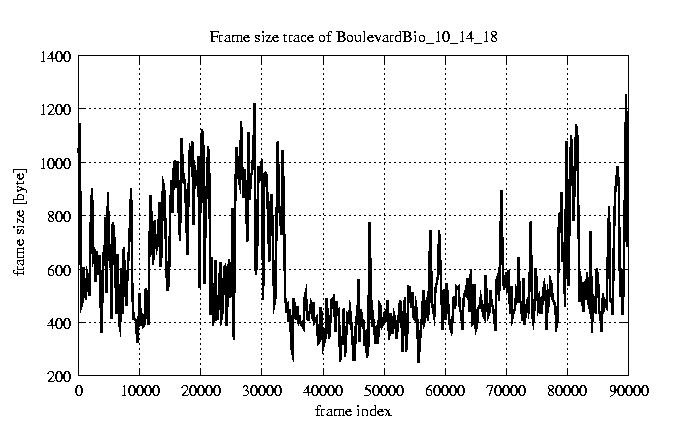

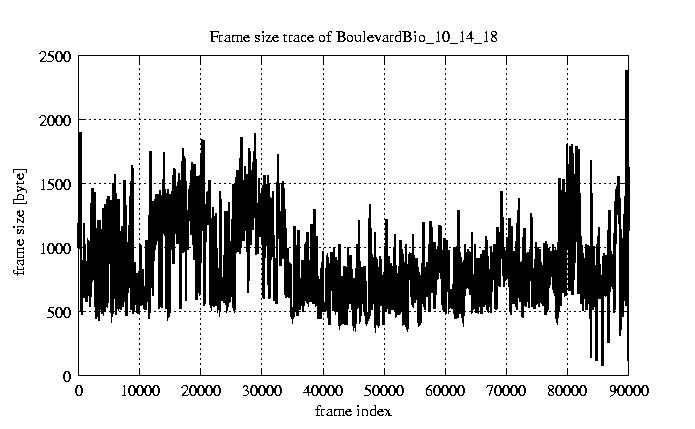

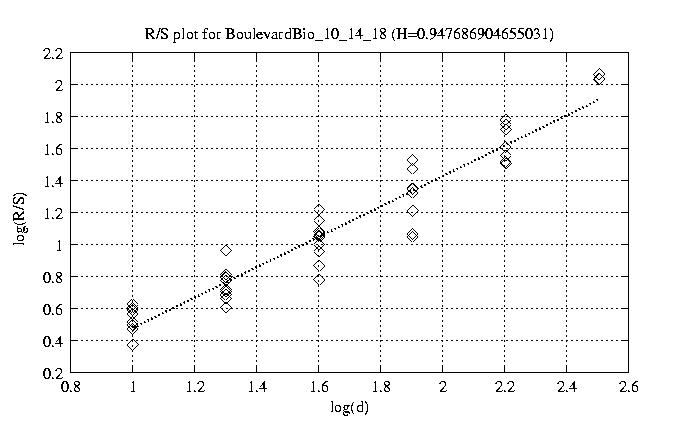

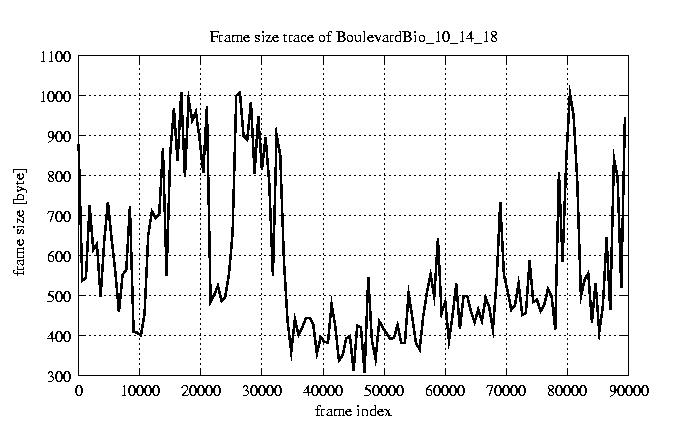

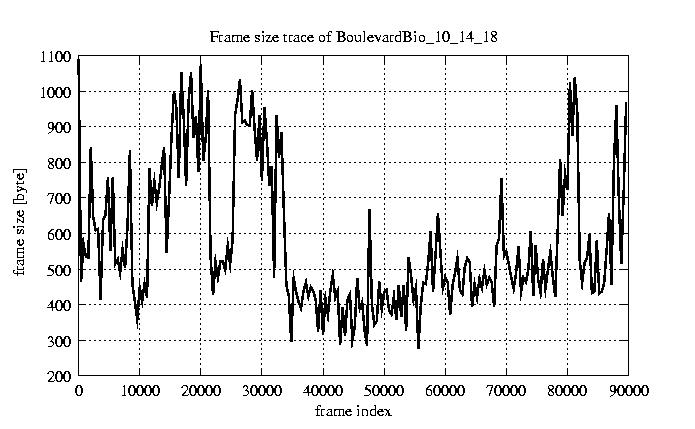

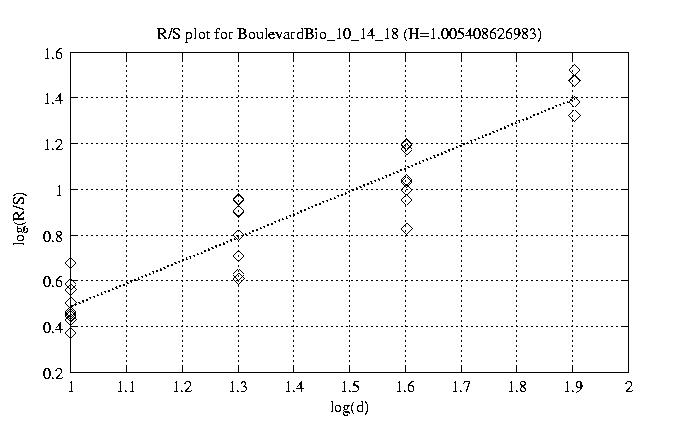

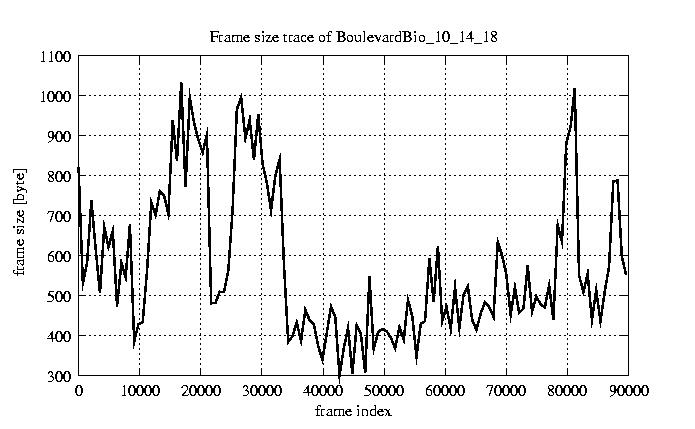

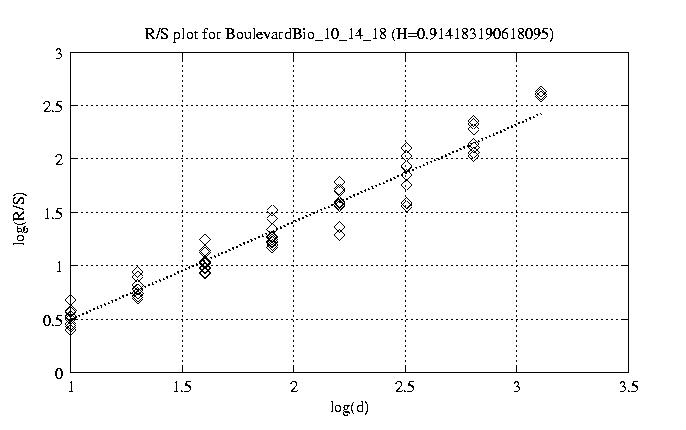

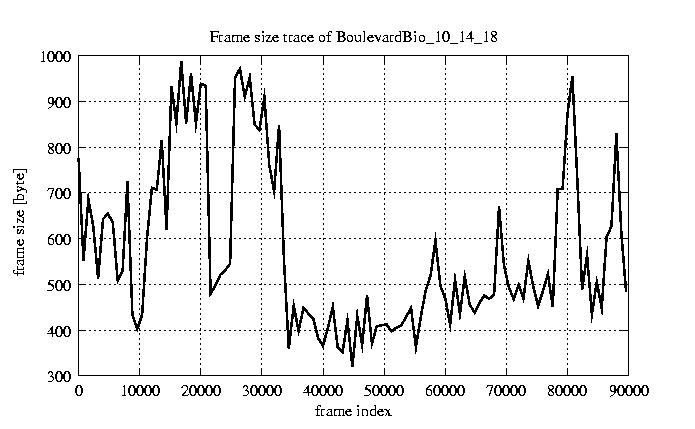

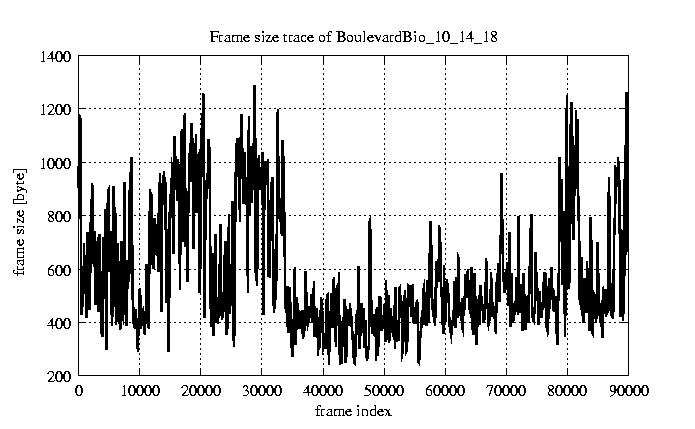

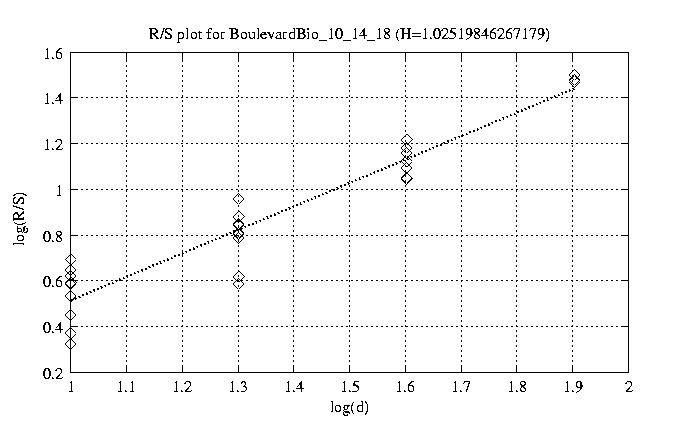

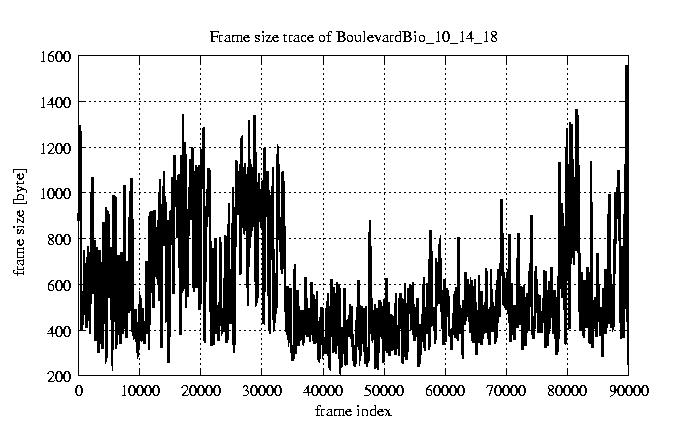

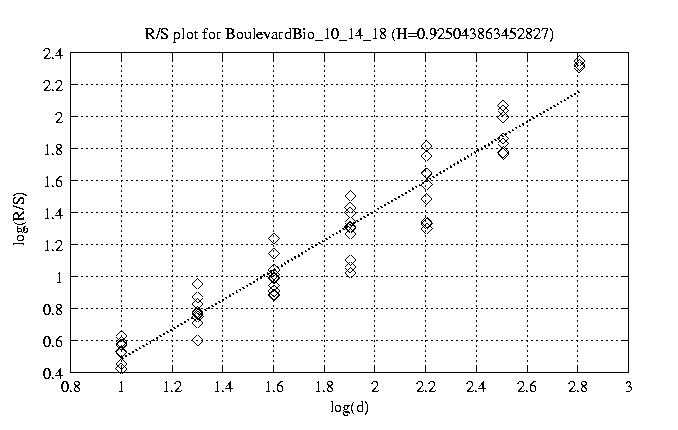

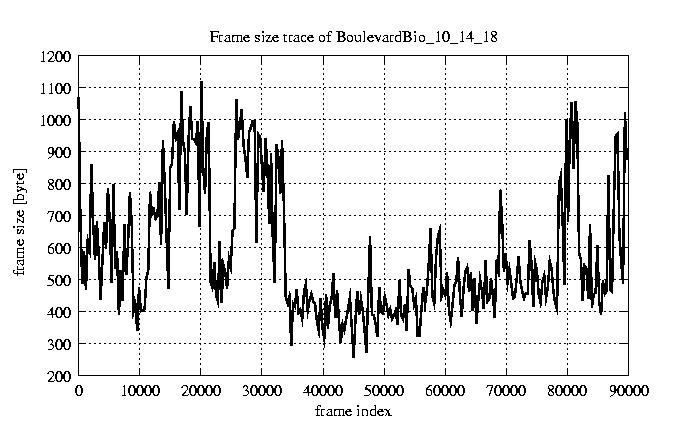

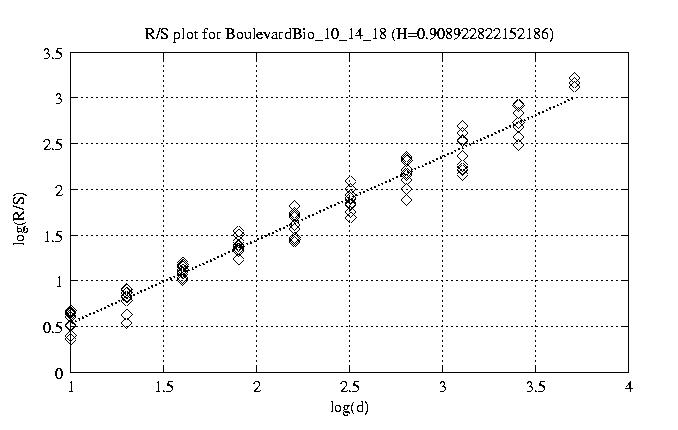

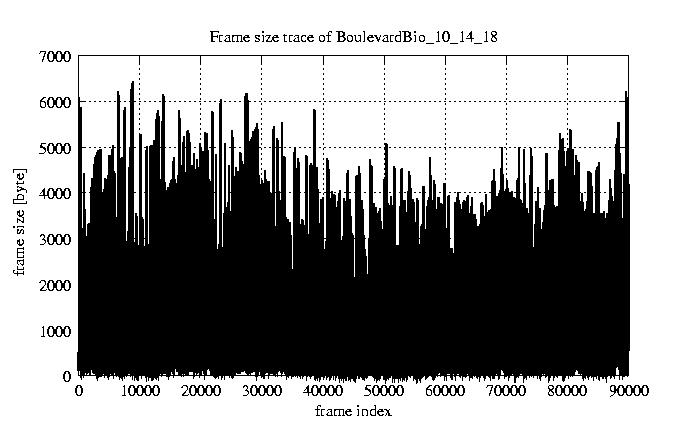

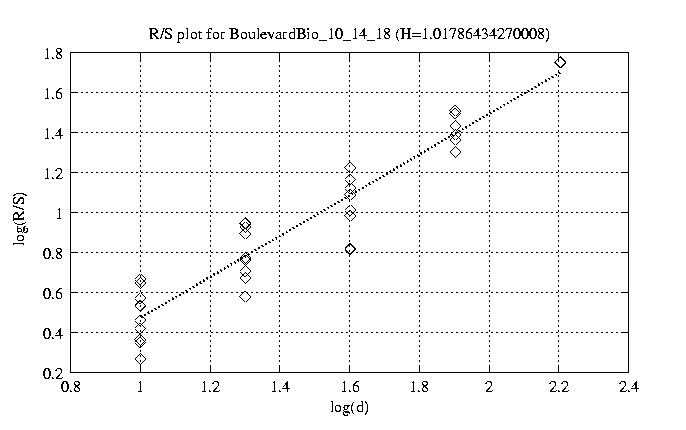

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.782 view view 12 0.909 view view 50 0.914 view view 100 0.925 view view 200 0.948 view view 300 0.990 view view 400 1.006 view view 500 1.018 view view 600 1.005 view view 700 0.993 view view 800 1.025 view view

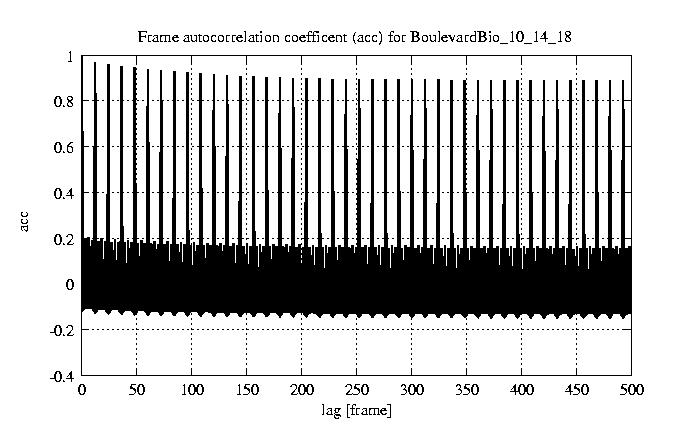

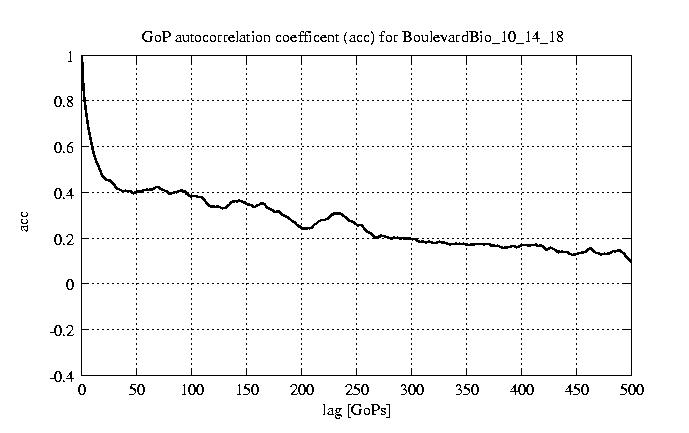

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
