MP4 - Mr Bean
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 41.34 File Size byte 8.3e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 9.2e+02 var frame size - 8e+05 CoV of frame size - 0.97 min frame size byte 27 max frame size byte 7565 Mean bit rate bit/sec 1.8e+05 Peak bit rate bit/sec 1.5e+06 Peak/Mean of bit rate - 8.23 GoP statistics # of GoPs - 7499 mean GoP size byte 1.1e+04 var GoP size - 3.1e+07 CoV of GoP size - 0.50 min GoP size byte 951 max GoP size byte 56673 Mean bit rate bit/sec 1.8e+05 Peak bit rate bit/sec 9.4e+05 Peak/Mean of bit rate - 5.14 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

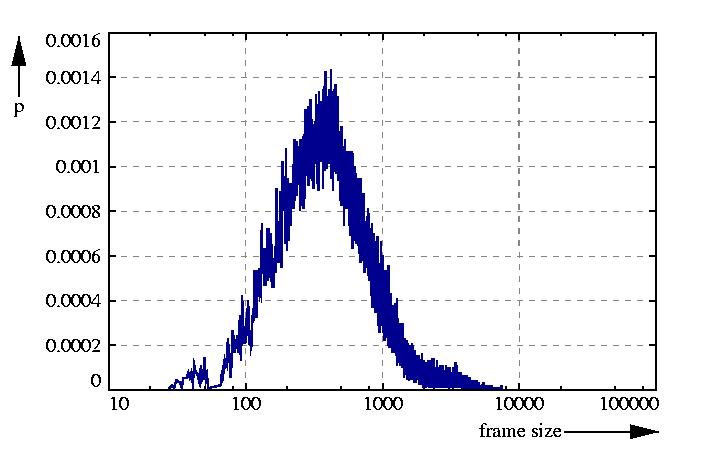

probability density function p

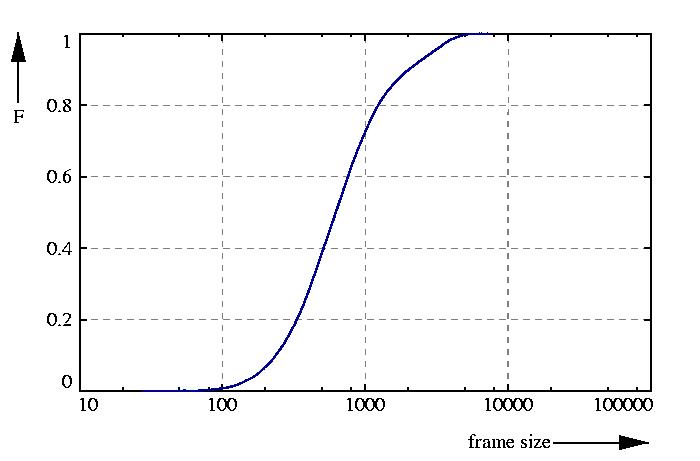

probability function F = sum p
inverse probability function G = 1 - F

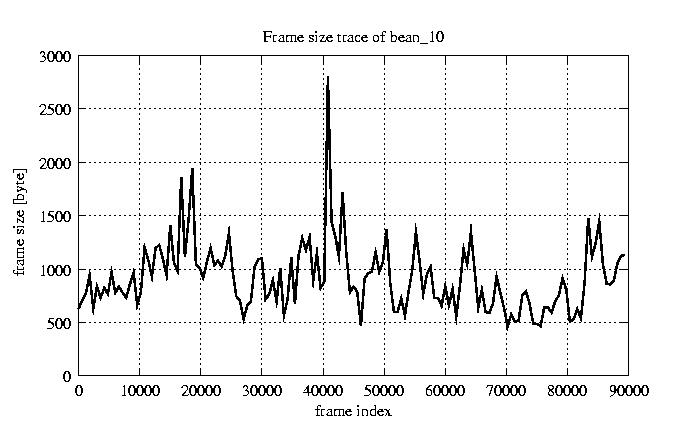

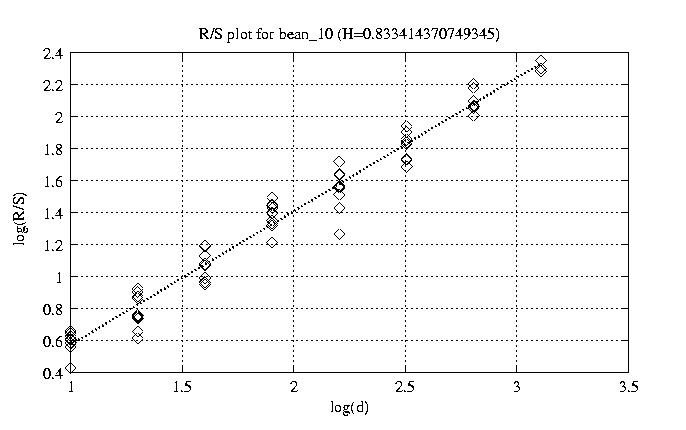

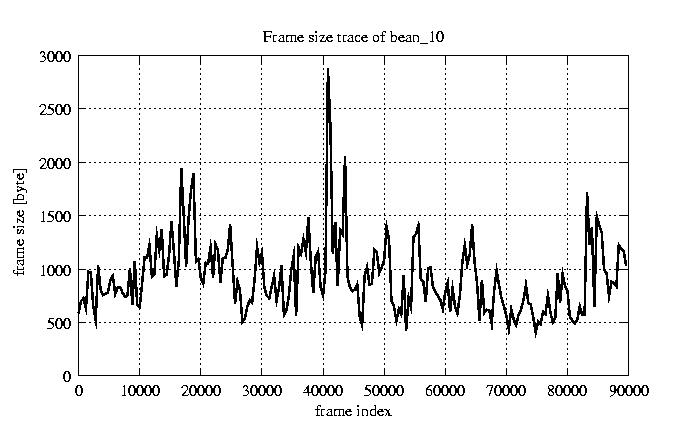

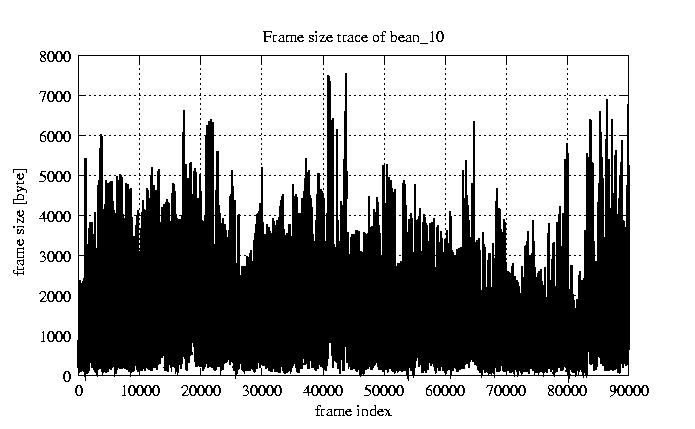

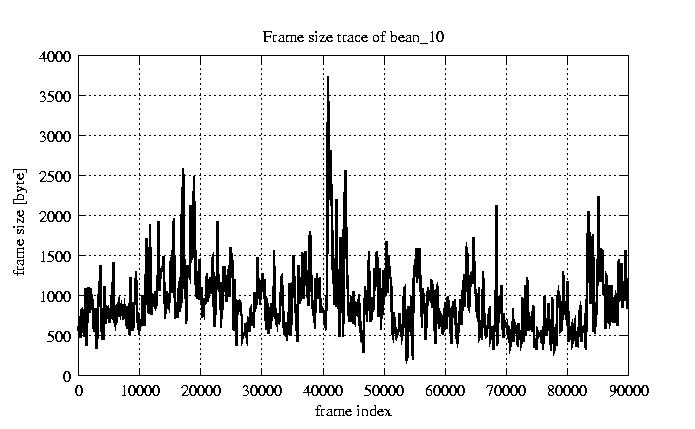

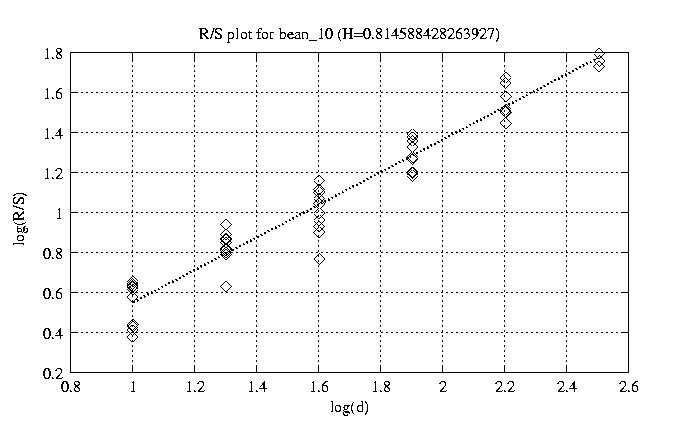

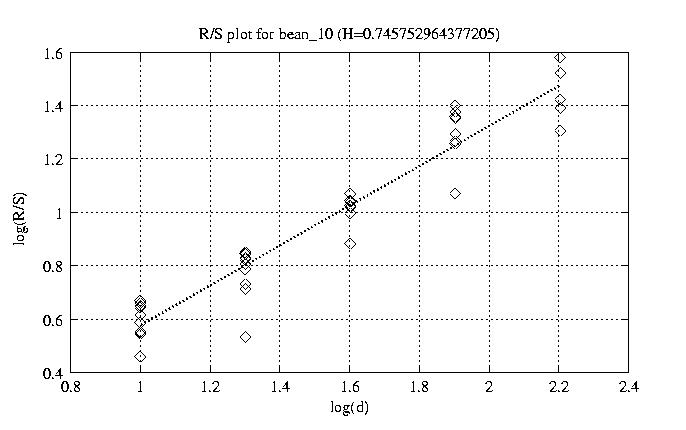

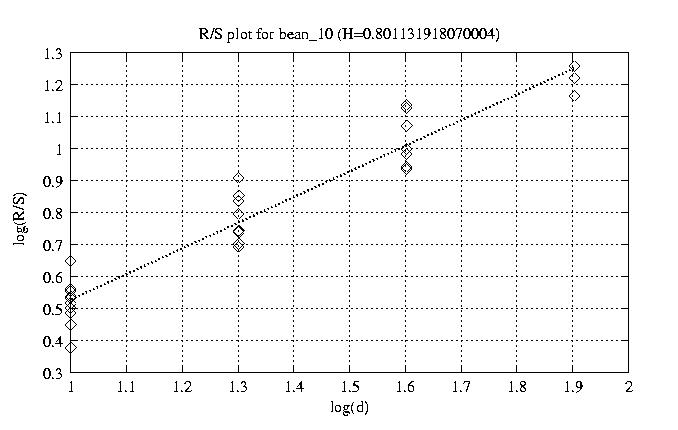

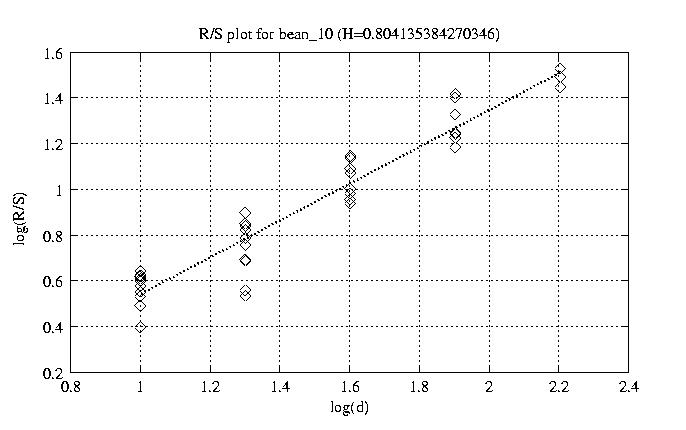

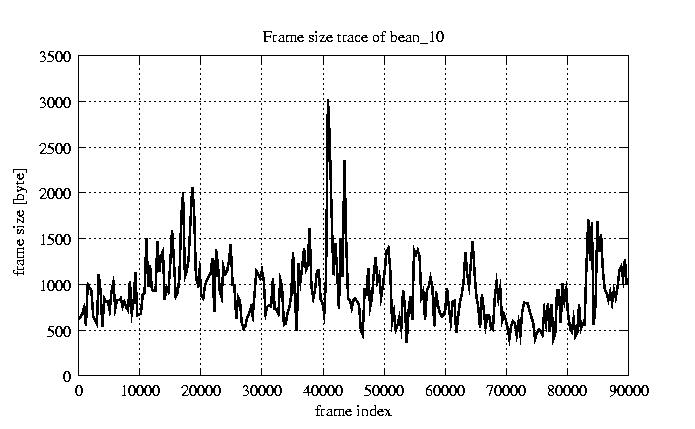

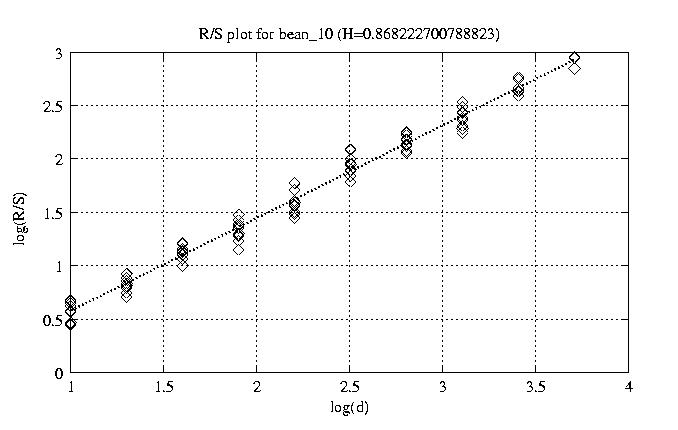

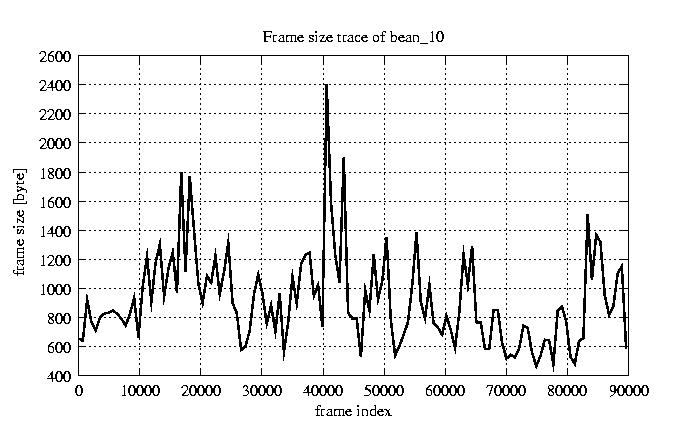

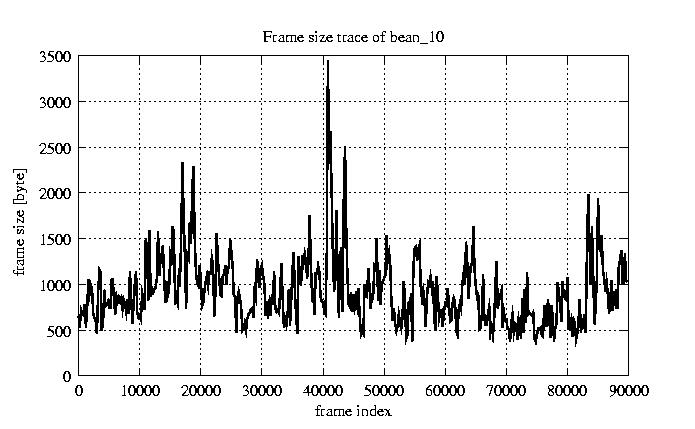

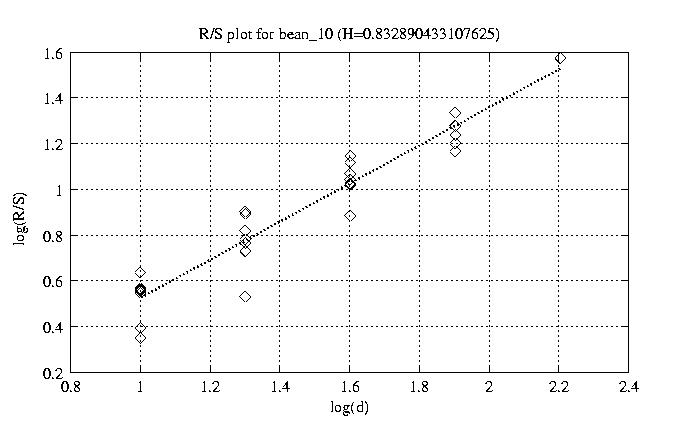

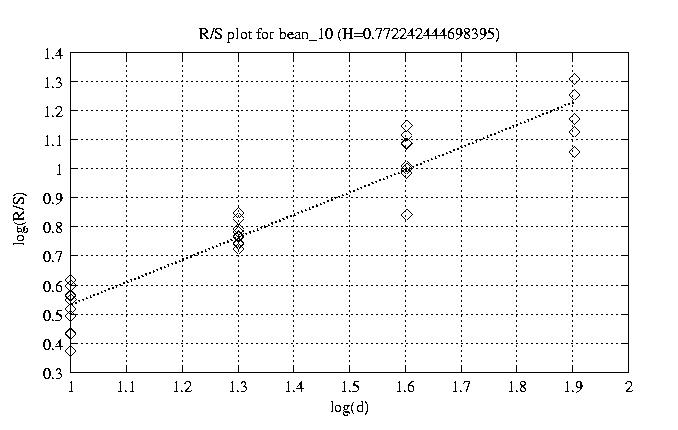

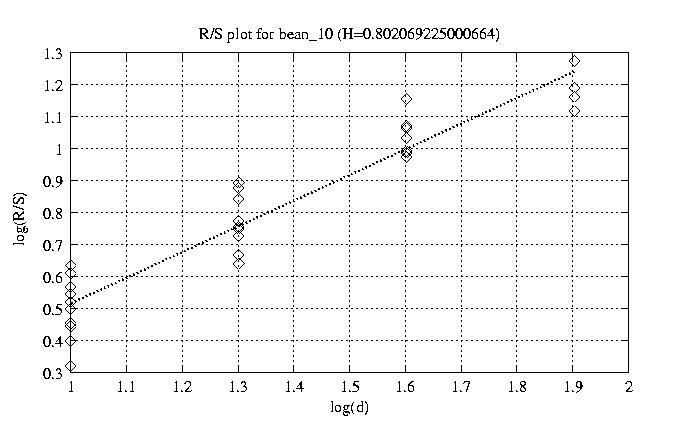

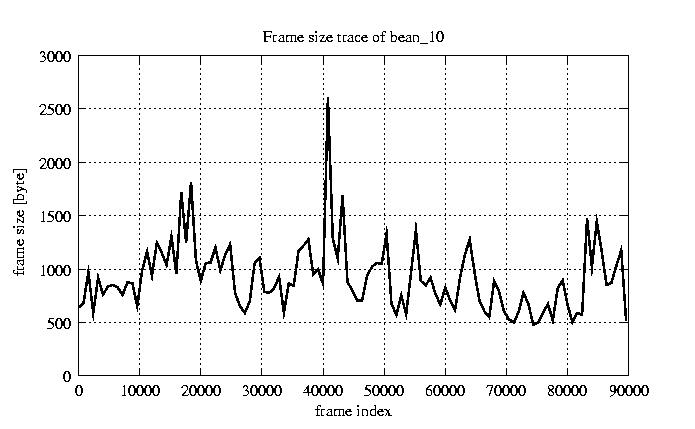

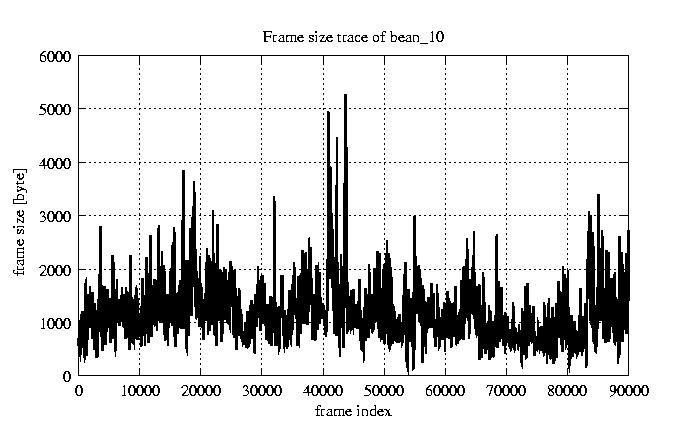

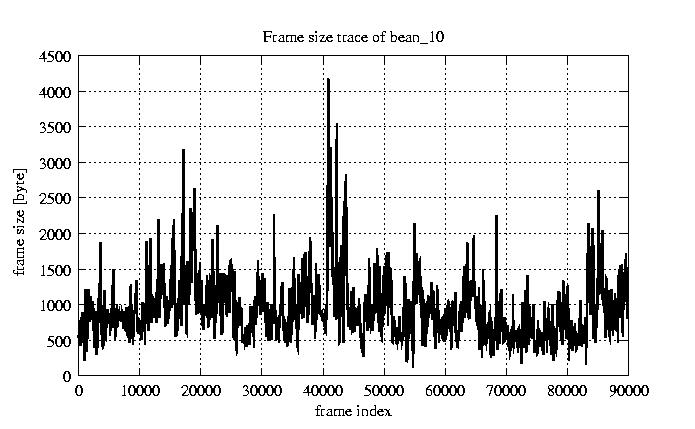

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.890 view view 12 0.868 view view 50 0.833 view view 100 0.830 view view 200 0.815 view view 300 0.746 view view 400 0.804 view view 500 0.833 view view 600 0.772 view view 700 0.802 view view 800 0.801 view view

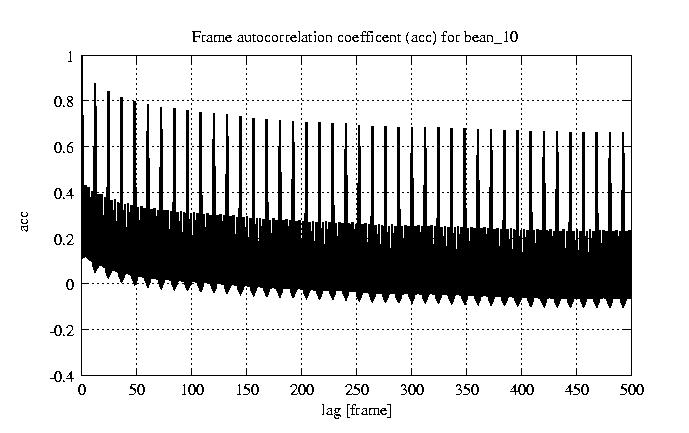

other plots	autocorrelation function of frames autocorrelation function of GoPs
