MP4 - Starship Troopers
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 61.15 File Size byte 5.6e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 6.2e+02 var frame size - 5.6e+05 CoV of frame size - 1.21 min frame size byte 27 max frame size byte 7265 Mean bit rate bit/sec 1.2e+05 Peak bit rate bit/sec 1.5e+06 Peak/Mean of bit rate - 11.69 GoP statistics # of GoPs - 7499 mean GoP size byte 7.5e+03 var GoP size - 1.4e+07 CoV of GoP size - 0.50 min GoP size byte 929 max GoP size byte 30188 Mean bit rate bit/sec 1.2e+05 Peak bit rate bit/sec 5e+05 Peak/Mean of bit rate - 4.05 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

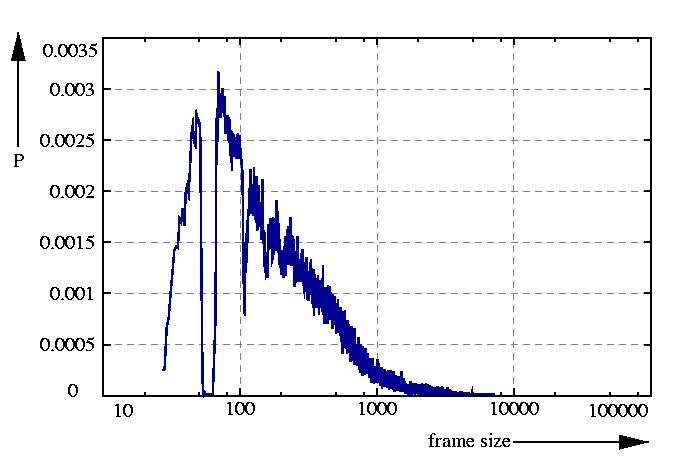

probability density function p

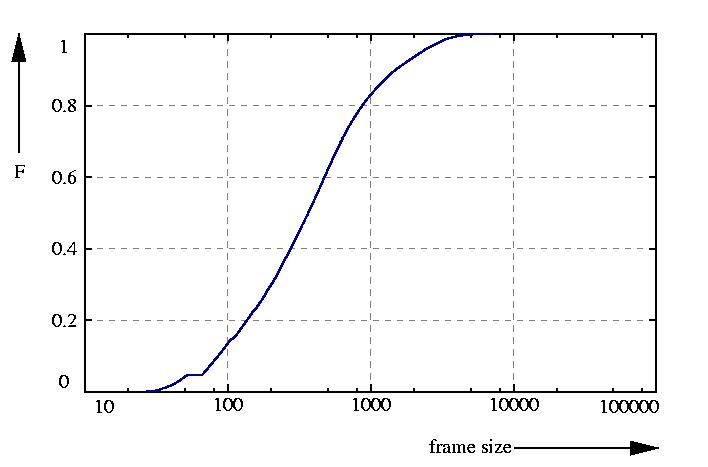

probability function F = sum p

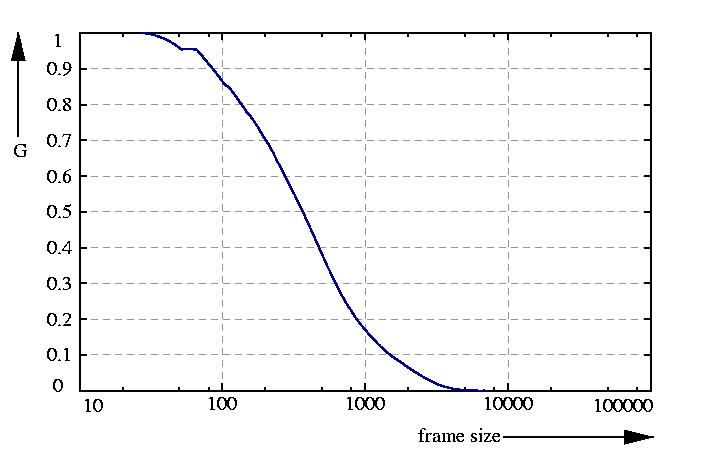

inverse probability function G = 1 - F

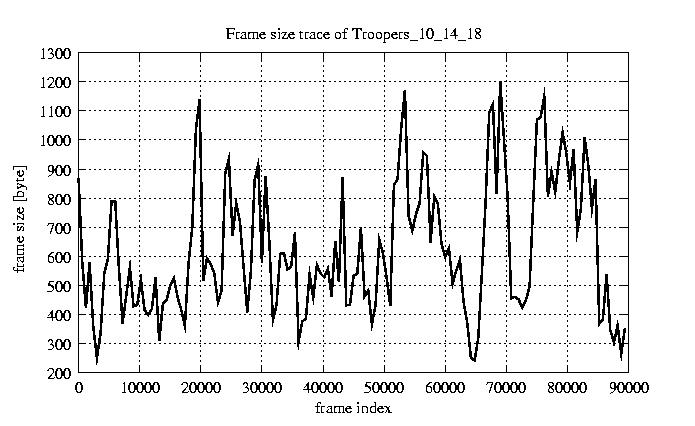

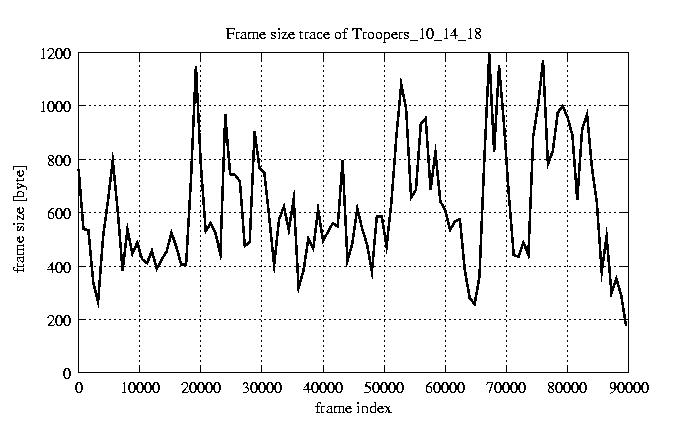

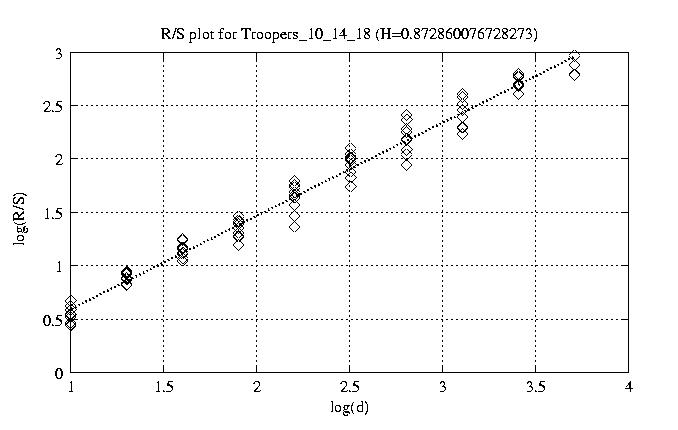

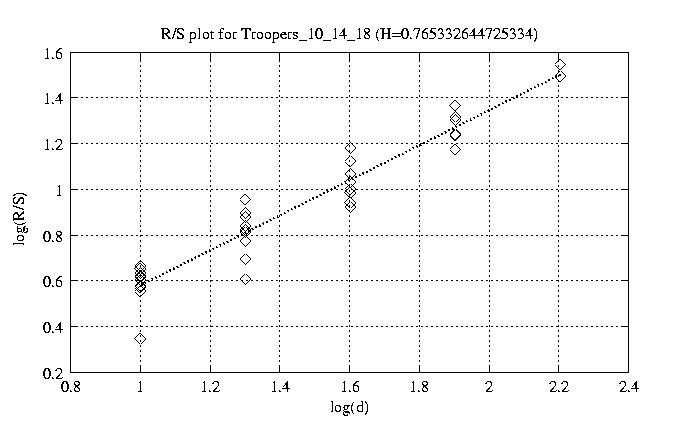

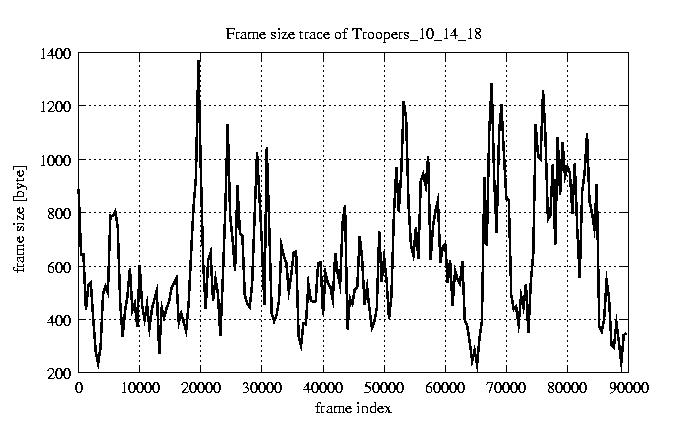

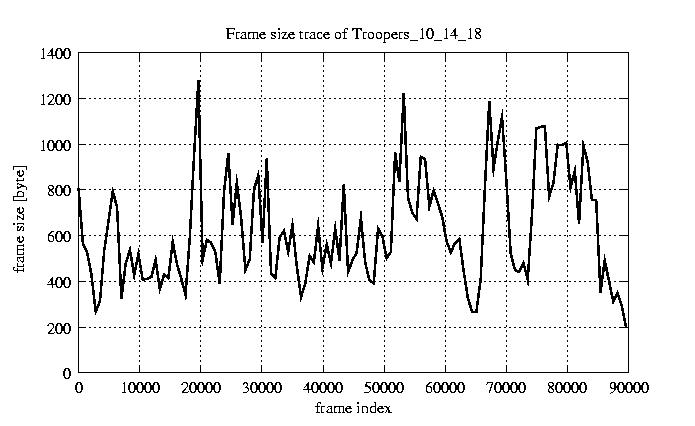

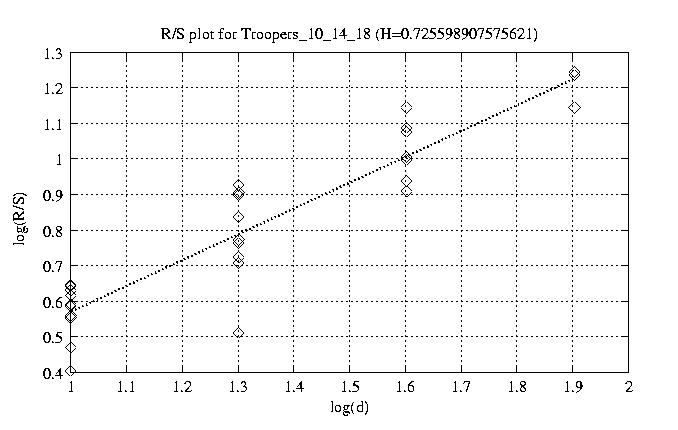

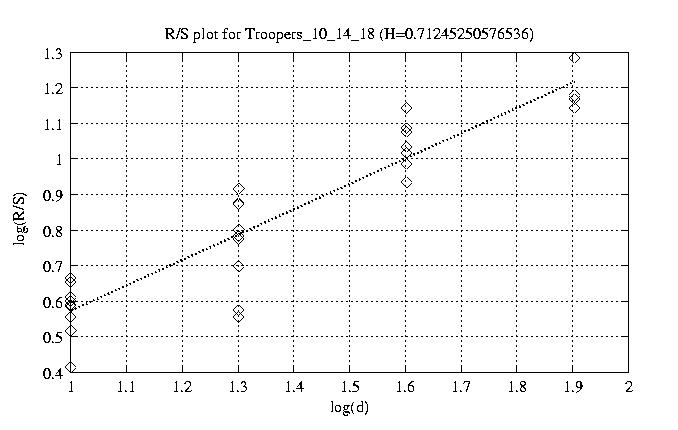

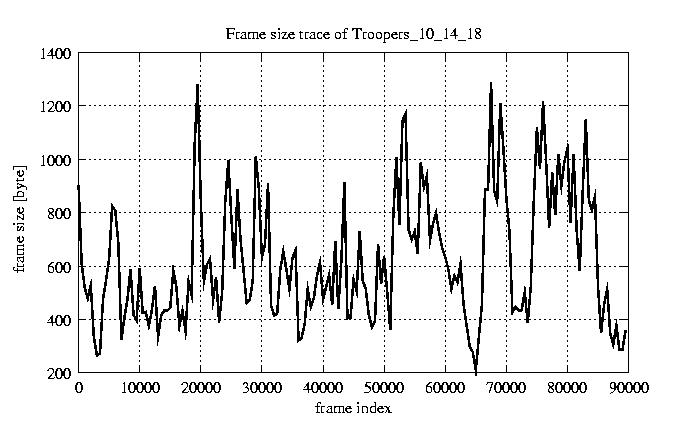

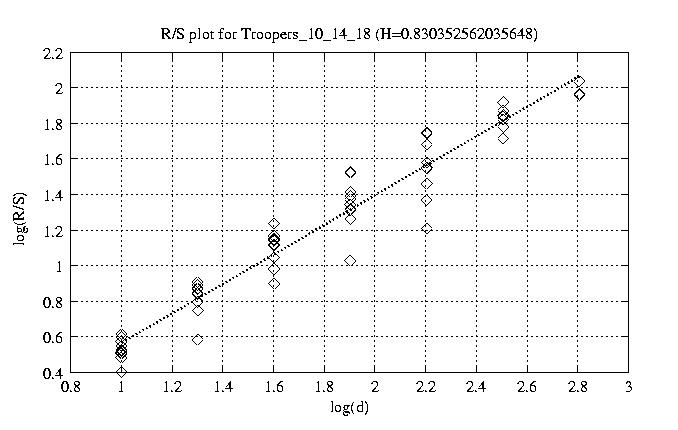

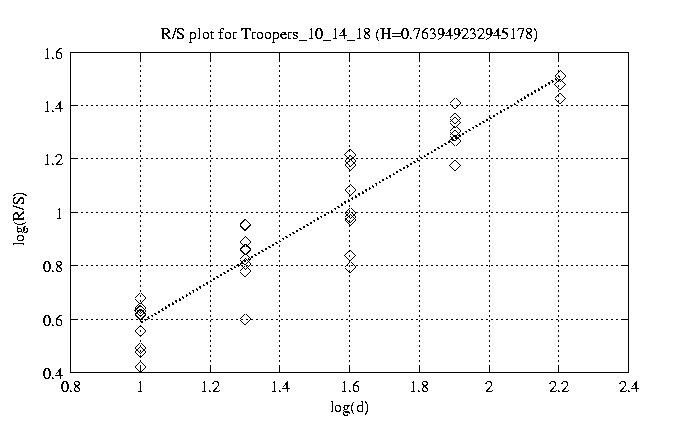

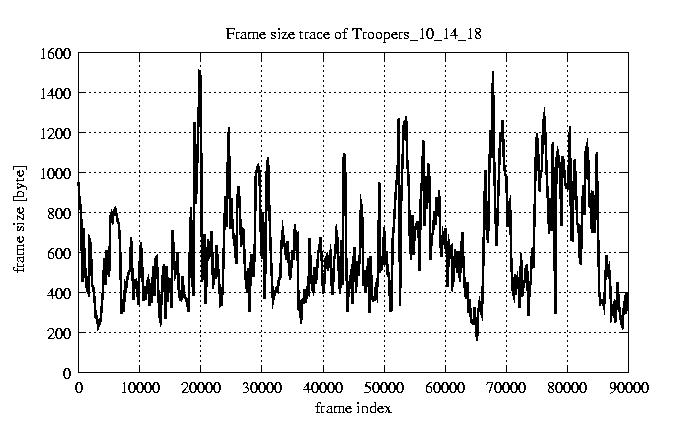

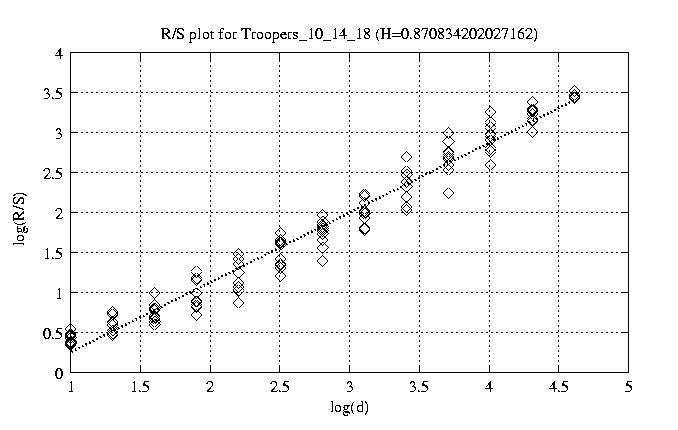

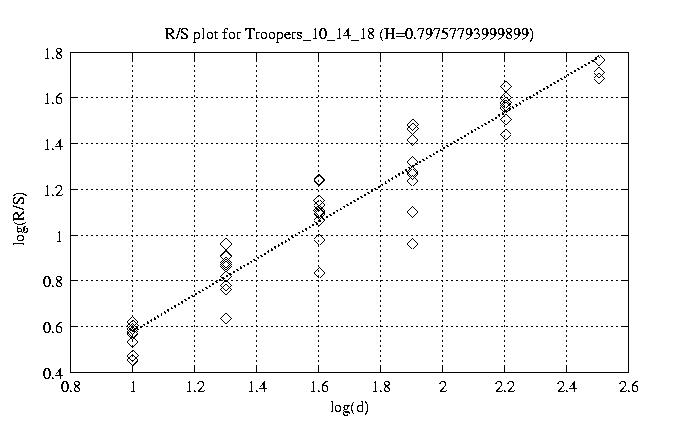

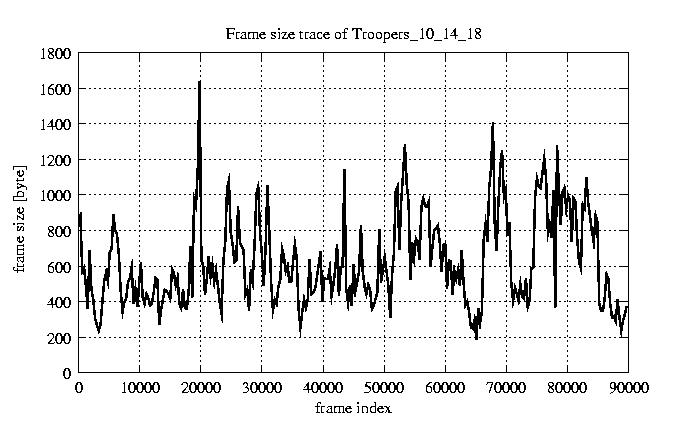

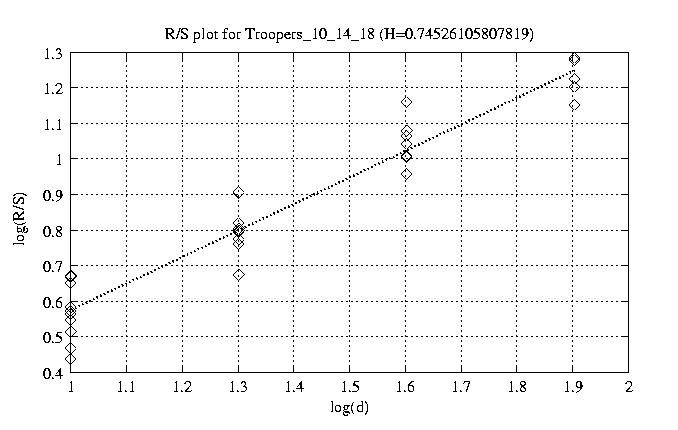

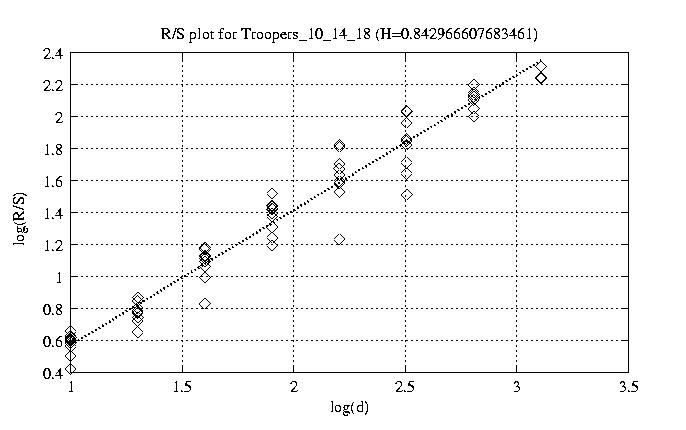

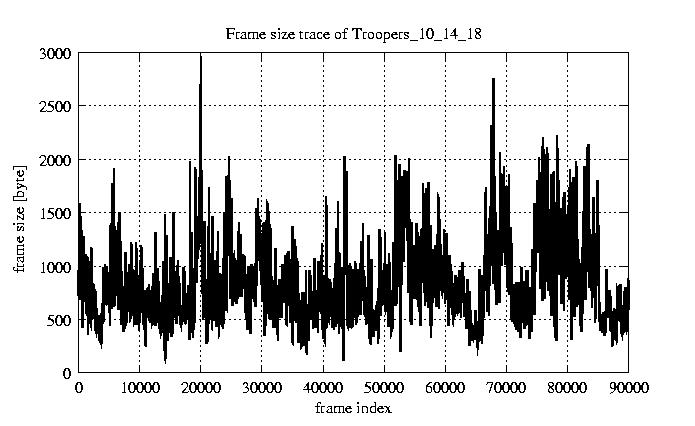

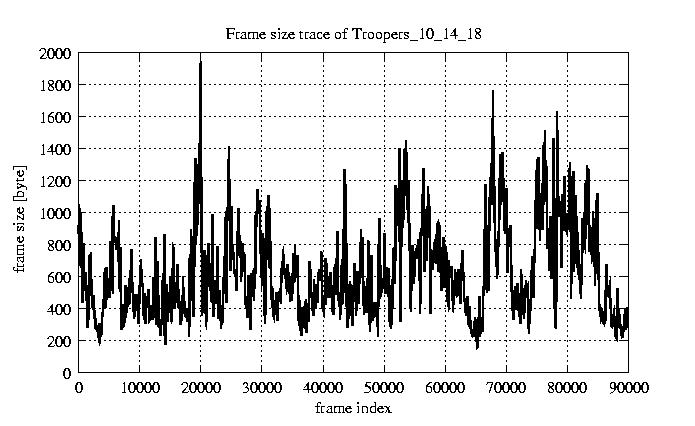

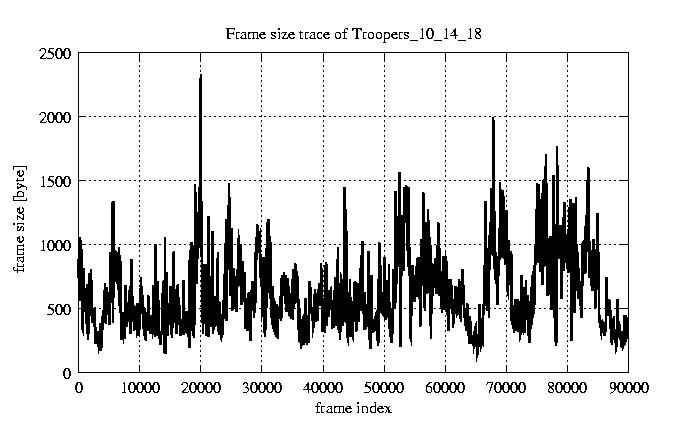

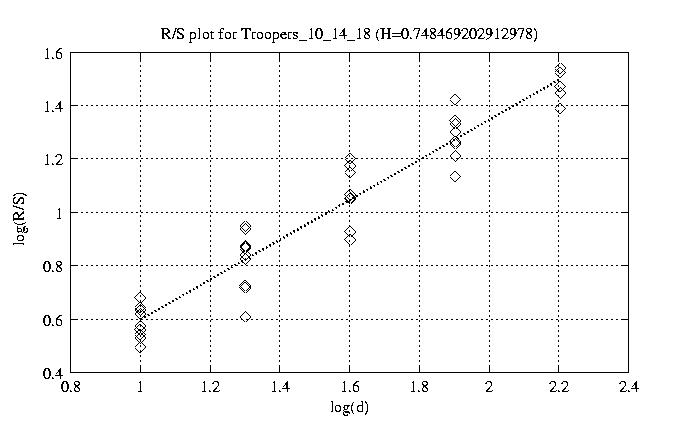

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.871 view view 12 0.873 view view 50 0.843 view view 100 0.830 view view 200 0.798 view view 300 0.748 view view 400 0.764 view view 500 0.765 view view 600 0.745 view view 700 0.712 view view 800 0.726 view view

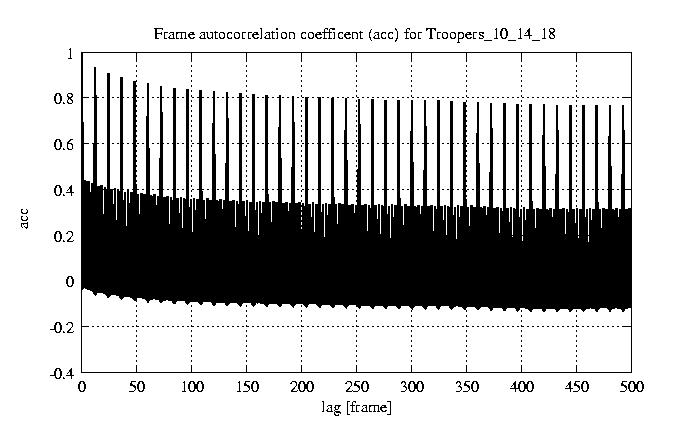

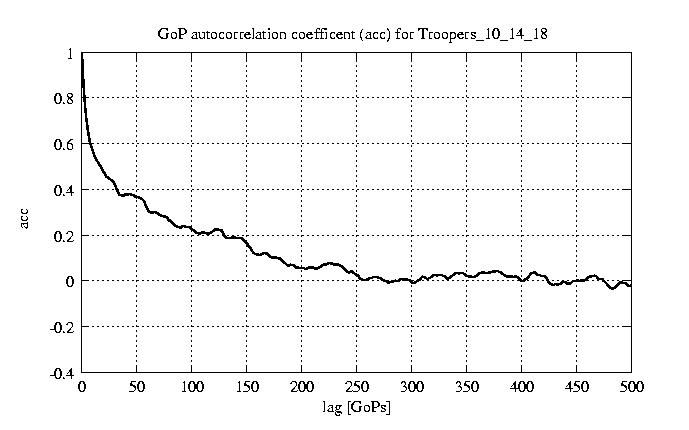

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
