MP4 - First Contact
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 110.94 File Size byte 3.1e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 3.4e+02 var frame size - 2.6e+05 CoV of frame size - 1.50 min frame size byte 26 max frame size byte 5852 Mean bit rate bit/sec 6.9e+04 Peak bit rate bit/sec 1.2e+06 Peak/Mean of bit rate - 17.08 GoP statistics # of GoPs - 7499 mean GoP size byte 4.1e+03 var GoP size - 5e+06 CoV of GoP size - 0.54 min GoP size byte 868 max GoP size byte 24815 Mean bit rate bit/sec 6.9e+04 Peak bit rate bit/sec 4.1e+05 Peak/Mean of bit rate - 6.03 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

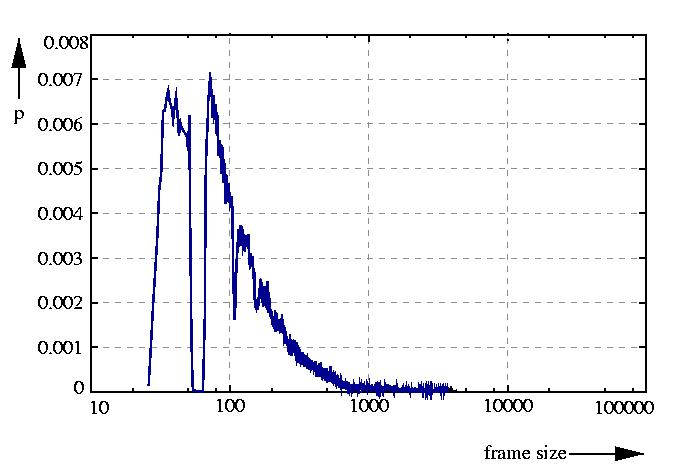

probability density function p

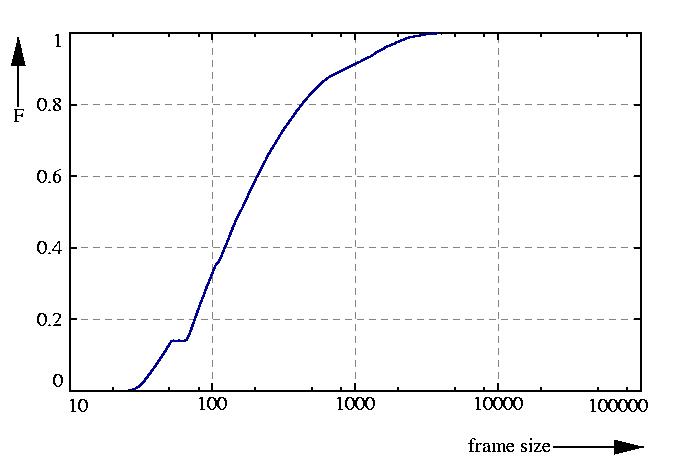

probability function F = sum p

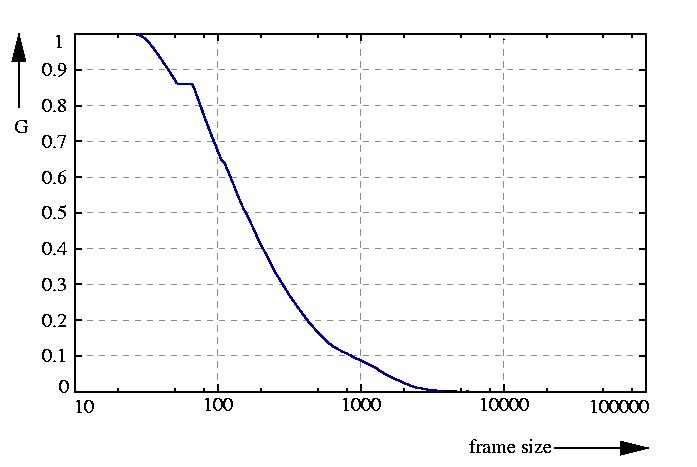

inverse probability function G = 1 - F

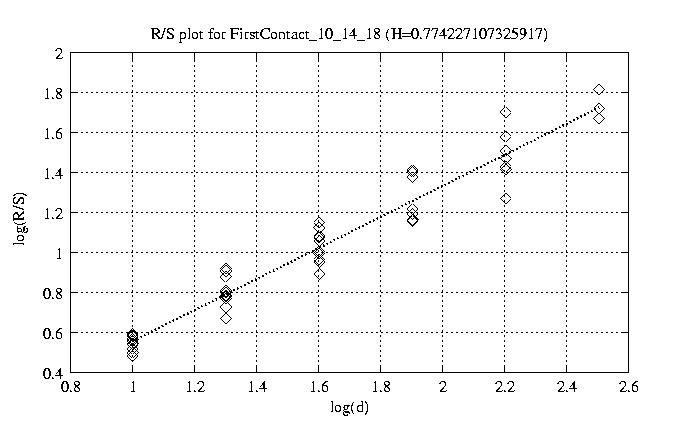

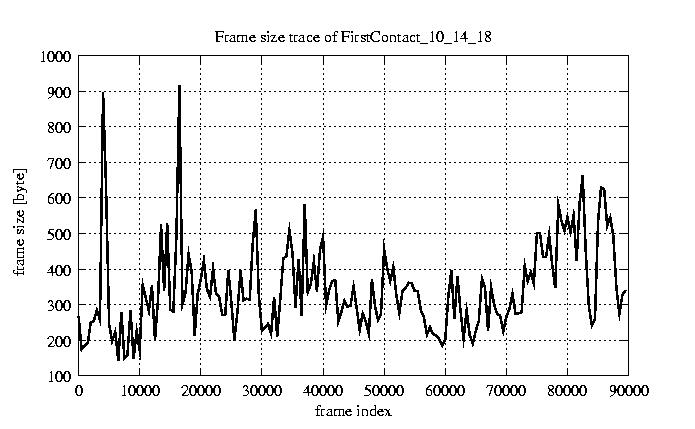

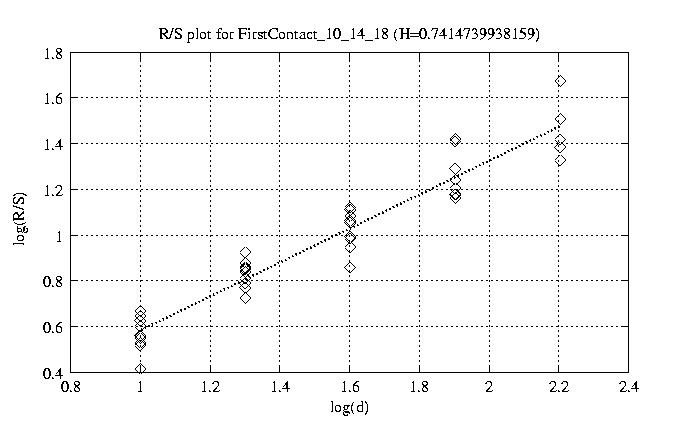

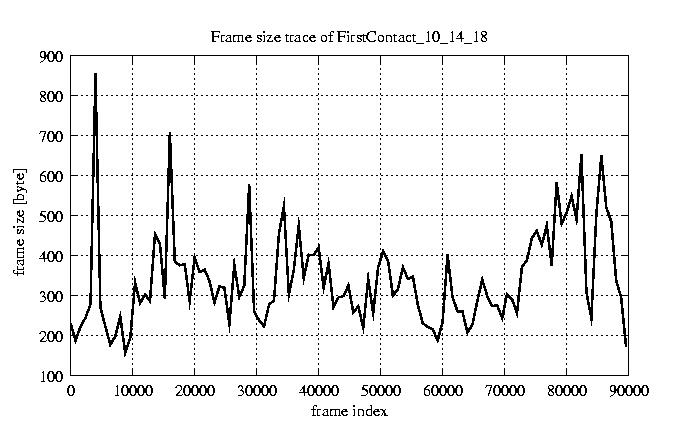

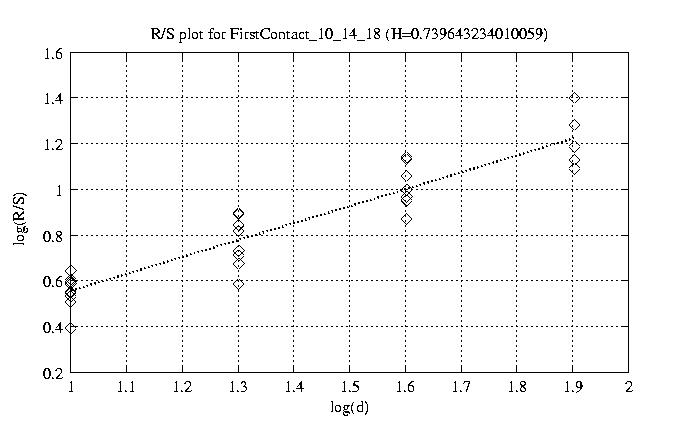

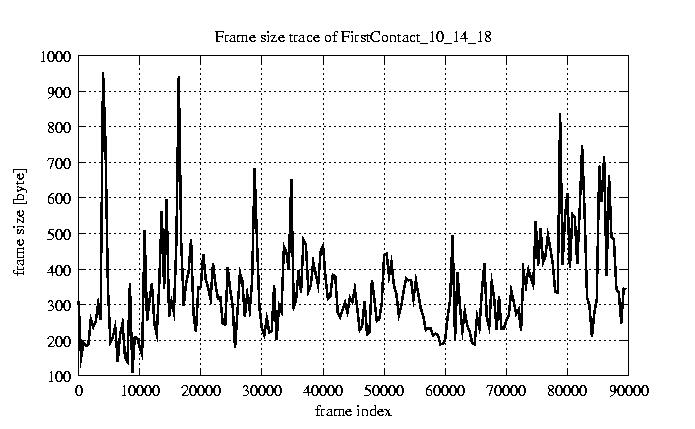

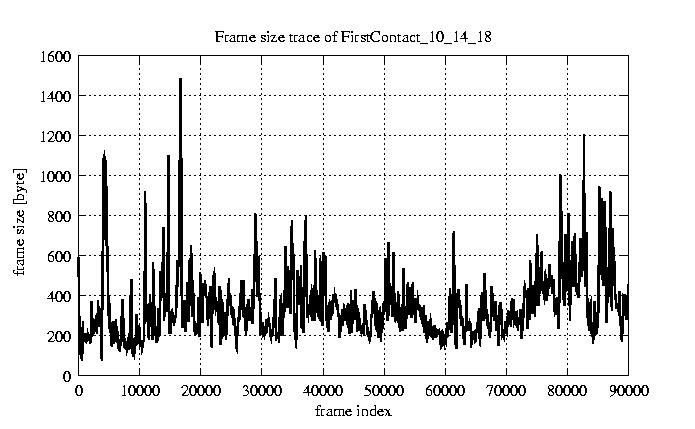

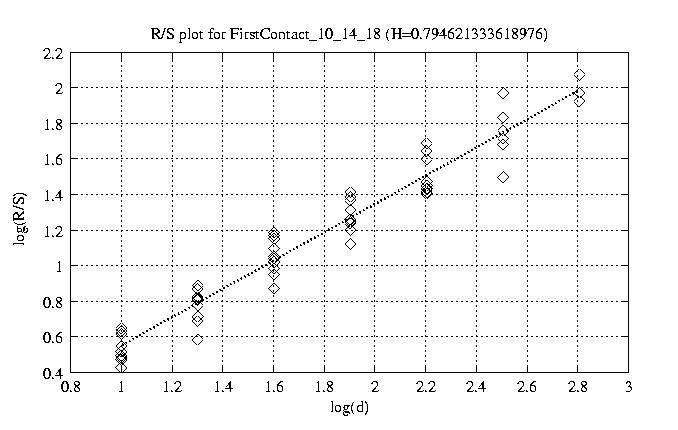

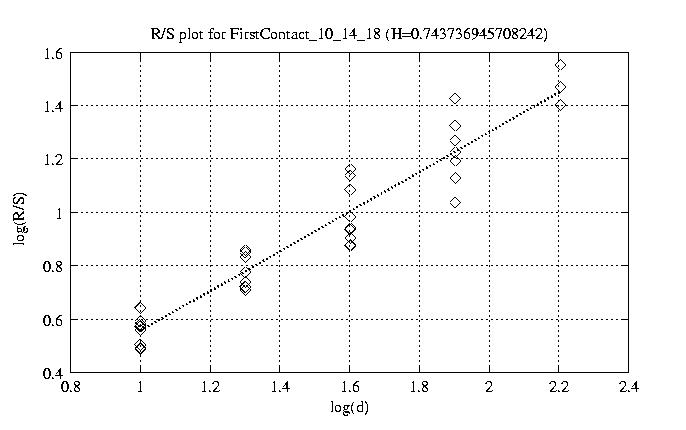

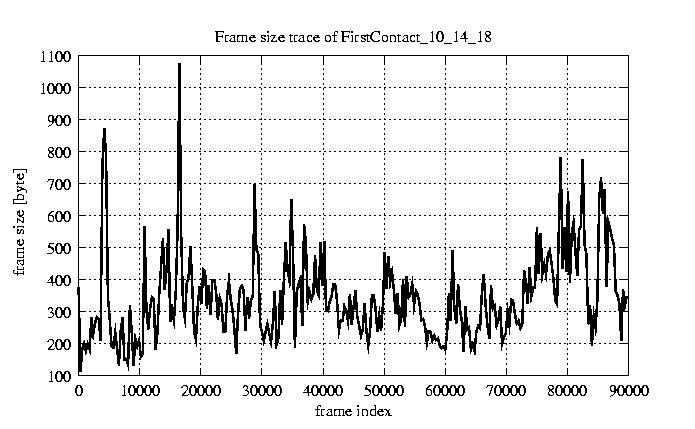

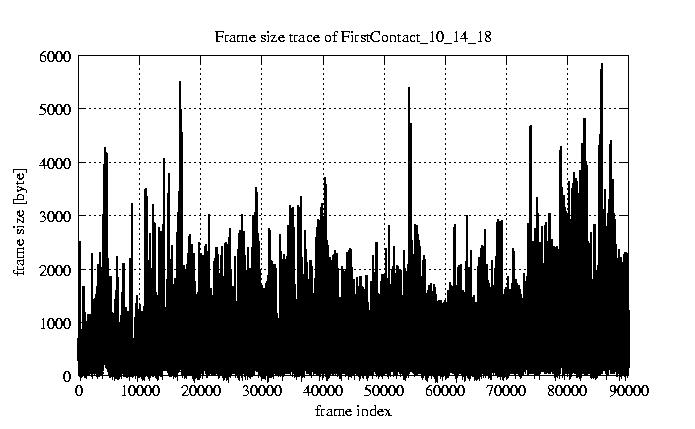

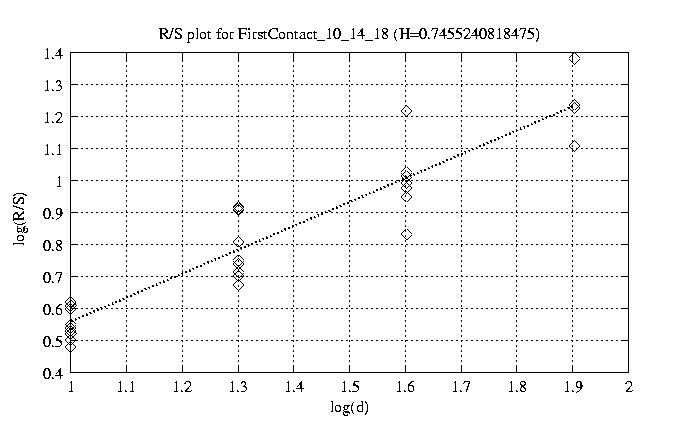

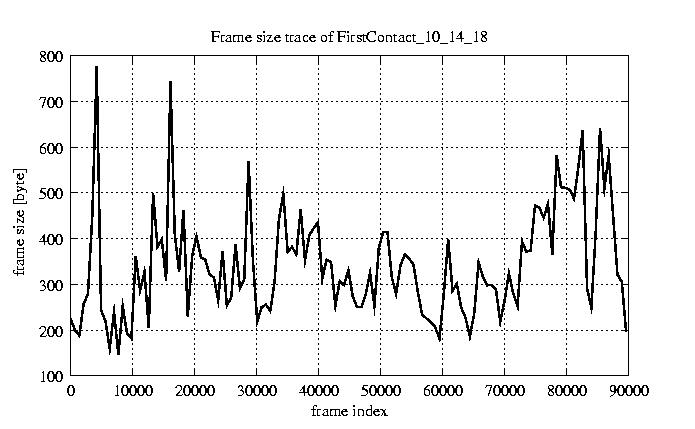

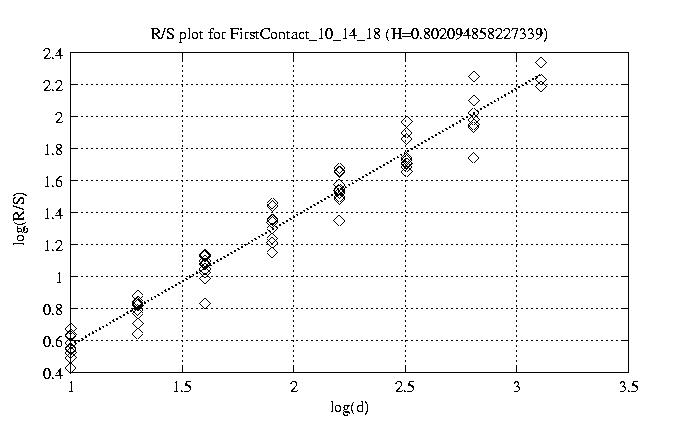

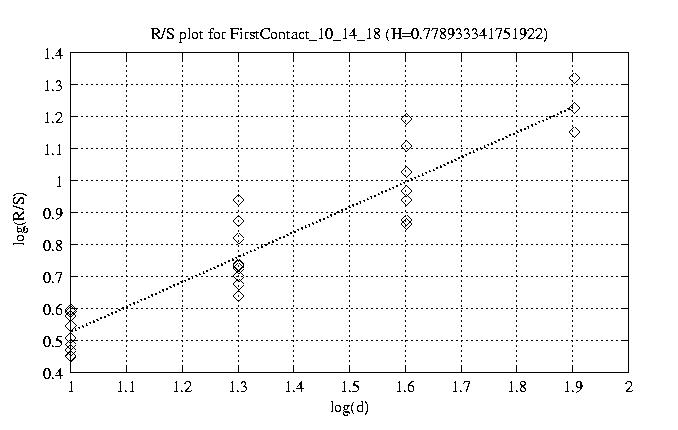

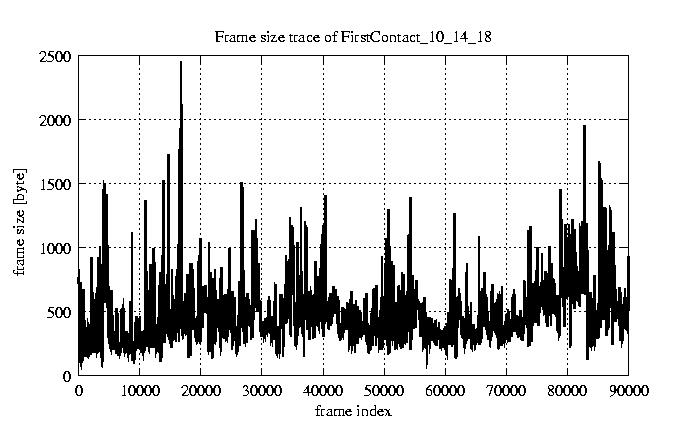

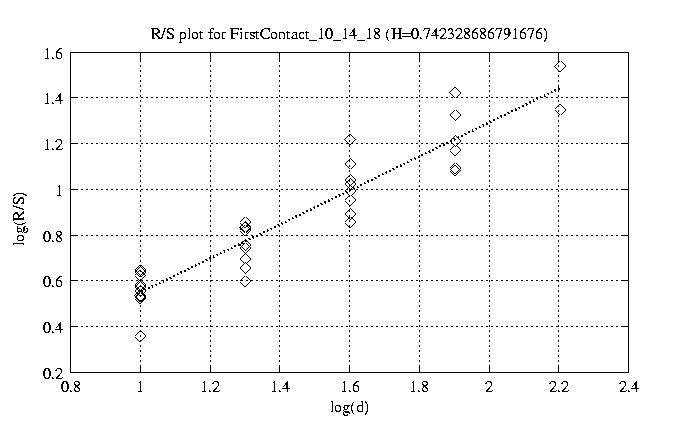

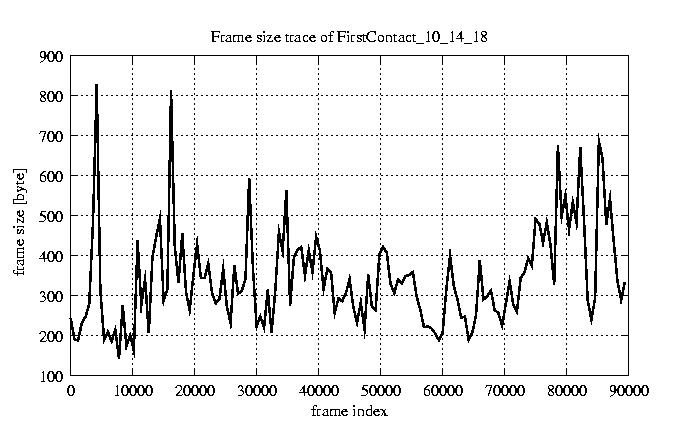

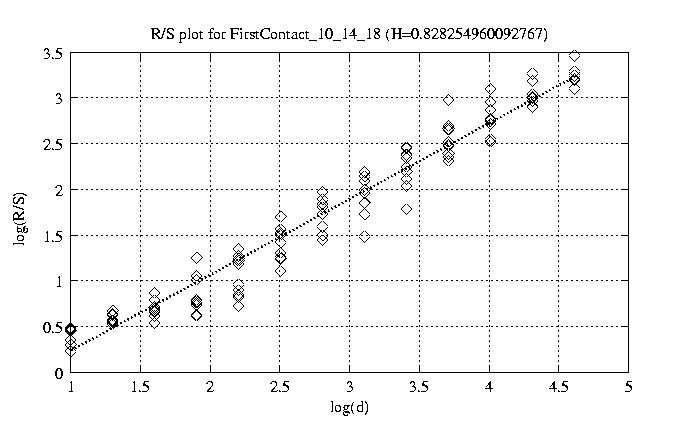

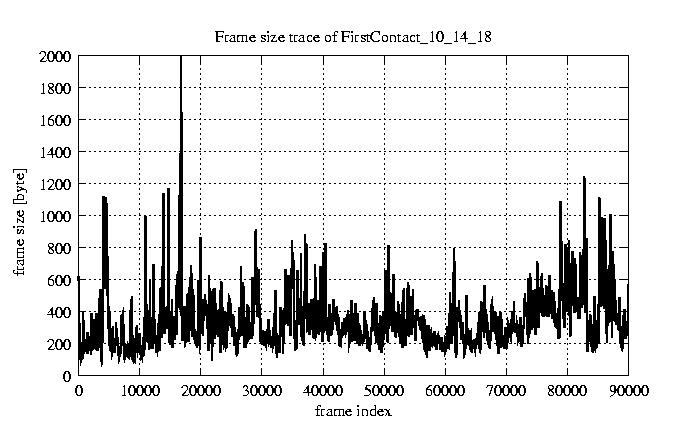

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.828 view view 12 0.834 view view 50 0.802 view view 100 0.795 view view 200 0.774 view view 300 0.741 view view 400 0.744 view view 500 0.742 view view 600 0.740 view view 700 0.746 view view 800 0.779 view view

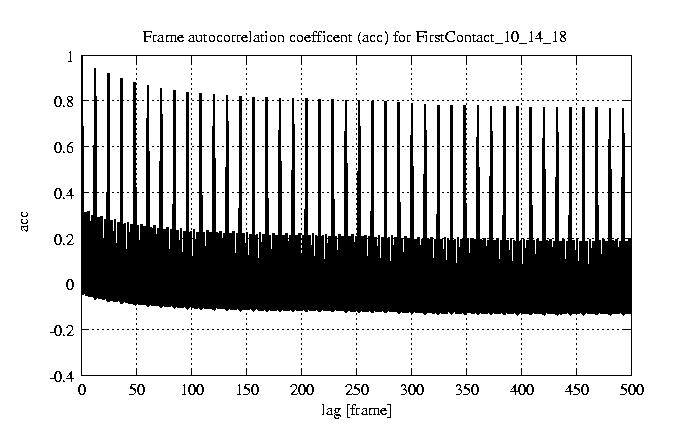

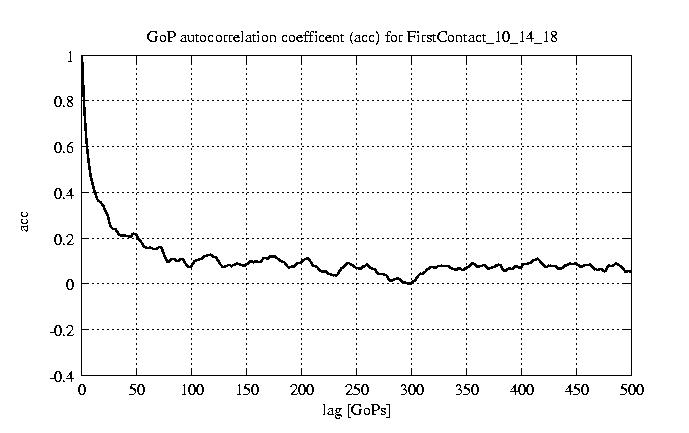

other plots	autocorrelation function of frames autocorrelation function of GoPs
