H263 - Futurama
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.95 118.95 File size byte 9.6e+06 9.6e+06 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30029.00 8194.00 mean frame size byte 319.61 1171.28 var frame size - 331103.02 215842.96 CoV of frame size - 1.80 0.40 min frame size byte 0.00 44.00 max frame size byte 7289.00 7289.00 Peak/Mean frame - 22.81 6.22 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.5e+05 Peak/Mean of bit rate - 5.5 CoV of bit rate - 0.45 max inter frame space frames 1.00 32.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

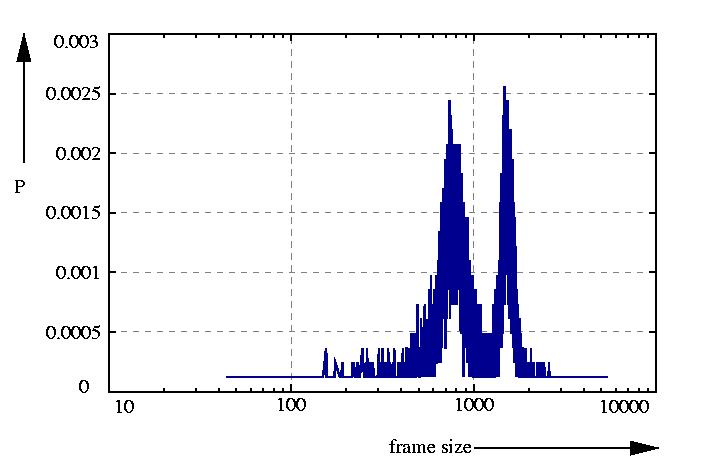

probability density function p

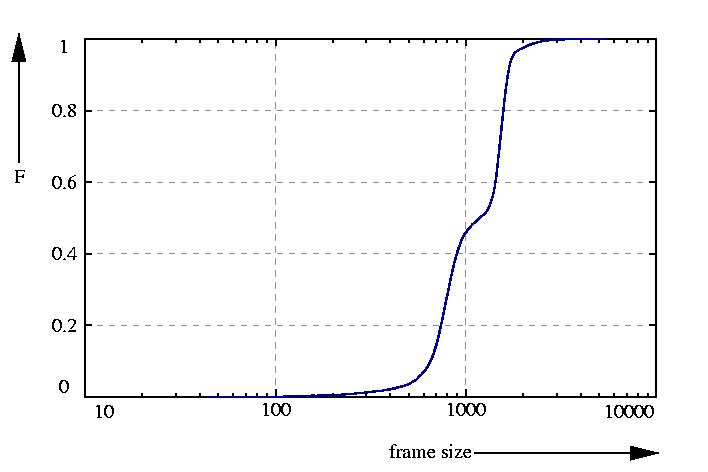

probability function F = sum p

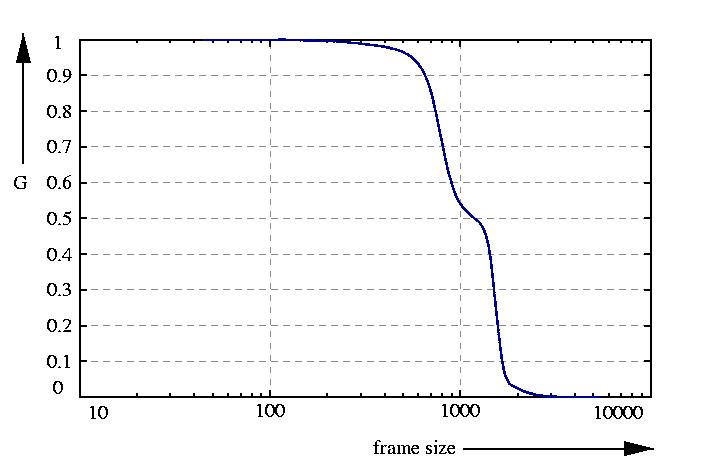

inverse probability function G = 1 - F

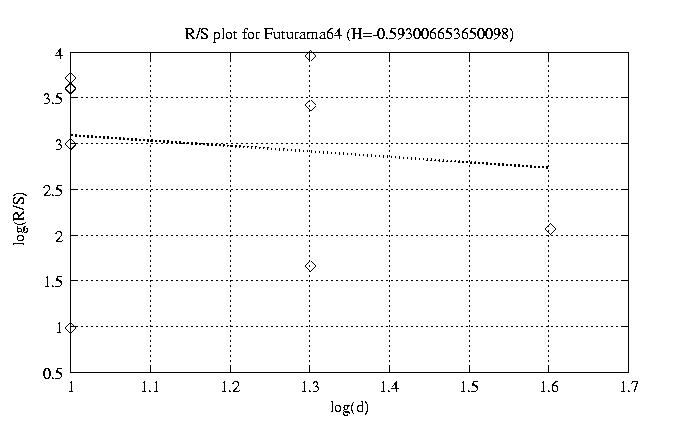

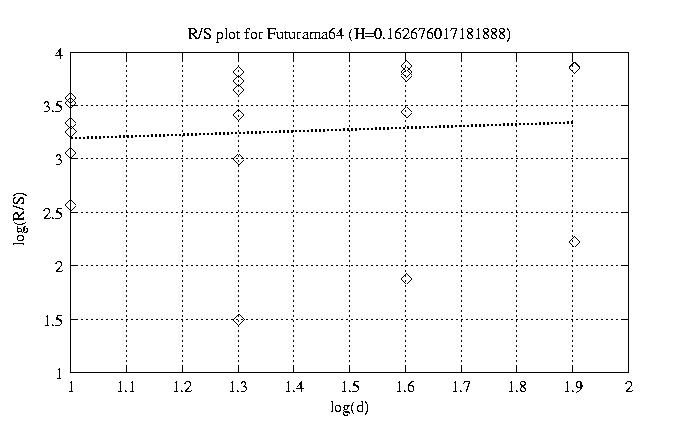

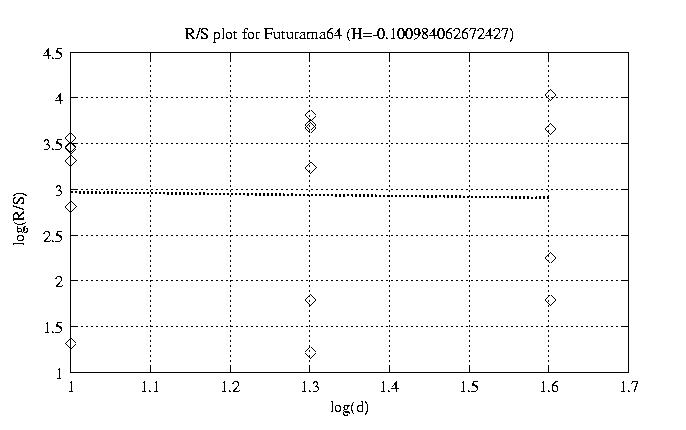

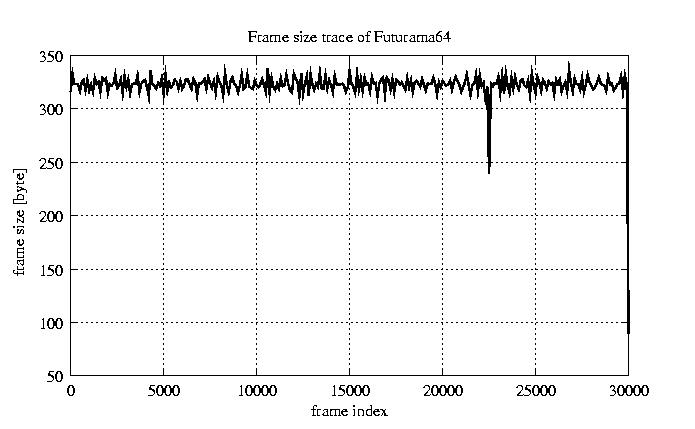

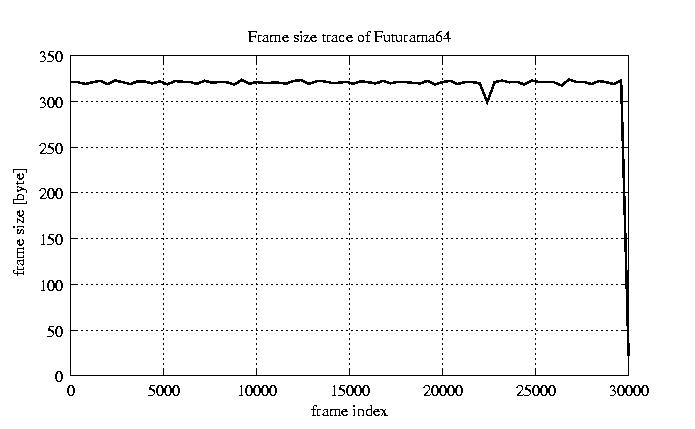

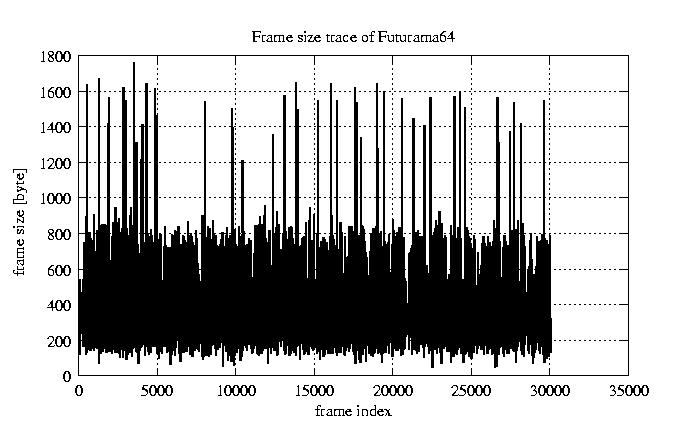

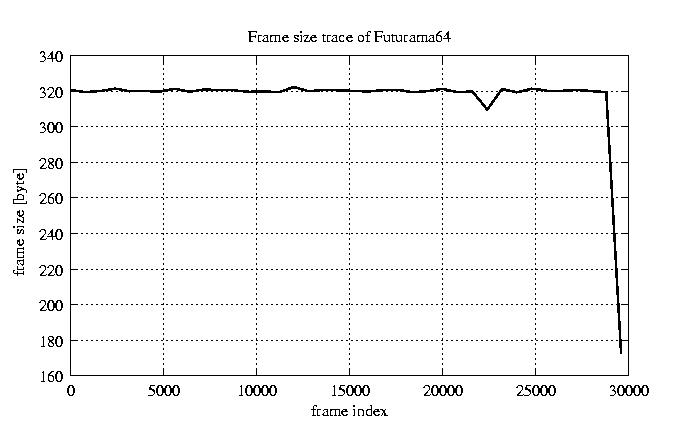

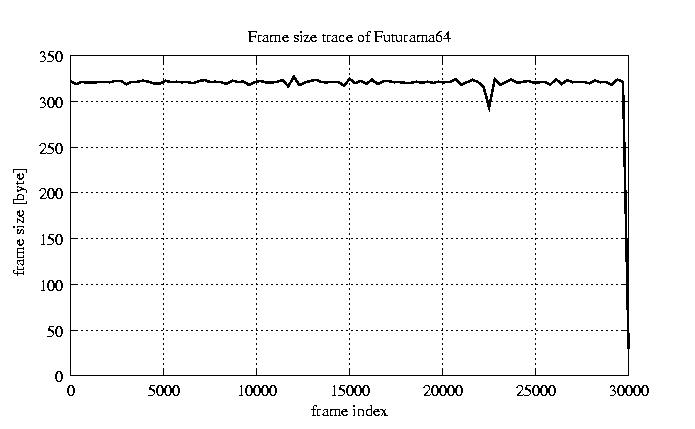

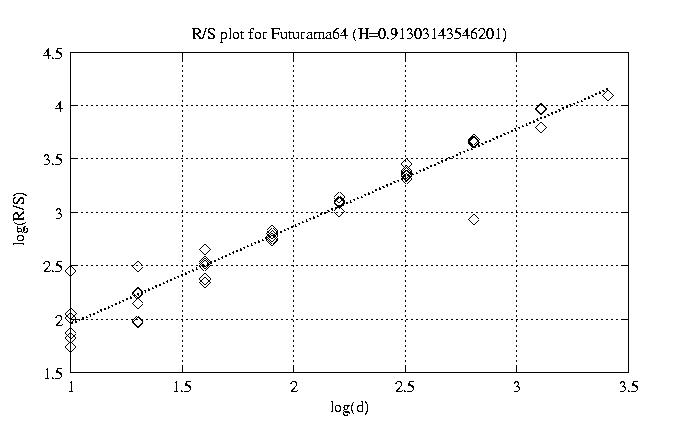

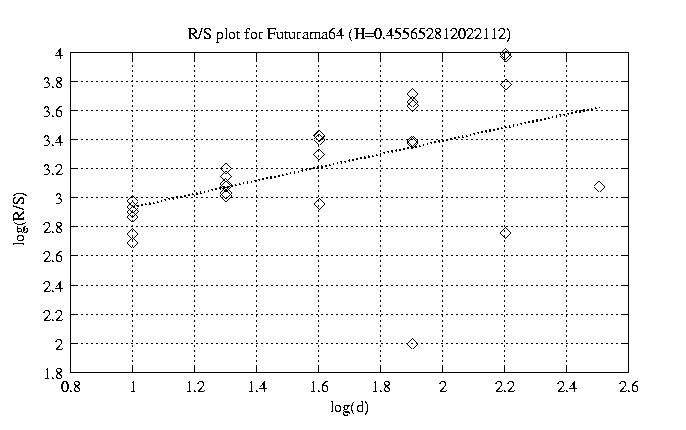

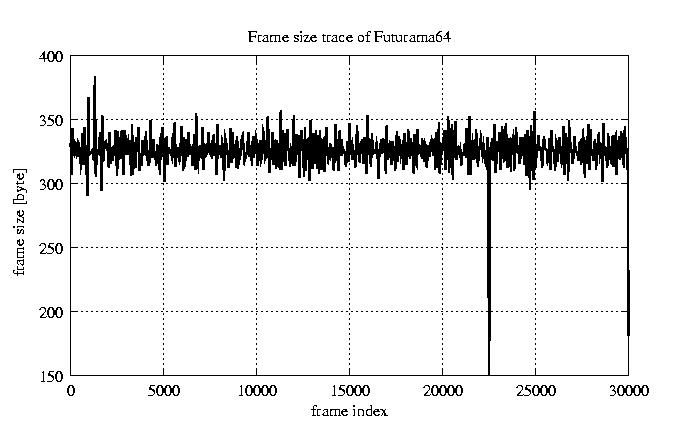

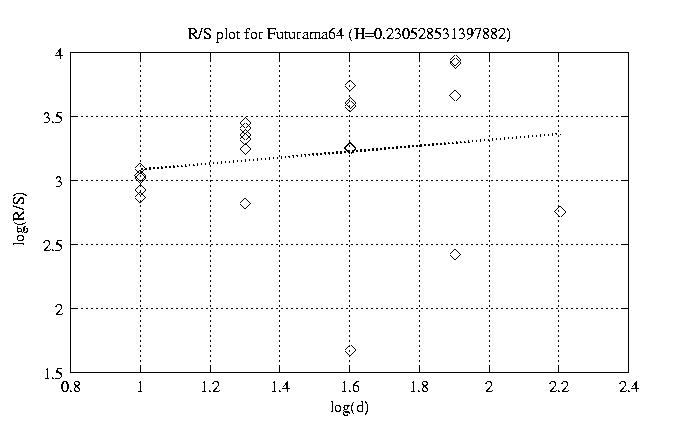

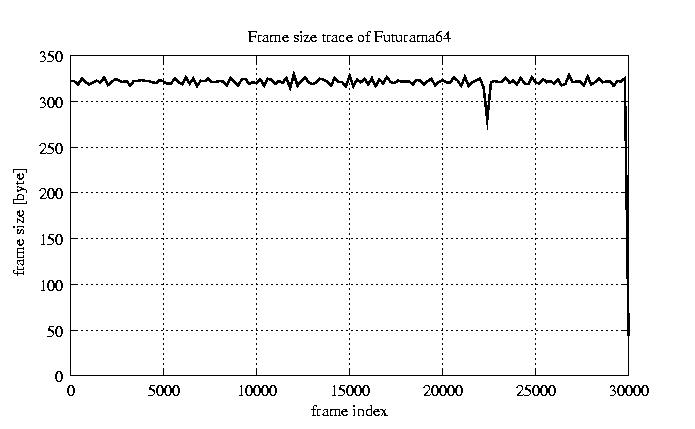

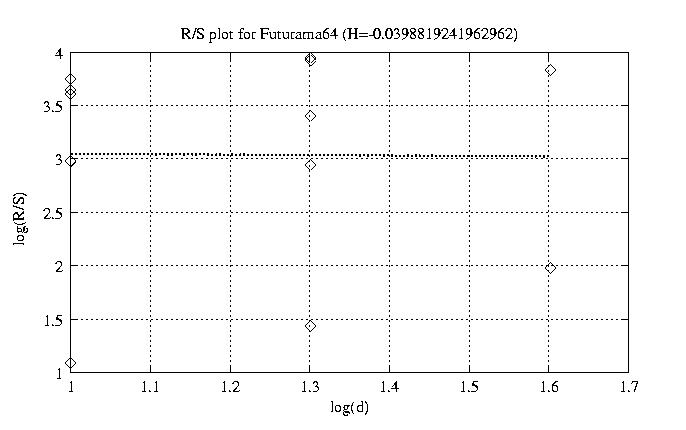

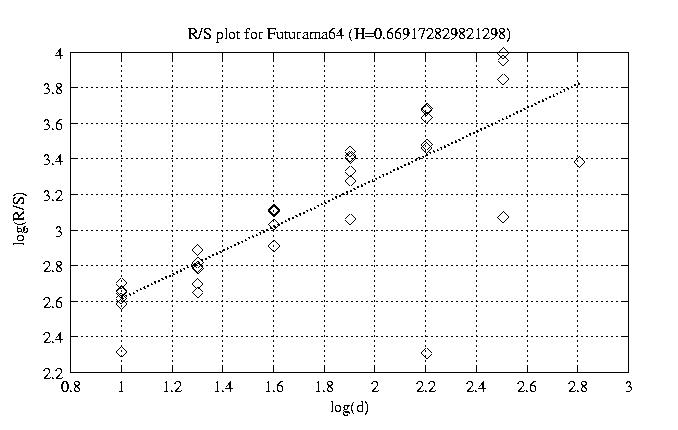

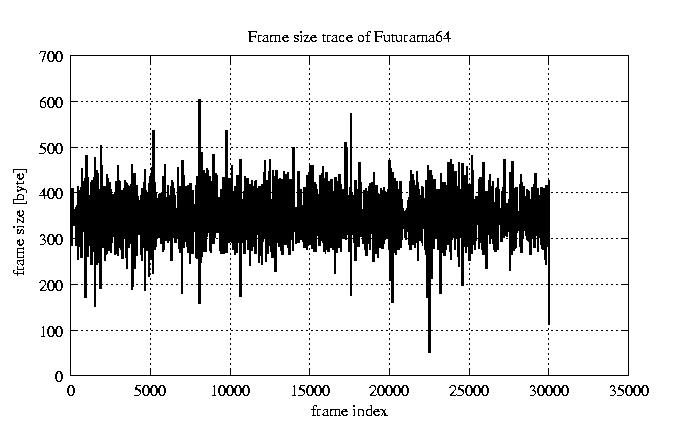

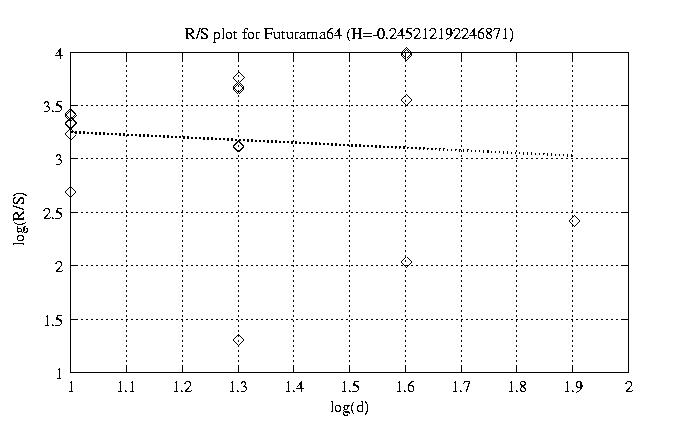

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.900 view view 12 0.913 view view 50 0.669 view view 100 0.456 view view 200 0.231 view view 300 0.163 view view 400 -0.245 view view 500 -0.101 view view 600 0.097 view view 700 -0.040 view view 800 -0.593 view view

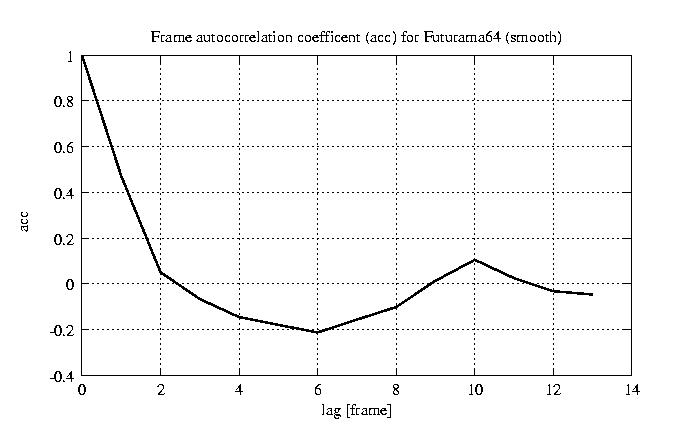

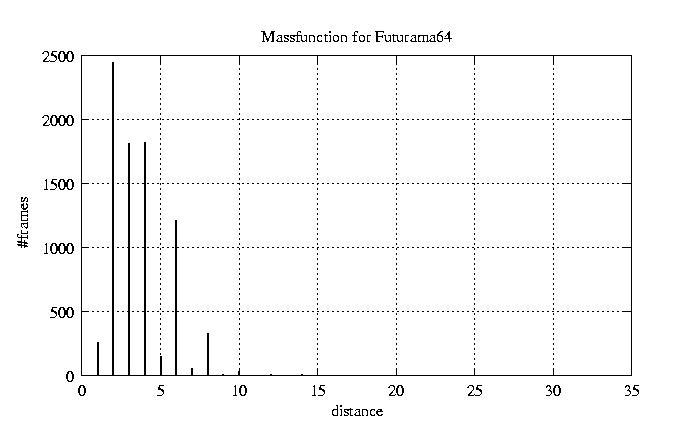

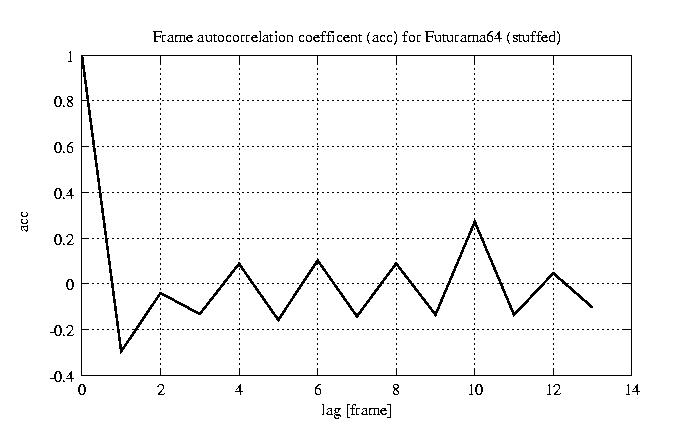

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
