H263 - Jurassic Park
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 17.08 17.08 File size byte 2e+08 2e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 50199.00 mean frame size byte 2225.26 3993.31 var frame size - 7534029.52 6459712.47 CoV of frame size - 1.23 0.64 min frame size byte 0.00 24.00 max frame size byte 18168.00 18168.00 Peak/Mean frame - 8.16 4.55 Mean bit rate bit/sec 4.5e+05 Peak bit rate bit/sec 3.4e+06 Peak/Mean of bit rate - 7.7 CoV of bit rate - 0.69 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

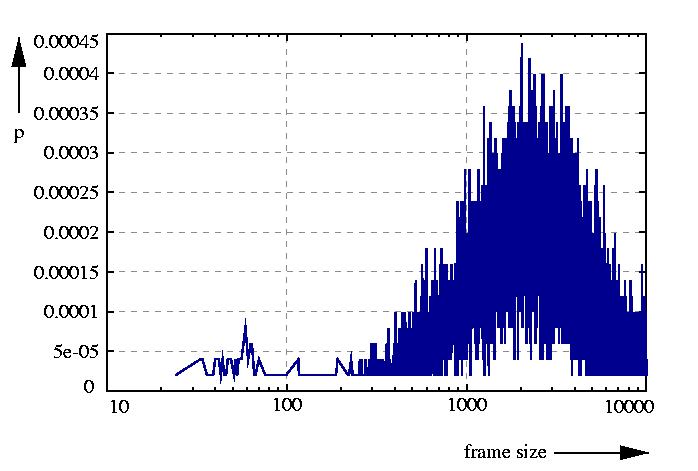

probability density function p

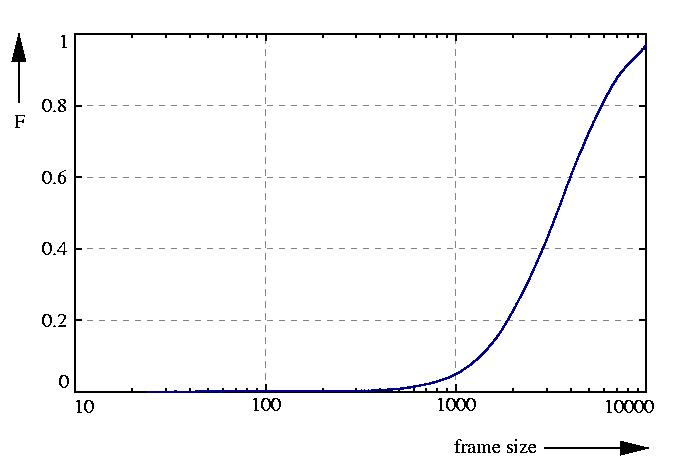

probability function F = sum p

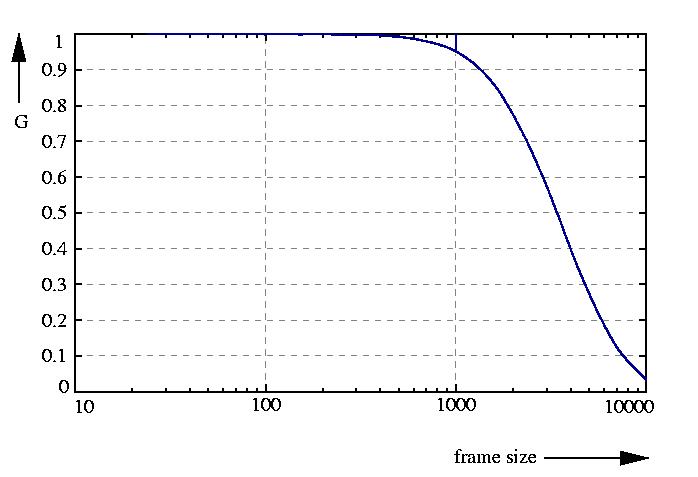

inverse probability function G = 1 - F

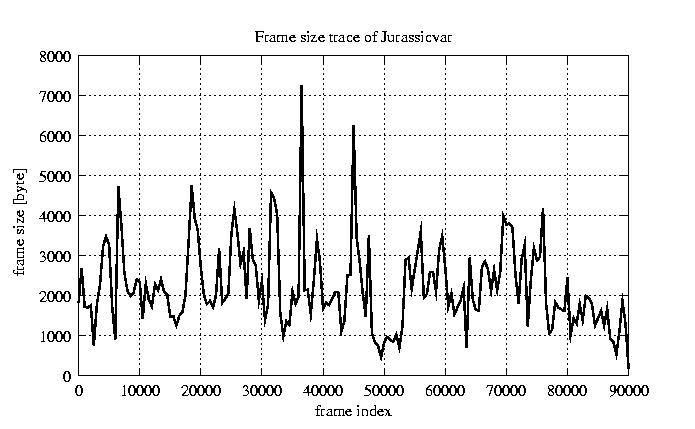

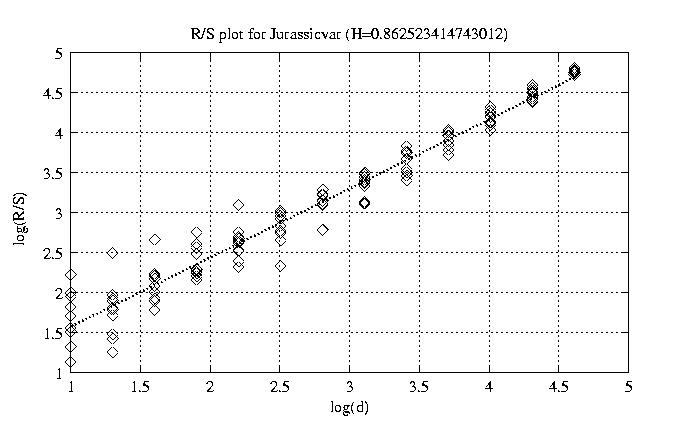

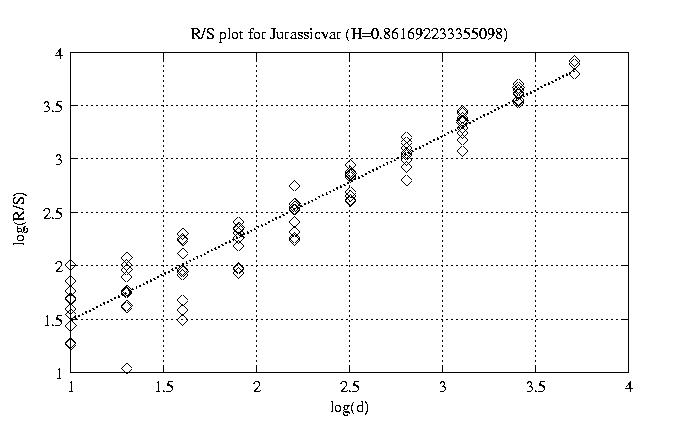

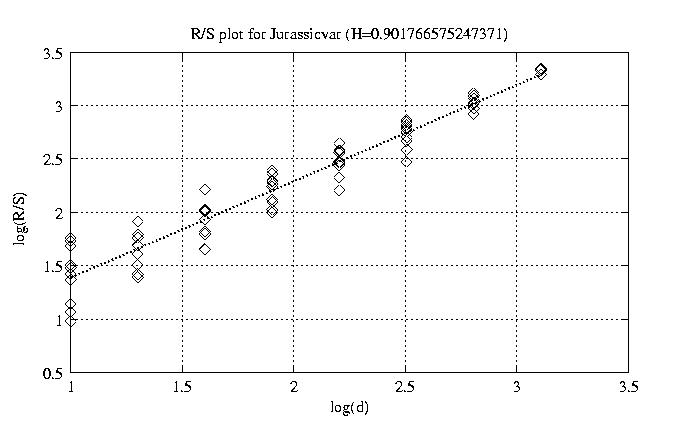

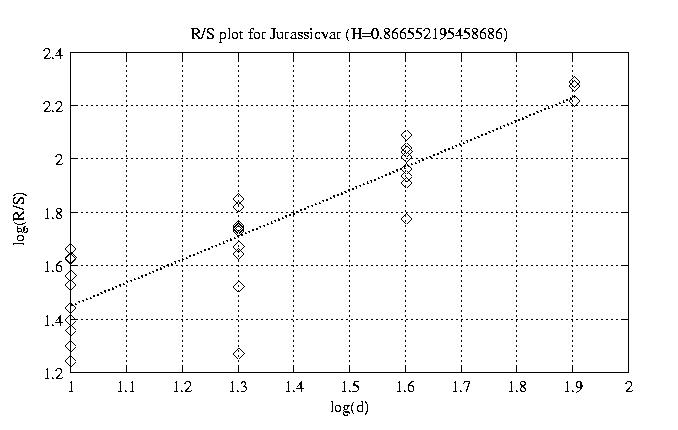

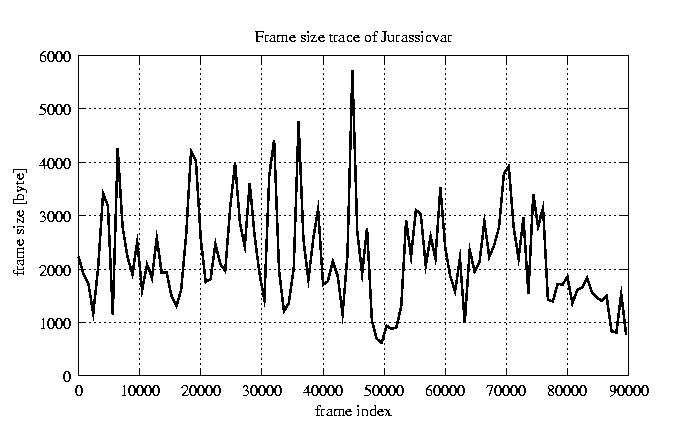

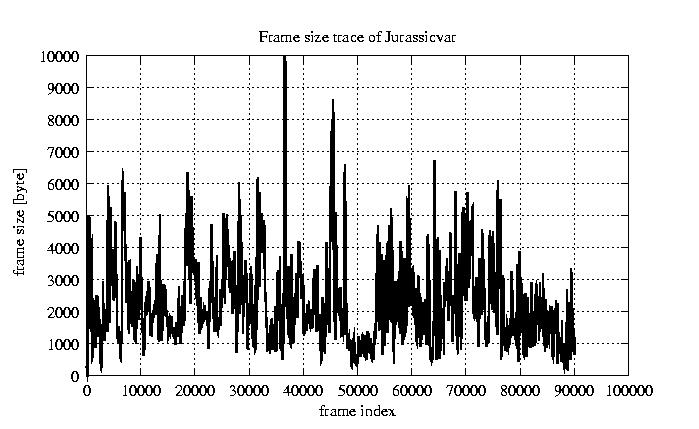

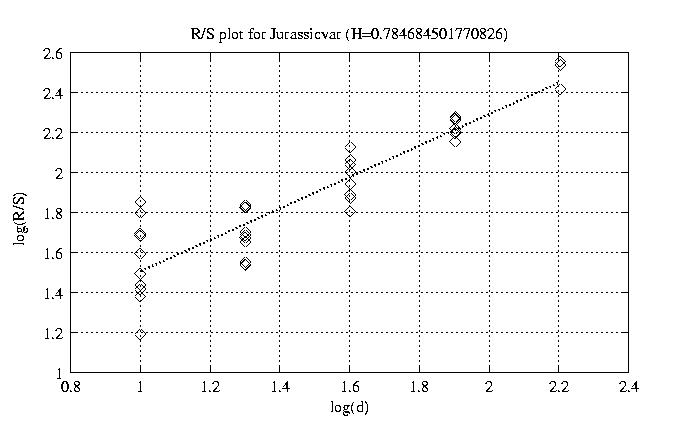

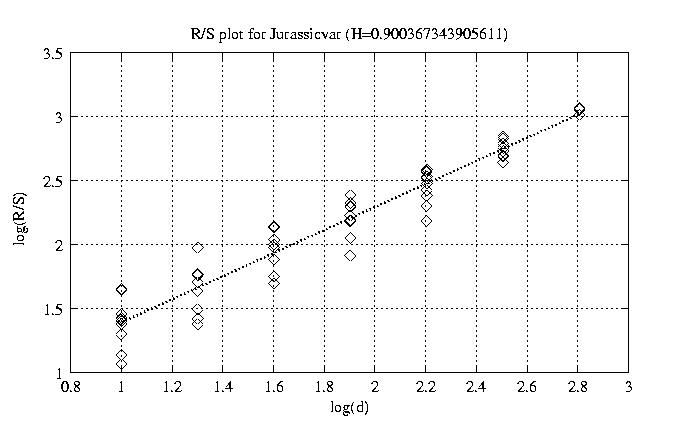

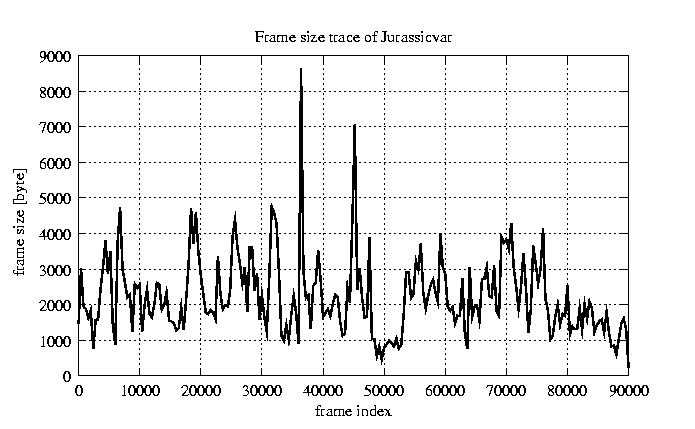

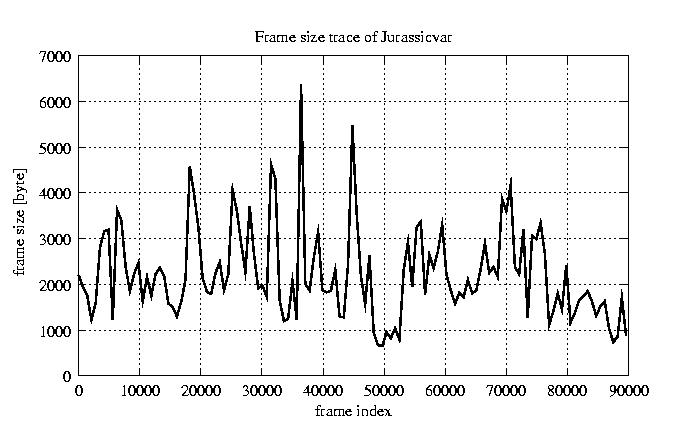

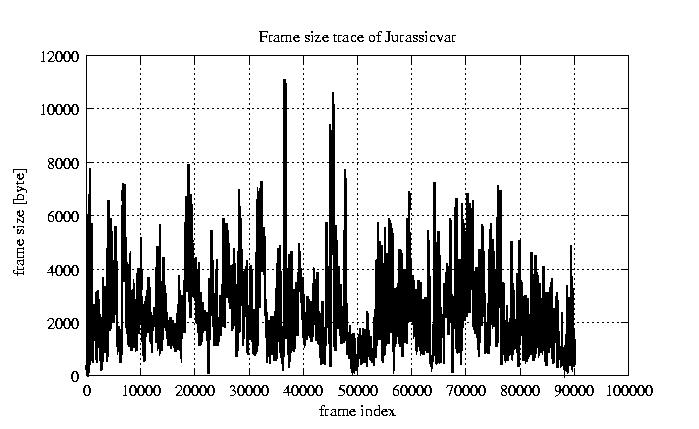

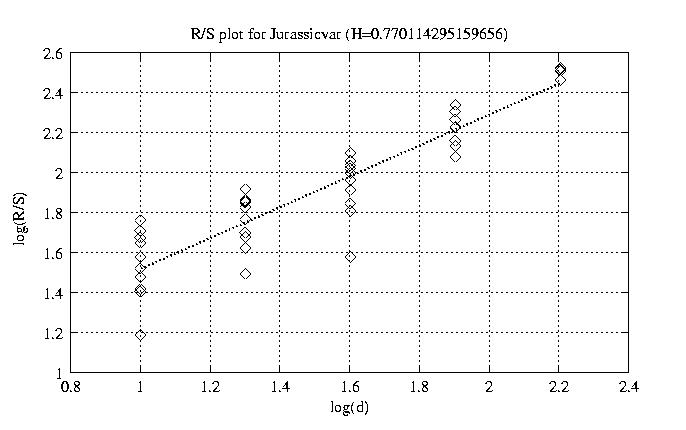

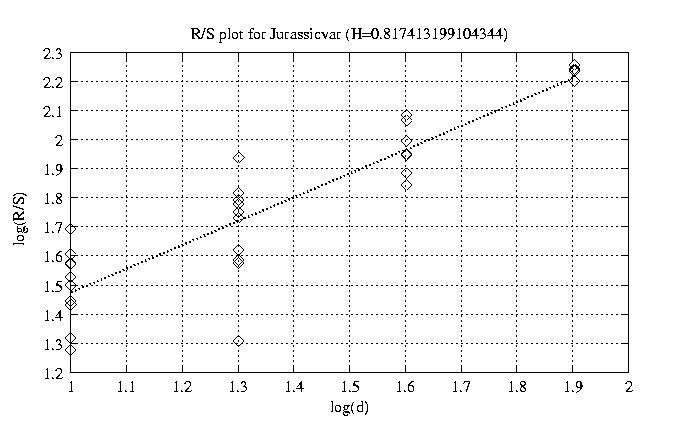

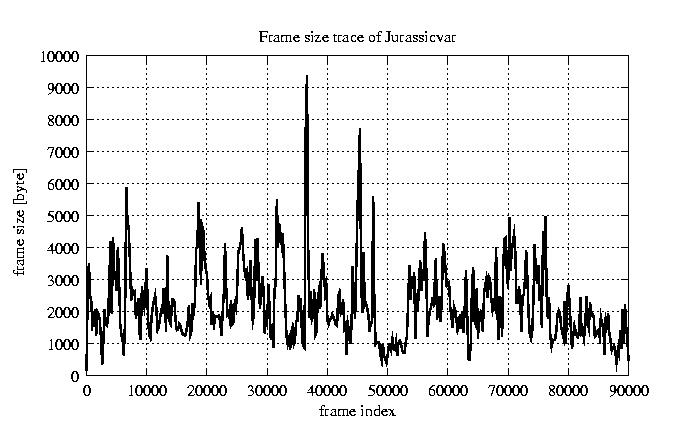

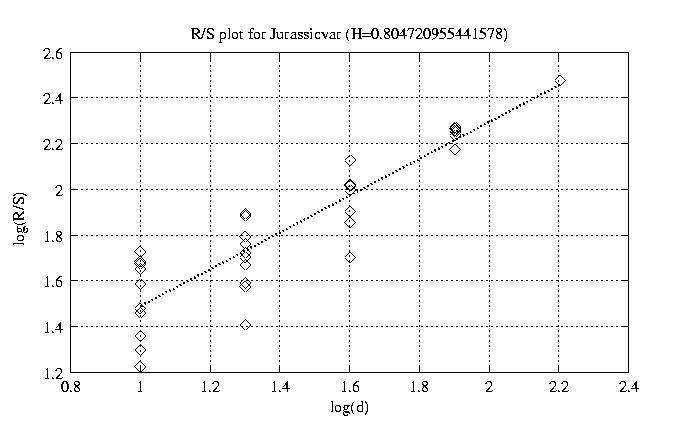

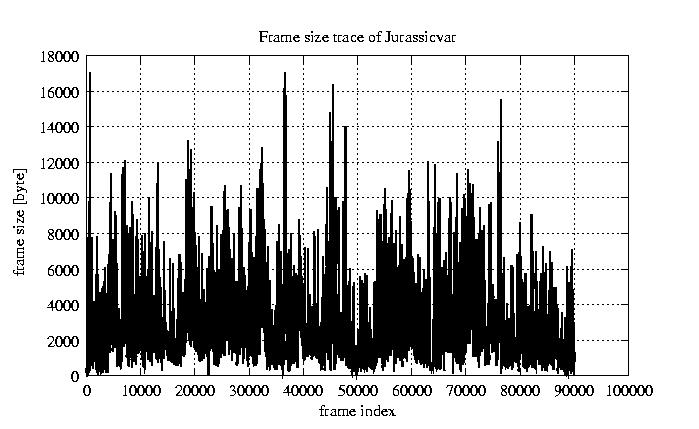

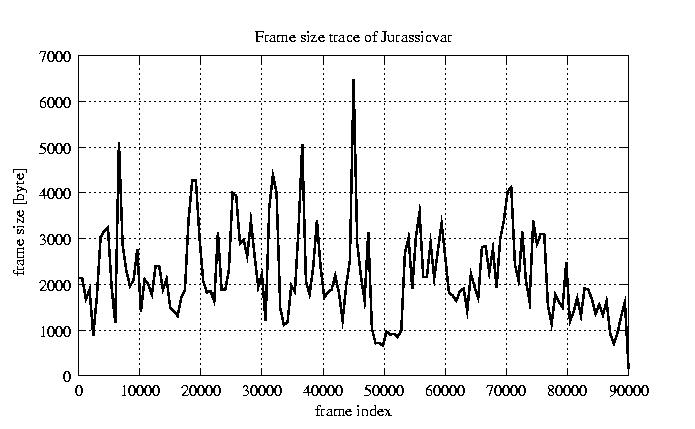

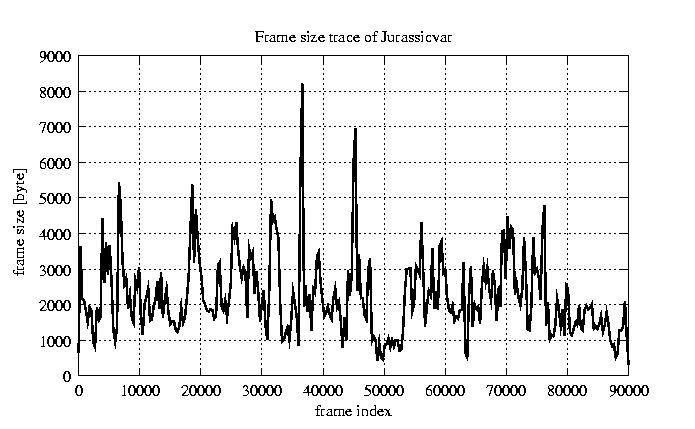

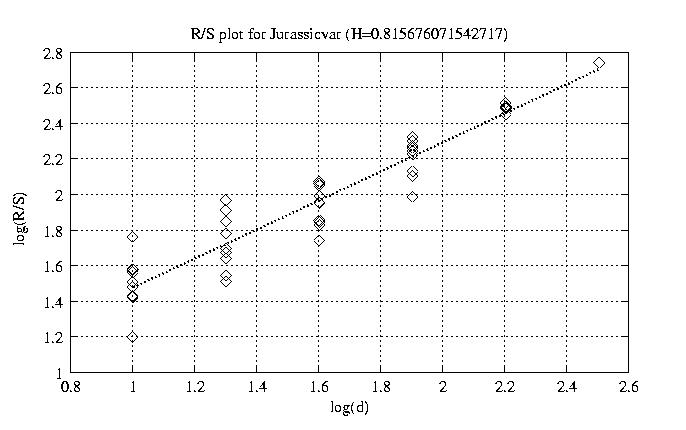

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.863 view view 12 0.862 view view 50 0.902 view view 100 0.900 view view 200 0.867 view view 300 0.816 view view 400 0.770 view view 500 0.785 view view 600 0.805 view view 700 0.817 view view 800 0.867 view view

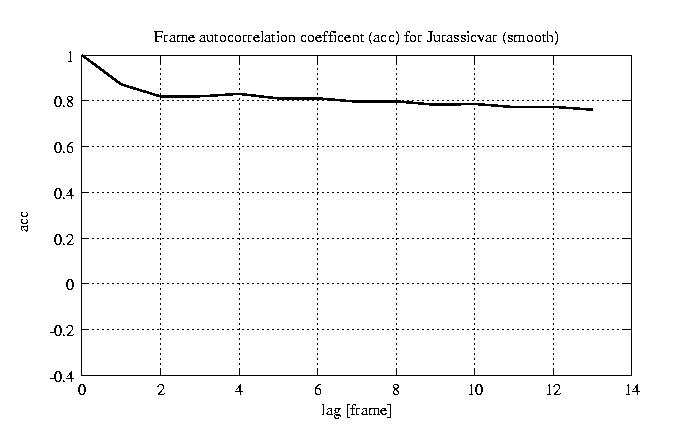

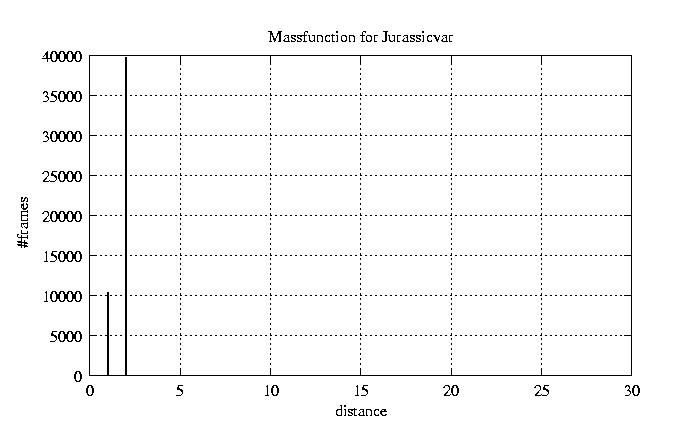

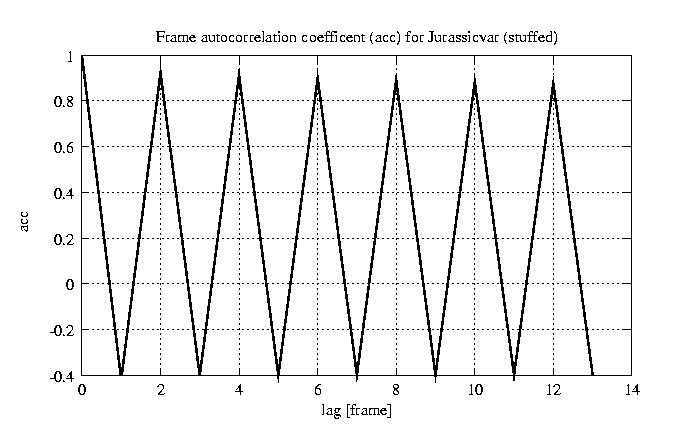

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
