MP4 - Jurassic Park
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 28.40 File Size byte 1.2e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 1.3e+03 var frame size - 1.3e+06 CoV of frame size - 0.84 min frame size byte 26 max frame size byte 8511 Mean bit rate bit/sec 2.7e+05 Peak bit rate bit/sec 1.7e+06 Peak/Mean of bit rate - 6.36 GoP statistics # of GoPs - 7499 mean GoP size byte 1.6e+04 var GoP size - 8.5e+07 CoV of GoP size - 0.57 min GoP size byte 851 max GoP size byte 62889 Mean bit rate bit/sec 2.7e+05 Peak bit rate bit/sec 1e+06 Peak/Mean of bit rate - 3.92 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

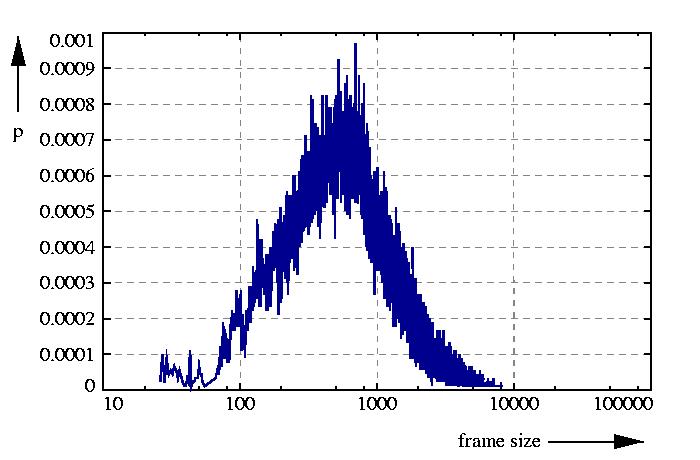

probability density function p

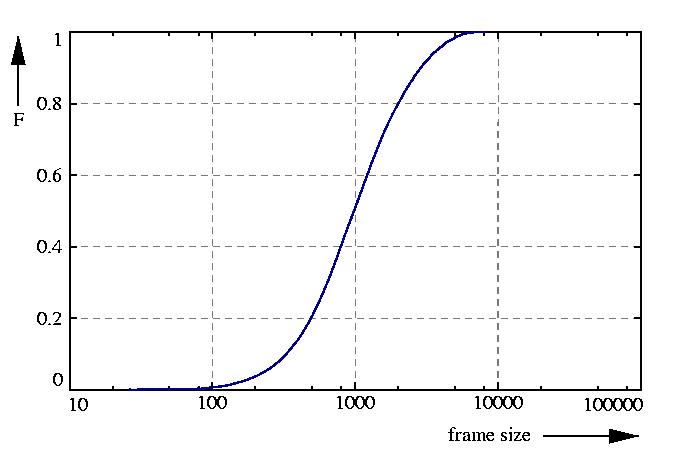

probability function F = sum p

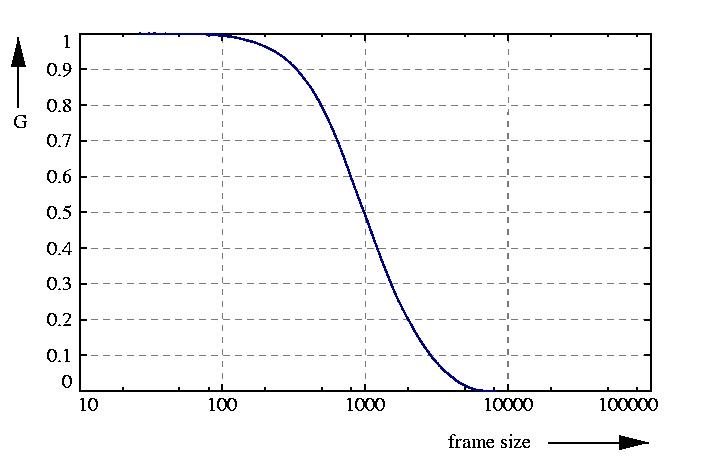

inverse probability function G = 1 - F

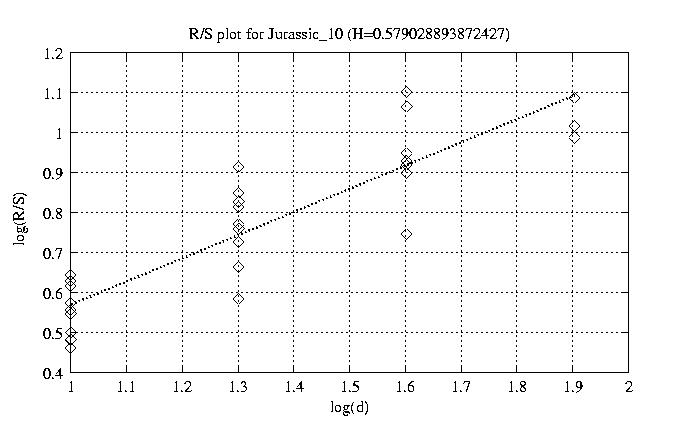

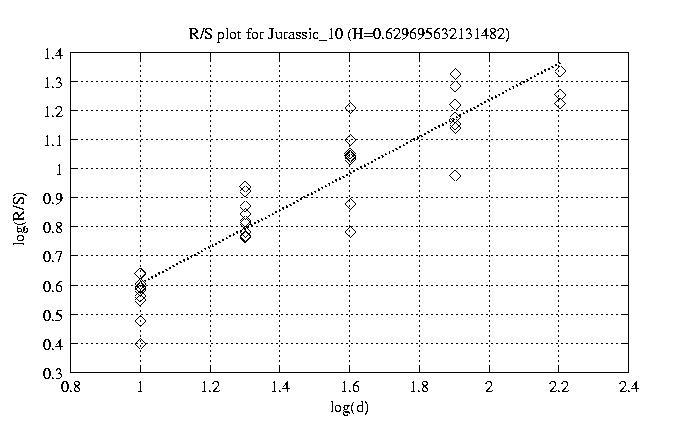

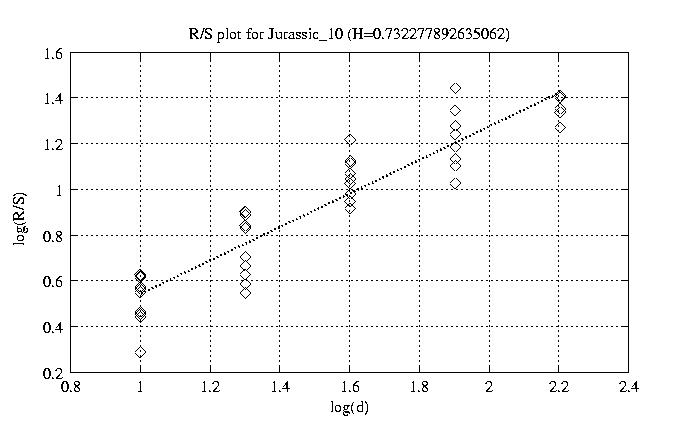

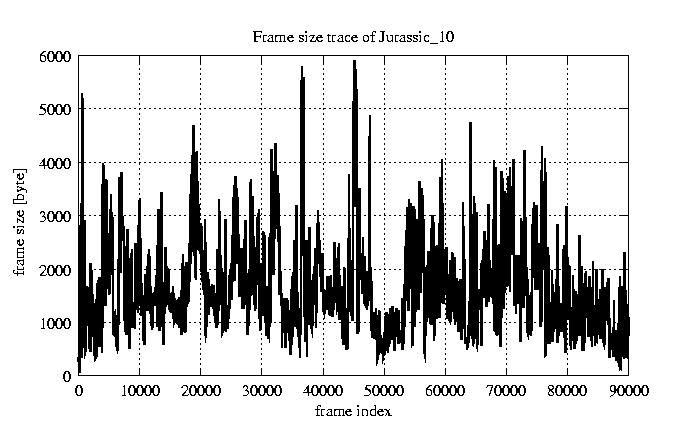

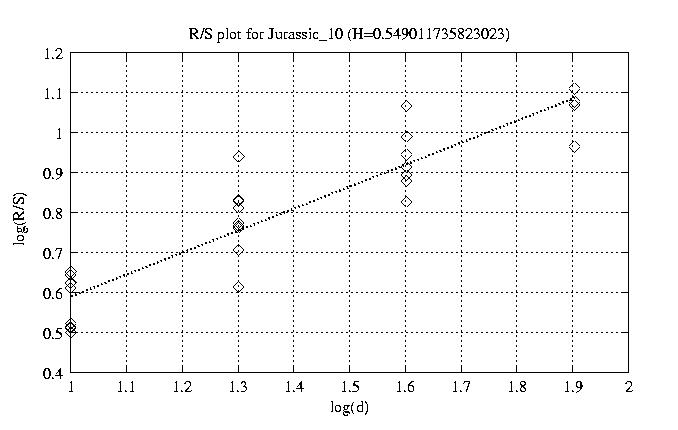

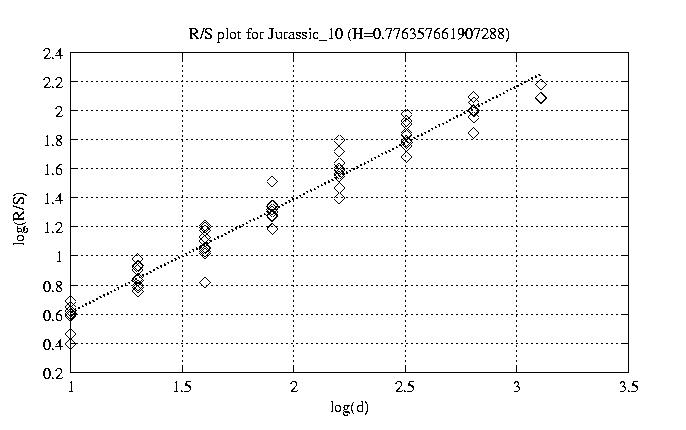

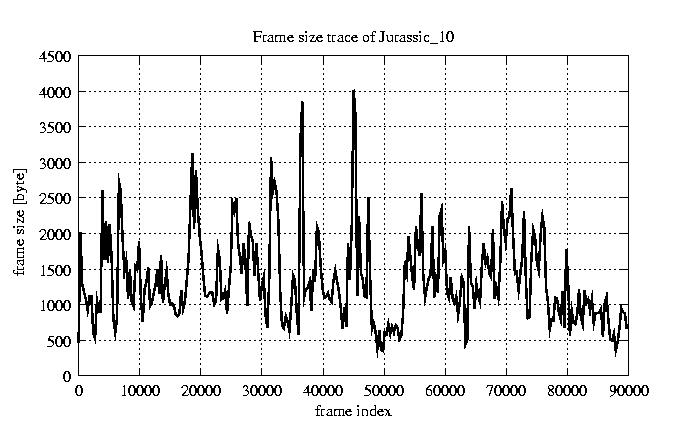

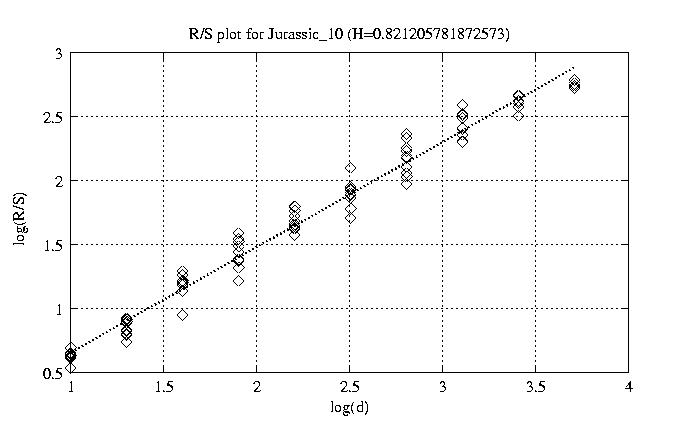

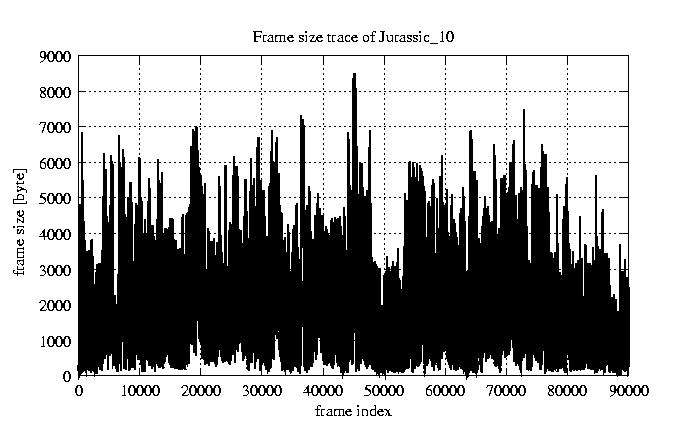

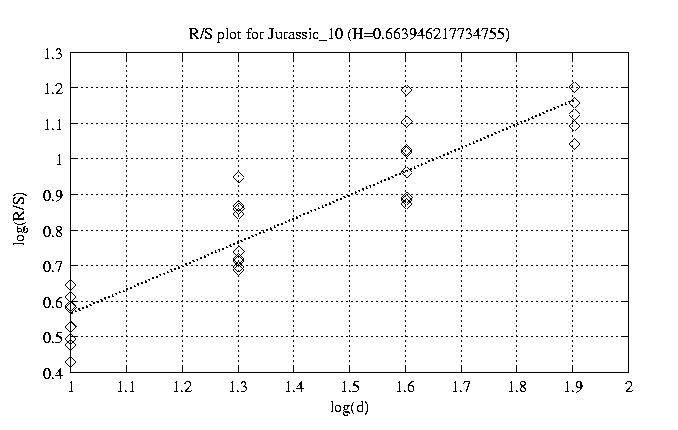

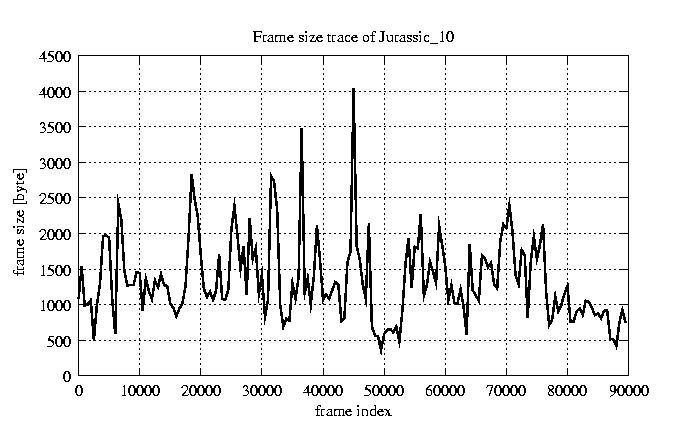

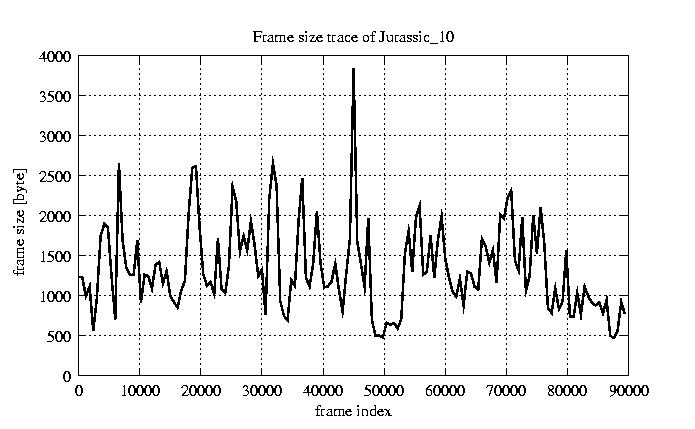

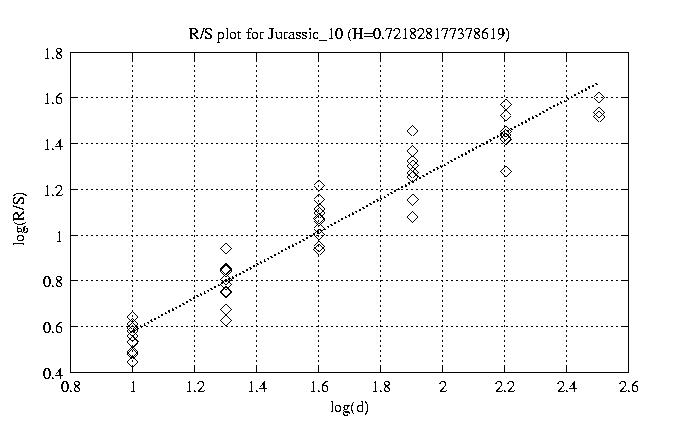

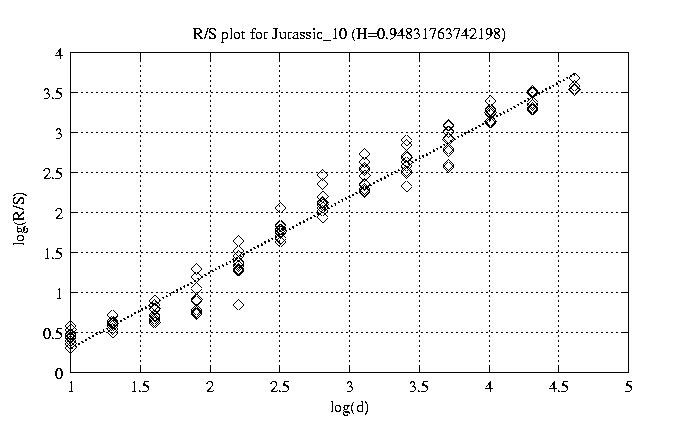

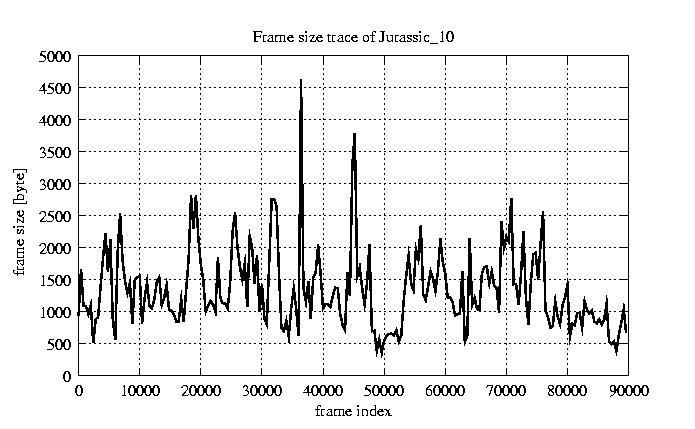

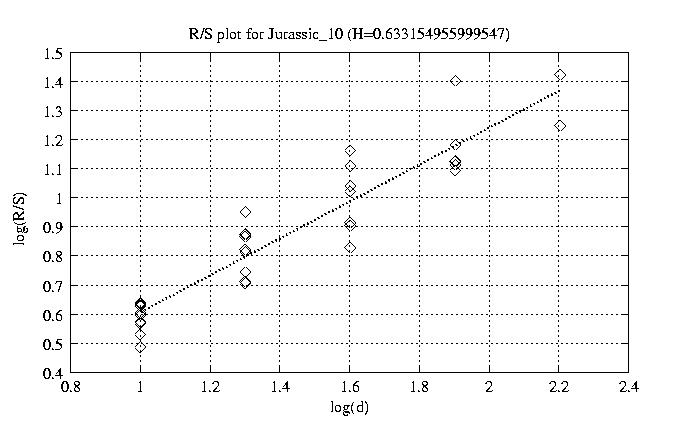

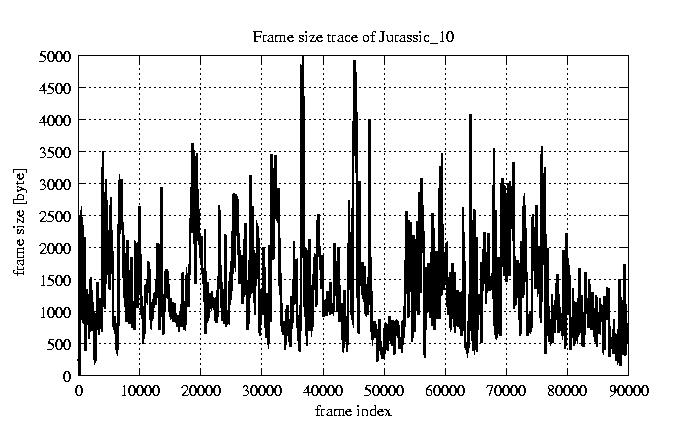

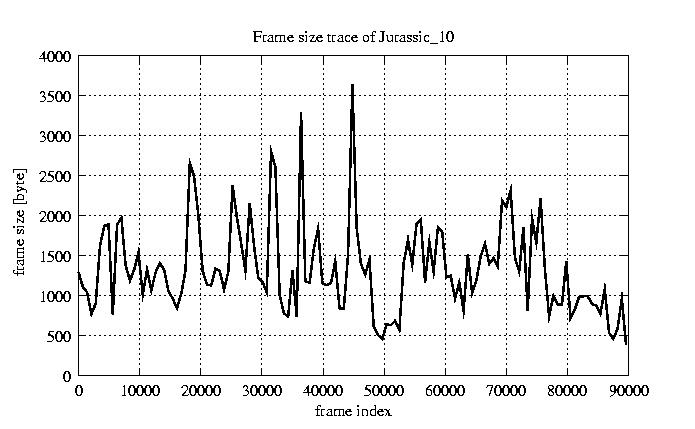

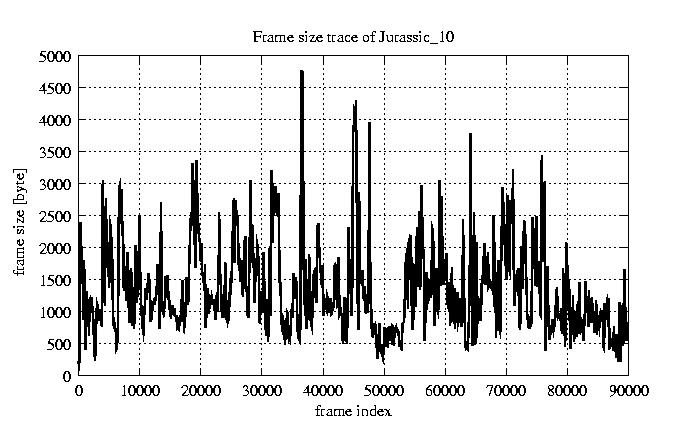

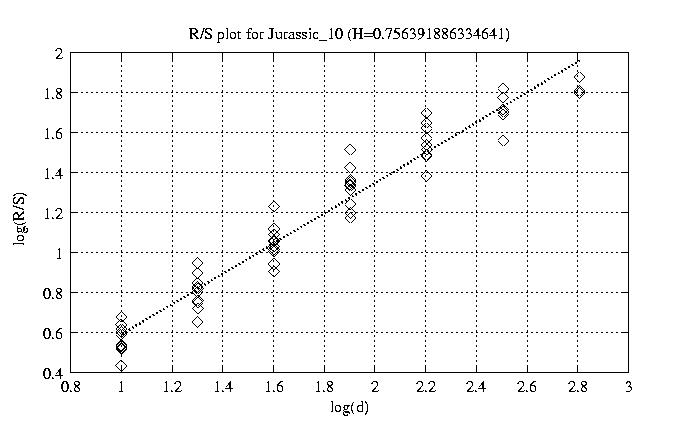

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.948 view view 12 0.821 view view 50 0.776 view view 100 0.756 view view 200 0.722 view view 300 0.732 view view 400 0.630 view view 500 0.633 view view 600 0.664 view view 700 0.549 view view 800 0.579 view view

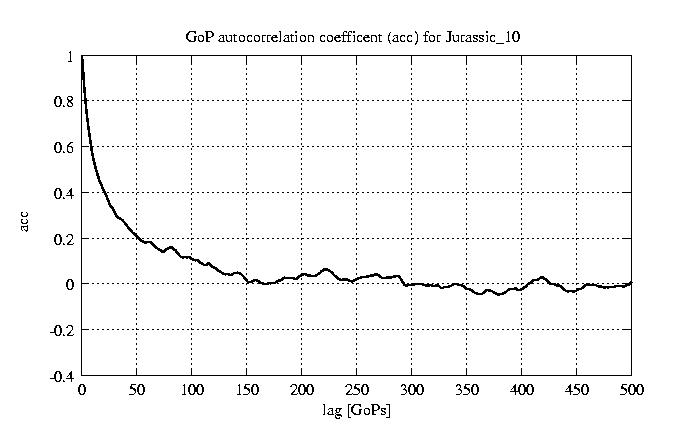

other plots	autocorrelation function of frames autocorrelation function of GoPs
