MP4 - Futurama
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 24.71 File Size byte 4.7e+07 Video run time msec 1.2e+06 # of Frames - 30334 mean frame size byte 1.5e+03 var frame size - 1.9e+06 CoV of frame size - 0.90 min frame size byte 27 max frame size byte 28319 Mean bit rate bit/sec 3.1e+05 Peak bit rate bit/sec 5.7e+06 Peak/Mean of bit rate - 18.40 GoP statistics # of GoPs - 2527 mean GoP size byte 1.8e+04 var GoP size - 8.5e+07 CoV of GoP size - 0.50 min GoP size byte 2339 max GoP size byte 128760 Mean bit rate bit/sec 3.1e+05 Peak bit rate bit/sec 2.1e+06 Peak/Mean of bit rate - 6.97 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

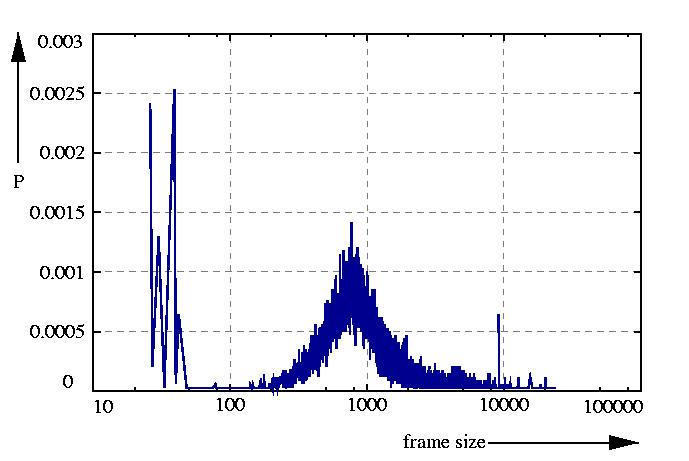

probability density function p

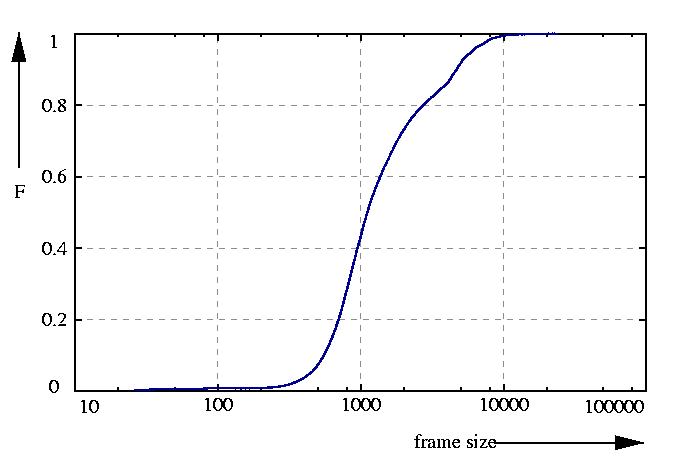

probability function F = sum p

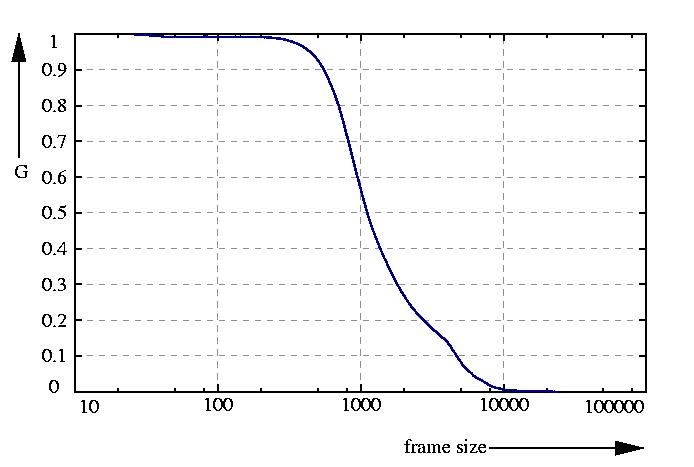

inverse probability function G = 1 - F

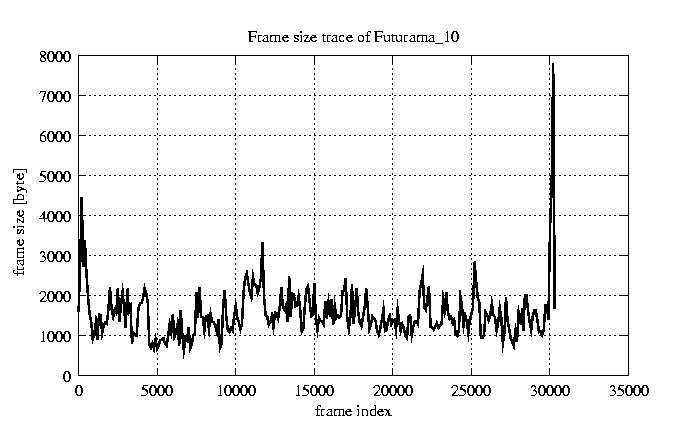

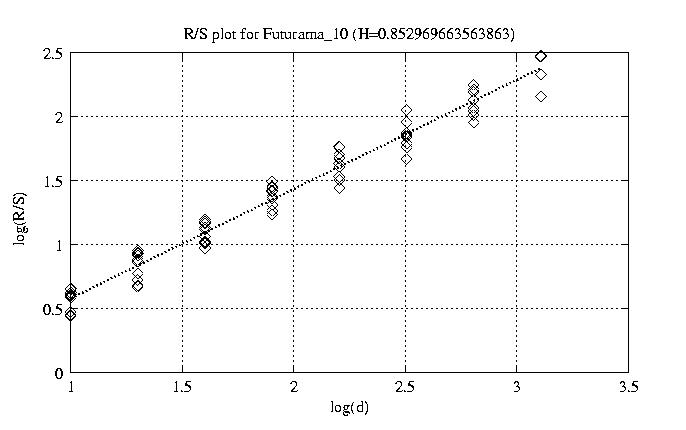

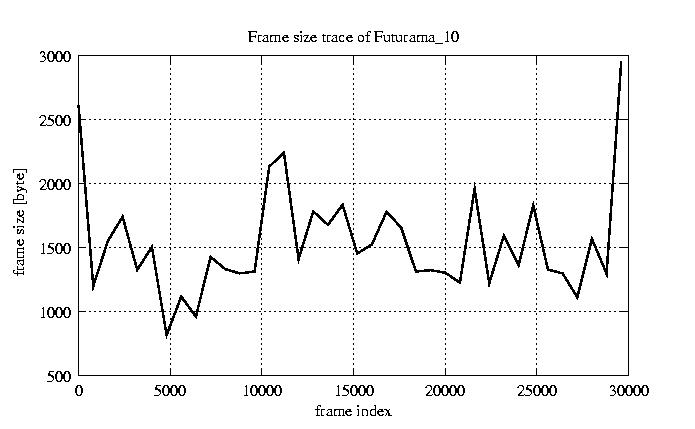

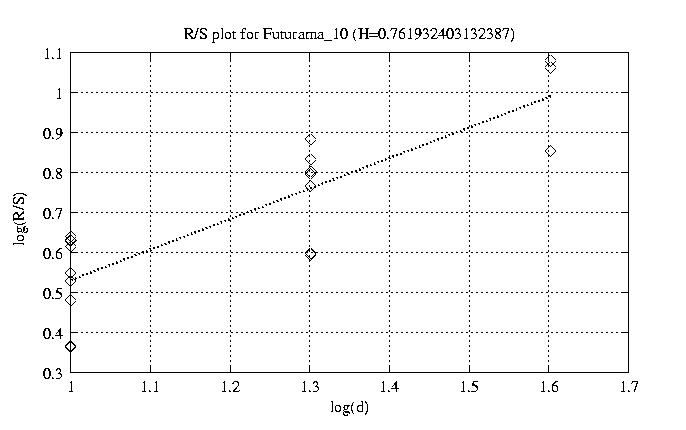

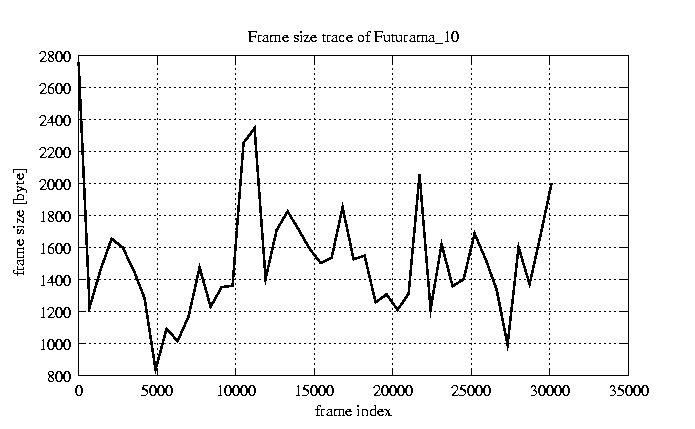

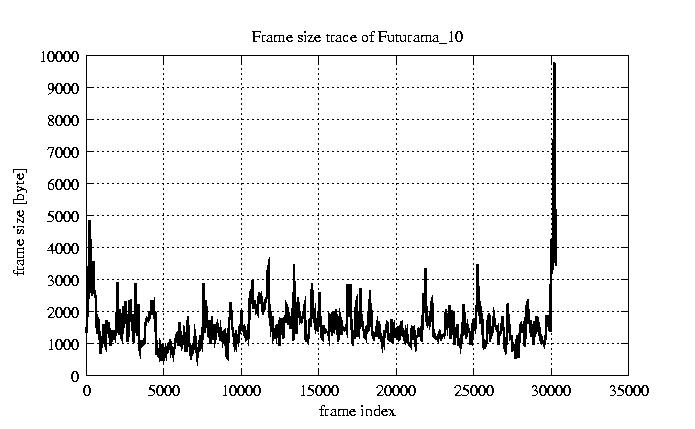

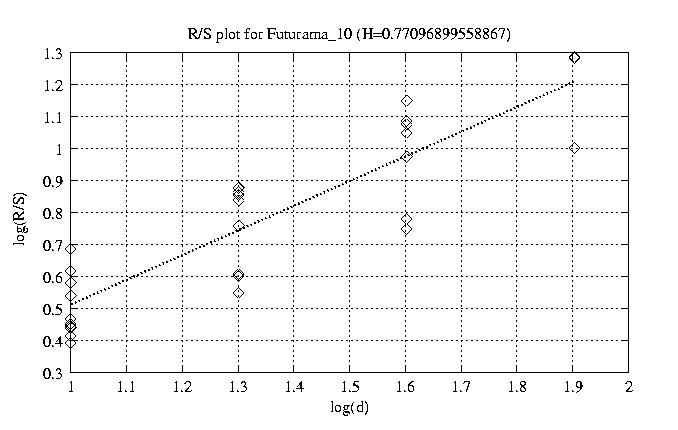

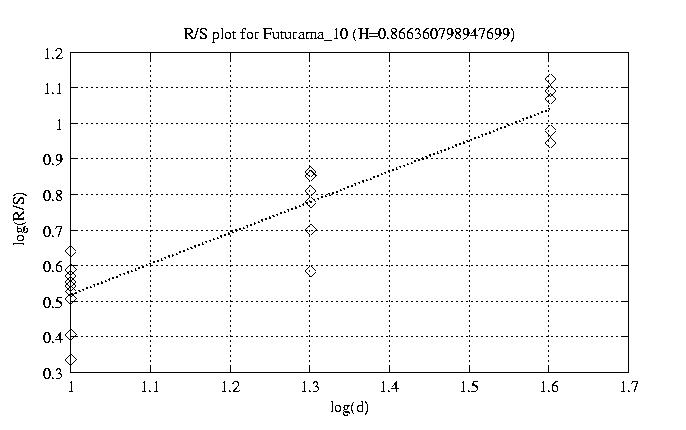

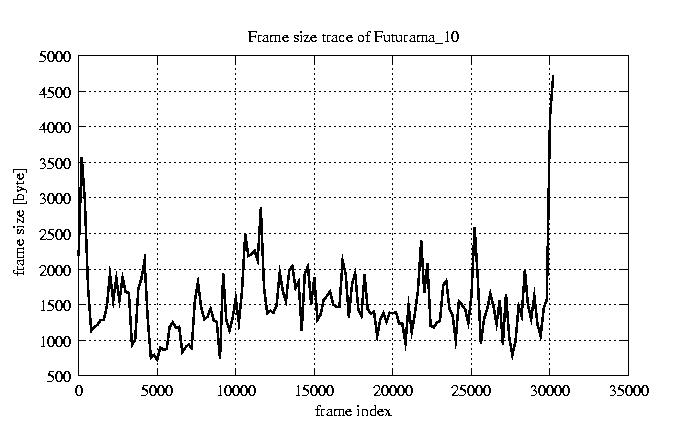

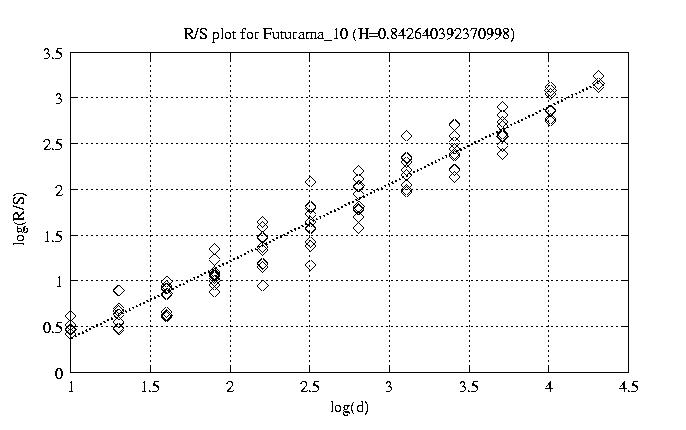

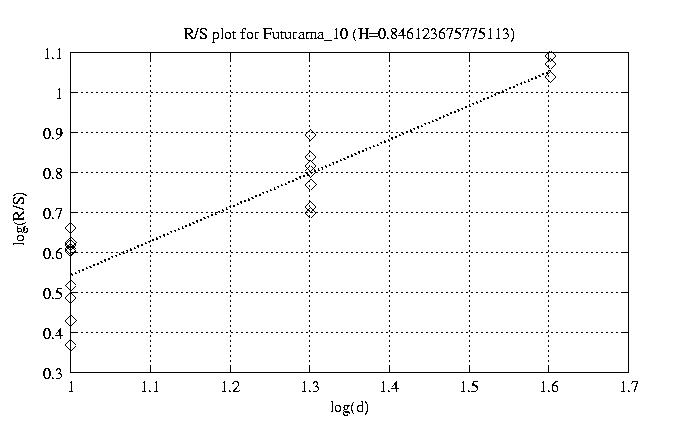

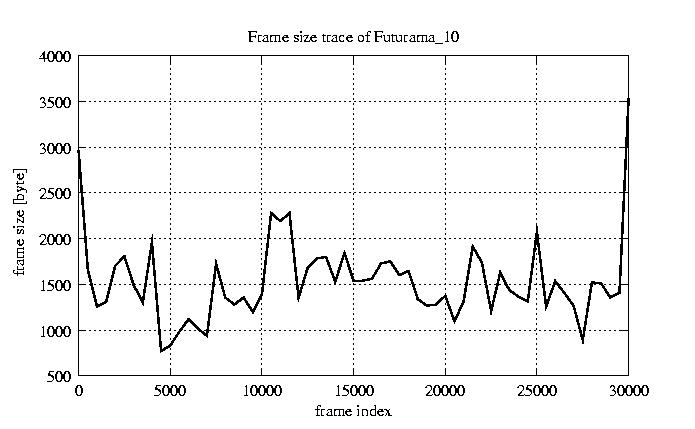

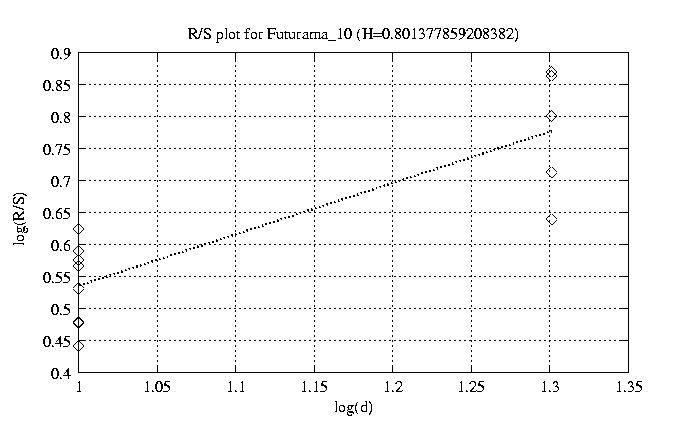

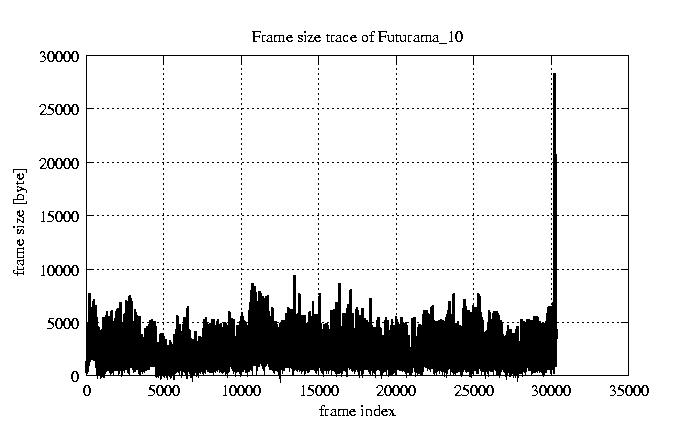

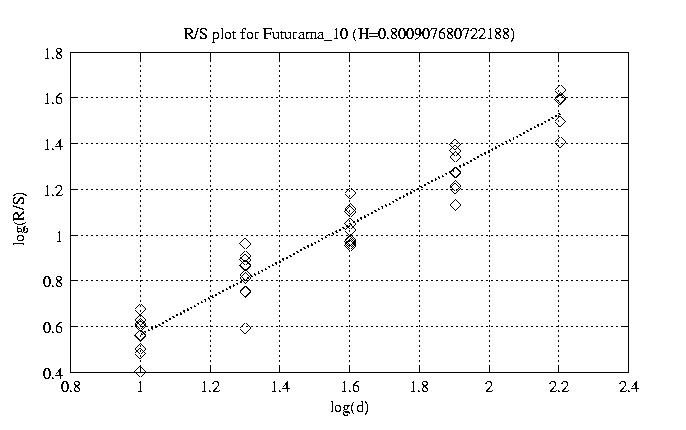

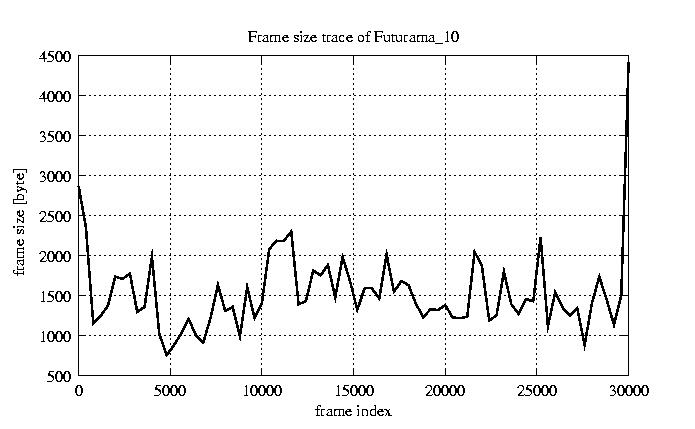

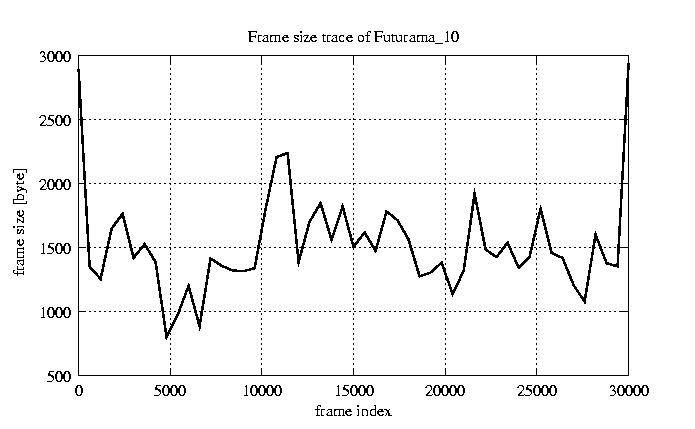

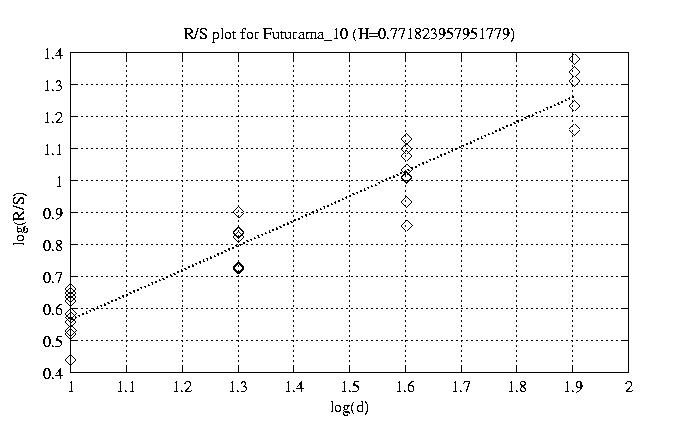

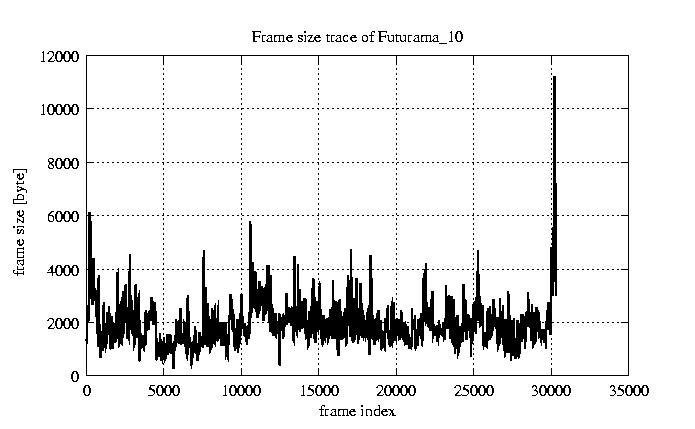

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.843 view view 12 0.853 view view 50 0.825 view view 100 0.801 view view 200 0.772 view view 300 0.771 view view 400 0.866 view view 500 0.846 view view 600 0.762 view view 700 0.808 view view 800 0.801 view view

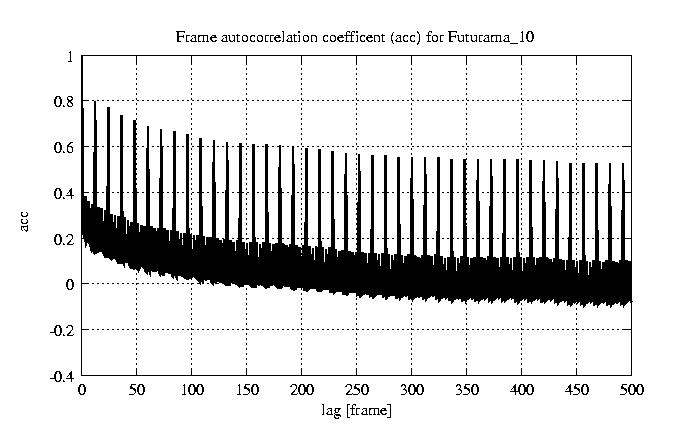

other plots	autocorrelation function of frames autocorrelation function of GoPs
