MP4 - South Park
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 11.22 File Size byte 1e+08 Video run time msec 1.2e+06 # of Frames - 30342 mean frame size byte 3.4e+03 var frame size - 5.9e+06 CoV of frame size - 0.72 min frame size byte 0 max frame size byte 42880 Mean bit rate bit/sec 6.8e+05 Peak bit rate bit/sec 8.6e+06 Peak/Mean of bit rate - 12.65 GoP statistics # of GoPs - 2528 mean GoP size byte 4.1e+04 var GoP size - 4.7e+08 CoV of GoP size - 0.53 min GoP size byte 0 max GoP size byte 214142 Mean bit rate bit/sec 6.8e+05 Peak bit rate bit/sec 3.6e+06 Peak/Mean of bit rate - 5.27 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

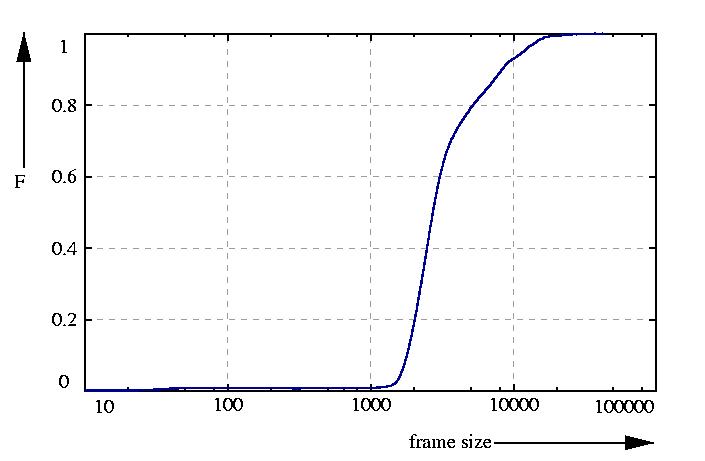

probability function F = sum p
inverse probability function G = 1 - F

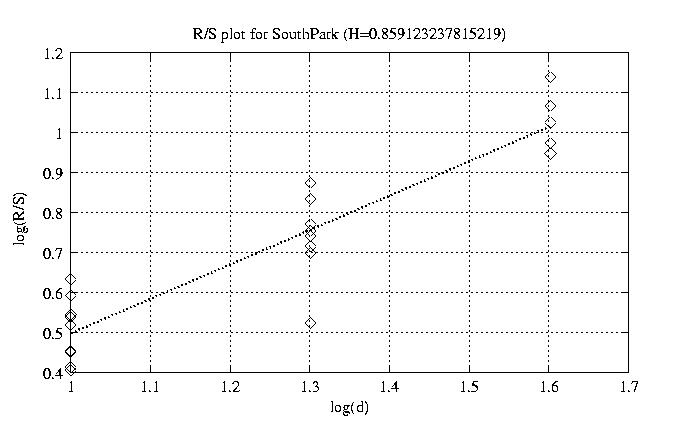

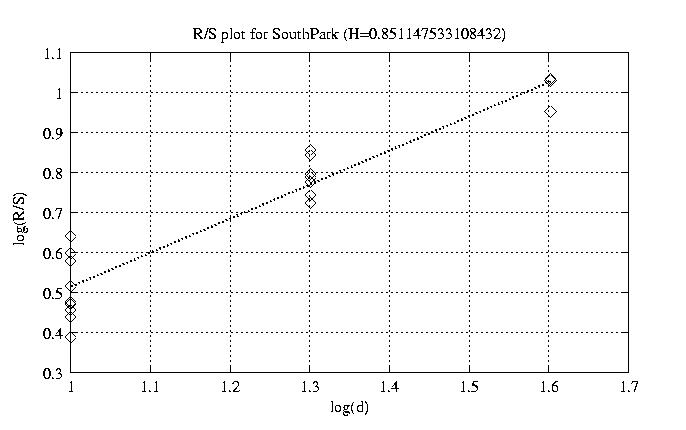

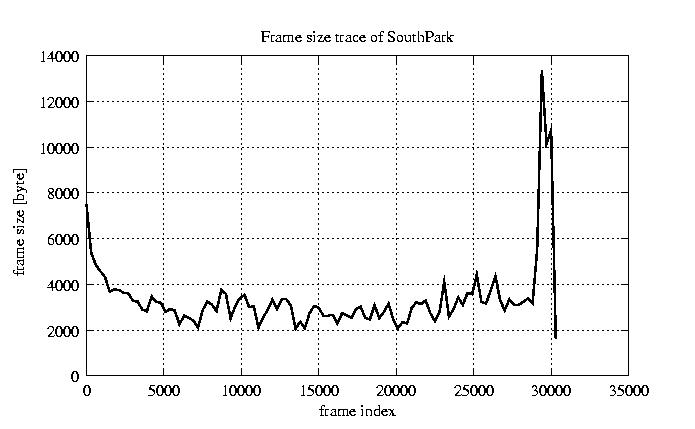

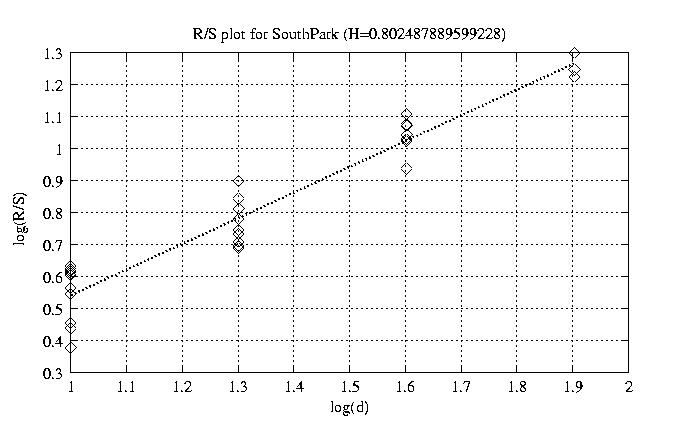

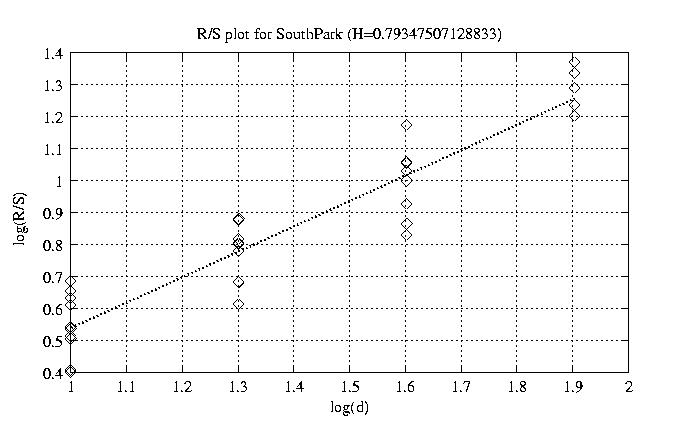

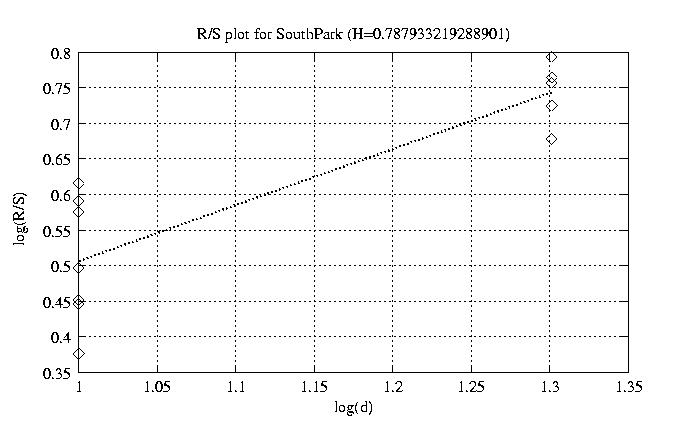

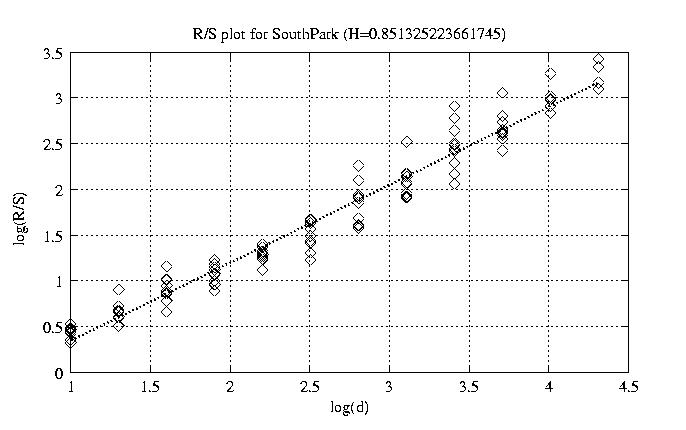

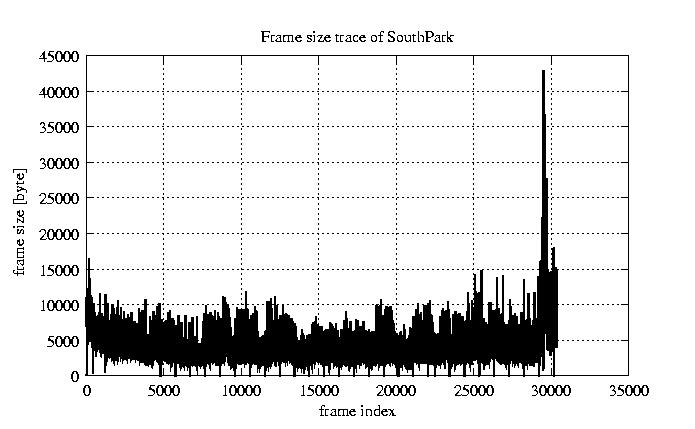

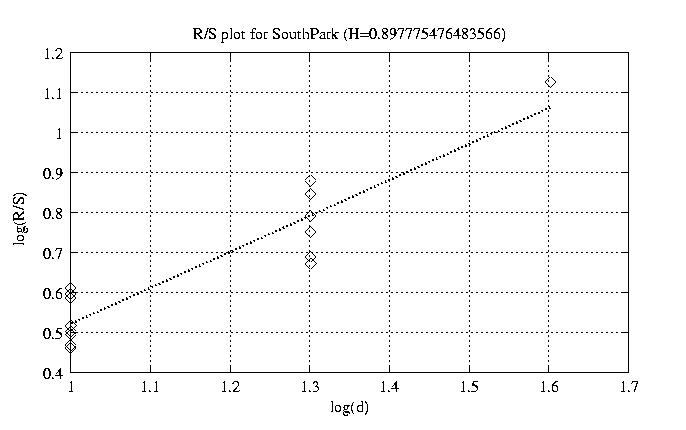

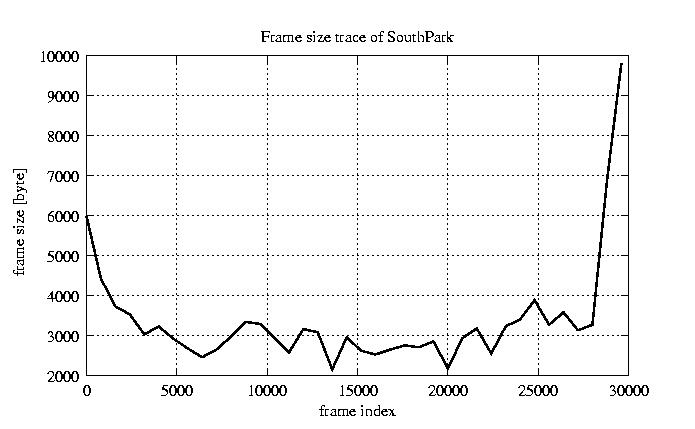

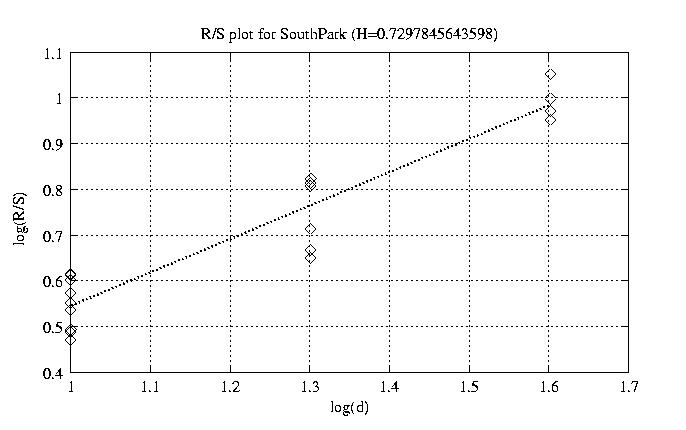

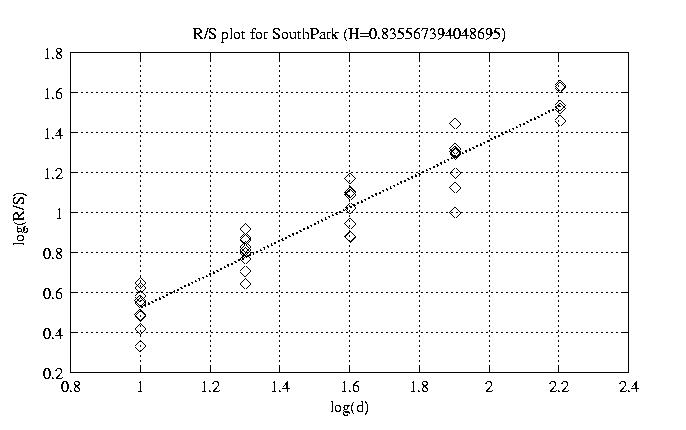

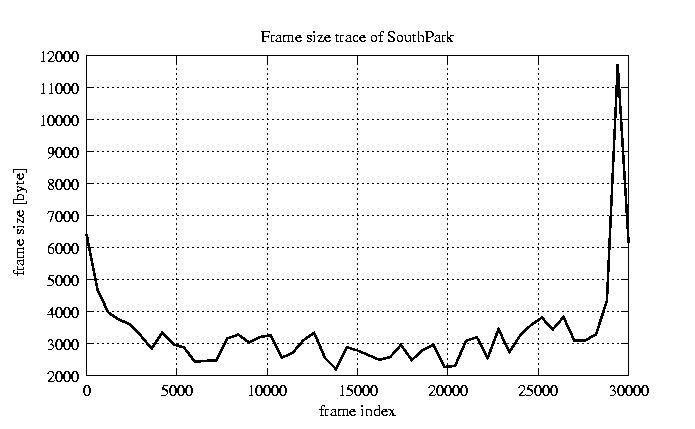

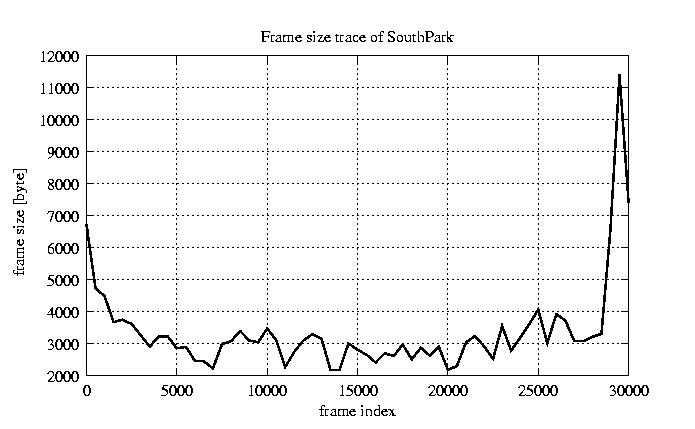

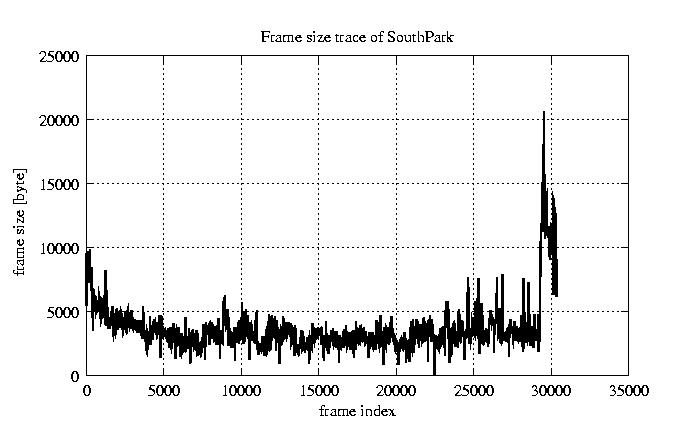

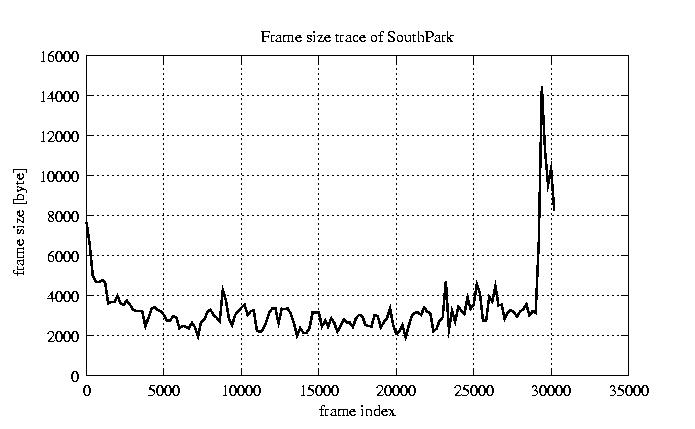

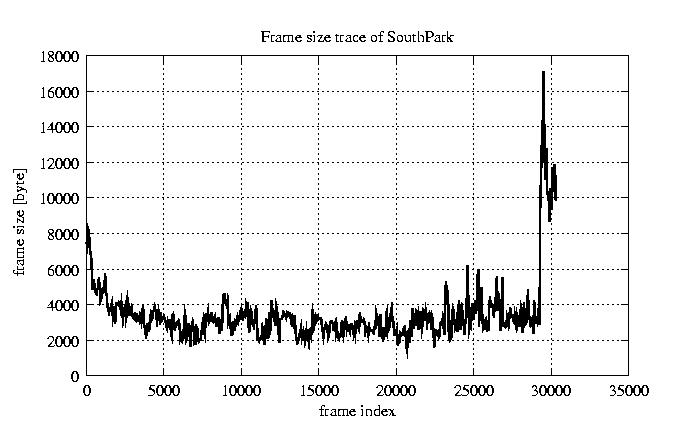

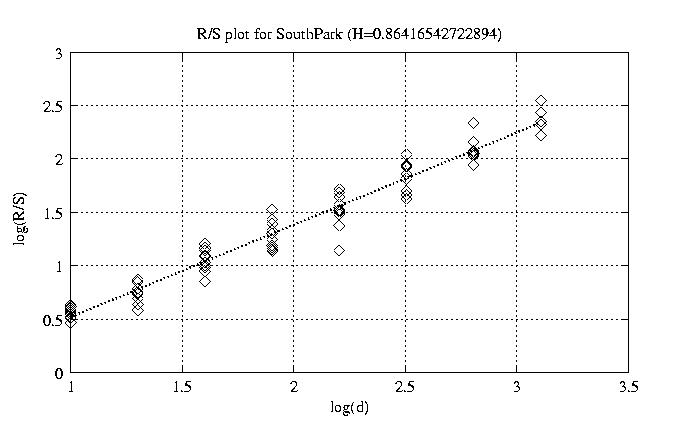

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.851 view view 12 0.864 view view 50 0.848 view view 100 0.836 view view 200 0.793 view view 300 0.802 view view 400 0.859 view view 500 0.730 view view 600 0.851 view view 700 0.898 view view 800 0.788 view view

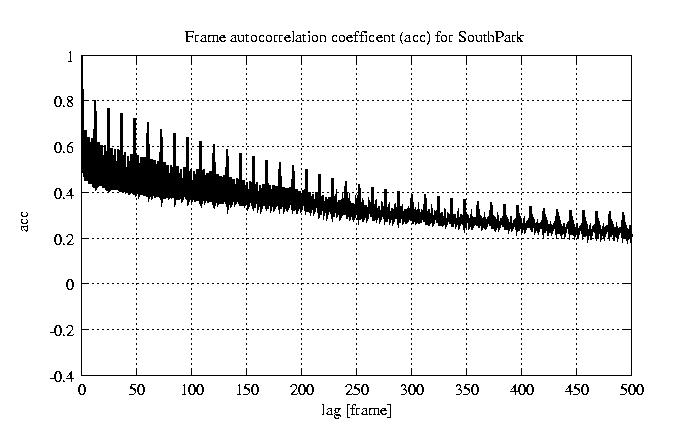

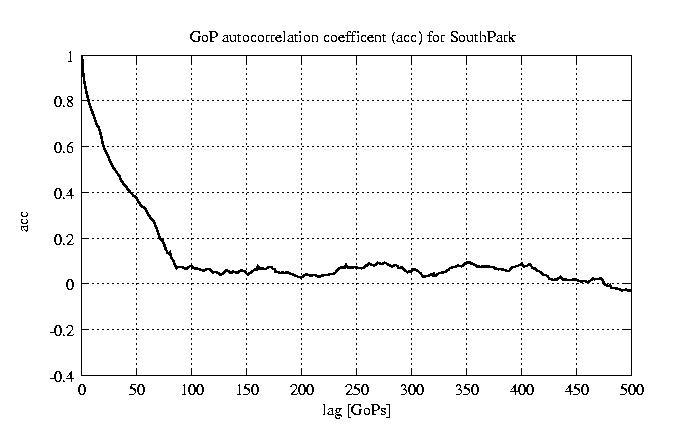

other plots	autocorrelation function of frames autocorrelation function of GoPs
