H261 - Starship Troopers
256 kbit/s target bit rate

frame statistics parameter list	Frames Rates compression ratio YUV:H261 29.71 File size byte 1.2e+08 Video run time msec 3.6e+06 3.6e+06 # of Frames - 90000.00 mean frame size byte 1279.44 var frame size - 39742.30 CoV of frame size - 0.16 min frame size byte 195.00 max frame size byte 4927.00 Peak/Mean frame - 3.85 Mean bit rate bit/sec 2.6e+05 Peak bit rate bit/sec 9.9e+05 Peak/Mean of bit rate - 3.9 CoV of bit rate - 0.16 max inter frame space frames 1.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

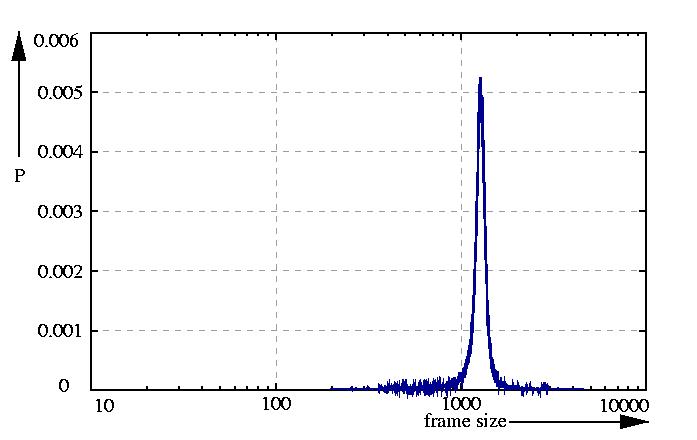

probability density function p

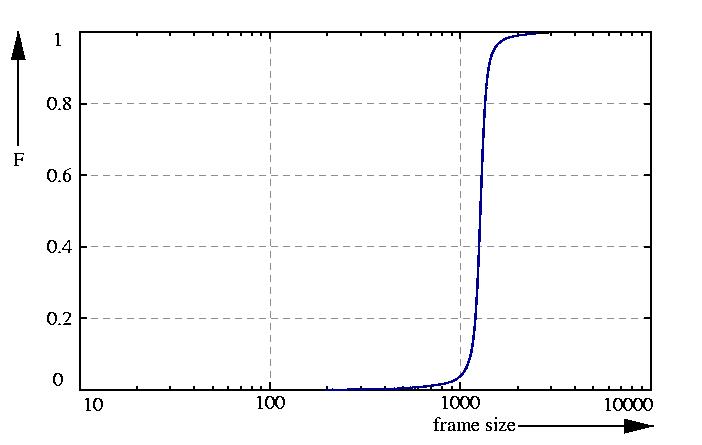

probability function F = sum p
inverse probability function G = 1 - F

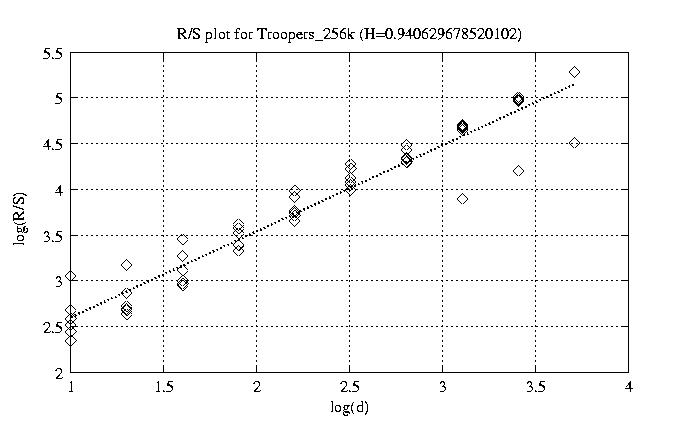

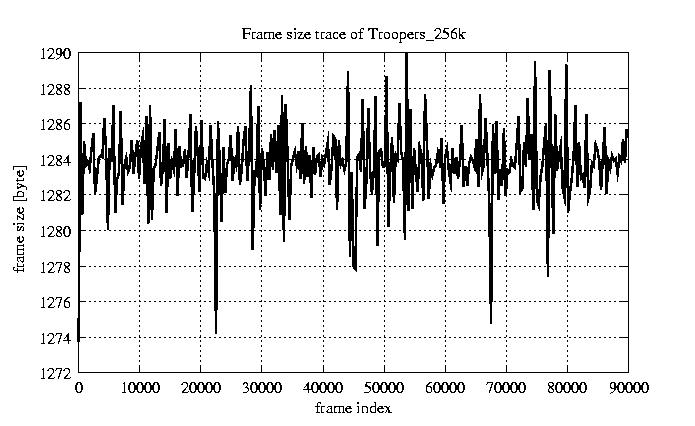

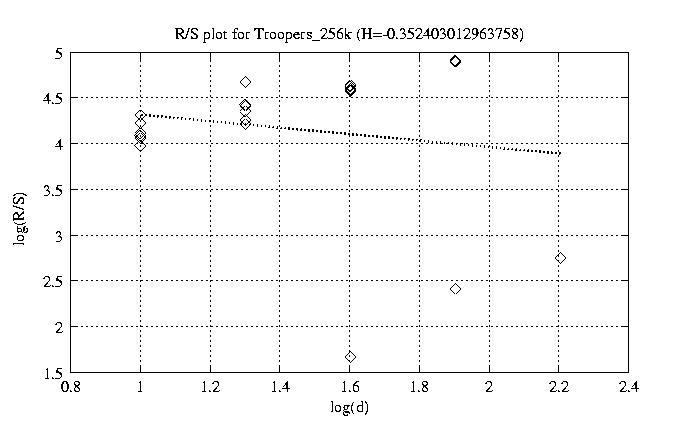

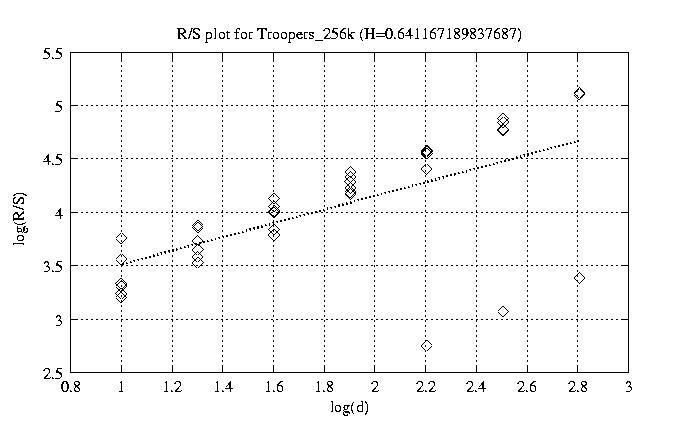

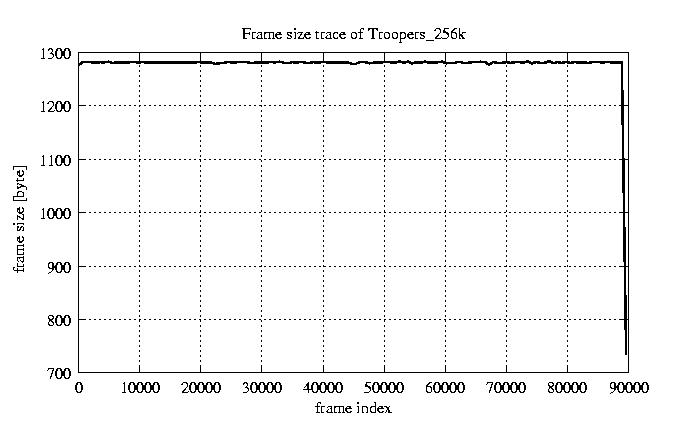

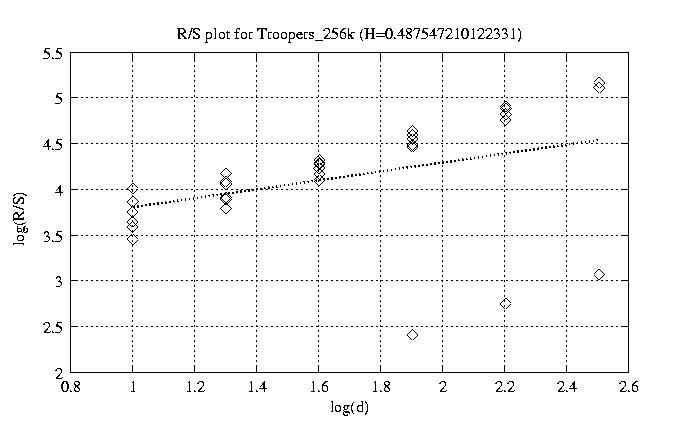

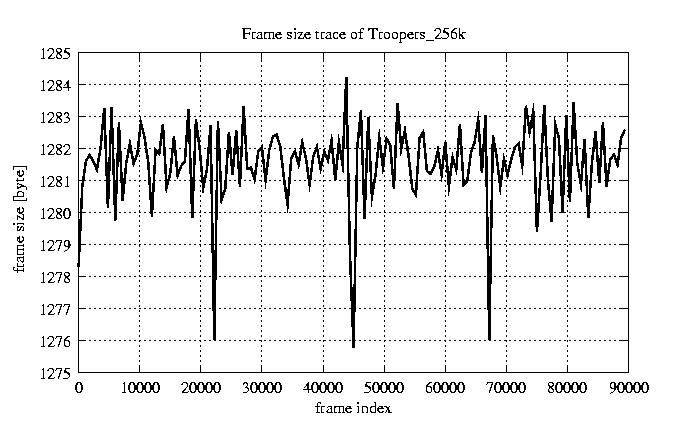

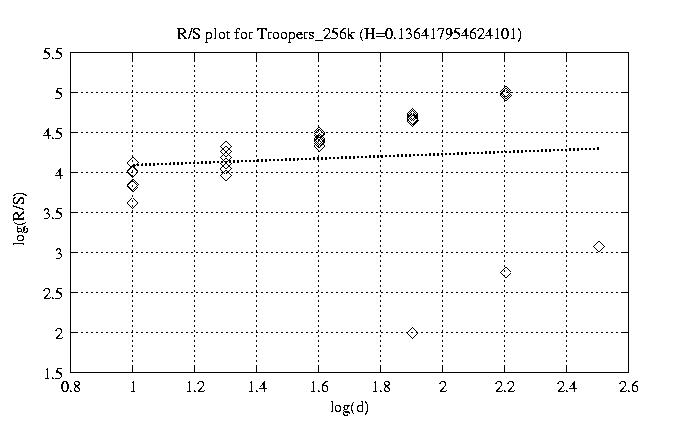

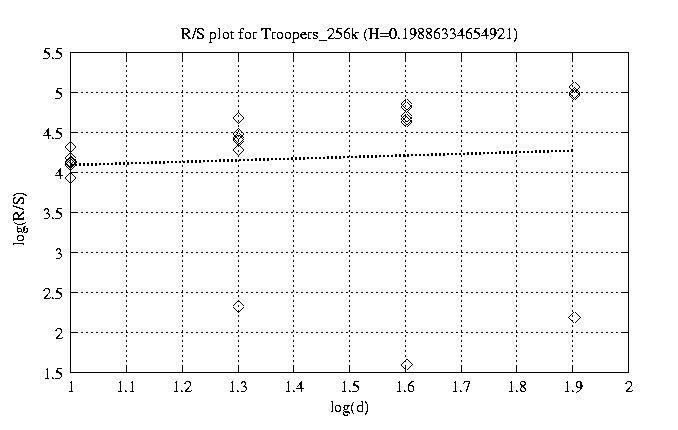

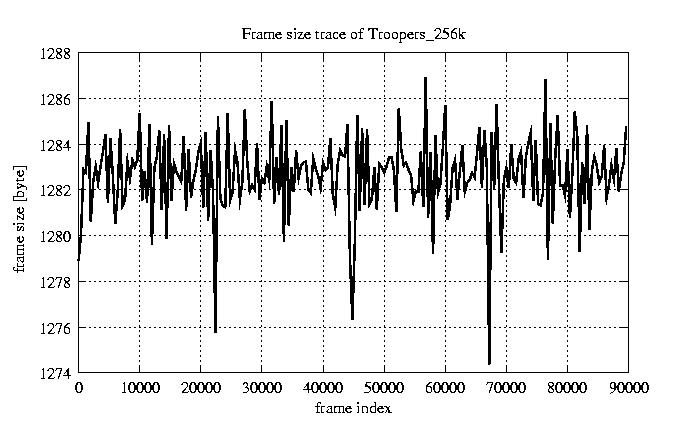

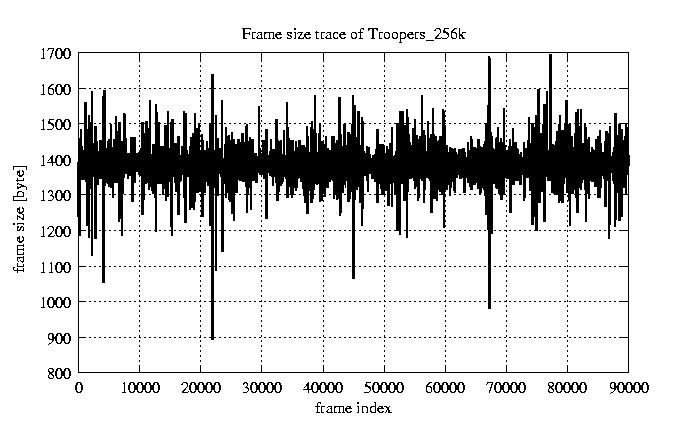

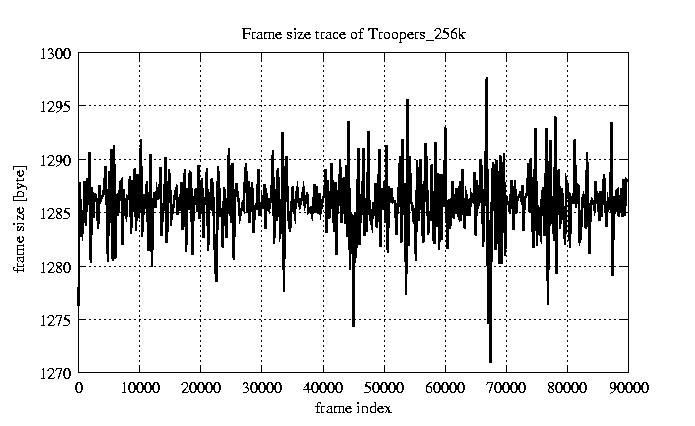

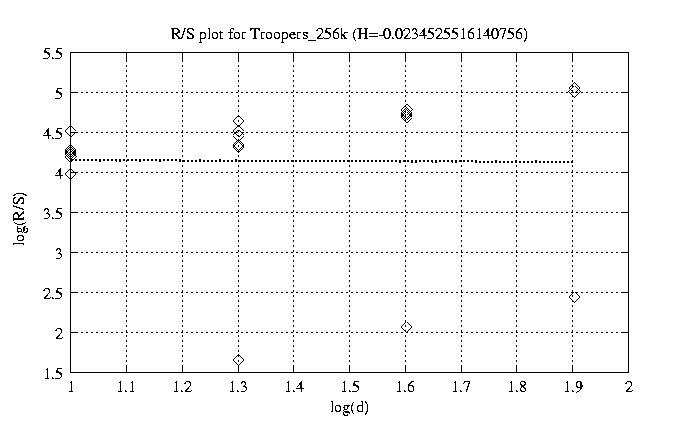

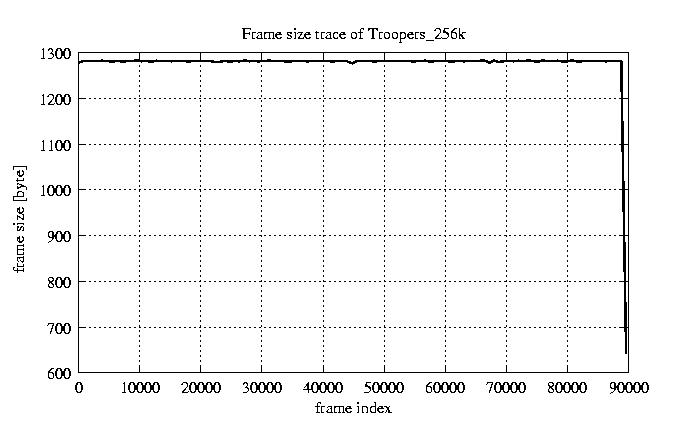

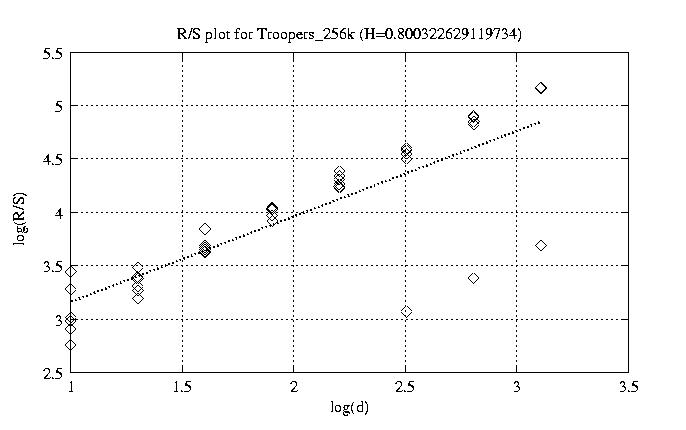

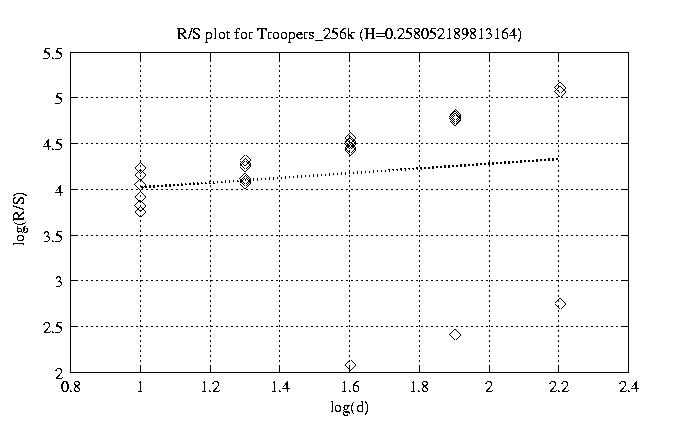

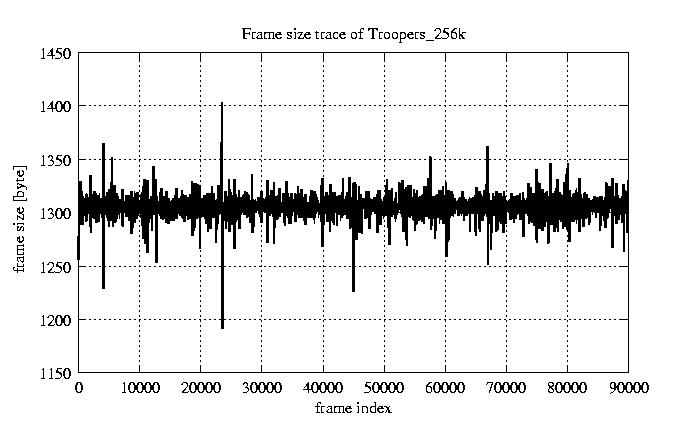

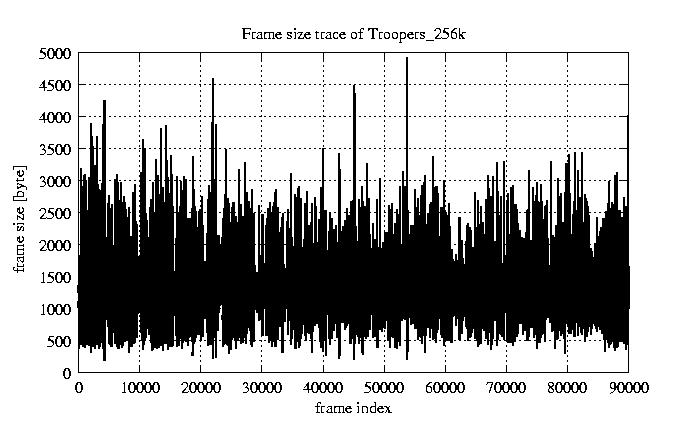

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.985 view view 12 0.941 view view 50 0.800 view view 100 0.641 view view 200 0.488 view view 300 0.136 view view 400 0.258 view view 500 -0.031 view view 600 -0.352 view view 700 0.199 view view 800 -0.023 view view

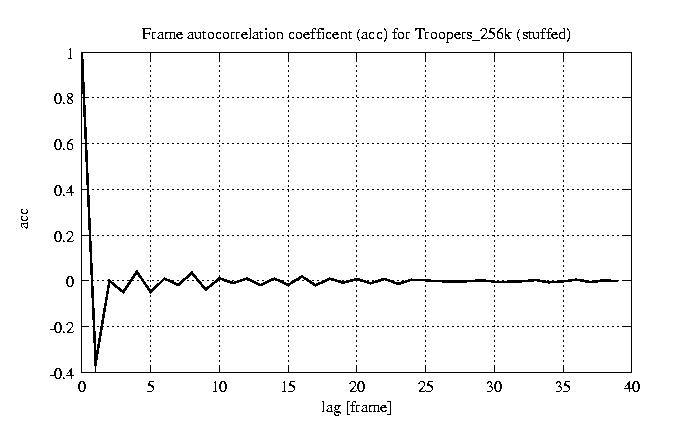

other plots	autocorrelation function of frames
