MP4 - Jurassic Park
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 9.92 File Size byte 3.4e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 3.8e+03 var frame size - 5.1e+06 CoV of frame size - 0.59 min frame size byte 72 max frame size byte 16745 Mean bit rate bit/sec 7.7e+05 Peak bit rate bit/sec 3.3e+06 Peak/Mean of bit rate - 4.37 GoP statistics # of GoPs - 7499 mean GoP size byte 4.6e+04 var GoP size - 4.8e+08 CoV of GoP size - 0.47 min GoP size byte 2105 max GoP size byte 144732 Mean bit rate bit/sec 7.7e+05 Peak bit rate bit/sec 2.4e+06 Peak/Mean of bit rate - 3.15 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

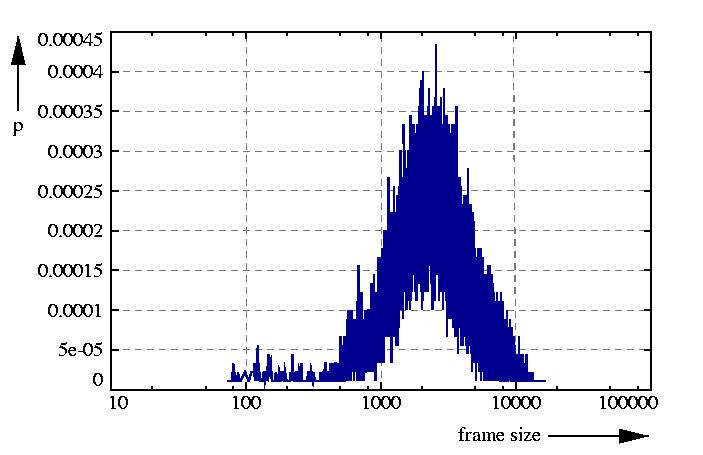

probability density function p

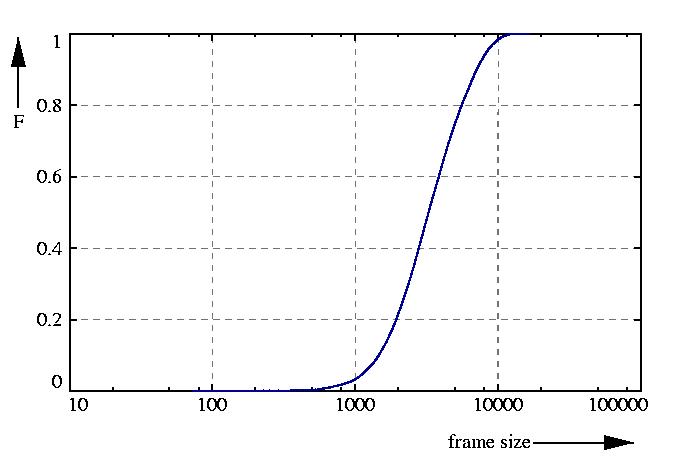

probability function F = sum p
inverse probability function G = 1 - F

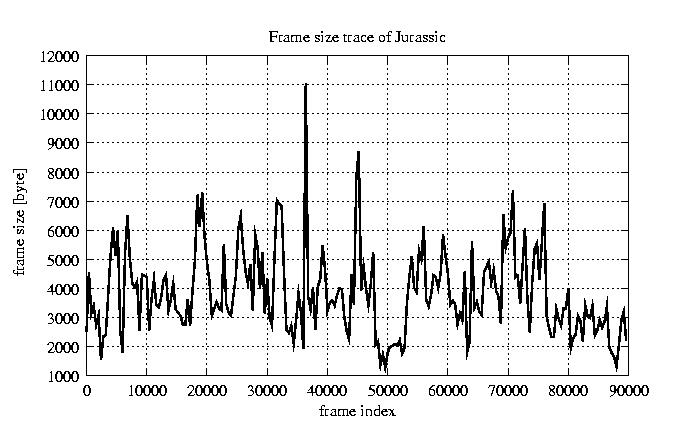

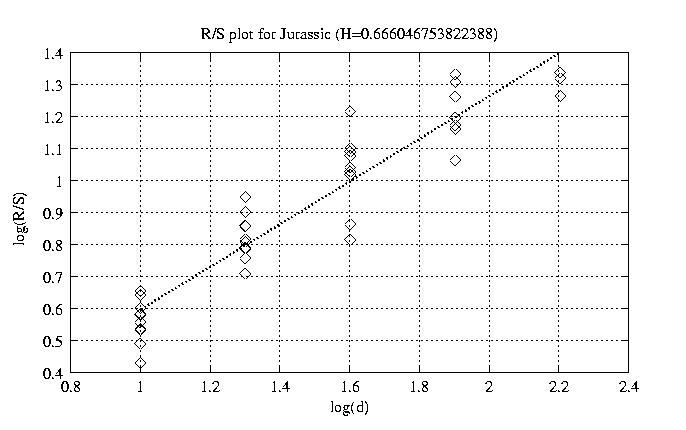

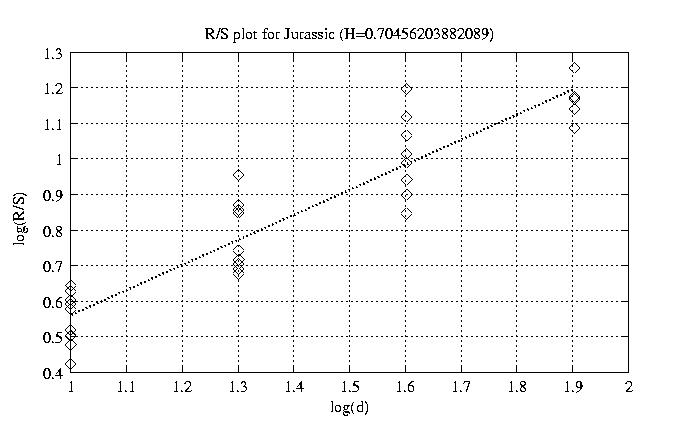

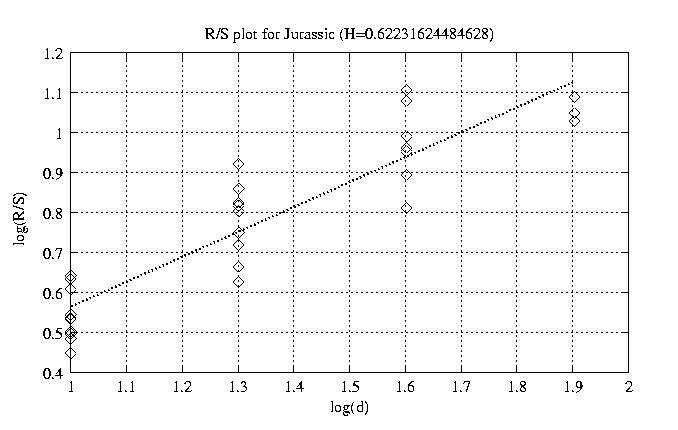

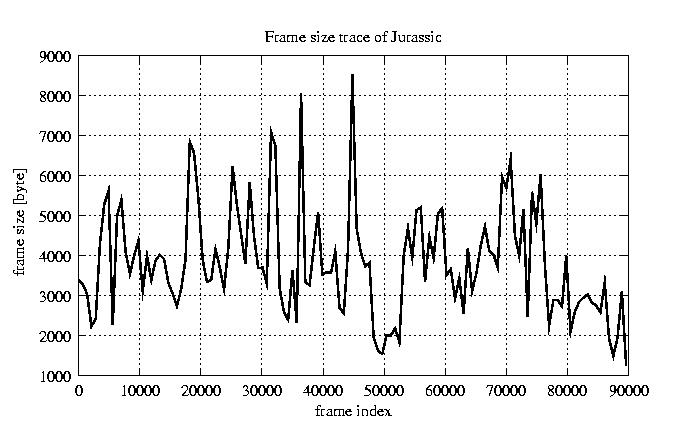

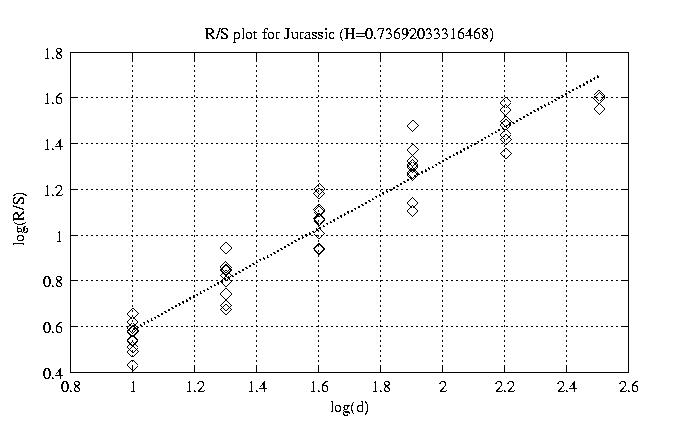

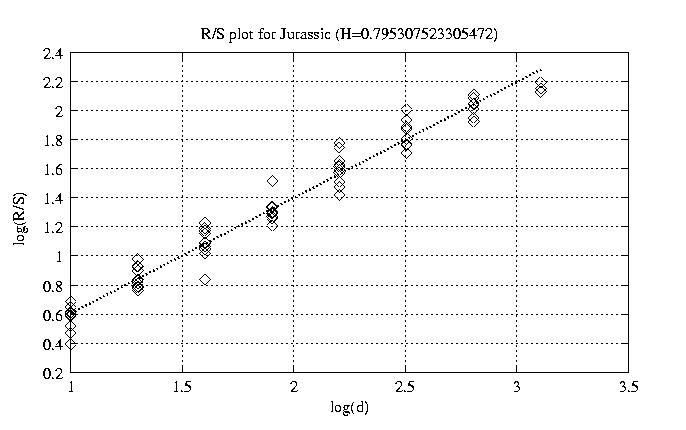

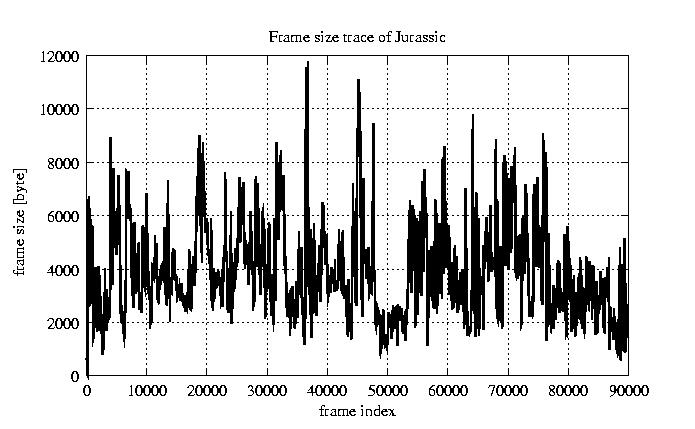

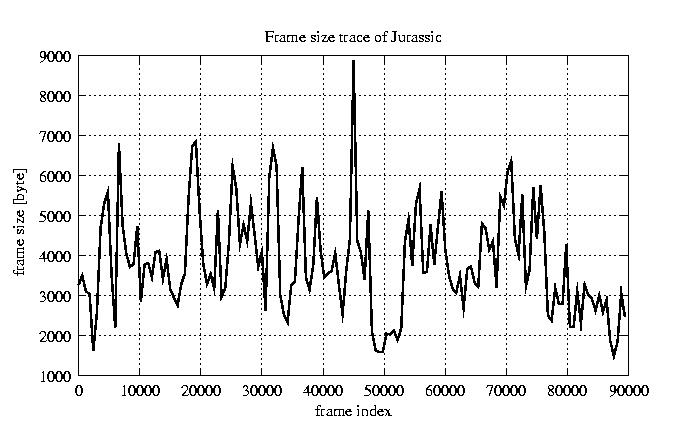

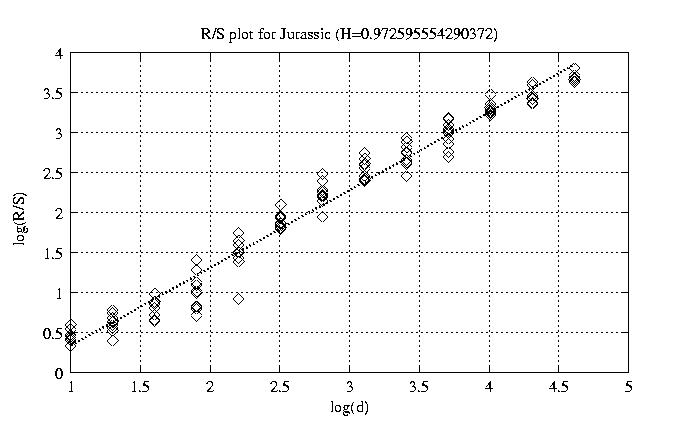

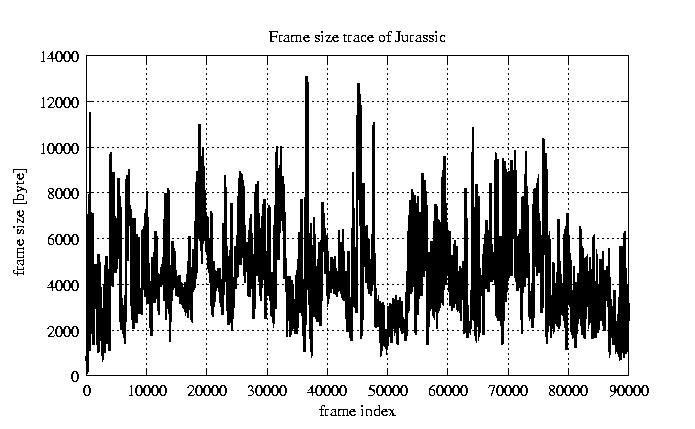

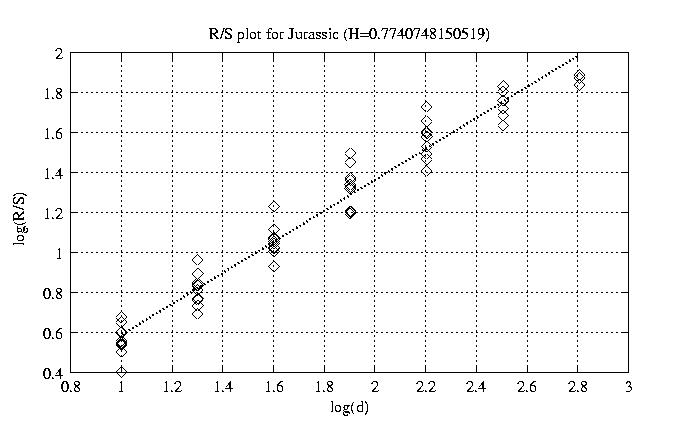

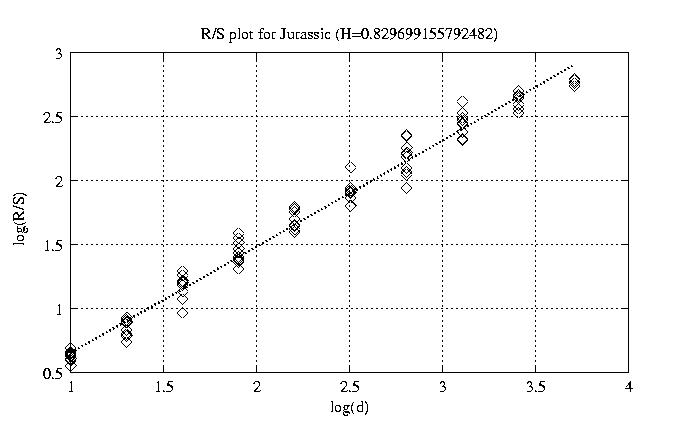

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.973 view view 12 0.830 view view 50 0.795 view view 100 0.774 view view 200 0.737 view view 300 0.753 view view 400 0.666 view view 500 0.653 view view 600 0.705 view view 700 0.591 view view 800 0.622 view view

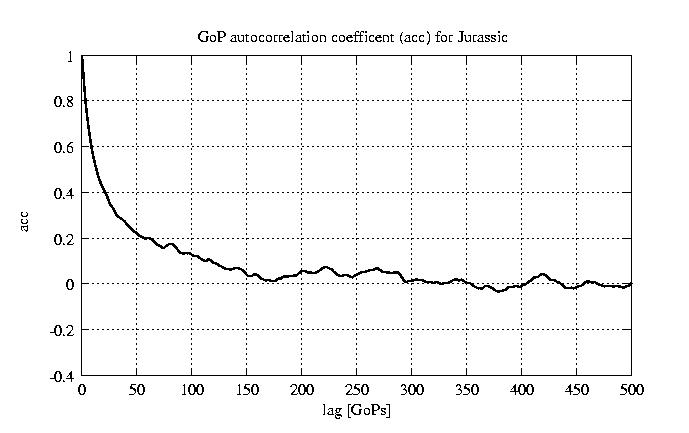

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
