H263 - Parking Lot Cam
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.96 118.96 File size byte 2.9e+07 2.9e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90082.00 18147.00 mean frame size byte 319.58 1586.42 var frame size - 408436.03 17734.57 CoV of frame size - 2.00 0.08 min frame size byte 0.00 329.00 max frame size byte 7501.00 7501.00 Peak/Mean frame - 23.47 4.73 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.3e+05 Peak/Mean of bit rate - 5.1 CoV of bit rate - 0.49 max inter frame space frames 1.00 33.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

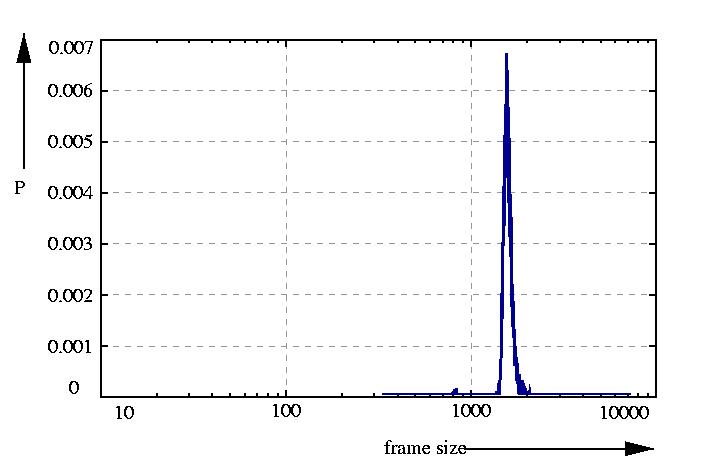

probability density function p

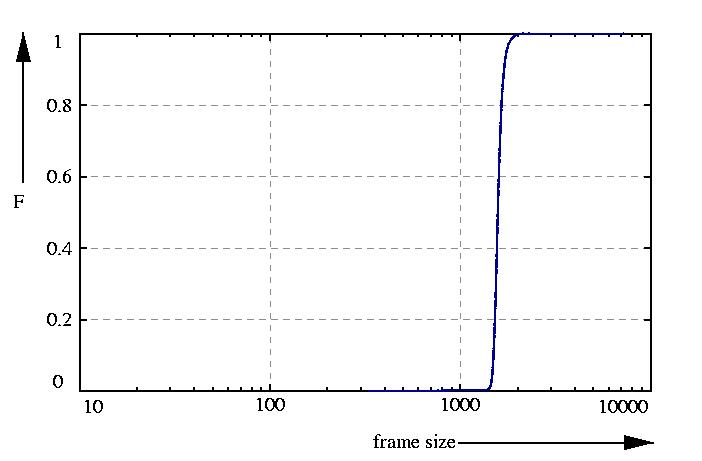

probability function F = sum p

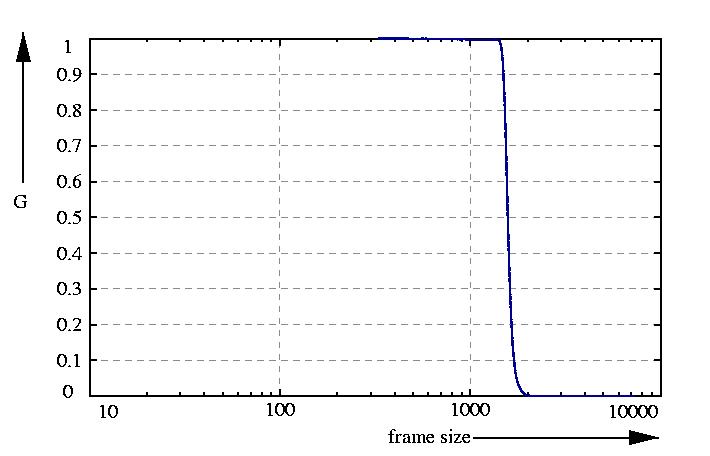

inverse probability function G = 1 - F

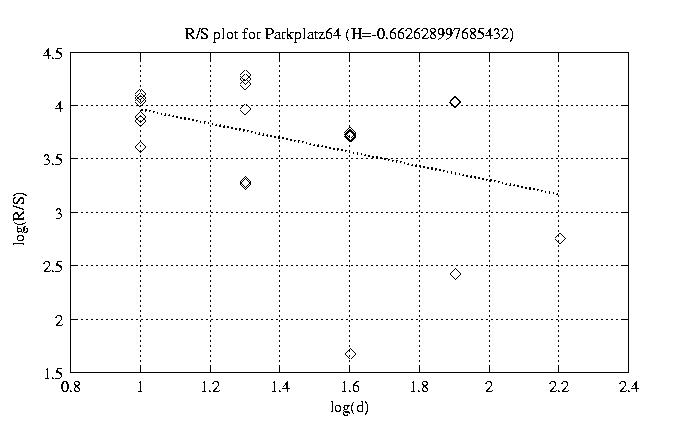

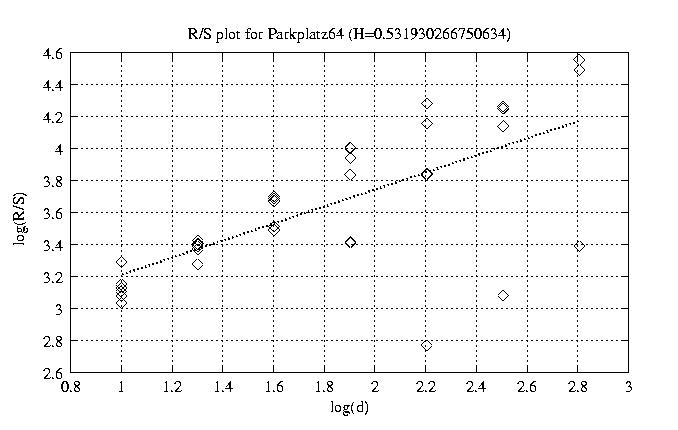

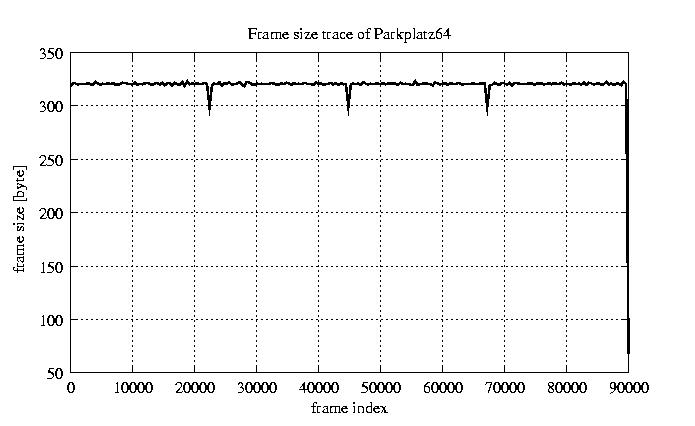

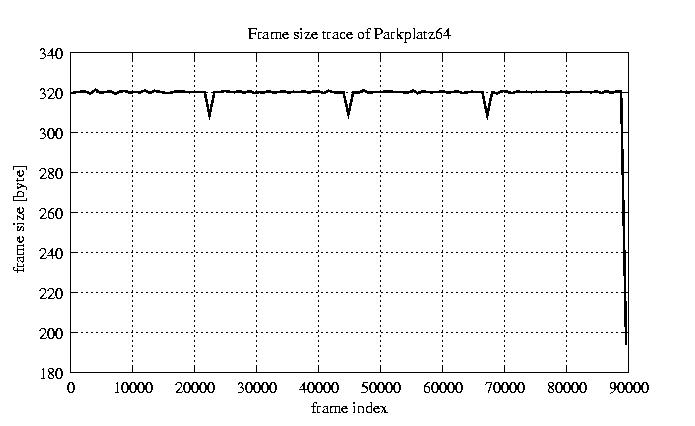

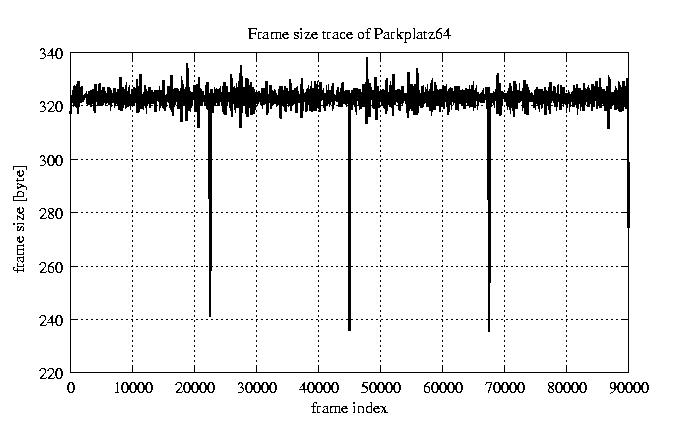

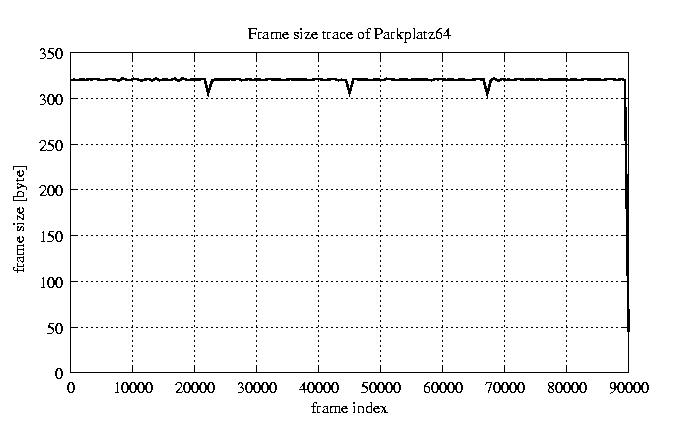

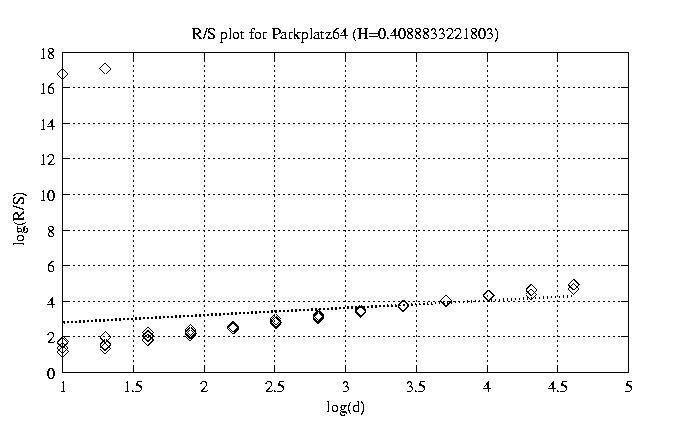

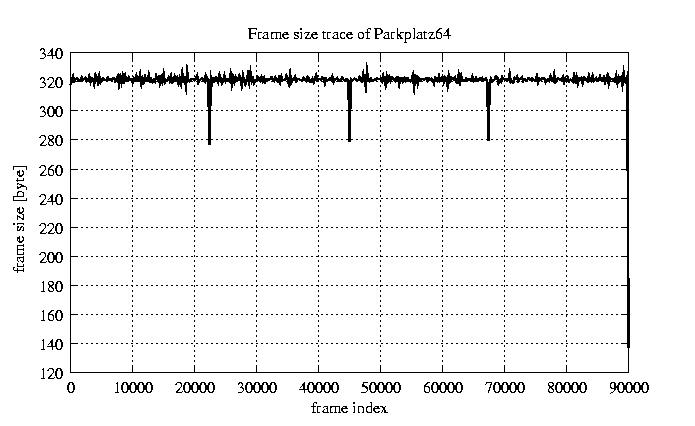

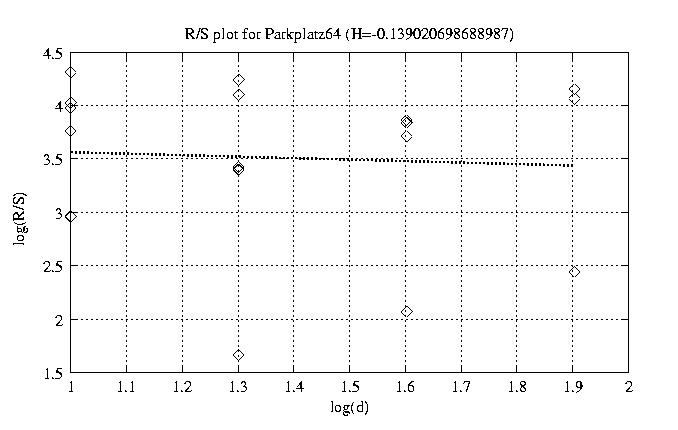

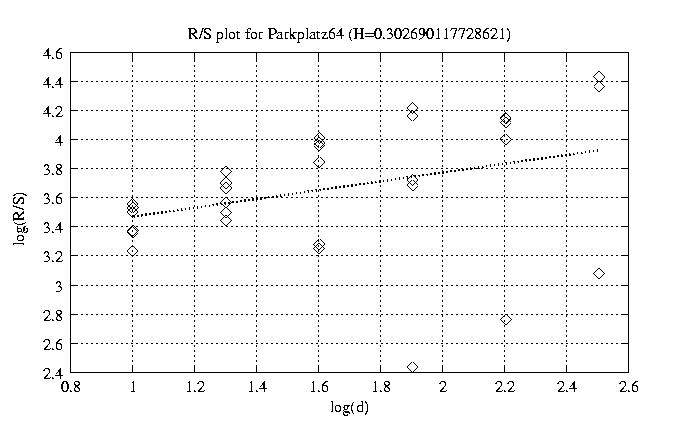

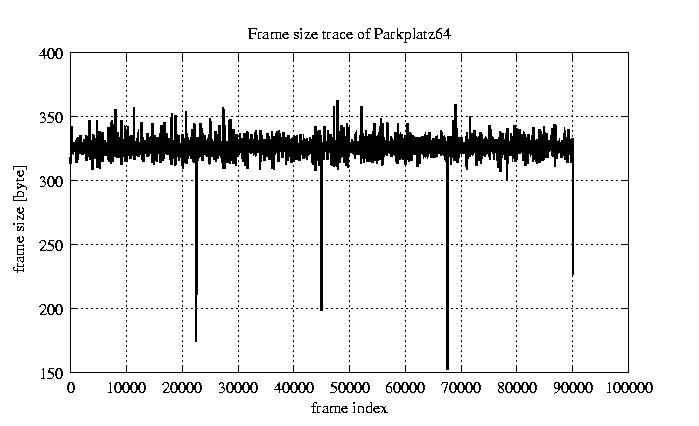

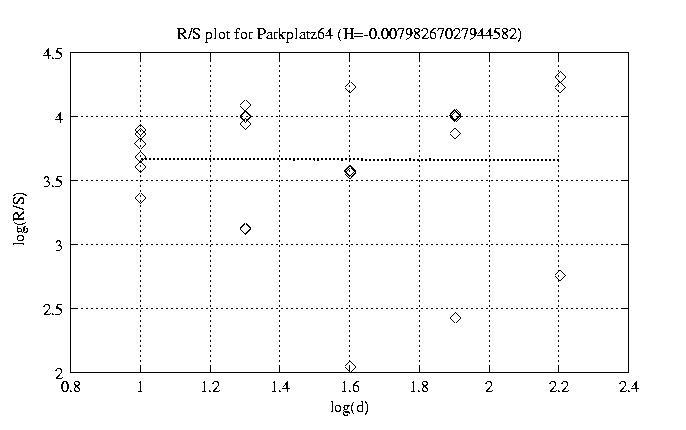

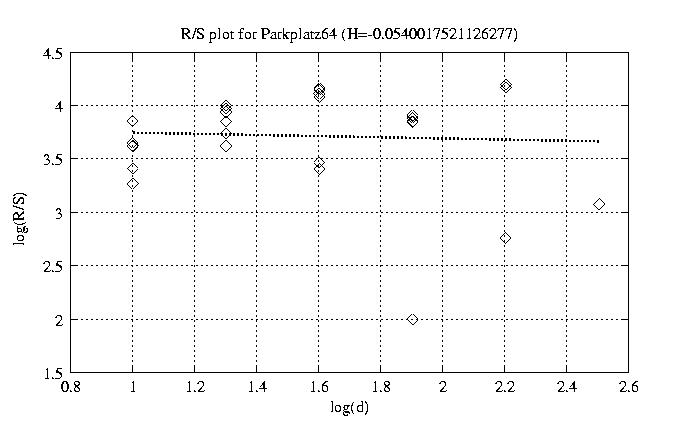

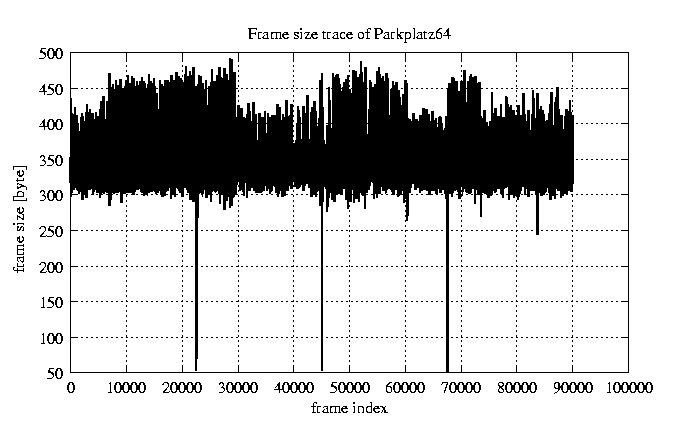

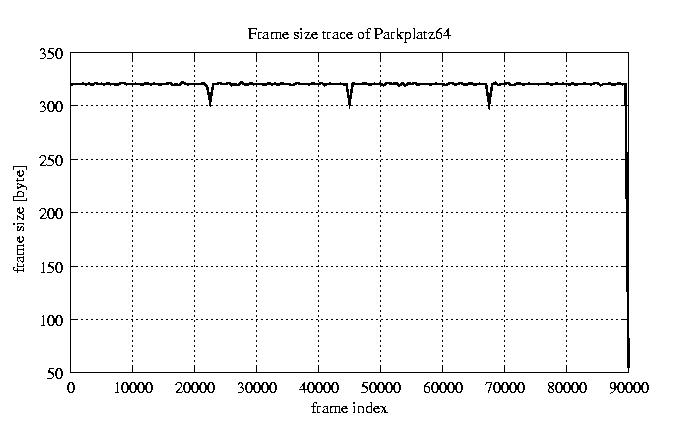

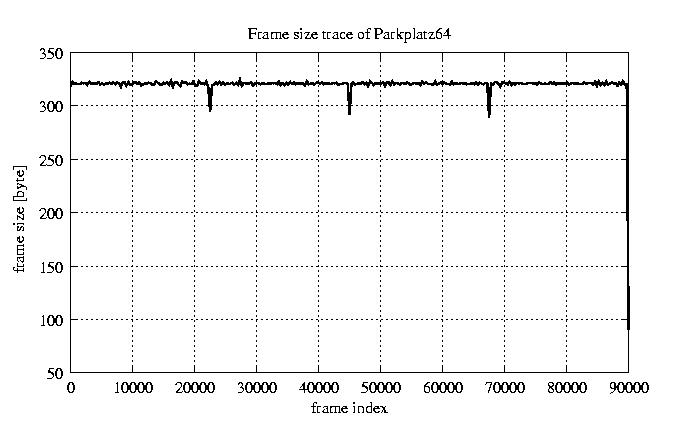

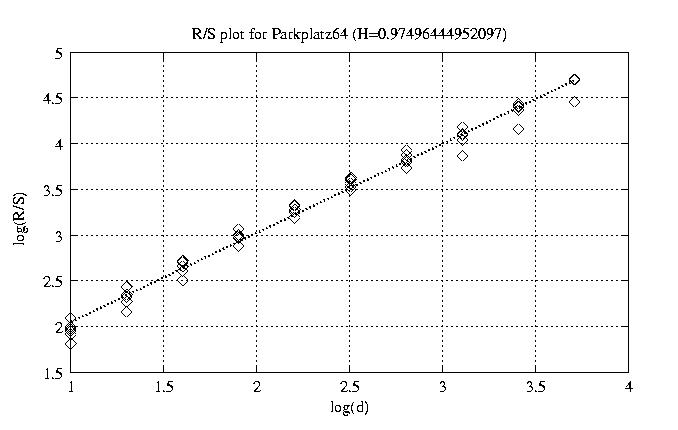

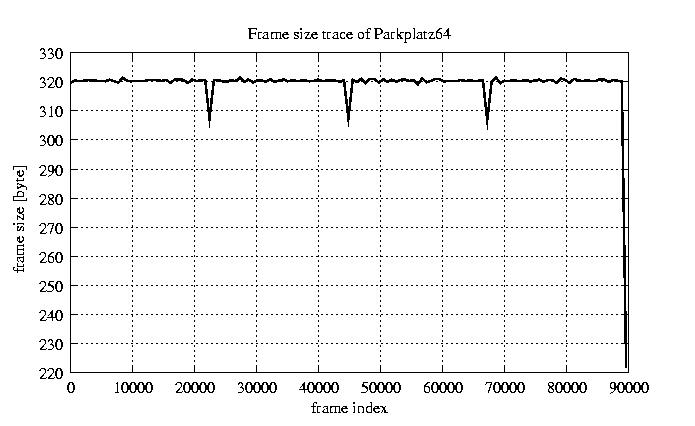

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.409 view view 12 0.975 view view 50 0.757 view view 100 0.532 view view 200 0.303 view view 300 -0.054 view view 400 -0.008 view view 500 -0.178 view view 600 -0.663 view view 700 -0.050 view view 800 -0.139 view view

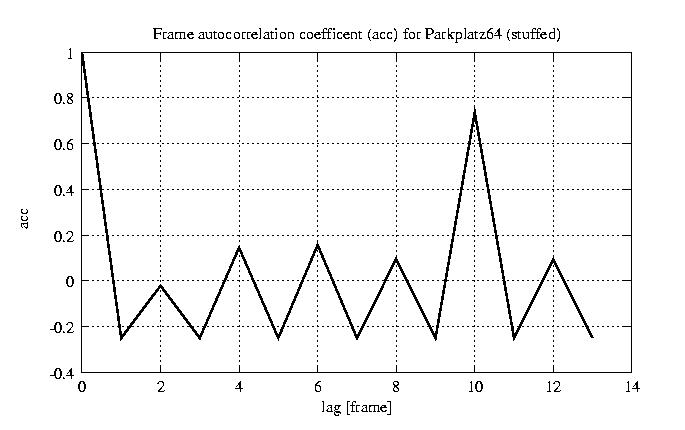

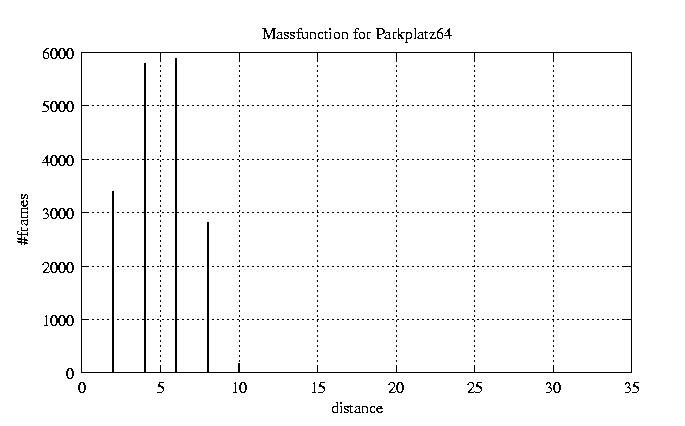

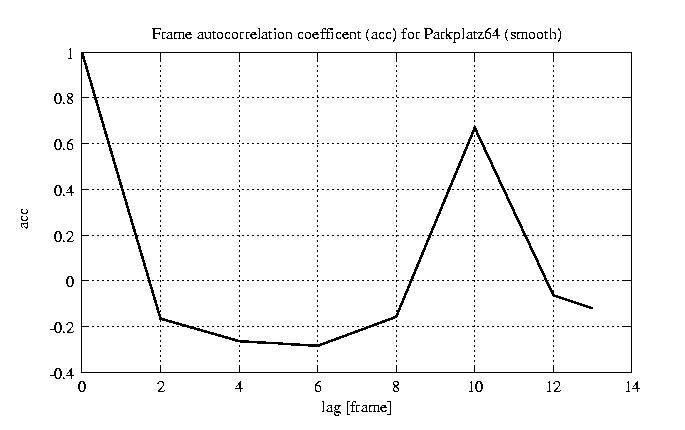

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
	HOME BACK

Frank Fitzek
