H263 - Star Wars IV
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.95 118.95 File size byte 2.9e+07 2.9e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 24965.00 mean frame size byte 319.62 1153.32 var frame size - 334497.09 245477.20 CoV of frame size - 1.81 0.43 min frame size byte 0.00 23.00 max frame size byte 8203.00 8203.00 Peak/Mean frame - 25.66 7.11 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.3e+05 Peak/Mean of bit rate - 5.2 CoV of bit rate - 0.45 max inter frame space frames 1.00 31.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

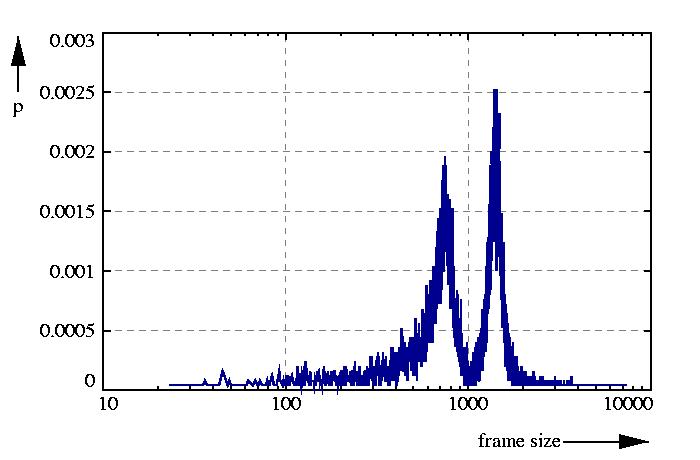

probability density function p

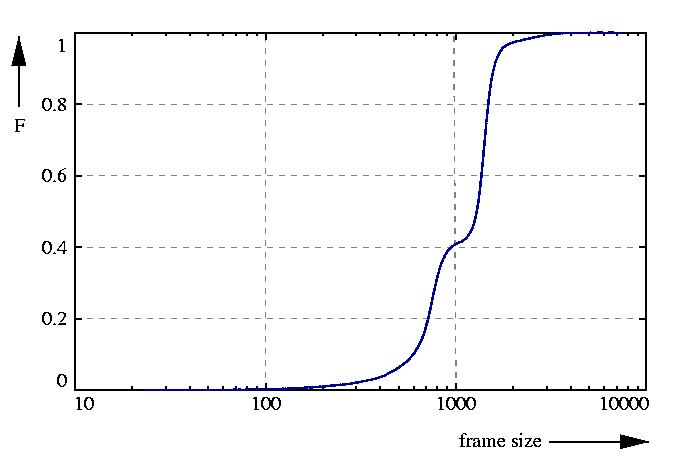

probability function F = sum p

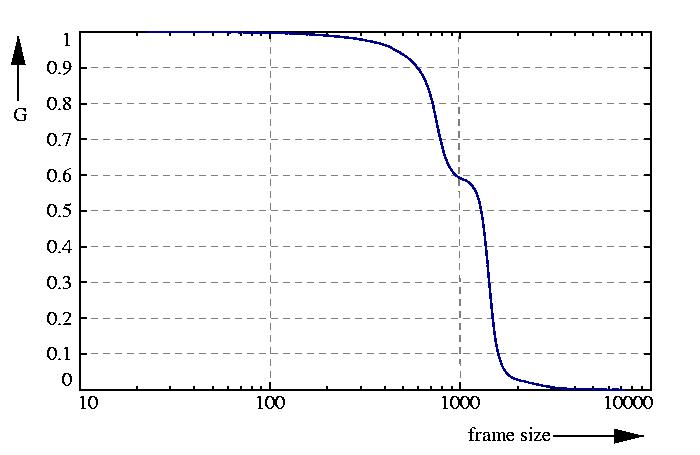

inverse probability function G = 1 - F

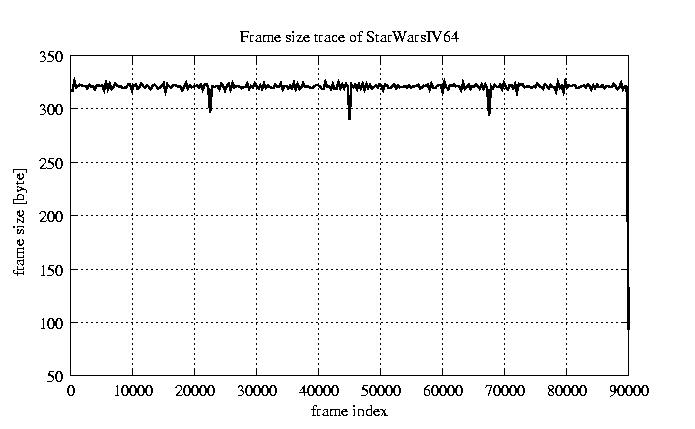

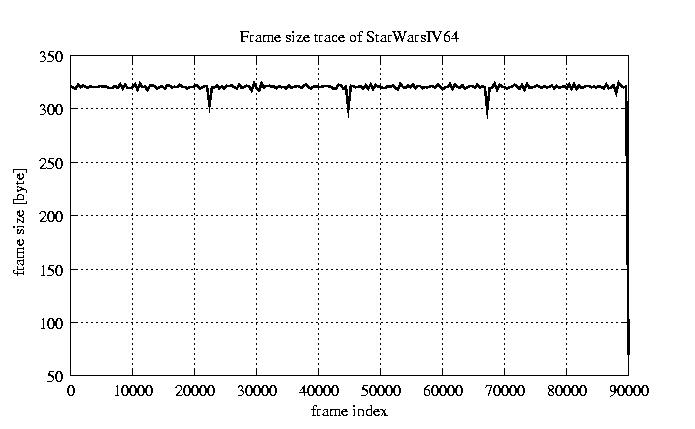

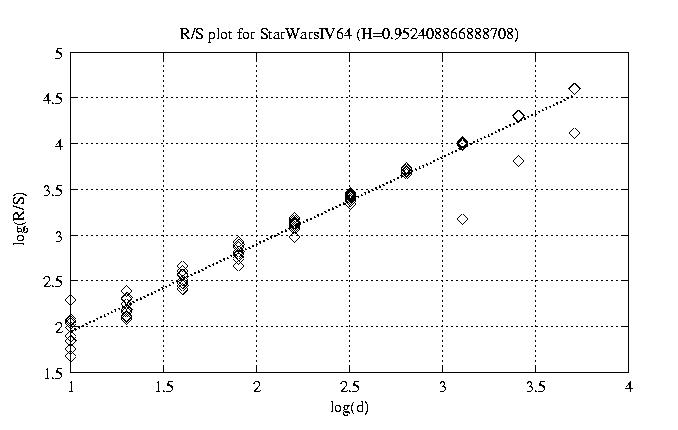

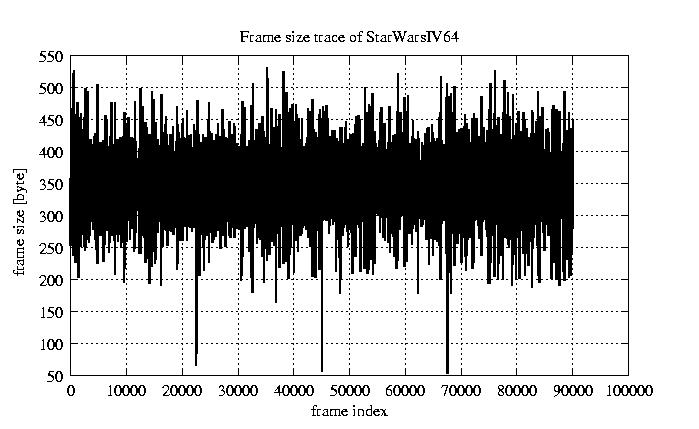

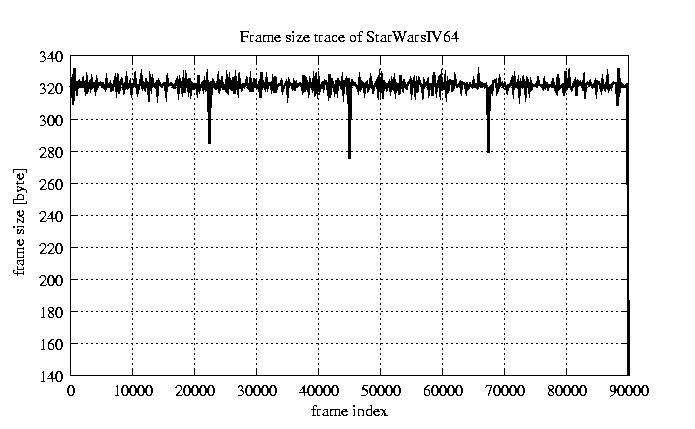

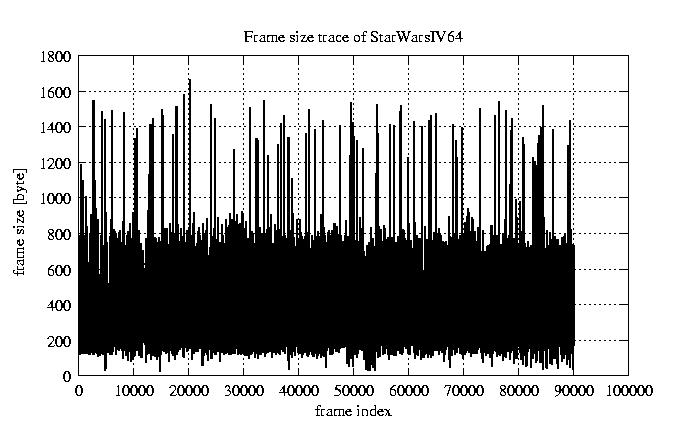

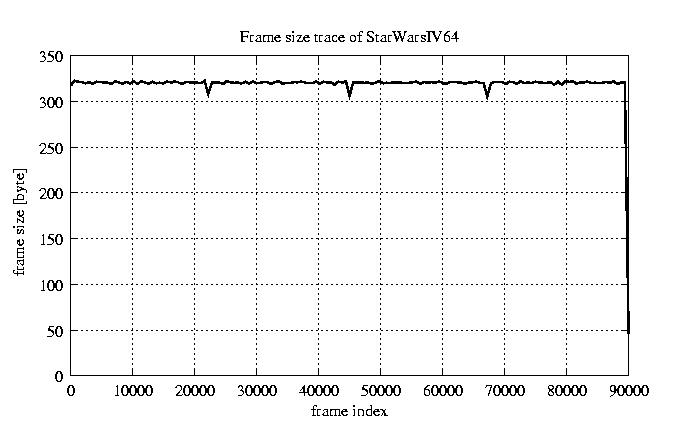

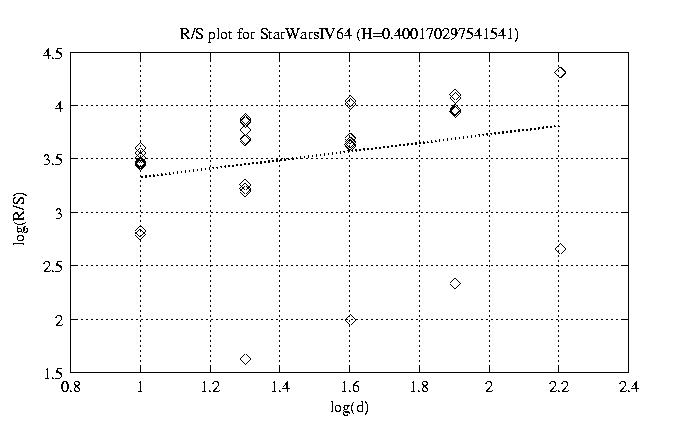

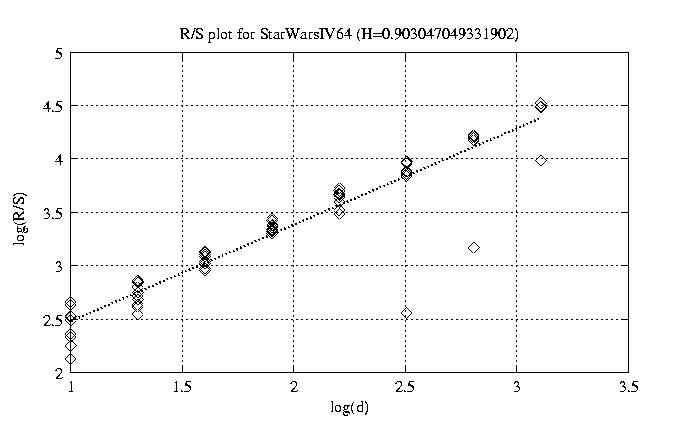

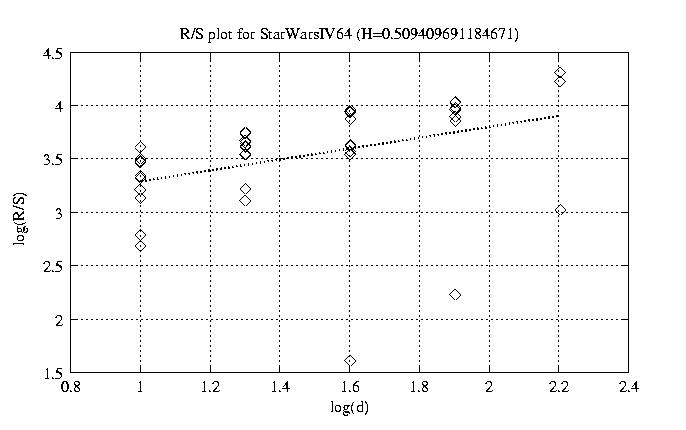

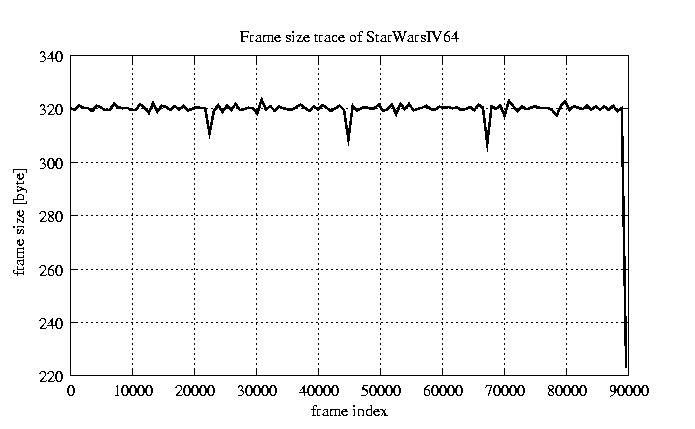

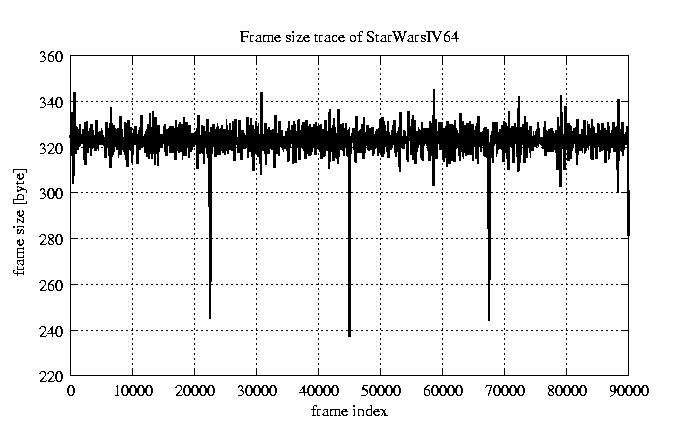

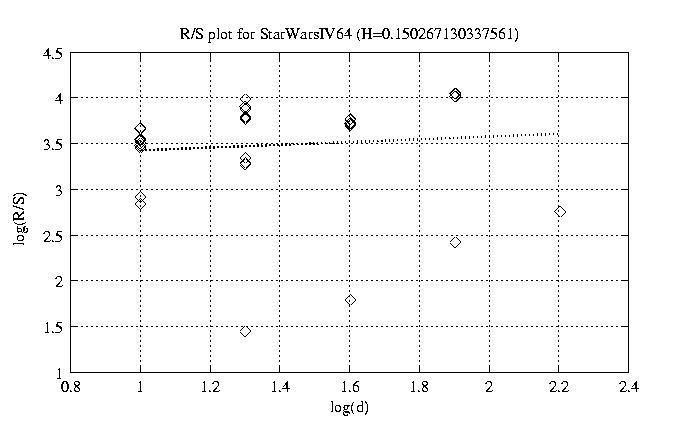

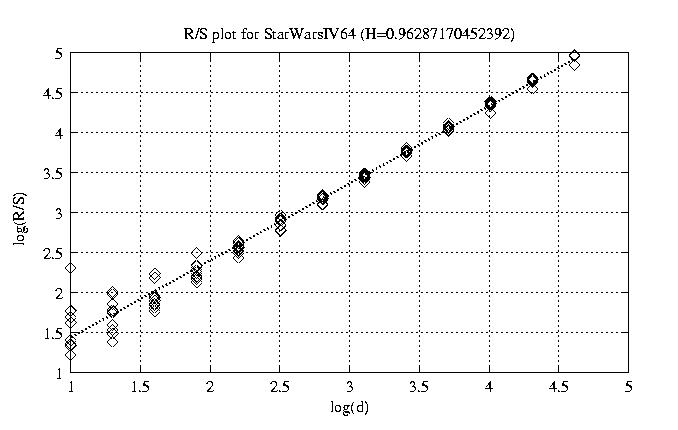

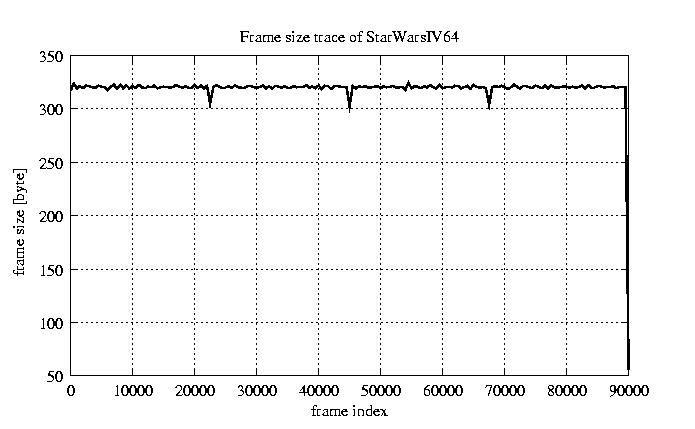

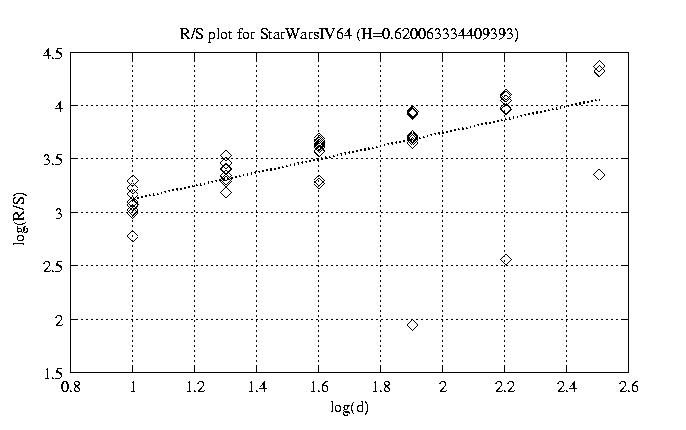

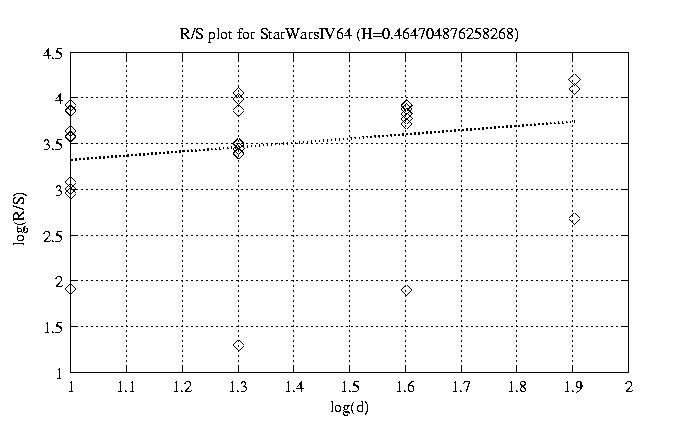

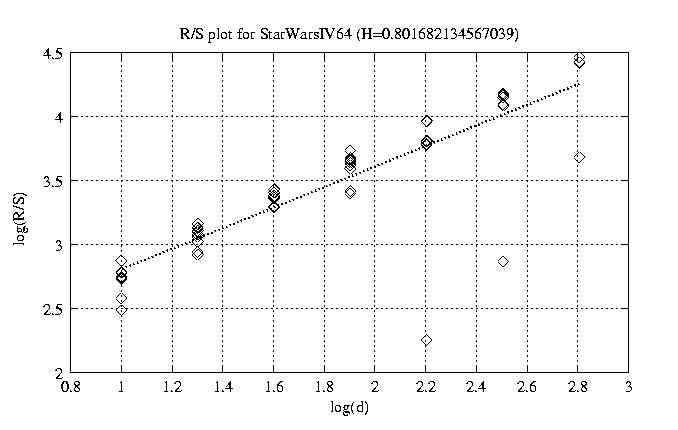

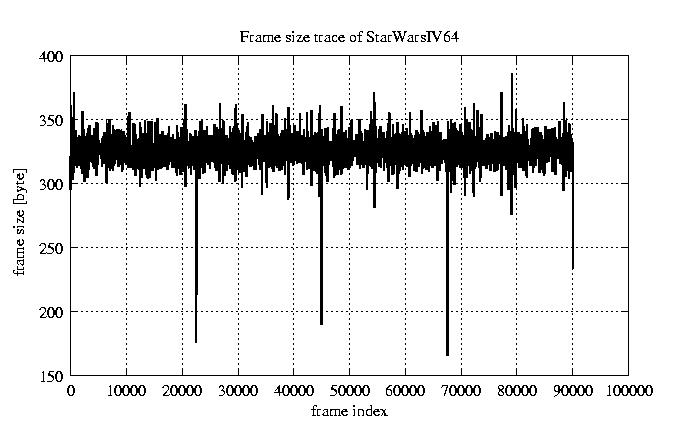

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.963 view view 12 0.952 view view 50 0.903 view view 100 0.802 view view 200 0.620 view view 300 0.348 view view 400 0.509 view view 500 0.400 view view 600 0.150 view view 700 0.388 view view 800 0.465 view view

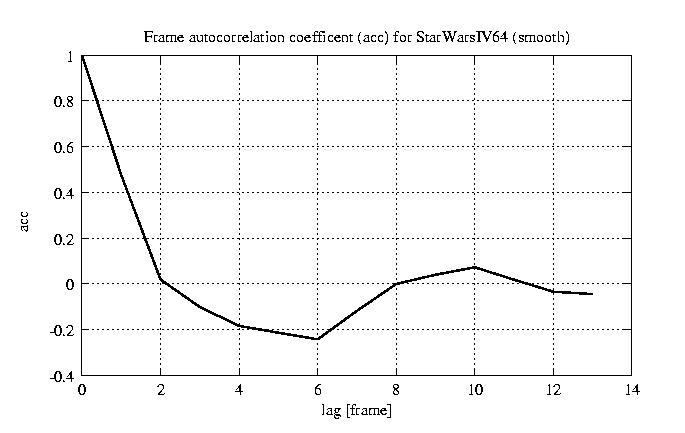

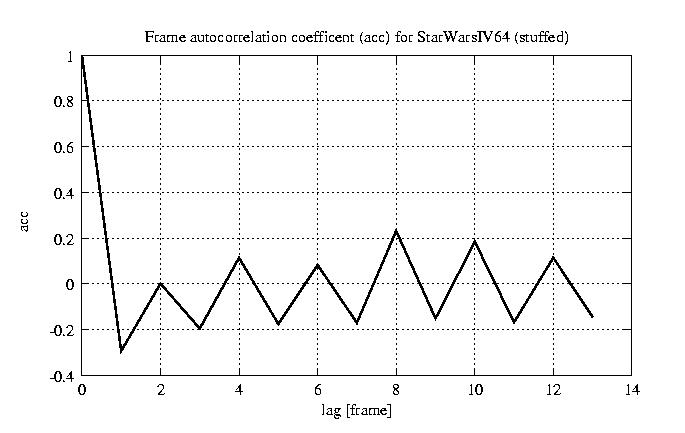

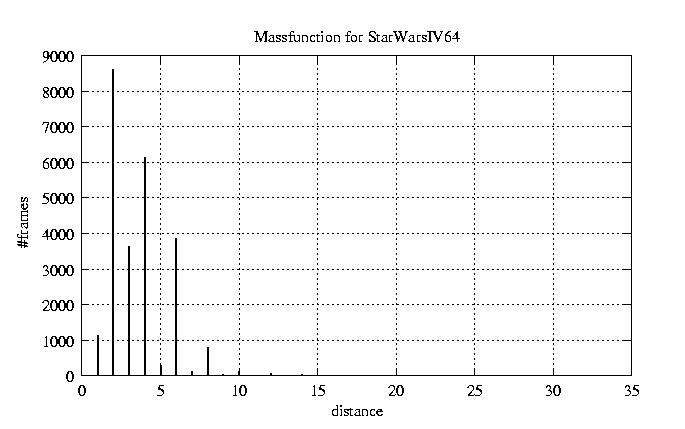

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
