MP4 - N3Talk
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 13.76 File Size byte 2.5e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 2.8e+03 var frame size - 2.7e+06 CoV of frame size - 0.60 min frame size byte 106 max frame size byte 17062 Mean bit rate bit/sec 5.5e+05 Peak bit rate bit/sec 3.4e+06 Peak/Mean of bit rate - 6.17 GoP statistics # of GoPs - 7499 mean GoP size byte 3.3e+04 var GoP size - 1.5e+08 CoV of GoP size - 0.36 min GoP size byte 9220 max GoP size byte 105426 Mean bit rate bit/sec 5.5e+05 Peak bit rate bit/sec 1.8e+06 Peak/Mean of bit rate - 3.18 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p
probability function F = sum p
inverse probability function G = 1 - F

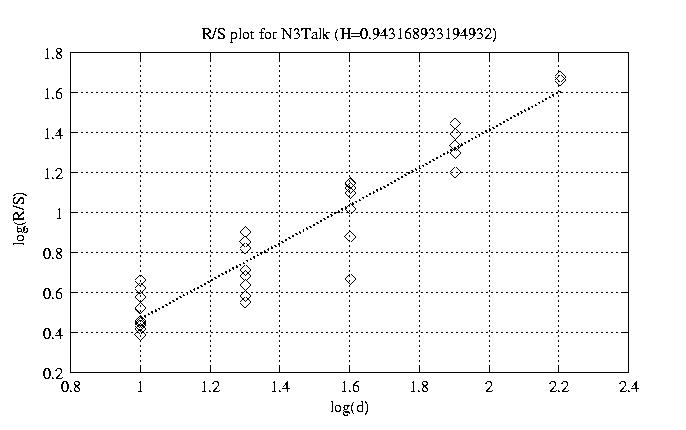

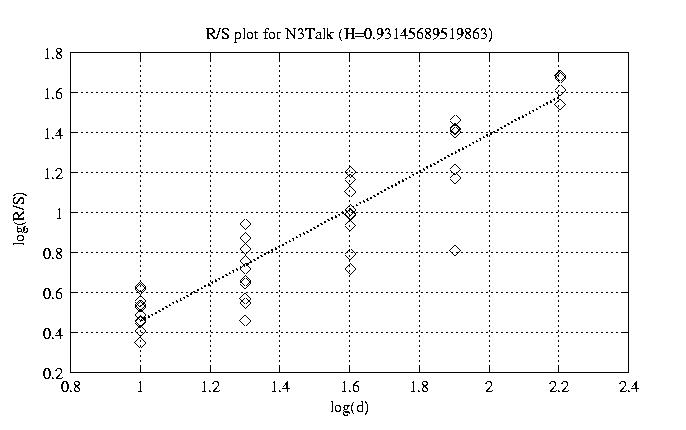

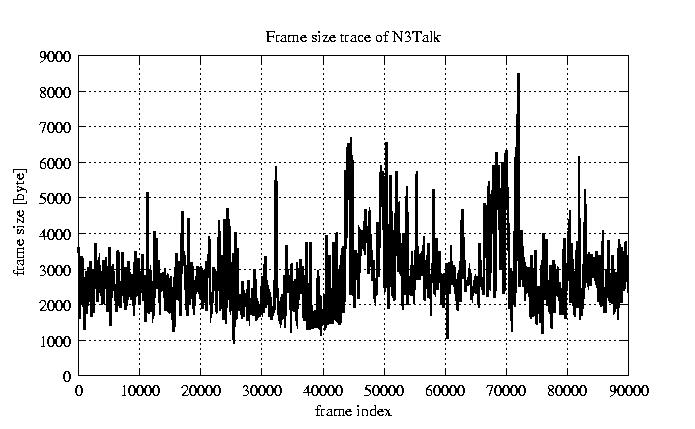

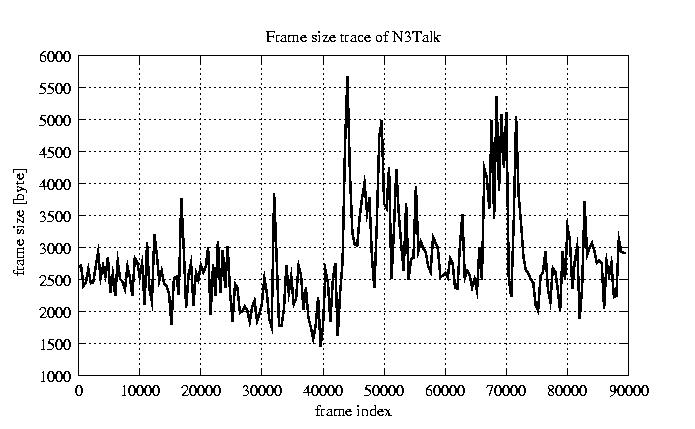

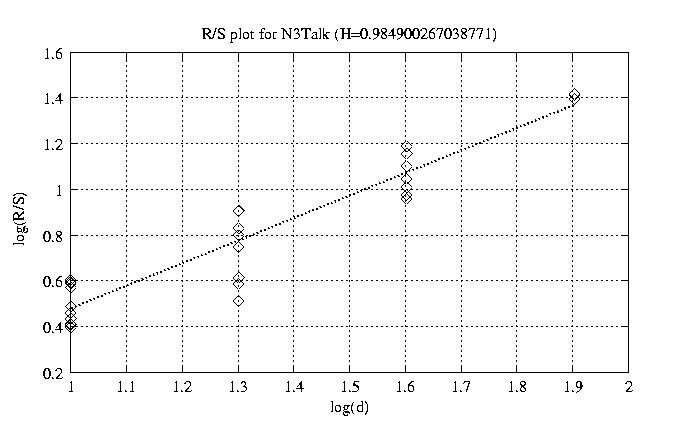

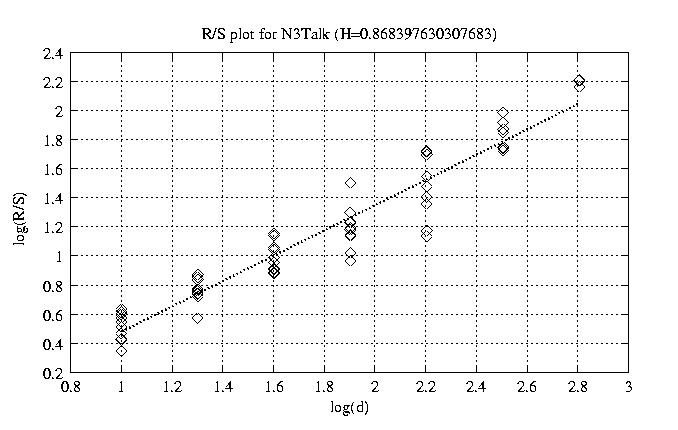

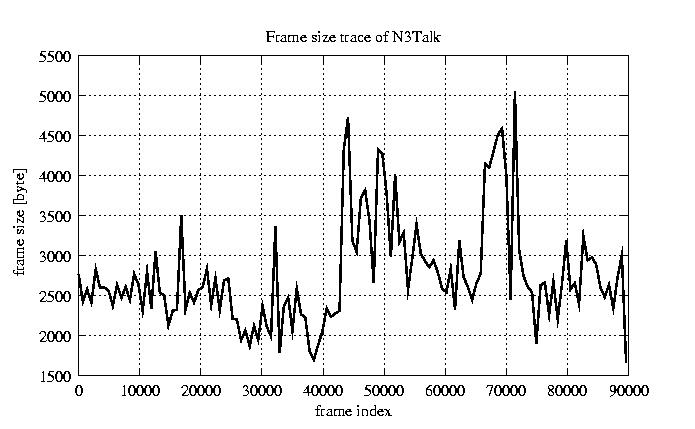

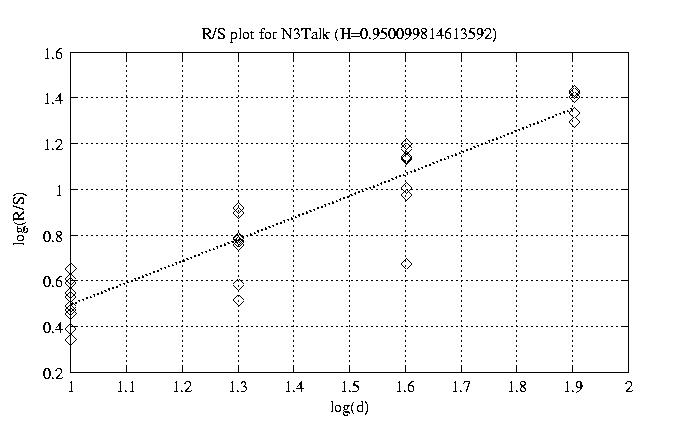

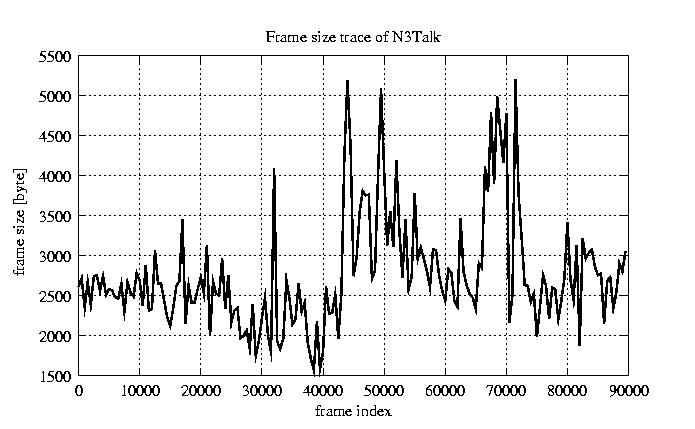

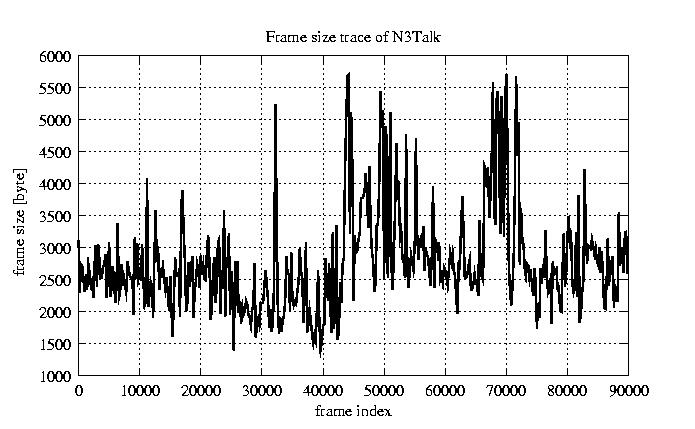

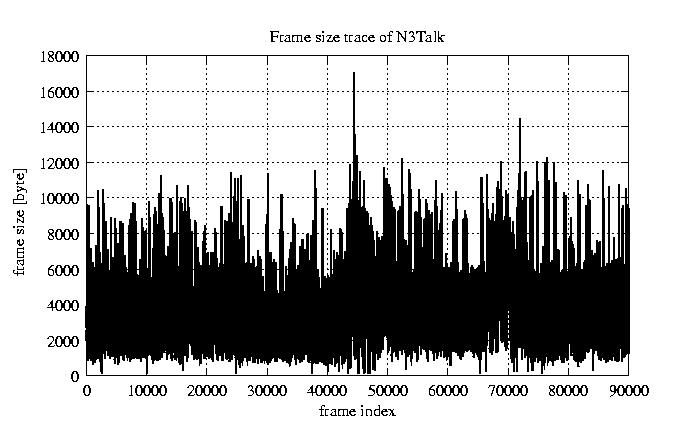

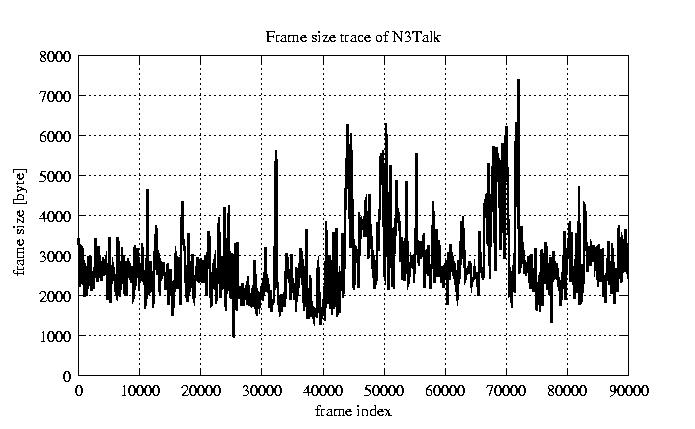

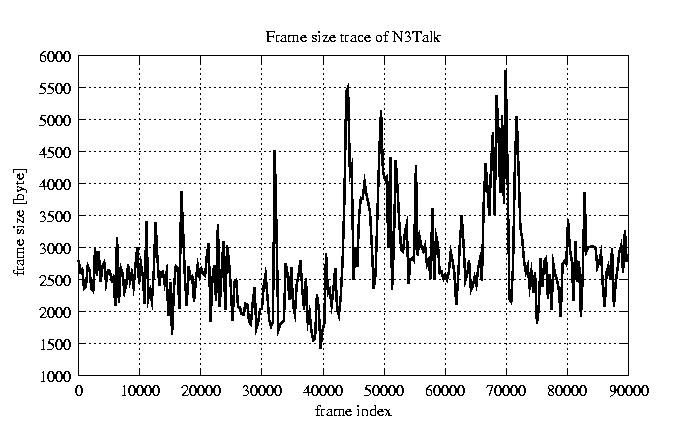

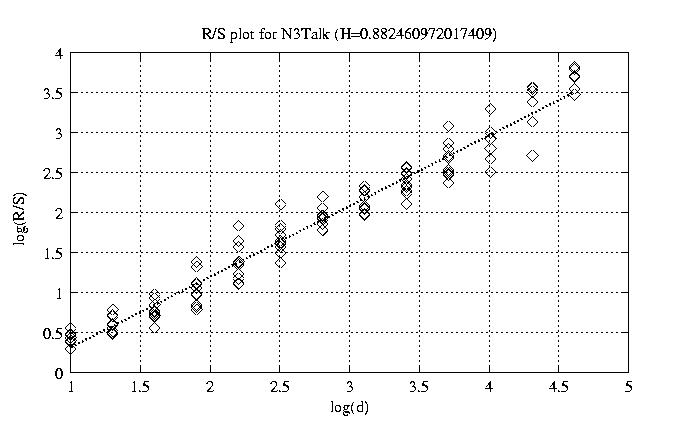

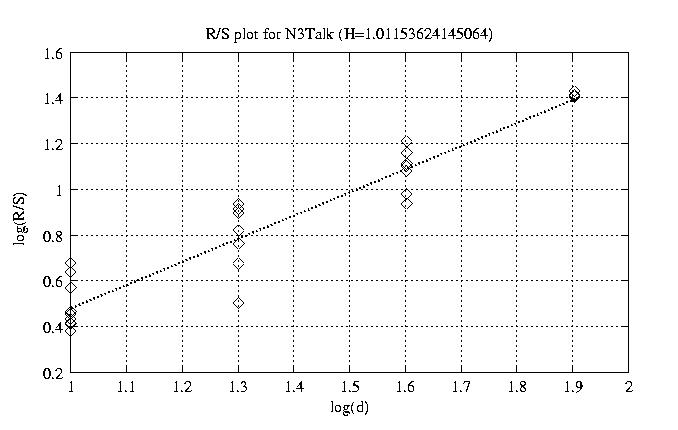

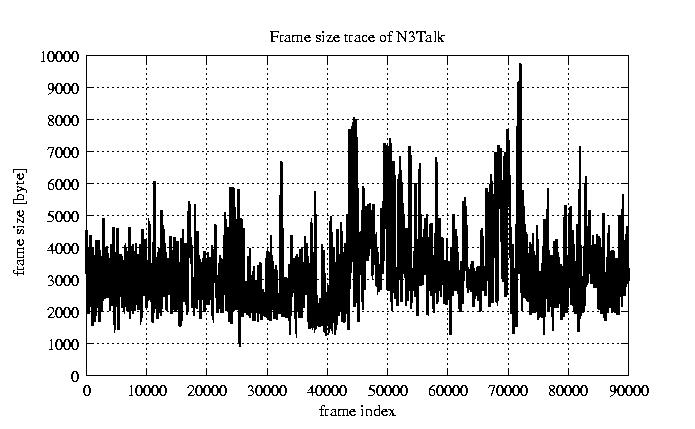

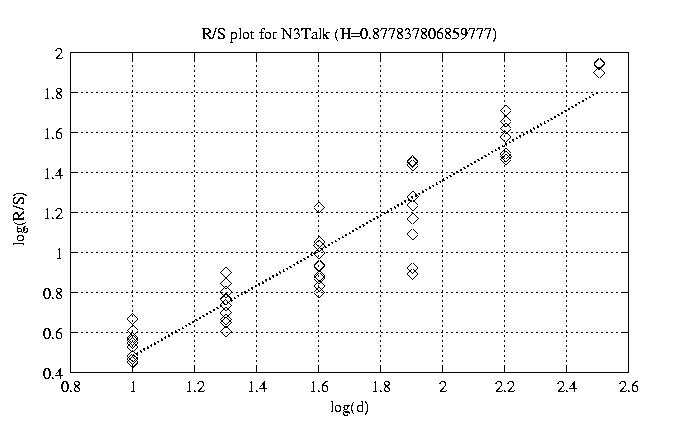

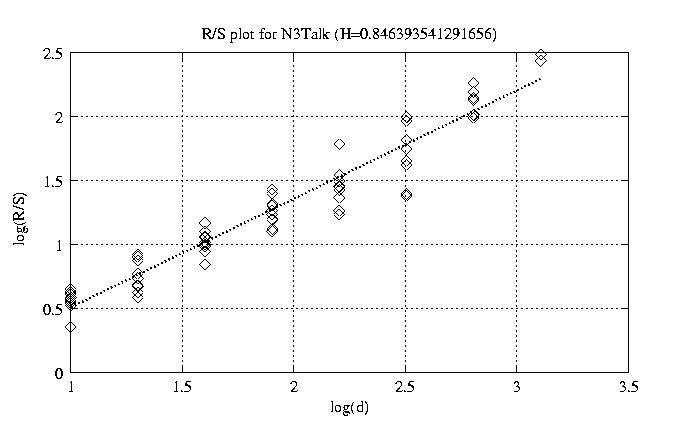

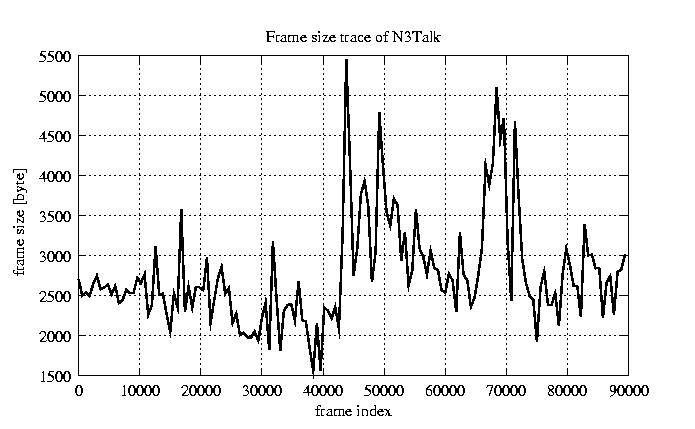

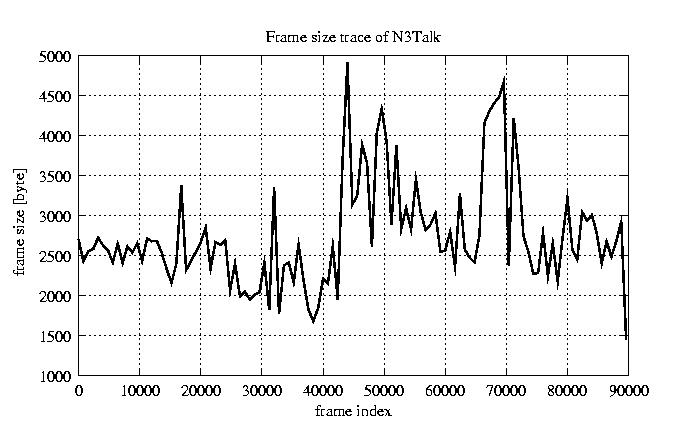

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.882 view view 12 0.840 view view 50 0.846 view view 100 0.868 view view 200 0.878 view view 300 0.931 view view 400 0.919 view view 500 0.943 view view 600 0.950 view view 700 1.012 view view 800 0.985 view view

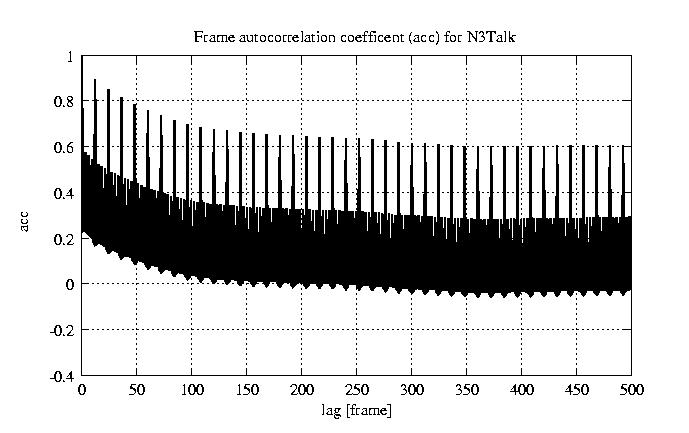

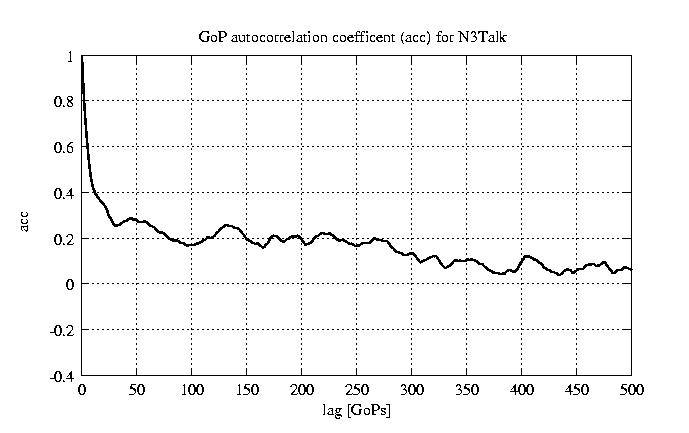

other plots	autocorrelation function of frames autocorrelation function of GoPs
