H263 - From Dusk Till Dawn
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.95 118.95 File size byte 2.9e+07 2.9e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90083.00 27248.00 mean frame size byte 319.62 1056.67 var frame size - 295970.57 199664.83 CoV of frame size - 1.70 0.42 min frame size byte 0.00 26.00 max frame size byte 5943.00 5943.00 Peak/Mean frame - 18.59 5.62 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 4e+05 Peak/Mean of bit rate - 6.3 CoV of bit rate - 0.39 max inter frame space frames 1.00 31.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

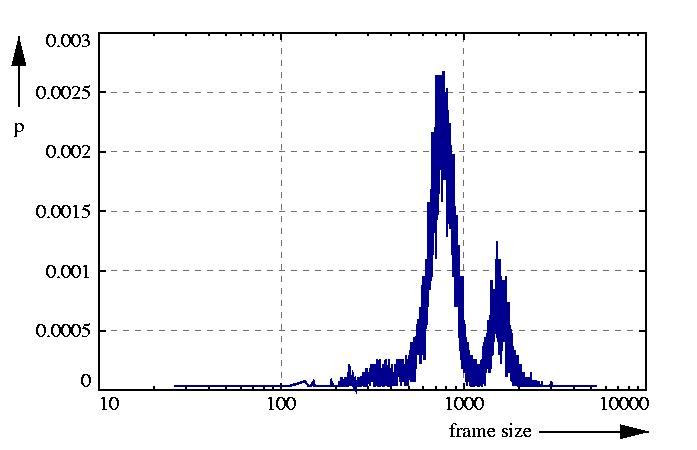

probability density function p

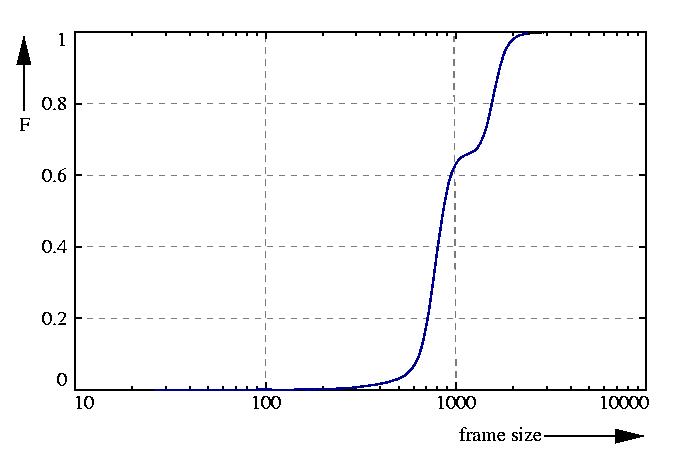

probability function F = sum p

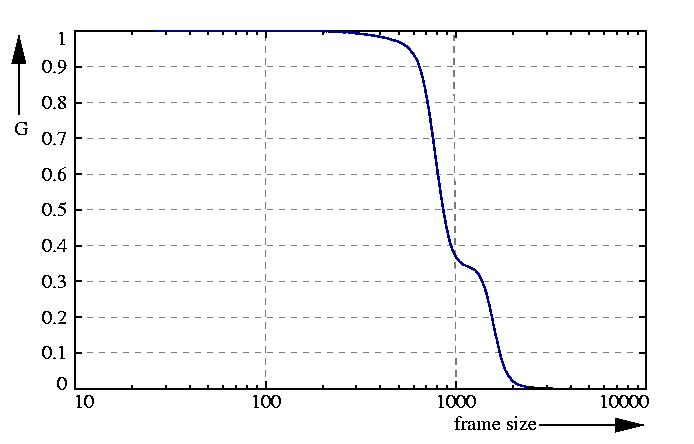

inverse probability function G = 1 - F

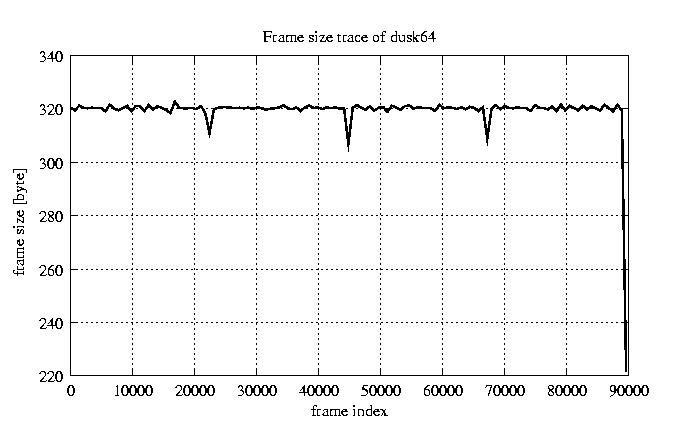

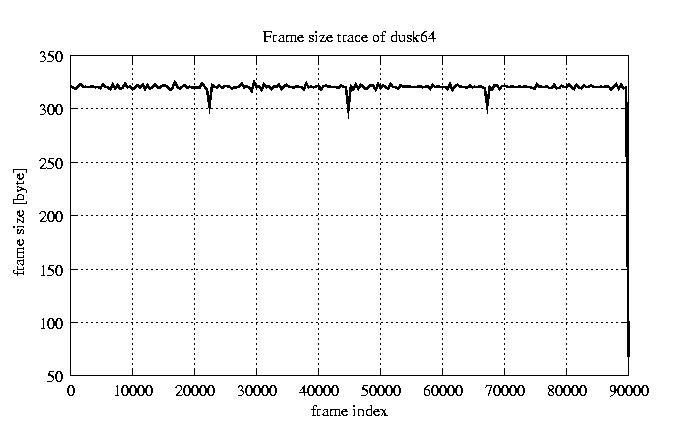

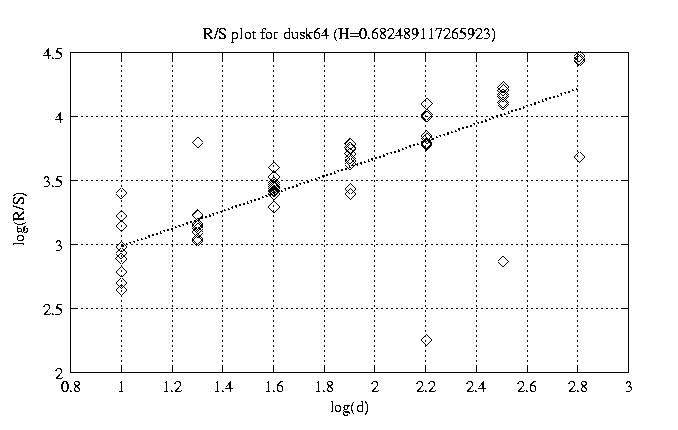

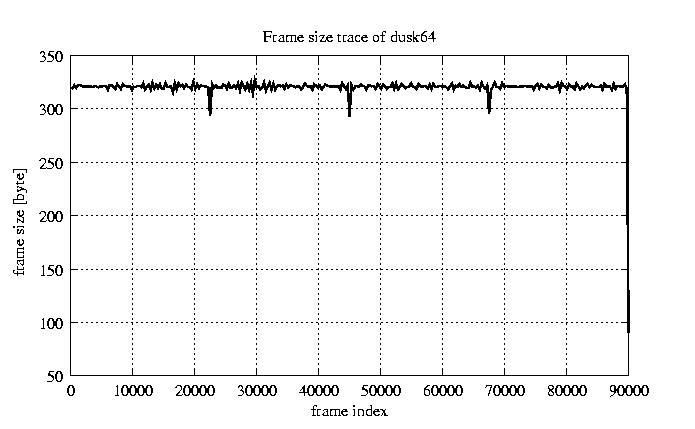

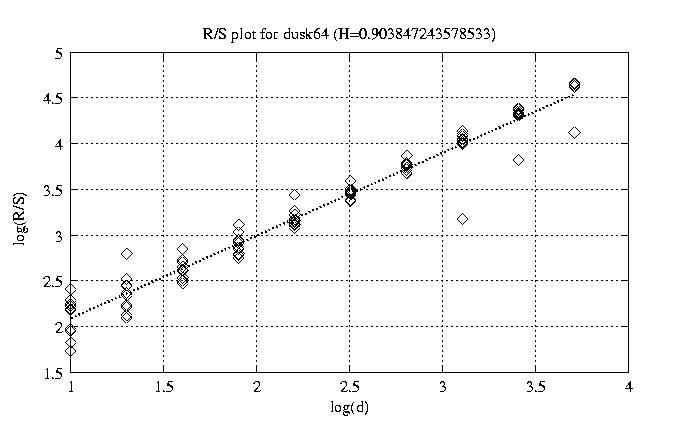

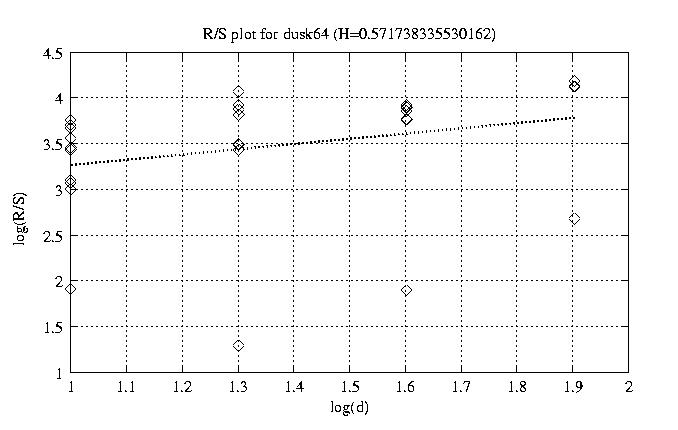

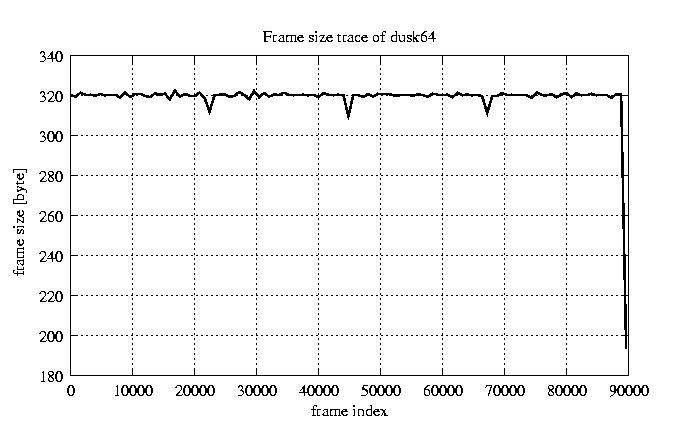

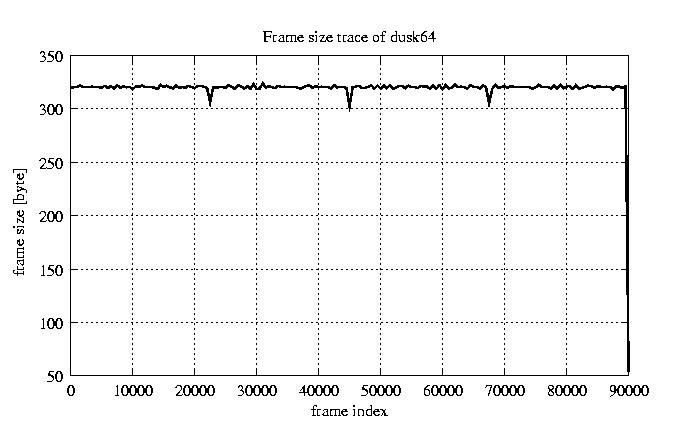

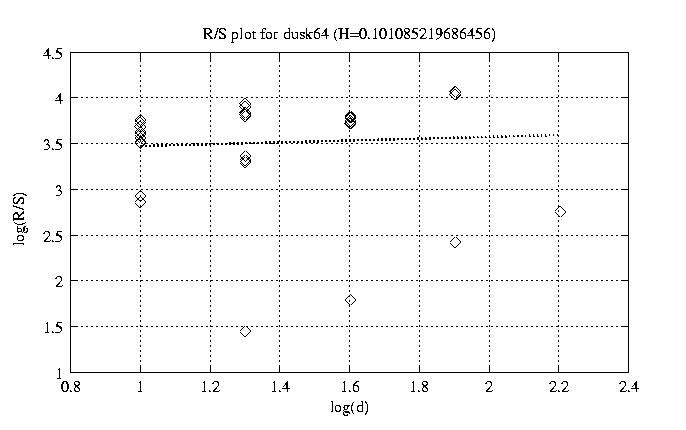

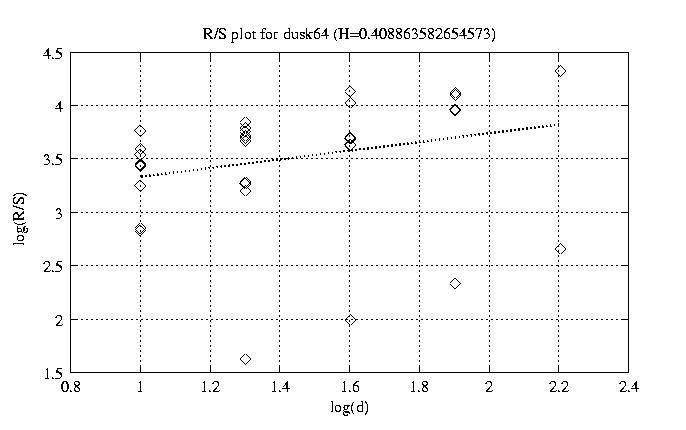

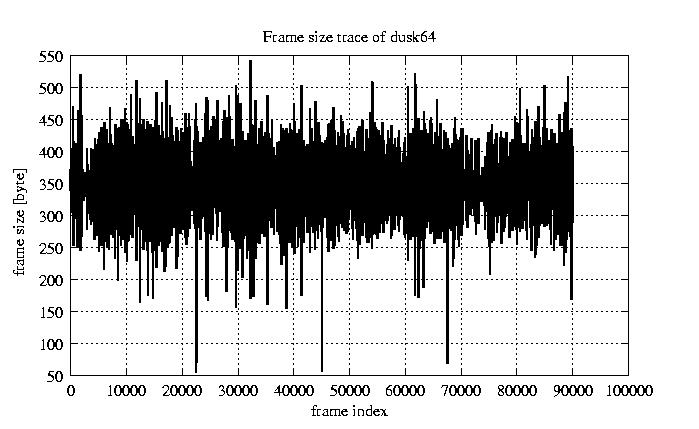

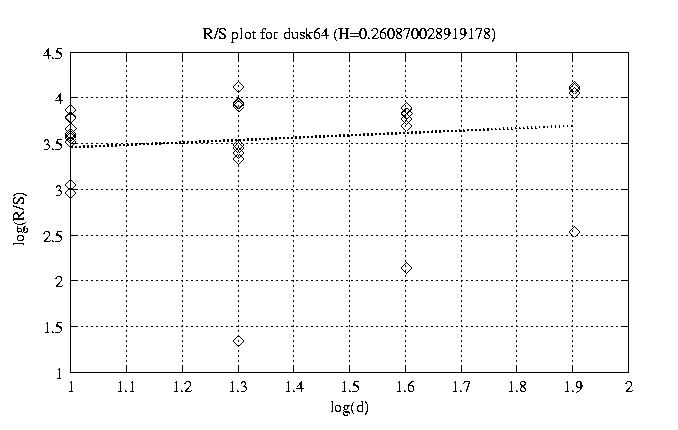

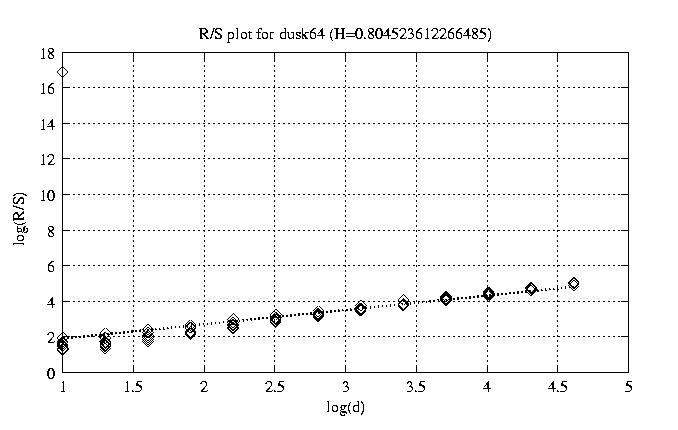

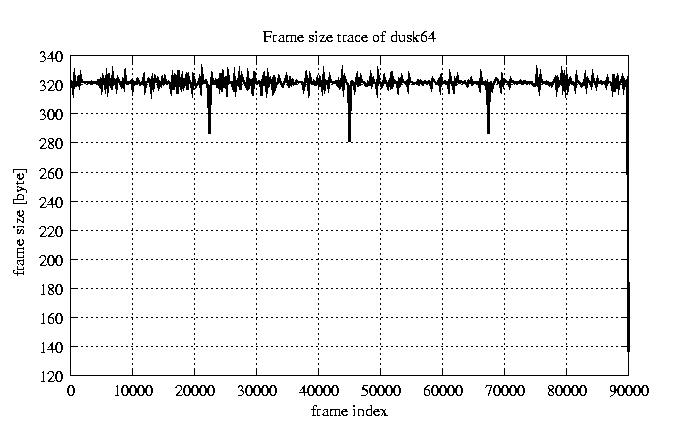

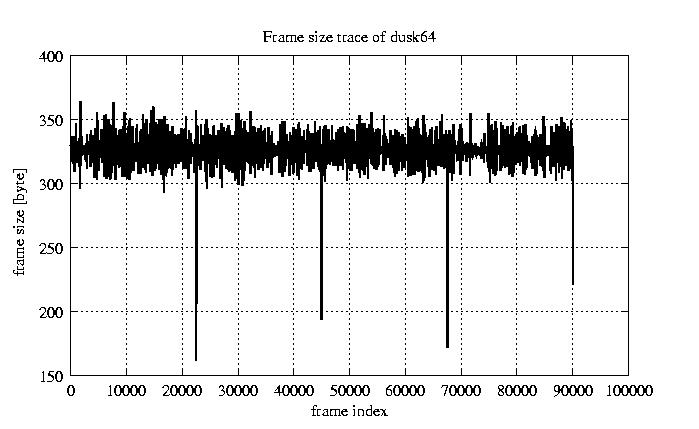

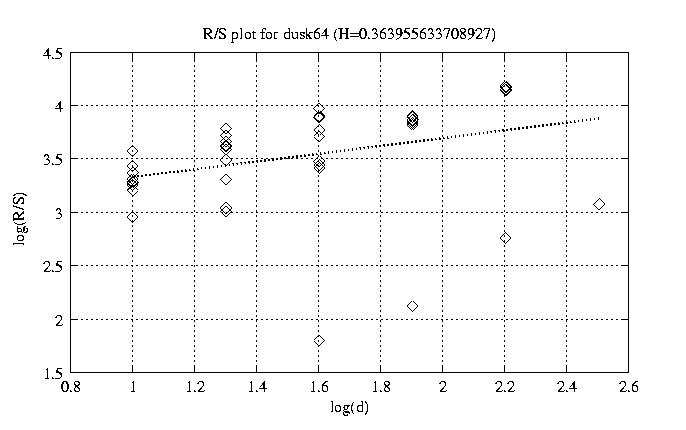

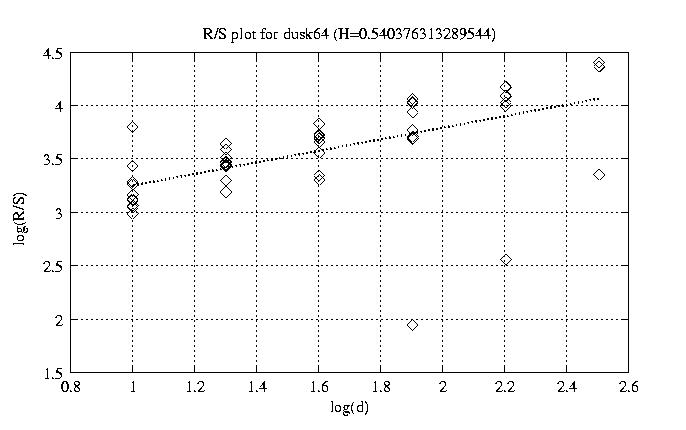

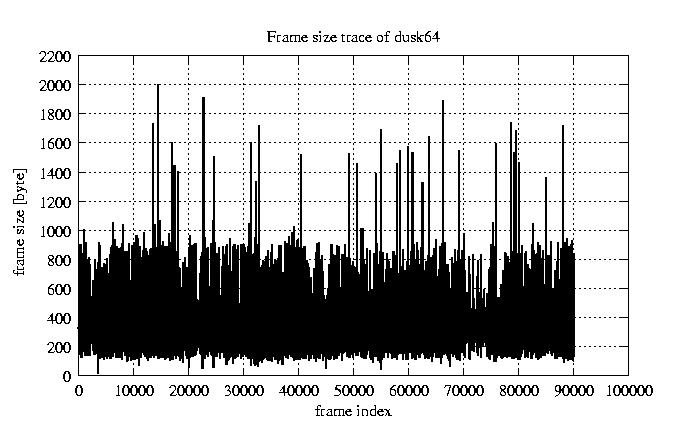

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.805 view view 12 0.904 view view 50 0.831 view view 100 0.682 view view 200 0.540 view view 300 0.364 view view 400 0.501 view view 500 0.409 view view 600 0.101 view view 700 0.261 view view 800 0.572 view view

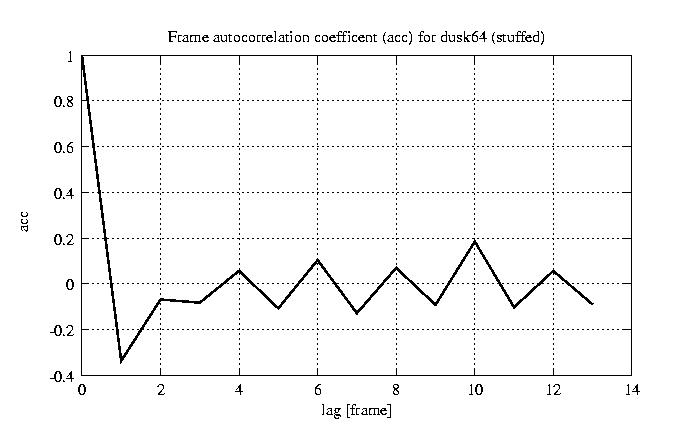

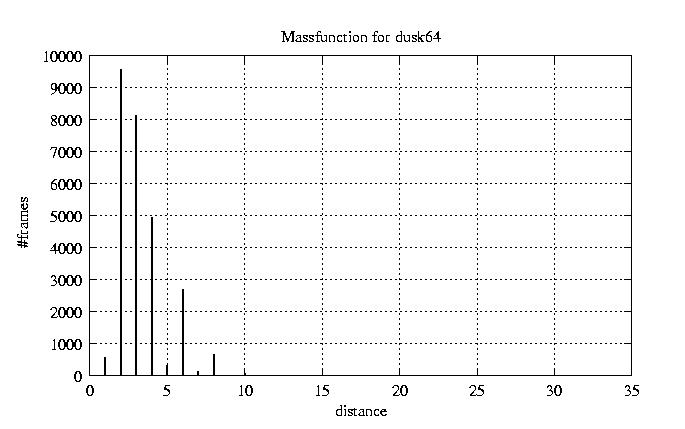

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
