H263 - Robin Hood
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 12.58 12.58 File size byte 2.7e+08 2.7e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 71146.00 mean frame size byte 3021.80 3826.16 var frame size - 5646126.50 4071421.12 CoV of frame size - 0.79 0.53 min frame size byte 0.00 21.00 max frame size byte 19060.00 19060.00 Peak/Mean frame - 6.31 4.98 Mean bit rate bit/sec 6e+05 Peak bit rate bit/sec 3.6e+06 Peak/Mean of bit rate - 5.9 CoV of bit rate - 0.6 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

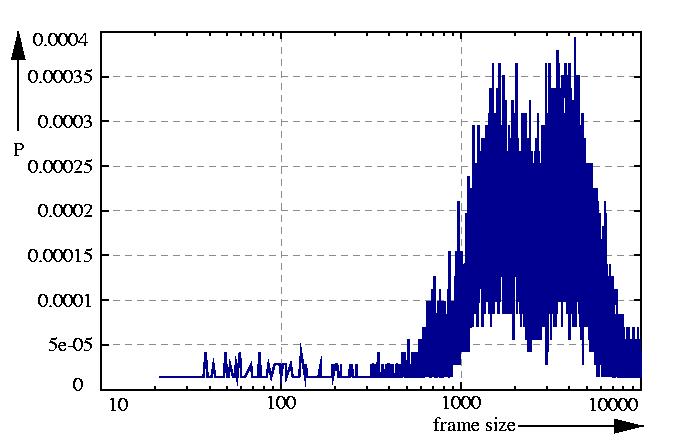

probability density function p

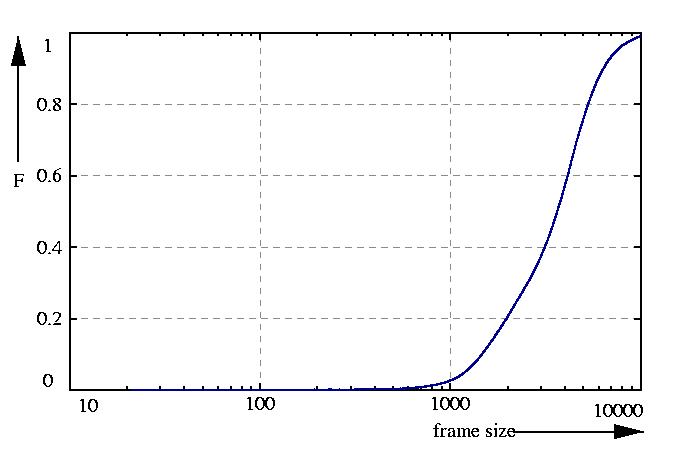

probability function F = sum p
inverse probability function G = 1 - F

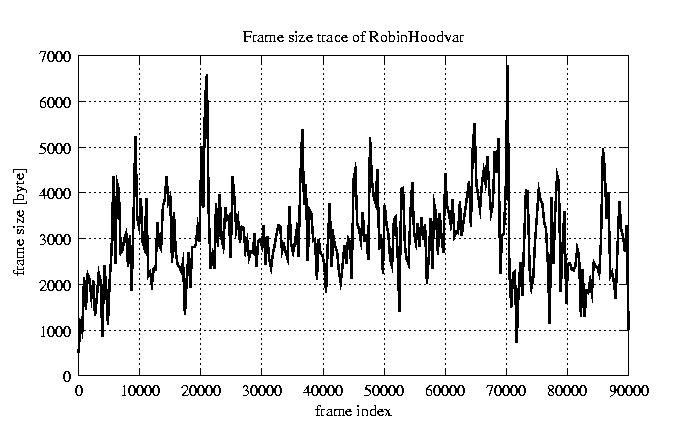

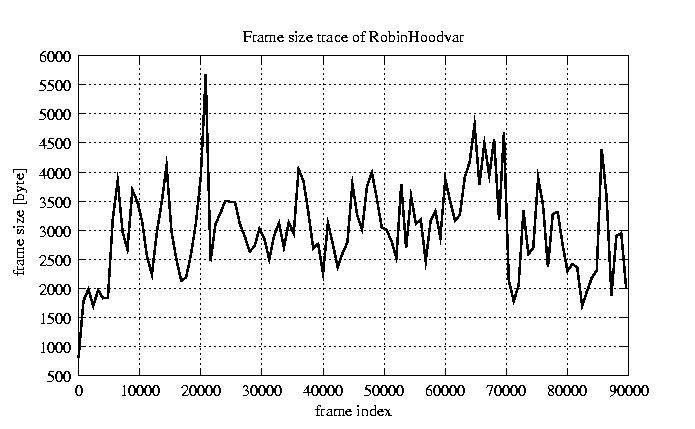

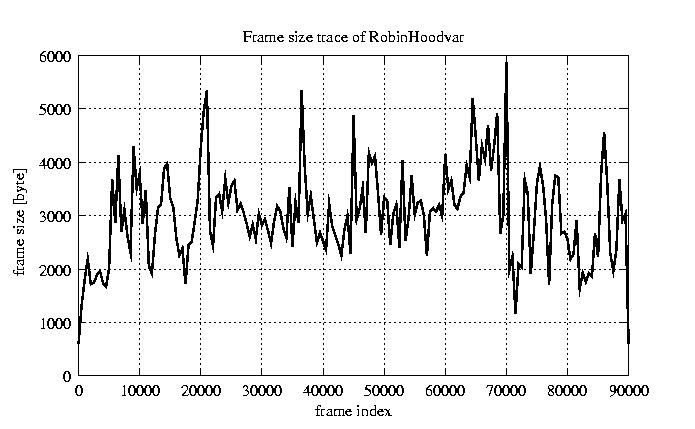

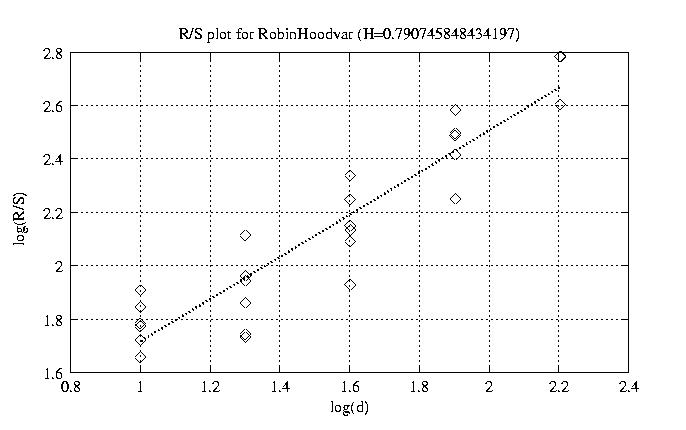

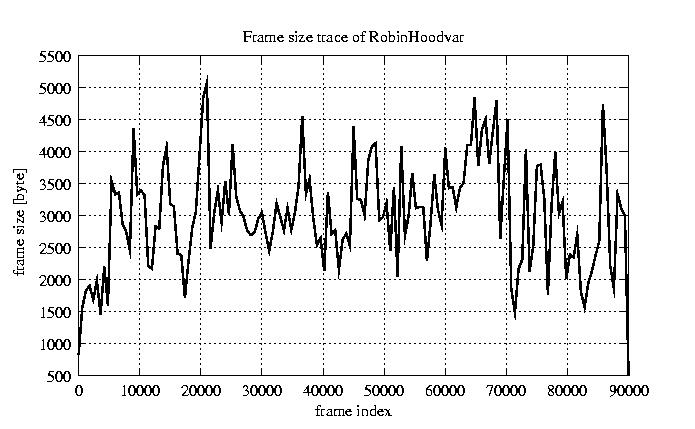

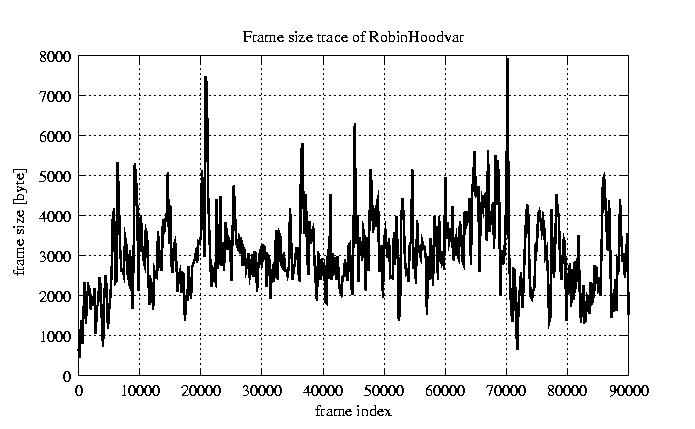

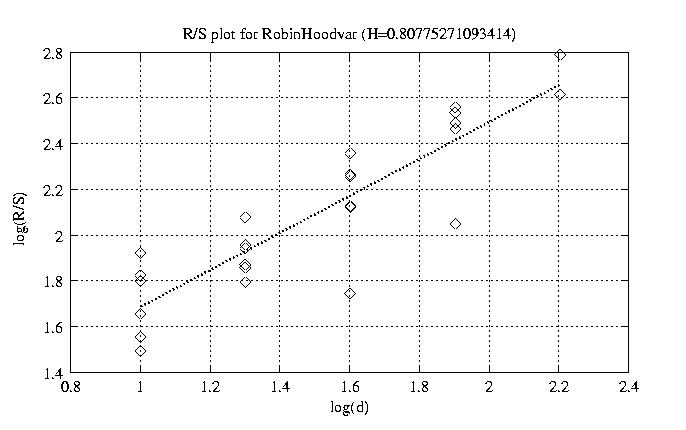

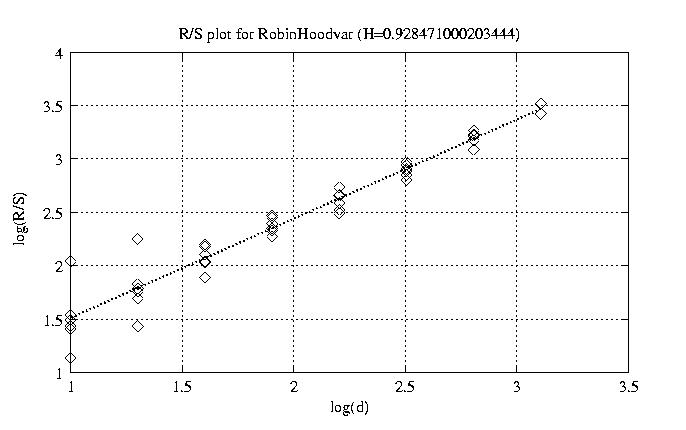

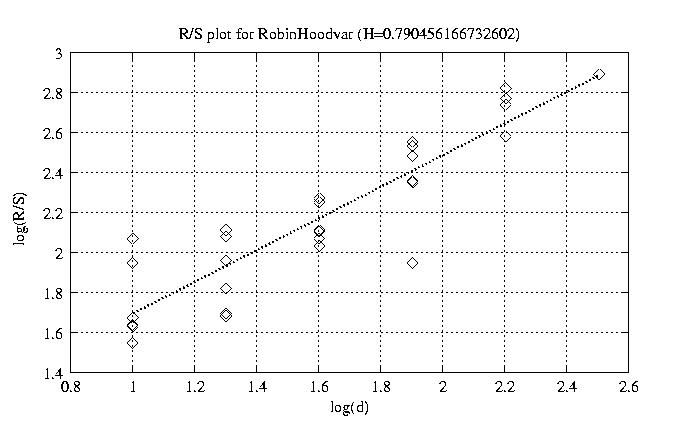

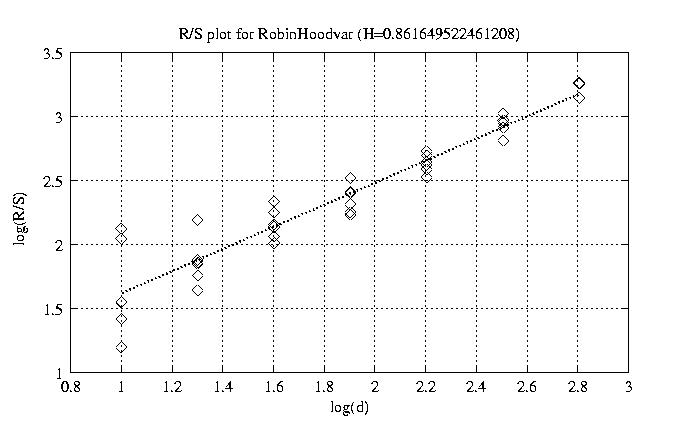

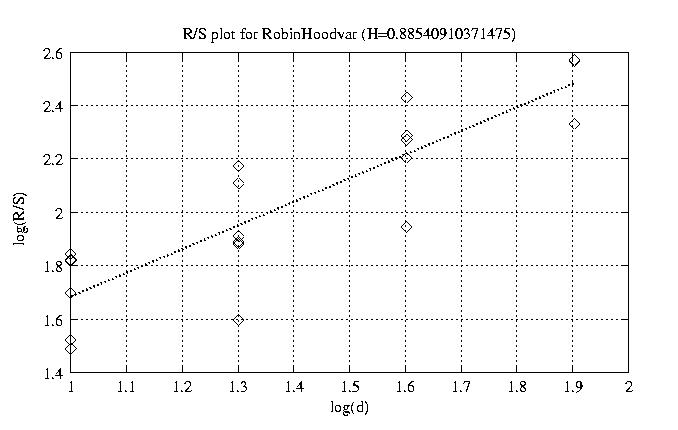

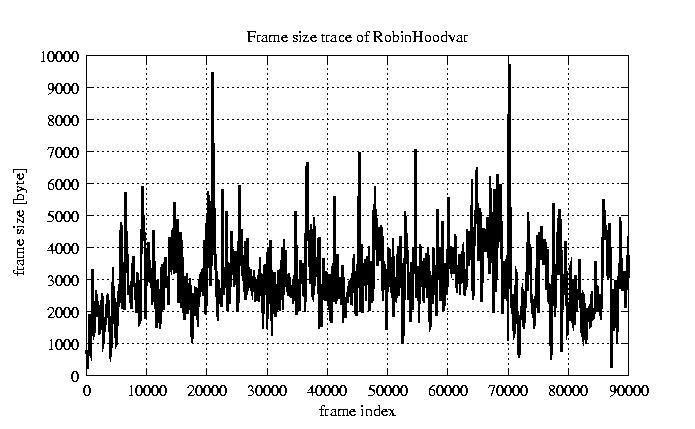

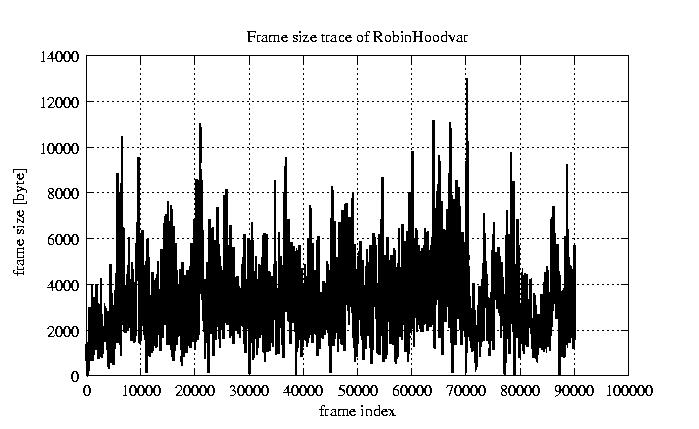

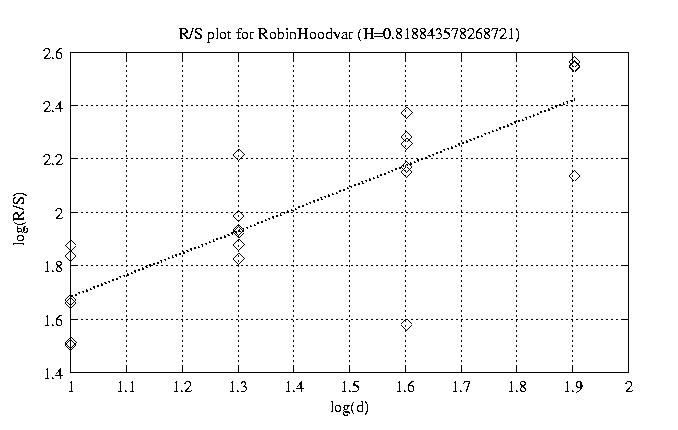

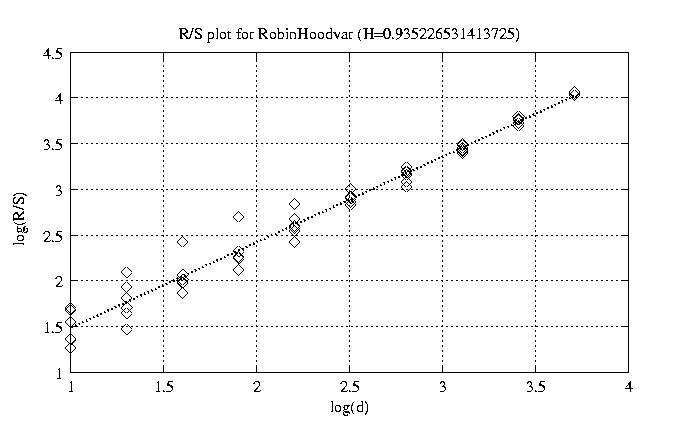

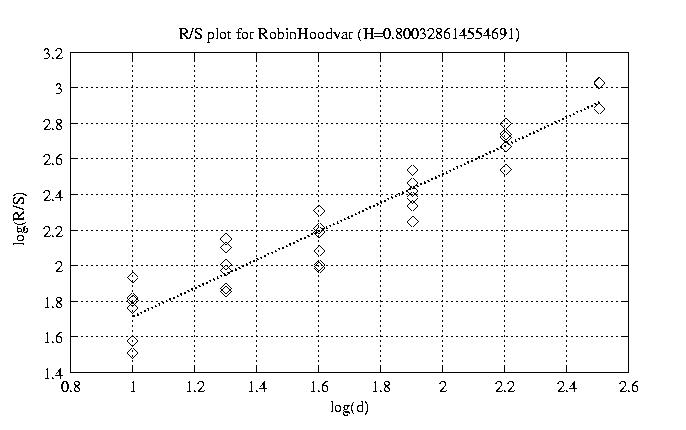

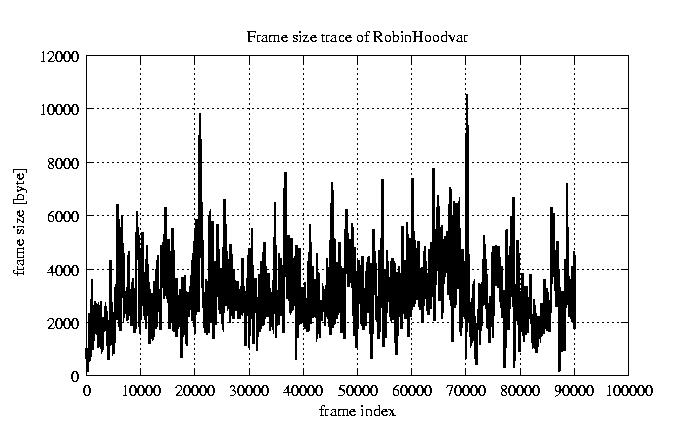

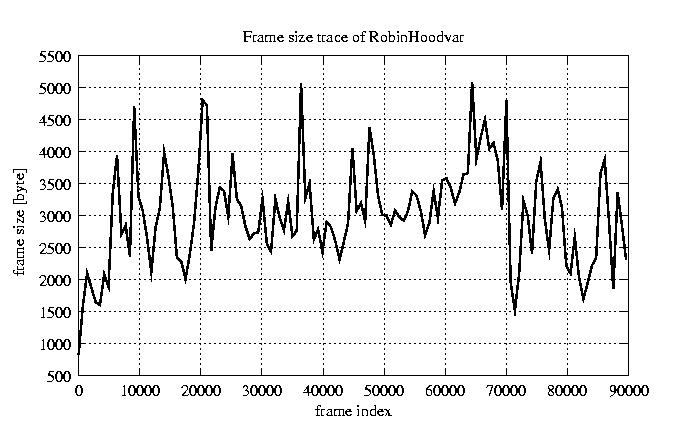

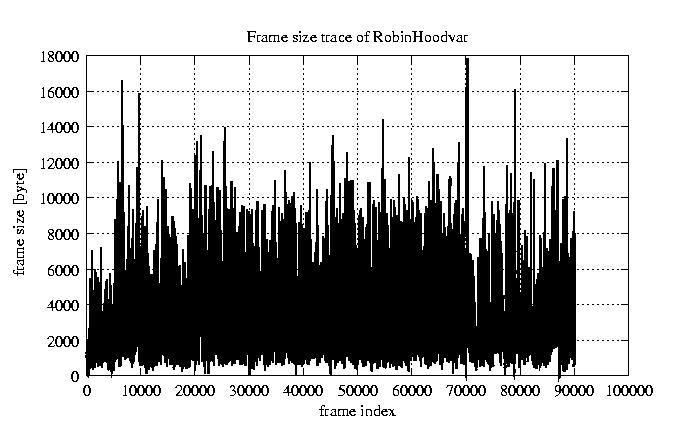

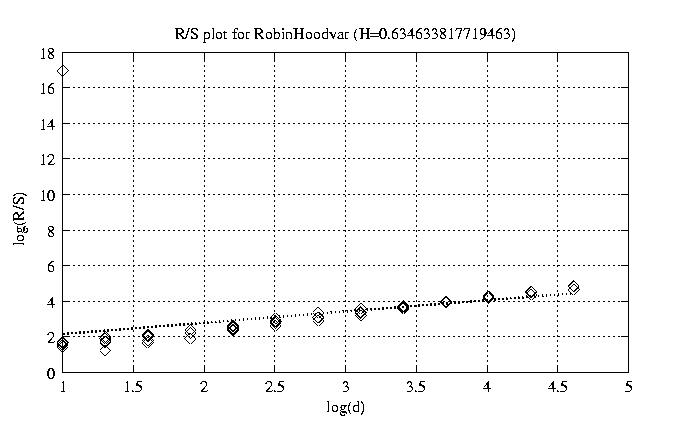

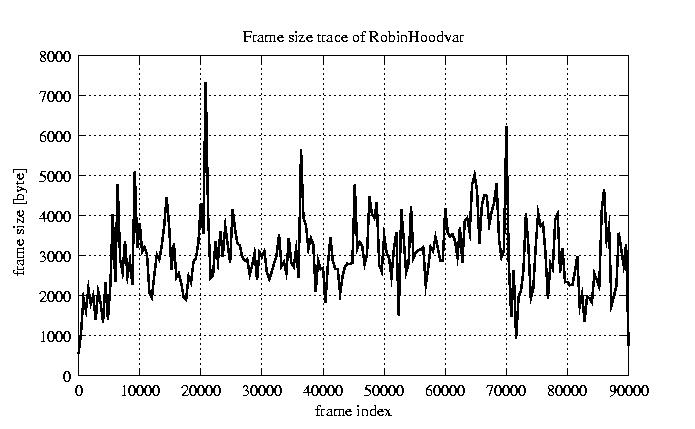

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.635 view view 12 0.935 view view 50 0.928 view view 100 0.862 view view 200 0.800 view view 300 0.790 view view 400 0.791 view view 500 0.808 view view 600 0.850 view view 700 0.819 view view 800 0.885 view view

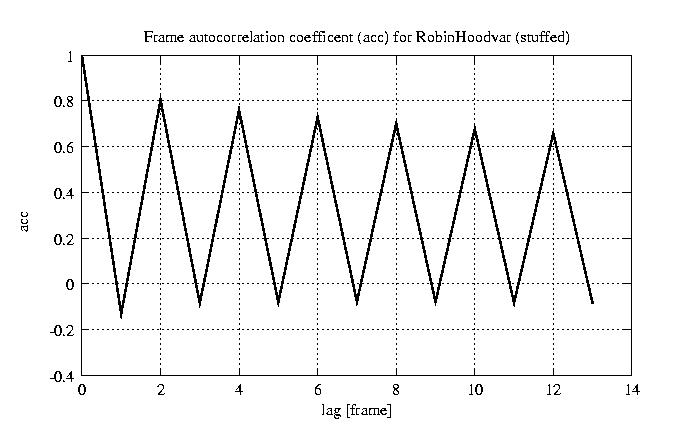

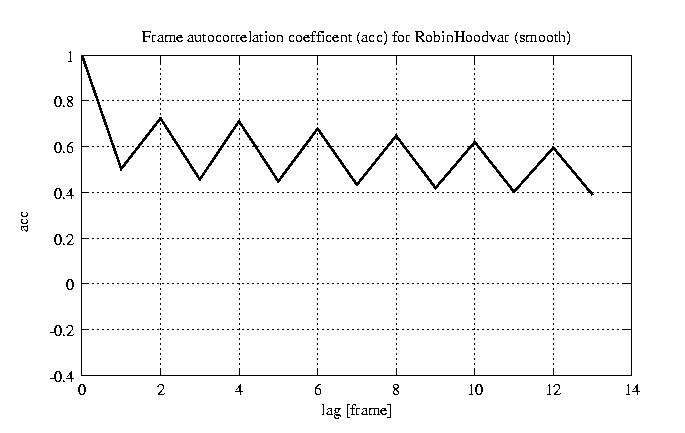

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
