MP4 - Susi und Strolch
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 21.08 File Size byte 1.6e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 1.8e+03 var frame size - 1.9e+06 CoV of frame size - 0.77 min frame size byte 39 max frame size byte 14486 Mean bit rate bit/sec 3.6e+05 Peak bit rate bit/sec 2.9e+06 Peak/Mean of bit rate - 8.03 GoP statistics # of GoPs - 7499 mean GoP size byte 2.2e+04 var GoP size - 1.2e+08 CoV of GoP size - 0.50 min GoP size byte 1288 max GoP size byte 154379 Mean bit rate bit/sec 3.6e+05 Peak bit rate bit/sec 2.6e+06 Peak/Mean of bit rate - 7.13 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p
probability function F = sum p
inverse probability function G = 1 - F

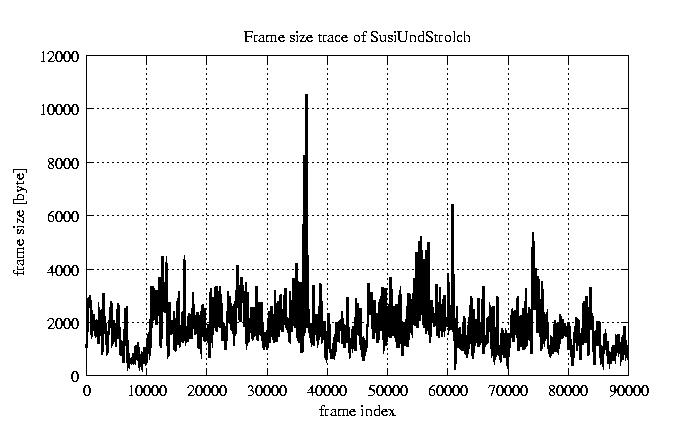

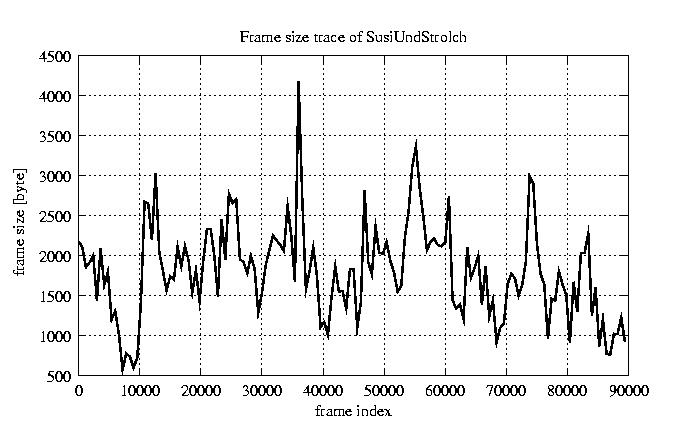

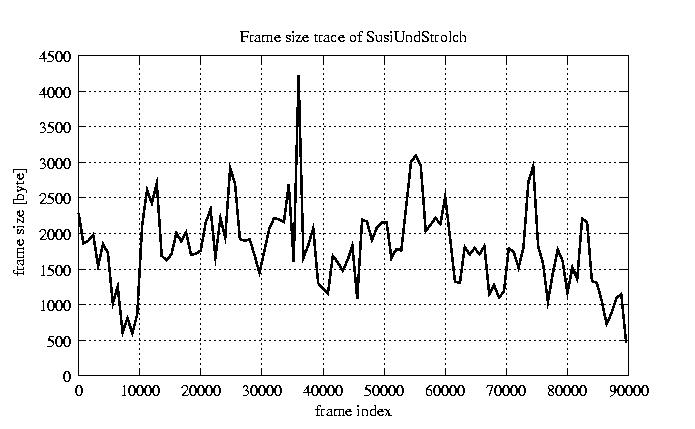

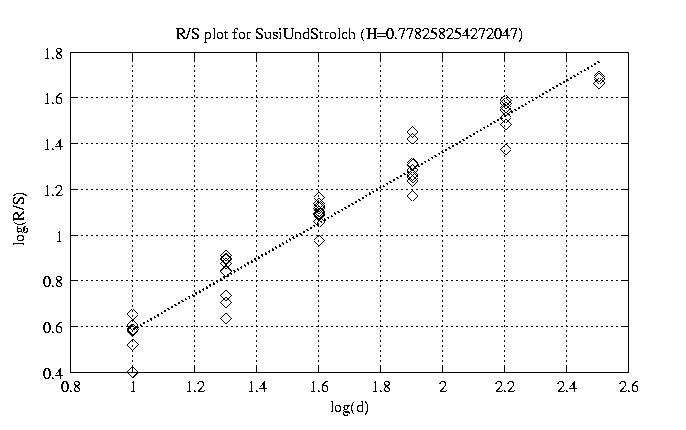

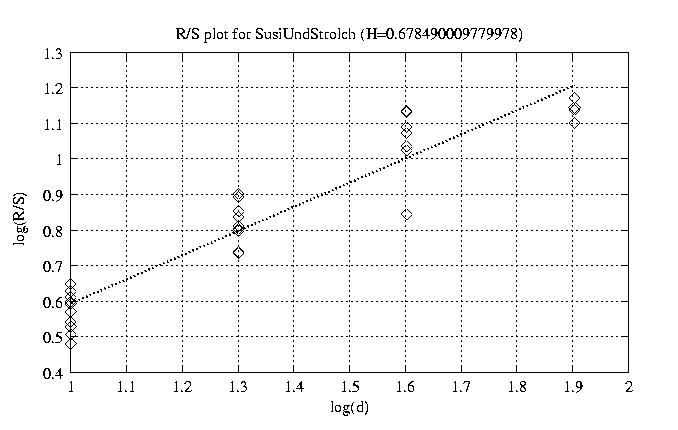

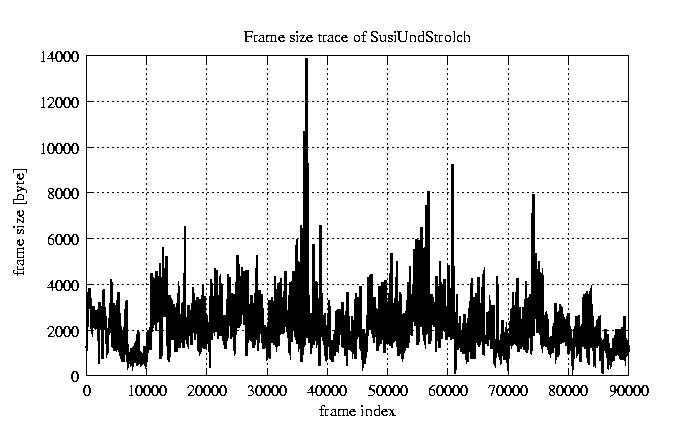

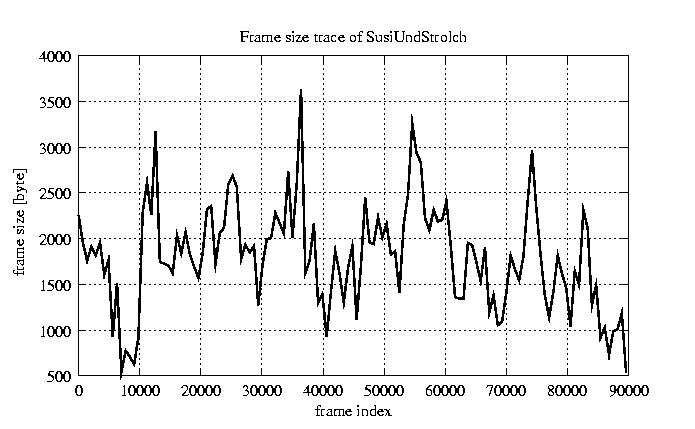

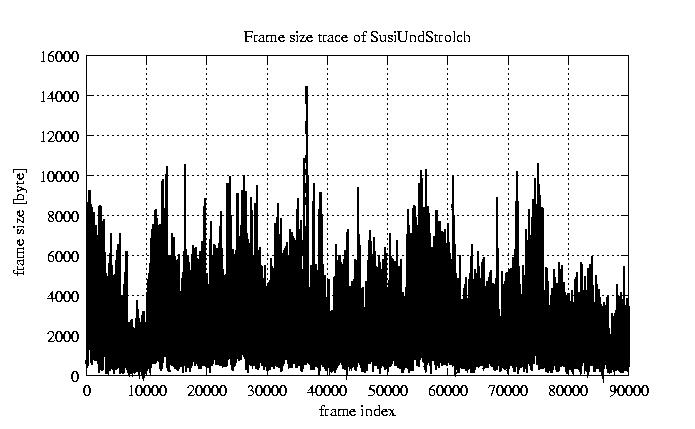

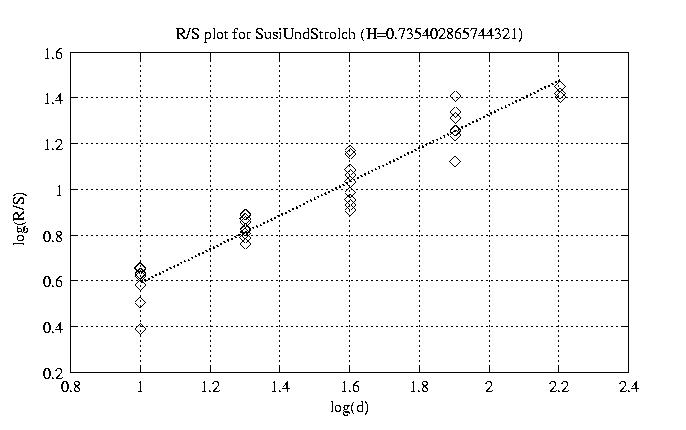

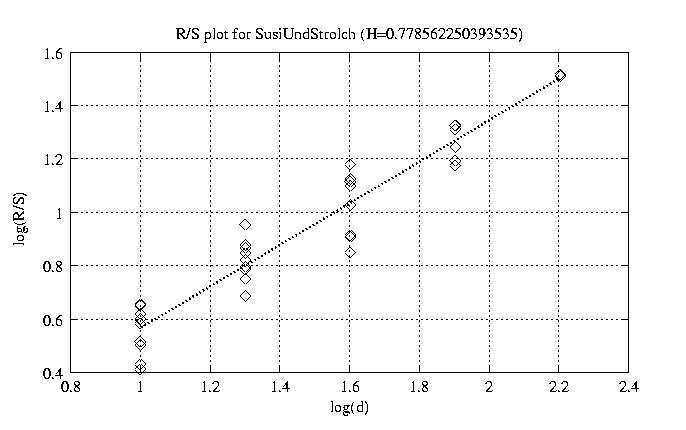

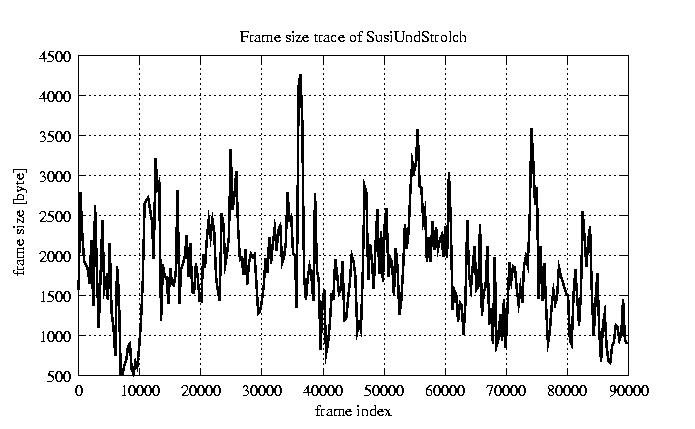

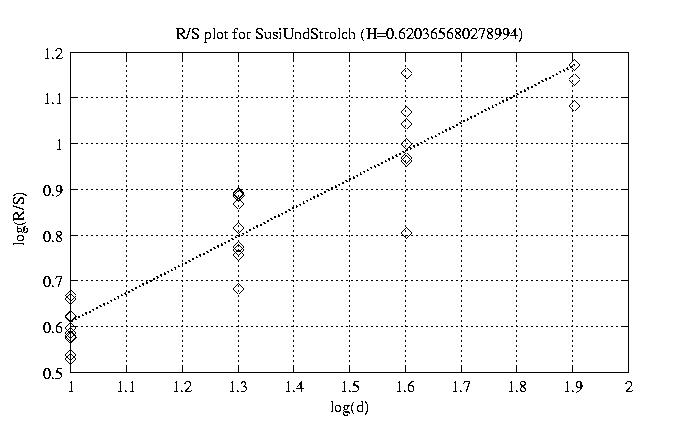

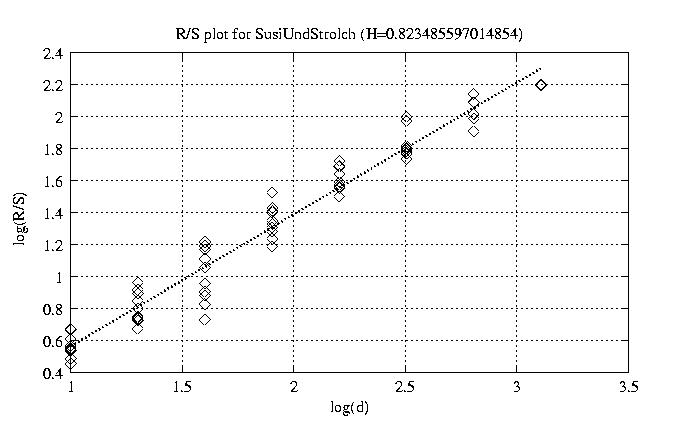

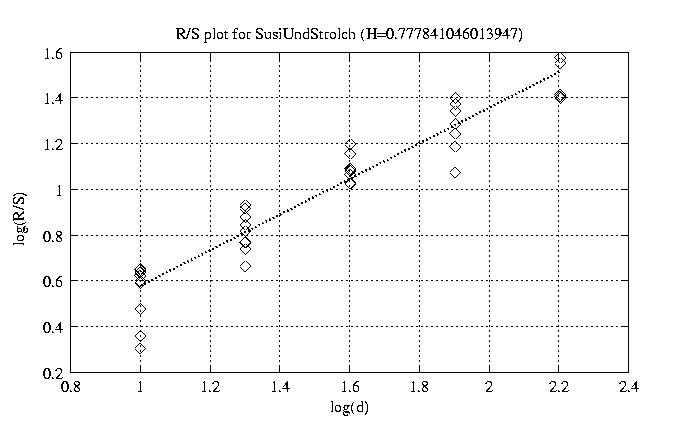

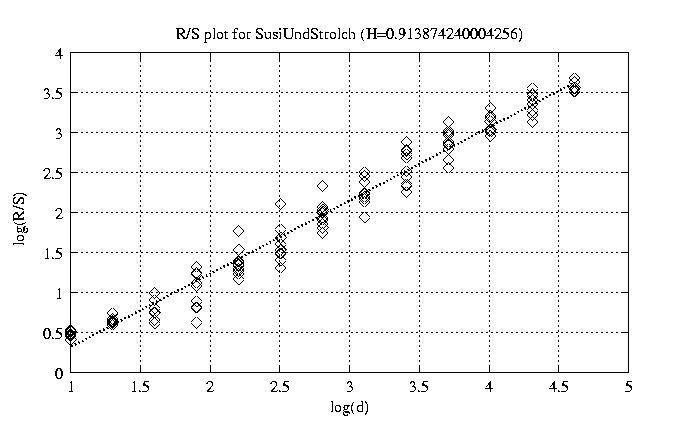

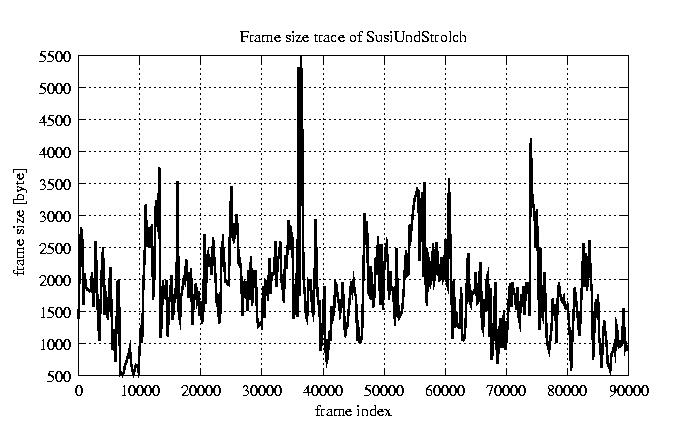

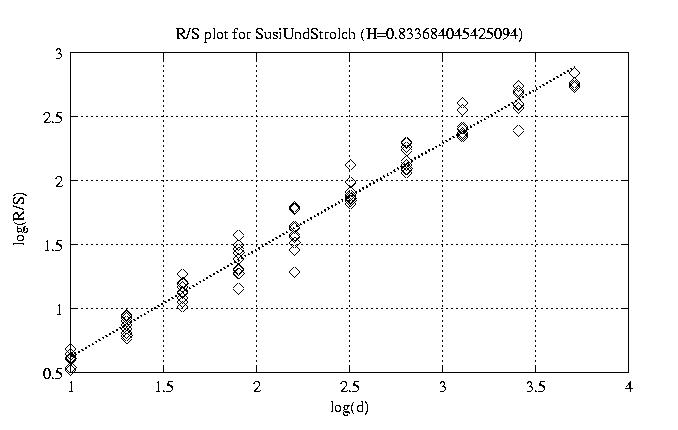

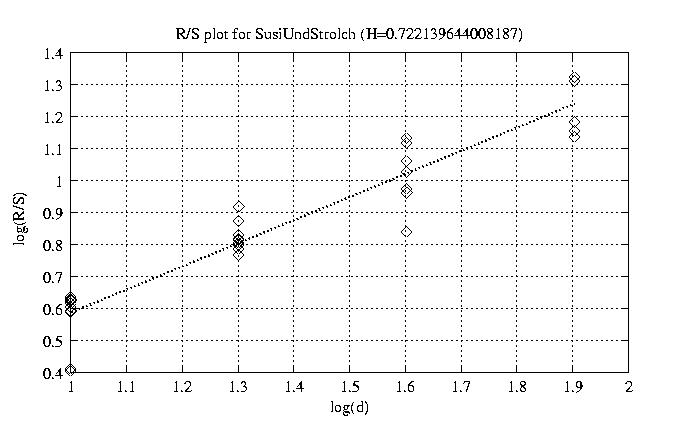

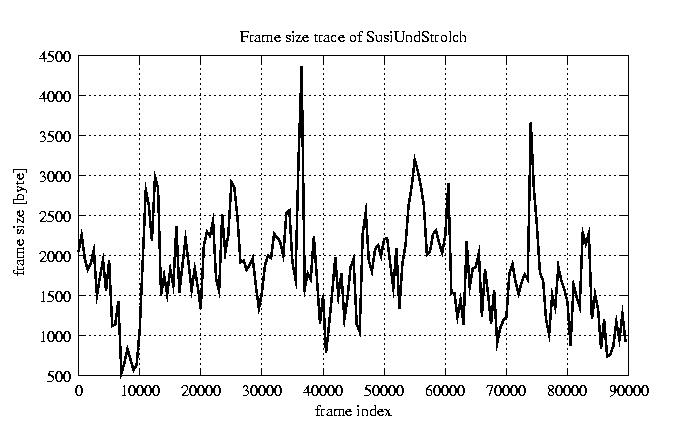

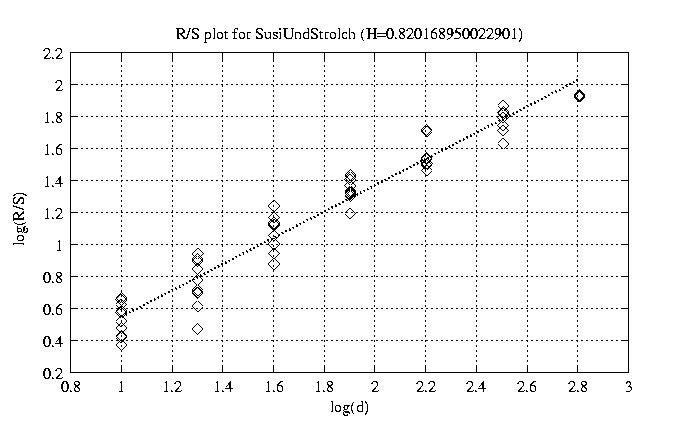

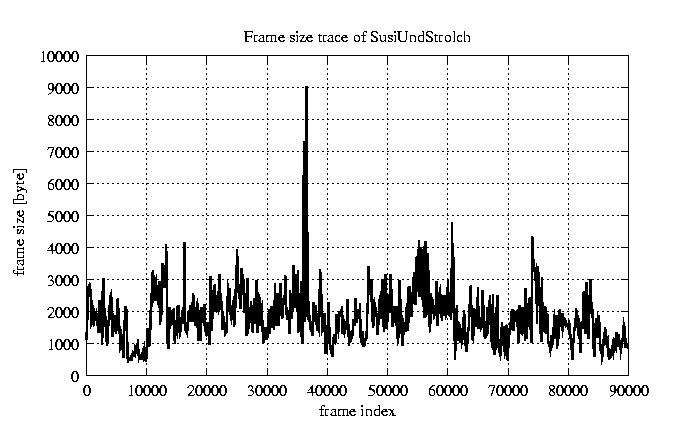

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.914 view view 12 0.834 view view 50 0.823 view view 100 0.820 view view 200 0.778 view view 300 0.778 view view 400 0.735 view view 500 0.779 view view 600 0.722 view view 700 0.678 view view 800 0.620 view view

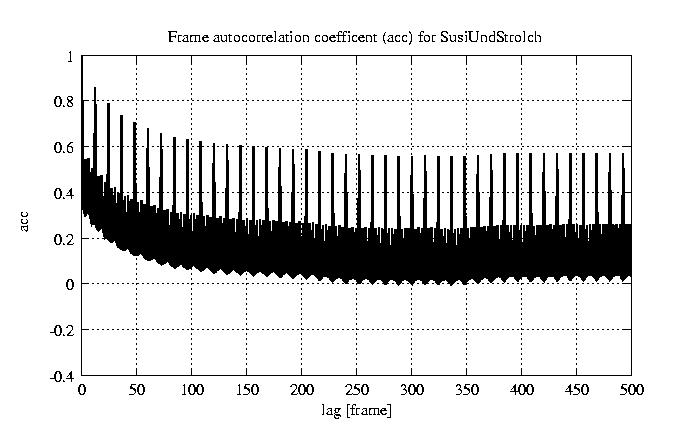

other plots	autocorrelation function of frames autocorrelation function of GoPs
