MP4 - Silence of the lambs
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 43.43 File Size byte 7.9e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 8.8e+02 var frame size - 1.1e+06 CoV of frame size - 1.21 min frame size byte 28 max frame size byte 11915 Mean bit rate bit/sec 1.8e+05 Peak bit rate bit/sec 2.4e+06 Peak/Mean of bit rate - 13.61 GoP statistics # of GoPs - 7499 mean GoP size byte 1.1e+04 var GoP size - 1.1e+08 CoV of GoP size - 0.99 min GoP size byte 1207 max GoP size byte 105820 Mean bit rate bit/sec 1.8e+05 Peak bit rate bit/sec 1.8e+06 Peak/Mean of bit rate - 10.07 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

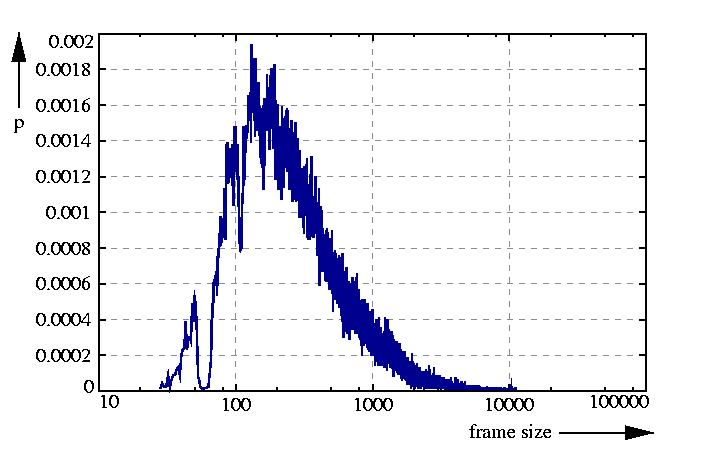

probability density function p

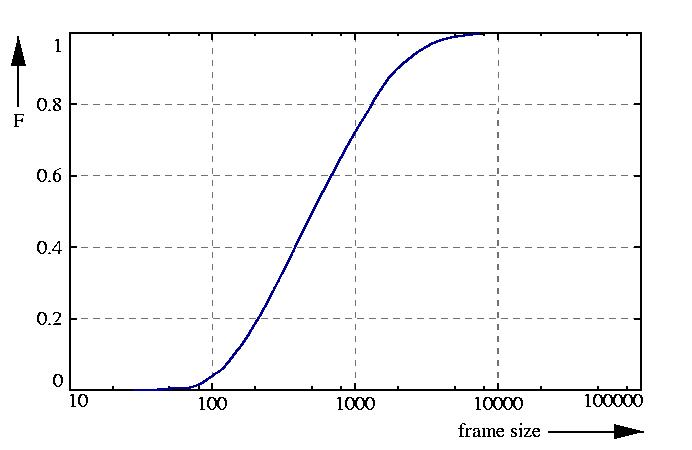

probability function F = sum p

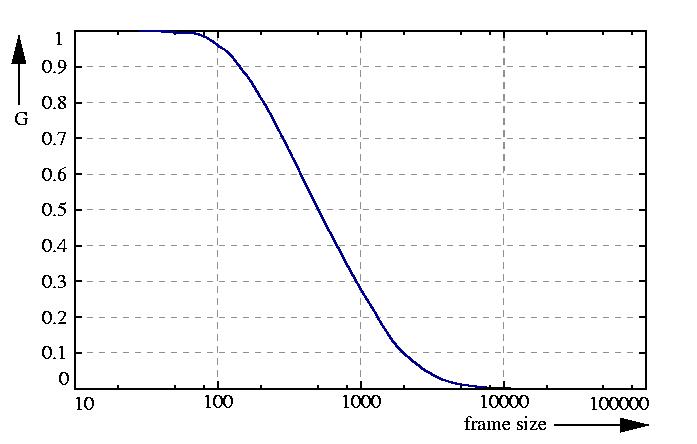

inverse probability function G = 1 - F

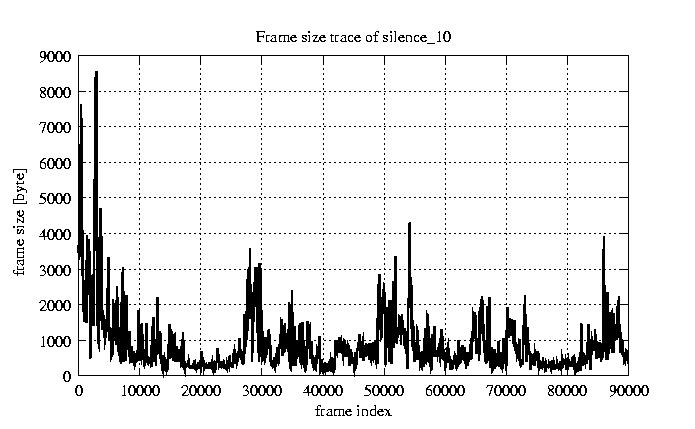

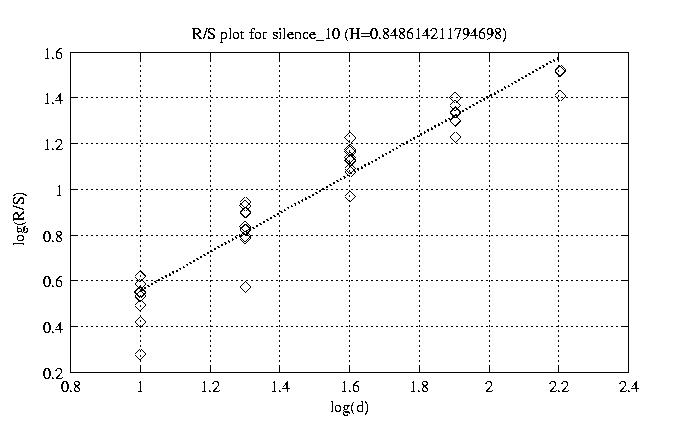

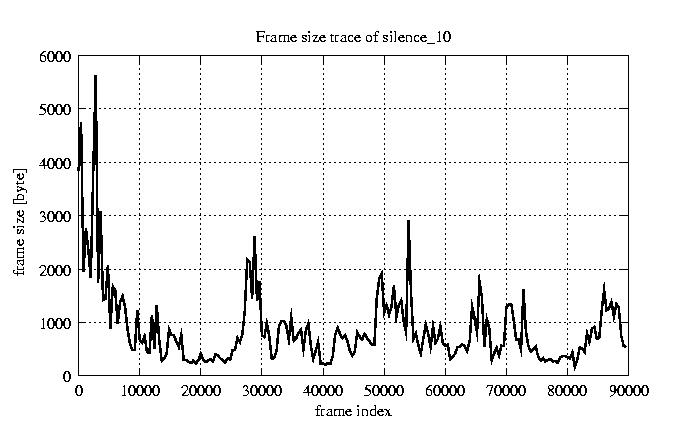

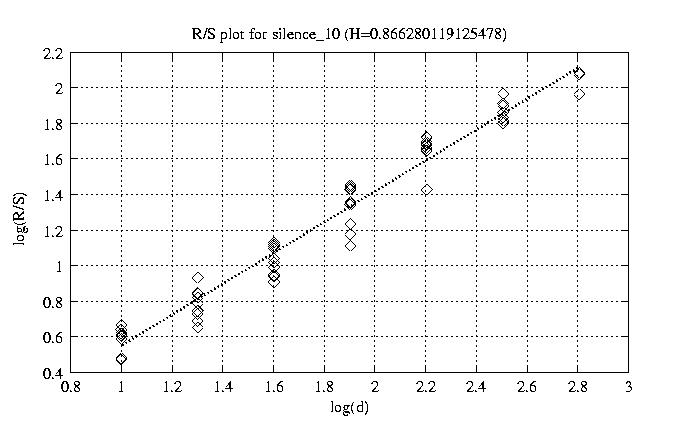

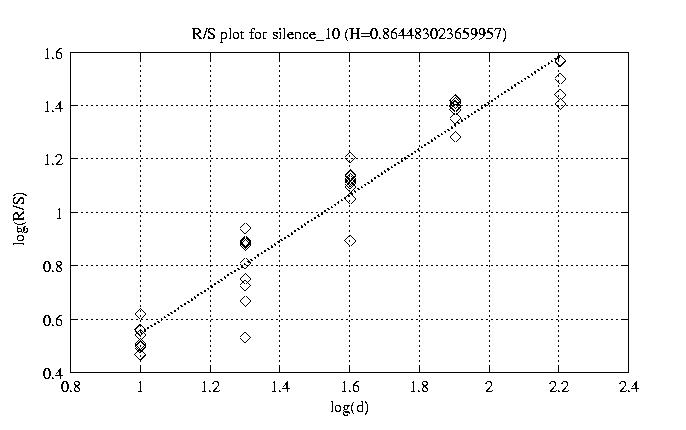

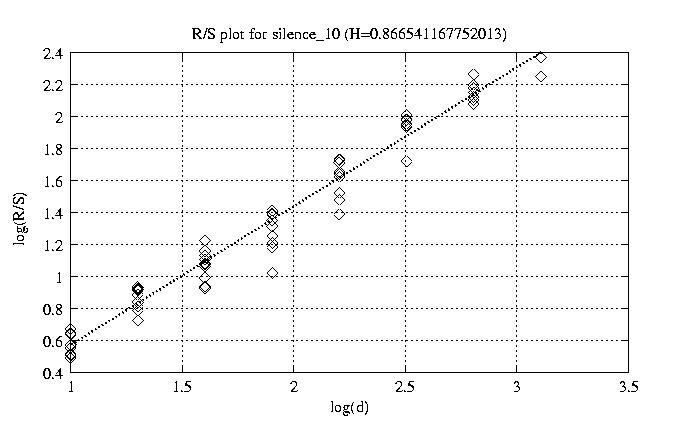

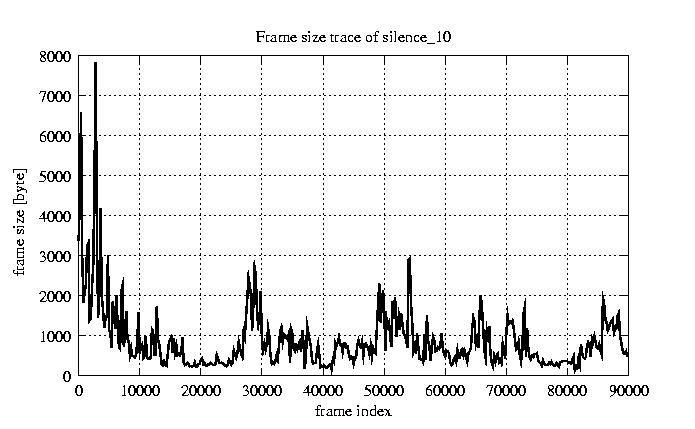

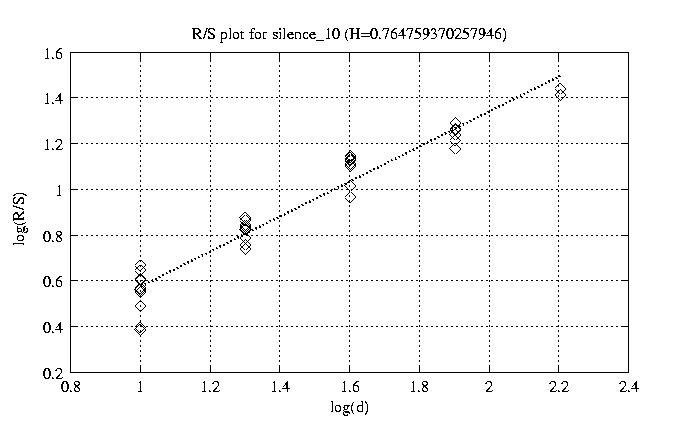

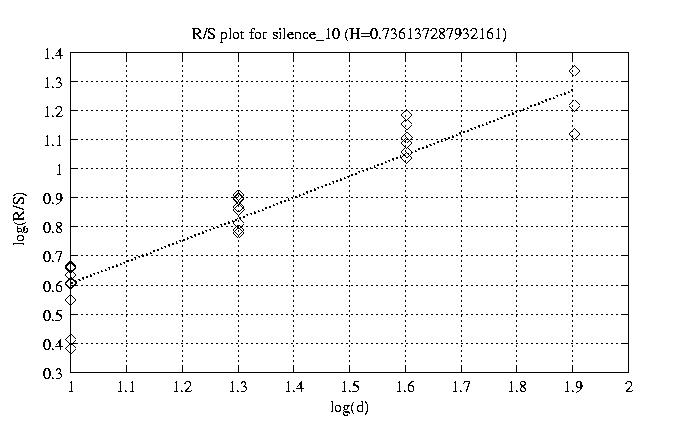

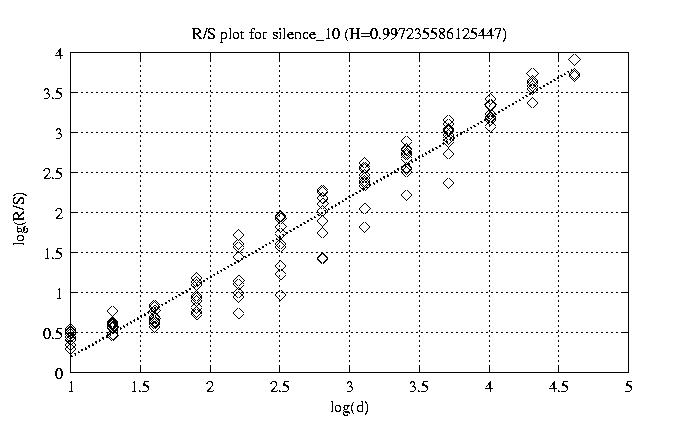

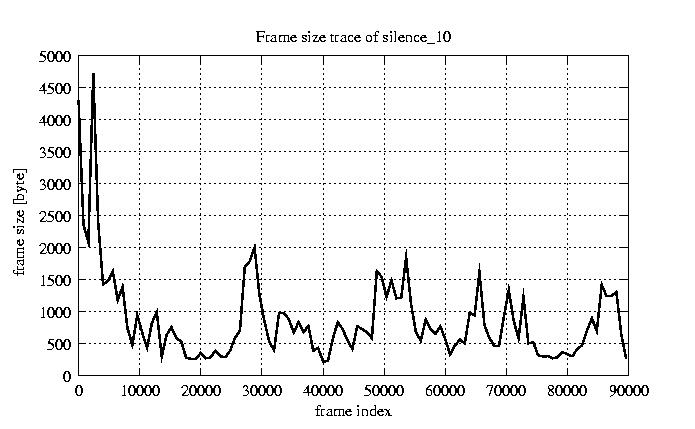

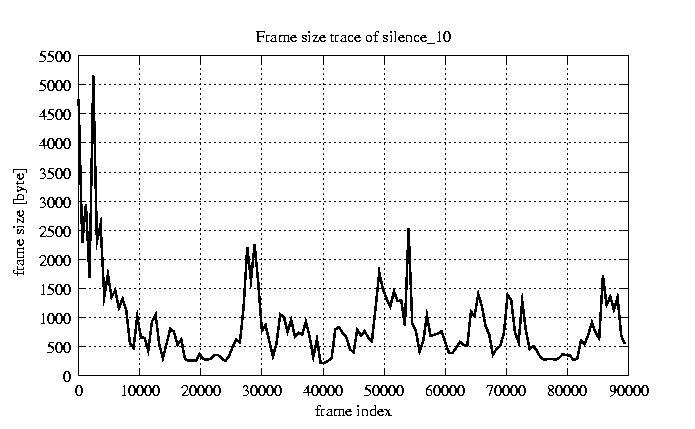

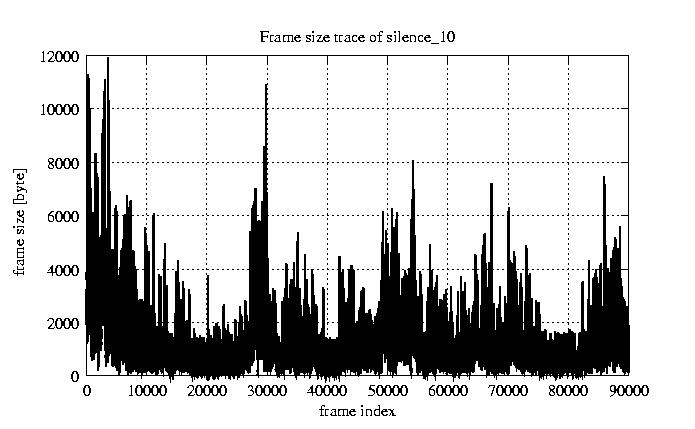

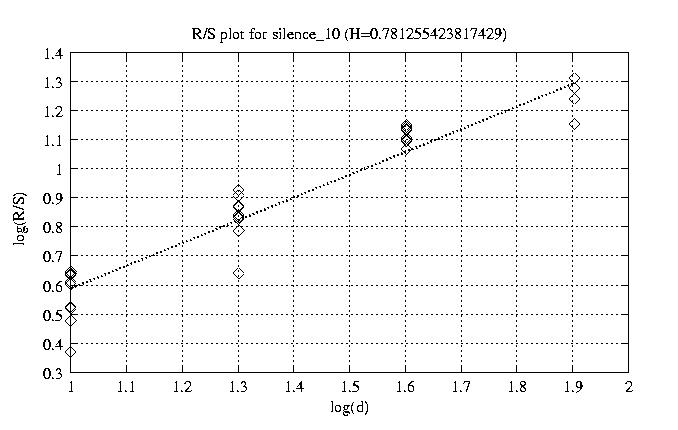

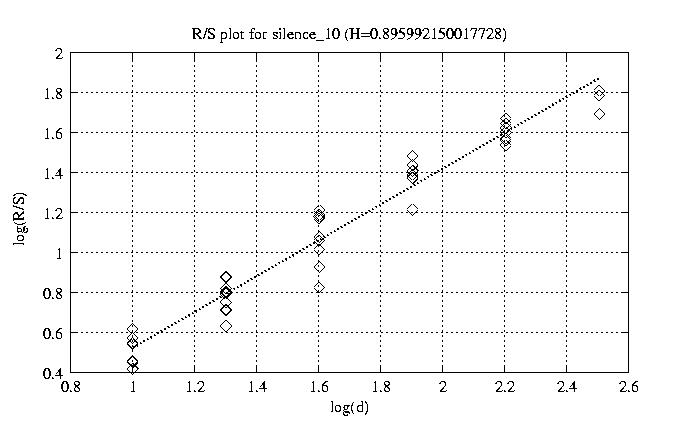

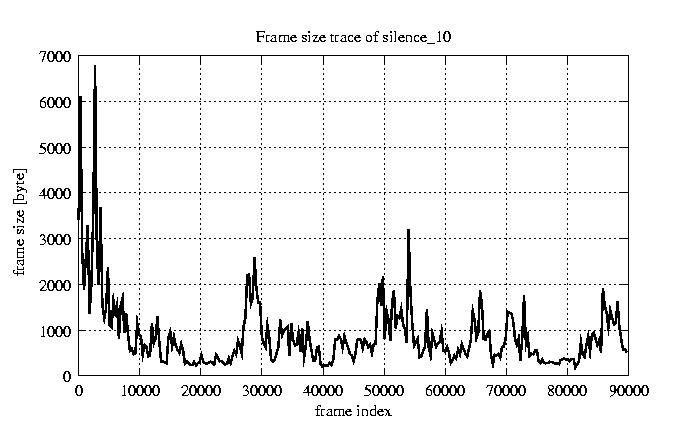

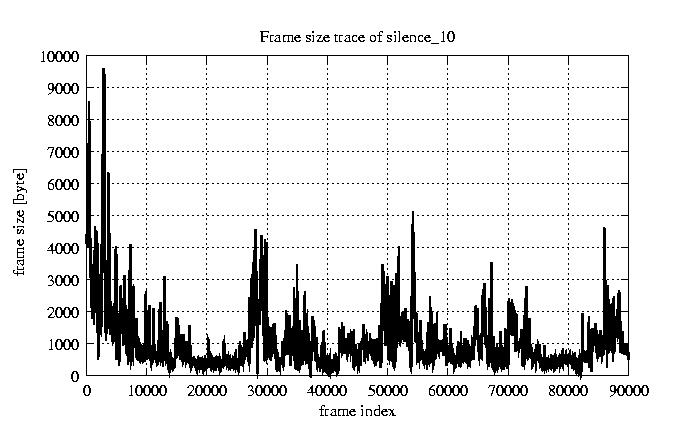

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.997 view view 12 0.891 view view 50 0.867 view view 100 0.866 view view 200 0.896 view view 300 0.864 view view 400 0.849 view view 500 0.765 view view 600 0.781 view view 700 0.736 view view 800 0.760 view view

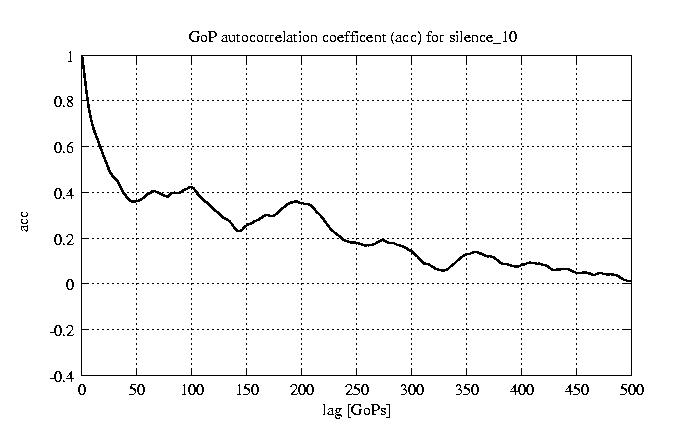

other plots	autocorrelation function of frames autocorrelation function of GoPs
