MP4 - The Firm
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 25.93 File Size byte 1.3e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 1.5e+03 var frame size - 1.3e+06 CoV of frame size - 0.79 min frame size byte 32 max frame size byte 10204 Mean bit rate bit/sec 2.9e+05 Peak bit rate bit/sec 2e+06 Peak/Mean of bit rate - 6.96 GoP statistics # of GoPs - 7499 mean GoP size byte 1.8e+04 var GoP size - 9.3e+07 CoV of GoP size - 0.55 min GoP size byte 1019 max GoP size byte 85044 Mean bit rate bit/sec 2.9e+05 Peak bit rate bit/sec 1.4e+06 Peak/Mean of bit rate - 4.83 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

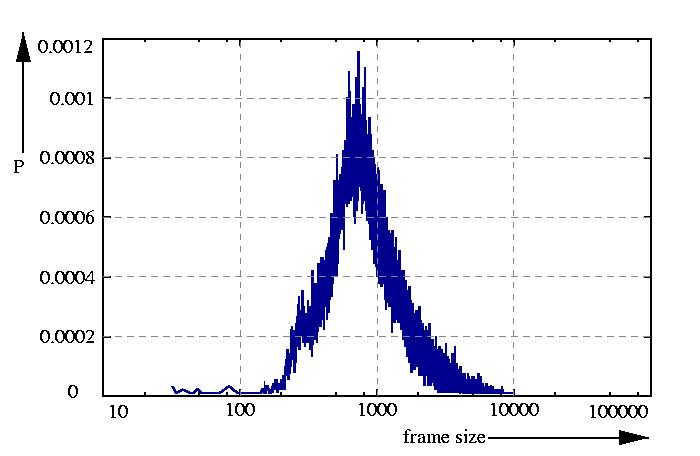

probability density function p

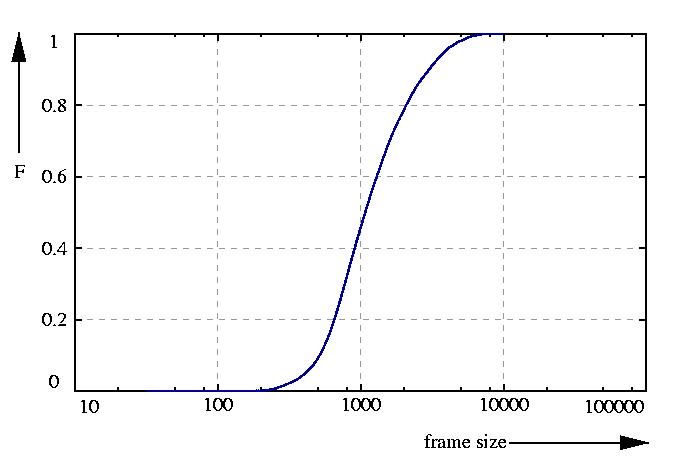

probability function F = sum p

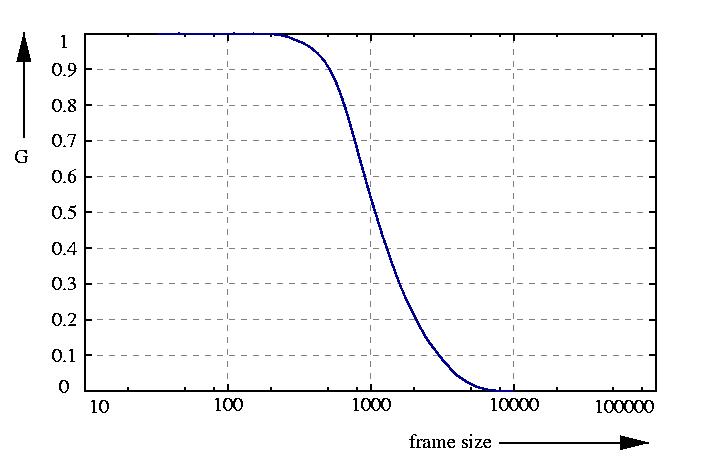

inverse probability function G = 1 - F

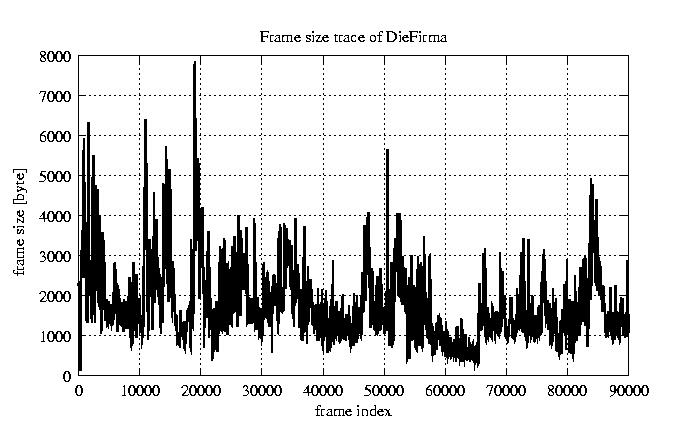

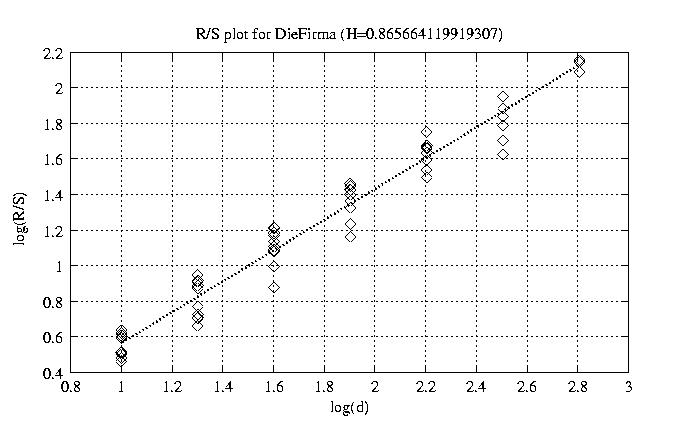

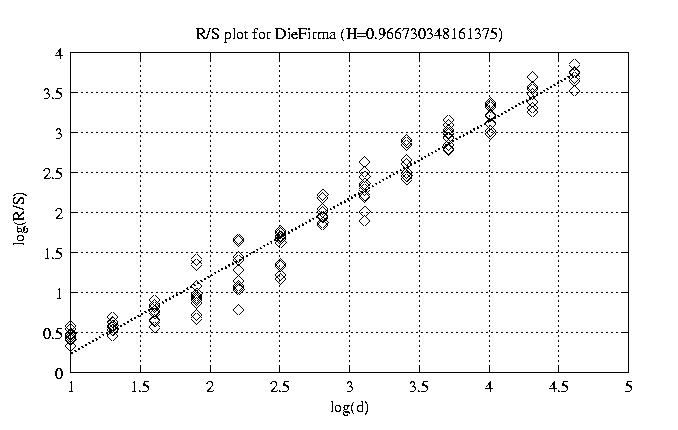

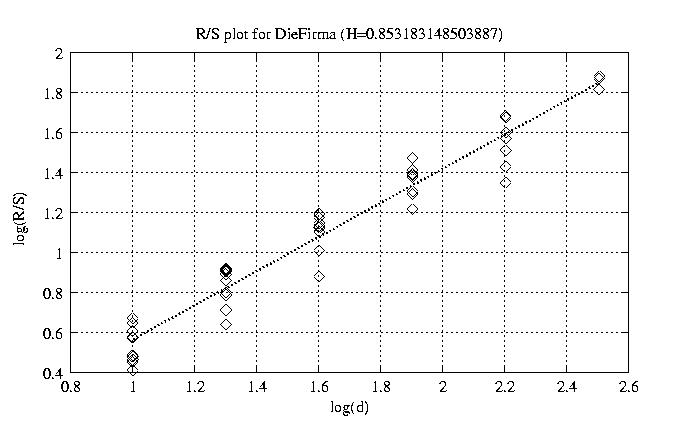

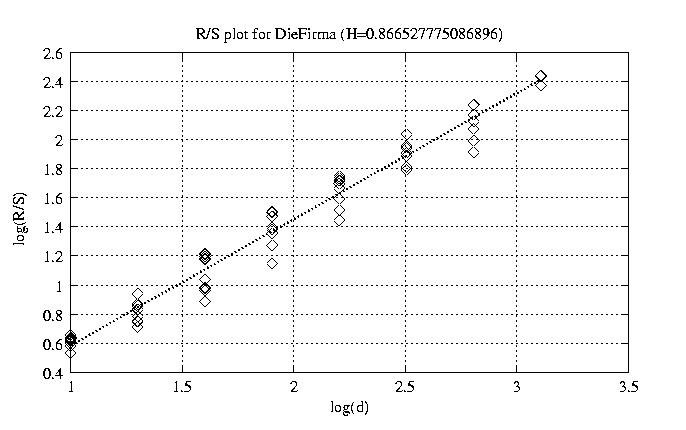

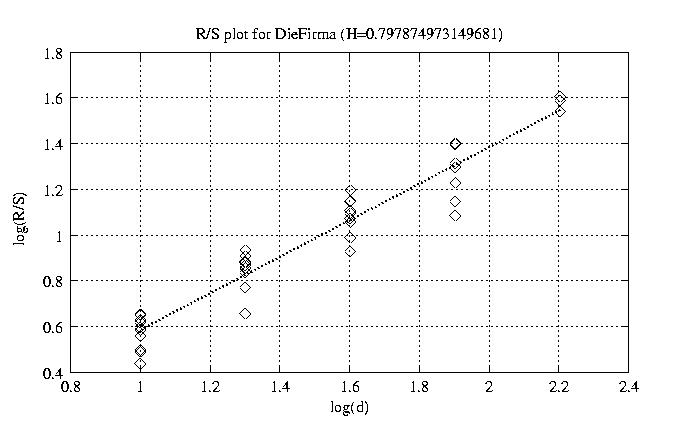

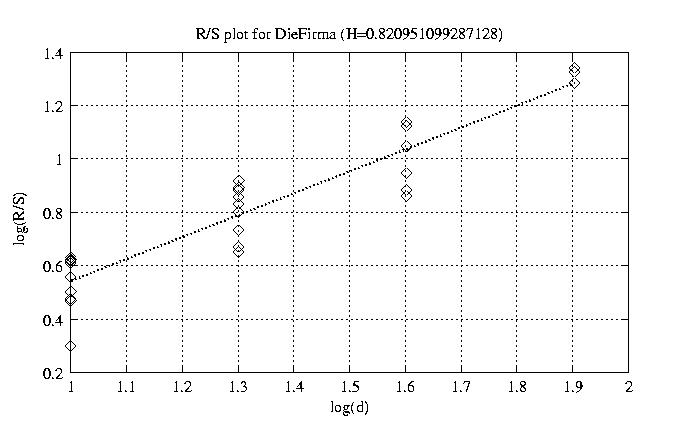

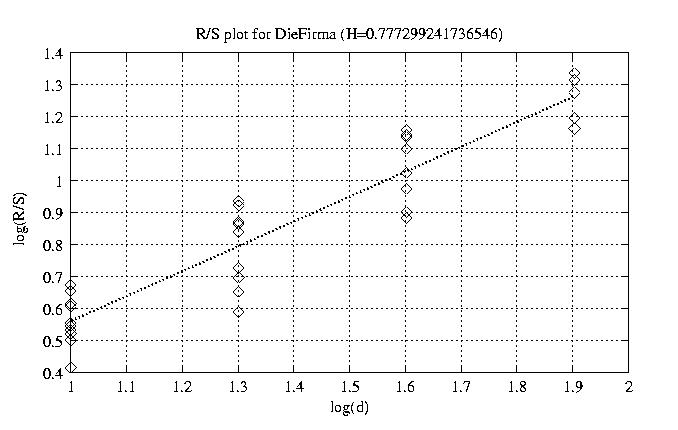

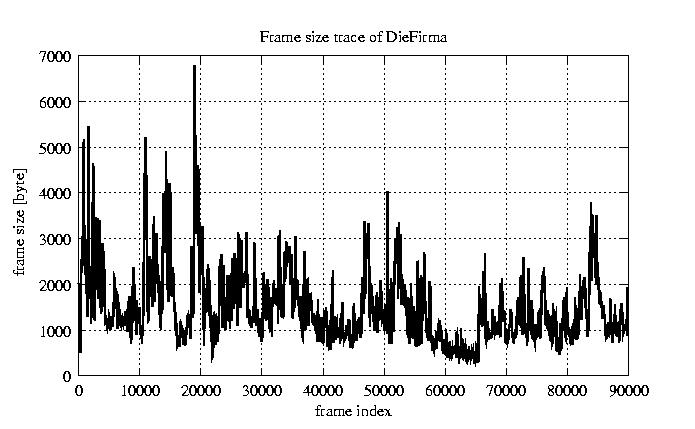

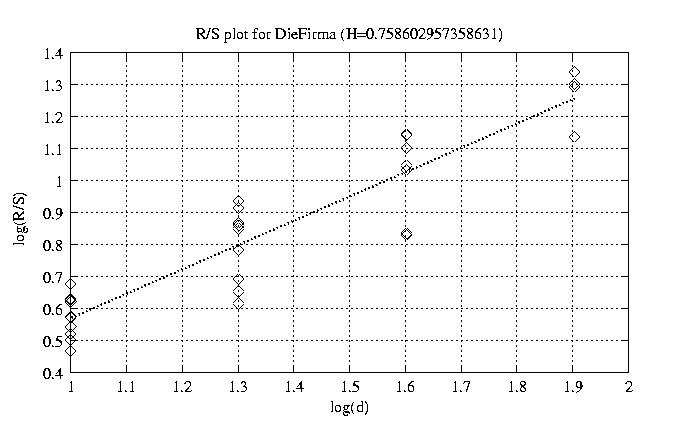

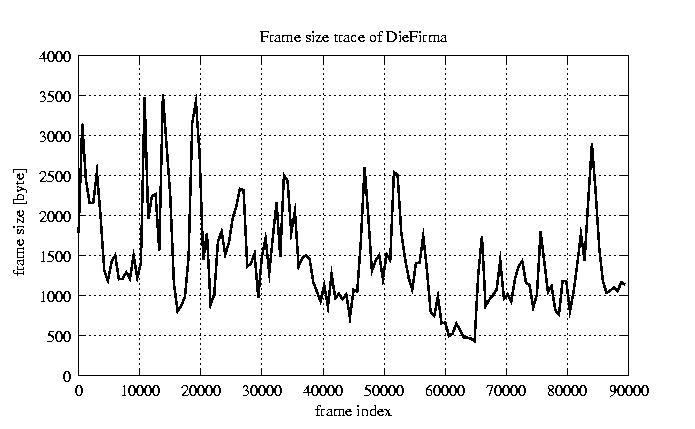

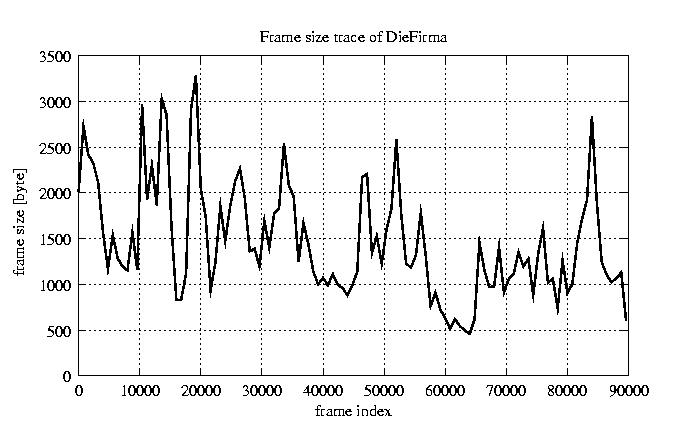

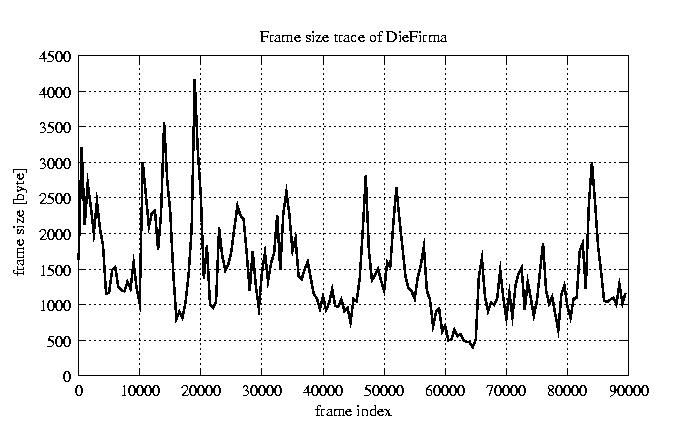

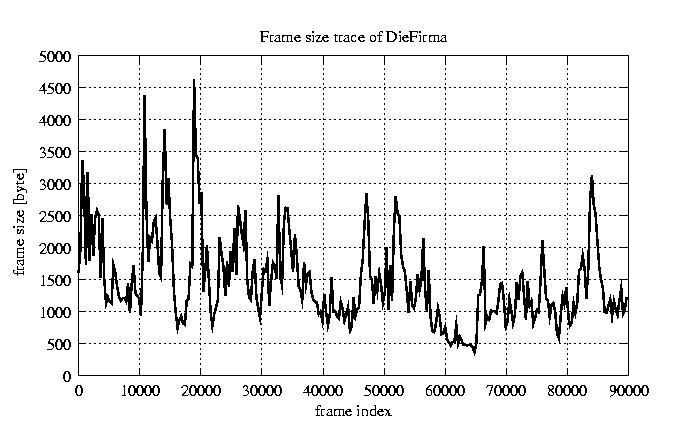

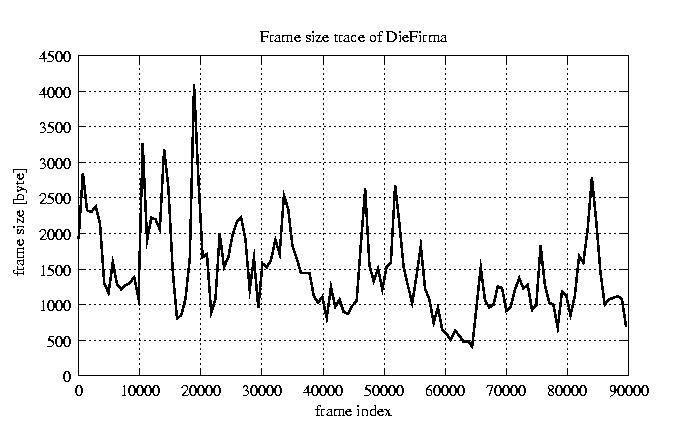

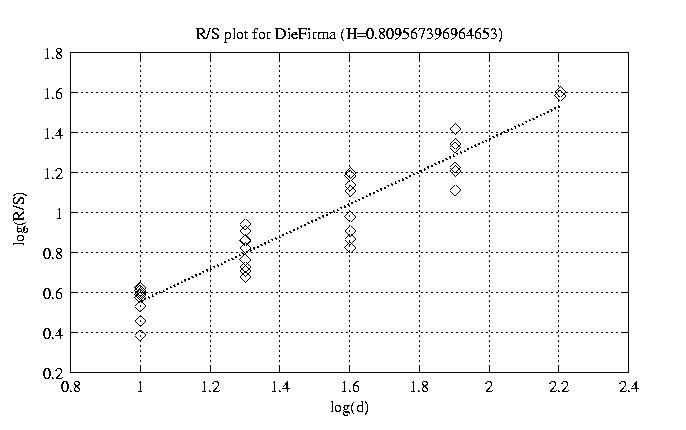

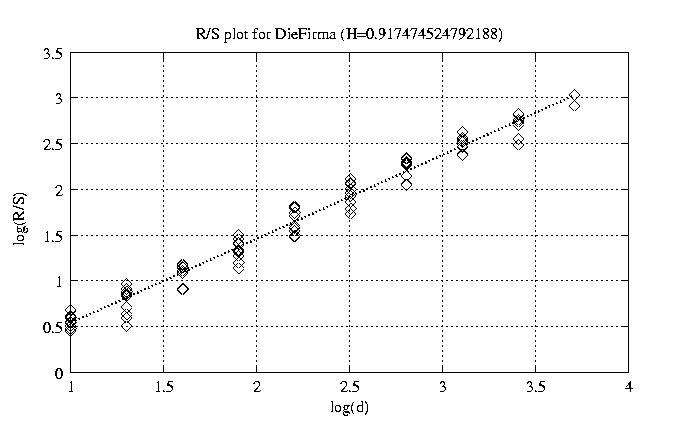

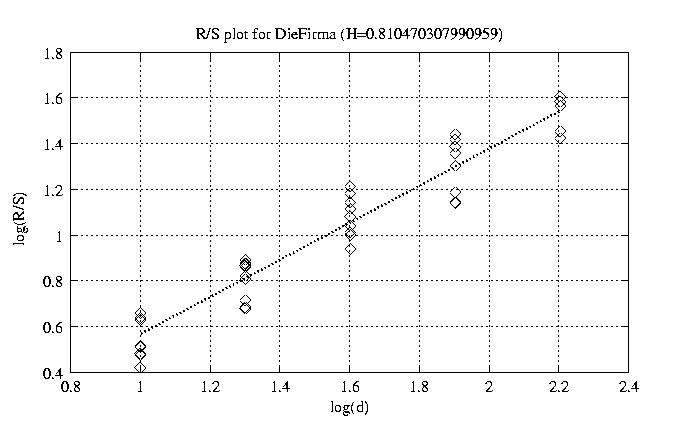

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.967 view view 12 0.917 view view 50 0.867 view view 100 0.866 view view 200 0.853 view view 300 0.810 view view 400 0.798 view view 500 0.810 view view 600 0.777 view view 700 0.759 view view 800 0.821 view view
other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
