H263 - South Park
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.93 118.93 File size byte 9.6e+06 9.6e+06 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30023.00 9072.00 mean frame size byte 319.65 1057.86 var frame size - 312090.37 251909.34 CoV of frame size - 1.75 0.47 min frame size byte 0.00 19.00 max frame size byte 6238.00 6238.00 Peak/Mean frame - 19.51 5.90 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 4e+05 Peak/Mean of bit rate - 6.2 CoV of bit rate - 0.46 max inter frame space frames 1.00 33.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

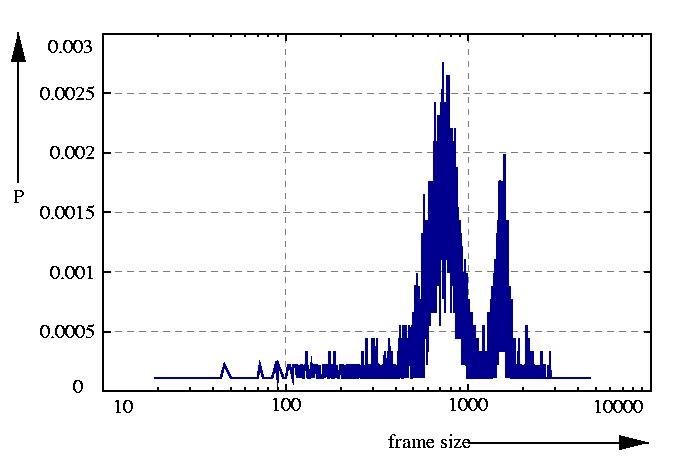

probability density function p

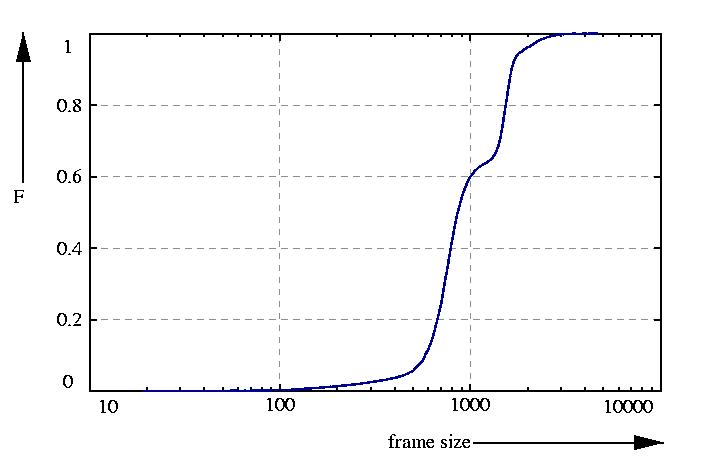

probability function F = sum p
inverse probability function G = 1 - F

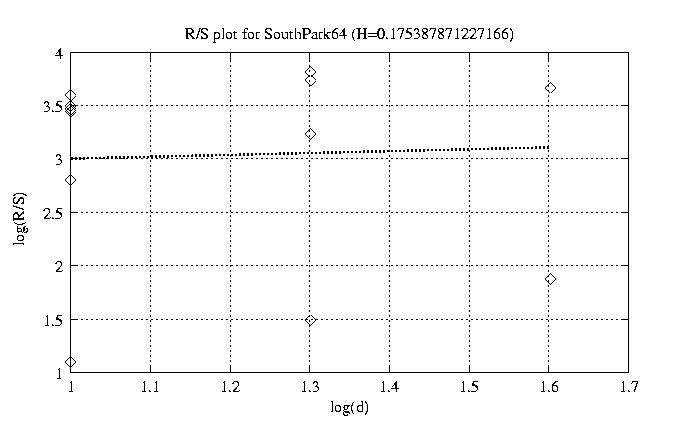

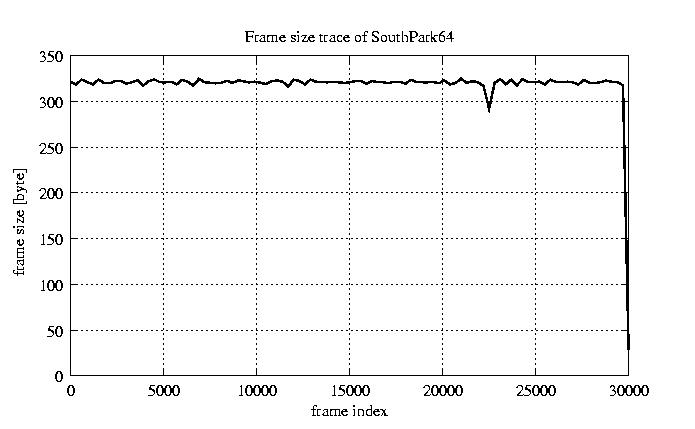

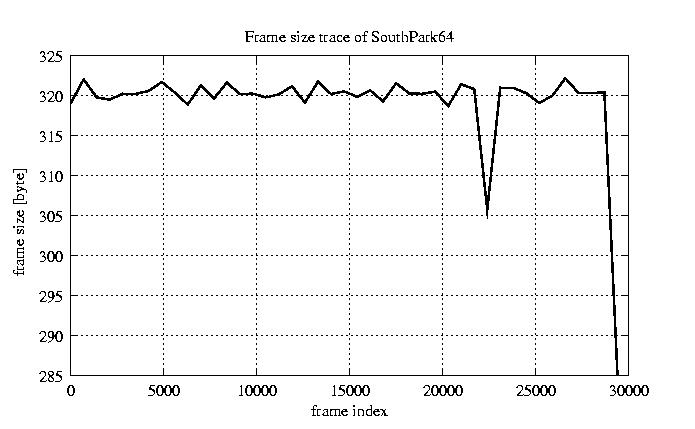

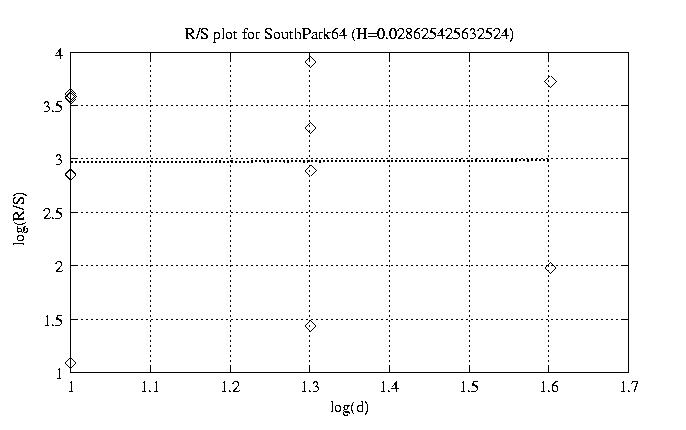

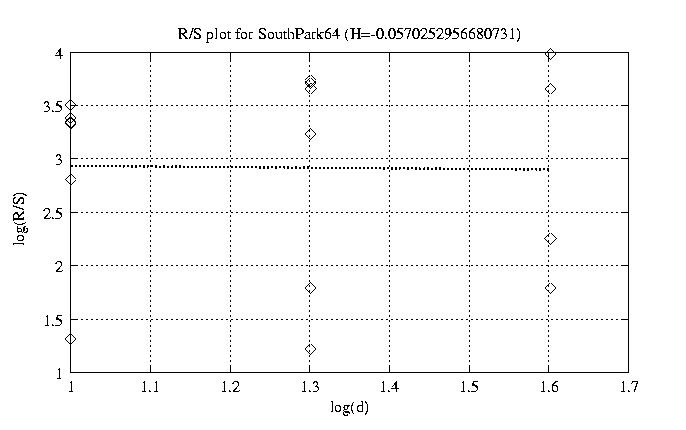

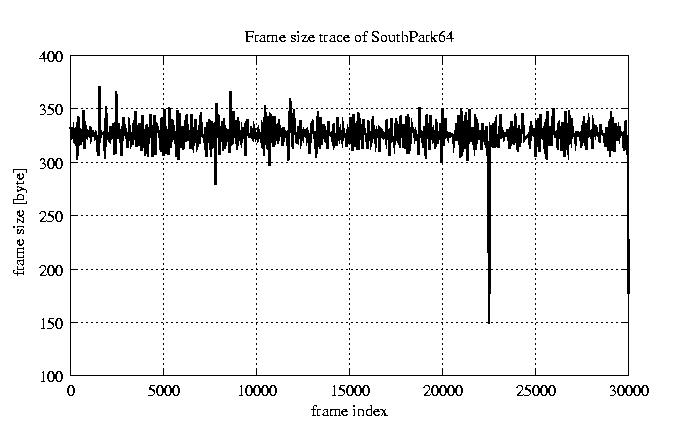

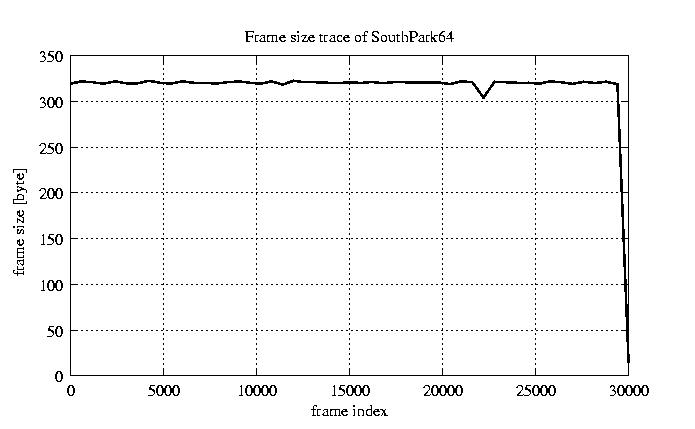

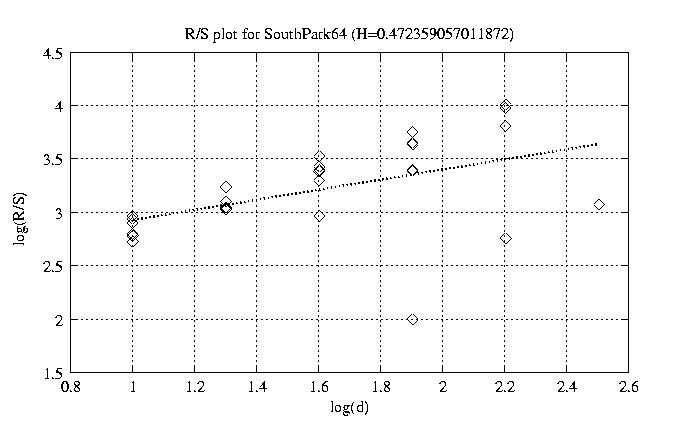

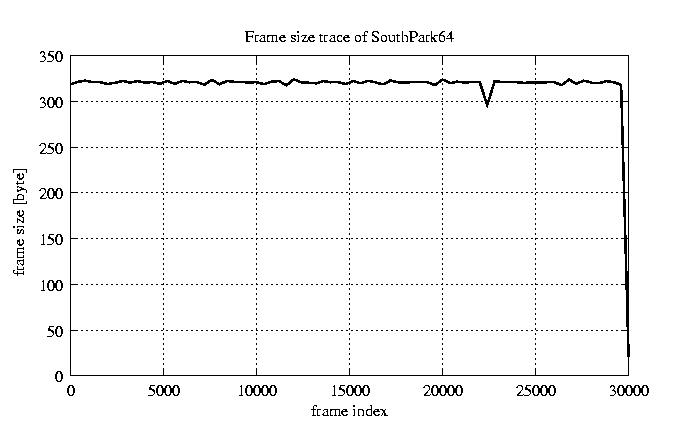

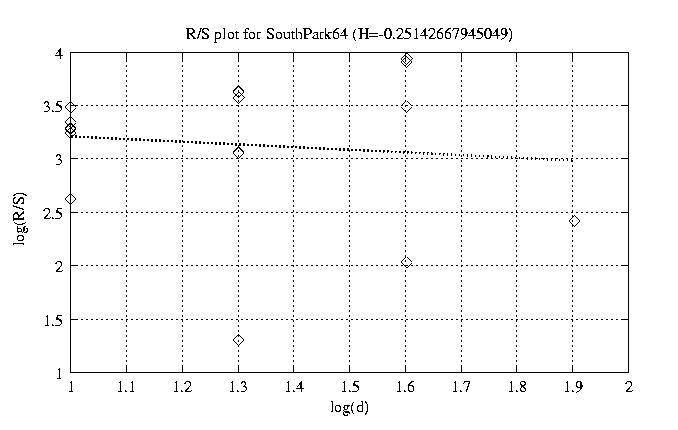

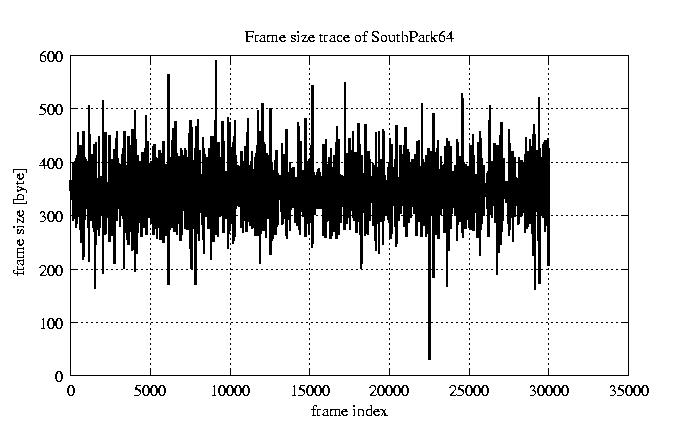

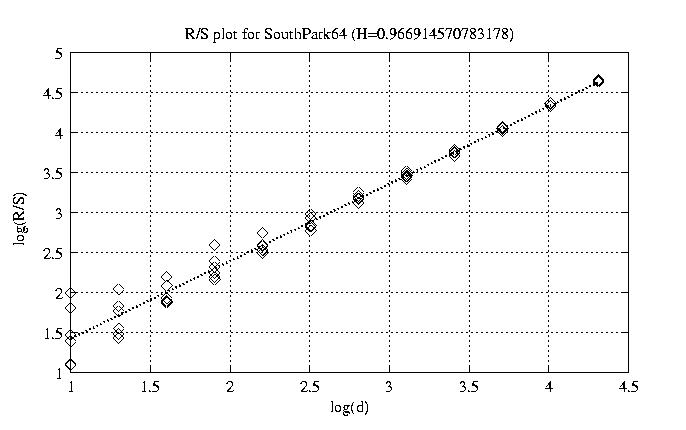

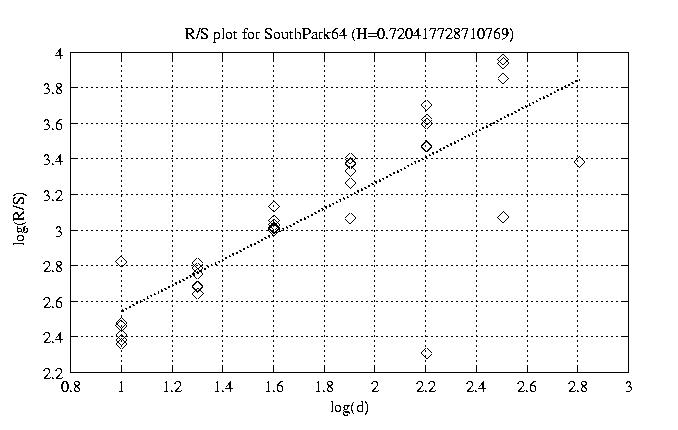

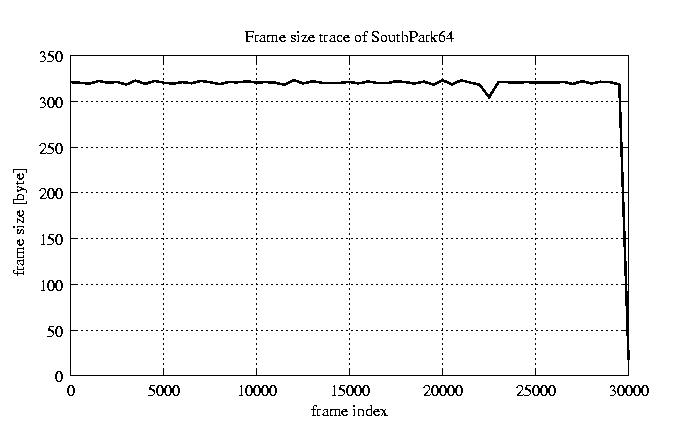

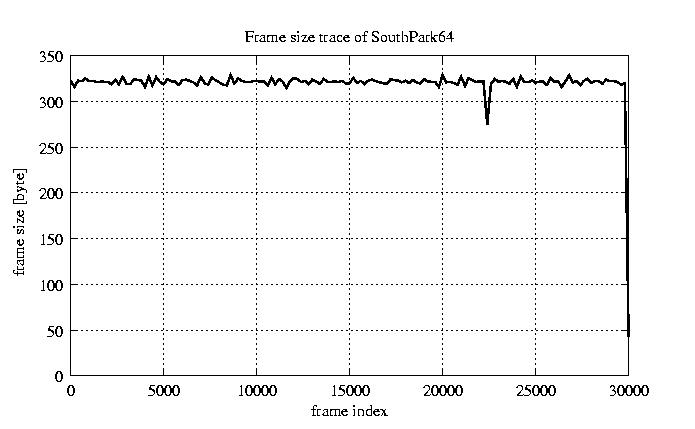

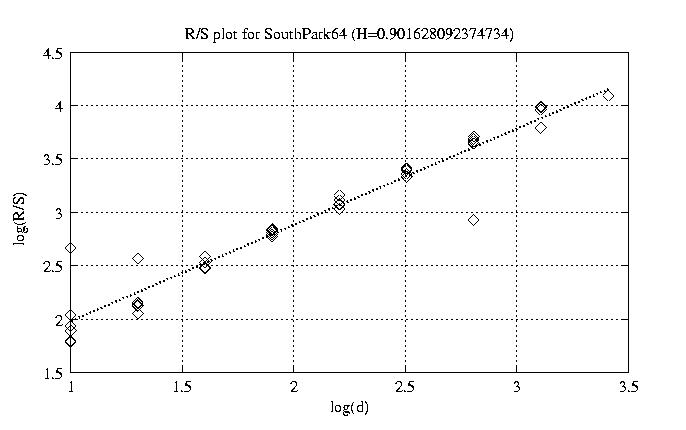

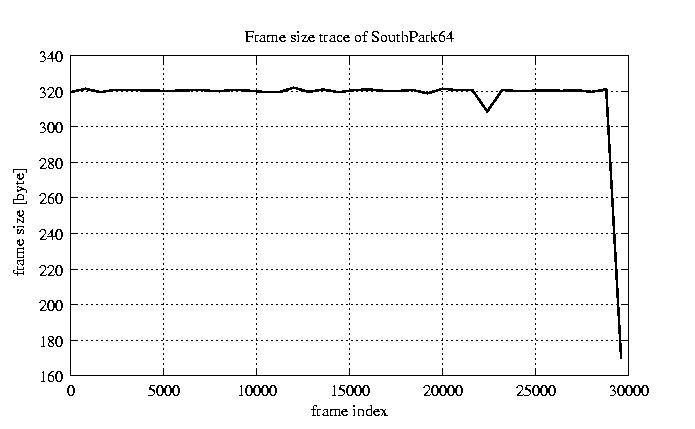

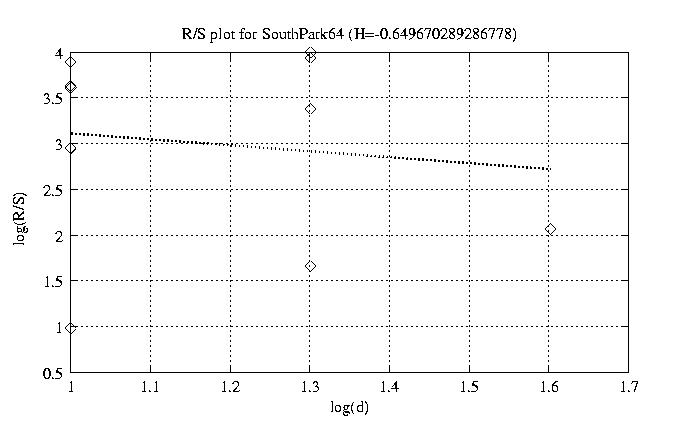

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.967 view view 12 0.902 view view 50 0.720 view view 100 0.472 view view 200 0.131 view view 300 0.264 view view 400 -0.251 view view 500 -0.057 view view 600 0.175 view view 700 0.029 view view 800 -0.650 view view

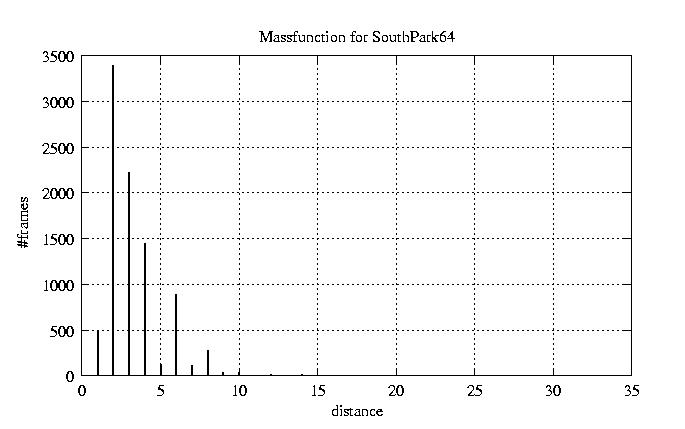

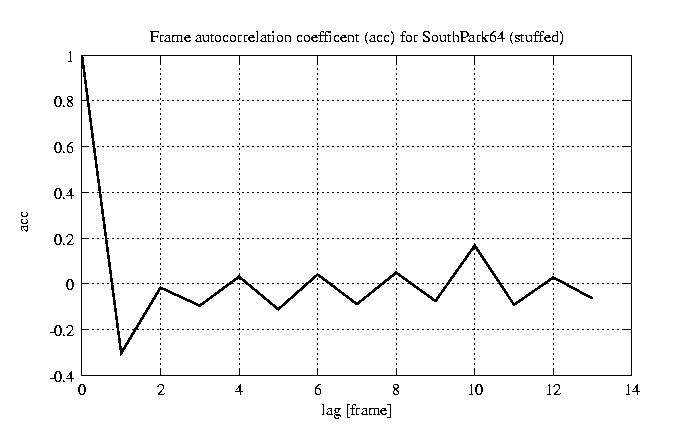

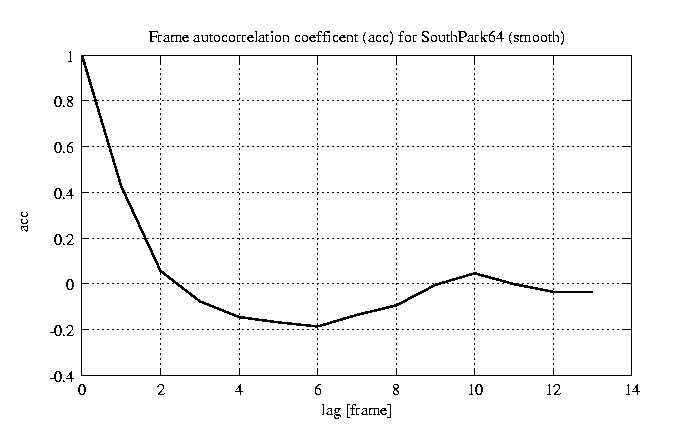

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
