MP4 - Formula 1
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 43.51 File Size byte 3.9e+07 Video run time msec 1.8e+06 # of Frames - 44998 mean frame size byte 8.7e+02 var frame size - 9.5e+05 CoV of frame size - 1.12 min frame size byte 26 max frame size byte 7032 Mean bit rate bit/sec 1.7e+05 Peak bit rate bit/sec 1.4e+06 Peak/Mean of bit rate - 8.05 GoP statistics # of GoPs - 3749 mean GoP size byte 1e+04 var GoP size - 1.1e+07 CoV of GoP size - 0.32 min GoP size byte 3327 max GoP size byte 29038 Mean bit rate bit/sec 1.7e+05 Peak bit rate bit/sec 4.8e+05 Peak/Mean of bit rate - 2.77 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

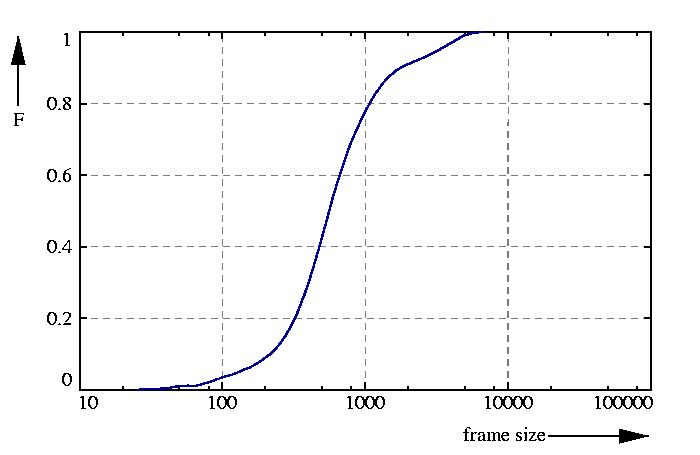

probability function F = sum p

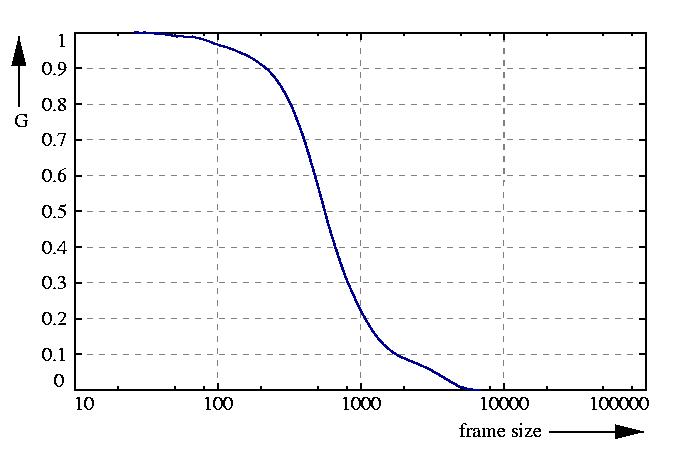

inverse probability function G = 1 - F

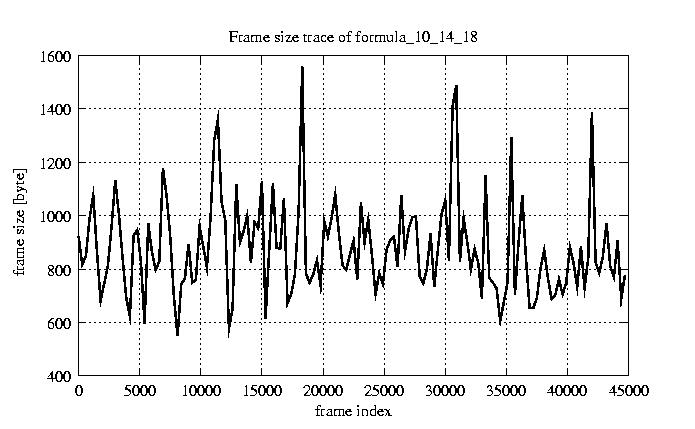

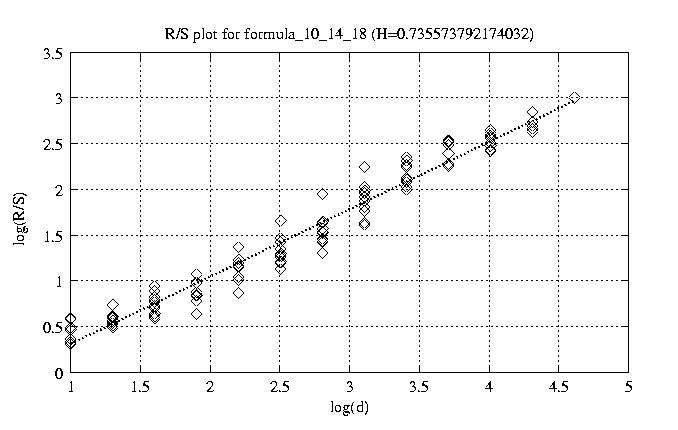

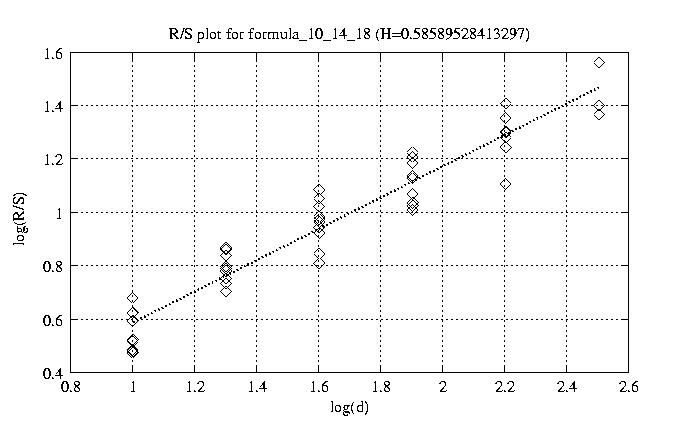

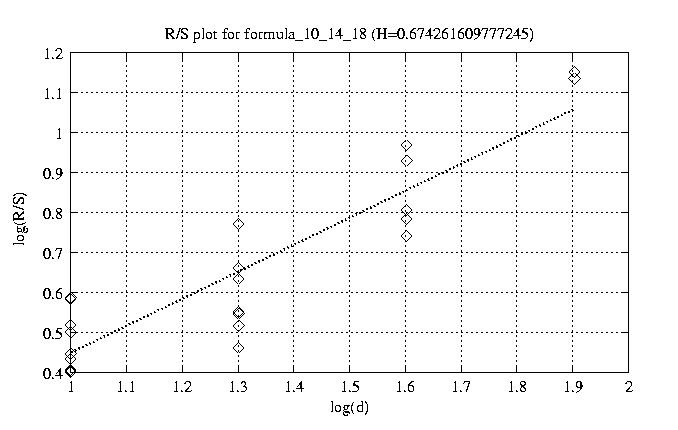

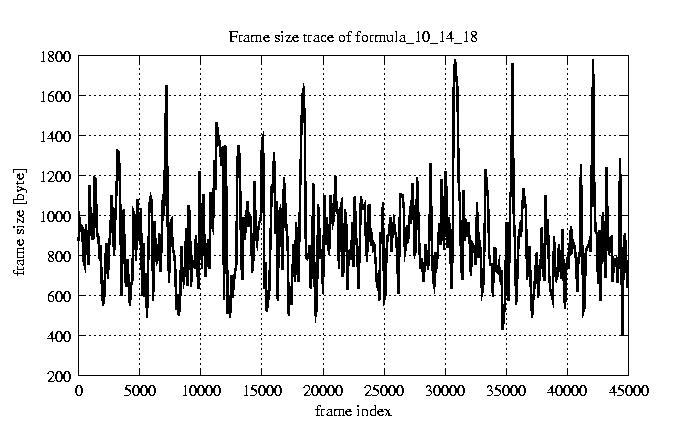

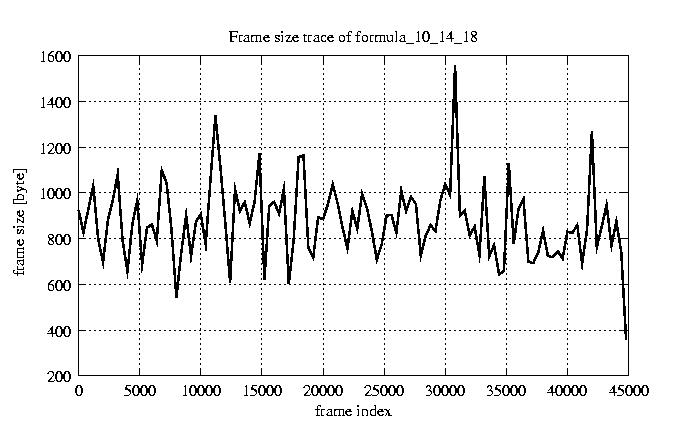

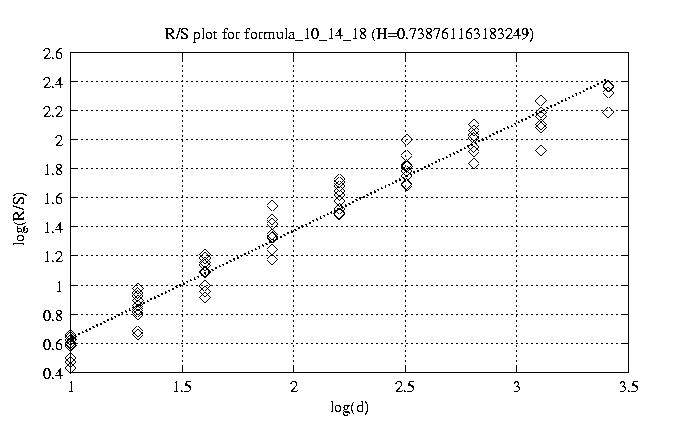

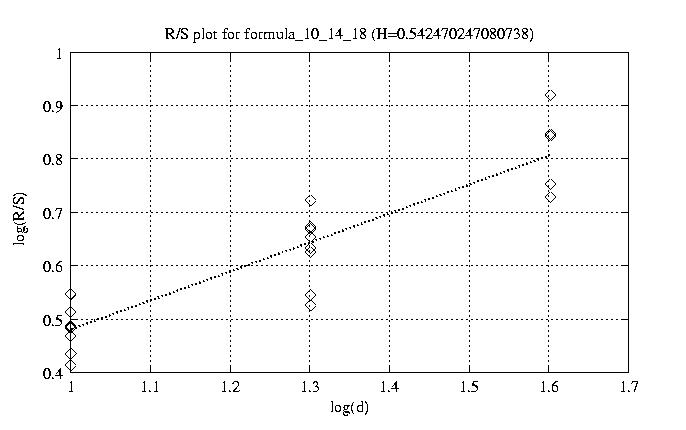

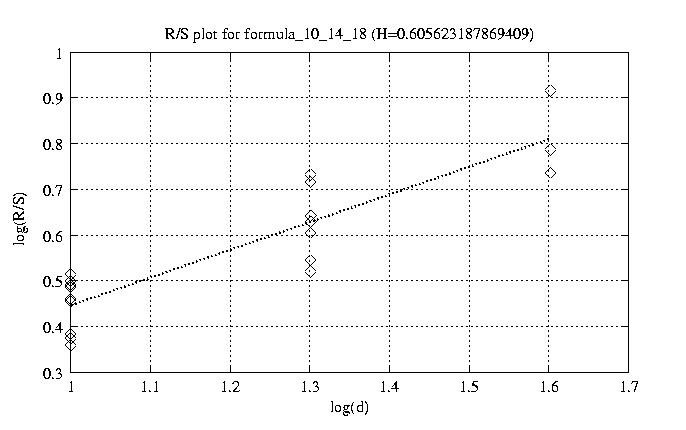

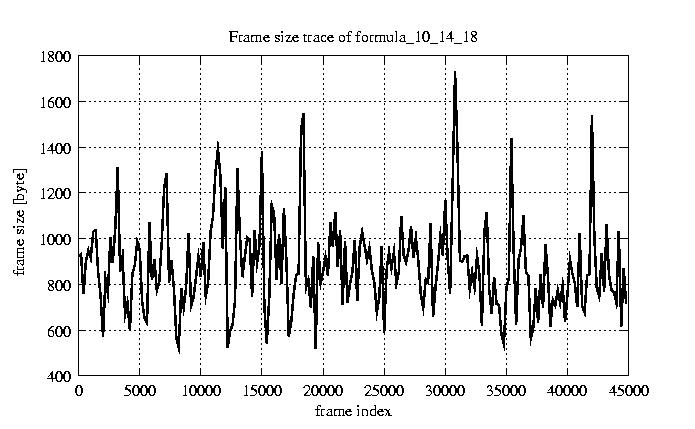

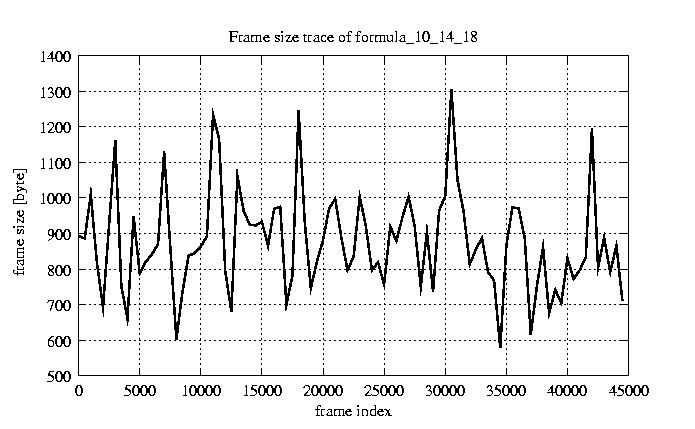

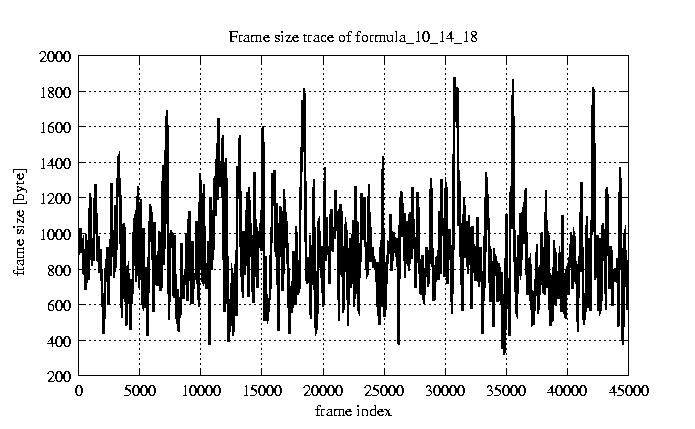

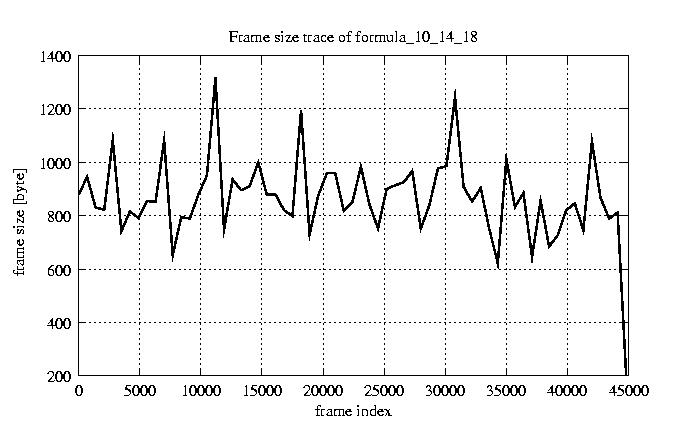

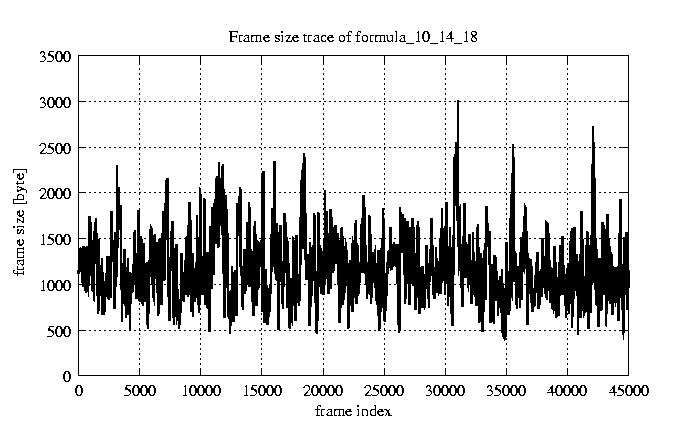

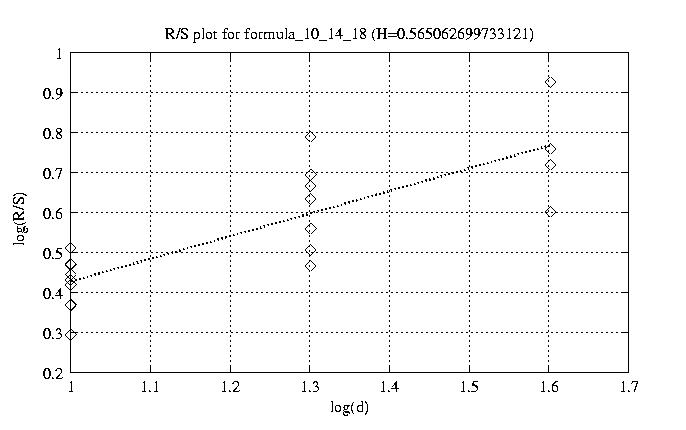

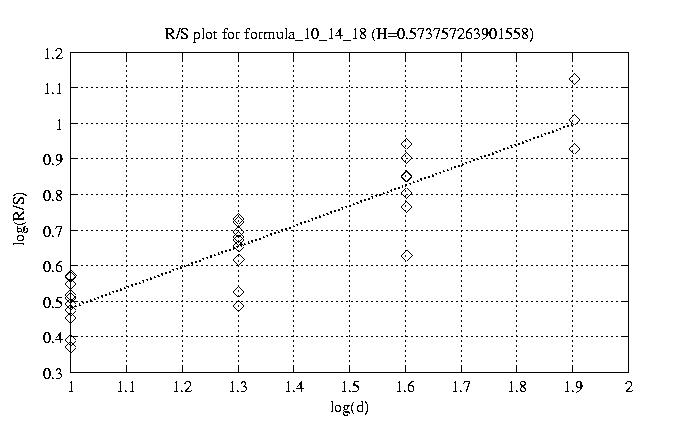

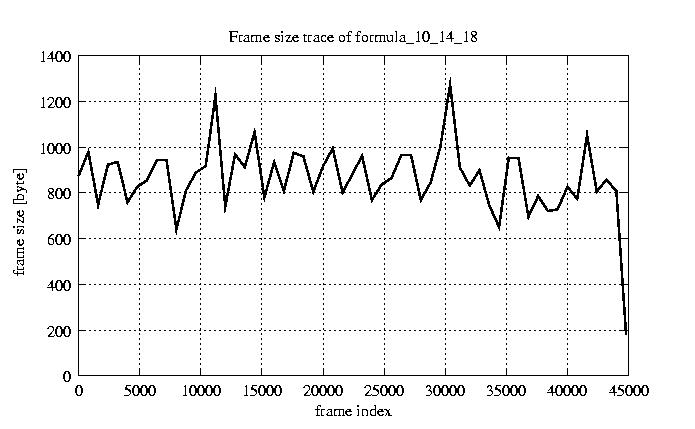

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.736 view view 12 0.739 view view 50 0.685 view view 100 0.586 view view 200 0.550 view view 300 0.512 view view 400 0.574 view view 500 0.674 view view 600 0.542 view view 700 0.565 view view 800 0.606 view view

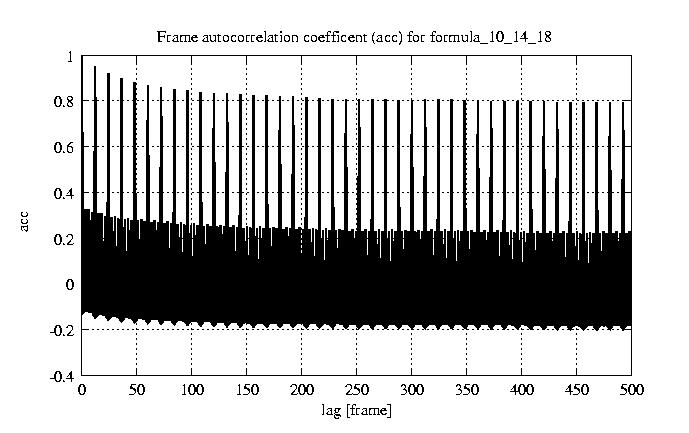

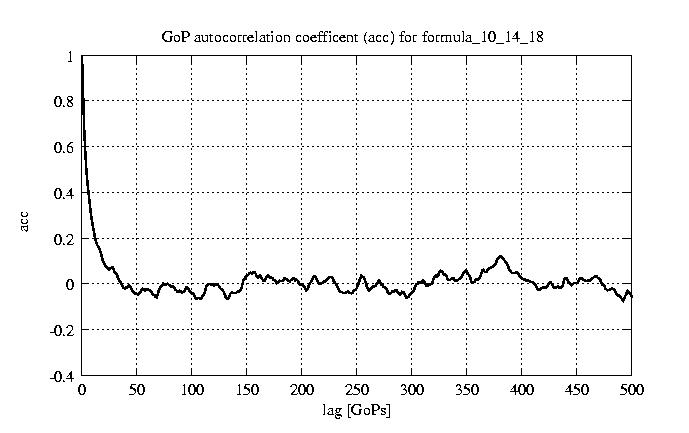

other plots	autocorrelation function of frames autocorrelation function of GoPs
