MP4 - Futurama
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 7.39 File Size byte 1.6e+08 Video run time msec 1.2e+06 # of Frames - 30334 mean frame size byte 5.1e+03 var frame size - 5.7e+06 CoV of frame size - 0.46 min frame size byte 95 max frame size byte 43986 Mean bit rate bit/sec 1e+06 Peak bit rate bit/sec 8.8e+06 Peak/Mean of bit rate - 8.55 GoP statistics # of GoPs - 2527 mean GoP size byte 6.2e+04 var GoP size - 3.2e+08 CoV of GoP size - 0.29 min GoP size byte 12599 max GoP size byte 240670 Mean bit rate bit/sec 1e+06 Peak bit rate bit/sec 4e+06 Peak/Mean of bit rate - 3.90 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

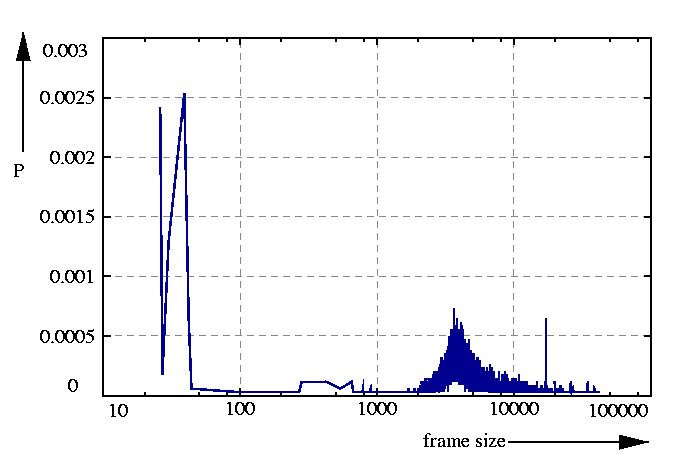

probability density function p

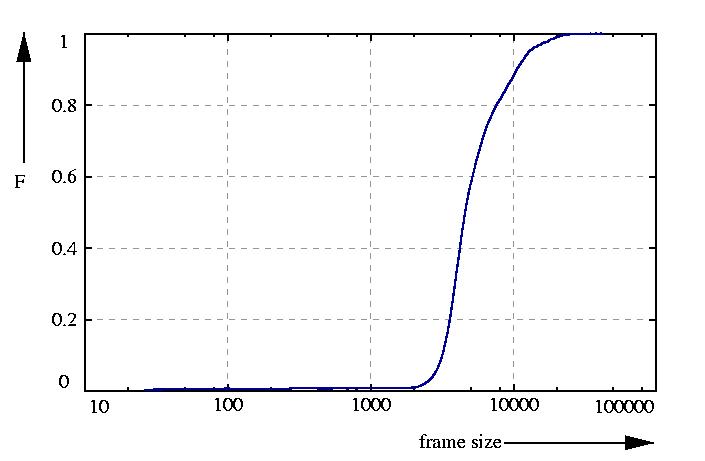

probability function F = sum p

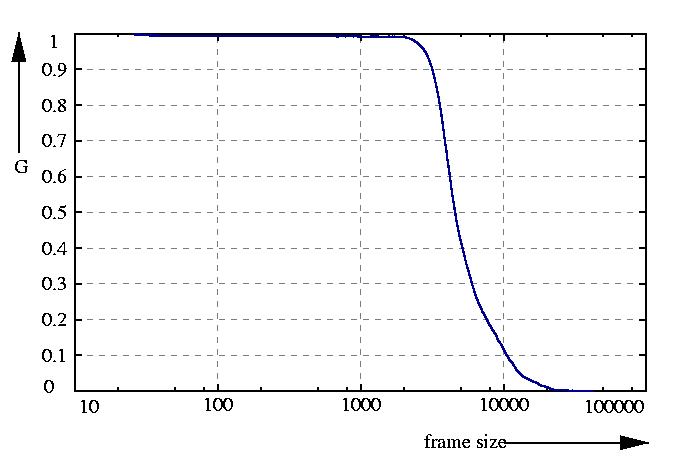

inverse probability function G = 1 - F

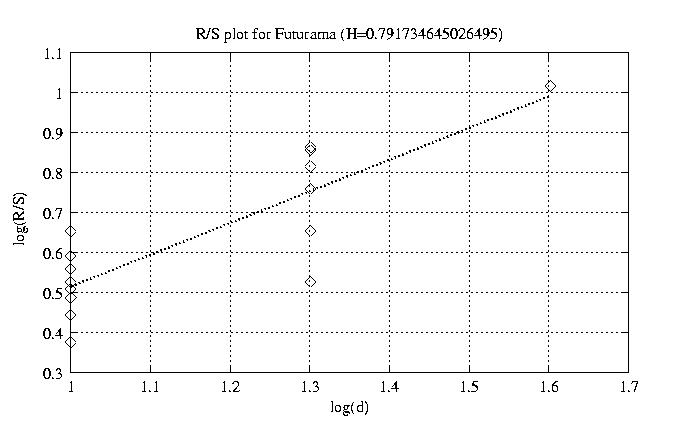

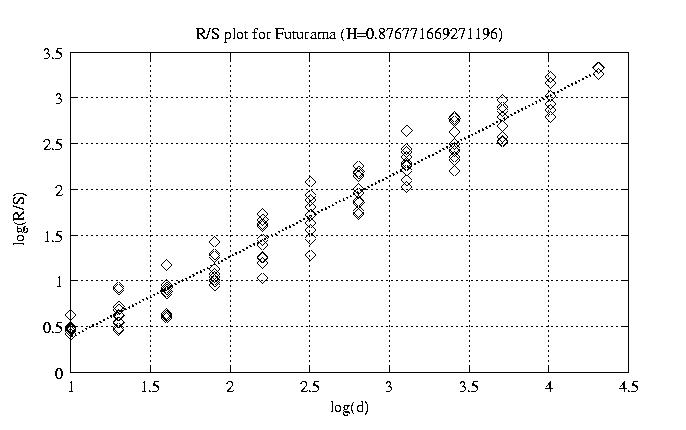

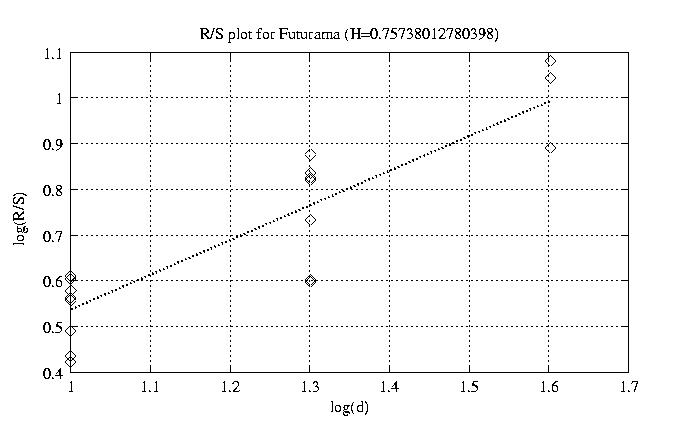

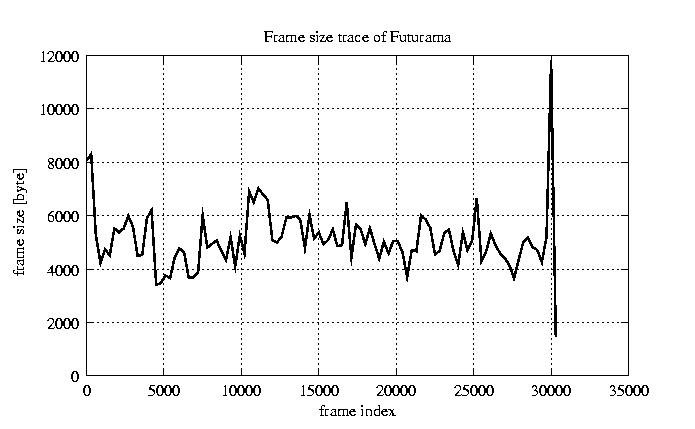

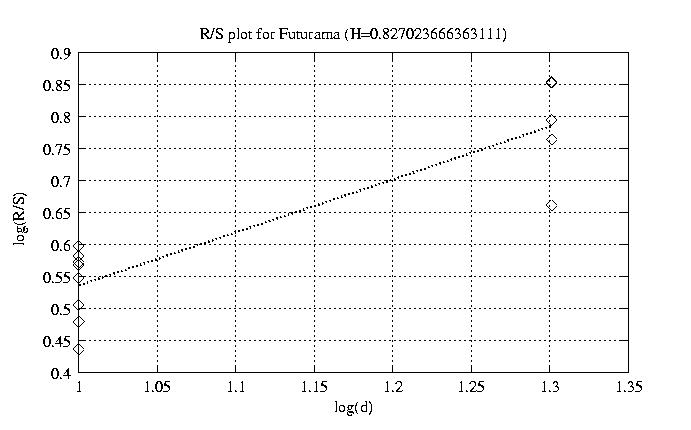

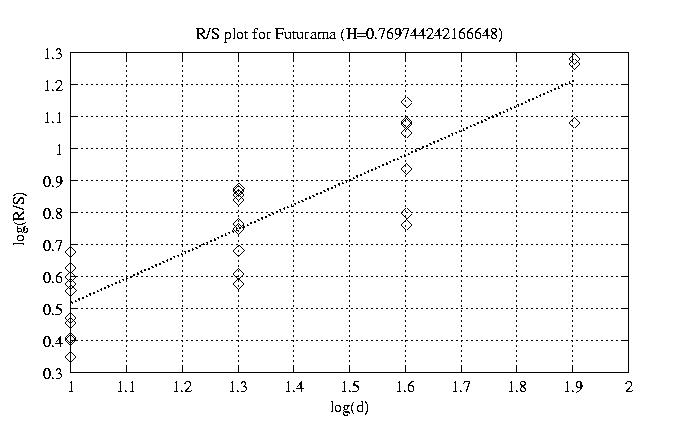

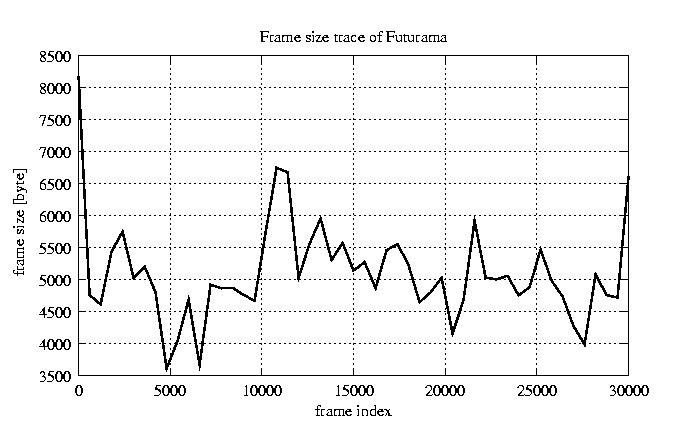

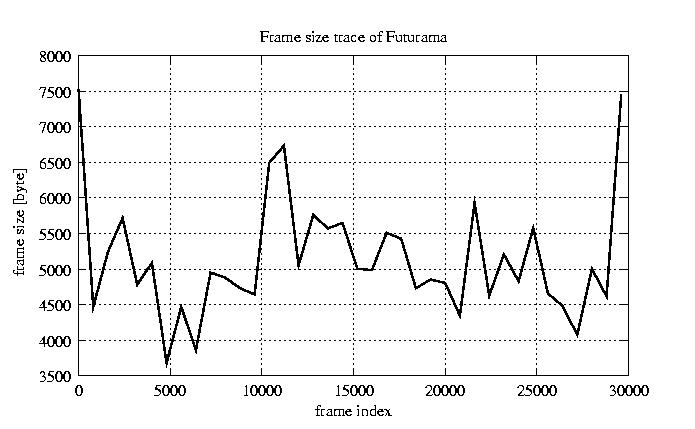

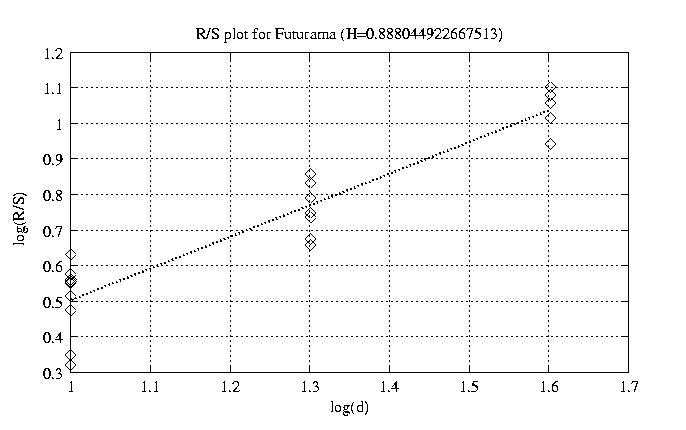

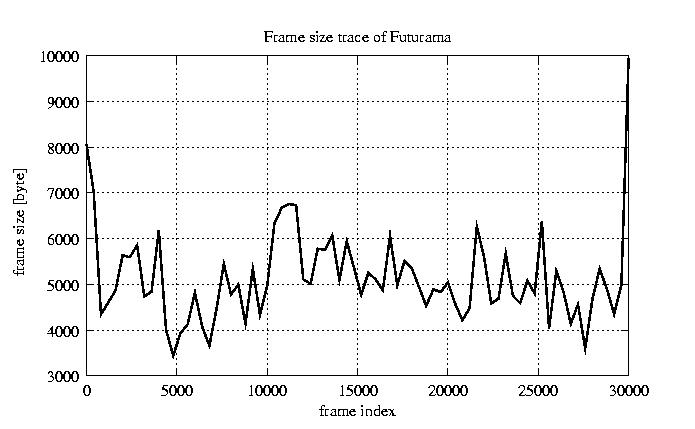

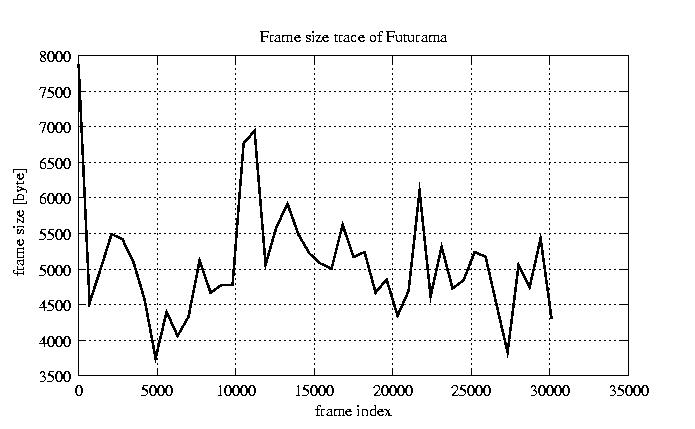

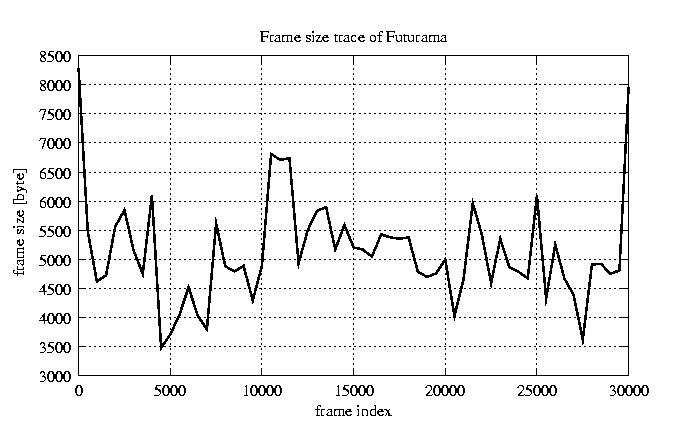

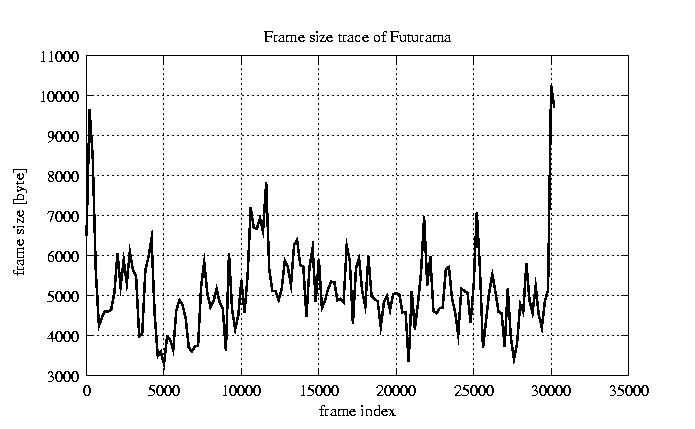

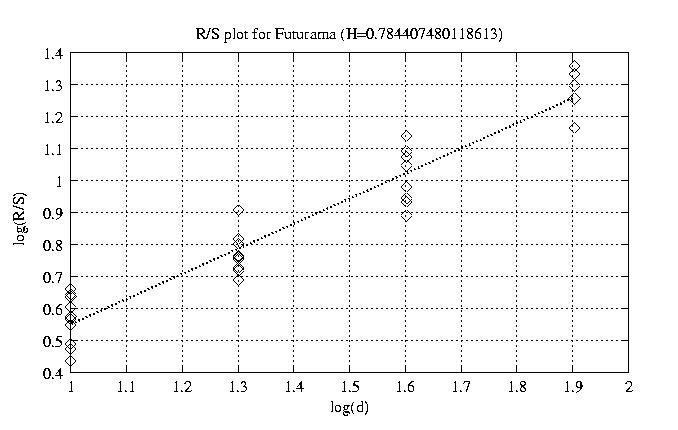

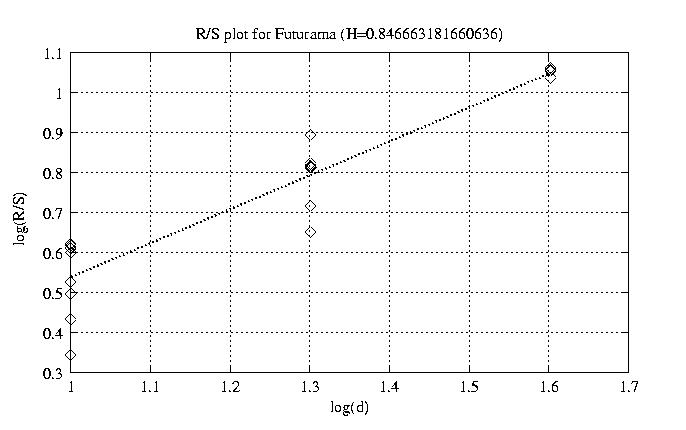

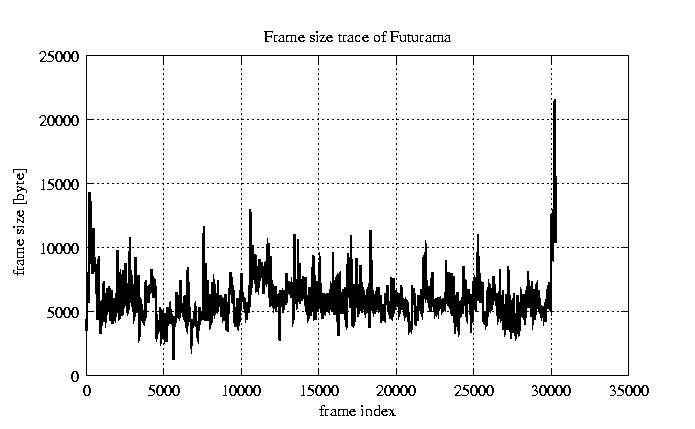

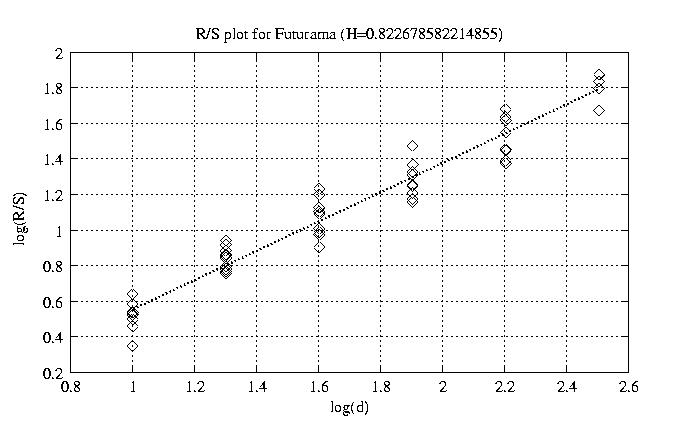

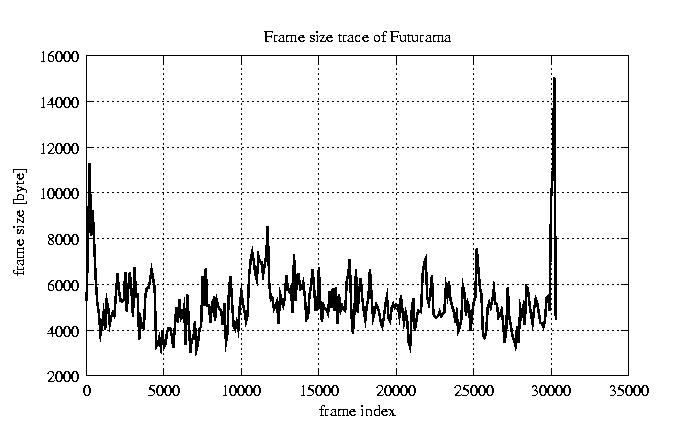

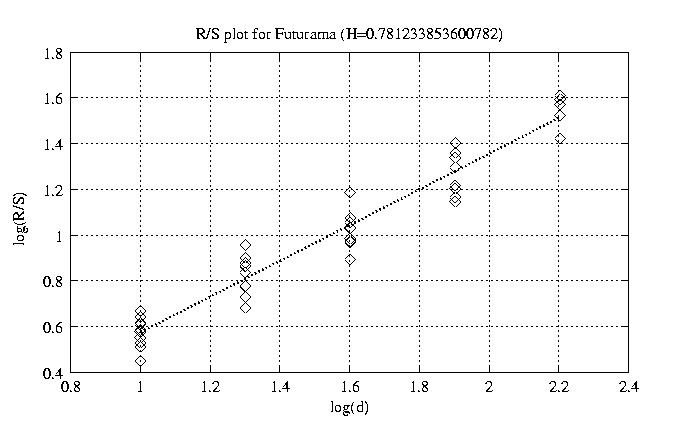

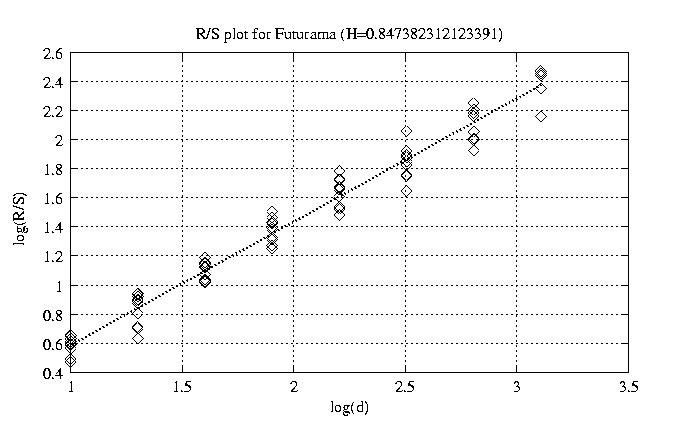

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.877 view view 12 0.847 view view 50 0.823 view view 100 0.781 view view 200 0.784 view view 300 0.770 view view 400 0.888 view view 500 0.847 view view 600 0.757 view view 700 0.792 view view 800 0.827 view view

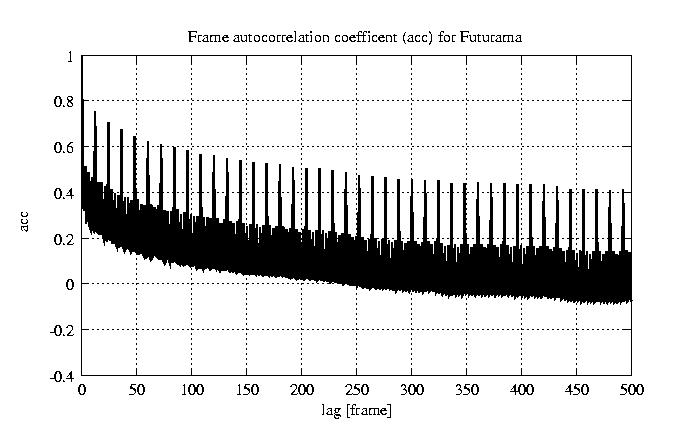

other plots	autocorrelation function of frames autocorrelation function of GoPs
