MP4 - South Park
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 44.91 File Size byte 2.6e+07 Video run time msec 1.2e+06 # of Frames - 30334 mean frame size byte 8.5e+02 var frame size - 1.3e+06 CoV of frame size - 1.33 min frame size byte 5 max frame size byte 21661 Mean bit rate bit/sec 1.7e+05 Peak bit rate bit/sec 4.3e+06 Peak/Mean of bit rate - 25.59 GoP statistics # of GoPs - 2527 mean GoP size byte 1e+04 var GoP size - 6.9e+07 CoV of GoP size - 0.82 min GoP size byte 1457 max GoP size byte 144313 Mean bit rate bit/sec 1.7e+05 Peak bit rate bit/sec 2.4e+06 Peak/Mean of bit rate - 14.21 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

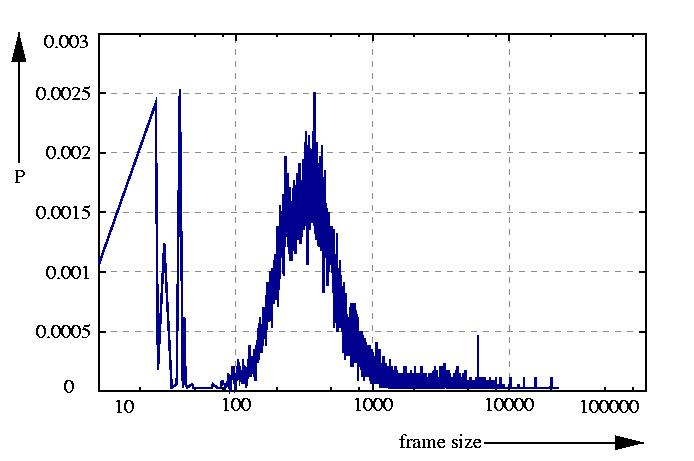

probability density function p
probability function F = sum p

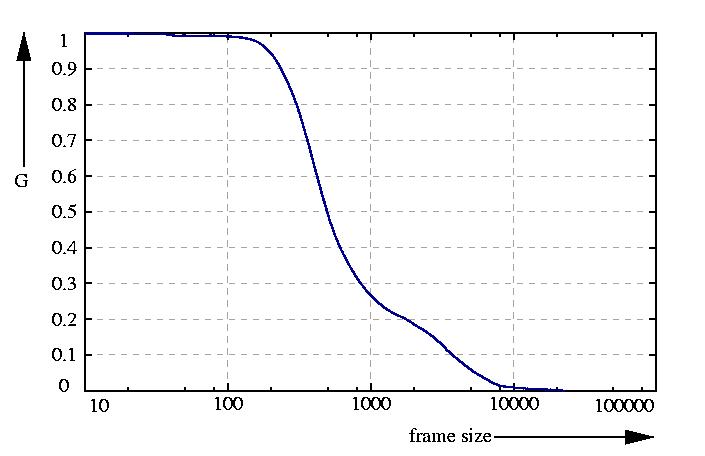

inverse probability function G = 1 - F

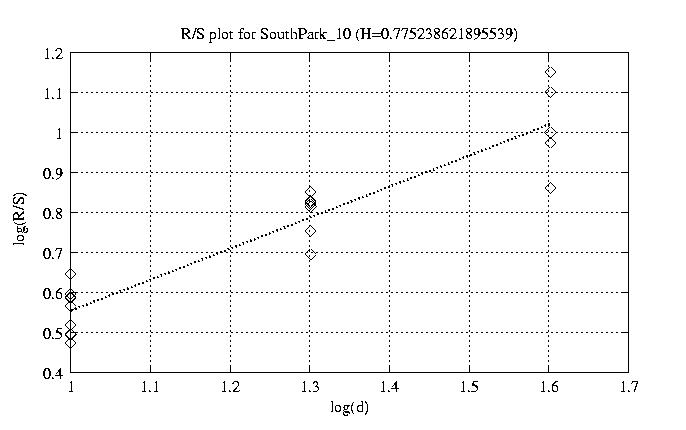

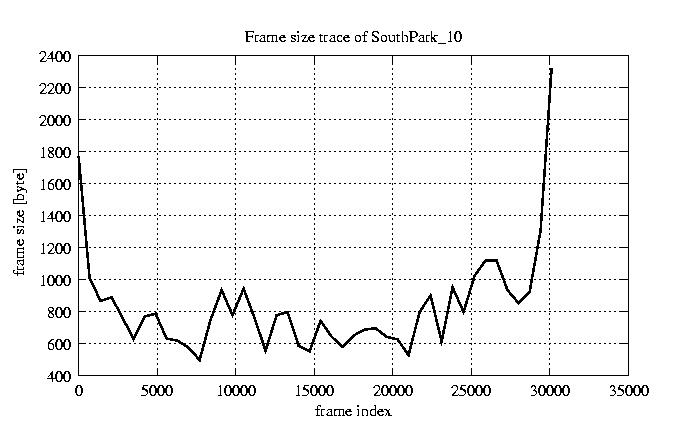

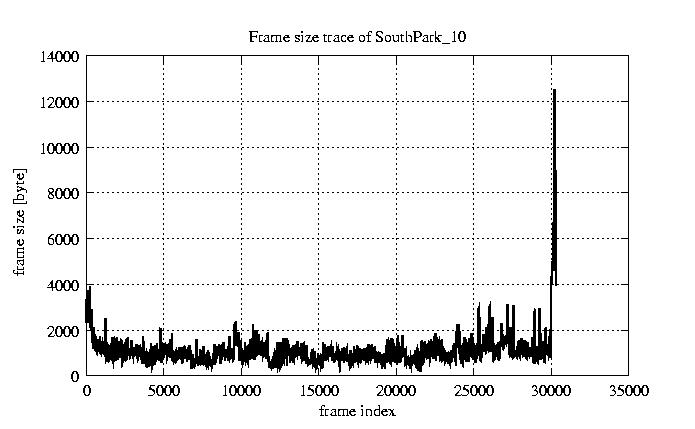

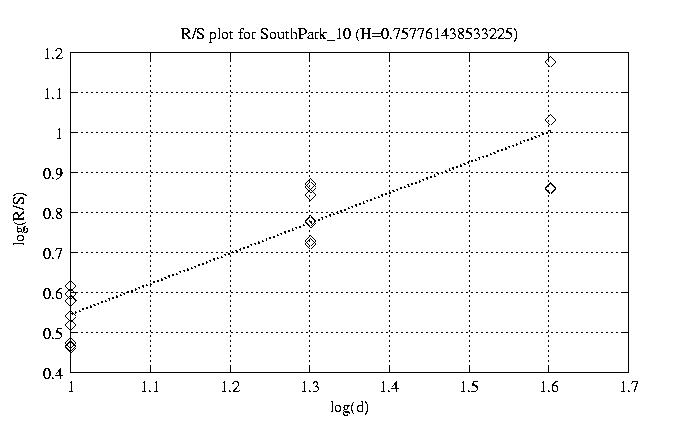

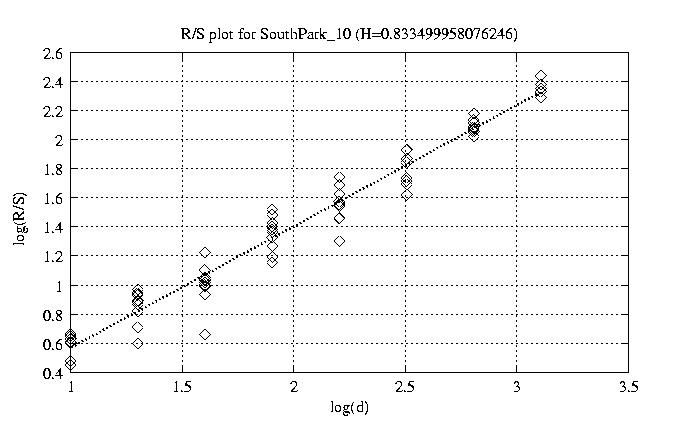

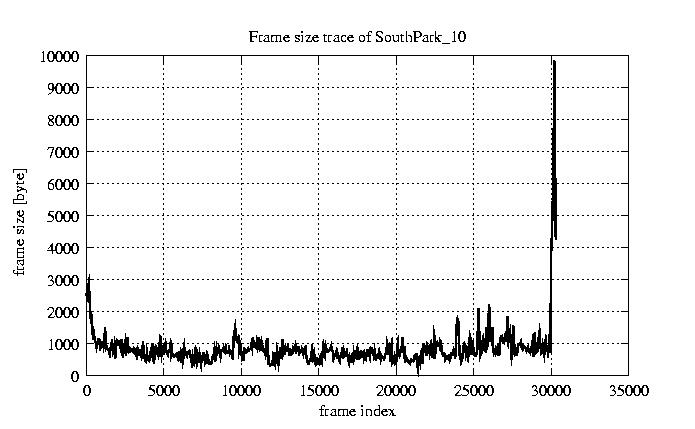

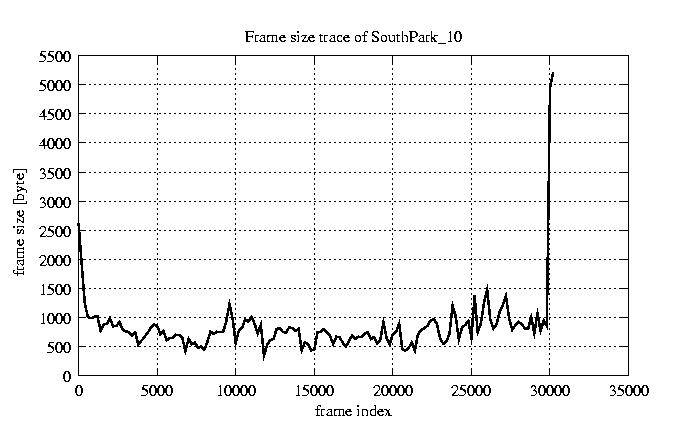

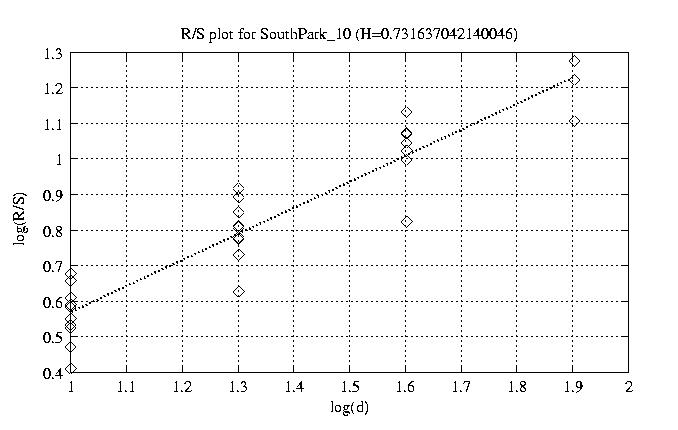

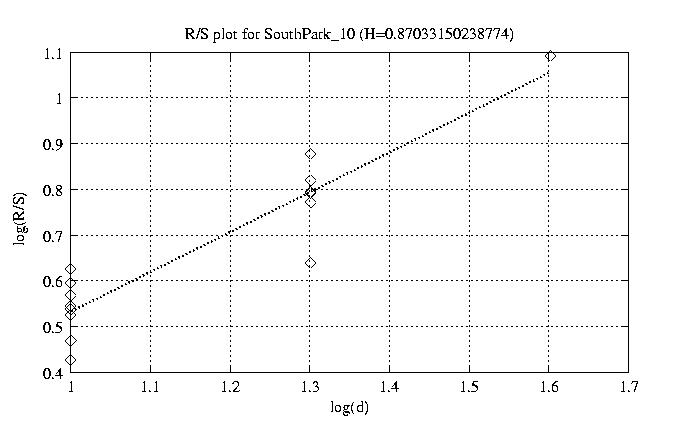

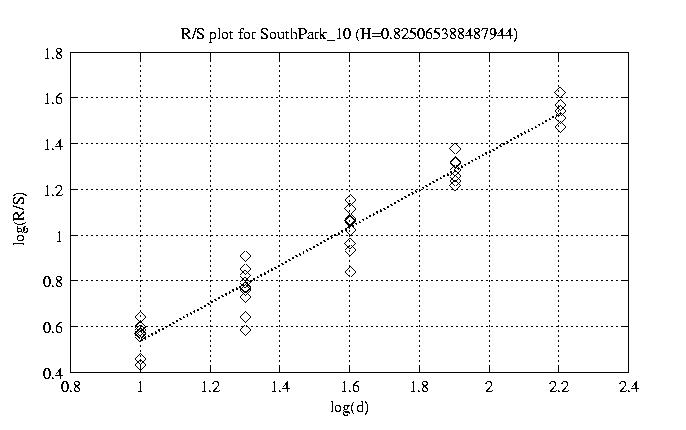

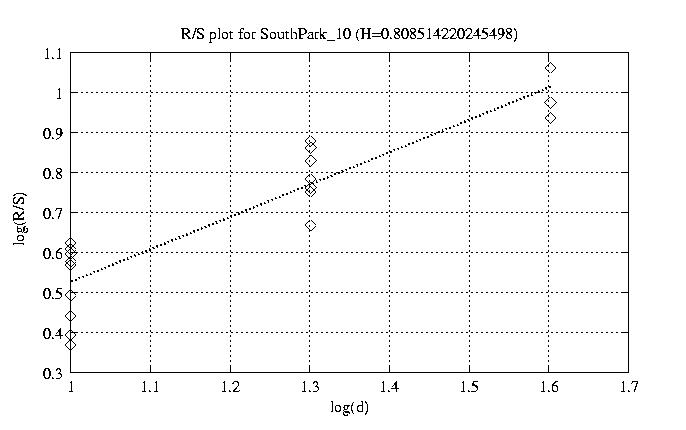

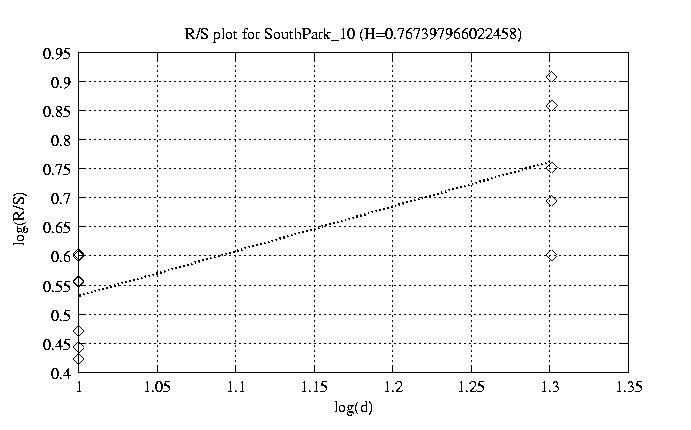

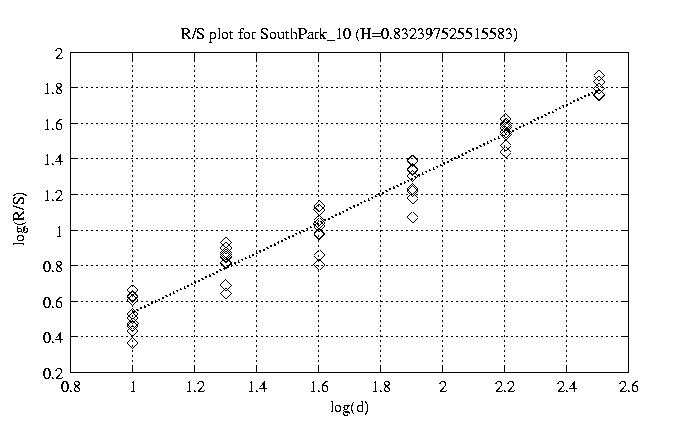

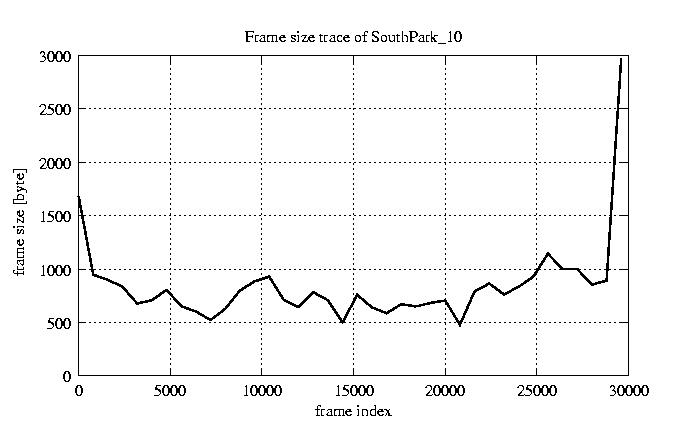

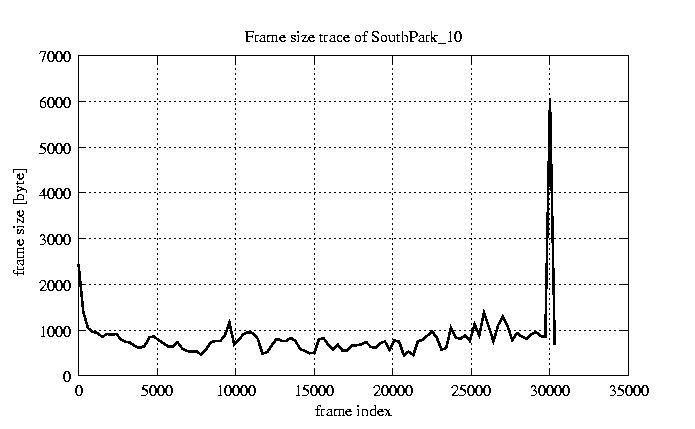

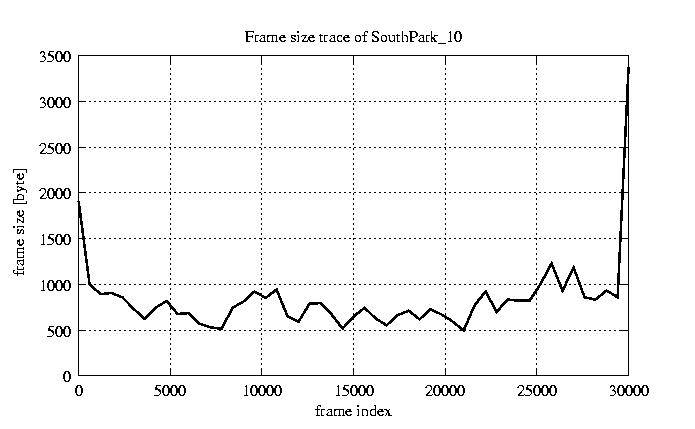

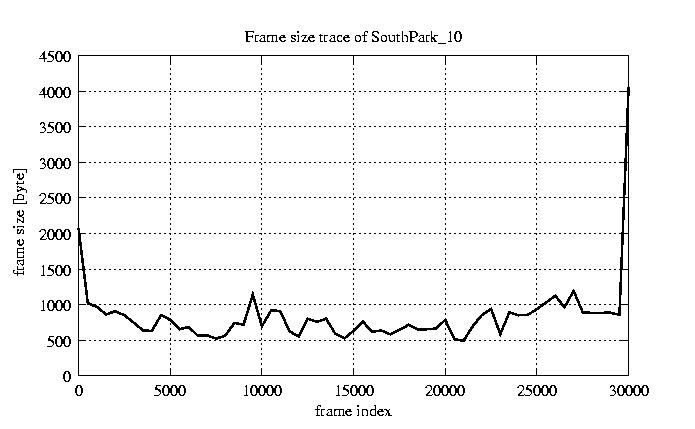

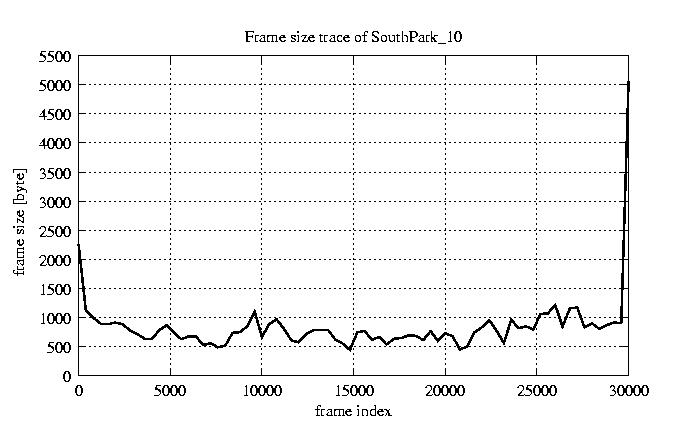

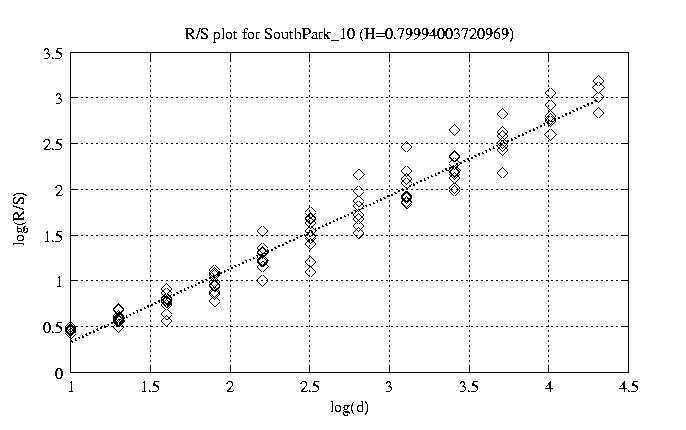

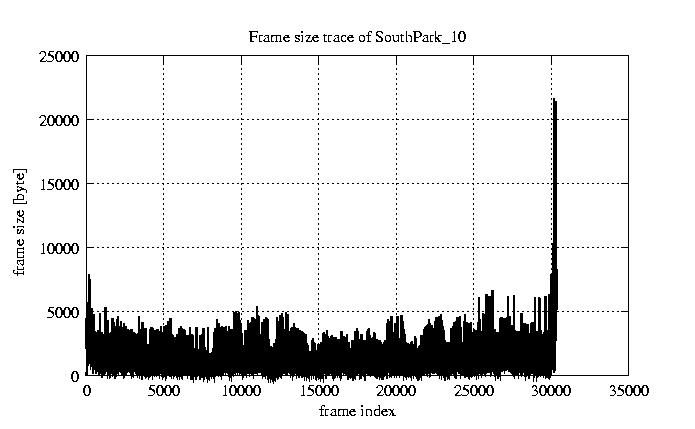

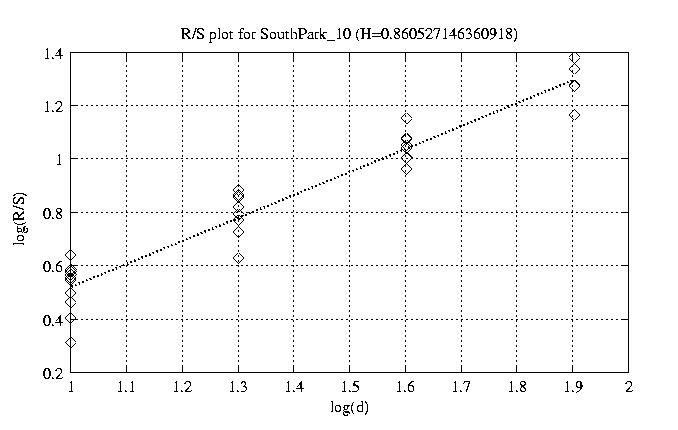

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.800 view view 12 0.833 view view 50 0.832 view view 100 0.825 view view 200 0.861 view view 300 0.732 view view 400 0.775 view view 500 0.758 view view 600 0.809 view view 700 0.870 view view 800 0.767 view view

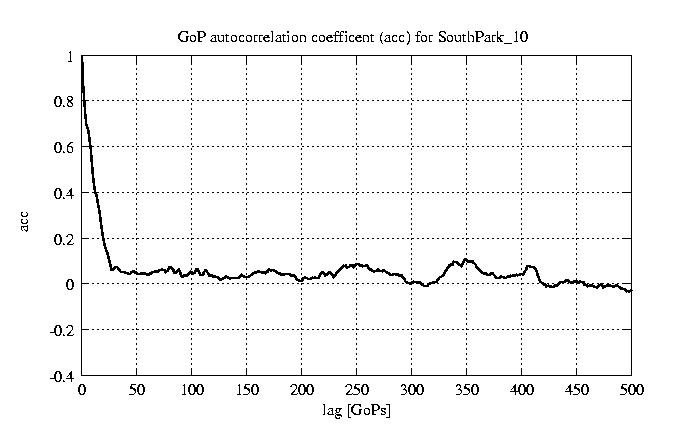

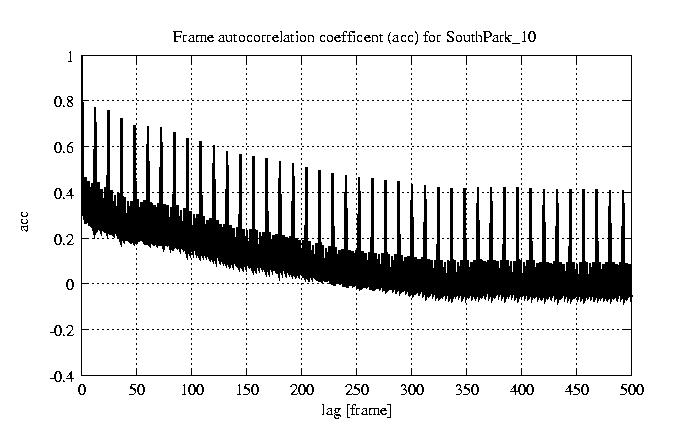

other plots	autocorrelation function of frames autocorrelation function of GoPs
