Video: bridge-close-2-0

Verbose Video Trace File view
Terse Video Trace File view
RAW Trace File view

Number of frames 1000
Total size [bit] 3601912
Time [s] 40
Min frame size [bit] 1288
Max frame size [bit] 21856
Mean frame size [bit] 3601.912
Frame size variance 26791639.2475035
Frame size coefficient of variantion 1.43703235090343
mean bit rate 90047.8
peak bit rate 874240
Peak to mean 9.70862142106748

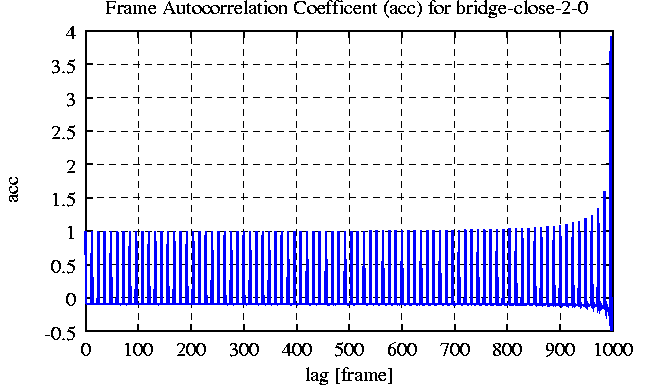

ACF plot view

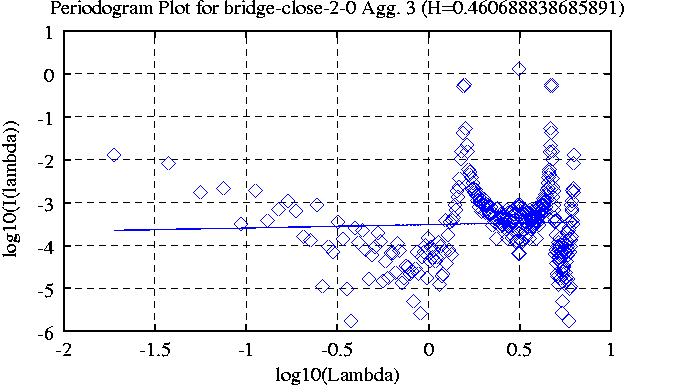

Periodogram plot, aggregation 3 view
Periodogram plot, aggregation 12 view
Periodogram plot, aggregation 24 view

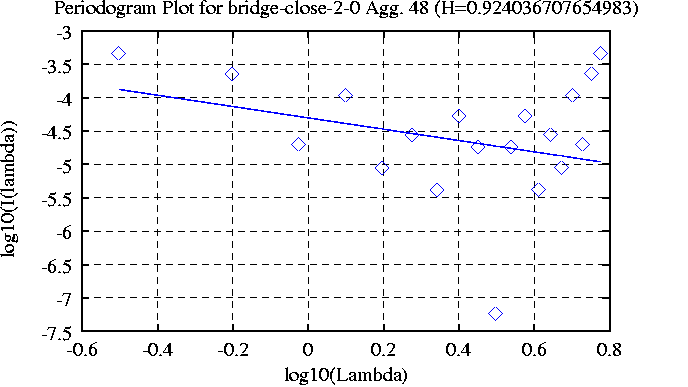

Periodogram plot, aggregation 48 view

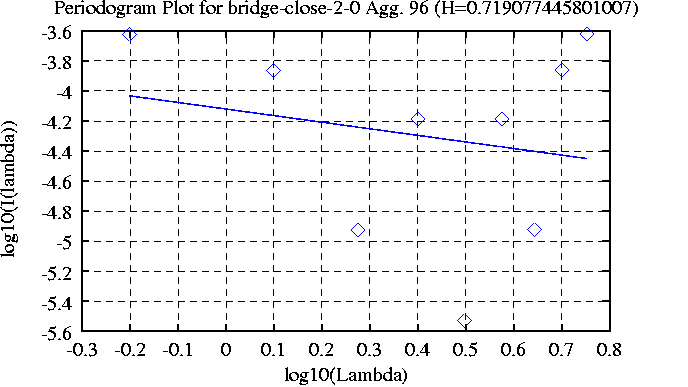

Periodogram plot, aggregation 96 view

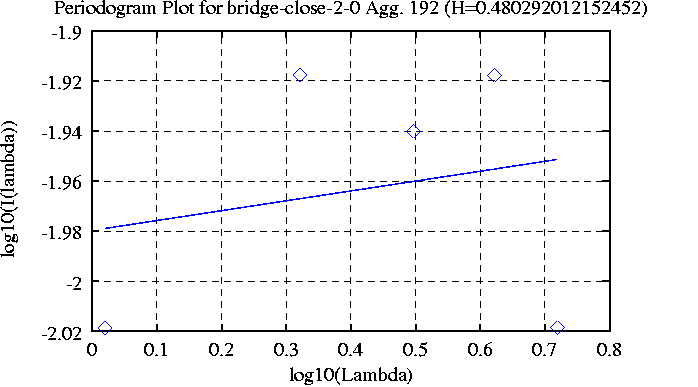

Periodogram plot, aggregation 192 view

Variance time plot view

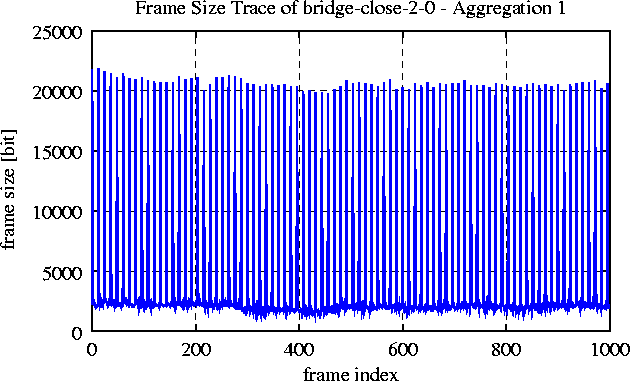

Frame trace aggregation 1 view

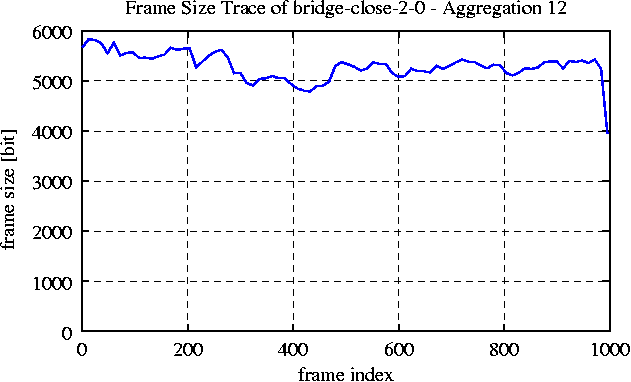

Frame trace aggregation 12 view

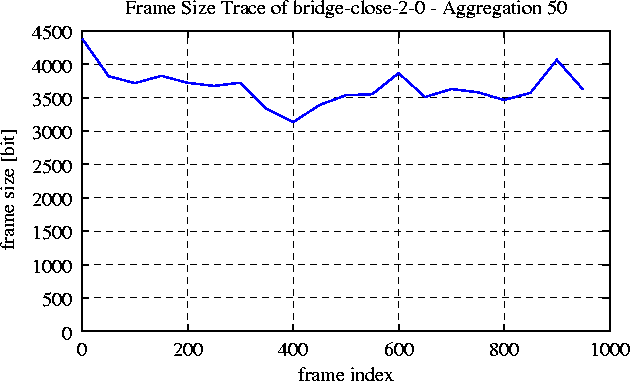

Frame trace aggregation 50 view

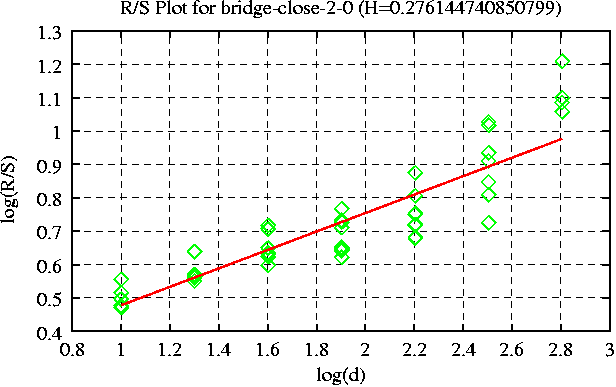

R/S aggregation 1, Hurst=0.276144740850799 view

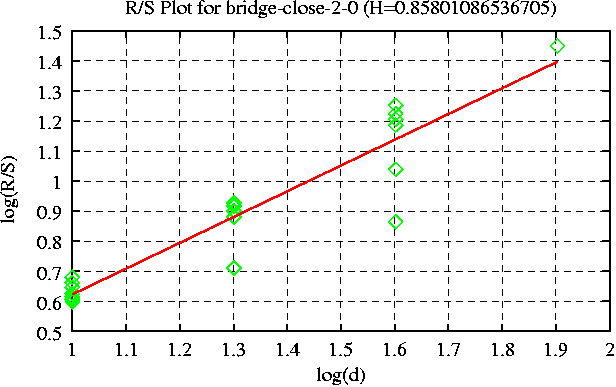

R/S aggregation 12, Hurst=0.85801086536705 view

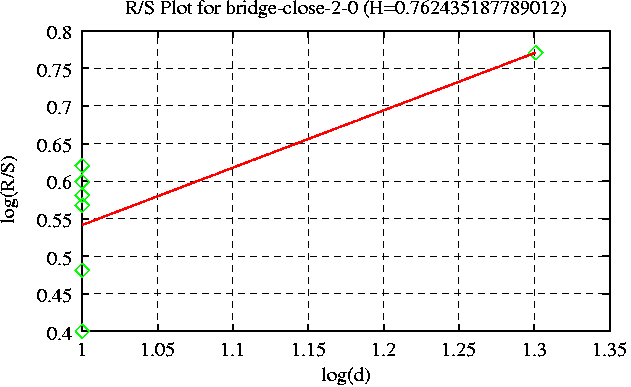

R/S aggregation 50, Hurst=0.762435187789012 view

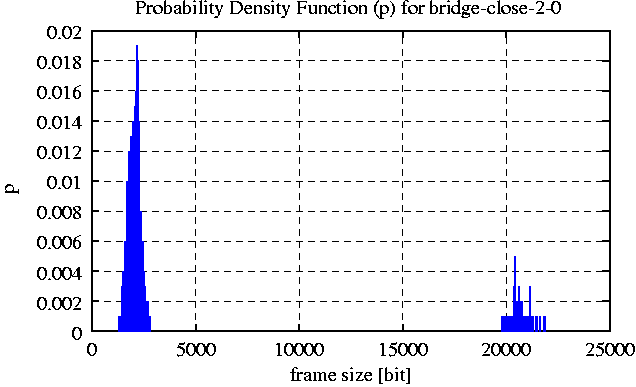

Probability mass function view

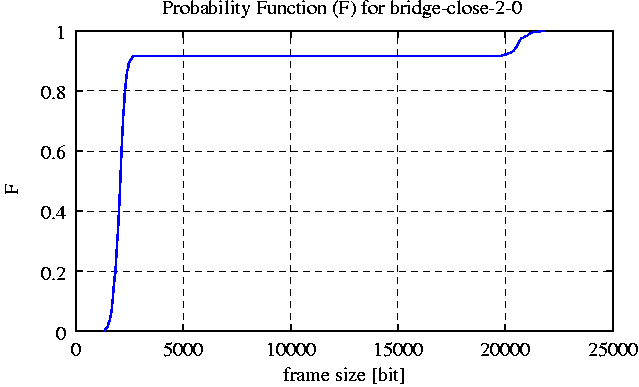

Cumulative distribution (F) view

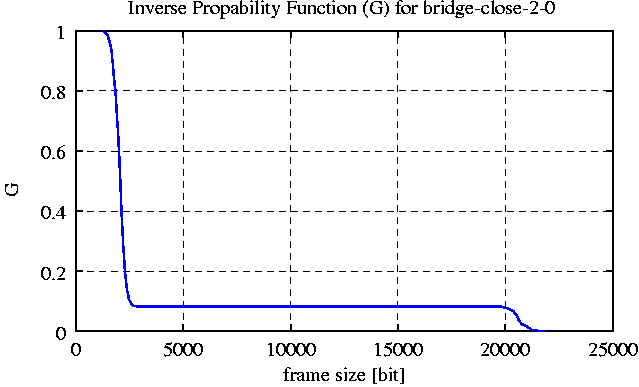

Inverse cumulative distribution (G) view
