Video: bridge-close-2-0

Verbose Video Trace File view
Terse Video Trace File view
RAW Trace File view

Number of frames 1000
Total size [bit] 16270768
Time [s] 40
Min frame size [bit] 8592
Max frame size [bit] 70096
Mean frame size [bit] 16270.768
Frame size variance 219572431.073249
Frame size coefficient of variantion 0.910711566825284
mean bit rate 406769.2
peak bit rate 2803840
Peak to mean 6.89295059704619

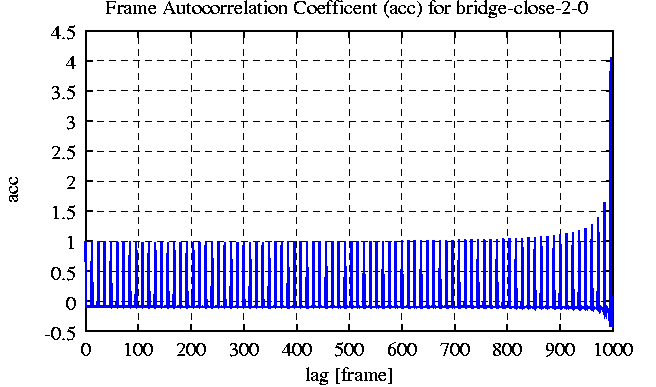

ACF plot view

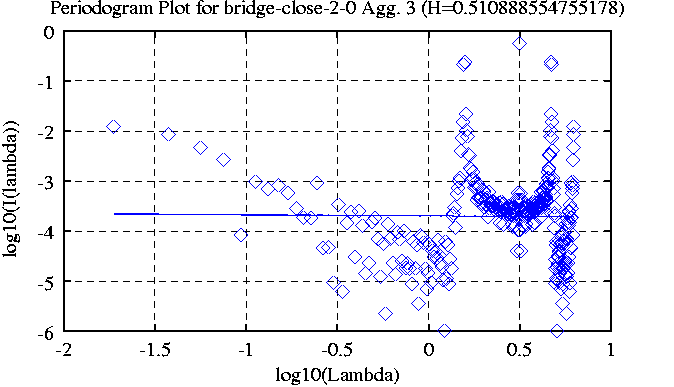

Periodogram plot, aggregation 3 view

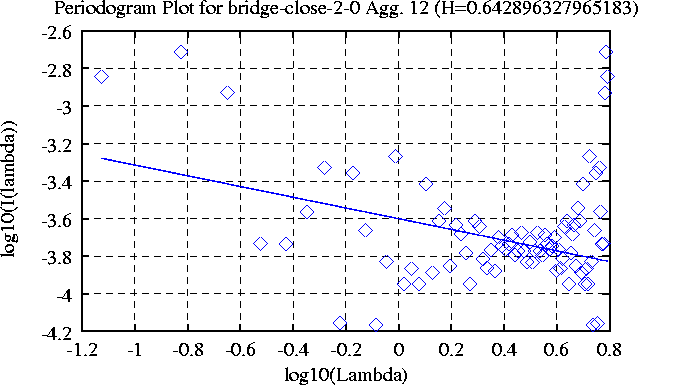

Periodogram plot, aggregation 12 view

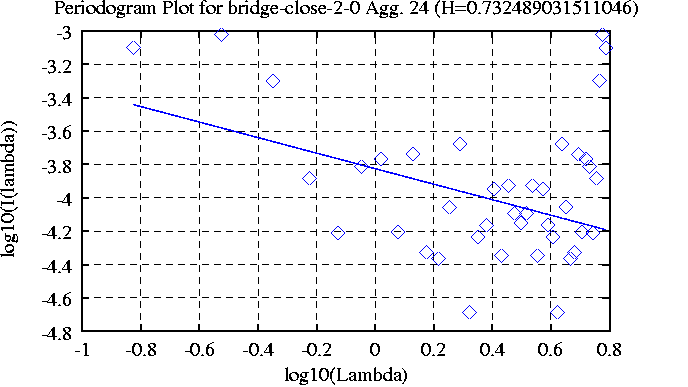

Periodogram plot, aggregation 24 view

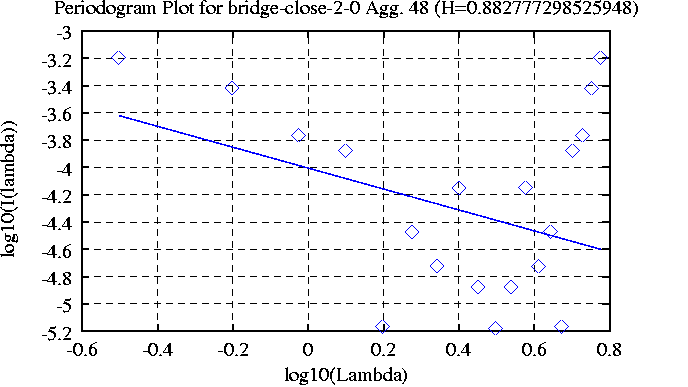

Periodogram plot, aggregation 48 view

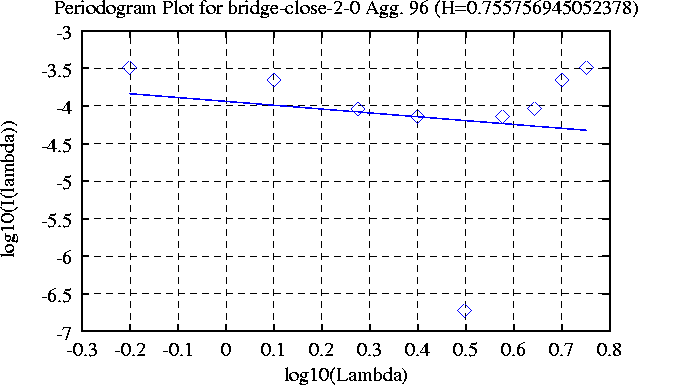

Periodogram plot, aggregation 96 view

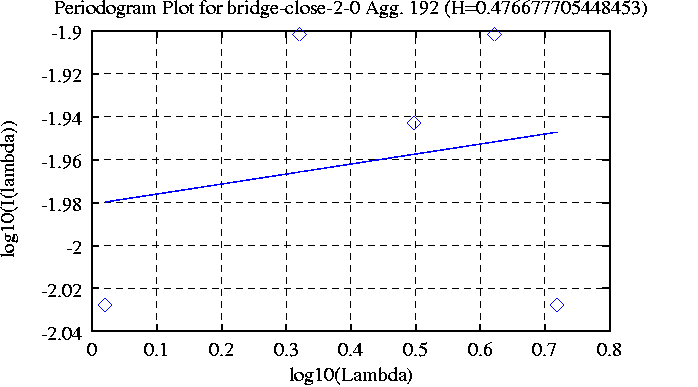

Periodogram plot, aggregation 192 view

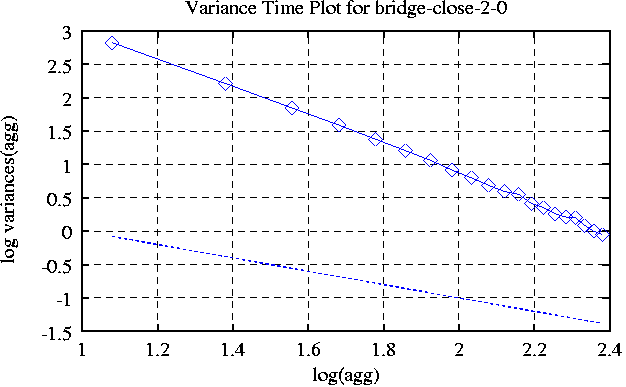

Variance time plot view

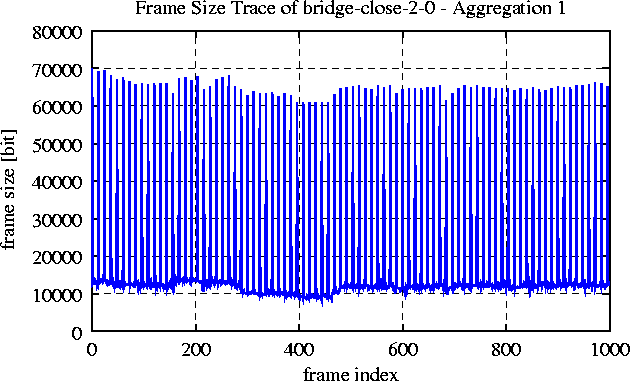

Frame trace aggregation 1 view

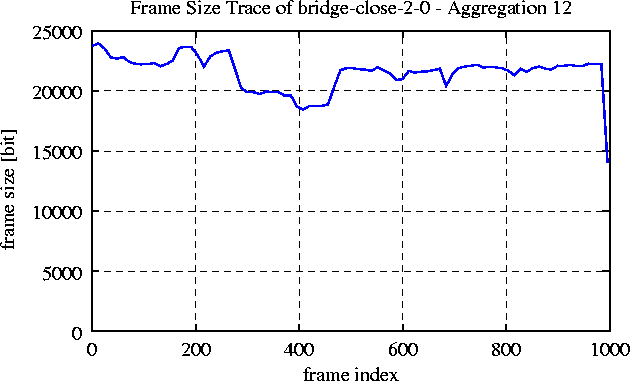

Frame trace aggregation 12 view

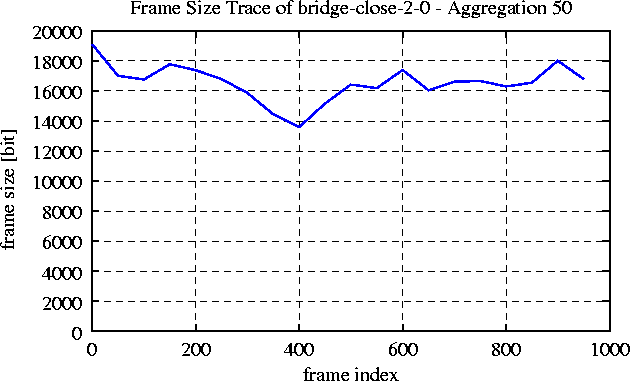

Frame trace aggregation 50 view

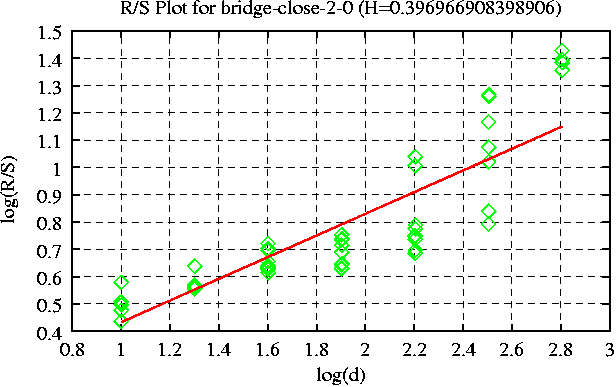

R/S aggregation 1, Hurst=0.396966908398906 view

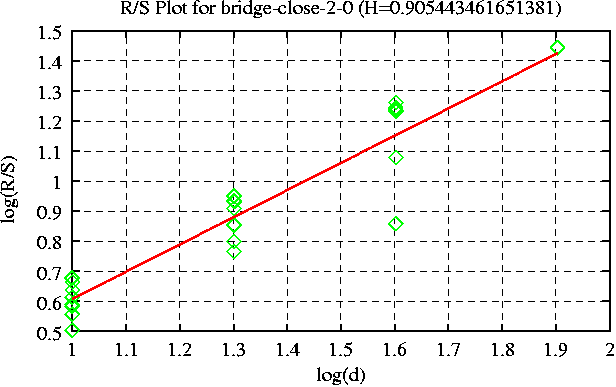

R/S aggregation 12, Hurst=0.905443461651381 view

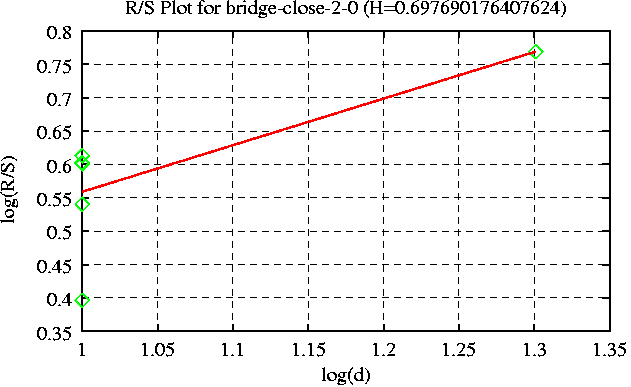

R/S aggregation 50, Hurst=0.697690176407624 view

Probability mass function view

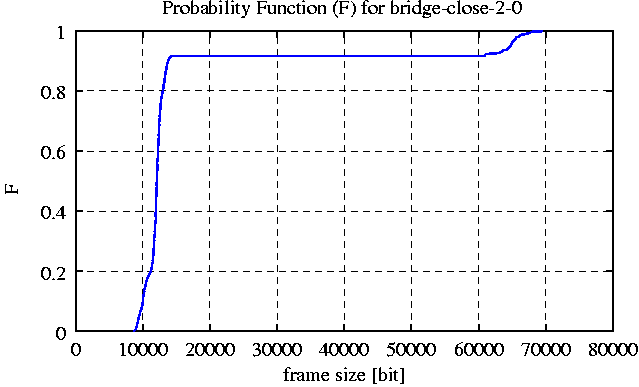

Cumulative distribution (F) view

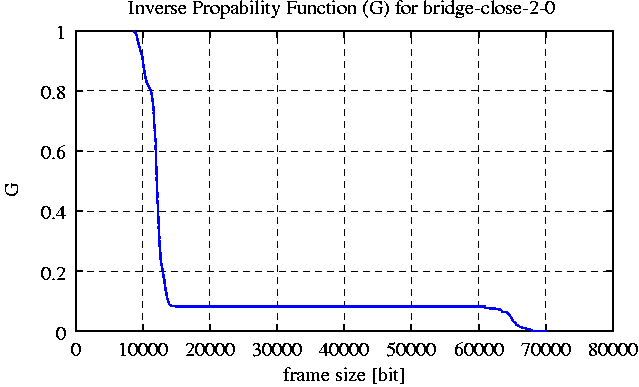

Inverse cumulative distribution (G) view
